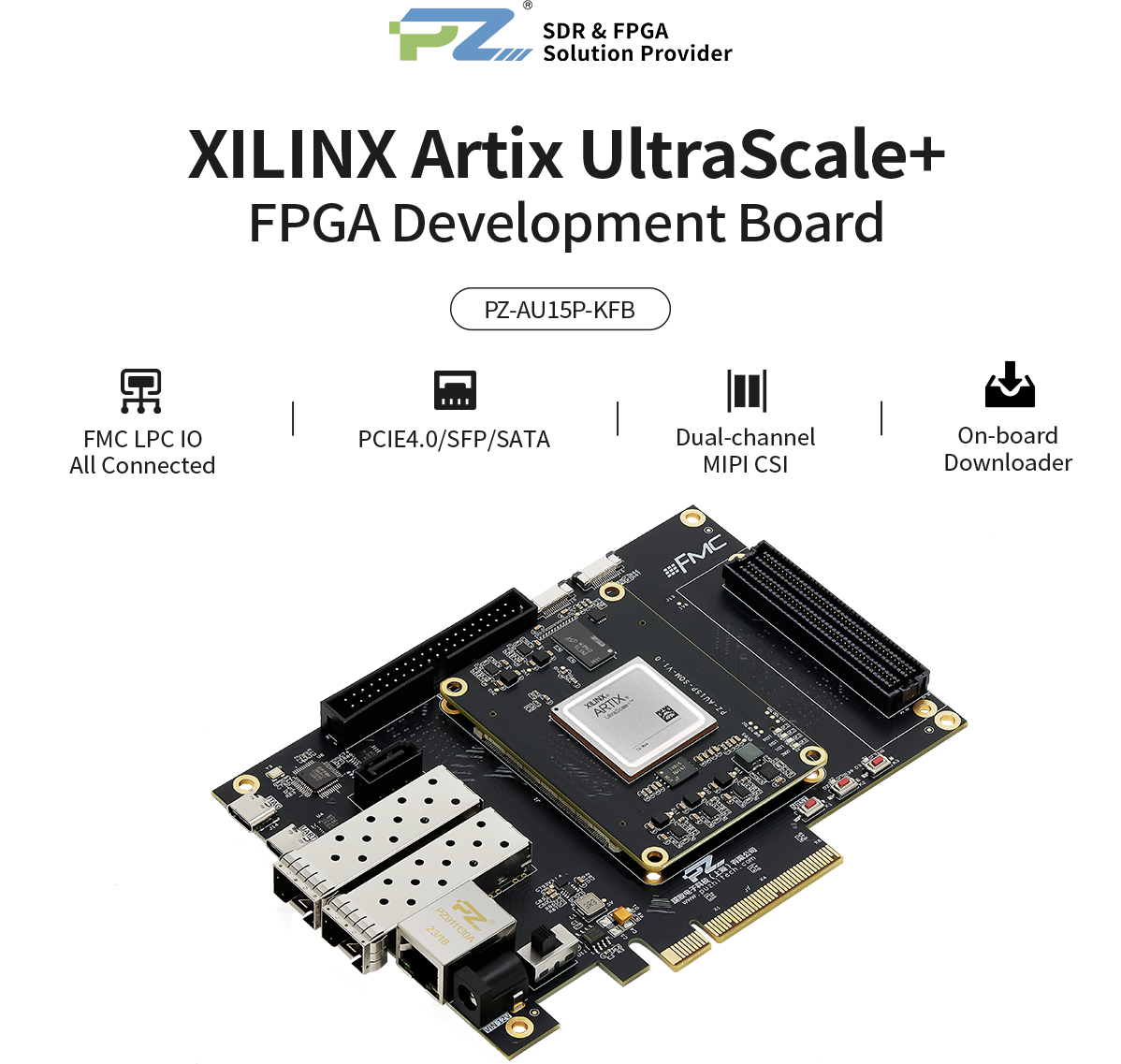

Puzhi FPGA Artix UltraScale+ AU15P Development Board
- Artix UltraScale+ FPGA architecture/logical unit 170k
- 1GB DDR4，256Mb QSPIFLASH，Power supply/current 12V/1A
- Core board 168P connector connection，size 75*55mm
- Reserved ports Gigabit Ethernet、SATA、FMC、SFP、PCIE，etc
- Provide perfect hardware reference & software rich routines，help product development

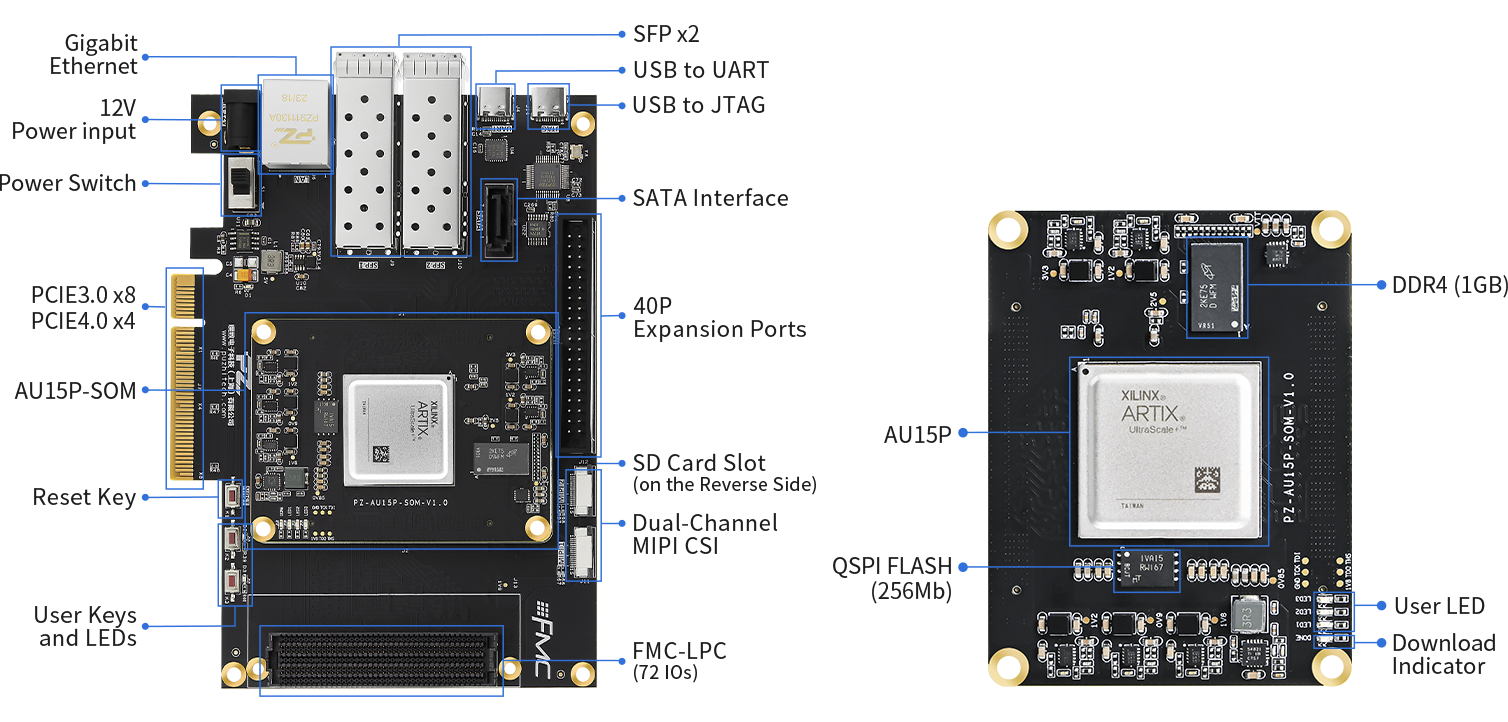

Interface Function Display
Product Parameters
Core Board Main Parameters
FPGA Dev. Board | PZ-AU15P-KFB |
FPGA Chip | XCAU15P-2FFVB676I |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 170K |
Lookup Tables | 78000 |
Flip-Flops | 156000 |
DSP Slices | 576 |
BLOCK RAM | 5.1Mb |
DDR4 | 1GB/16bit Width |
QSPI FLASH | 256Mb, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI, The Default Boot Mode is QSPI |
User LED | 3 |
Number of GTH | 12 Pairs of TX/RX |
Number of IO | 168 Single-end: 96 IOs Levels fixed at 1.2V/ 1.8V (Default 1.8V) 72 IOs Levels 1.8/2.5/3.3V Adjustable (Default 3.3V) |
Crystal Oscillator | 200MHz Differential Crystal for FPGA 125MHz Differential Crystal for the GT Transceiver Reference Clock |
Core Board Form Factors | 2.95 inch x 2.17 inch (75 mm x 55mm) |
Interfaces and Function
JTAG Downlaoder | 1 |
UART | 1 |
SD Card Slot Interface | 1 |
Gigabit Ethernet | 1 |
LEDs, Keys | 2 LEDs, 2 Keys |
SFP Interface | 2 |
PICE3.0/4.0 | PCIE3.0 x 8 Interface or PCIe4.0 x 4 Interface |
Voltage / Current | 12V/1A |
Board Form Factors | 5.83 inch x 4.21 inch (148 mm x 107mm) |
Technology | Black Matte, Immersion Gold Process |
40Pin Expansion Port | 32 Single-ended/16 Differential pairs Reserve one 40-pin 0.1 inch Expansion Port, to Connect with Puzhi Modules (AD/DA, Camera, LCD)，The expansion port including 5V power supply，3.3V power supply, 6 Ground, 32 IOs |

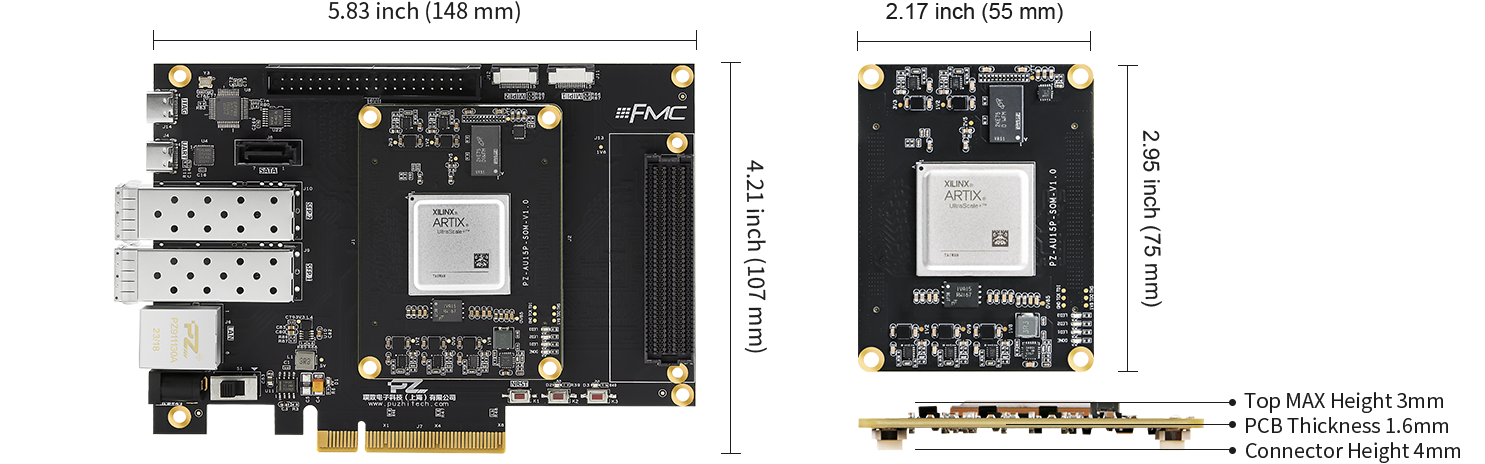

Product Dimensions
Product Packages

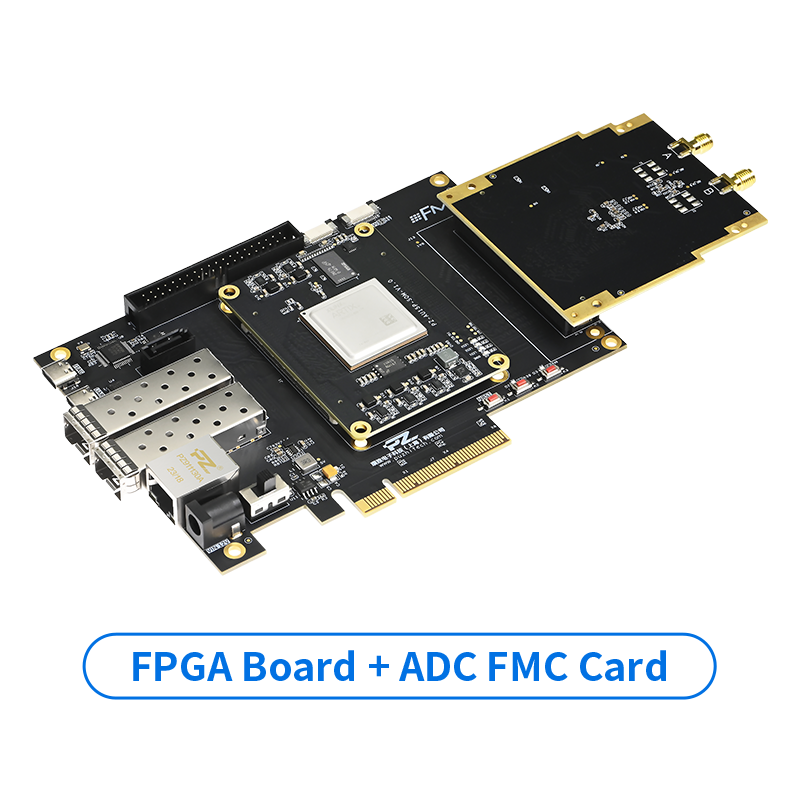

FMC Subcard Display

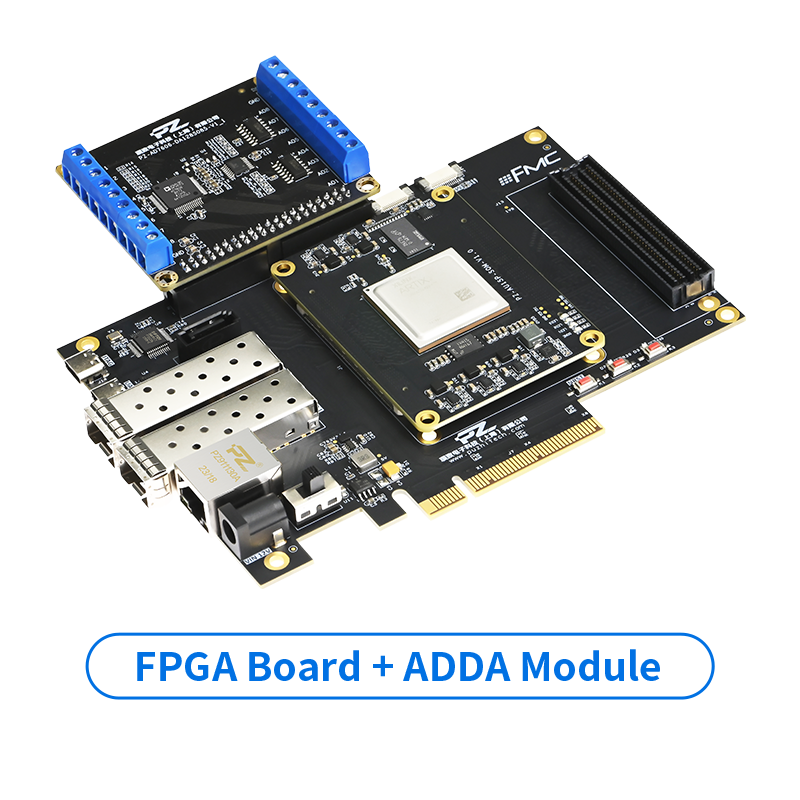

Other Subcard Display

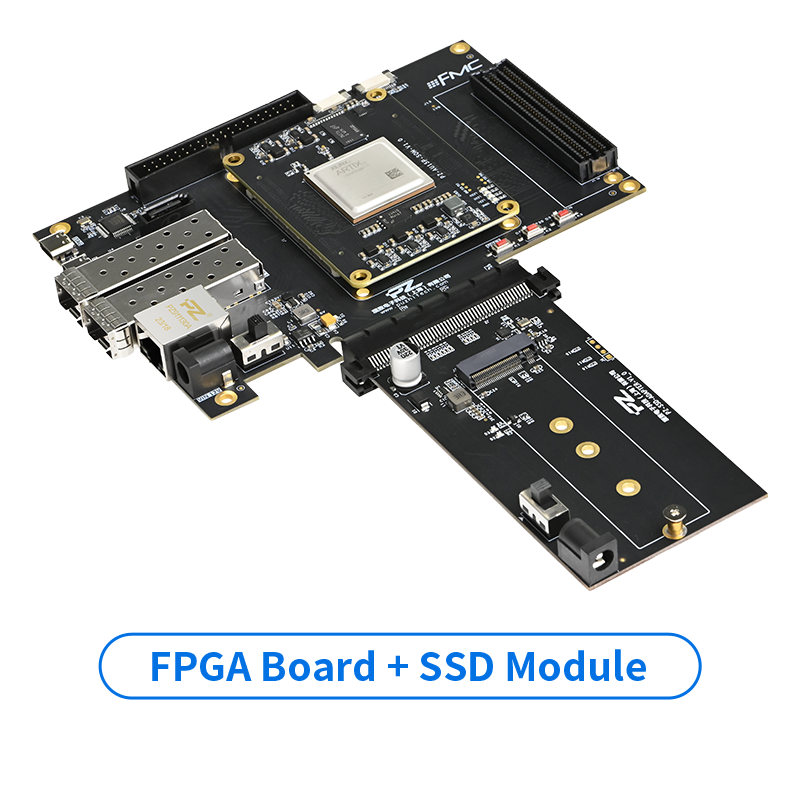

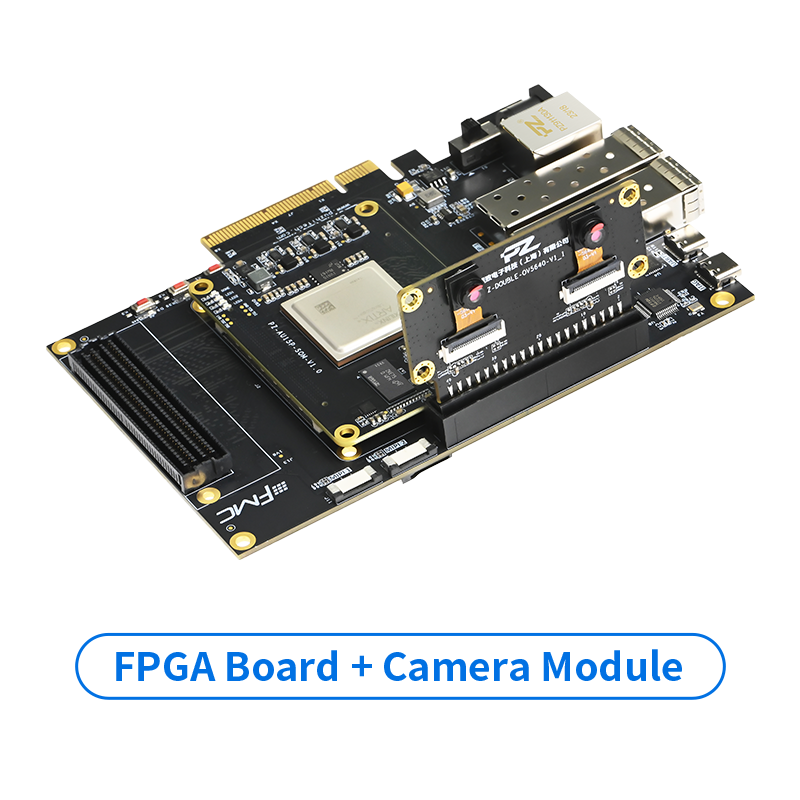

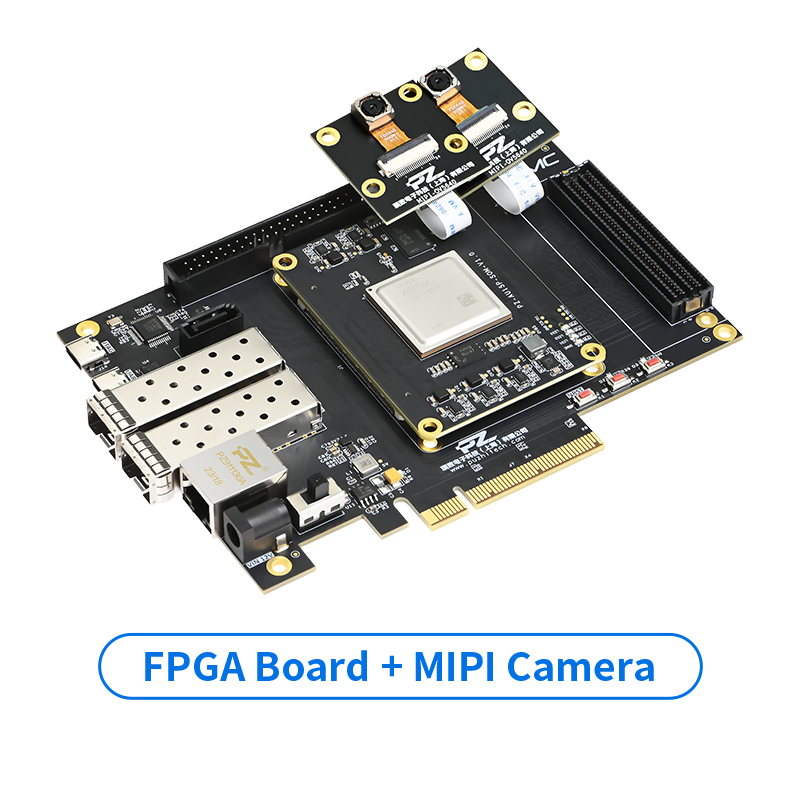

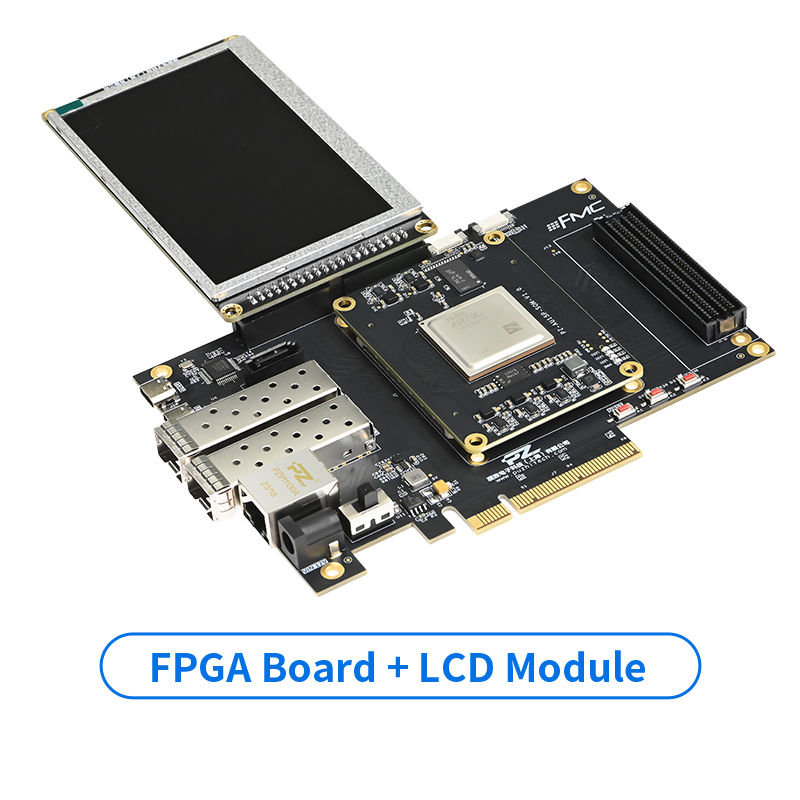

Supporting Display
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
- 1
FPGA Logic Demos
- 01.
Vivado Installation
- 02.
FLASH Curing
- 03.
LED Flashing
- 04.
PWM Control of LED
- 05.
Key Demos
- 06.
FPGA on-chip RAM Read and Write
- 07.
FPGA on-chip ROM Read and Write
- 08.
FPGA on-chip PLL Configuration
- 09.
FPGA on-chip FIFO Usage
- 10.
DDR3 Control Read and Write on the FPGA Side
- 11.
I2C Read and Write E2PROM
- 12.
Serial Port Transmit and Receive
- 13.
SD Card Read and Write
- 14.
AD_DA Conversion Demos
- 15.
LCD Color Bar Display
- 16.
LCD Output Picture
- 17.
SD Card to Read BMP Pictures LCD Display
- 18.
Gigabit UDP based on RTL8211
- 19.
SFP Bit Error Rate Test
- 20.
PCIE Testing
- 21.
Aurora Communication
- 22.
High-speed ADC-AD9642 Acquisition (250MSPS)
- 23.
UDP High-speed Transmission ADC Acquisition Date
- 24.
High-speed ADC-AD9643 LCD Display
- 25.
UDP Transmission of OV5640 Image for Computer Display
- 01.
- 2
Microblaze
- 01.
LED Demos
- 02.
Uart
- 03.
GPIO Interrupt
- 04.
Timer interrupt
- 05.
DMA LOOP
- 06.
XADC
- 07.
Lwip TCP Loop Demos
- 08.
MIPI Camera HDMI Display
- 01.
- 3
FMC Topics(FMC daughter board is required)
- 01.
USB3.0 (PZ-FL3014)
- 02.
High Speed ADC (PZ-FL9643S)
- 03.
High Speed ADC/DAC (PZ-FL4322)
- 04.
Multi-Channel High-Speed ADC (PZ-FL9643D)
- 05.
Multi-Channel High-Speed ADC based on chinese chips (PZ-FL2514D)
- 06.
Medium-Speed ADC/DAC (PZ-FL3867)
- 07.
Multi-Channel Medium Speed DAC (PZ-FL9767D)
- 08.
Quad 100Gb Ethernet (PZ-FL8710F)
- 09.
Quad 1000Gb Ethernet (PZ-FL8211F)
- 01.
- 4
PCIE Topics
- 01.
PCIE Read/Write Speed Test
- 02.
PCIE's Access to DDR
- 03.
PCIE Control GPIO
- 04.
PCIE's Image Transfer HDMI Display
- 05.
PCIE's OV5640 Image Transmission
- 01.

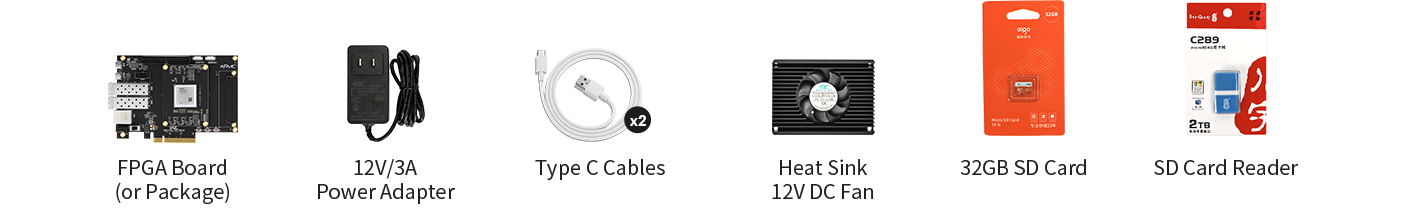

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.

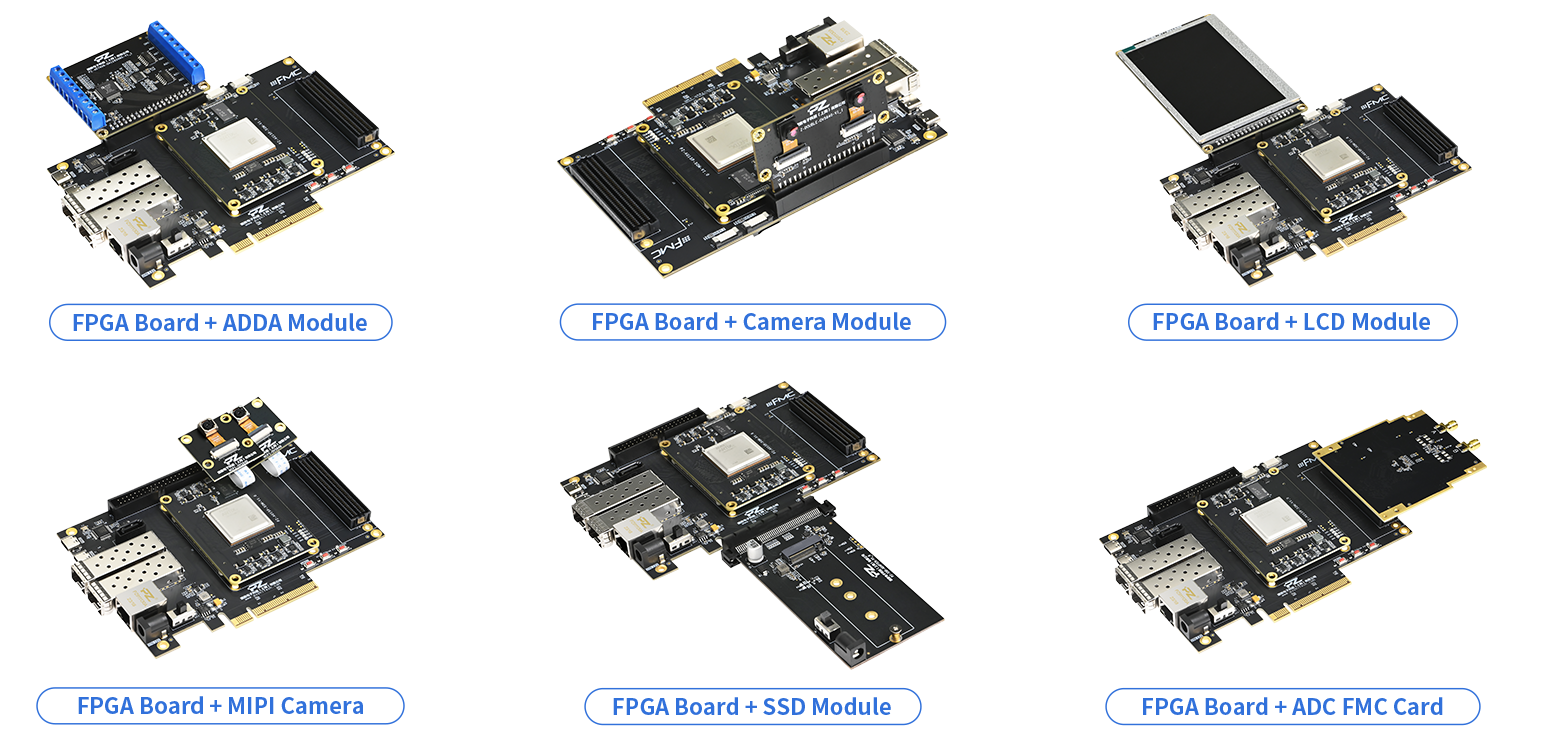

Solution Display
