Puzhi Expansion Module Synchronous Sampling AD7606
- 8-Channel AD Conversion，ADC 16bit/200KSPS high sampling rate
- Size 66*58mm，standard 40pin interface
- 0.5mV Measurement accuracy，voltage range -10~ +10V
- Extreme material selection and process standards，industrial grade-40℃~+85℃
- Support full platform expansion, provide multi-platform routines, help product development
Interface Function Display
Product Parameters
Parameters
ADC Parameters | DAC Parameters | |
Model Number | AD7606 | DAC128S085 CIMTX |
Number of Bits | 16bit | 12bit |
Max. Sampling Rate | 200KSPS | — |
Voltage Range | -10～+10V | 0～5V |
Working Temp | -40~85℃ | |
Measuring Accuracy | 0.5mV | |

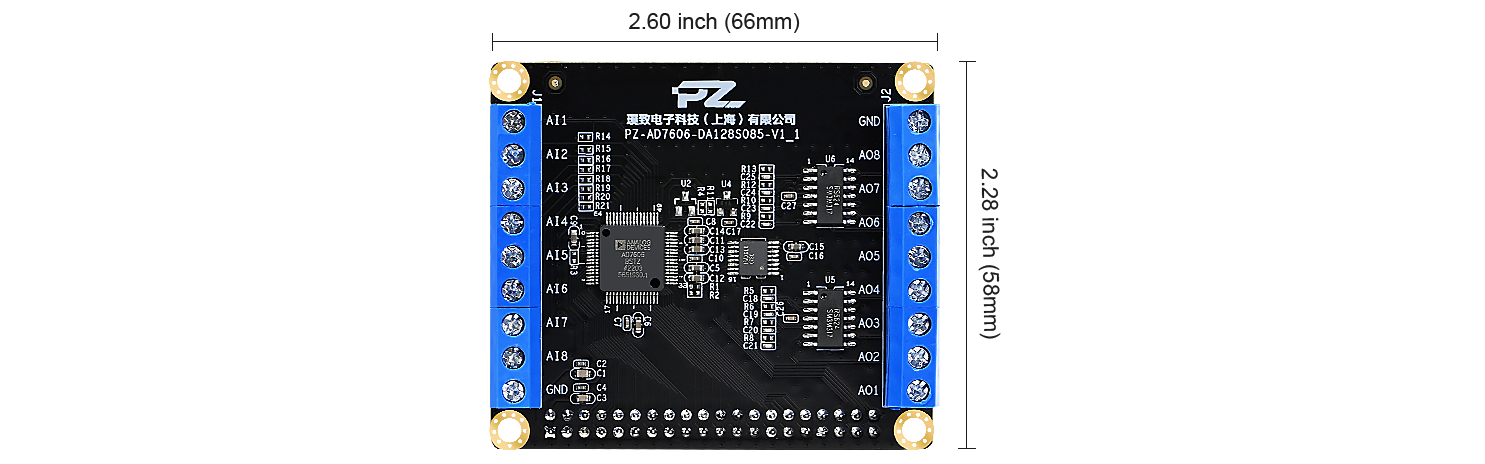

Product Dimensions

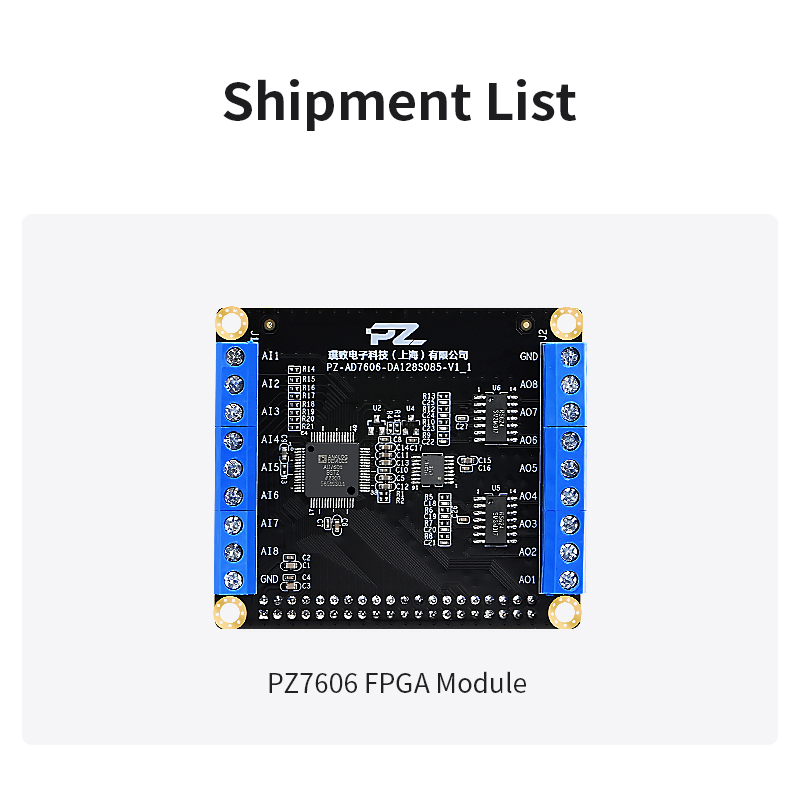

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.

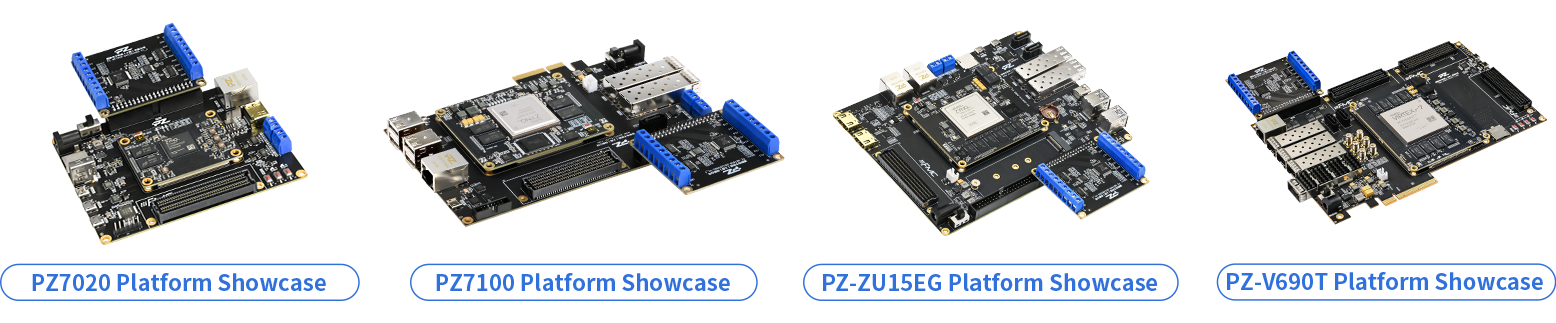

Solution Display
