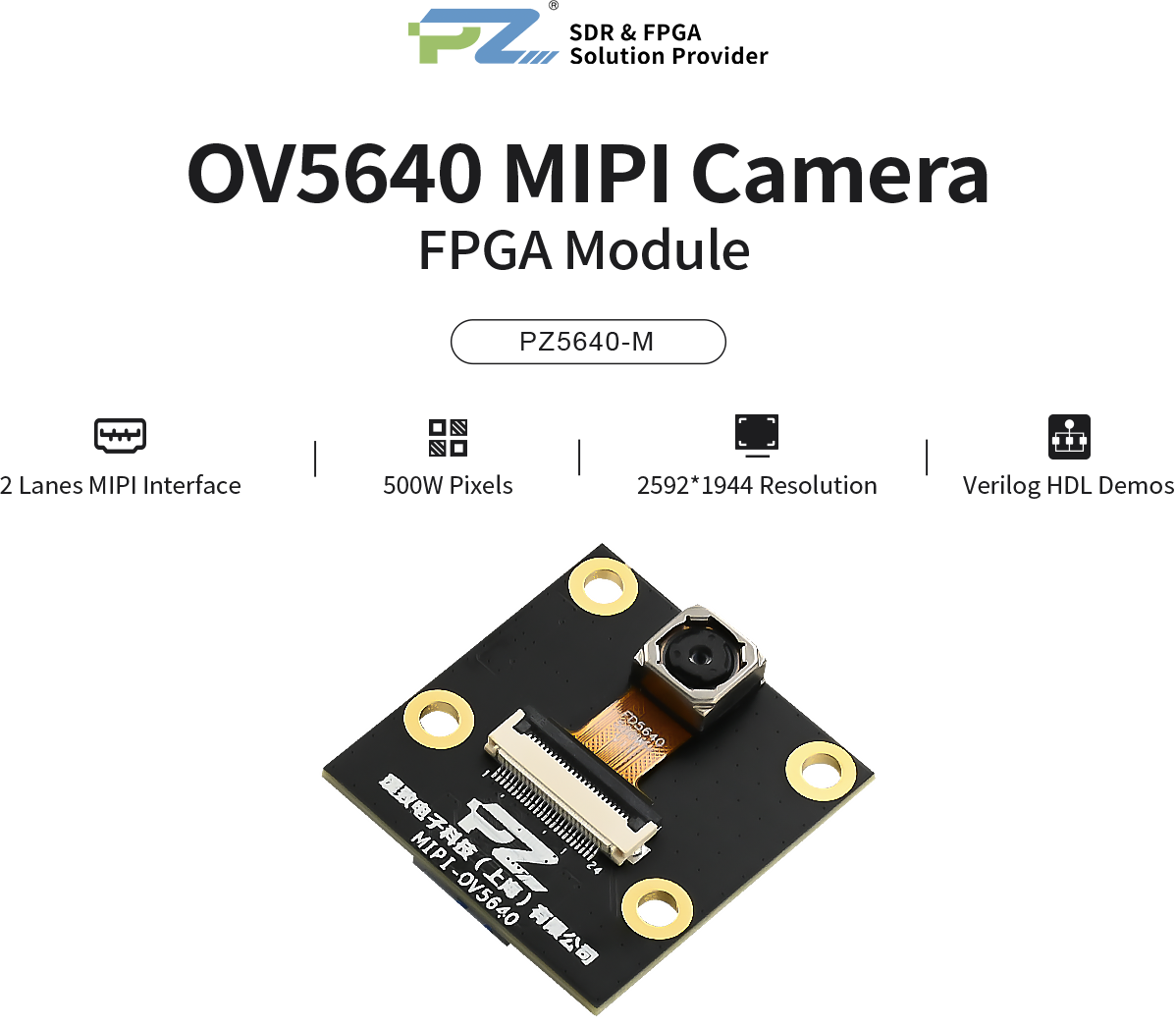

Puzhi Expansion Module MIPI Camera OV5640
- OV5640 MIPI Camera，Size 33*35mm，500W high pixel
- 2Lanes MIPI interface，2592*1944 Resolution
- working temperature -30~70℃，stable working temperature 0~50℃
- Support full platform expansion, provide multi-platform routines, help product development
Interface Function Display
Product Parameters
Parameters
PZ5640-M | |
Interface | MIPI Interface (2 Lanes) |
Pixel | Hardware Pixel 5 Million |
Sensitive Chip | OV5640 |
Sensitive Size | 1/4 |
Lens Parameters | 5MP/M12 Interface, Focus 3.6mm Monitoring Angle 80-90 Degrees |
Module Content | Contains OV5640 Power Supply Circuit |
lmage Formats | RAW RGB,RGB565/555/444,CCIR656 YUV422/420,YCbCr422 and Compression |
Captured Images | QSXGA(2592x1944)，1080p，1280x960，A(640x480)，QVGA(320x240) |
Working Temperature | -30~70℃, Stable Working Temperature is 0~50℃. |

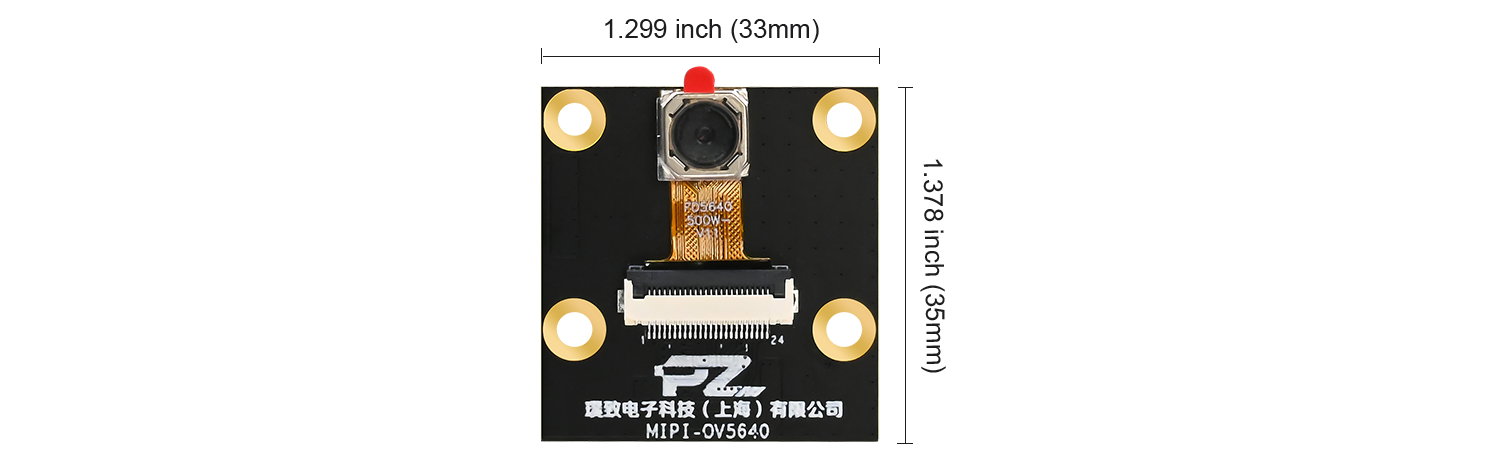

Product Dimensions

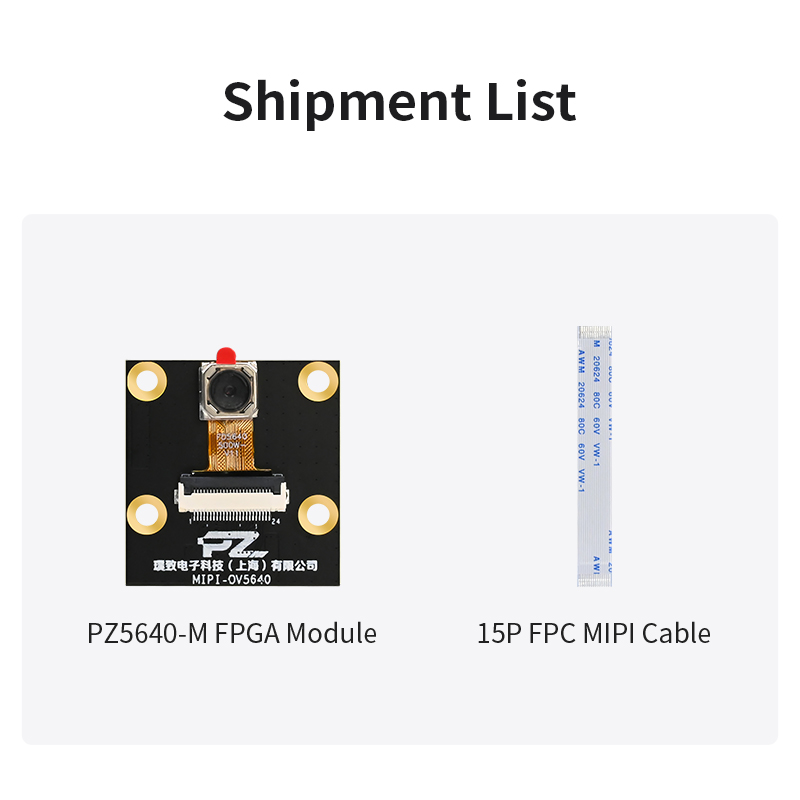

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.

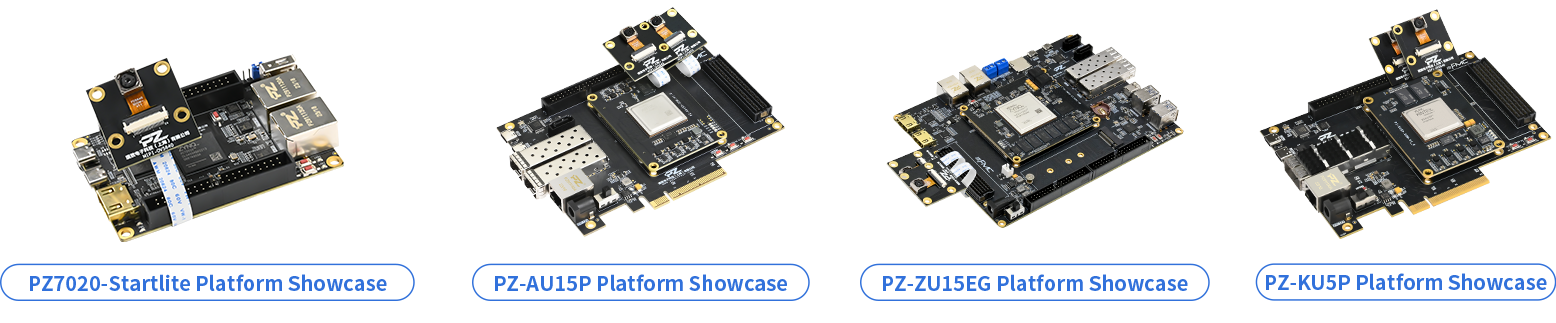

Solution Display
