Puzhi FPGA Artix UltraScale+ AU15P Core Board
- Artix UltraScale+ Core board / logical unit 170k / Slices 78000
- 1GB DDR4，256Mb QSPIFLASH，Power supply/current 5V/2A
- Size 75*55mm，up to 168 IO available，12 pairs of GTH
- Extreme material selection and process standards，industrial grade -40℃~+85℃
- Support PYNQ，provide hardware reference & rich routines，help product development

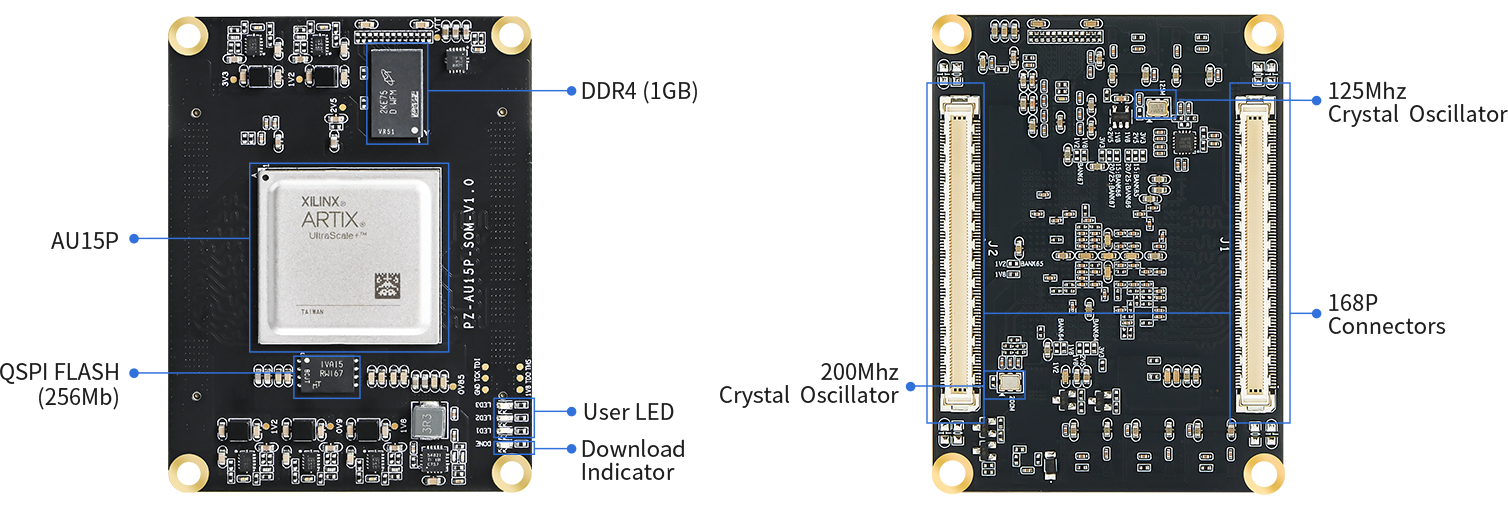

Interface Function Display
Product Parameters
Specification
FPGA SOM | PZ-AU15P-SOM |
FPGA Chip | XCAU15P-2FFVB676I |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 170K |
Lookup Tables (LUTs） | 78000 |
Flip-Flops | 156000 |
DSP Slices | 576 |
BLOCK RAM | 5.1Mb |
DDR4 | 1GB/16bit Width |
QSPI FLASH | 256Mb, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI, The Default Boot Mode is QSPI |
User LED | 3 |
Number of GTH | 12 Pairs of TX/RX |
Number of IO | Total 168 Single-end, of which 96 IOs Levels 1.2V/ 1.8V Adjustable (Default 1.8V) 72 IOs Levels 1.8/2.5/3.3V Adjustable (Default 3.3V) |
Voltage/ Current | 5V/2A |
Crystal Oscillator | 200MHz Differential Crystalfor FPGA 125MHz Differential Crystal for the GT Transceiver Reference Clock |
Form Factors | 2.95 inch x 2.17 inch (75 mm x 55mm) |
Technology | 0.5mm Spacing, 168P Connectors x 2, Immersion Gold Process |

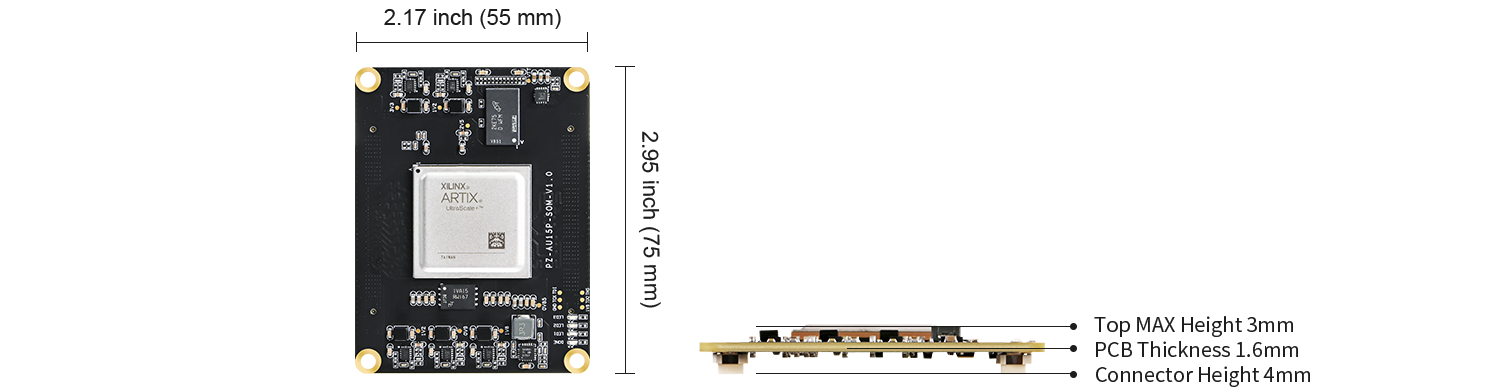

Product Dimensions
Product Packages
Technical Support
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

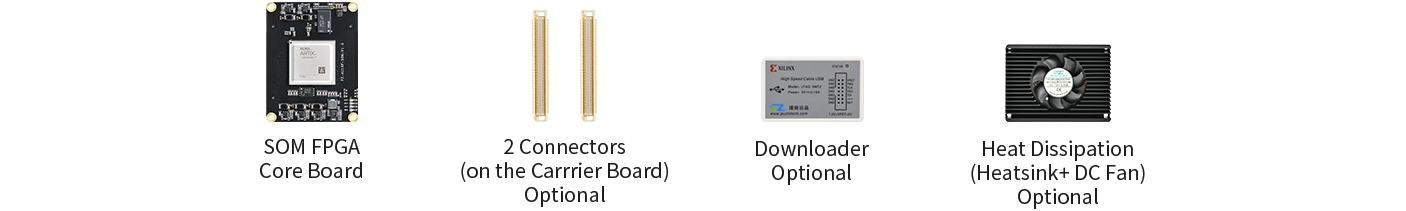

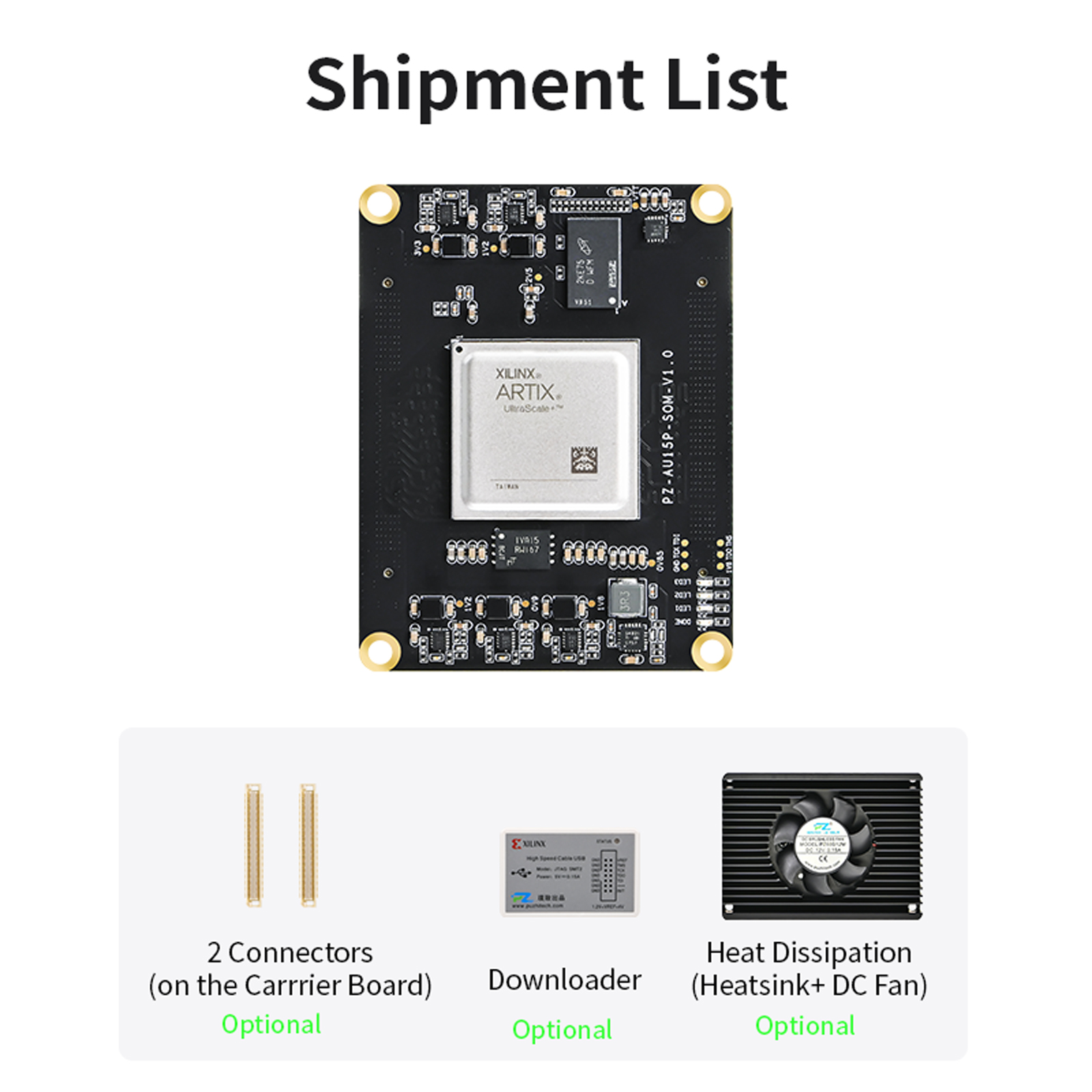

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
