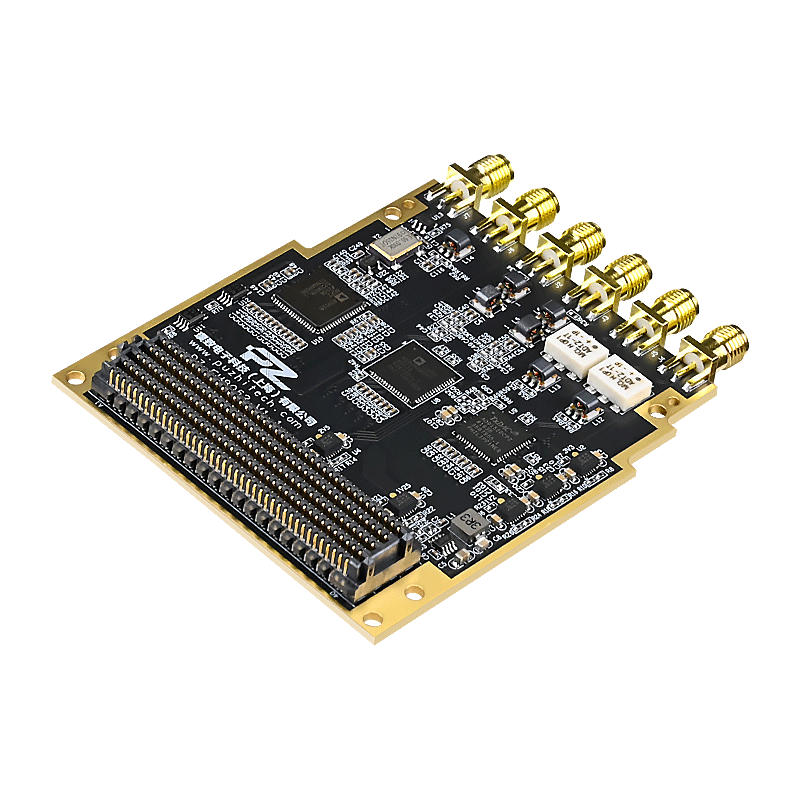

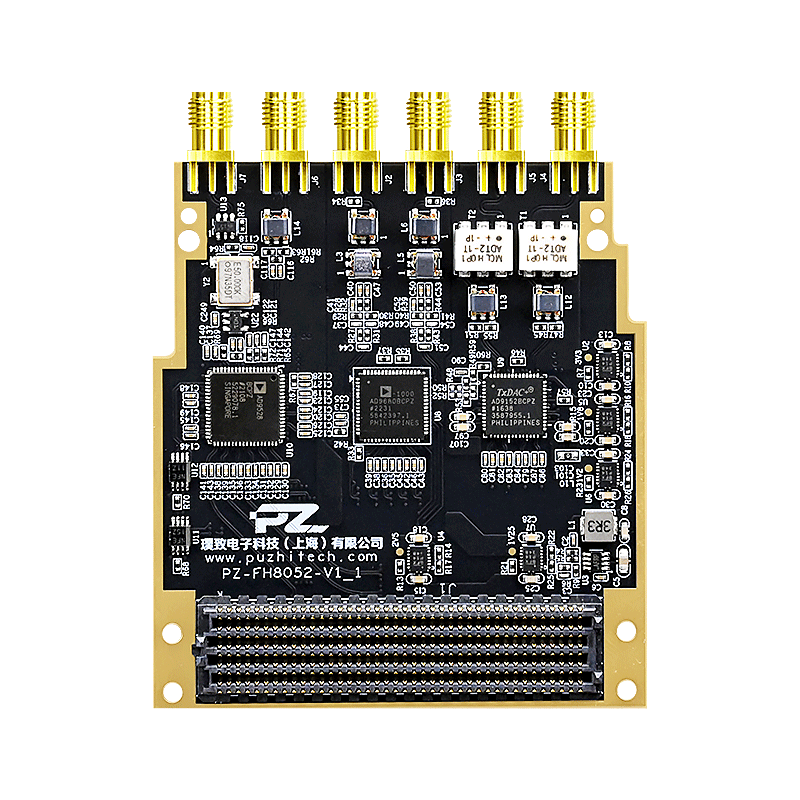

Puzhi FMC Card Ultra-high Speed ADC AD9680 DAC AD9152
- Dual channel AD9680 14bit/1GSPS，Dual channel AD9152 16bit/1.125GSPS
- Size 76.5*69mm，power supply voltage 12V
- Extreme material selection and process standards，industrial grade-40℃~+85℃
- Support external trigger, support external clock synchronization, Standard FMC-HPC interface
- Support full platform expansion, provide multi-platform routines, help product development

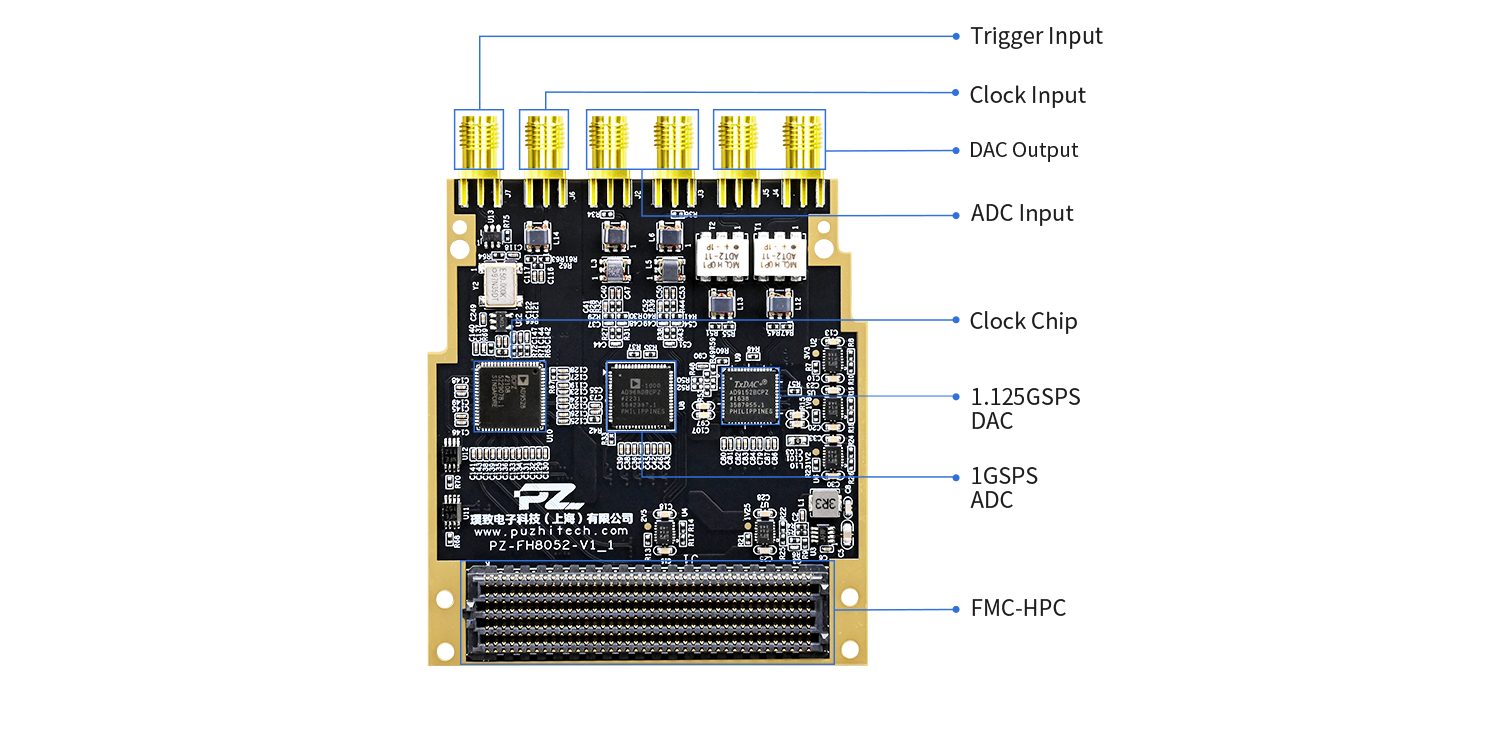

Interface Function Display
Product Parameters
Parameters
ADC Parameters | DAC Parameters | |
Chip | AD9680 | AD9152 |
Number of Channels | 2 | 2 |
Trigger Channel | 1（3.3V LVCMOS) | |
Clock Channel | 1 | |
I/O Mode | AC | AC |
Number of Bits | 14bit | 16bit |
Maximum Sampling Rate | 1GSPS | 1.125GSPS |
Voltage/ Current Range | 1.7VPP | 4-20mA Adjustable |
Chip Level | Industrial Grade (-40°C ~ +85°C) | |
Power Supply | Powered from FMC Interface (12V) | |
FMC Interface | FMC-HPC | |

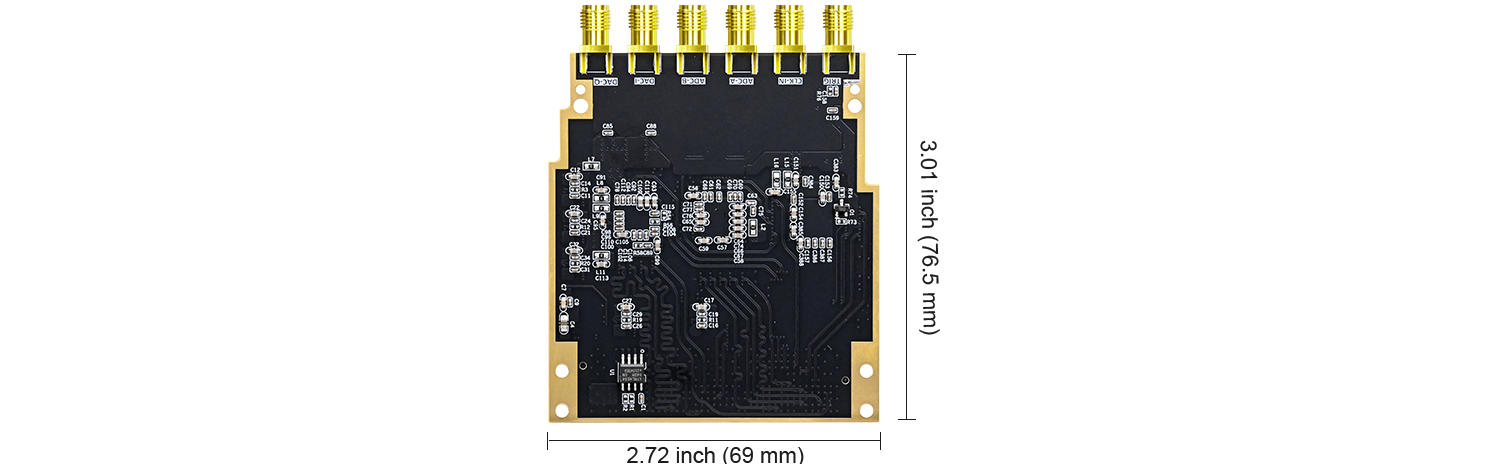

Product Dimensions

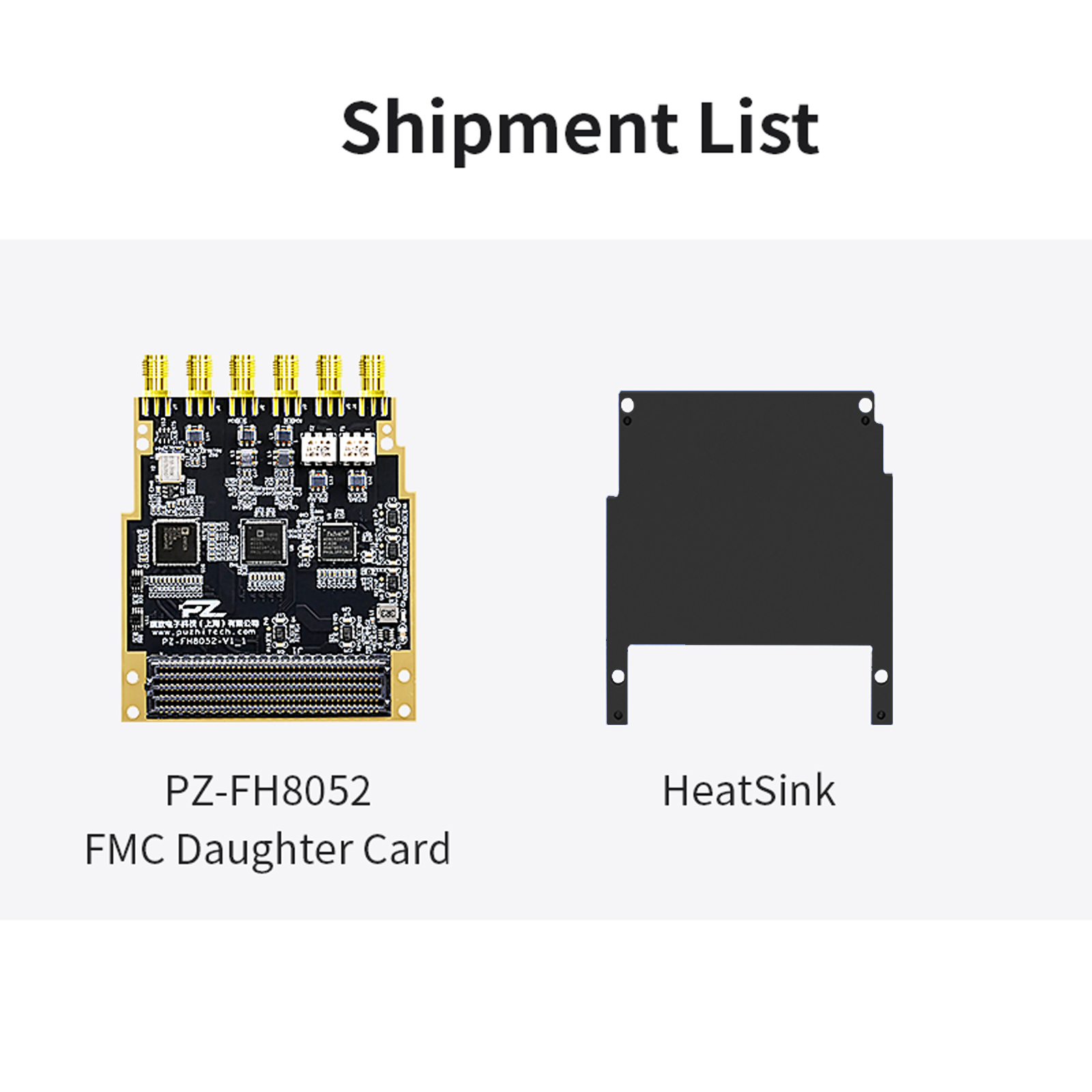

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
