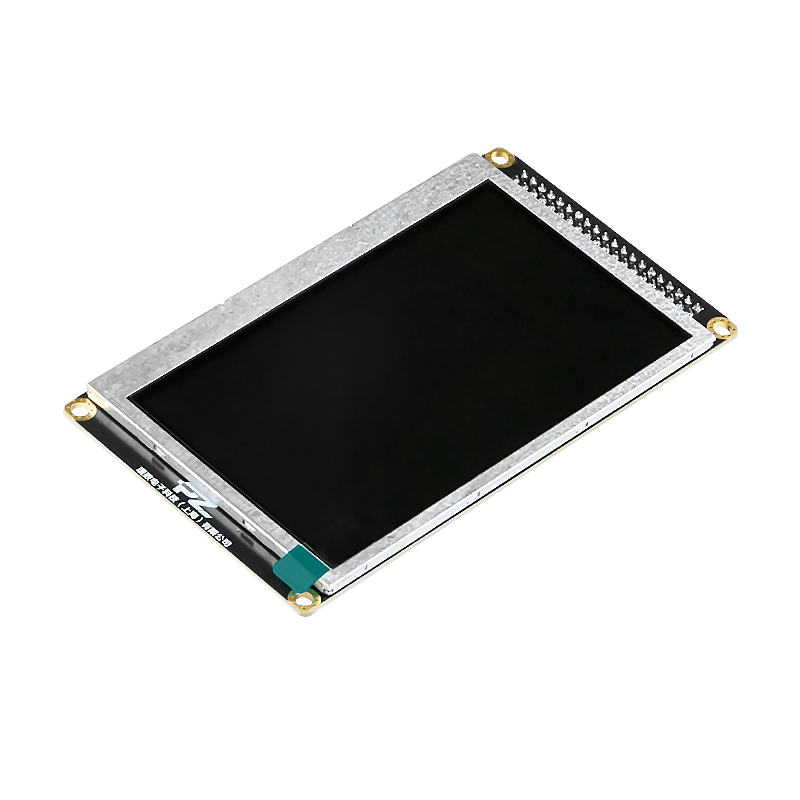

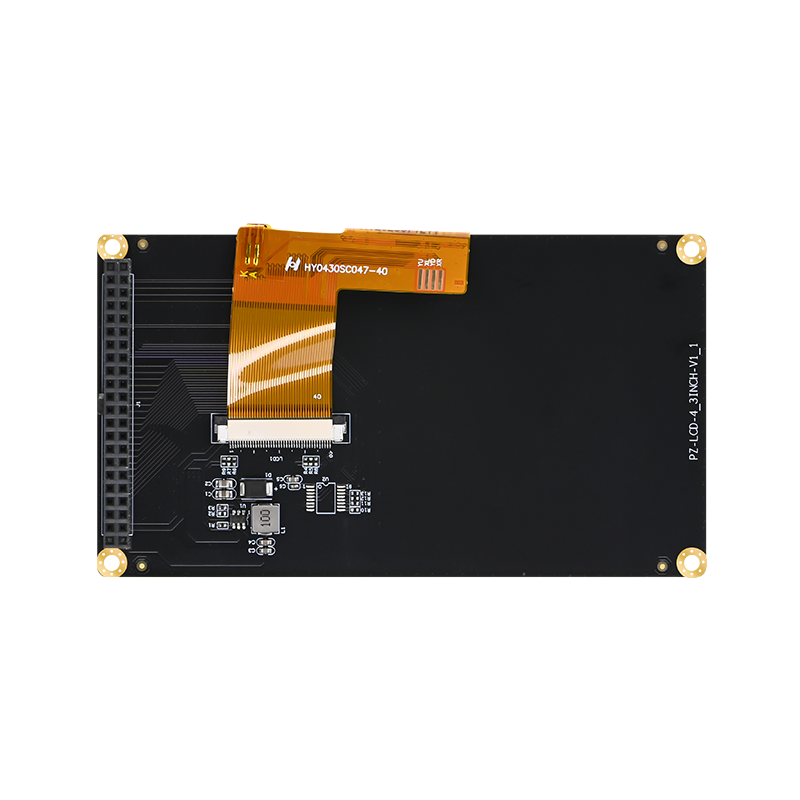

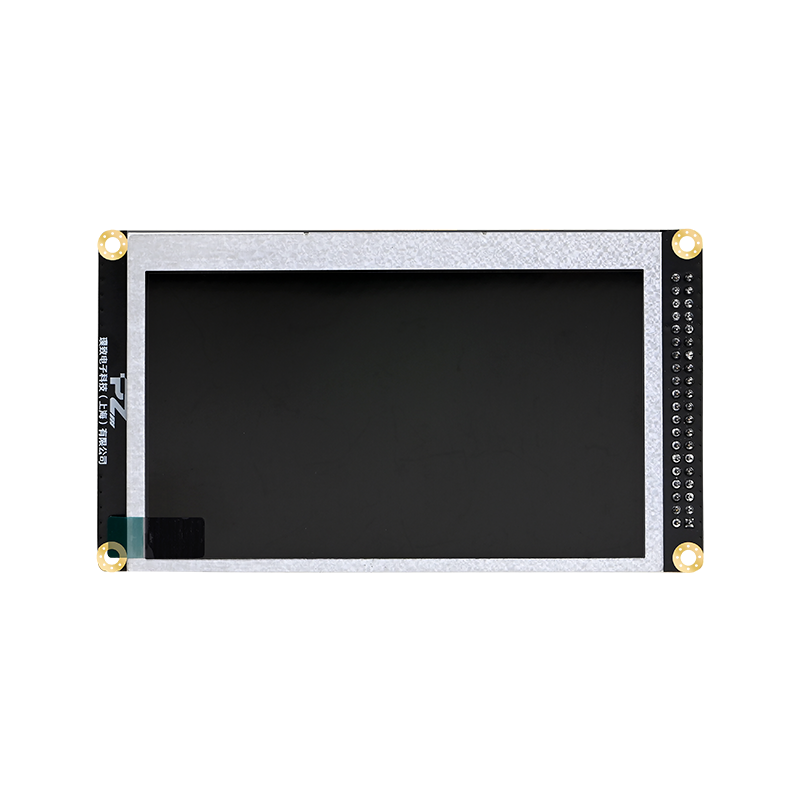

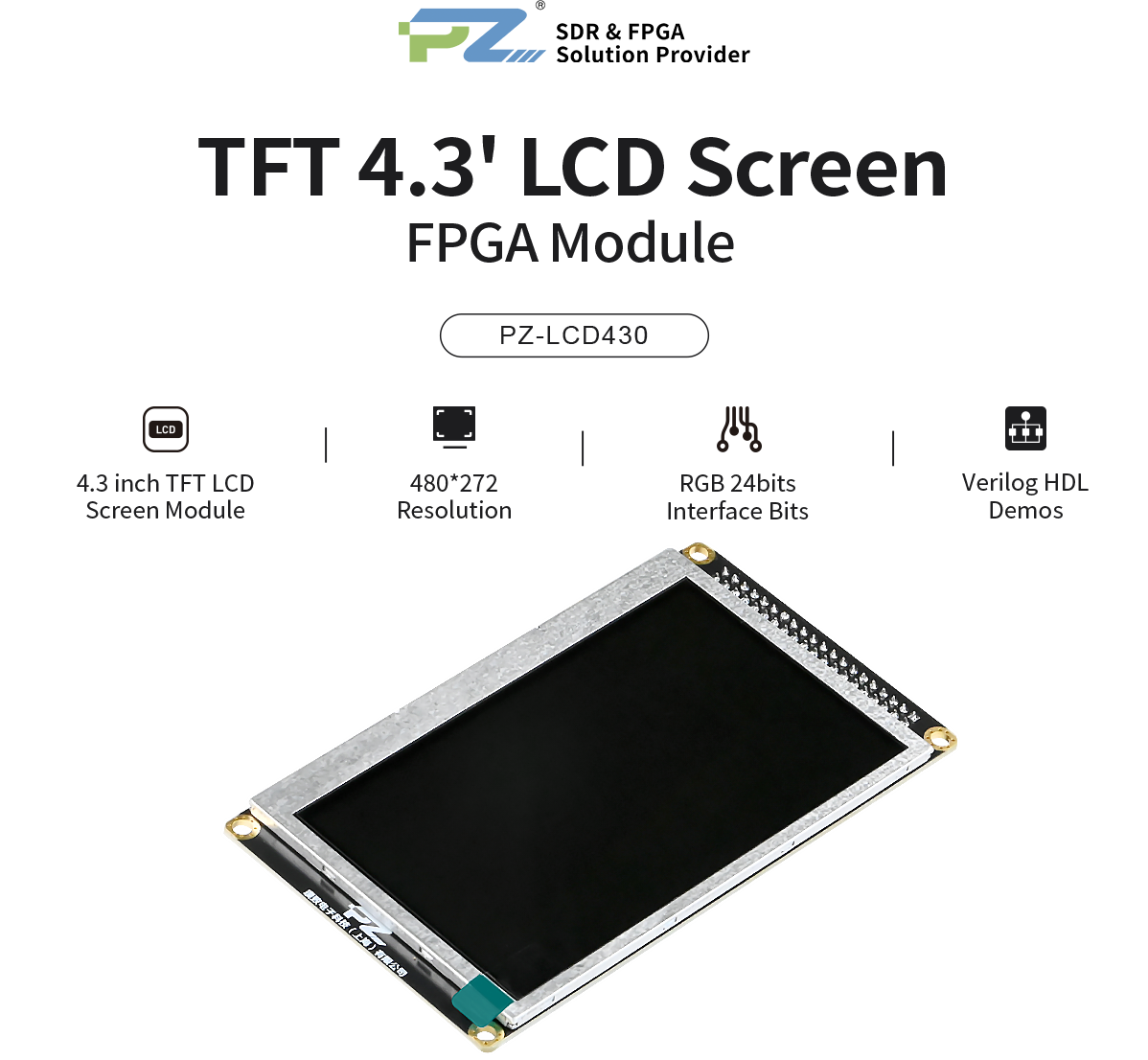

Puzhi Expansion Module 4.3 Inches TFT LCD Screen
- 4.3-inch TFT LCD LCD screen，Size 120*68mm
- 480*272 resolution，480(RGB)*272
- RGB 24bits Indicates the number of interface bits，10LEDs
- working temperature -30~70℃，stable working temperature 0~50℃
- Support full platform expansion, provide multi-platform routines, help product development
Interface Function Display
Product Parameters
Parameters
Form Factors | 4.3 Inch |
Display Pixels | 480 (RGB) * 272 |
Interface Bits | RGB 24bits |
Colour Depth | 16.7M |
Pixel Pitch | 0.198*0.198（mm) |
Pixel Display Area | 95.04*53.86 (mm) |
Weight | 44.065g |
Number of LEDs | 10LEDs |

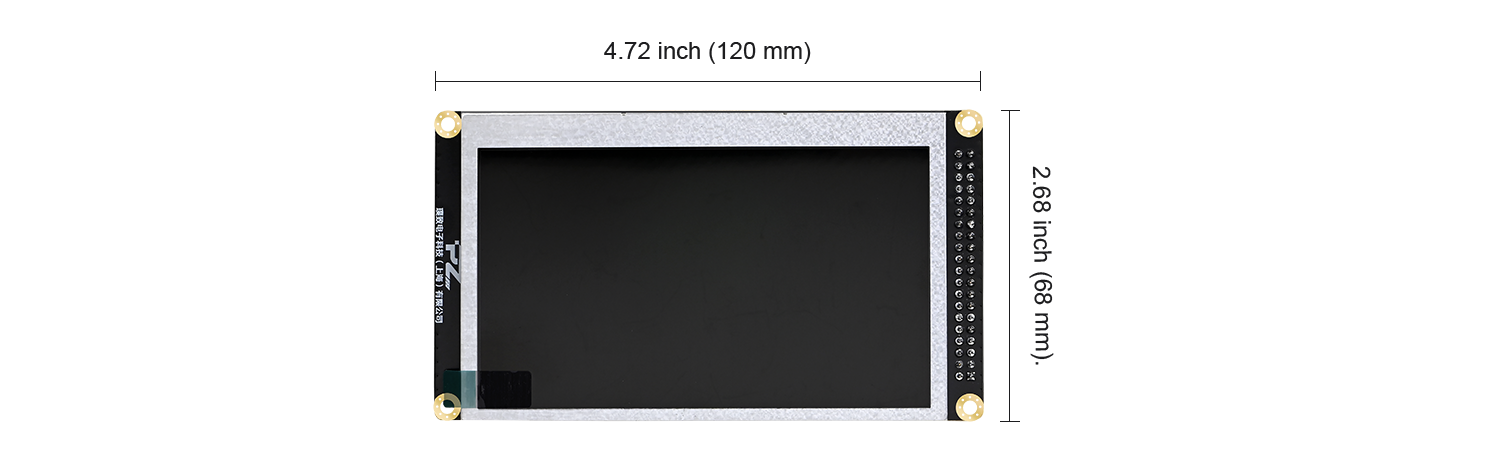

Product Dimensions

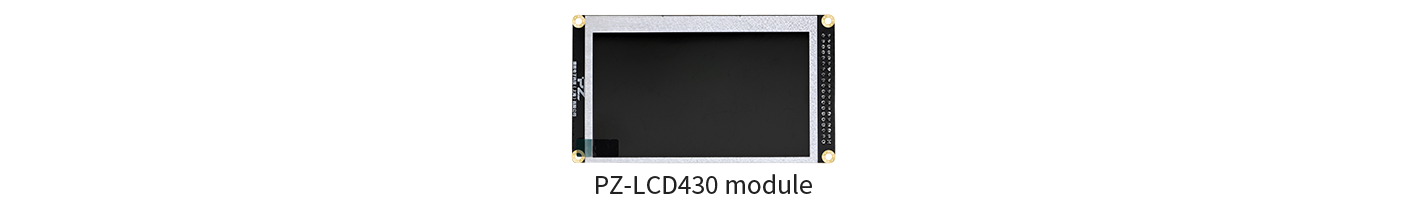

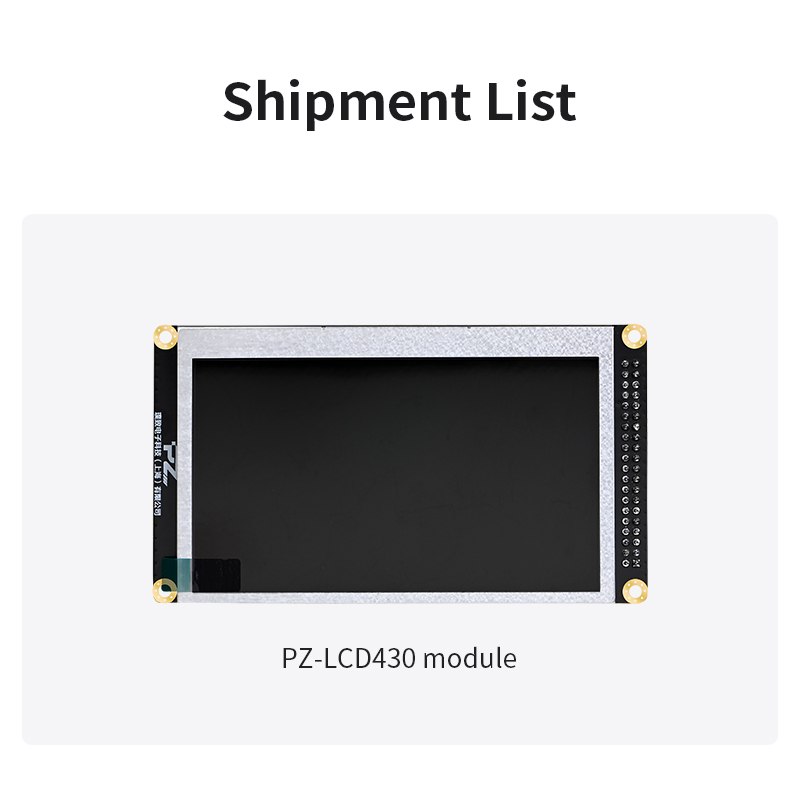

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.

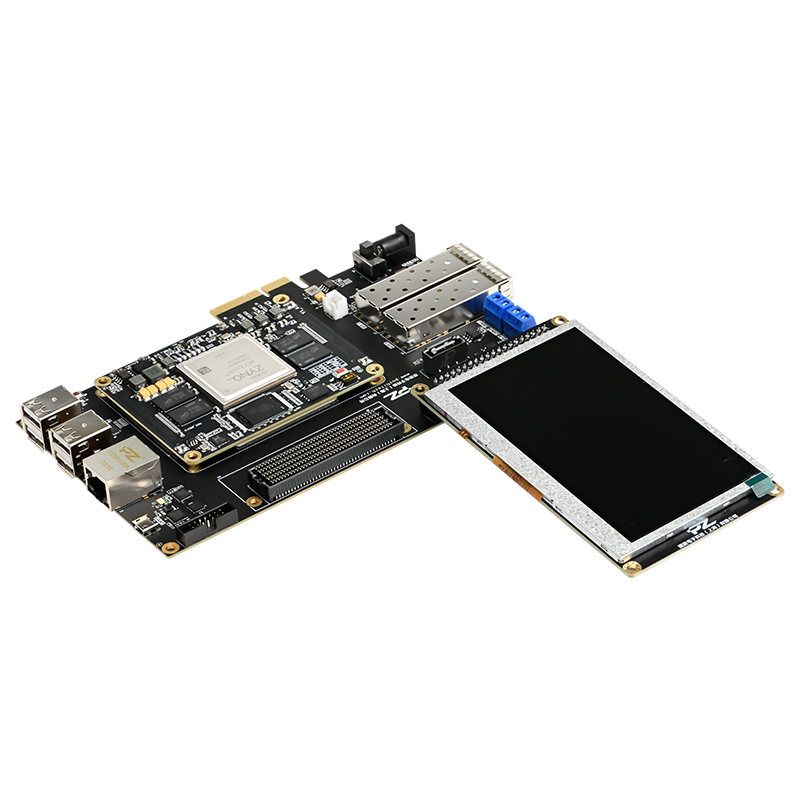

Solution Display
