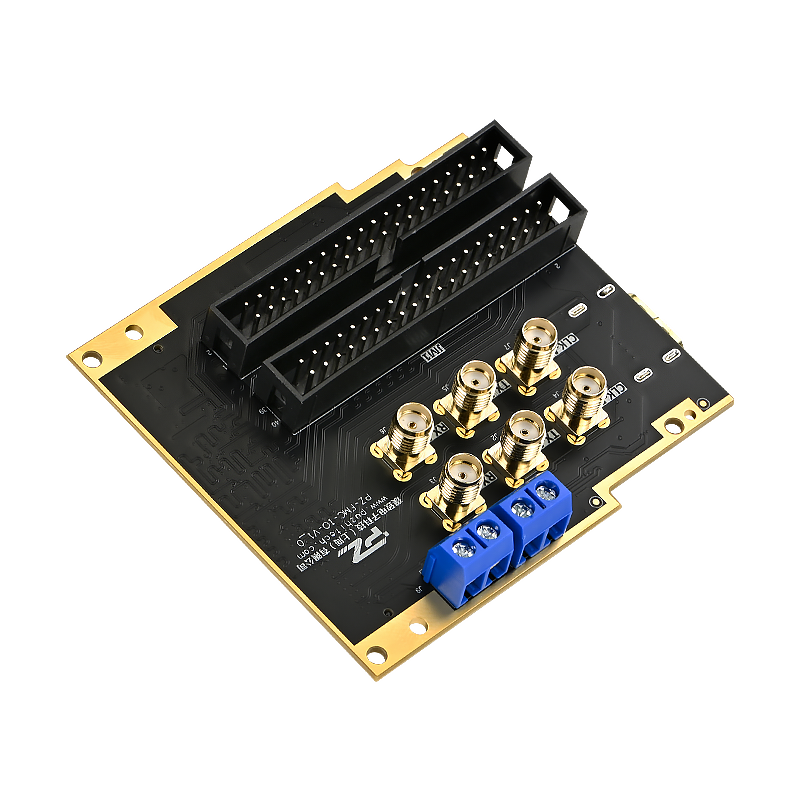

Puzhi FMC Card FMC to 40P Expansion Board
- One LPC interface for connecting FPGA development board
- SMAx6 ports for FMC transceivers
- Up to 64 IO，Two 40P 2.54mm pitch expansion ports
- Size 76.5x69mm，support GTX/RS485/CAN
- Support full platform expansion, provide multi-platform routines, help product development

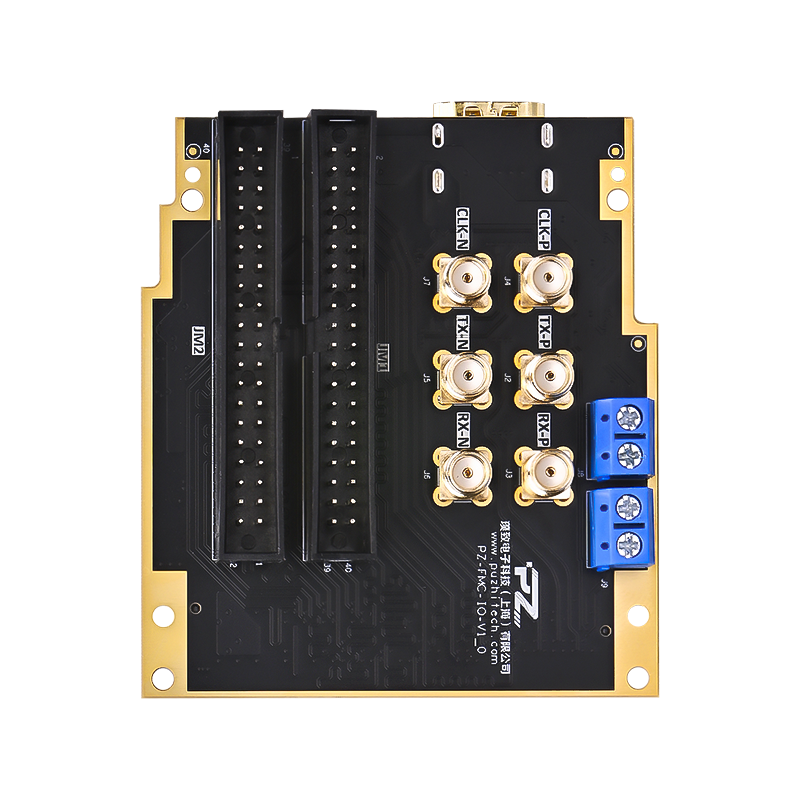

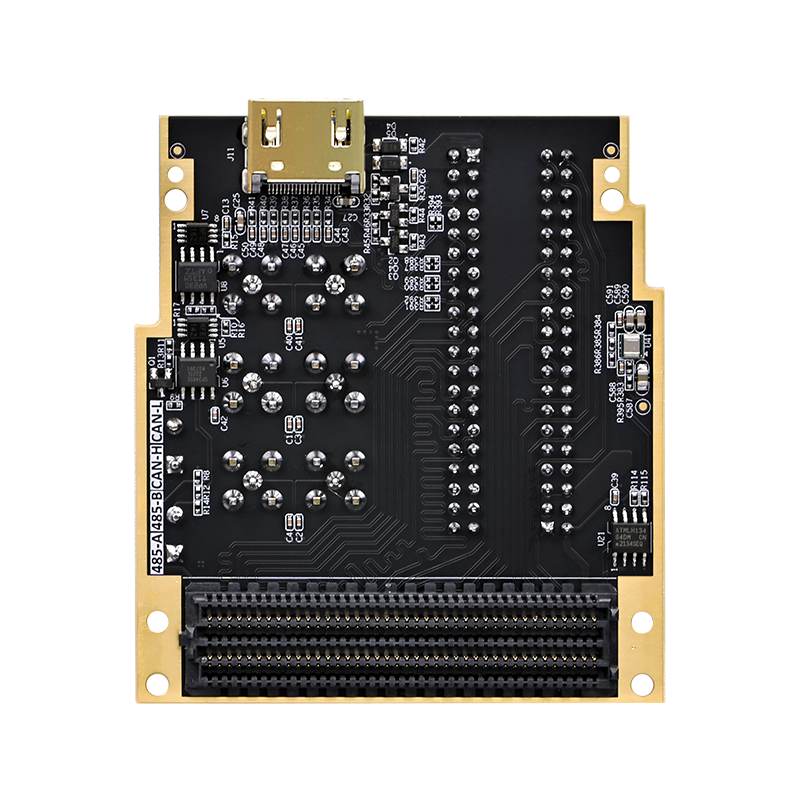

Interface Function Display
Product Parameters
Parameters
FMC Daughter Card | PZ-FL-IO |
CAN/RS485 | 1/1 |
Number of GTX | 1 Pair of TX/RX/CLK Each |
HDMI Output | 1 |
Connector Type | FMC-LPC |
40Pin Expansion Port | Total 64 IOs: Reserve two 40-pin 0.1 inch Expansion Ports，to Connect Puzhi Modules ( AD/DA, Camera, LCD ) Expansion Port including 5V power supply，3.3V power supply, 6 Ground, 32 IOs |

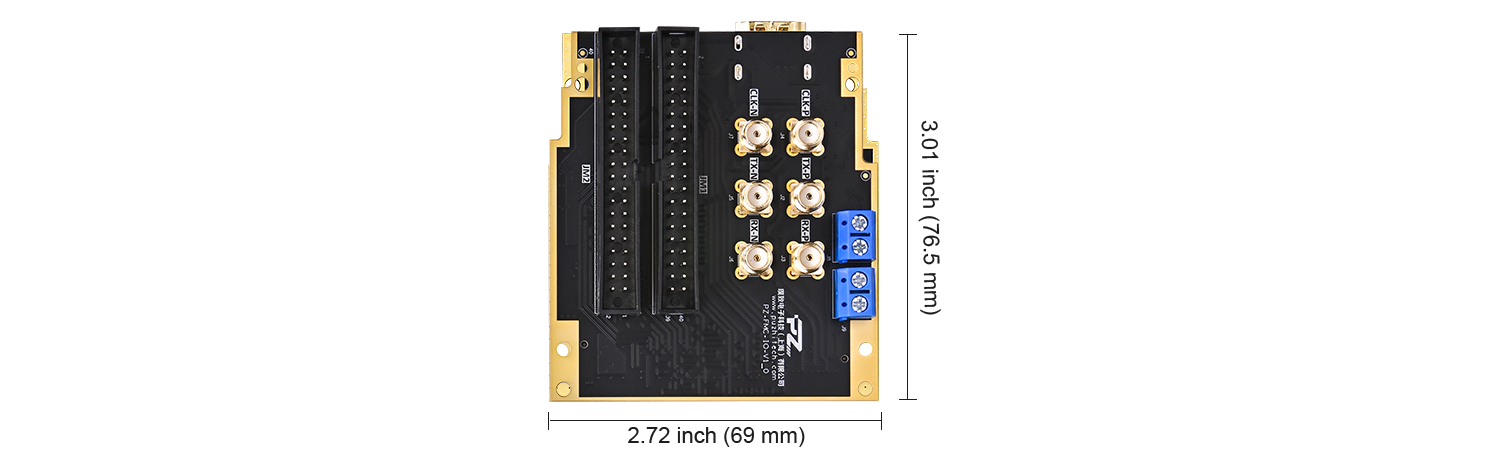

Product Dimensions

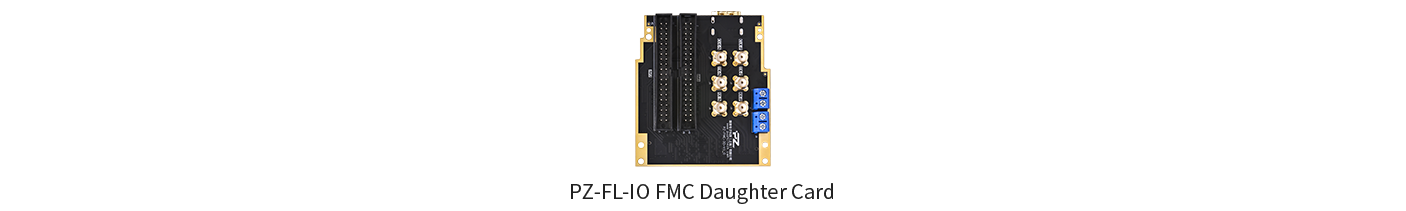

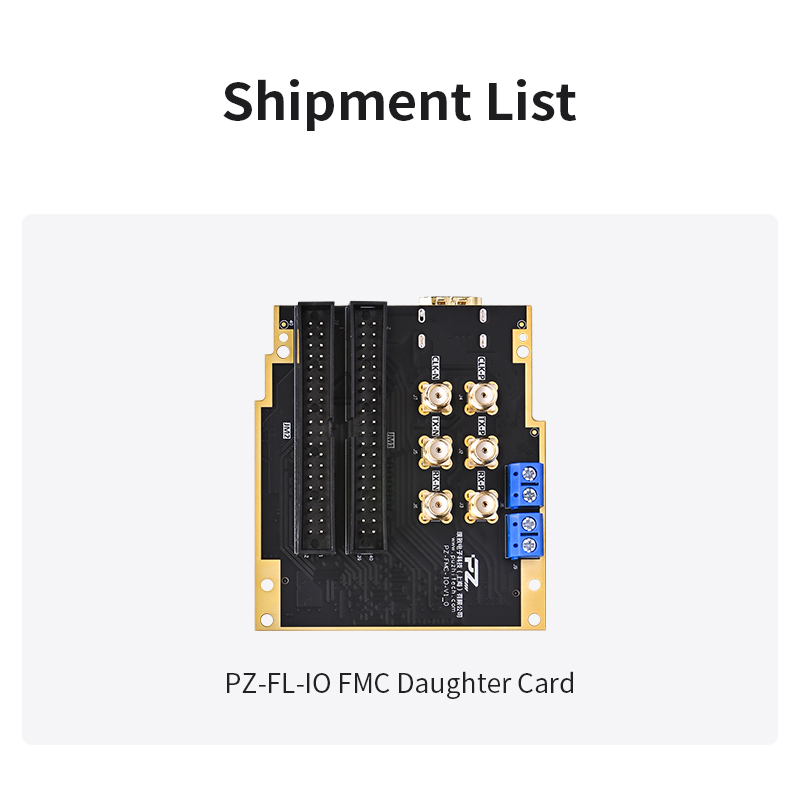

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
