Puzhi FPGA Kintex UltraScale+ KU5P Development Board
- Kintex UltraScale+ FPGA architecture/logical unit 475k
- 2GB DDR4，256Mb QSPIFLASH，Power supply/current 12V/3A
- Core board 240P connector connection，size 75*55mm
- Reserved ports Gigabit Ethernet、JTAG、FMC、QSFP、PCIE，etc
- Provide perfect hardware reference & software rich routines，help product development

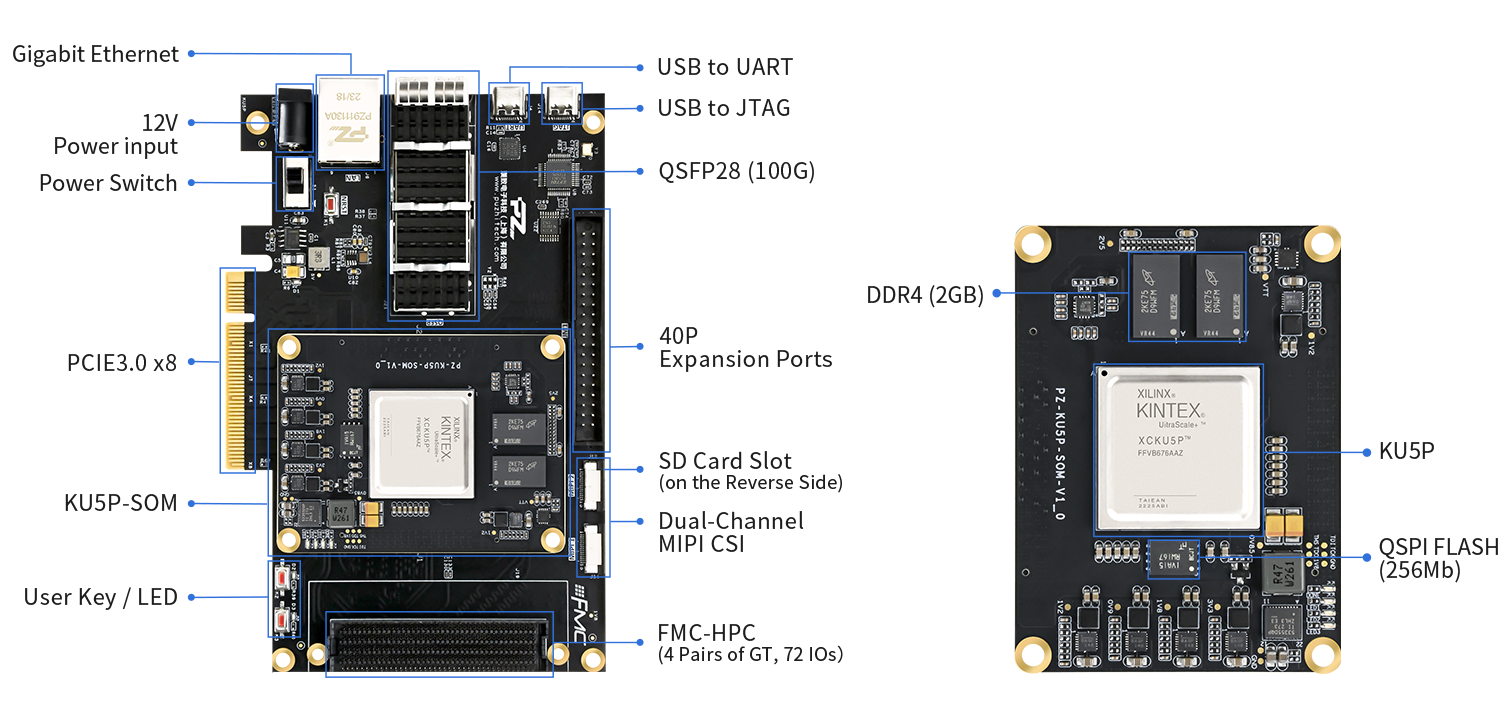

Interface Function Display
Product Parameters
Core Board Main Parameters
FPGA Dev. Board | PZ-KU5P-KFB |
FPGA Chip | XCKU5P-2FFVB676I |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 475K |
Lookup Tables | 217000 |
Flip-Flops | 434000 |
DSP Slices | 1824 |
BLOCK RAM | 16.9Mb |
DDR4 | 2GB/32bit Width |
QSPI FLASH | 256Mb, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI, The Default Boot Mode is QSPI |
User LEDs | 3 |
Number of GTY | 16 Pais of TX/RX |
Number of IO | 168 single-ended/84 differential HP: 96 1.2/1.8V adjustable (default 1.8V) HD: 72 1.8/2.5/3.3V adjustable (default 3.3V) |
Crystal Oscillator | 200MHz Differential Crystal for FPGA 125MHz Differential Crystal for the GT Transceiver Reference Clock |
Core Board Form Factors | 2.95 inch x 2.17 inch (75mm x 55mm) |
Interfaces and Function
JTAG Downloader | 1 |
UART | 1 |
SD Card Slot Interface | 1 |
Gigabit Ethernet | 1 |
LED, Keys | 2 LEDs，2 Keys |
PICE3.0 | x8 |
QSFP28 | 1 Channel / 100G |
FMC Interface | HPC (4 Pairs of GT, 72 IOs) |
MIPI CSI | 2 |
Voltage / Current | 12V/3A |

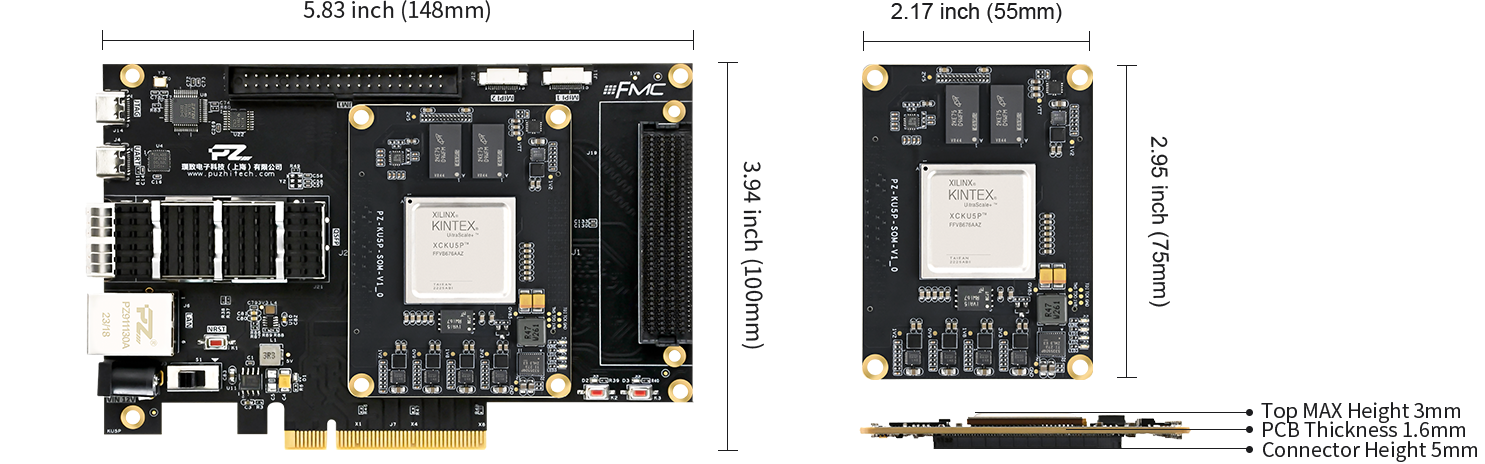

Board Form Factors | 5.83 inch x 3.94 inch (148mm x 100mm) |
Technology | Black Matte. Immersion Gold Process |
40Pin Expansion Port | 32 Single-ended/16 Differential Pairs Reserve one 40-pin 0.1 inch Expansion Port，to Connect Puzhi Modules (AD/DA, Camera, LCD)，Expansion Port including 5V power supply ，3.3V power supply, 6 Ground, 32 IOs |
Product Dimensions
Product Packages
FMC Subcard Display
Other Subcard Display
Supporting Display
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
- 1
FPGA Logic Demos
- 01.
Vivado Installation
- 02.
FLASH Curing
- 03.
LED Flashing
- 04.
LED PWM Control
- 05.
Key Control LED
- 06.
FPGA on-chip RAM Read and Write
- 07.
FPGA on-chip ROM Read and Write
- 08.
FPGA on-chip PLL Configuration
- 09.
FPGA on-chip FIFO Read and Write
- 10.
FPGA side DDR4 Control Read and Write
- 11.
I2C Read and Write E2PROM
- 12.
Uart Transceiver
- 13.
SD Card Read and Write
- 14.
AD-DA Conversion
- 15.
LCD Color Bar Display
- 16.
LCD Output Image Display
- 17.
SD Card Reads BMP Picture LCD Display
- 18.
Gigabit UDP Based on RTL8211
- 19.
SFP Bit Error Rate
- 20.
PCIE Speed Test
- 21.
Aurora Communication
- 22.
High Speed ADC-AD9643 Acquisition (250MSPS)
- 23.
UDP Transmission High Speed ADC Data Collection
- 24.
LCD Waveform Display for High-Speed ADC-AD9643
- 25.
UDP transmission of OV5640 images for Computer display
- 01.
- 2
Microblaze Parts
- 01.
Microblaze LED
- 02.
Microblaze Uart
- 03.
Microblaze GPIO Interrupt
- 04.
Microblaze Timer Interrupt
- 05.
Microblaze DMA LOOP
- 06.
Microblaze XADC
- 07.
Microblaze Lwip TCP loop
- 08.
MIPI Camera HDMI Display
- 01.
- 3
FMC Topics(FMC daughter board is required)
- 01.
USB3.0 (PZ-FL3014)
- 02.
High Speed ADC (PZ-FL9643S)
- 03.
High Speed ADC/DAC (PZ-FL4322)
- 04.
Multi-Channel High-Speed ADC (PZ-FL9643D）
- 05.
Multi-Channel Domestic High-Speed (PZ-FL2514D)
- 06.
Ultra High Speed ADC/DAC (PZ-FH8052)
- 07.
Medium-Speed ADC/DAC (PZ-FL3867)
- 08.
Multi-Channel Medium Speed DAC (PZ-FL9767D）
- 09.
Quad 100Gb Ethernet (PZ-FL8710F)
- 10.
Quad 1000Gb Ethernet (PZ-FL8211F)
- 11.
Software Defined Radio (PZ-FL9361/PZ-FH9371/PZ-FH9009/PZ-FH9026）
- 01.
- 4
PCIE Topics
- 01.
QT Environment Setup
- 02.
PCIE GPIO Control
- 03.
PCIE DDR Cache Interrupt
- 04.
PCIE Monocular OV5640 Image Experiment
- 05.
PCIE High-speed ADC Acquisition Experiment
- 01.

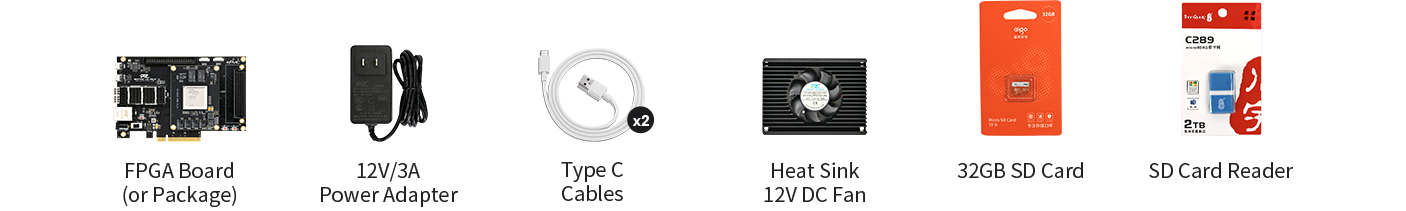

Standard Delivery List
