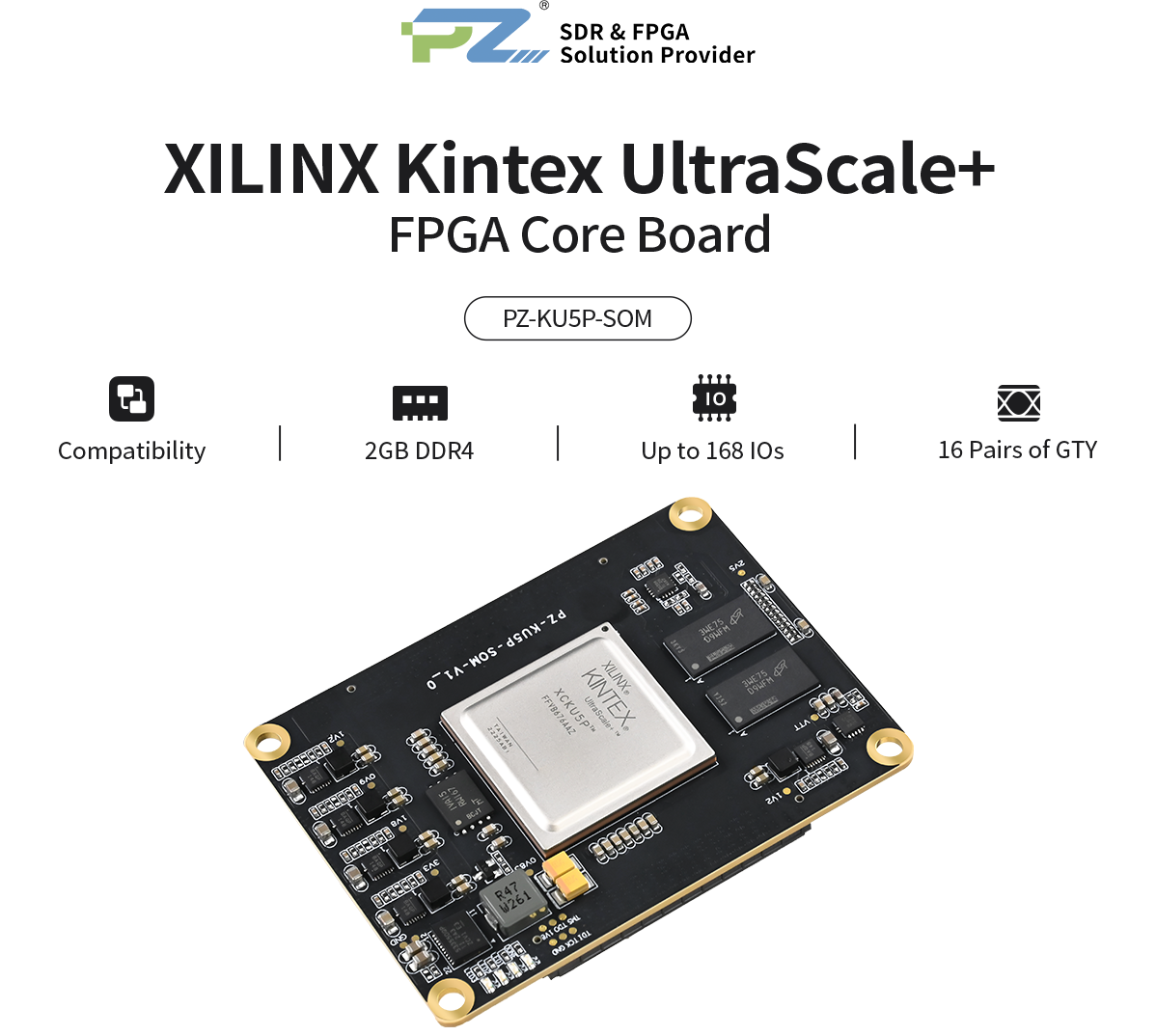

Puzhi FPGA Kintex UltraScale+ KU5P Core Board
- Kintex UltraScale+ Core board / logical unit 475k / Slices 217k
- 2GB DDR4，256Mb QSPIFLASH，Power supply/current 5V/3A
- Size 75*55mm，up to 168 IO available，16 pairs of GTY
- Extreme material selection and process standards，industrial grade -40℃~+85℃
- Support PYNQ，provide hardware reference & rich routines，help product development

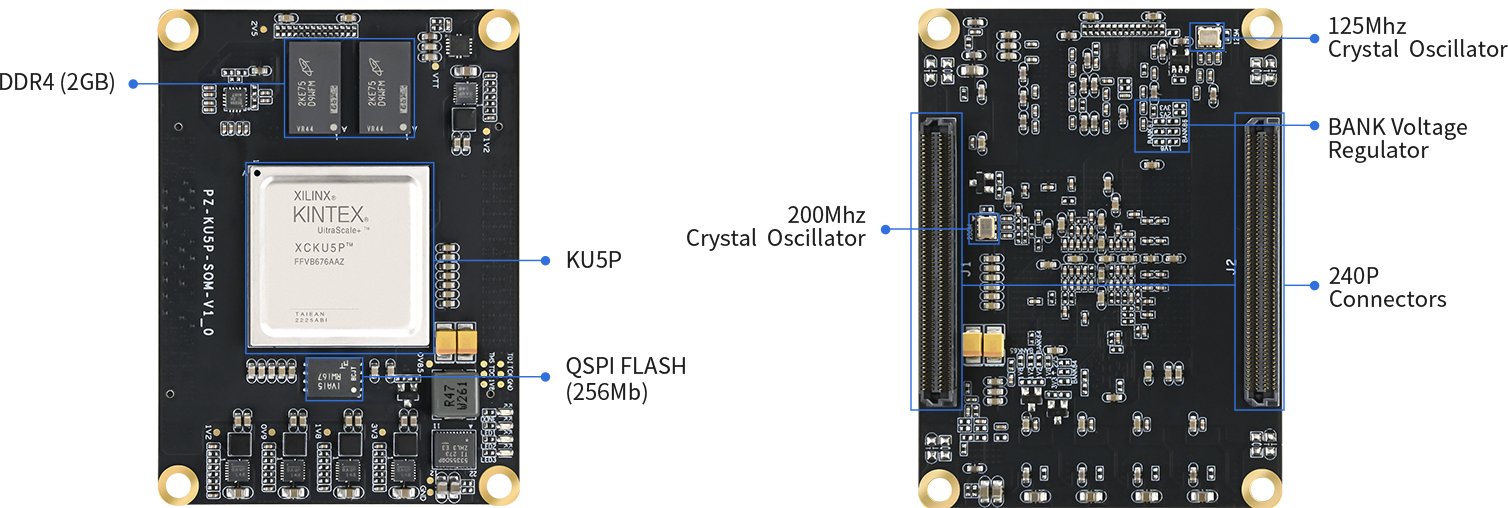

Interface Function Display
Product Parameters
Specification
FPGA SOM | PZ-KU5P-SOM |
FPGA Chip | XCKU5P-2FFVB676I |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 475K |
Lookup Tables (LUTs） | 217000 |
Flip-Flops | 434000 |
DSP Slices | 1824 |
BLOCK RAM | 16.9Mb |
DDR4 | 2GB/32bit Width |
QSPI FLASH | 256Mb, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI, The Default Boot Mode is QSPI |
User LED | 3 |
Number of GTY | 16 Pairs of TX/RX |
Number of IO | 168 single-ended / 84 differential HP: 96 IOs Levels 1.2V/ 1.8V Adjustable (Default 1.8V) HD: 72 IOs Levels 1.8/2.5/3.3V Adjustable (Default 3.3V) |
Voltage/ Current | 5V/3A |
Crystal Oscillator | 200MHz Differential Crystalfor FPGA 125MHz Differential Crystalfor the GT Transceiver Reference Clock |
Form Factors | 2.95 inch x 2.17 inch (75mmx 55mm) |
Technology | 0.635mm Spacing, 240P Connectors x 2, Immersion Gold Process |

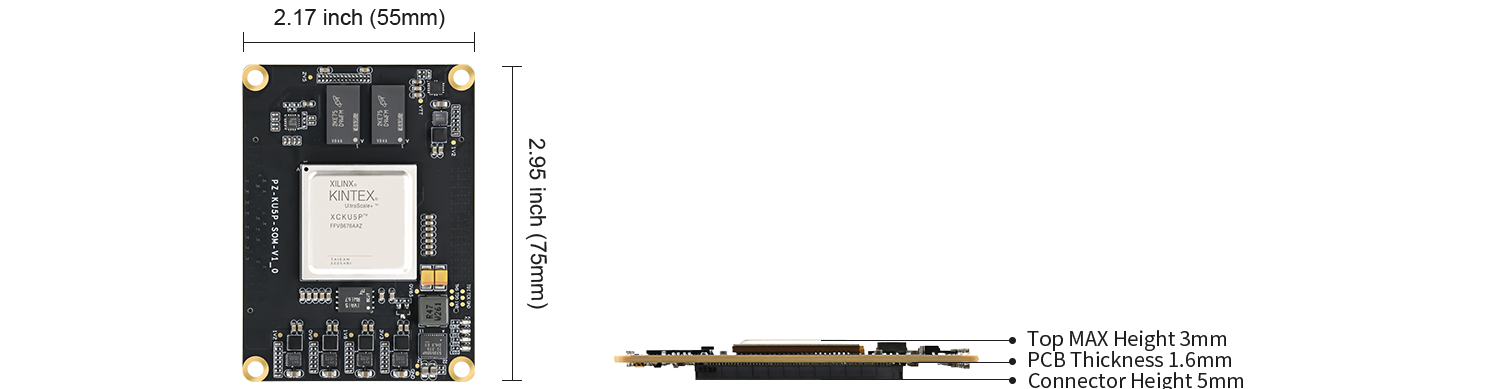

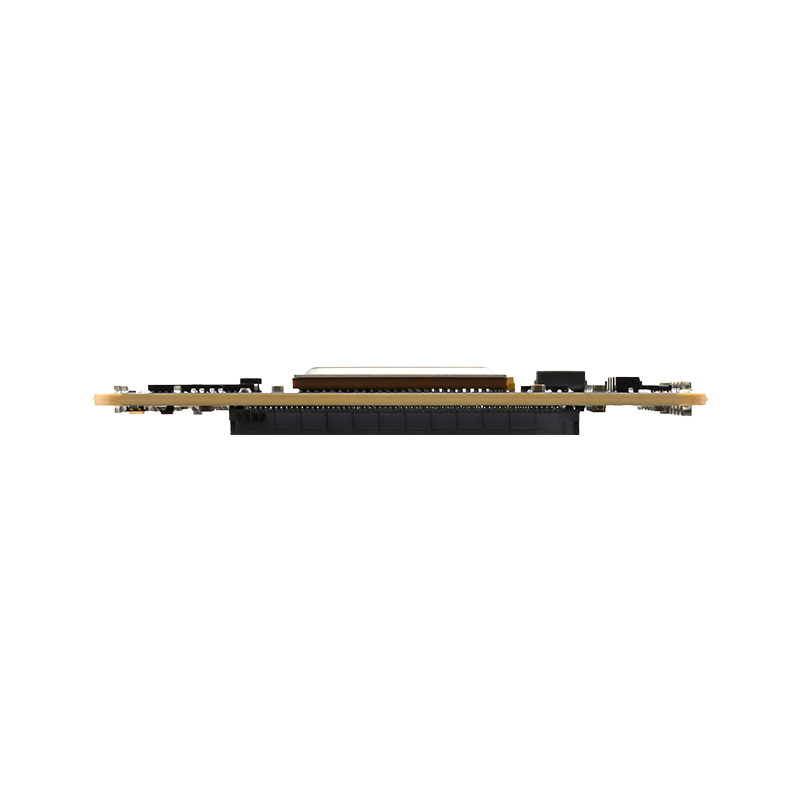

Product Dimensions
Product Packages
Technical Support
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

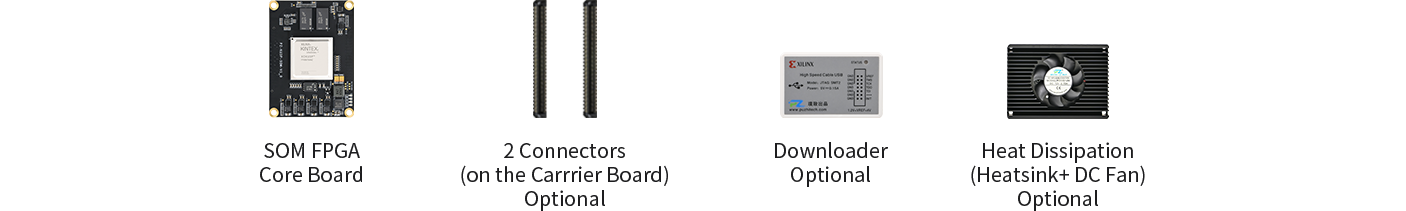

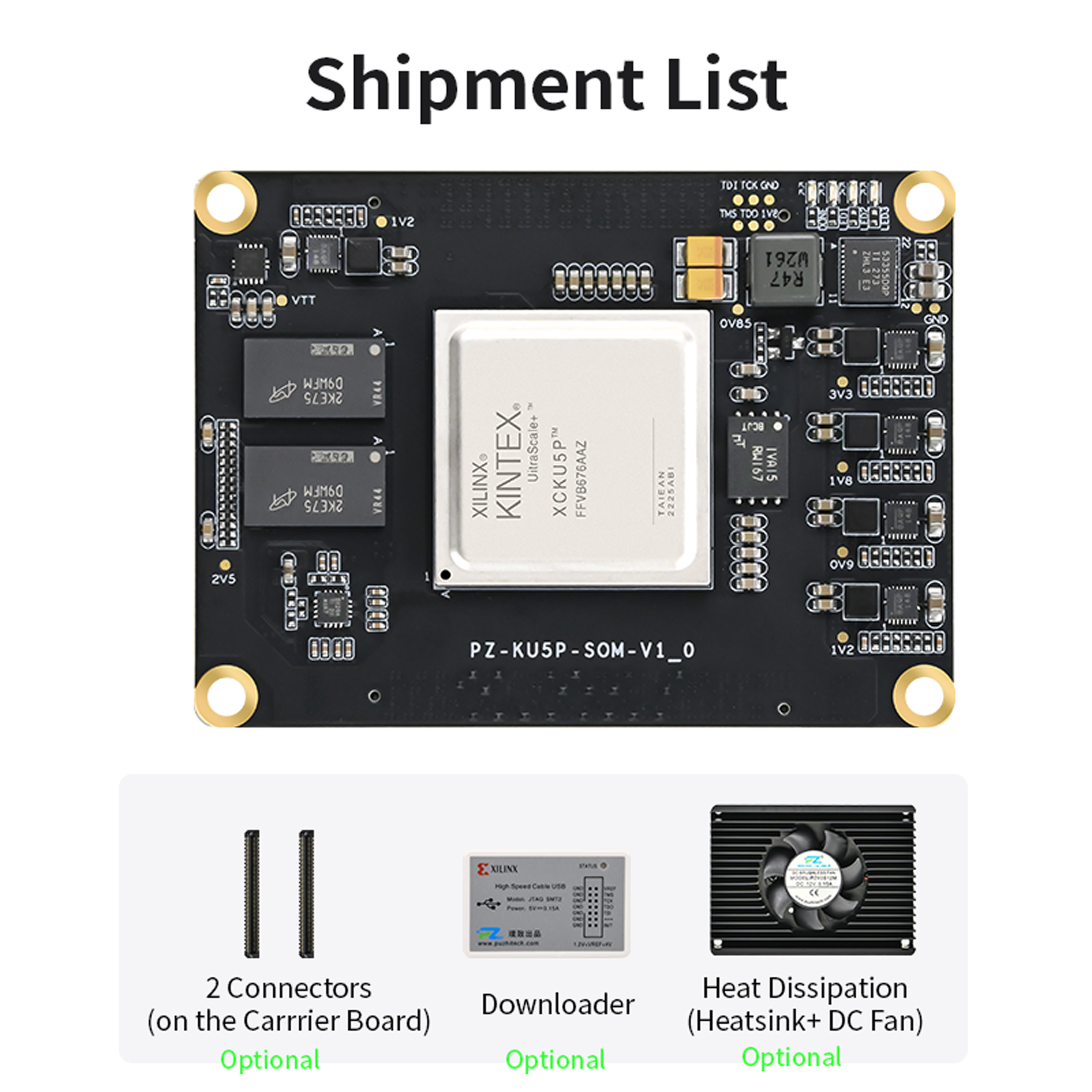

Standard Delivery List
