Puzhi FPGA ZYNQ UltraScale+ ZU19EG Development Board
PZ-ZU19EG-KFB
- ARM+FPGA architecture，4 x Cortex-A53，main frequency 1.333Ghz
- PS Side 8GB、PL Side 8GB DDR4，32GB EMMC，512Mb+512Mb QSPIFLASH
- Core board 240P connector connection，size 90*75mm
- Reserved ports Gigabit Ethernet、SATA、FMC、PCIE、 QSFPx4，etc
- Support SDK development，support PYNQ，rich routines，help product development

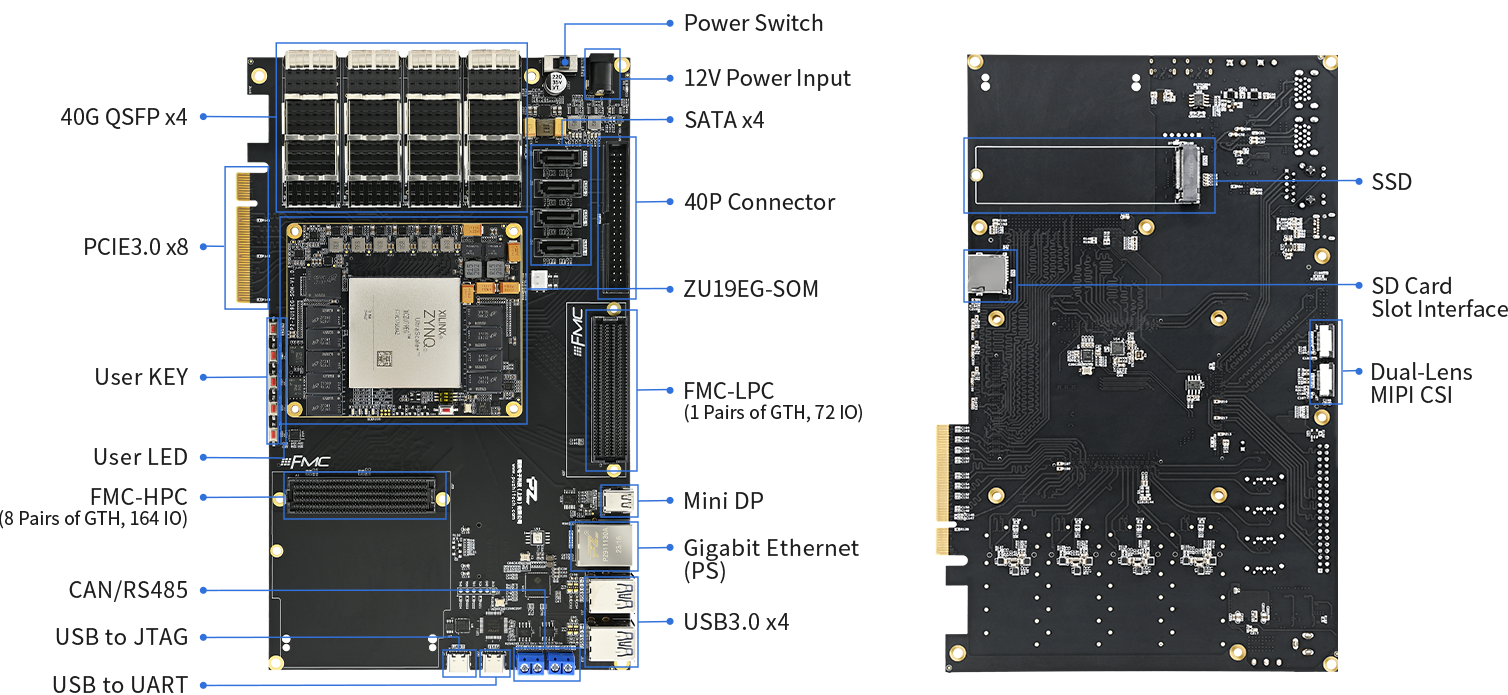

Interface Function Display
Product Parameters

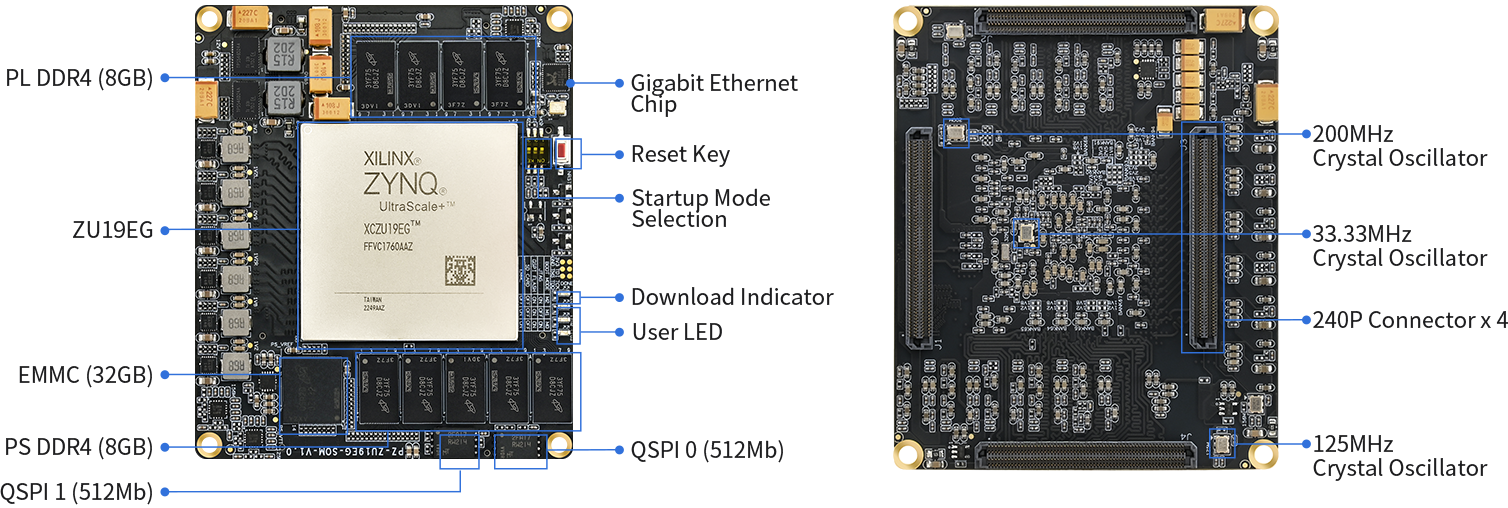

Core Board Main Parameters
FPGA Dev. Board | PZ-ZU19EG-KFB |
FPGA Chip | XCZU19EG-2FFVC1760I |
Processor Core | Quad Core ARM Cortex A53 (1.333Ghz) Dual Core ARM Cortex R5F (533Mhz) |
CPU | MaliTM-400MP2，667Mhz |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 1143K |
Lookup Tables | 1045000 |
Flip-Flops | 523000 |
DSP Slices | 1968 |
BLOCK RAM | 34.6Mb |
DDR4 | PS Side 8GB (with ECC), PL Side 8GB |
QSPI FLASH | 512Mb + 512Mb, Dual FLASH Boot for Faster Boot Up |
EMMC | 32GB, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI/SD/EMMC, Default SD startup |
User LED | 3 |
PS Side GTR | 4 Pairs |
PL Side GTH/GTY | GTH: 32 Pairs (16.3G)/GTY: 16 Pairs (32.75G) |
Number of Expansion IOs | PS Side 38 IOs PL Side 336IOs HP: 240 IOs (1.2/1.8V Adjustable, Default 1.8V) HD: 96IOs (1.8/2.5/3.3V Adjustable, Default 3.3V) |
Crystal Oscillator | 33.3333MHz Single-end Crystal For PS 200MHz Differential Crystal for the PL Two 125MHz and one 156.25 Differential Crystal for the GT Transceiver Reference Clock |
| Core Board Form Factors | 9.45 inch x 5.51 inch (90 mm x 75mm) |
Interfaces and Function
JTAG Downloader | 1 |
UART/RS485/CAN | 1/1/1 |
SD Card Slot Interface | 1 |
PS Side SSD Interface | 1 |
Gigabit Ethernet | PS Side 1 |
Mini DP Output | 1 |
LED/ KEY | 4/4 |
USB3.0 Host | 4 |
SD Card Slot Interface | 1 |
SSD Memory | 1 |
QSFP (40G) Interface | 4 |
SATA Interface | 4 |
MIPI Interface | 2 |
PICE3.0 | x8 |
FMC Interface | FMC HPC (8 Pairs of GTH, 164 IOs） FMC LPC (1 Pairs of GTH, 72 IOs) |
Voltage / Current | 12V/3A |
Board Form Factors | 9.45 inch x 5.51 inch (240 mm x 140mm) |
Technology | Black Matte, lmmersion Gold Process |
40Pin Expansion Port | 32 Single-ended Signals / 16 Differential Pairs Reserve 40-pin 0.1 inch Expansion Ports，to Connect Puzhi Modules (AD/DA, Camera, LCD)，Expansion Port including 5V power supply，3.3V power supply, 6 Ground, 32 IOs |

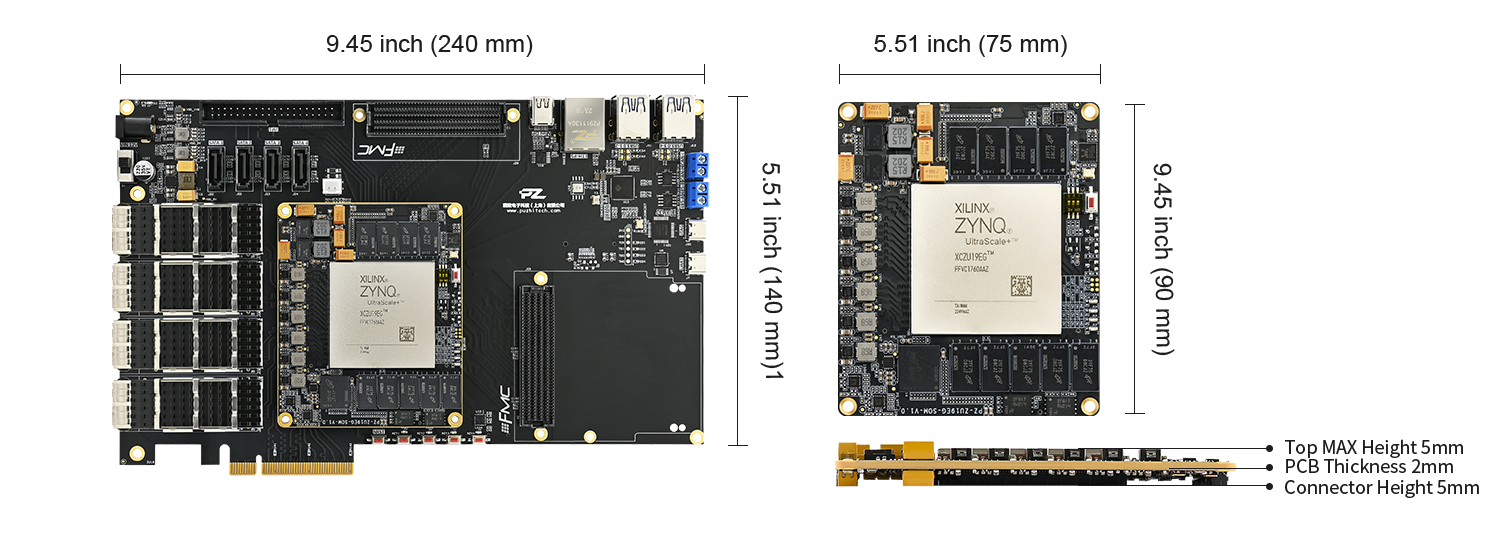

Product Dimensions
Product Packages

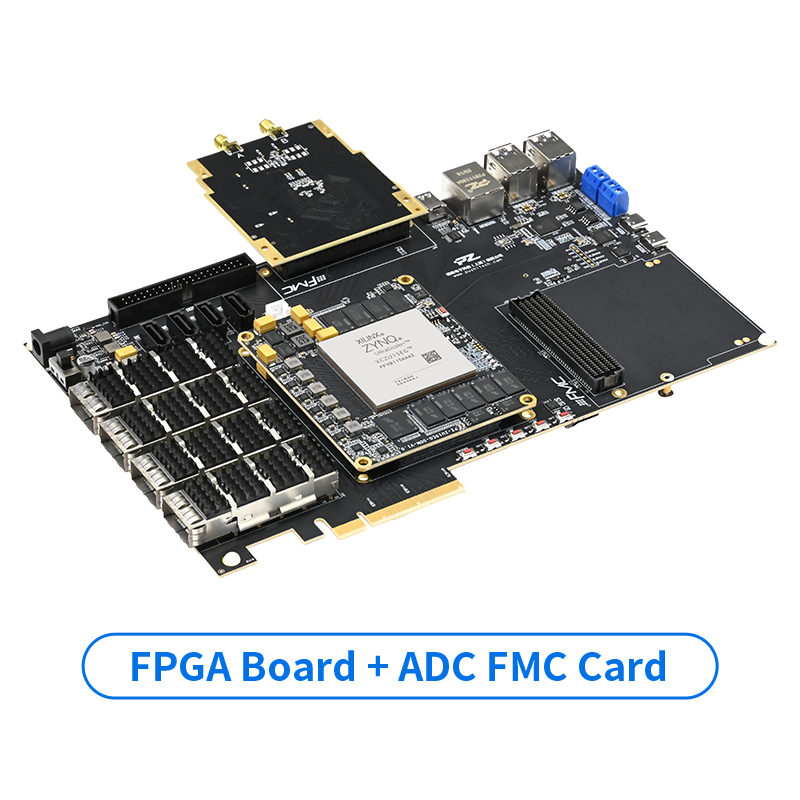

FMC Subcard Display
Other Subcard Display
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
- 1
FPGA Logic Demos
- 01.
Vivado Installation
- 02.
FLASH Curing
- 03.
LED Flashing
- 04.
LED PWM Control
- 05.
Key Debouncing Demos
- 06.
FPGA on-chip RAM Read and Write
- 07.
FPGA on-chip ROM Read and Write
- 08.
FPGA on-chip PLL Configuration
- 09.
FPGA on-chip FIFO Read and Write
- 10.
FPGA side DDR4 Control Read and Write
- 11.
I2C Read and Write E2PROM
- 12.
LCD Picture Display
- 13.
AD-AD7606 8-channel Acquisition Voltage
- 14.
DA 8-channel Output Sine Wave, Triangle Wave Square Wave
- 15.
SFP Bit Error Rate Test
- 16.
High Speed ADC-AD9643 Acquisition (250MSPS)
- 01.
- 2
SDK Demos
- 01.
UART Serial Port Communication
- 02.
TTC Timer Interrupt Experiment
- 03.
PS Side EMIO Control LED Flashing
- 04.
EMIO Key Control LED
- 05.
DP Interface Display Demos
- 06.
Custom IP
- 07.
RS485 Communication
- 08.
CAN Bus Communication
- 09.
I2C Communication
- 10.
Gigabit Ethernet (NET0 MIO) Application
- 11.
Gigabit Ethernet UDP Remote Upgrade
- 12.
PS Side DDR4 Read and Write
- 13.
PS Side EMMC Read and Write
- 14.
AXI-DMA Read and Write
- 15.
SD Card Read and Write
- 16.
ADC Acquisition Gigabit Ethernet Transmission
- 17.
LCD Image Display
- 18.
AD7606 and DA128S085 Synthesised Demos
- 19.
DP Display of Binocular Camera Images
- 20.
SD Card Picture DP Output Display
- 21.
PCIE Demos
- 22.
Binocular MIPI-OV5640 Camera Output with DP Display
- 01.
- 3
PetaLinux Parts
- 01.
Introduction to Virtual Machine and Ubuntu System
- 02.
Petalinux Tool Installation
- 03.
SD Card to Start the Linux System
- 04.
GPIO Control LED
- 05.
QSPI Curing and Startup
- 06.
EMMC Curing and Booting
- 07.
NVME SSD Read/Write
- 08.
Linux Common Commands
- 01.
- 4
FMC Topics(FMC daughter board is required)
- 01.
USB3.0 (PZ-FL3014)
- 02.
High Speed ADC (PZ-FL9643S)
- 03.
High Speed ADC/DAC (PZ-FL4322)
- 04.
Multi-Channel High-Speed ADC (PZ-FL9643D)
- 05.
Multi-Channel Chinese High-Speed ADC (PZ-FL2514D)
- 06.
Ultra High Speed ADC/DAC (PZ-FH8052)
- 07.
Medium-Speed ADC/DAC (PZ-FL3867)
- 08.
Multi-Channel Medium Speed DAC (PZ-FL9767D)
- 09.
Quad 100Gb Ethernet (PZ-FL8710F)
- 10.
Quad 1000Gb Ethernet (PZ-FL8211F)
- 11.
Software Defined Radio (PZ-FL9631/ PZ-FL9371/ FH9009/ FH9026 )
- 01.
- 5
PCIE Topics
- 01.
PCIE Read/Write Speed Test
- 02.
PCIE's Access to DDR
- 03.
PCIE Control GPIO
- 04.
PCIE Monocular OV5640 Image Experiment
- 05.
PCIE High-speed ADC Acquisition Experiment
- 01.
- 6
Supports PYNQ

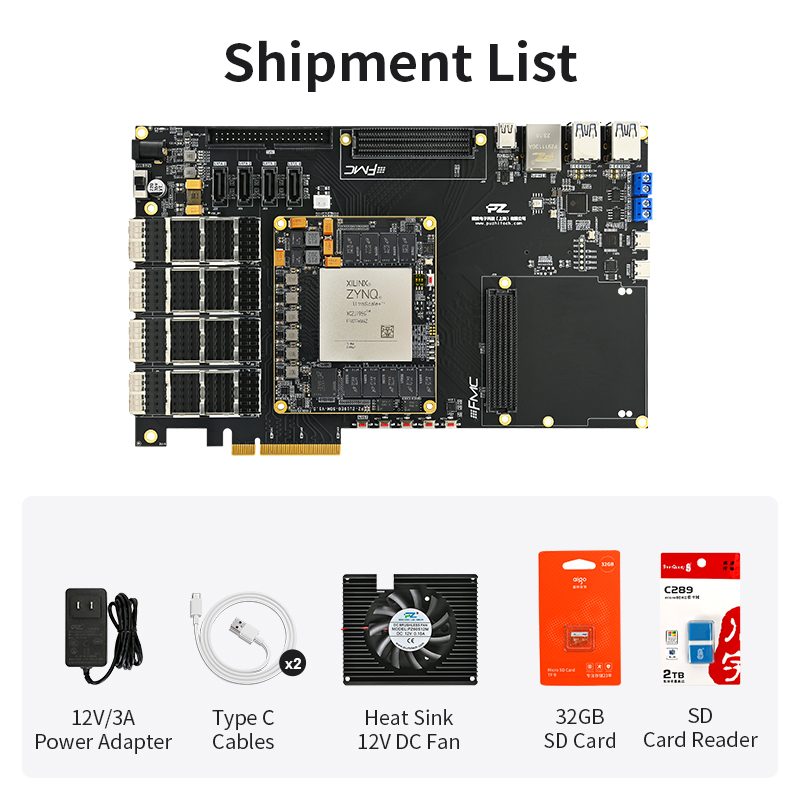

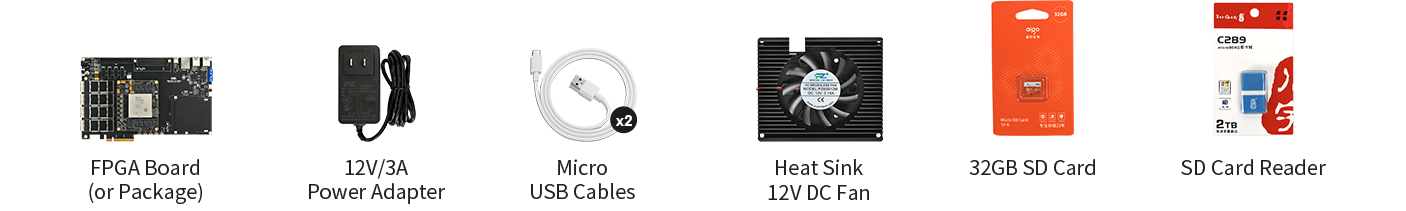

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
