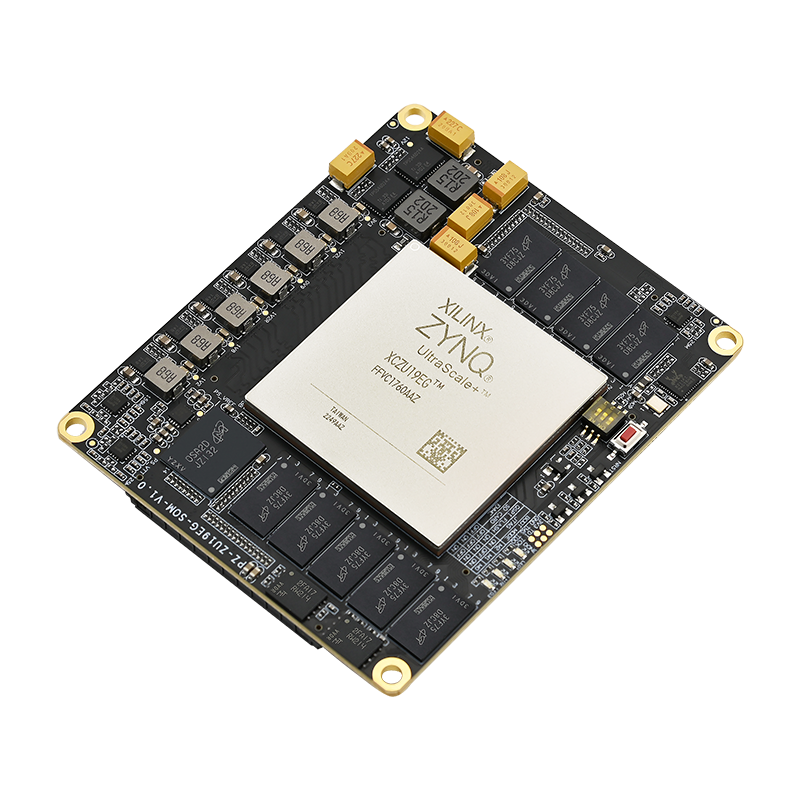

Puzhi FPGA ZYNQ UltraScale+ ZU19EG Core Board
- ZYNQ UltraScale+ core board，4 x Cortex-A53，main frequency 1.333Ghz
- PS Side 8GB、PL Side 8GB DDR4，32GB EMMC，512Mb+512Mb QSPIFLASH
- Size 90*75mm，up to 374 IO available
- Extreme material selection and process standards，industrial grade -40℃~+85℃
- Support PYNQ，provide hardware reference & rich routines，help product development

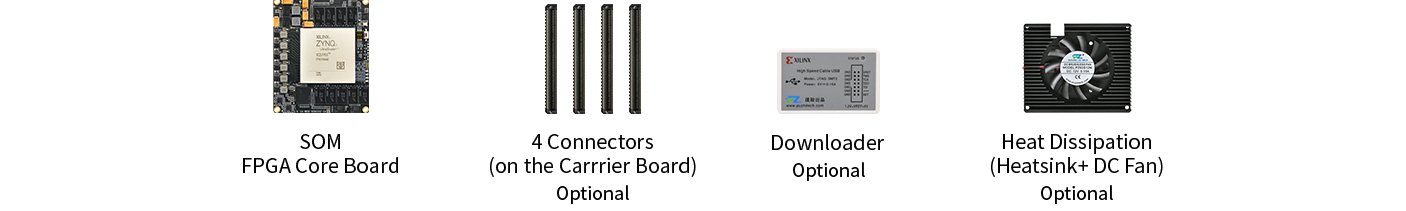

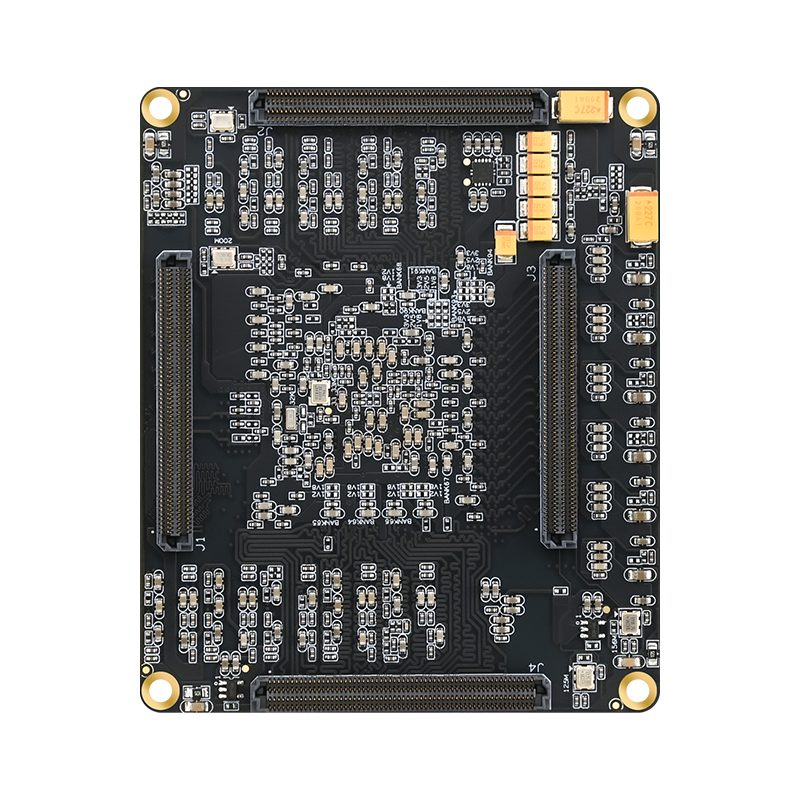

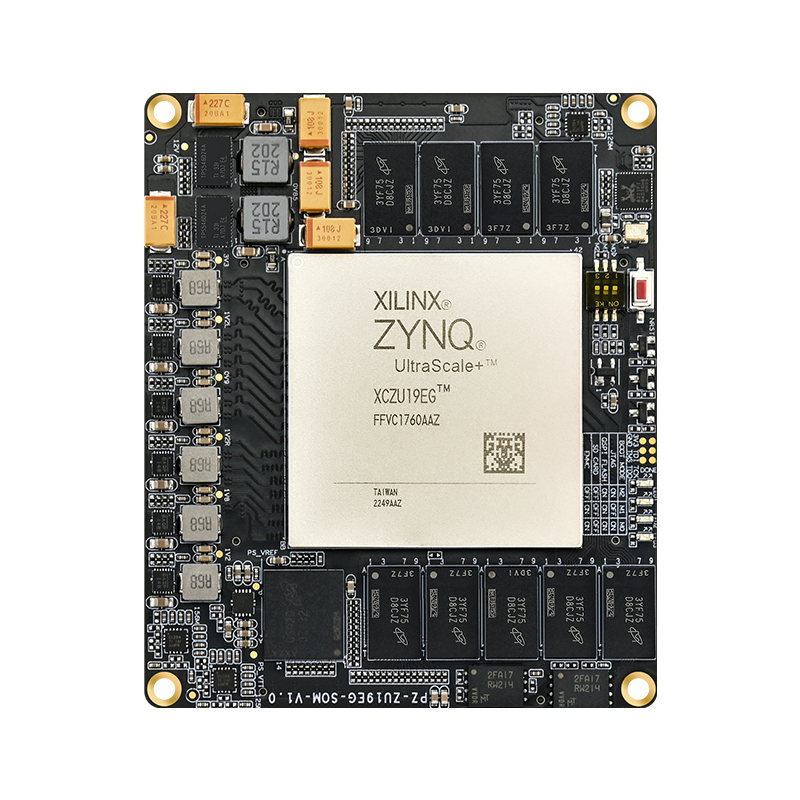

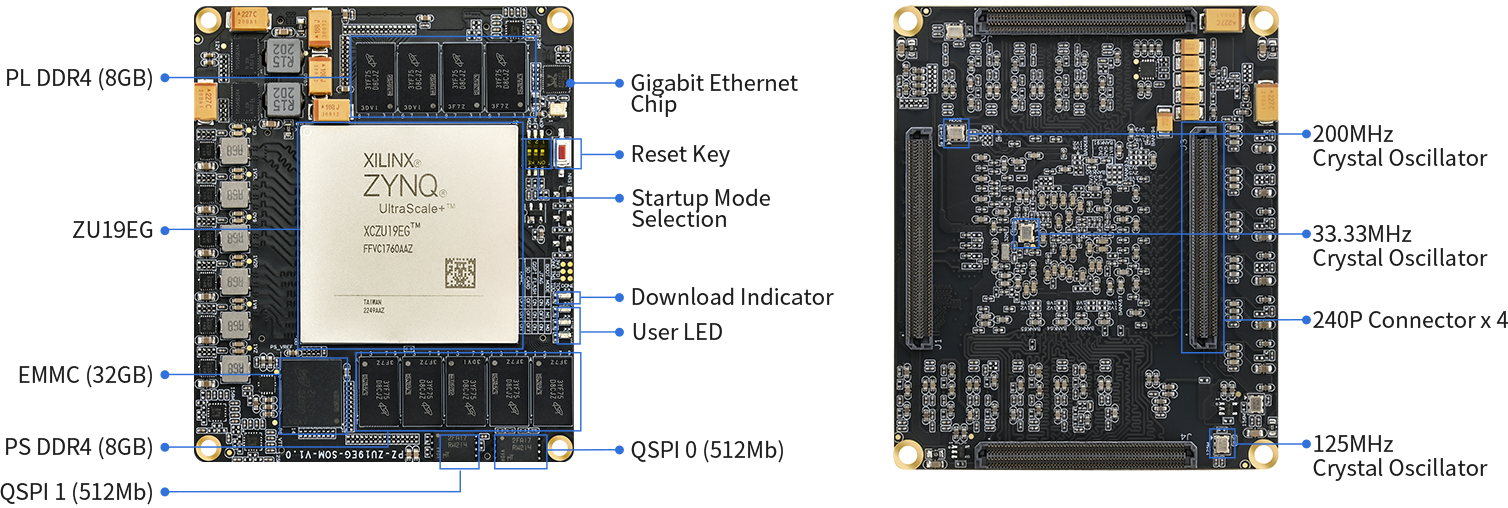

Interface Function Display
Product Parameters
Specification
FPGA Core Board | PZ-ZU19EG-SOM |
FPGA Chip | XCZU19EG-2FFVC1760I |
Processor Core | Quad Core ARM Cortex-A53 (1.333Ghz) Dual Core ARM Cortex-R5F (533Mhz) |
CPU | MaliTM-400MP2，667Mhz |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 1143K |
Flip-Flops | 1045000 |
Lookup Tables (LUTs） | 523000 |
DSP Slices | 1968 |
BLOCK RAM | 34.6Mb |
DDR4 | PS Side 8GB (with ECC), PL Side 8GB |
QSPI FLASH | 512Mb + 512Mb, Dual FLASH Boot for Faster Boot Up |
EMMC | 32GB |
Start-up Mode | JTAG/QSPI/SD/EMMC, Default SD Startup |
Gigabit Ethernet Chip | 1 |
User LED | 3 |
PS Side GTR | 4 Pairs |
PL Side GTH/ GTY | GTH: 32 Pairs (16.3G)/GTY: 16 Pairs (32.75G) |
Voltage/ Current | 8-12V/5A |
Number of IO | PS Side 38 IOs HP: 240 IOs (1.2/1.8V Adjustable, Default 1.8V) HD: 96 IOs (1.8/2.5/3.3V Adjustable, Default 3.3V) |
Crystal Oscillator | 33.3333MHz Single-end Crystal For PS 200MHz Differential Crystal for the PL Two 125MHz and One 156.25 Differential Crystal for the GT Transceiver Reference Clock |
Technology | Black Matte. Immersion Gold Process |
Core Board Form Factors | 9.45 inch x 5.51 inch (90 mm x 75mm) |

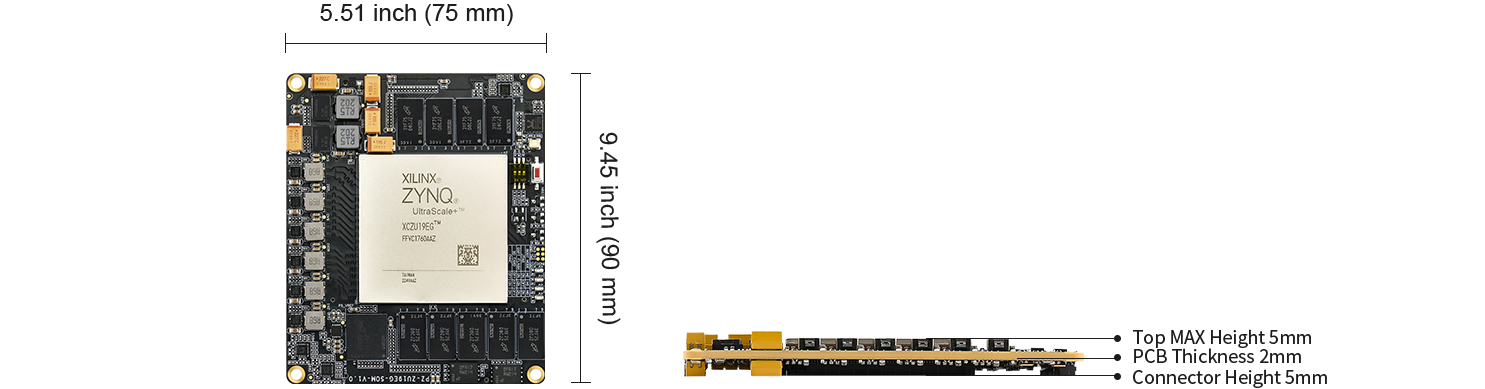

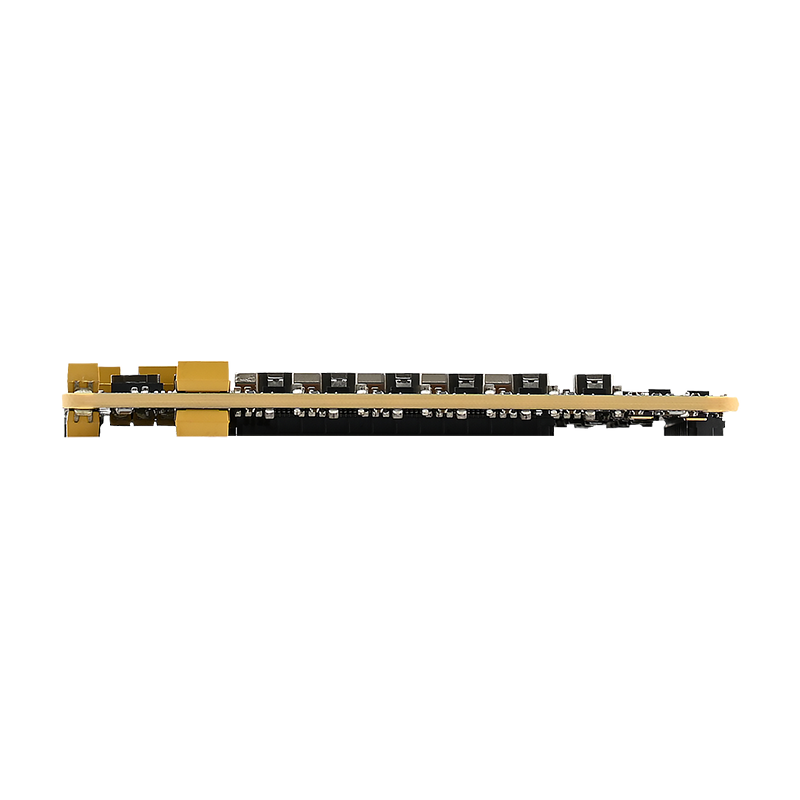

Product Dimensions
