Puzhi FPGA Fudan Micro JFM7 K7325TF-FH Development Board

PZ-K7325TF-FH-KFB
  • Fudan micro development board / logical unit 326k / Slices 50950
  • 2GB DDR3,256Mb QSPIFLASH,Power supply/current 12V/3A
  • Core board 120P connector connection,size 83.8*64.8mm
  • Reserved ports Gigabit Ethernet、FMC、HDMI、PCIE、SFP,etc
  • Provide perfect hardware reference & software rich routines,help product development

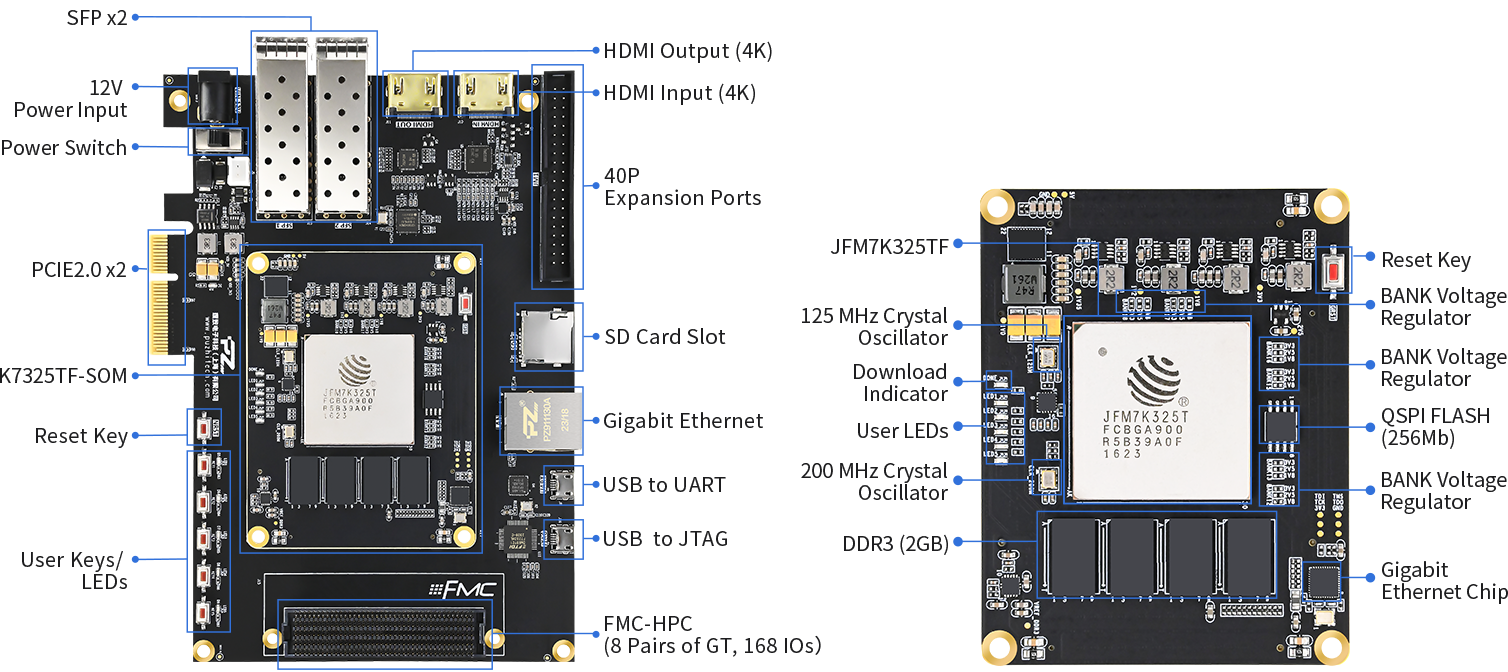

Interface Function Display


Product Parameters

Core Board Main Parameters

FPGA Dev. Board
PZ-K7325TF-FH-KFB
FPGA Chip

JFM7K325T

Speed Grade
2
Chip Level
Industrial Grade(-40°C~+85°C)
Logic Cells
326K
Slices
50950
Flip-Flops
407600
DSP Slices
840
TOTAL BLOCK RAM
16020
DDR3
2GB/64bit Width
QSPI FLASH
256Mb, to Store Startup Files and User Files
Start-up Mode
JTAG/QSPI, The Default Boot Mode is QSPI
User LEDs
5
Number of GTX
16 Pais of TX/RX
Number of IO

288 Single-ended/ 144 Differential Pairs(1.8V/2.5V/3.3V adjustable, 3.3V default)

Crystal Oscillator

200MHz Differential Crystal  for FPGA

125MHz Differential Crystal for the GT Transceiver Reference Clock

Core Board

Form Factors

3.30 inch x 2.55 inch (83.8mm x 64.8mm)

Interfaces and Function

JTAG Downloader
1
UART
1
SD Card Slot Interface
1
Gigabit Ethernet
1
HDMI
1 Input, 1 Output
LED, Key
5 LEDs, 5Keys
SFP Interface
2
PICE2.0
x2
FMC Interface
FMC HPC (8 Pairs of GT, 168 IOs)
Voltage / Current
12V/3A

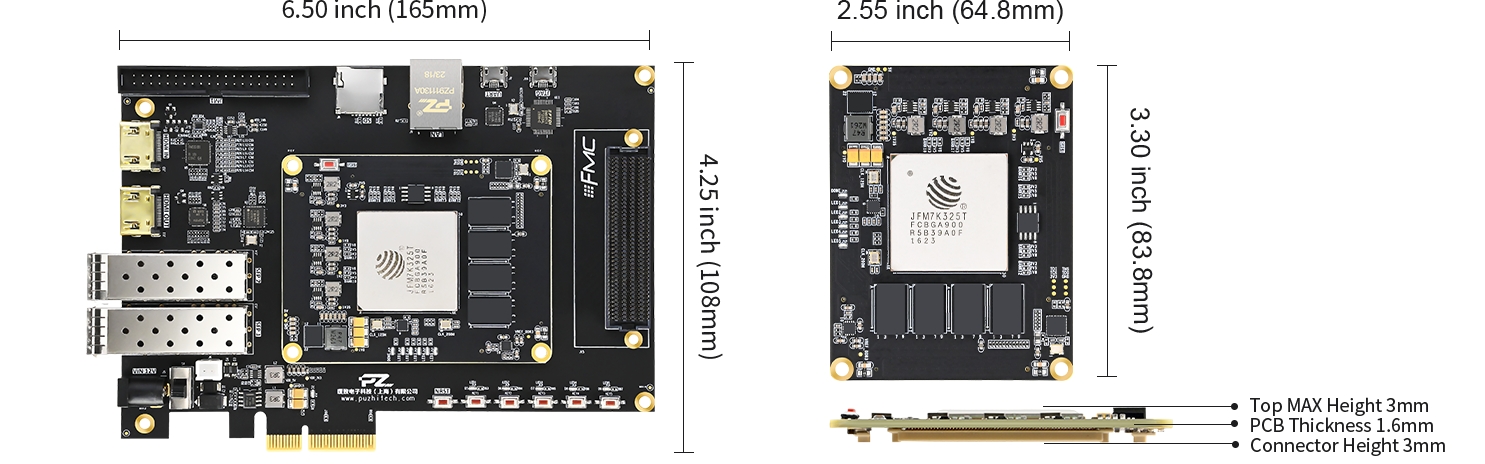

Board Form Factors
6.50 inch x 4.25 inch (165mm x 108mm)
Technology
Black Matte. Immersion Gold Process

40Pin

Expansion Port

32 Single-ended/16 Differential Pairs

Reserve one 40-pin 0.1 inch Expansion Port,to Connect  Puzhi Modules (AD/DA, Camera, LCD)
Expansion Port including 5V power supply,3.3V power supply, 6 Ground, 32 IOs

Product Dimensions


Demos Come with the Board

Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

 Demos Constantly Being Updated... ...

  • 1

    FPGA Logic Demos

    • 01.

      LED Flashing

    • 02.

      LED PWM Control

    • 03.

      Key and key Elimination Jitter

    • 04.

      FPGA on-chip RAM Read and Write

    • 05.

      FPGA on-chip ROM Read and Write

    • 06.

      FPGA on-chip PLL Configuration

    • 07.

      FPGA on-chip FIFO Read and Write

    • 08.

      FPGA side DDR3 Control Read and Write

    • 09.

      I2C Read and Write E2PROM

    • 10.

      Uart Transceiver

    • 11.

      SD Card Read and Write

    • 12.

      AD-DA Conversion (200KSPS)

    • 13.

      LCD Color Bar Display

    • 14.

      LCD Output Image Display

    • 15.

      SD Card Reads BMP Picture LCD Display

    • 16.

      Gigabit UDP Based on RTL8211

    • 17.

      Binocular OV5640 Camera Demos

    • 18.

      SFP of IBERT for GTP Signal Eye Diagram Demos

    • 19.

      PCIE Speed Test

    • 20.

      Aurora Communication

    • 21.

      High Speed ADC-AD9643 Acquisition (250MSPS)

    • 22.

      UDP Transmission High Speed ADC Data Collection

    • 23.

      USB3.0 FIFO Transfer (will Update)

  • 2

    Microblaze Parts

    • 01.

      Microblaze LED

    • 02.

      Microblaze Uart

    • 03.

      Microblaze GPIO Interrupt

    • 04.

      Microblaze Timer Interrupt

    • 05.

      Microblaze DMA LOOP

    • 06.

      Microblaze XADC

    • 07.

      Microblaze Lwip TCP loop

    • 08.

      HDMI (4K) Input/Output Loopback Demos

  • 3

    FMC Topics(FMC daughter board is required)

    • 01.

      USB3.0 (PZ-FL3014)

    • 02.

      High Speed ADC (PZ-FL9643S)

    • 03.

      High Speed ADC/DAC (PZ-FL4322)

    • 04.

      Multi-Channel High-Speed ADC (PZ-FL9643D)

    • 05.

      Multi-Channel Domestic High-Speed ADC (PZ-FL2514D)

    • 06.

      Ultra High Speed ADC/DAC (PZ-FH8052)

    • 07.

      Medium-Speed ADC/DAC (PZ-FL3867)

    • 08.

      Multi-Channel Medium Speed DAC (PZ-FL9767D)

    • 09.

      Quad 100Gb Ethernet (PZ-FL8710F)

    • 10.

      Quad 1000Gb Ethernet (PZ-FL8211F)

    • 11.

       Software Defined Radio (PZ-FL9631/ PZ-FL9371/ FH9009/ FH9026 )

  • 4

    PCIE Topics

    • 01.

      QT Environment Setup

    • 02.

      PCIE GPIO Control

    • 03.

      PCIE DDR Cache Interrupt

    • 04.

      PCIE HDMI Output Experiment

    • 05.

      PCIE Monocular OV5640 Image Experiment

    • 06.

      PCIE High-speed ADC Acquisition Experiment

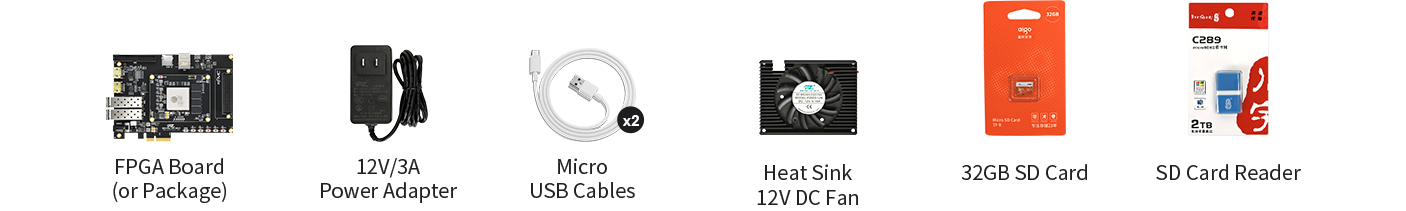

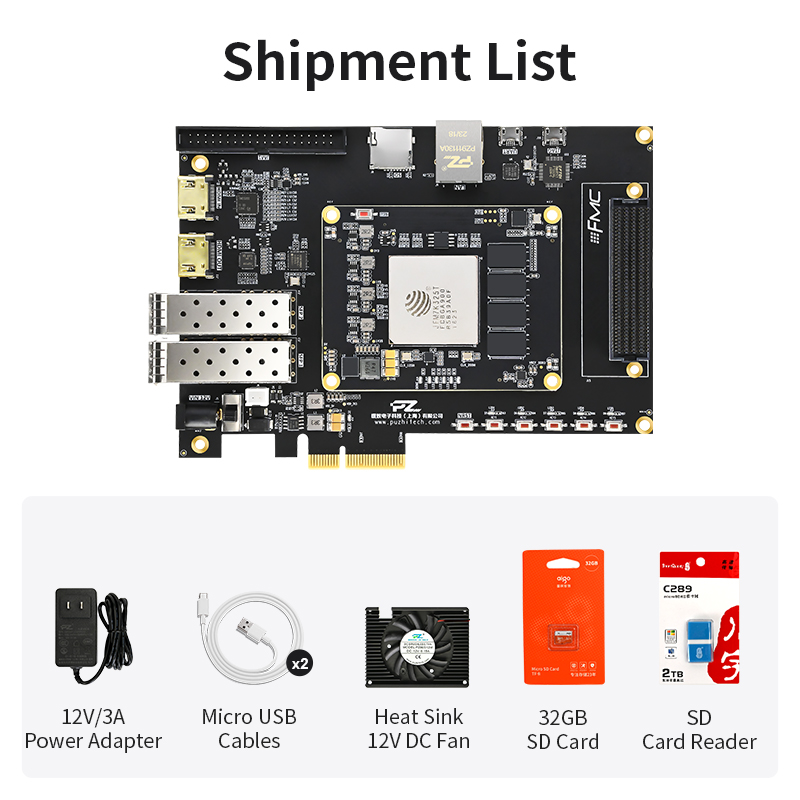

Standard Delivery List



  • Commerical Invoice

    • 1.

      Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.

    • 2.

      Please Contact with Customer Service and leave your Company Name, Address and Tax Code.

  • After-sale Service

    • 1.

      The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products

    • 2.

      Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.

    • 3.

      Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com

    • 4.

      The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.

  • Shipment

    • 1.

      DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available

    • 2.

      Working Time: Monday to Friday, 9am to 6pm CsT.
