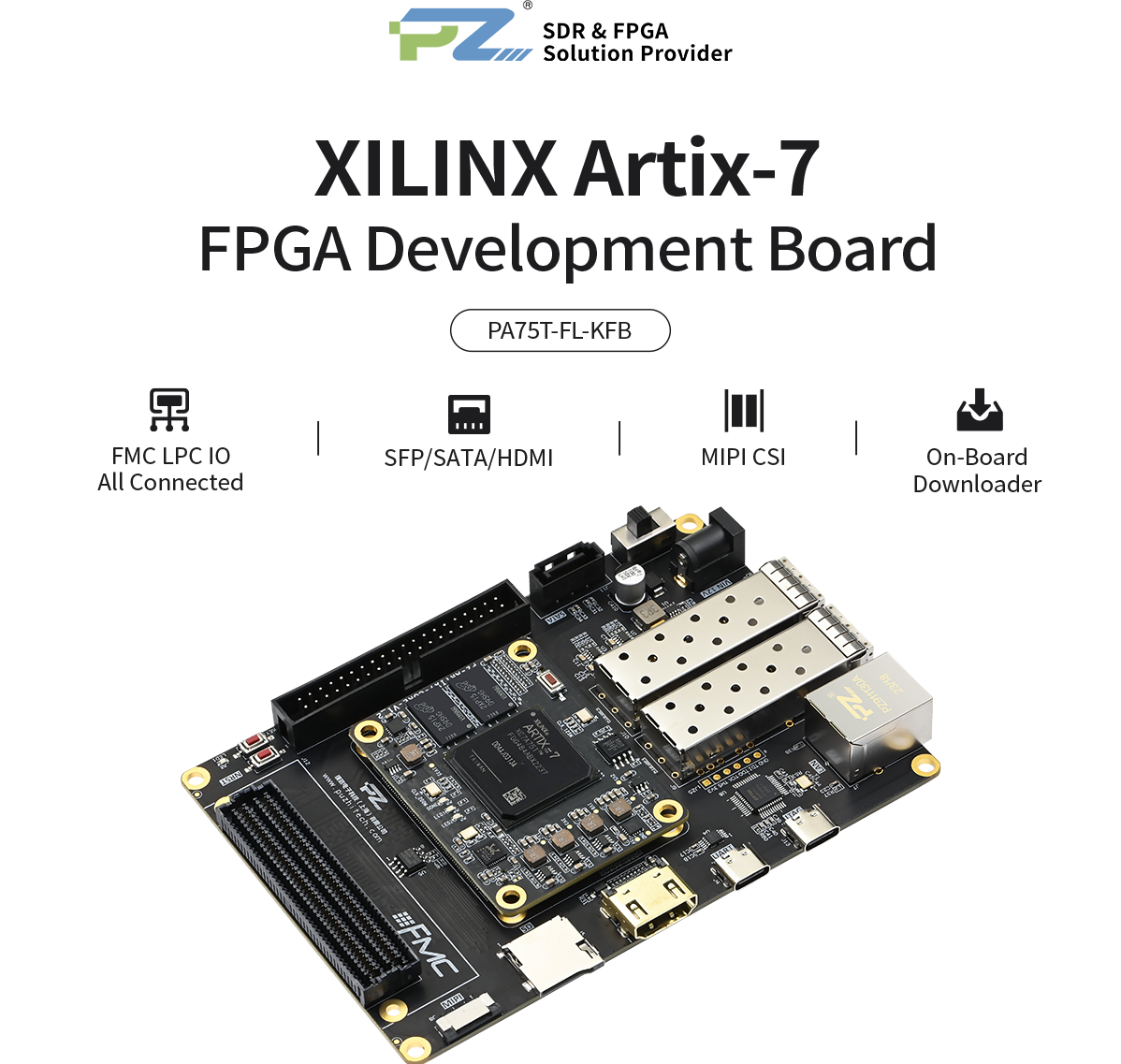

Puzhi FPGA Artix-7 PA75T-FL Development Board
- Artix-7 FPGA architecture/logical unit 75520/ Slices 11800
- 1GB DDR3，256Mb QSPIFLASH，Power supply/current 12V/1A
- Core board 120P connector connection，size 60*45mm
- Reserved ports Gigabit Ethernet、SATA、HDMI、FMC、MIPI、SFP，etc
- Provide perfect hardware reference & software rich routines，help product development

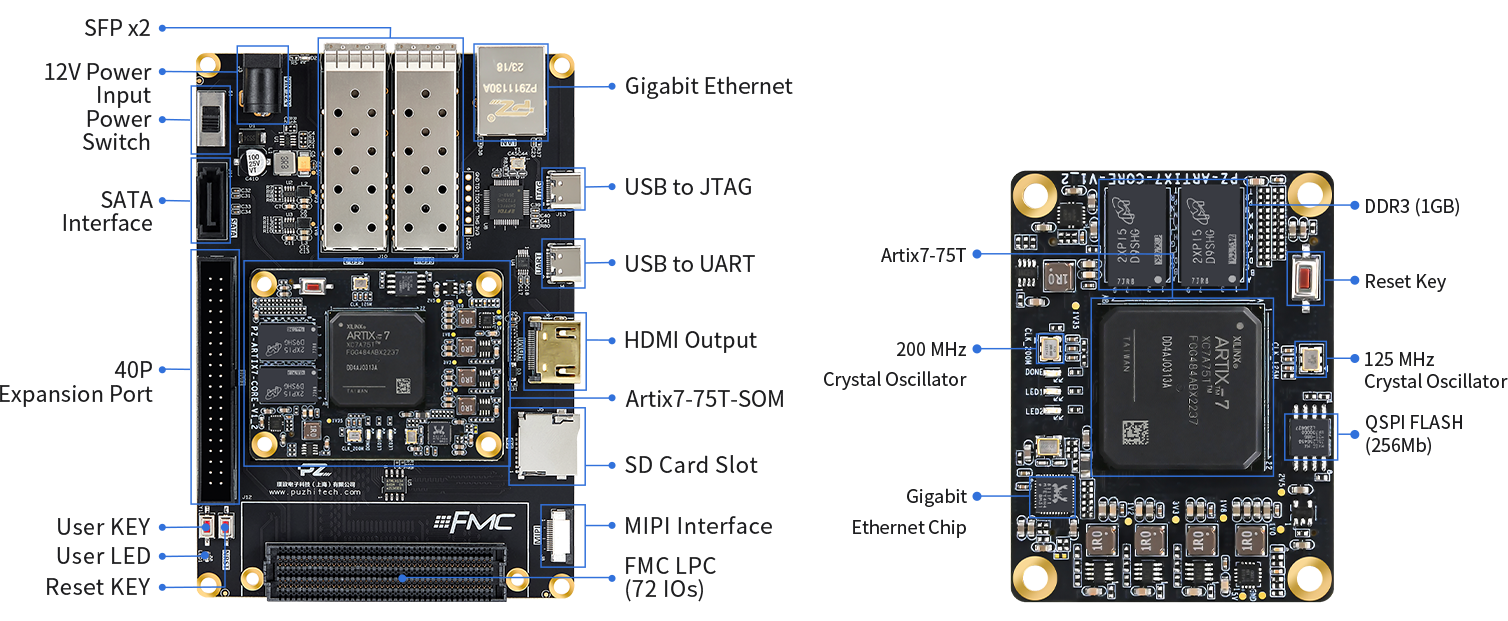

Interface Function Display
Product Parameters
Core Board Main Parameters
FPGA Dev. Board | PZ-A775T-FL-KFB |
FPGA Chip | XC7A75T-2FGG484I |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 75K |
Slices | 11800 |
BLOCK RAM | 3780 |
DSP Slices | 180 |
DDR3 | 1GB |
QSPI FLASH | 256Mb |
Start-up Mode | JTAG/QSPI, The Default Boot Mode is QSPI |
User LED | 2 |
Reset KEY | 1 |
Number of GTP | 4 Pairs of TX/RX |
INumber of IO | 172 IOs |
Crystal Oscillator | 200MHz Differential Crystal for FPGA 125MHz Differential Crystal for the GT Transceiver Reference Clock |
Core Board Form Factors | 2.36 inch x 1.77 inch (60mm x 45mm) |
Interfaces and Function
JTAG Downloader | 1 |
UART | 1 |
SD Card Slot Interface | 1 |
Gigabit Ethernet | 2 |
HDMI | 1 HDMI Output/Input, 1 HDMI Output |
MIPI CSI | 1（2lane) |
LED, KEY | 5 LEDs, 5 KEYs |
Voltage / Current | 12V/1A |
Board Form Factors | 5.12 inch x 3.54 inch (130 mm x 90mm) |
Technology | Black Matte. Immersion Gold Process |
Two 40Pin Expansion Port | 32 Single-ended/16 Differential Pairs Reserve one 40-pin 0.1 inch Expansion Port，to Connect Puzhi Modules (AD/DA, Camera, LCD)，Expansion Port including 5V power supply，3.3V power supply, 6 Ground, 32 IOs |

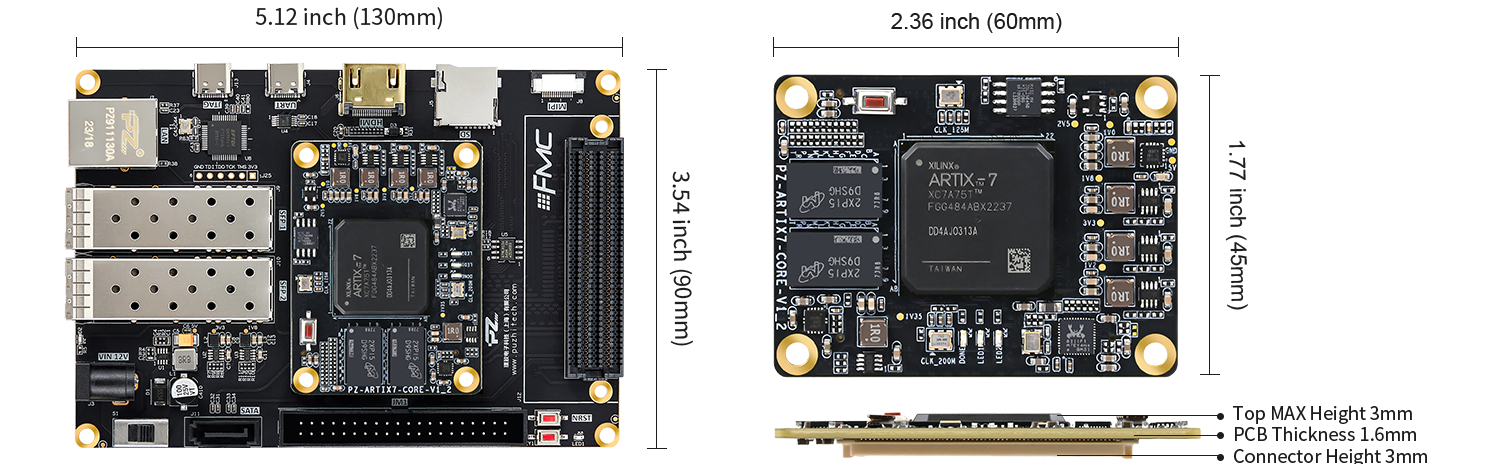

Product Dimensions
Product Packages

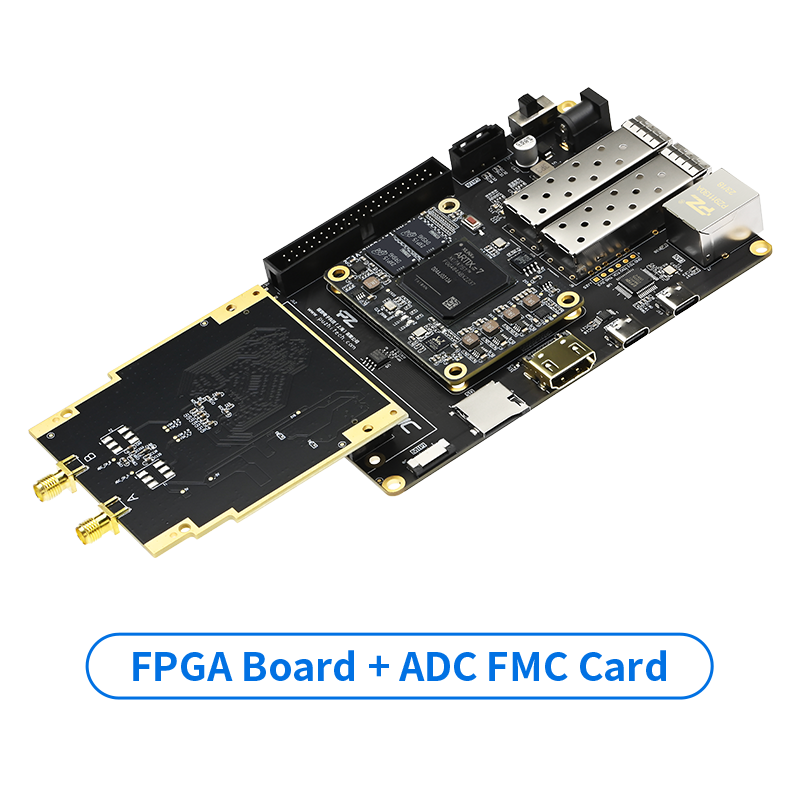

FMC Subcard Display

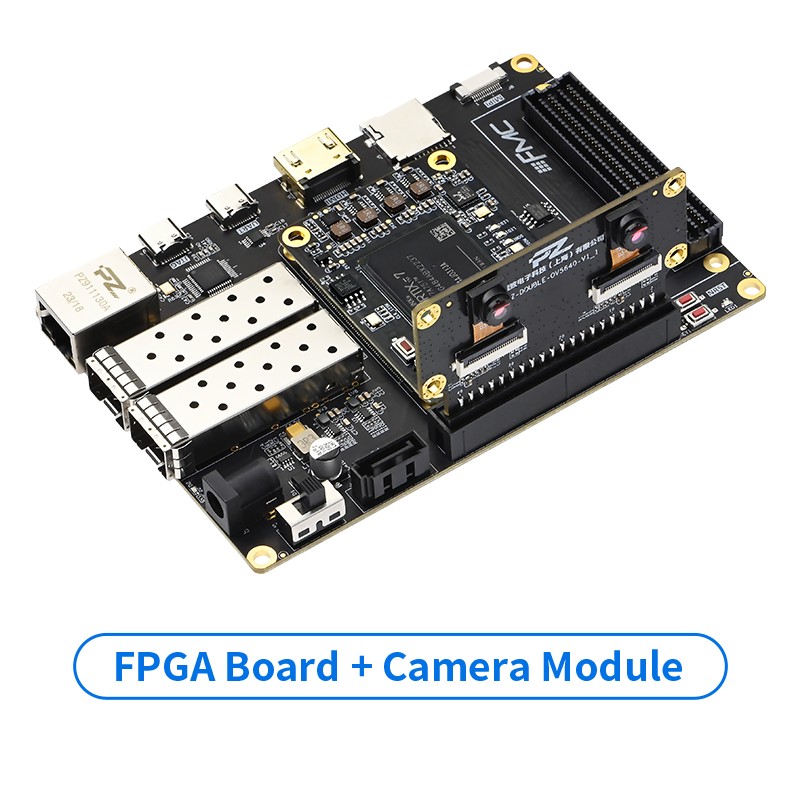

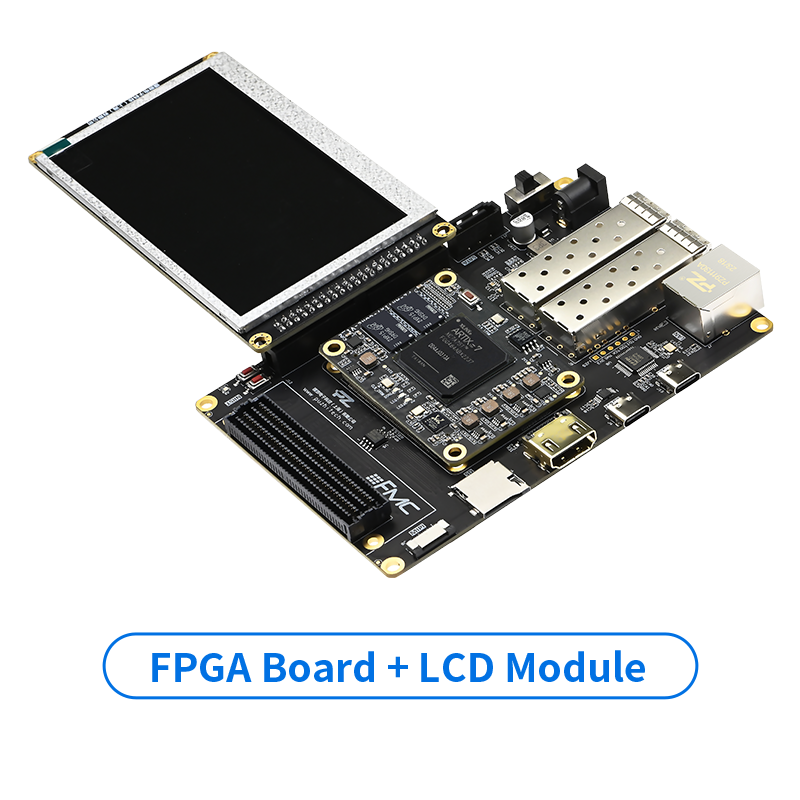

Other Subcard Display
Supporting Display
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
- 1
FPGA Logic Demos
- 01.
Vivado Installation
- 02.
FLASH Curing
- 03.
LED Flashing
- 04.
LED PWM Control
- 05.
Key Demos
- 06.
FPGA on-chip RAM Read and Write
- 07.
FPGA on-chip ROM Read and Write
- 08.
FPGA on-chip PLL Configuration
- 09.
FPGA on-chip FIFO Read and Write
- 10.
FPGA side DDR3 Control Read and Write
- 11.
I2C Read and Write E2PROM
- 12.
Uart Transceiver
- 13.
SD Card Read and Write
- 14.
HDMI Output Testing Picture
- 15.
HDMI Output Picture
- 16.
SD Card Reads BMP Picture HDMI Display
- 17.

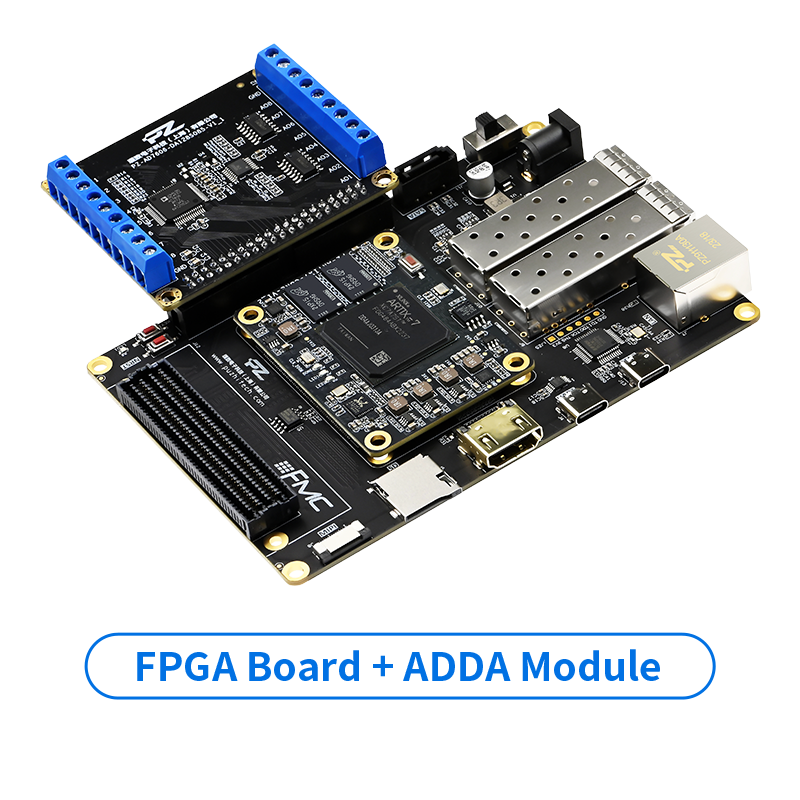

AD-DA Conversion (200KSPS)
- 18.
LCD Colour Bar Display
- 19.
LCD Output Picture
- 20.
SD Card Reads BMP Picture LCD Display
- 21.
Binocular Camera Output with HDMI Display
- 22.
Gigabit UDP Based on RTL8211
- 23.
SFP Bit Error Ratio Demos
- 24.
Aurora Communication
- 01.
- 2
Microblaze Parts
- 01.
Microblaze LED
- 02.
Microblaze Uart
- 03.
Microblaze GPIO Interrupt
- 04.
Microblaze Timer Interrupt
- 05.
Microblaze DMA LOOP
- 06.
Microblaze XADC
- 07.
Microblaze Lwip TCP loop
- 08.

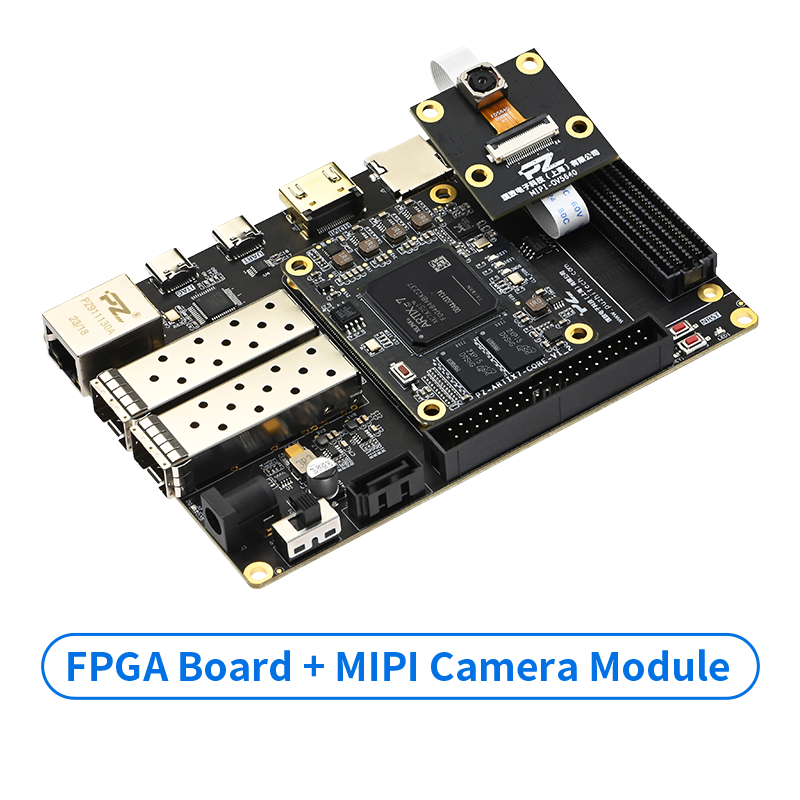

MIPI Camera HDMI Display
- 01.
- 3
FMC Topics(FMC daughter board is required)
- 01.
USB3.0 (PZ-FL3014)
- 02.
High Speed ADC (PZ-FL9643S)
- 03.
High Speed ADC/DAC (PZ-FL4322)
- 04.
Multi-Channel High-Speed ADC (PZ-FL9643D)
- 05.
Multi-Channel Domestic High-Speed ADC (PZ-FL2514D)
- 06.
Medium-Speed ADC/DAC (PZ-FL3867)
- 07.
Multi-Channel Medium Speed DAC (PZ-FL9767D)
- 08.
Quad 100Gb Ethernet (PZ-FL8710F)
- 09.
Quad 1000Gb Ethernet (PZ-FL8211F)
- 01.

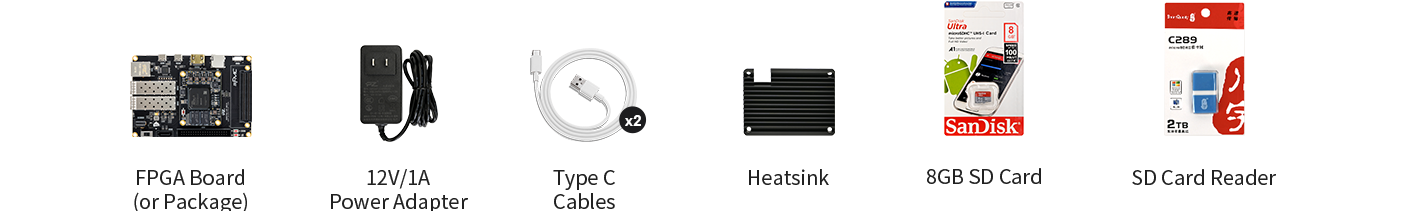

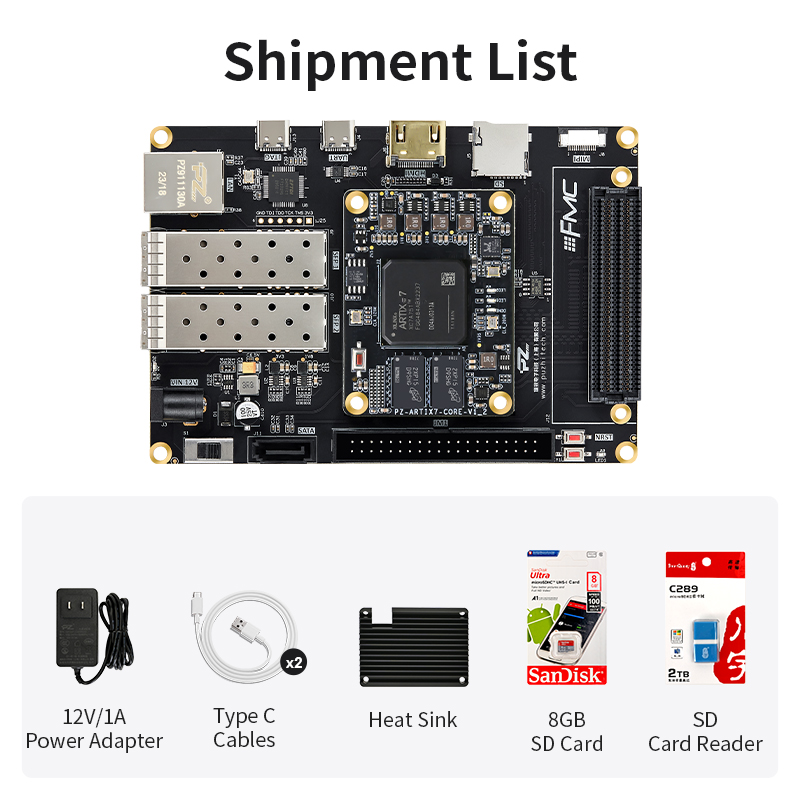

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.

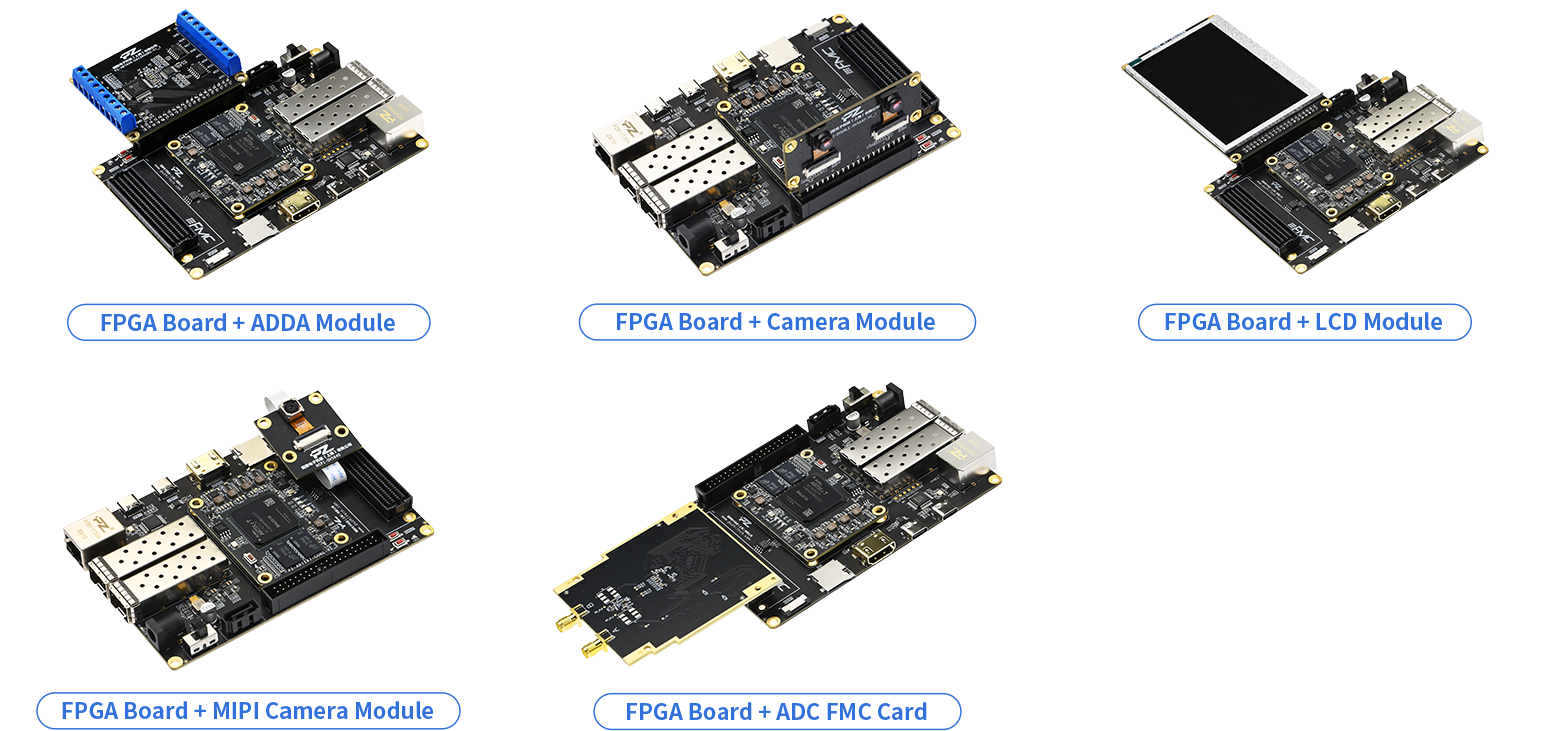

Solution Display
