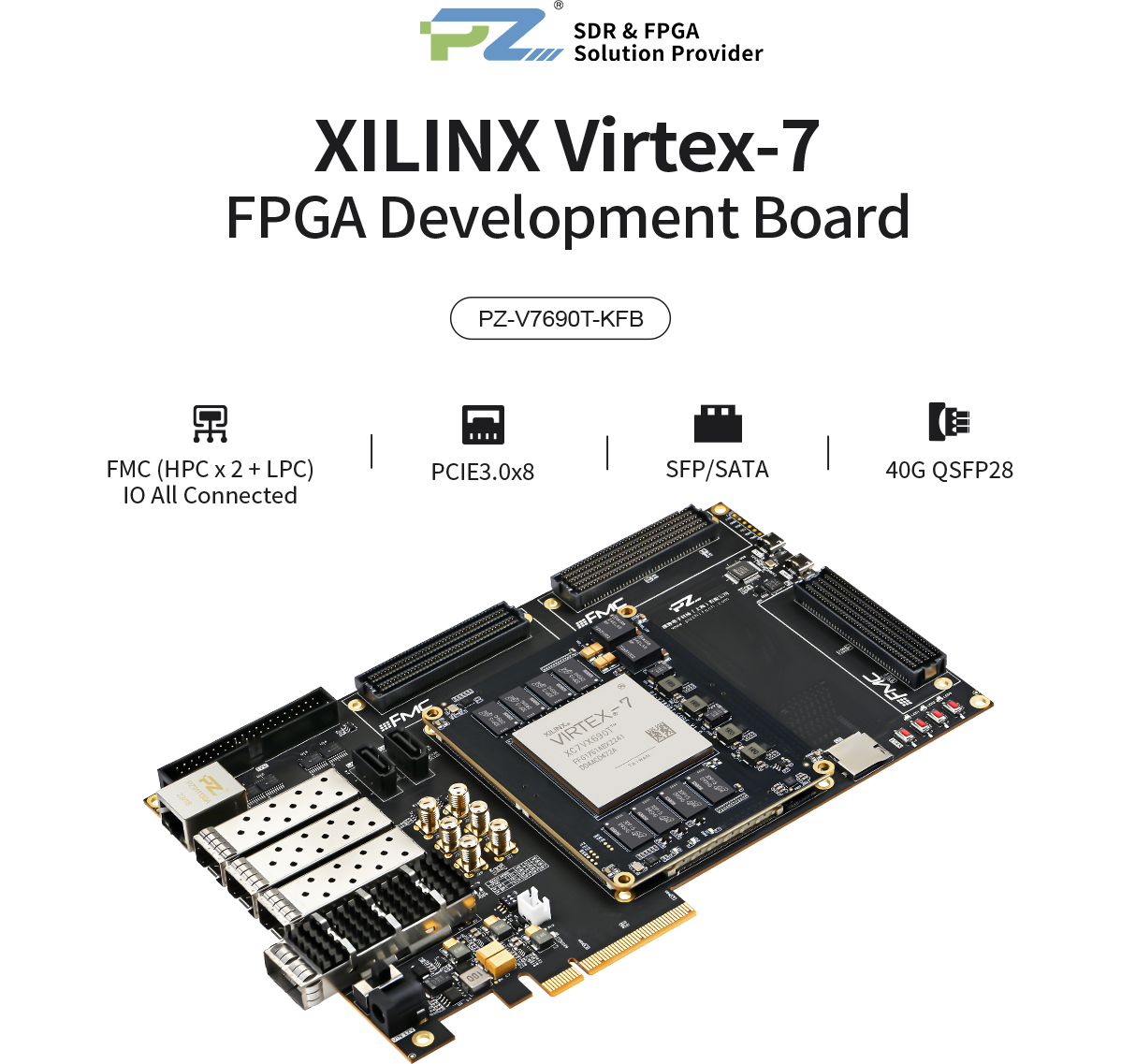

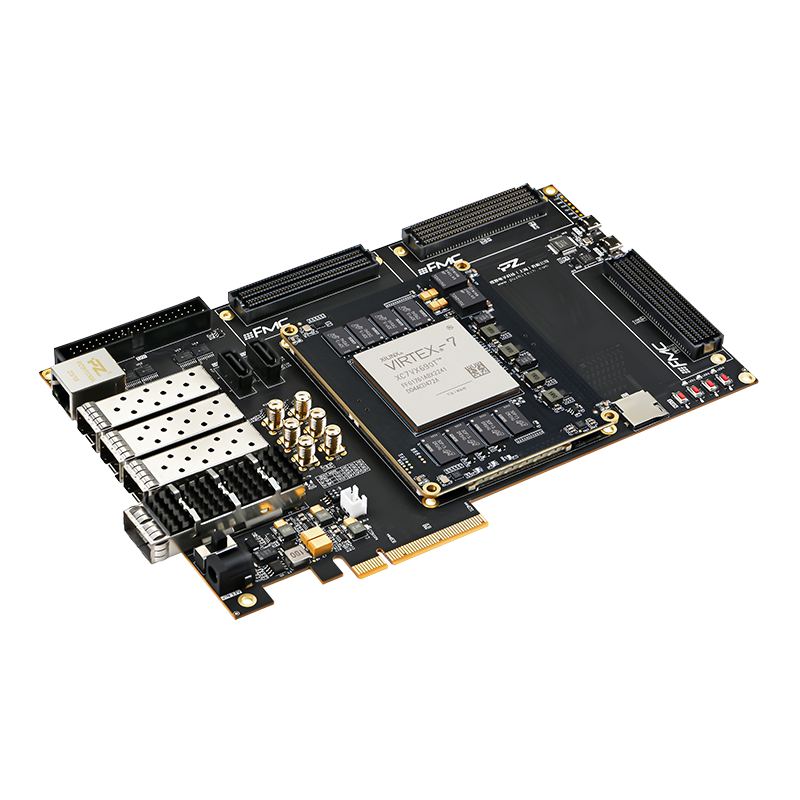

Puzhi FPGA Virtex-7 V7690T Development Board

PZ-V7690T-KFB
  • Virtex-7 FPGA architecture/logical unit 693k/ Slices 108300
  • 2GB+2GB DDR3,Up to 528 IO available,Power supply/current 12V/3A
  • Core board 144P connector connection,size 100*80mm
  • Reserved ports Gigabit Ethernet、SATA、SFP、PCIE、FMCx3、QSFP,etc
  • Provide perfect hardware reference & software rich routines,help product development

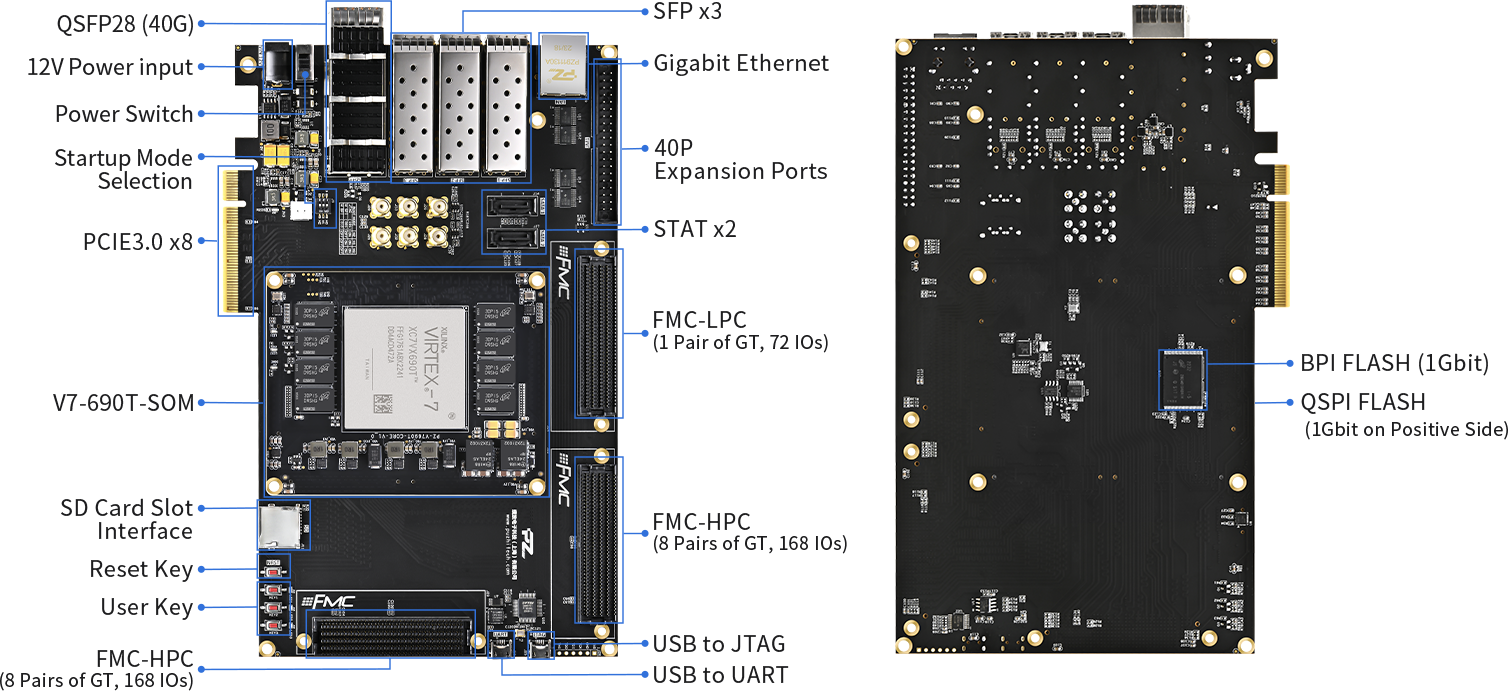

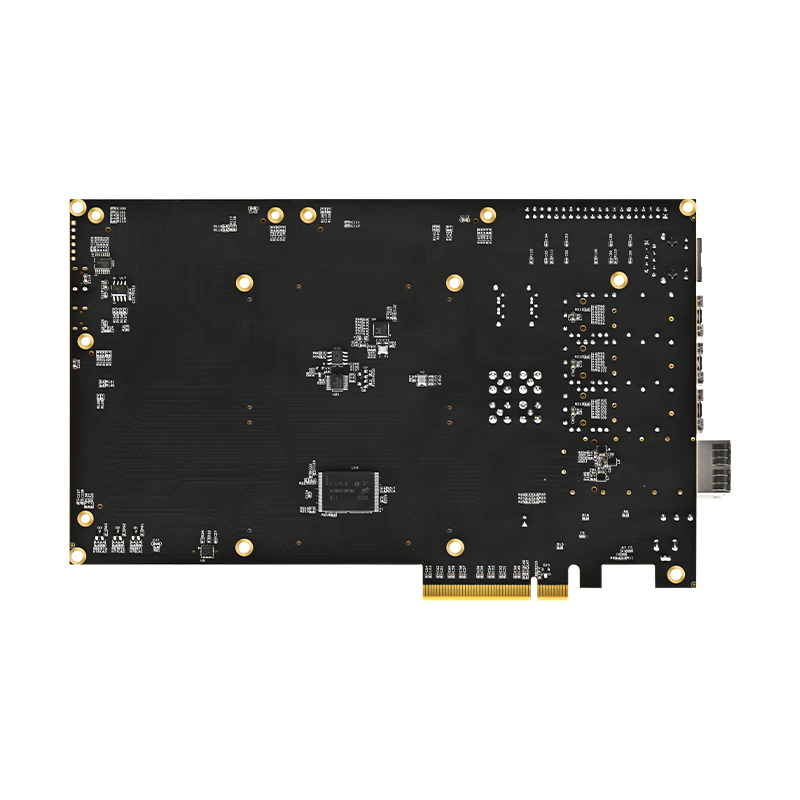

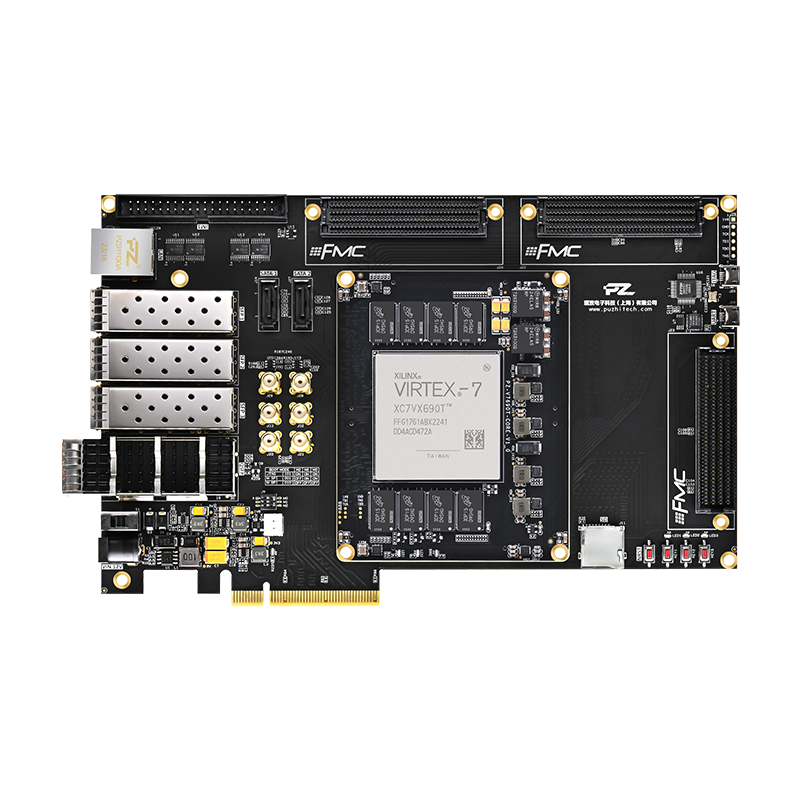

Interface Function Display




Product Parameters

Core Board Main Parameters

FPGA Dev. Board
PZ-V7690T-KFB
FPGA Chip

XC7V690T-2FFG1761I

Speed Grade
2
Chip Level
Industrial Grade(-40°C~+85°C)
Logic Cells
693k
Lookup Tables
108300
Flip-Flops
866400
DSP Slices
3600
TOTAL BLOCK RAM
52920
DDR3
2GB / 64bit + 2GB / 64bit
Start-up Mode
JTAG/QSPI/BPI
User LEDs
2
Number of GTH
36 Pairs of TX/RX
Number of IO

528 single-ended/264 differential pairs (1.2/1.8V adjustable, default 1.8V)

Crystal Oscillator

200MHz Differential Crystal  for FPGA

125MHz and 156.25MHz Differential Crystal for the GT Transceiver Reference Clock

Core Board

Form Factors

3.94 inch x 3.15 inch (100mm x 80mm)

Interfaces and Function

JTAG Downloader
1
Start-up ModeT
1 QSPI/1 BPI (DIP Switch Selection)
UART
1
SD Card Slot Interface
1
Gigabit Ethernet
1
LED, Keys
2 LEDs,2 Keys
PICE3.0
x8
SFP
3
QSFP28
1 (40G)
FMC Interface
2 HPC (8 Pairs of GT, 168 IOs), LPC  (1Pair of GT, 72 IOs)
Voltage / Current
12V/3A
Board Form Factors
8.66 inch x 5.12 inch (220mm x 130mm)
Technology
Black Matte. Immersion Gold Process

40Pin

Expansion Port

32 Single-ended/16 Differential pairs

Reserve one 40-pin 0.1 inch Expansion Port,to Connect  Puzhi Modules (AD/DA, Camera, LCD),Expansion Port including 5V power supply,3.3V power supply, 6 Ground, 32 IOs

Product Dimensions


Demos Come with the Board

Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

 Demos Constantly Being Updated... ...

  • 1

    FPGA Logic Demos

    • 01.

      Vivado Installation

    • 02.

      FLASH Curing

    • 03.

      LED Flashing

    • 04.

      LED PWM Control

    • 05.

      Key Control LED

    • 06.

      FPGA on-chip RAM Read and Write

    • 07.

      FPGA on-chip ROM Read and Write

    • 08.

      FPGA on-chip PLL Configuration

    • 09.

      FPGA on-chip FIFO Read and Write

    • 10.

      FPGA side DDR4 Control Read and Write

    • 11.

      I2C Read and Write E2PROM

    • 12.

      Uart Transceiver

    • 13.

      SD Card Read and Write

    • 14.

      AD-DA (200KSPS) conversion

    • 15.

      LCD Color Bar Display

    • 16.

      LCD Output Image Display

    • 17.

      SD Card Reads BMP Picture LCD Display

    • 18.

      Gigabit UDP Based on RTL8211

    • 19.

      SFP Bit Error Rate

    • 20.

      PCIE Speed Test

    • 21.

      Aurora Communication

    • 22.

      High Speed ADC-AD9643 Acquisition (250MSPS)

    • 23.

      UDP Transmission High Speed ADC Data Collection

    • 24.

      LCD Waveform Display for High-Speed ADC-AD9643

    • 25.

      UDP transmission of OV5640 images for Computer display

  • 2

    Microblaze Parts

    • 01.

      Microblaze LED

    • 02.

      Microblaze Uart

    • 03.

      Microblaze GPIO Interrupt

    • 04.

      Microblaze Timer Interrupt

    • 05.

      Microblaze DMA LOOP

    • 06.

      Microblaze XADC

    • 07.

      Microblaze Lwip TCP loop

  • 3

    FMC Topics(FMC daughter board is required)

    • 01.

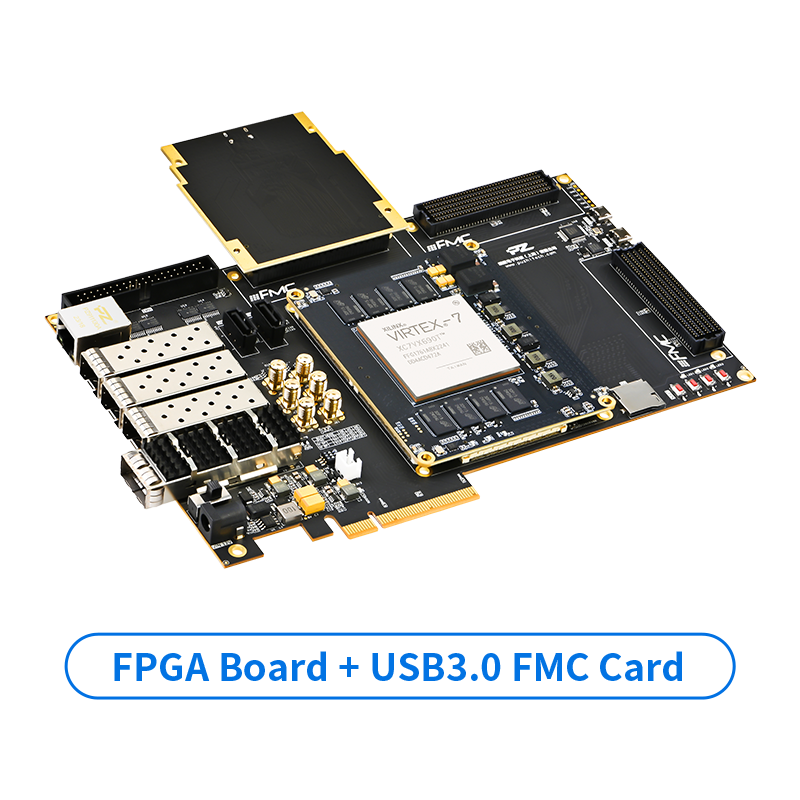

      USB3.0 (PZ-FL3014)

    • 02.

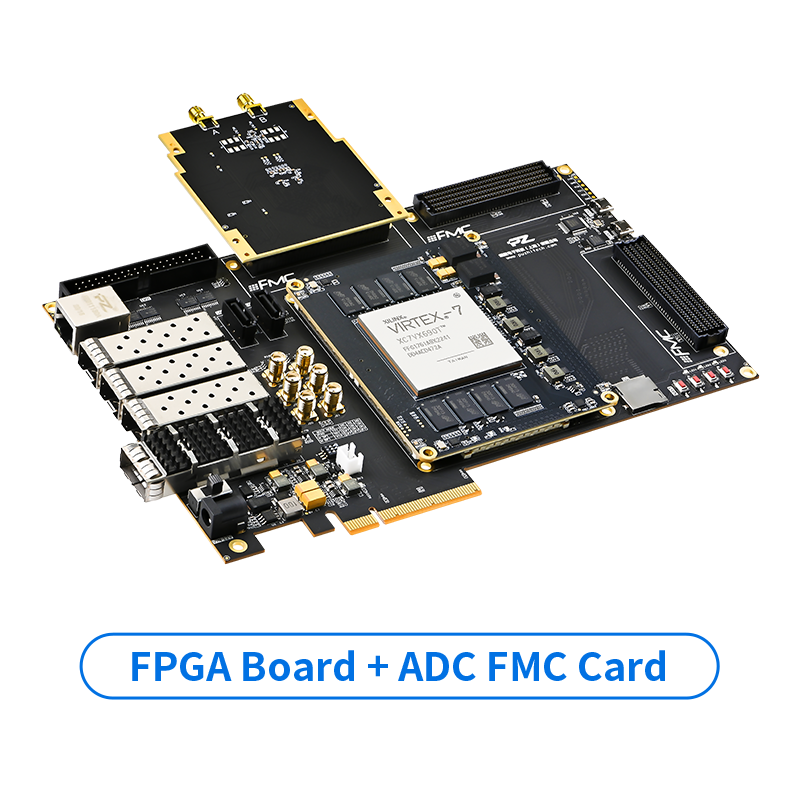

      High Speed ADC (PZ-FL9643S)

    • 03.

      High Speed ADC/DAC (PZ-FL4322)

    • 04.

      Multi-Channel High-Speed ADC (PZ-FL9643D)

    • 05.

      Multi-Channel Domestic High-Speed (PZ-FL2514D)

    • 06.

      Ultra High Speed ADC/DAC (PZ-FH8052)

    • 07.

      Medium-Speed ADC/DAC (PZ-FL3867)

    • 08.

      Multi-Channel Medium Speed DAC (PZ-FL9767D)

    • 09.

      Quad 100Gb Ethernet (PZ-FL8710F)

    • 10.

      Quad 1000Gb Ethernet (PZ-FL8211F)

    • 11.

      Software Defined Radio(PZ-FL9361/PZ-FH9371/PZ-FH9009/PZ-FH9026)

  • 4

    PCIE Topics

    • 01.

      QT Environment Setup

    • 02.

      PCIE GPIO Control

    • 03.

      PCIE DDR Cache Interrupt

    • 04.

      PCIE Monocular OV5640 Image Experiment

    • 05.

      PCIE High-speed ADC Acquisition Experiment

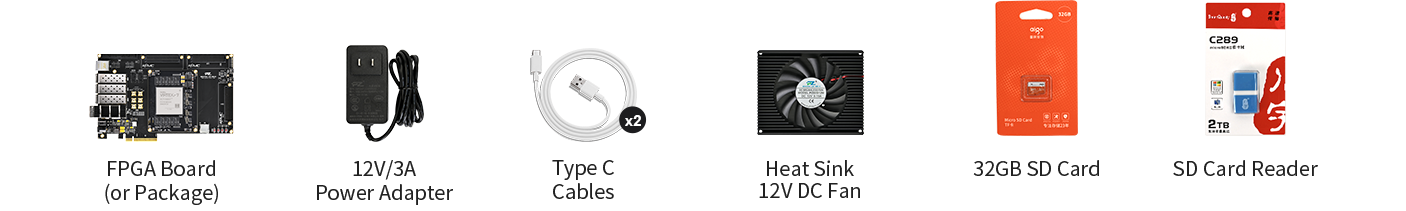

Standard Delivery List



  • Commerical Invoice

    • 1.

      Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.

    • 2.

      Please Contact with Customer Service and leave your Company Name, Address and Tax Code.

  • After-sale Service

    • 1.

      The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products

    • 2.

      Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.

    • 3.

      Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com

    • 4.

      The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.

  • Shipment

    • 1.

      DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available

    • 2.

      Working Time: Monday to Friday, 9am to 6pm CsT.

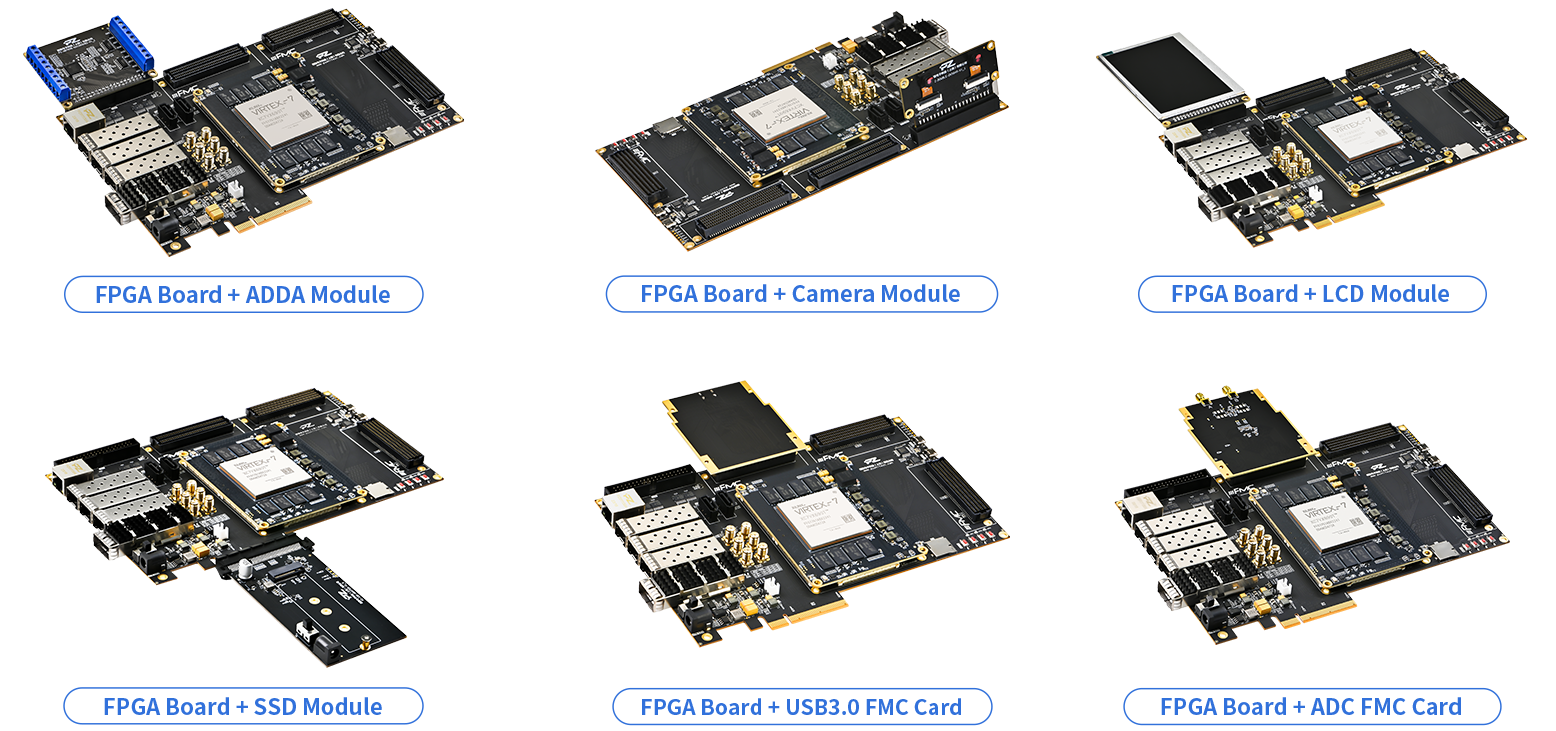

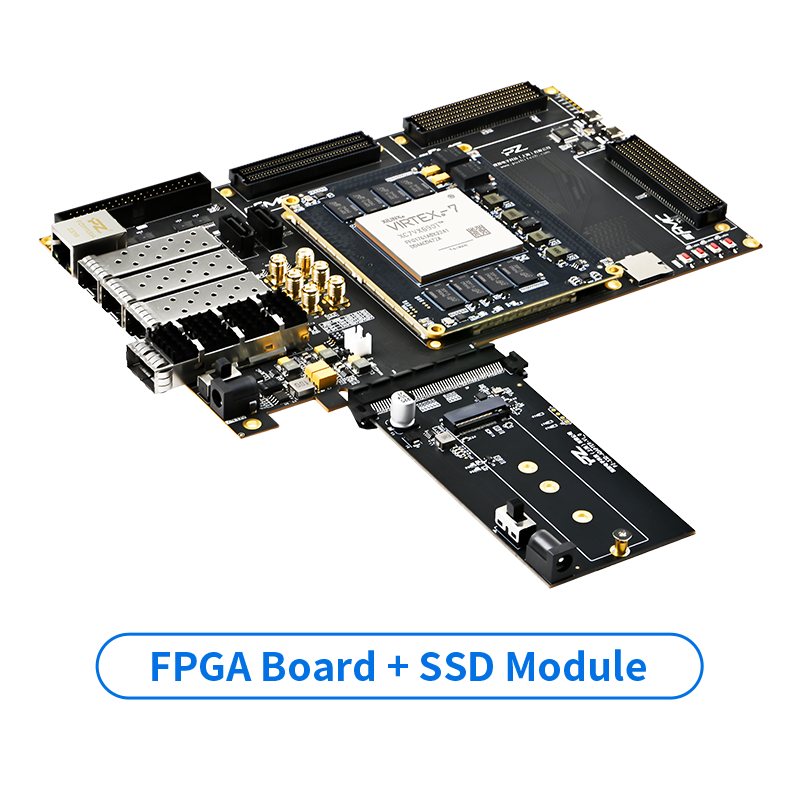

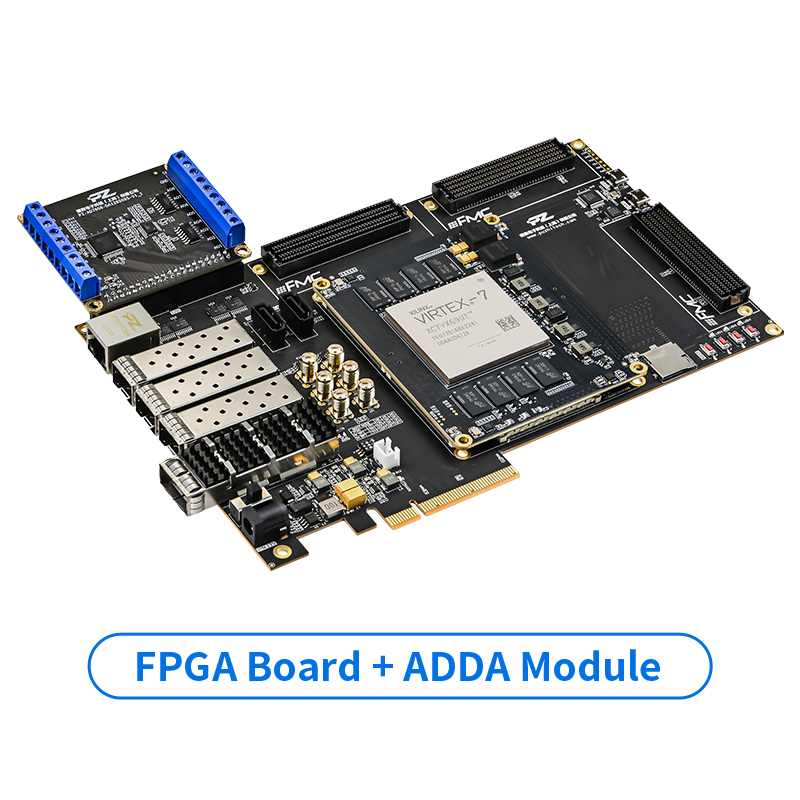

Solution Display
