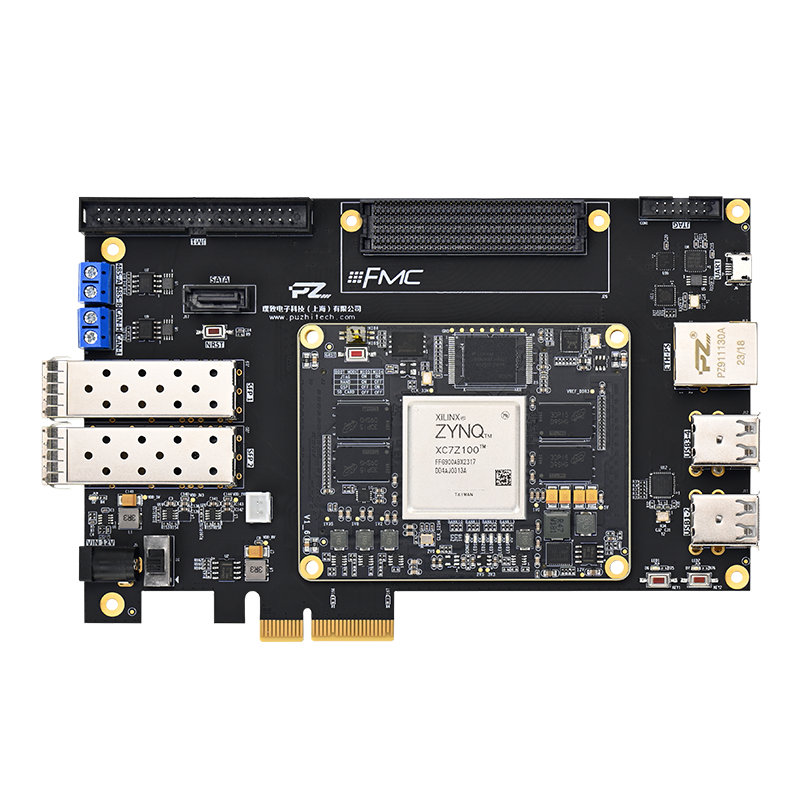

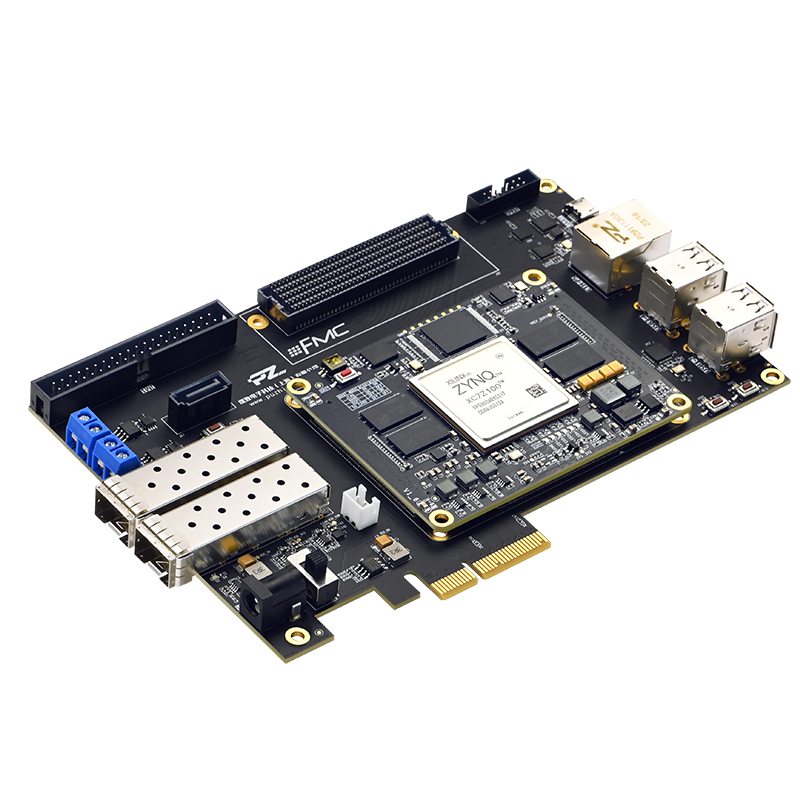

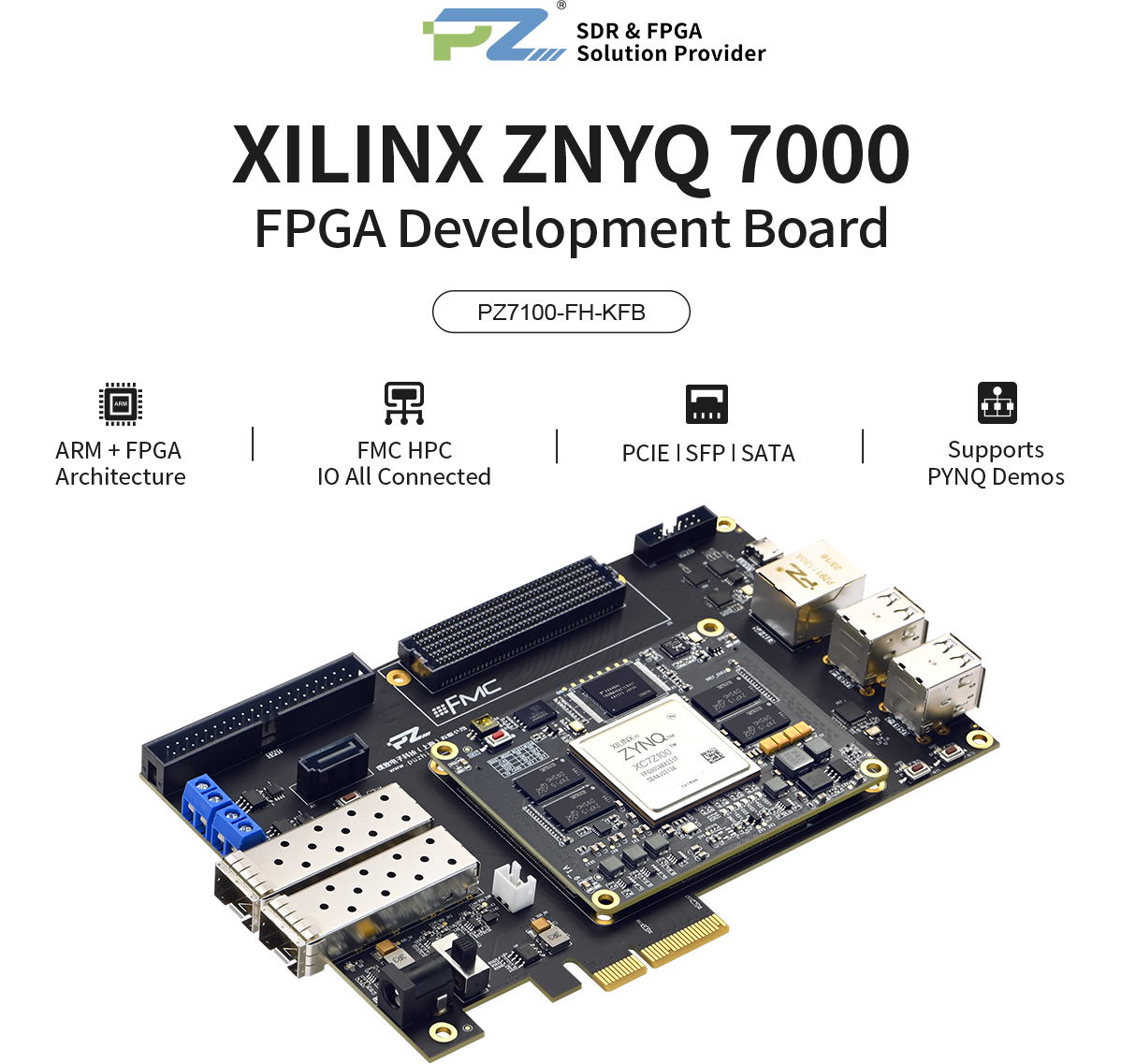

Puzhi FPGA ZYNQ7000 PZ7100-FH Development Board
PZ7100-FH-KFB
- ARM+FPGA architecture，dual-core ARM Cortex-A9，main frequency 800Mhz
- PS Side 1GB、PL Side 1GB DDR3，8GB EMMC，256Mb QSPIFLASH
- Core board 120P connector connection，size 83.8*64.8mm
- Reserved ports UART、RS485、CAN、Gigabit Ethernet、FMC、SFP，etc
- Support SDK development，support PYNQ，rich routines，help product development

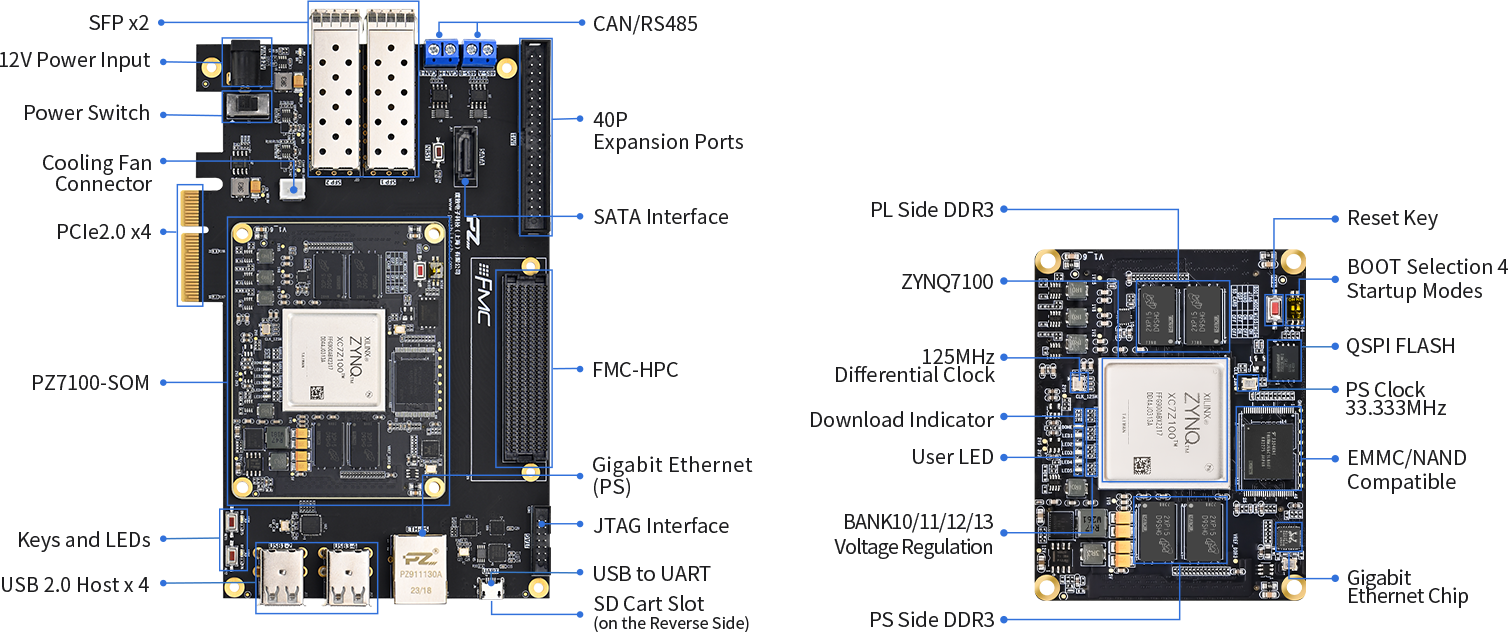

Interface Function Display
Product Parameters

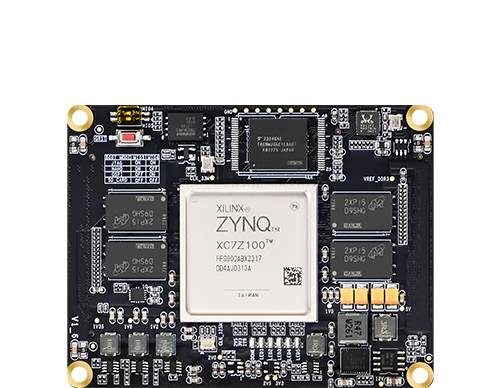

Core Board Main Parameters
FPGA Dev. Board | PZ7100-FH-KFB |
FPGA Chip | XC7Z100-2FFG900I |
Processor Core | Dual Core ARM Cortex-A9, Main Frequency 800Mhz |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 444K |
Lookup Tables | 277400 |
Flip-Flops | 554800 |
DSP Slices | 2020 |
BLOCK RAM | 26.5Mb |
DDR3/DD3L | Total 2GB, PS Side 1GB/ PL Side 1GB |
QSPI FLASH | 256Mb, to Store Startup Files and User Files |
EMMC | 8GB, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI/SD, Onboard Dial Switch Selection |
Number of GTX | 4 Bank, 16 Pairs of TX/RX each |
PS Side MIO | 24 |
PL Side IO | Total 240 Single-end / 120 Pairs of Differential Pairs |
Crystal Oscillator | Single-ended Crystal 33.3333MHz for PS Differential Crystal 200MHz for PL Differential Crystal 125MHz for the GT Transceiver Reference Clock |
Core Board Form Factors | 3.30 inch x 2.55 inch (83.8mm x 64.8mm) |
Interfaces and Function
JTAG Interface | 1 |
UART/RS485/CAN | 1/1/1 |
SD Card Slot Interface | 1 |
USB 2.0 Interface | 4 USB Host, Connect to Peripherals |
Gigabit Ethernet | 1 (PS Side) |
SATA Interface | 1 |
SFP Interface | 2 |
PCIE2.0 | x4 |
User LED | 2 |
Keys | 2 |
Cooling Fan Connectors | 1 Channel, 12V Power Supply |
FMC Interface | HPC Type (8 Pairs of GT, 168 IOs) |
Voltage / Current | 12V/3A |

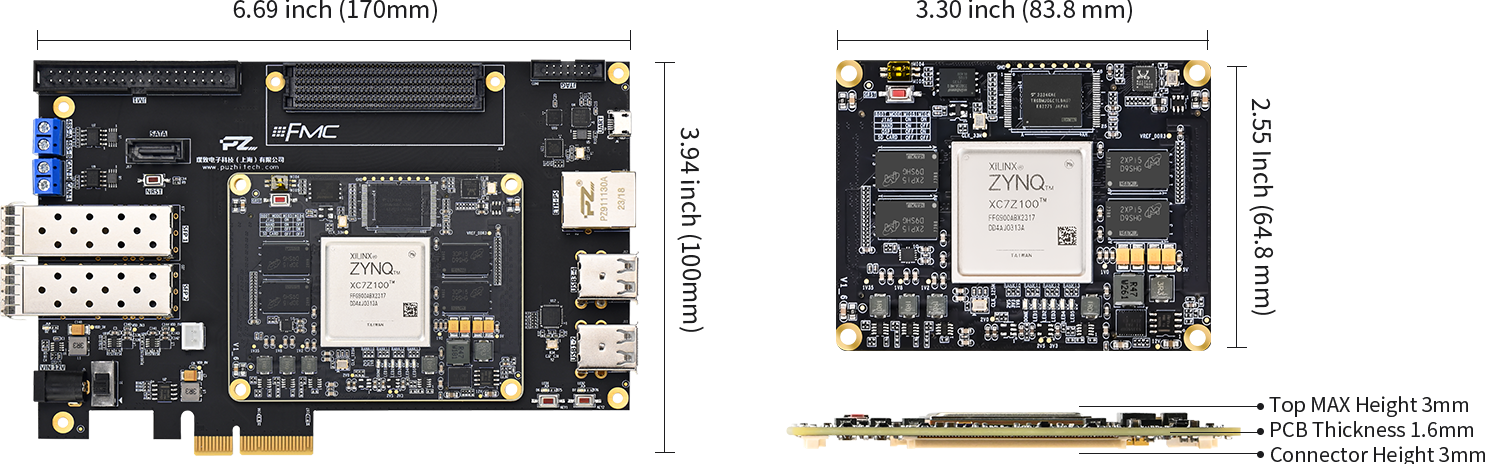

Board Form Factors | 6.69 inch x 3.94 inch (170mm x 100mm) |
40Pin Expansion Port | 32 Single-ended/16 Differential pairs Reserve one 40-pin 0.1 inch Expansion Port，to Connect Puzhi Modules (AD/DA, Camera, LCD)，Expansion Port including 5V power supply，3.3V power supply, 6 Ground, 32 IOs |
Product Dimensions
Product Packages

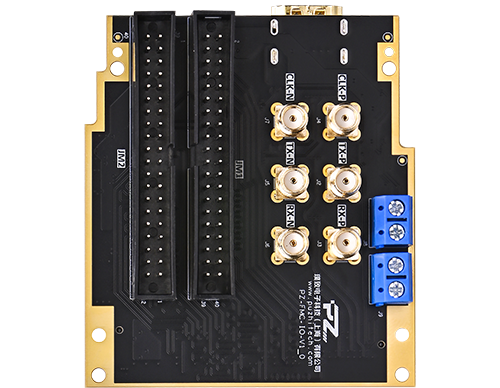

FMC Subcard Display

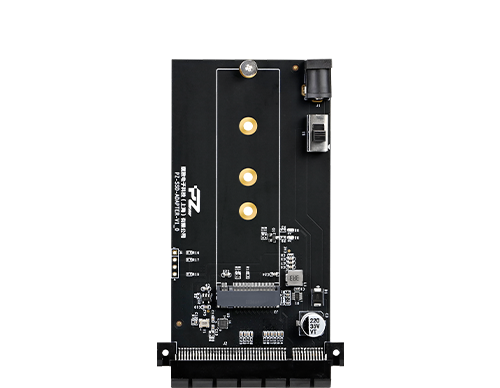

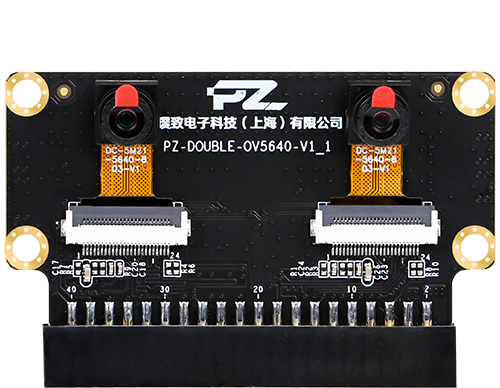

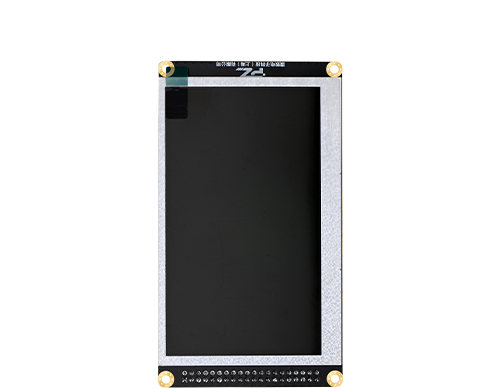

Other Subcard Display

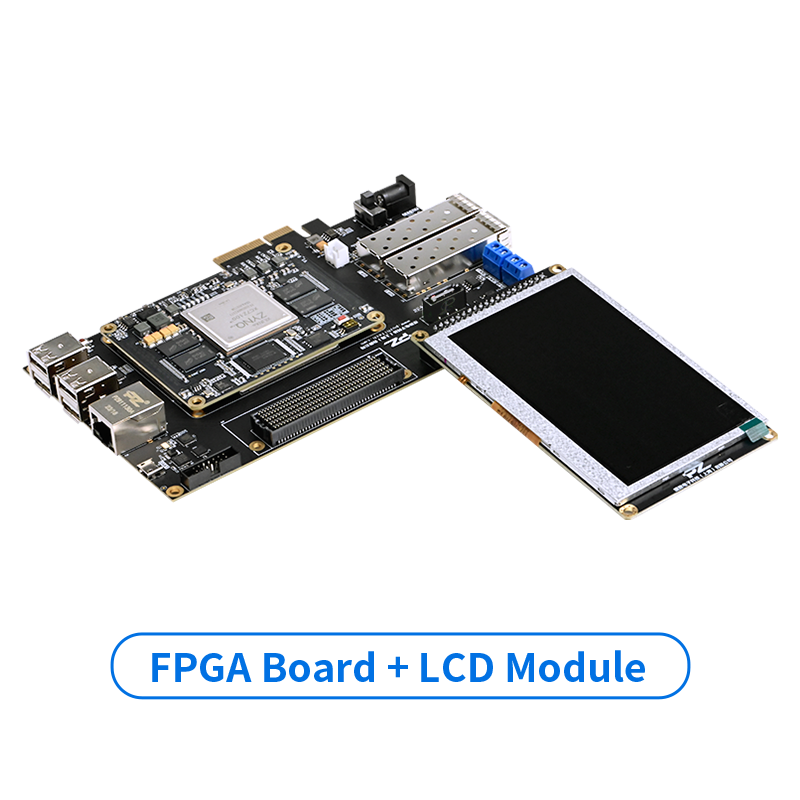

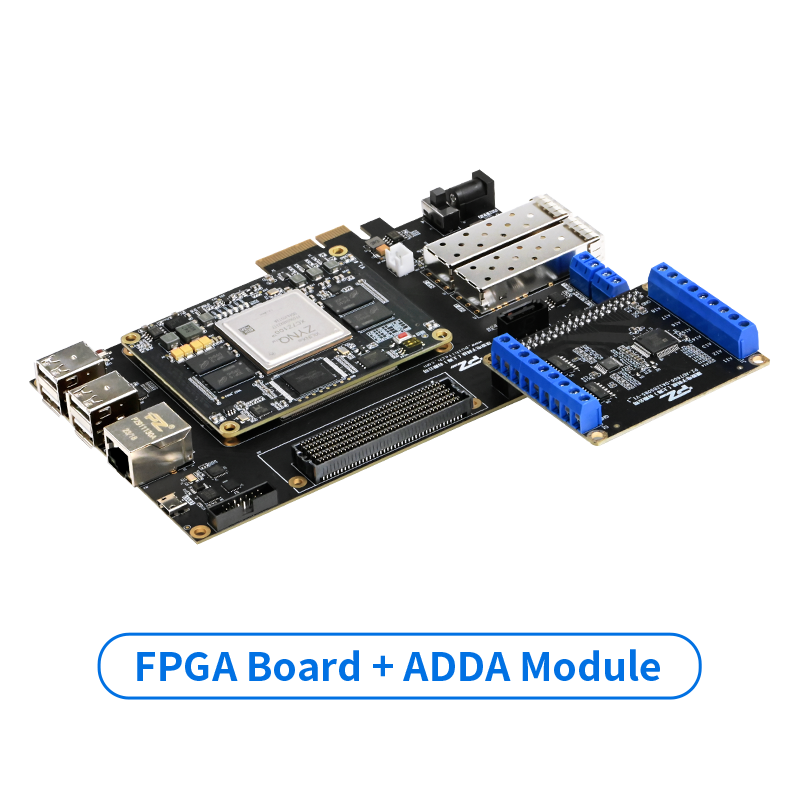

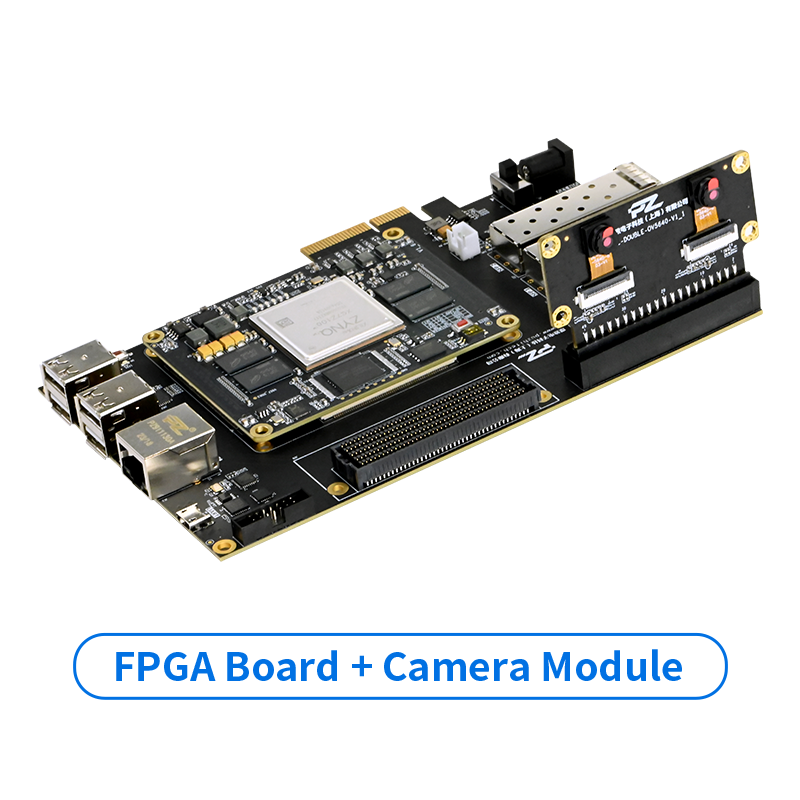

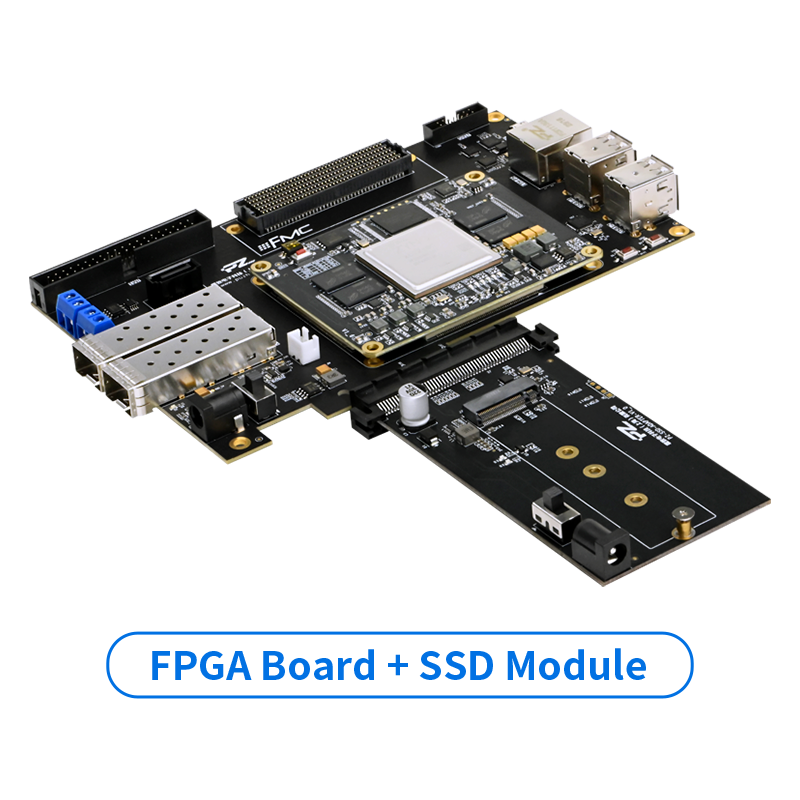

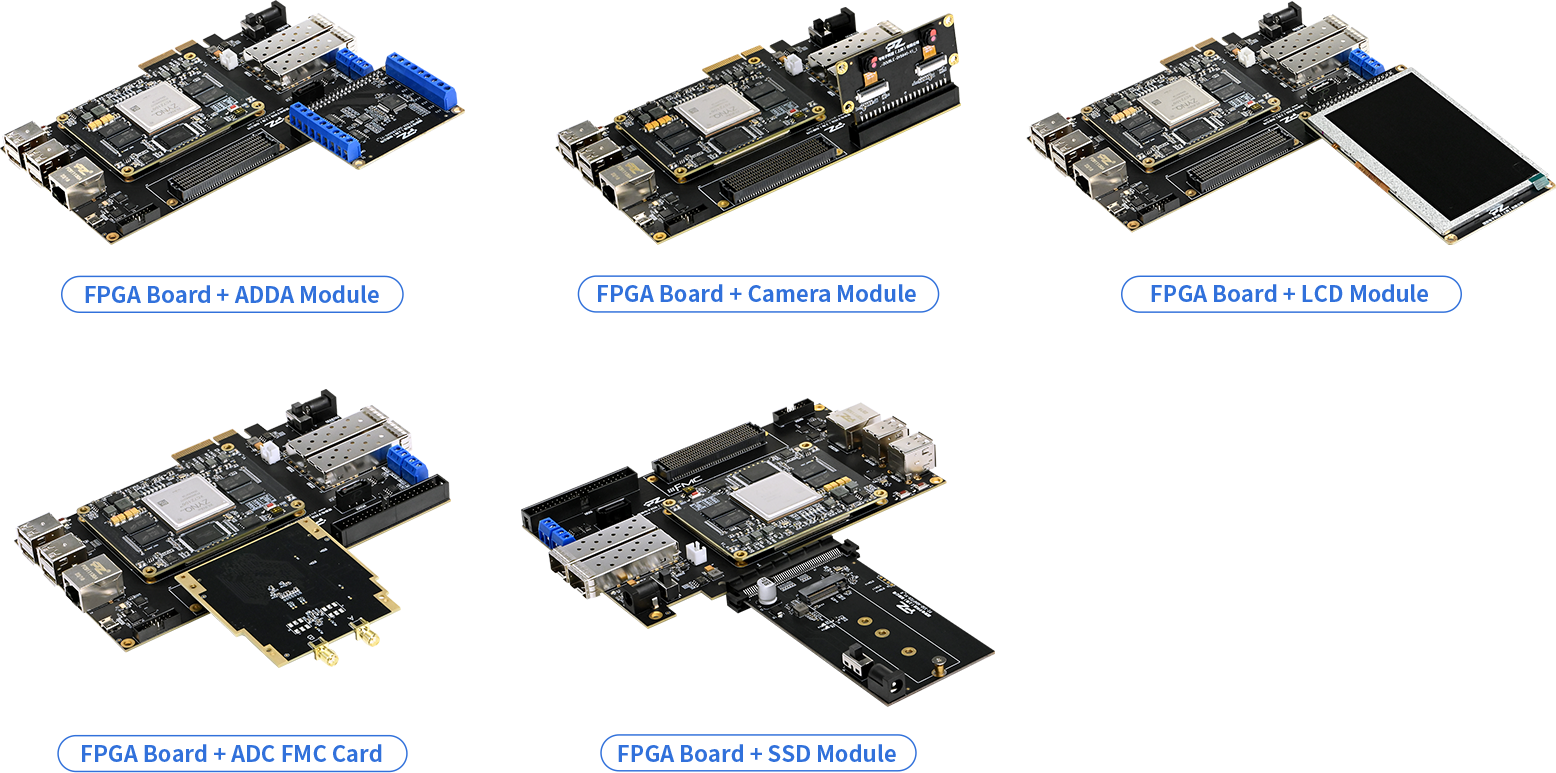

Supporting Display
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
- 1
FPGA Logic Demos
- 01.
Introduction to ZYNQ
- 02.
Vivado Environment Introduction and Installation
- 03.
LED Flashing
- 04.
PWM Control of LED
- 05.
Key Debounce and LED Control
- 06.
FPGA on-chip RAM Read and Write
- 07.
FPGA on-chip ROM Read and Write
- 08.
FPGA on-chip PLL Configuration
- 09.
FPGA on-chip FIFO Usage
- 10.
DR3 Control Read and Write on the FPGA Side
- 11.
I2C Read and Write E2PROM
- 12.
I2C Read and Write Touch Screen Registers
- 13.
LCD Picture Display
- 14.
Binocular Camera Output and HDMI Display Image
- 15.

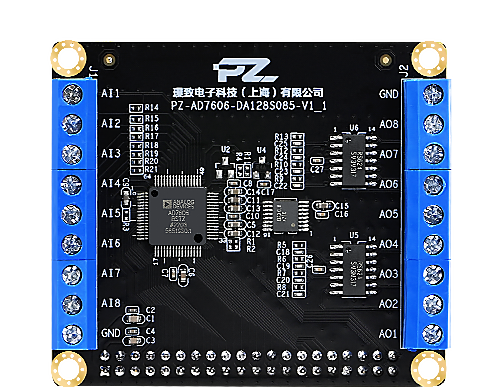

AD-AD7606/7608 8-channel Acquisition Voltage
- 16.
DA 8-channel Output Sine Wave, Triangle Wave Square Wave
- 17.
PL Side Gigabit Ethernet communication
- 18.
SFP Bit Error Rate Test
- 19.
High-speed ADC Acquisition (250MSPS)
- 01.
- 2
SDK Demos
- 01.
ARM Bare Metal Output "hello world"
- 02.
PS Timer Interrupt Experiment
- 03.
PS Side EMIO Control LED Flashing
- 04.
EMIO Key Control LED
- 05.
Dual-core AMP
- 06.
Custom IP
- 07.
Timer Interrupt
- 08.
UART Serial Port Communication
- 09.
RS485 Communication
- 10.
CAN Bus Communication
- 11.
I2C Communication
- 12.
Gigabit Ethernet LWIP Application
- 13.
Gigabit Ethernet Remote Upgrade
- 14.
PS Side DDR3 Read and Write
- 15.
PS Side EMMC Read and Write
- 16.
AXI-DMA Read and Write
- 17.
SD Card Read and Write
- 18.
ADC Acquisition Gigabit Ethernet Transmission
- 19.
LCD Image Display
- 20.
HDMI Display of Binocular Camera Images
- 21.
SD Card Picture HDMI Output Display
- 22.
Binocular Camera Photography Experiment
- 23.
PCIE Bandwidth Test
- 01.
- 3
Linux Demos
- 01.
Introduction to Virtual Machine and Ubuntu System
- 02.
Ubuntu System Installation
- 03.
Petalinux Tool Installation
- 04.
NFS Service Software Installation
- 05.
SD Card to Start the Linux System
- 06.
QSPI Flash to Start Linux
- 07.
QSPI+EMMC Start Linux
- 08.
Control LED under Linux System
- 09.
HDMI Display under Linux
- 10.
Drive USB Mouse and Keyboard under Linux
- 11.
Application of QT on ZYNQ
- 12.
Linux Common Commands
- 01.
- 4

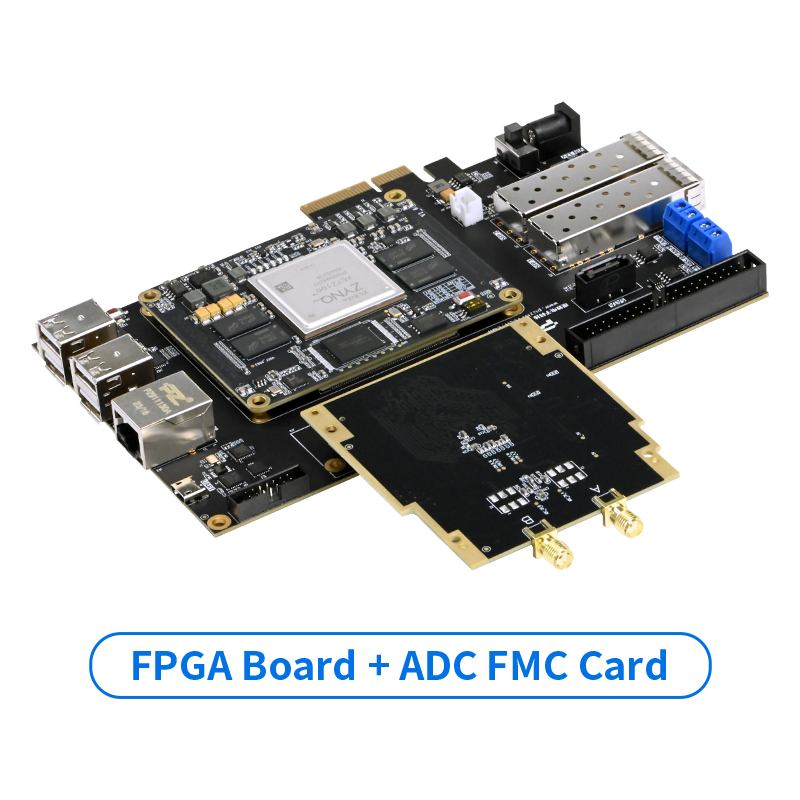

FMC Topics(FMC daughter board is required)
- 01.

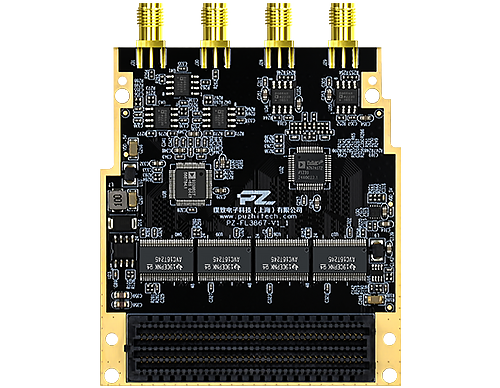

USB3.0 (PZ-FL3014)
- 02.

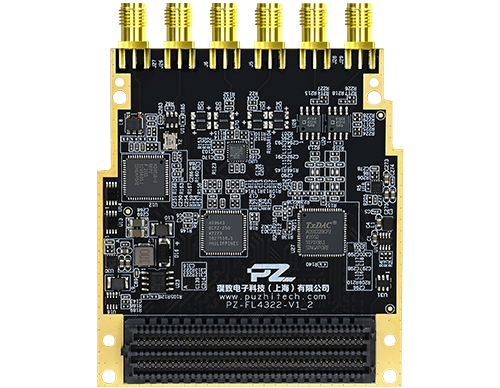

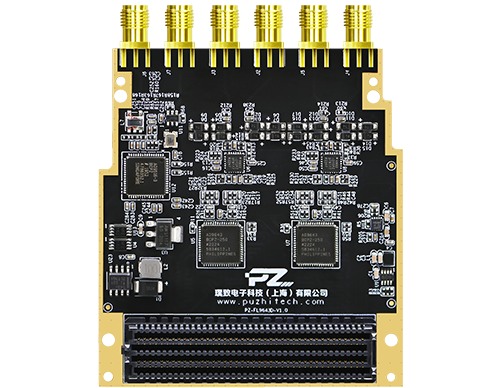

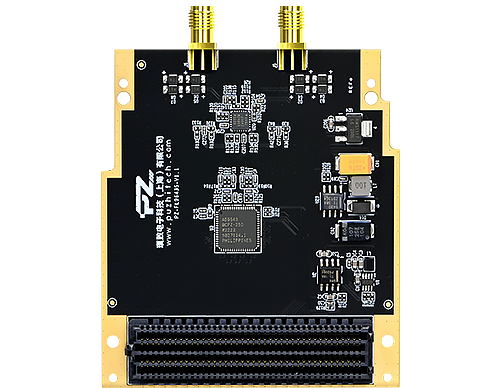

High Speed ADC (PZ-FL9643S)
- 03.
High Speed ADC/DAC (PZ-FL4322)
- 04.
Multi-Channel High-Speed ADC (PZ-FL9643D)
- 05.
Multi-Channel Domestic High-Speed ADC (PZ-FL2514D)
- 06.
Ultra High Speed ADC/DAC (PZ-FH8052)
- 07.
Medium-Speed ADC/DAC (PZ-FL3867)
- 08.

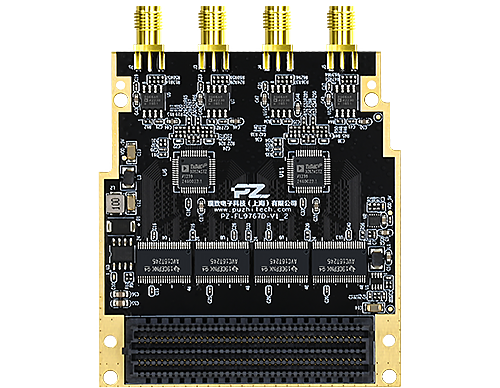

Multi-Channel Medium Speed DAC(PZ-FL9767D)
- 09.

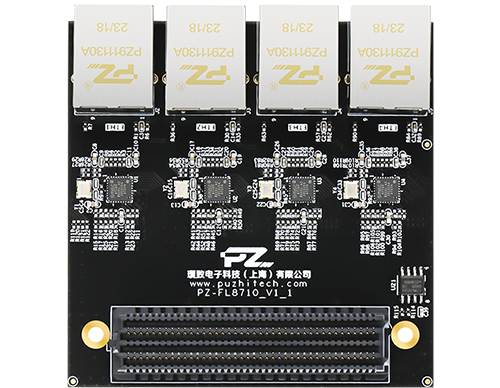

Quad 100Gb Ethernet (PZ-FL8710F)
- 10.
Quad 1000Gb Ethernet (PZ-FL8211F)
- 11.
Software Defined Radio (PZ-FL9631/ PZ-FL9371/ FH9009/ FH9026 )
- 01.
- 5
PCIE Topics
- 01.
PCIE Read/Write Speed Test
- 02.
PCIE's Access to DDR
- 03.
PCIE Control GPIO
- 04.
PCIE's Image Transfer HDMI Display
- 05.
PCIE's OV5640 Image Transmission
- 01.
- 6
Supports PYNQ

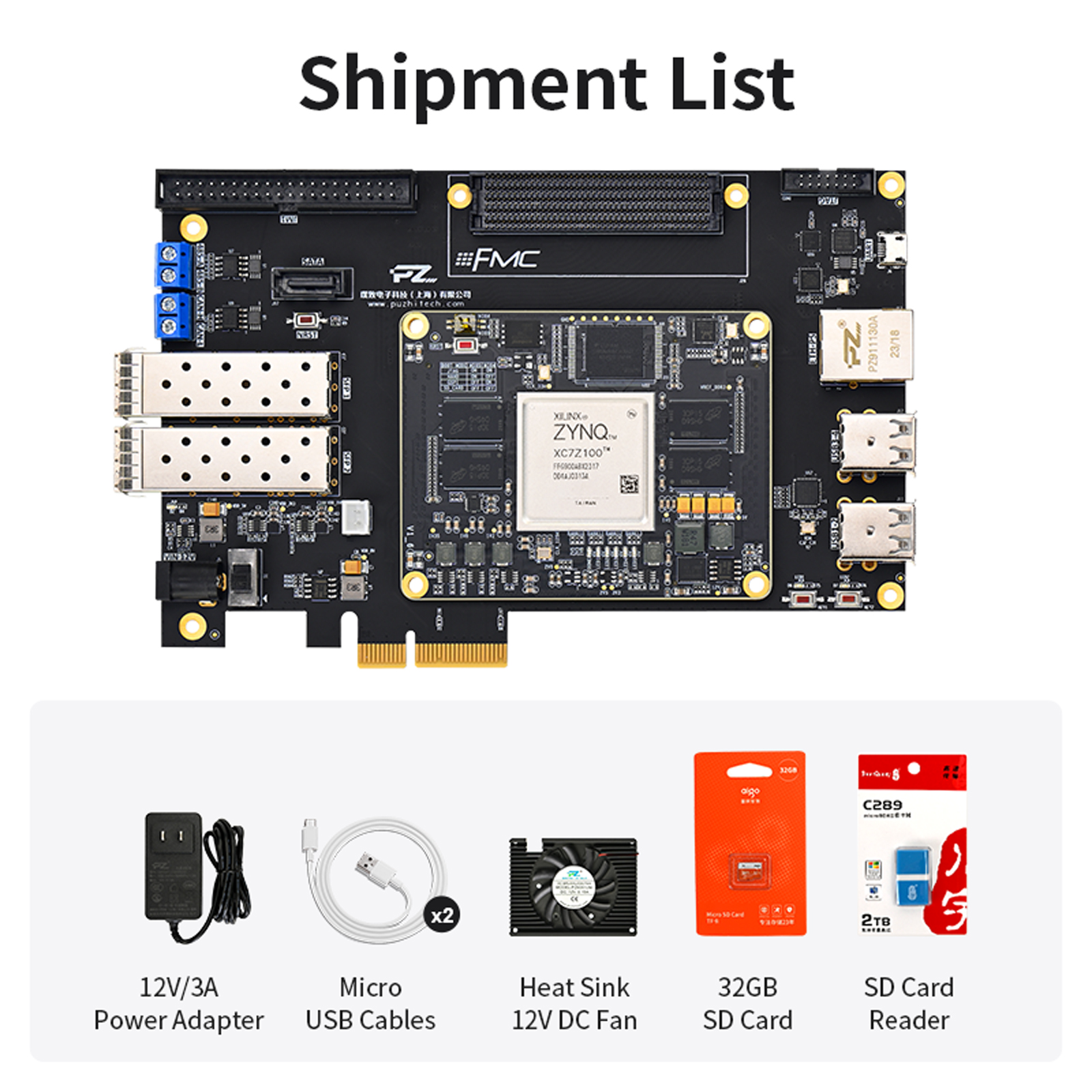

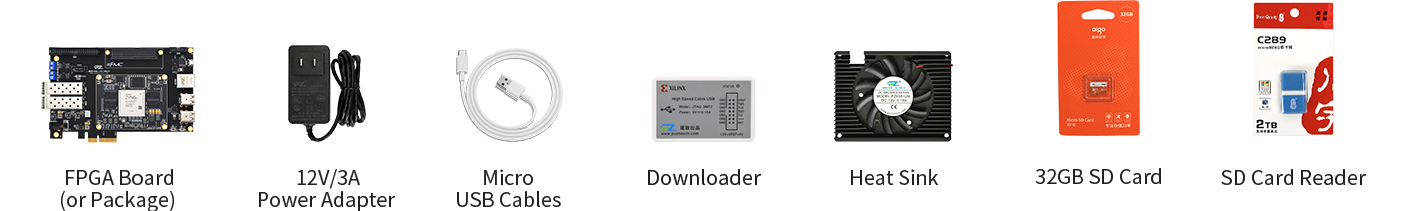

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
