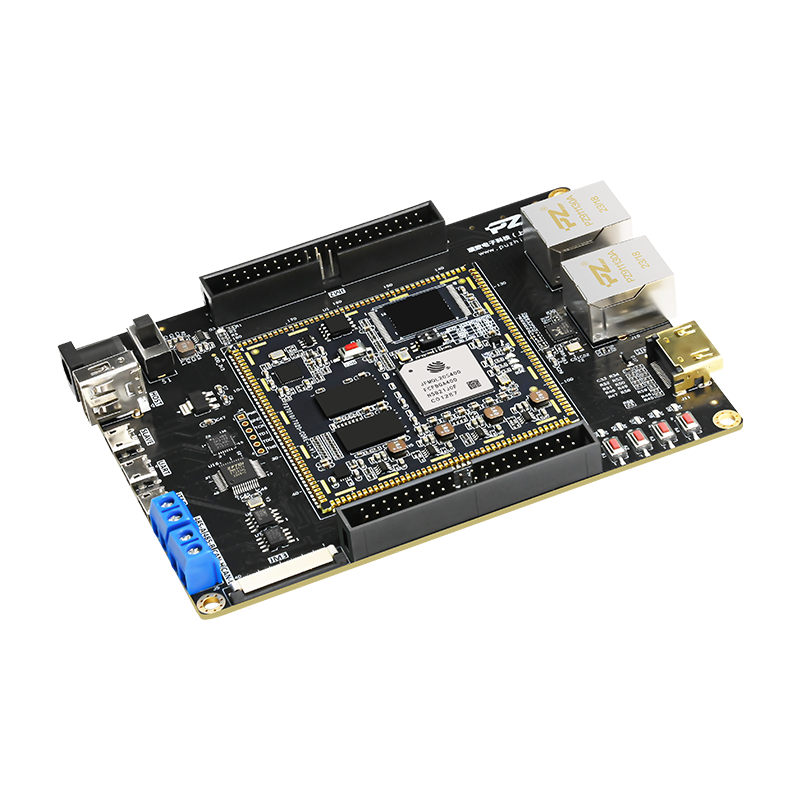

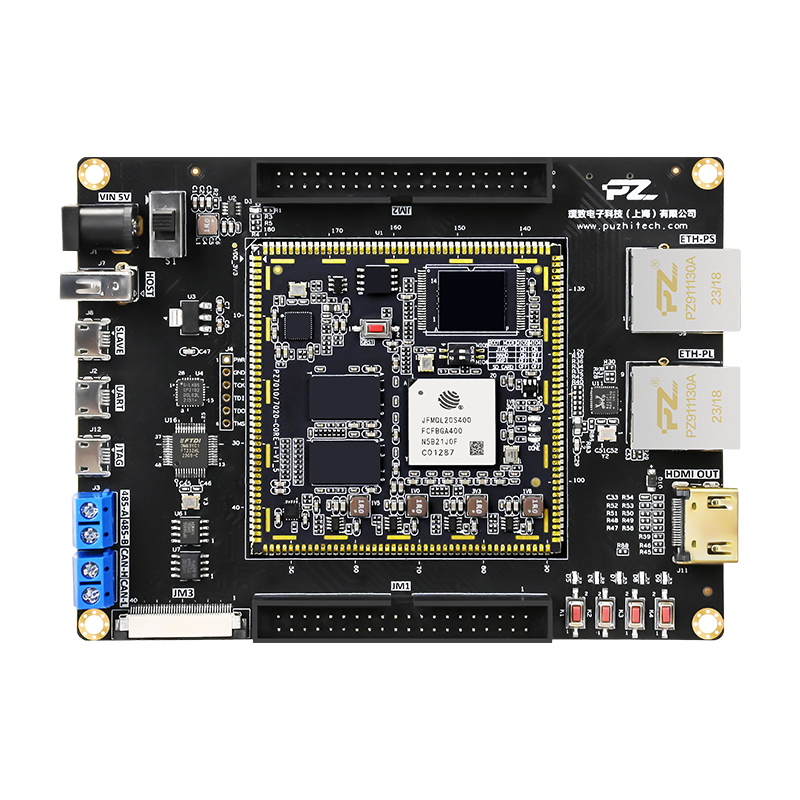

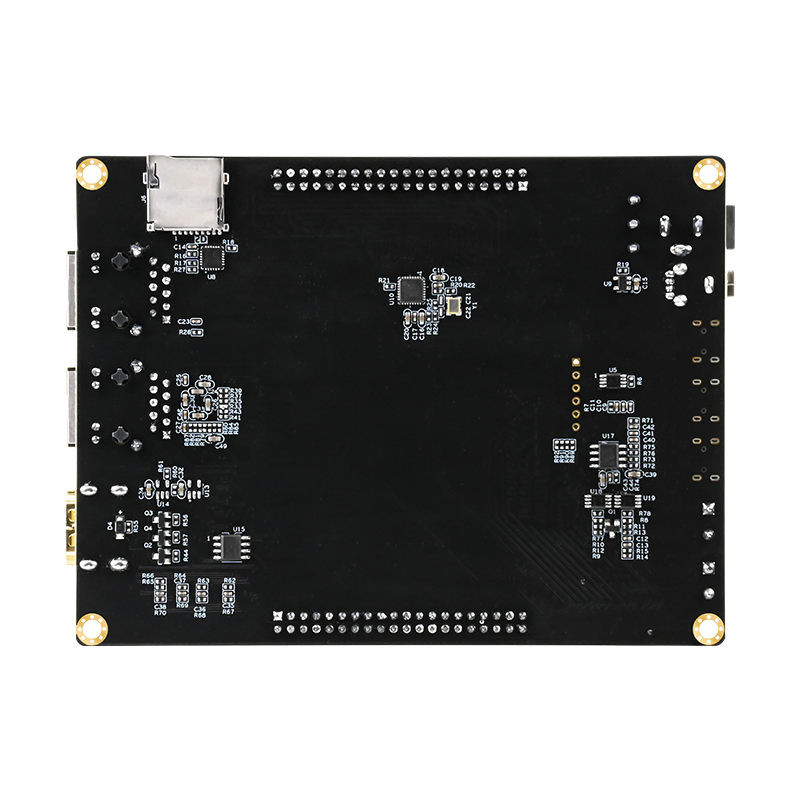

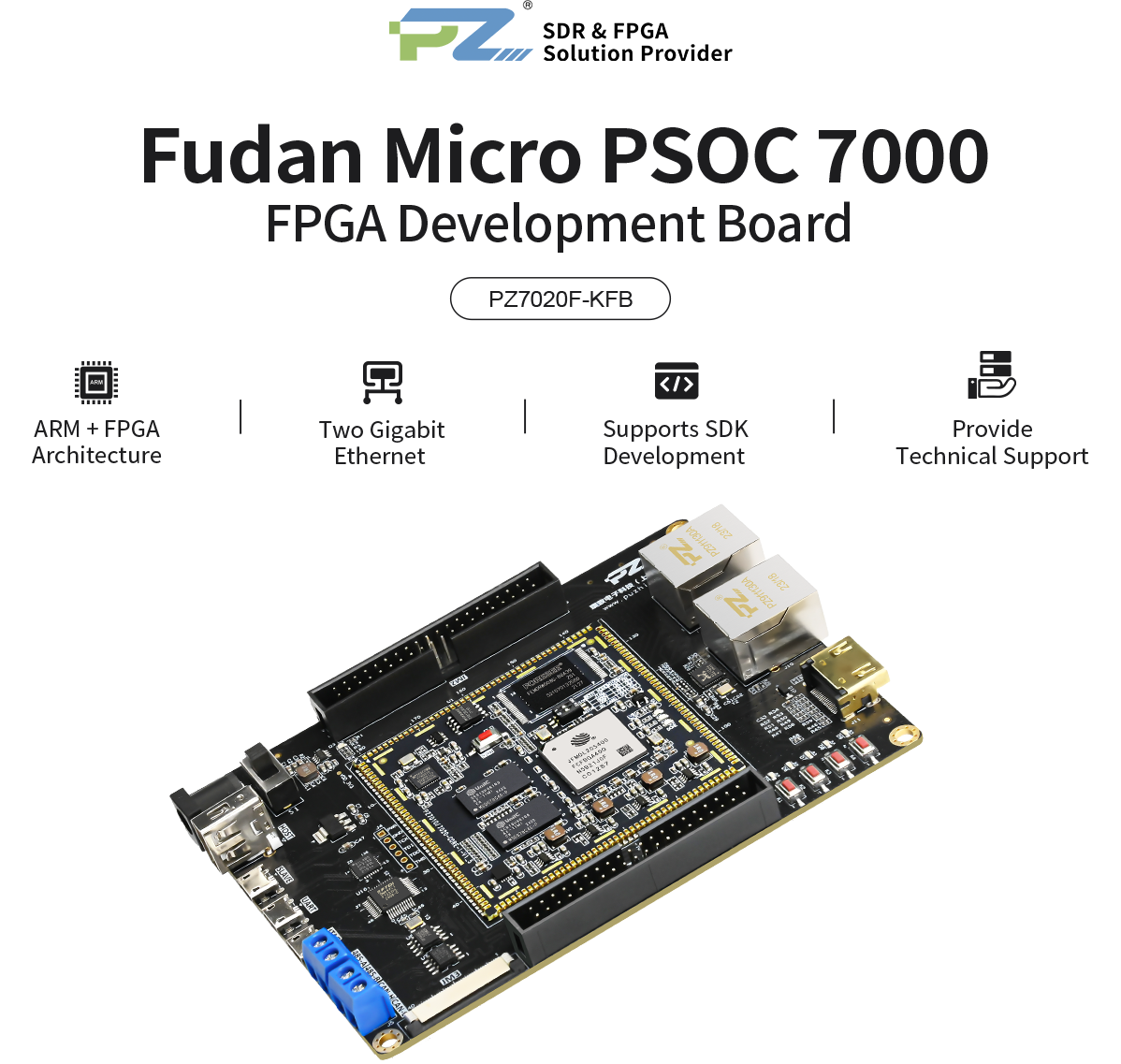

Puzhi FPGA Fudan Micro PSOC7000 7020 Development Board
- Fudan micro development board，quad core ARM Cortex-A7，main frequency 800Mhz
- Core parameters 1GB DDR3，8GB EMMC，128Mb QSPIFLASH
- Stamp HoleSmall Core Board，Size 61mm*61mm
- Reserved ports UART、RS485、CAN、Dual Gigabit Ethernet、HDMI，etc
- Provide perfect hardware reference & software rich routines，help product development

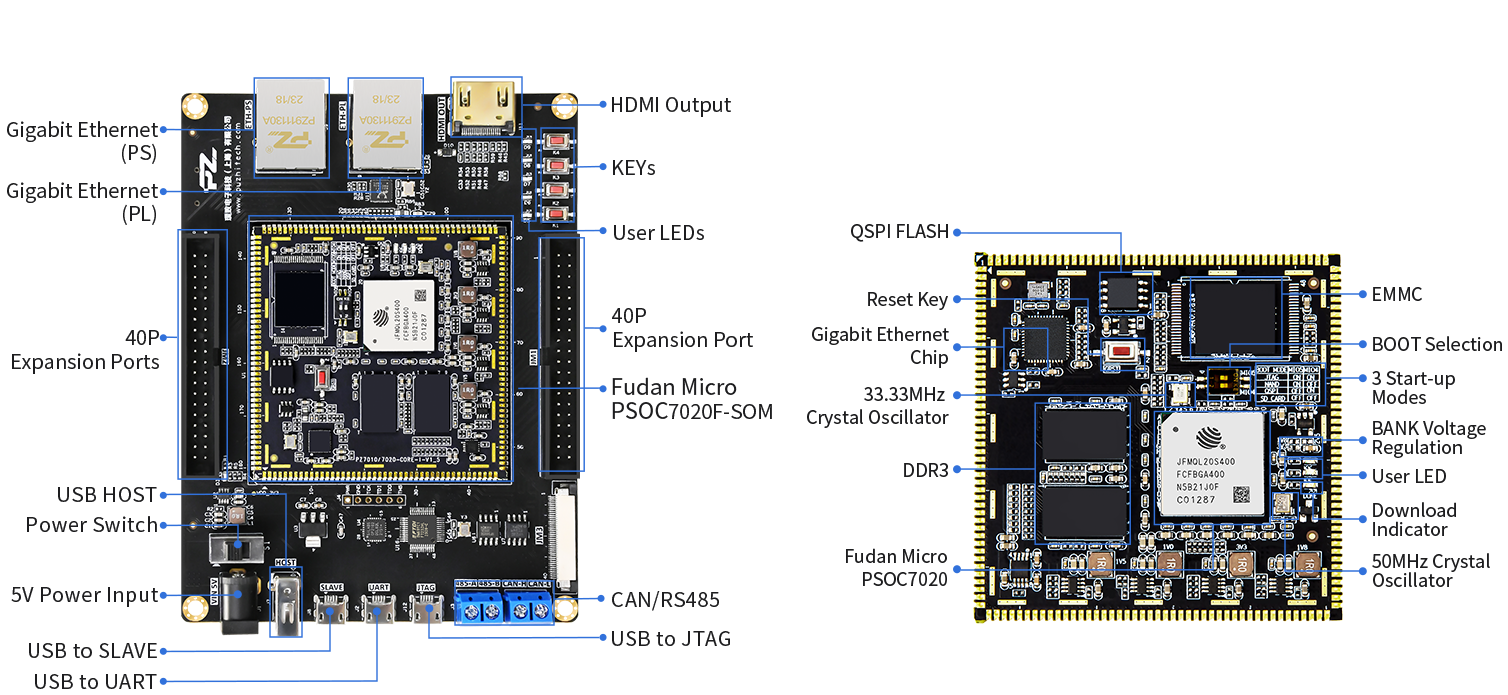

Interface Function Display
Product Parameters
Core Board Main Parameters
FPGA Dev. Board | PZ7020F-KFB |
FPGA Chip | JFMQL20S400 |
Processor Core | Quad Core ARM Cortex-A7 |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 85K |
Lookup Tables | 53200 |
Flip-Flops | 106400 |
DSP Slices | 220 |
BLOCK RAM | 4.9Mb |
DDR3/DD3L | 1GB |
QSPI FLASH | 128Mb |
EMMC | 8GB |
User LED | 2 |
Start-up Mode | JTAG/QSPI/SD, On-board DIP Switch Selection |
PS Side MIO | 24 |
PL Side IO | Total 118 Single-ended IOs of which, 70 IOs Levels fixed at 3.3V 48 IOs Levels 1.8/2.5/3.3V adjustable,default 3.3V |
Crystal Oscillator | Single-ended Crystal 33.3333MHz for PS Single-ended Crystal 50MHz for PL |
Core Board Form Factors | 2.40 inch x 2.40 inch (61mm x 61mm) |
Interfaces and Function
JTAG Interface | 1 |
UART/RS485/CAN | 1/1/1 |
SD Card Slot Interface | 1 |
USB2.0 Host/ Slave | 1/1 |
Gigabit Ethernet | 1 on PS Side, 1 on PL Side |
HDMI | 1 HDMI Output |
LED | 5 LEDs |
按键 | 4 KEYs |
40Pin FPC Expansion Port | 24 Single-ended / 12 Differential pairs |
Voltage / Current | 5V/1A |
Board Form Factors | 5.04 inch x 3.78 inch (128 mm x 96mm) |
Technology | Black Matte, lmmersion Gold Process |
40Pin Expansion Port | 56 Single-ended Signals Reserve Two 40-pin 0.1 inch Expansion Port,to Connect Puzhi Modules (AD/DA, Camera, LCD) Expansion Port including 5V power supply 3.3V power supply, 6 Ground, 32 IOs |

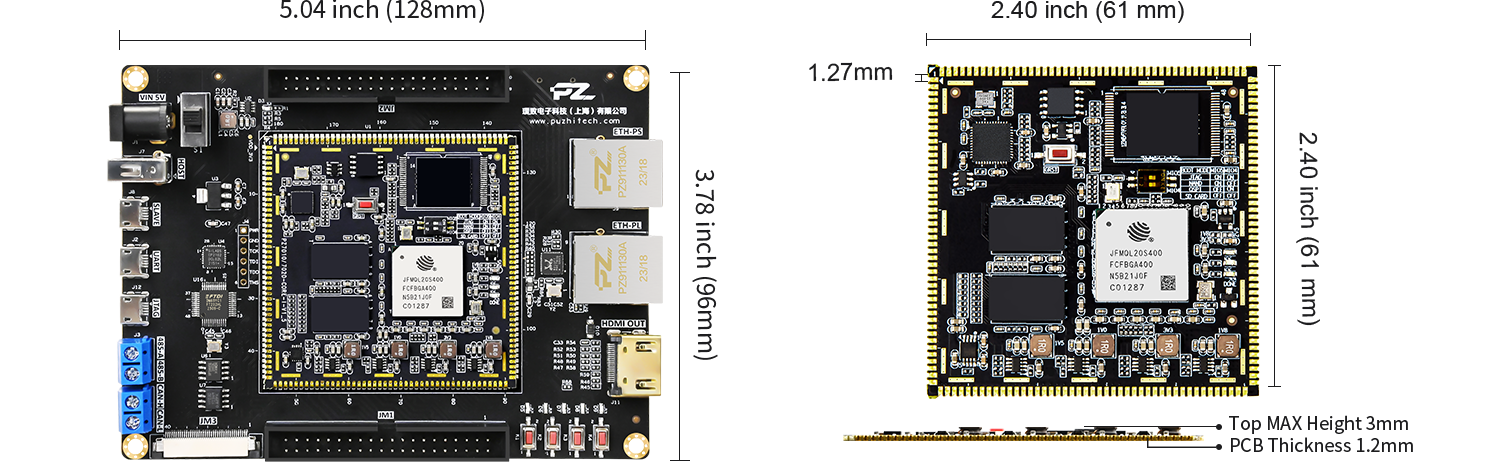

Product Dimensions
Product Packages

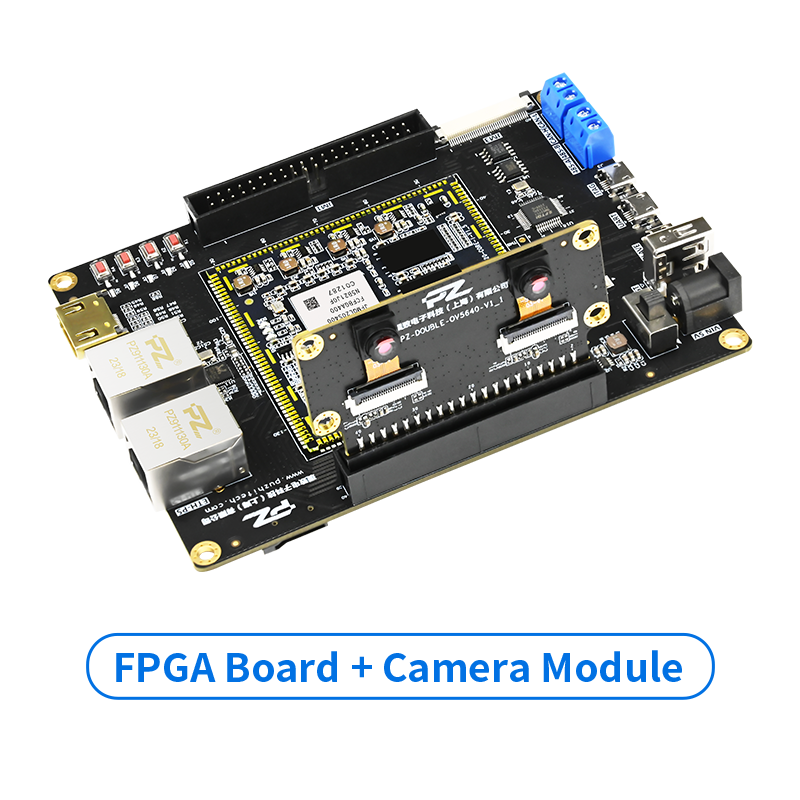

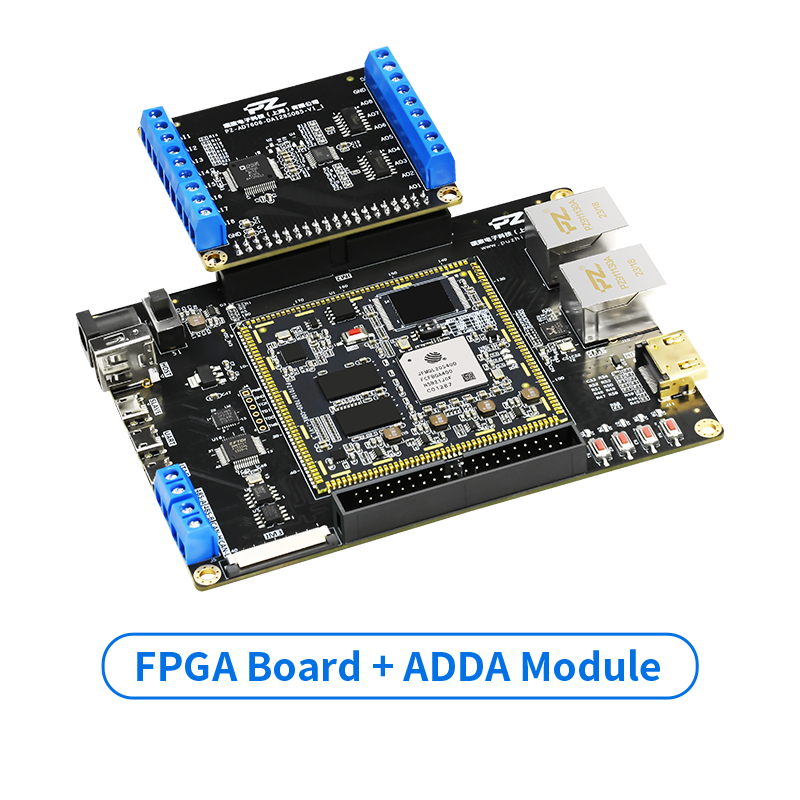

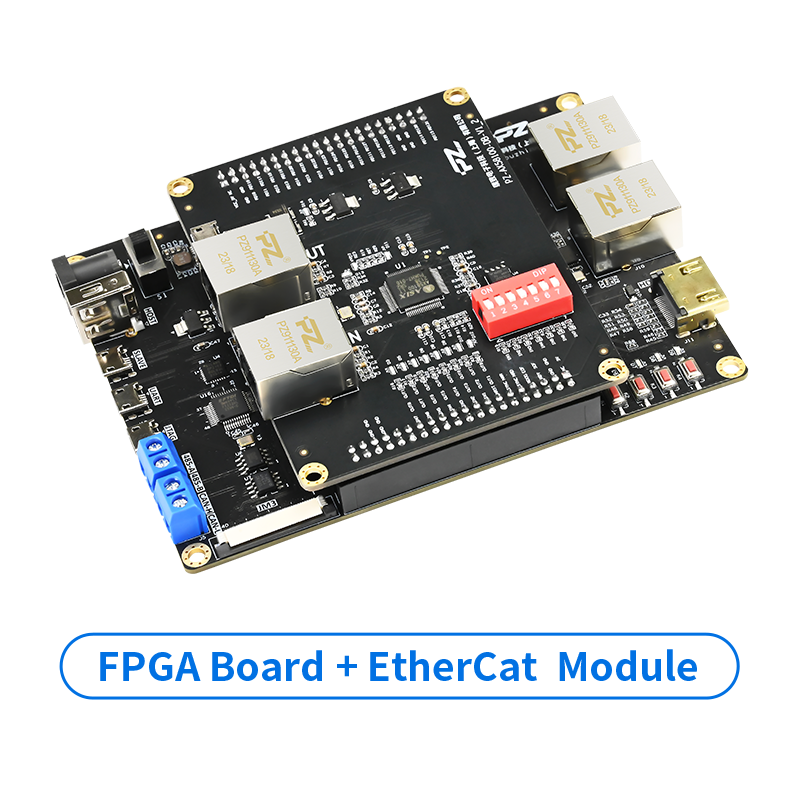

Other Subcard Display
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
- 1
FPGA Logic Demos
01.
Vivado Environment Introduction and Installation
02.
FLASH Curing and Engineering Chip Model Change
03.
LED Flashing
04.
PWM Control of LED
05.
Key Debounce and LED Control
06.
FPGA on-chip RAM Read and Write
07.
FPGA on-chip ROM Read and Write
08.
FPGA on-chip PLL Configuration
09.
FPGA on-chip FIFO Usage
10.
I2C Read and Write E2PROM
11.
HDMI Output Image
12.

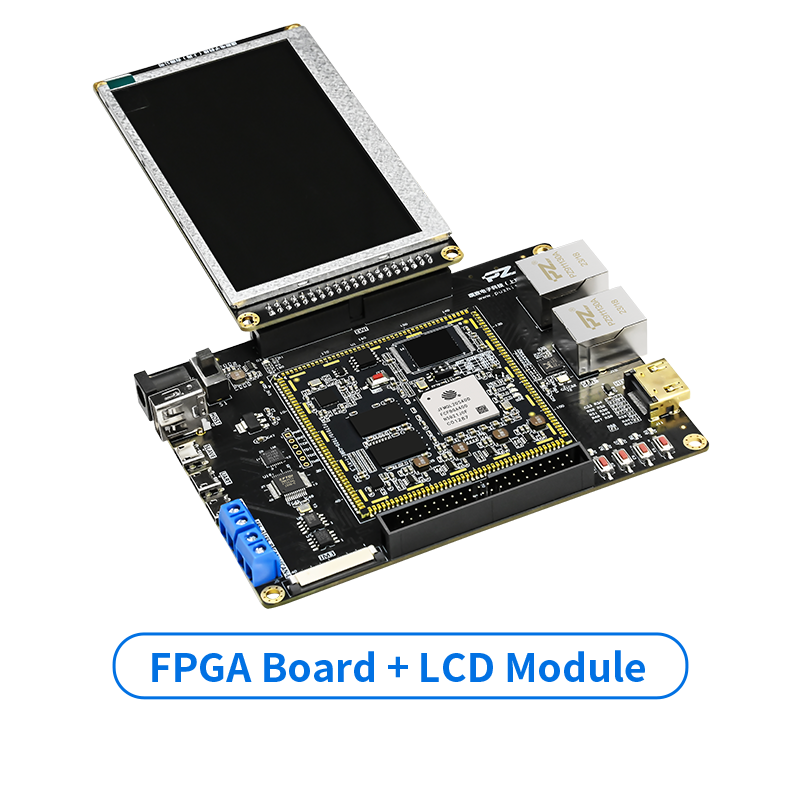

LCD Picture Display
13.
Binocular Camera Output and HDMI Display Image
14.
AD-AD7606/7608 8-channel Acquisition Voltage
15.
DA 8-channel Output Sine Wave, Triangle Wave Square Wave
16.
PL Side Gigabit Ethernet Communication
17.
USB3.0 Software and Driver Installation
18.
USB3.0 DATA LOOP Testing Demos
- 2
ARM Demos
01.
Uart
02.
PS Timer Interrupt Experiment
03.
PS Side EMIO Control LED Flashing
04.
EMIO Key Control LED
05.
Dual-core AMP
06.
Custom IP
07.
RS485 Communication
08.
CAN Bus Communication
09.
I2C Communication
10.
Gigabit Ethernet L(NET0 MIO) Demo
11.
Gigabit Ethernet Remote Upgrade
12.
PS Side DDR3 Read and Write
13.
PS Side EMMC Read and Write
14.
AXI-DMA Read and Write
15.
SD Card Read and Write
16.
ADC Acquisition Gigabit Ethernet Transmission
17.
LCD Image Display
18.
HDMI Image Display
19.
Binocular Camera HDMI Output Display
20.
SD Card Picture HDMI Output Display
- 3
PetaLinux Demos
01.
Introduction to Virtual Machine and Ubuntu System
02.
Petalinux Tool Installation
03.
SD Card to Start the Linux System
04.
QSPI+EMMC Start Linux
05.
PetaLinux LED
06.
HDMI Display under Linux
07.
Drive USB Mouse and Keyboard under Linux
08.
Application of QT on ZYNQ
09.
Linux Common Commands

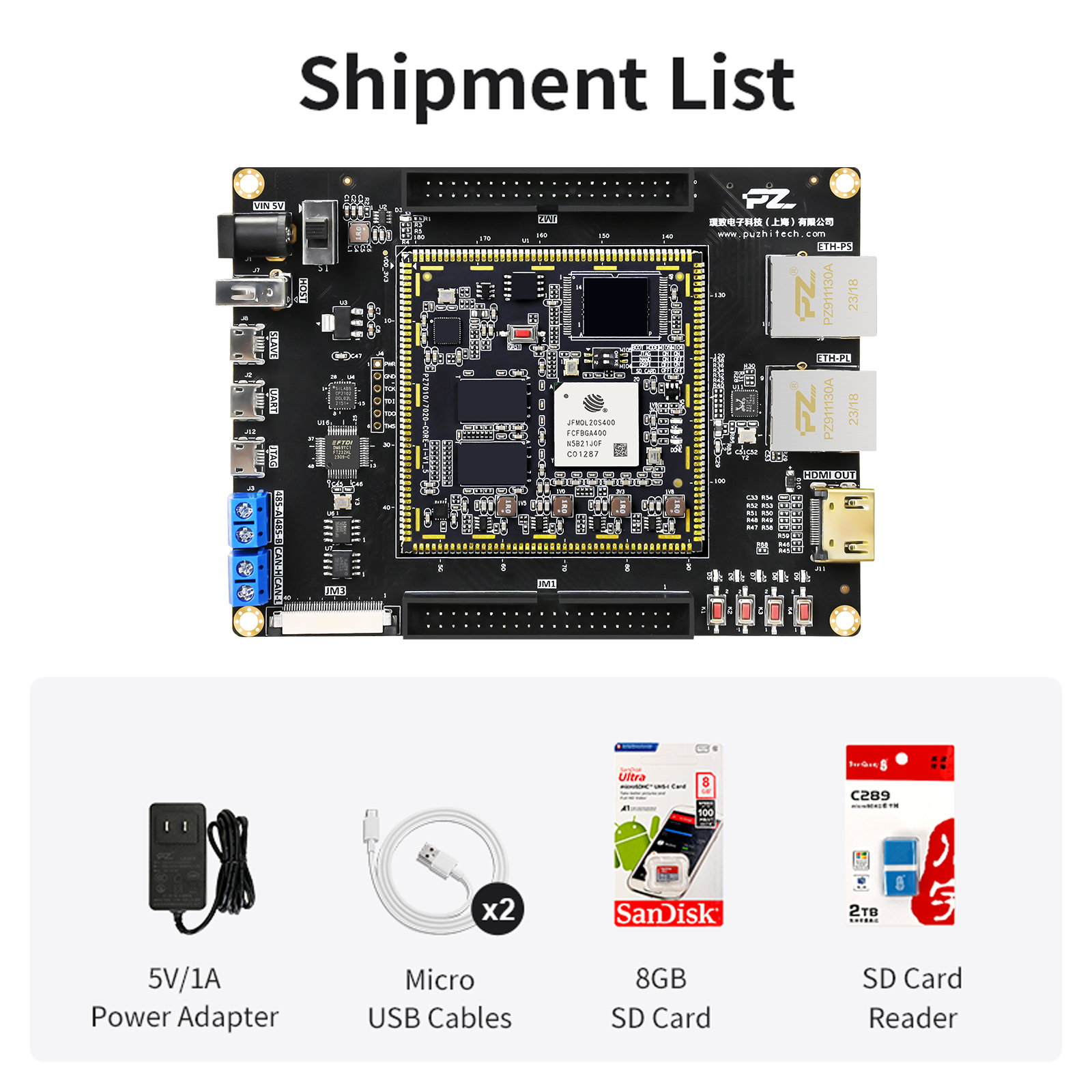

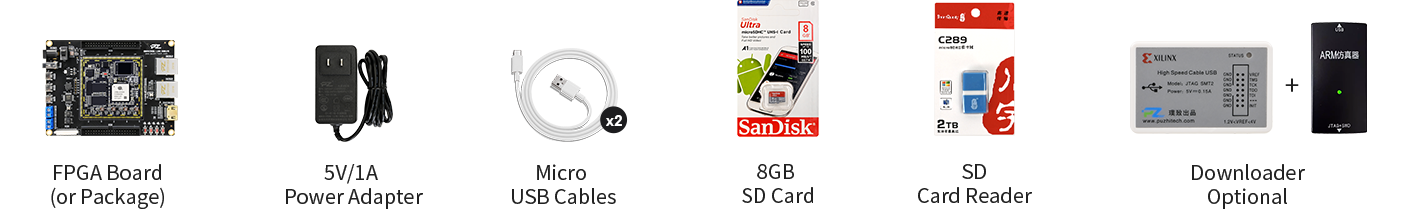

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.

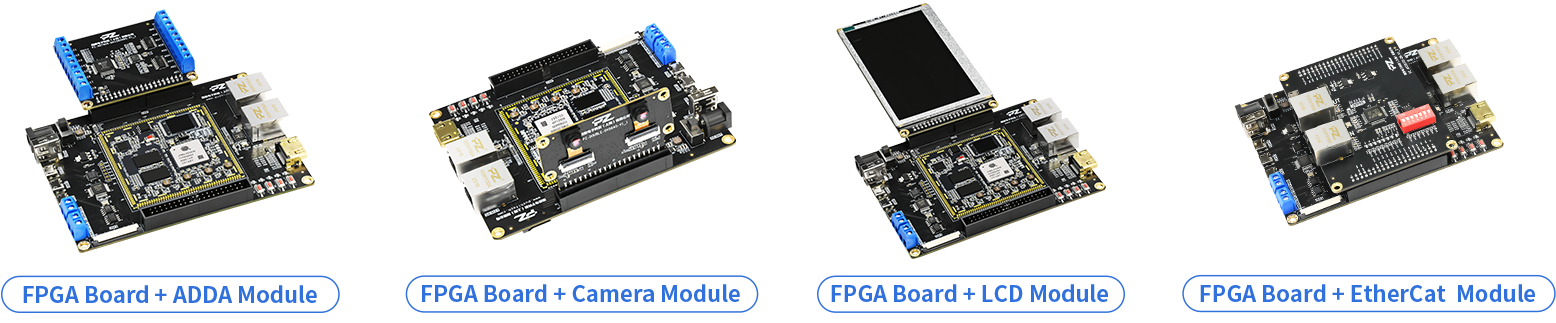

Solution Display
