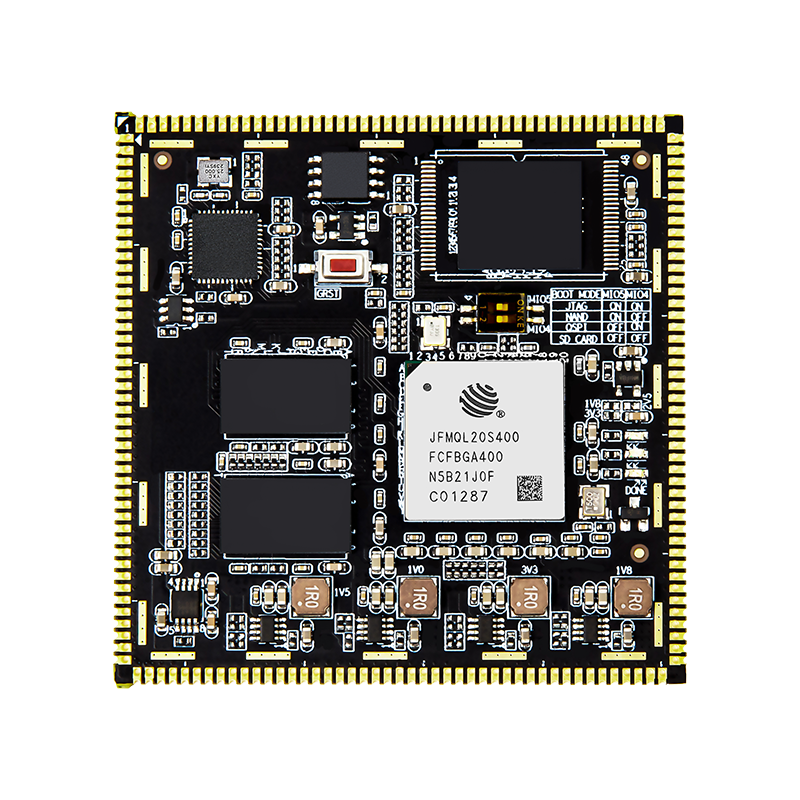

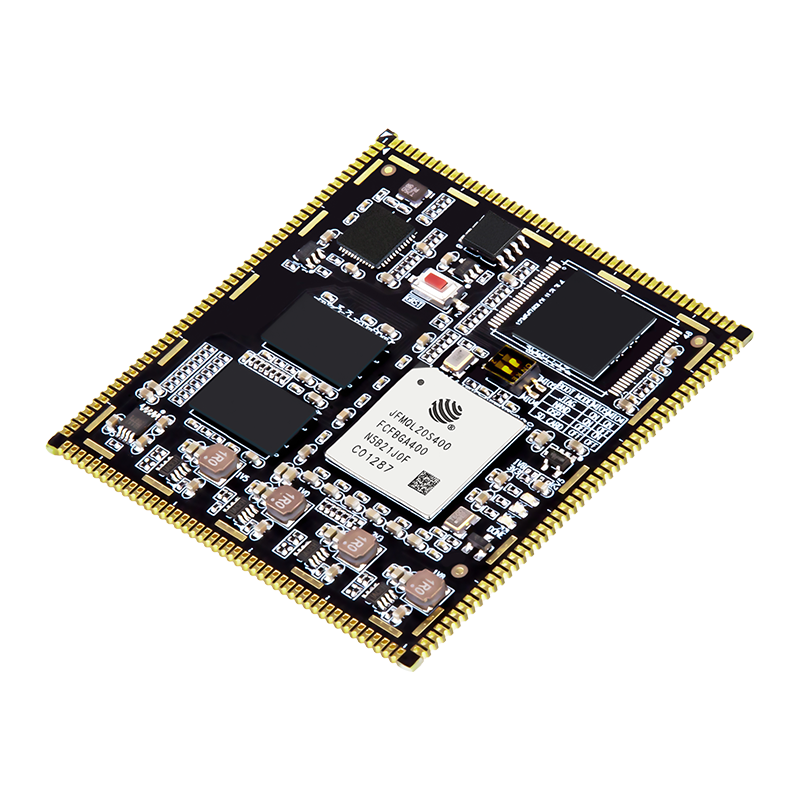

Puzhi FPGA Fudan Micro PSOC7000 7020 Core Board
- Fudan micro core board，quad core ARM Cortex-A7，main frequency 800Mhz
- 1GB DDR3，8GB EMMC，128Mb QSPIFLASH
- Small size 61mm*61mm，up to 142 IO available，no components on the back
- Extreme material selection and process standards，industrial grade -40℃~+85℃
- Provide hardware reference & rich routines，help product development

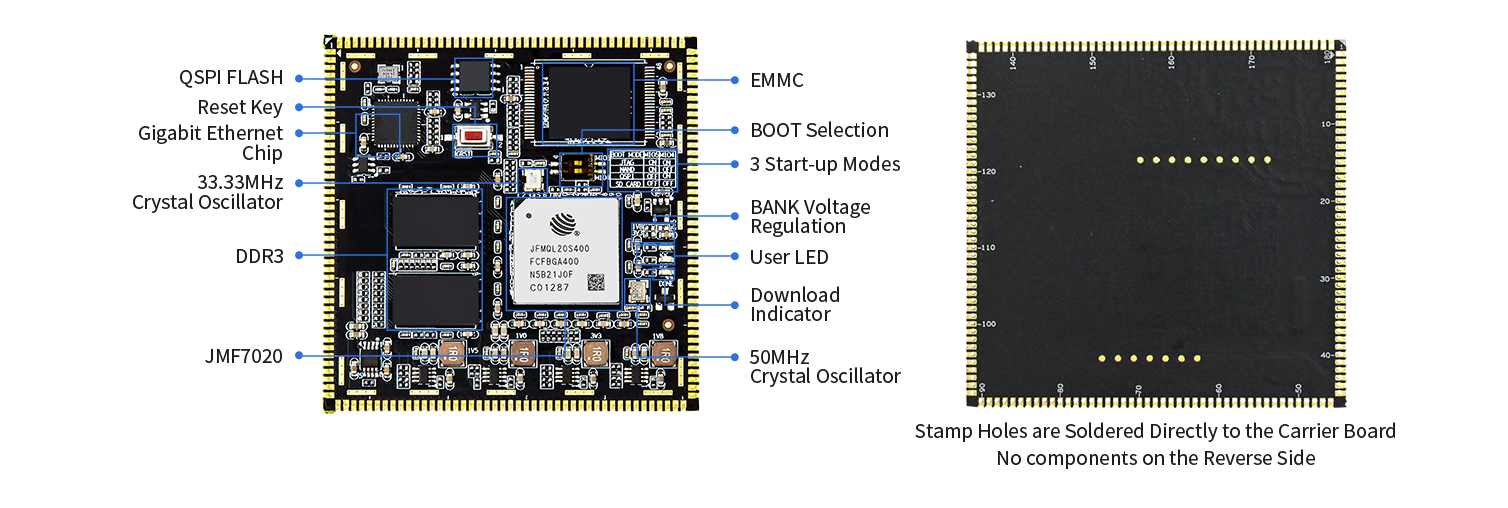

Interface Function Display
Product Parameters
Specification
FPGA Core Board | PZ7020F-SOM |
FPGA Chip | JFMQL20S400 |
Processor Core | Quad Core ARM Cortex-A7 |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 85K |
Lookup Tables | 53200 |
Flip-Flops | 106400 |
DSP Slices | 220 |
BLOCK RAM | 4.9Mb |
DDR3 | 1GB |
QSPI FLASH | 128Mb |
EMMC | 8GB |
PS Side MIO | 24 |
PL Side IO | Total 118 Single-ended, of which 70 IOs Levels fixed at 3.3V, 48 IOs Levels 1.8/2.5/3.3V adjustable,default 3.3V |
Start-up Mode | JTAG/QSPI/SD, On-board DIP Switch Selection |
Gigabit Ethernet Chip | 1 |
User LED | 2 |
Voltage/ Current | 5V/1A |
Crystal Oscillator | Single-ended Crystal 33.3333MHz for PS Single-ended Crystal 50MHz for PL |
Core Board Form Factors | 2.40 inch x 2.40 inch (61mm x 61mm) |
Product Dimensions
Product Packages
Technical Support
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

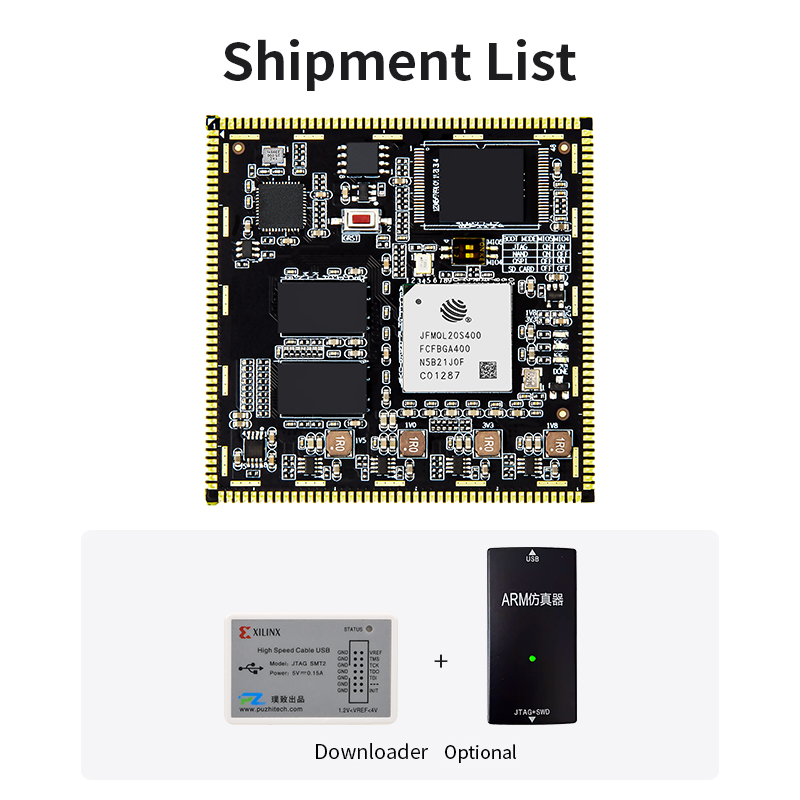

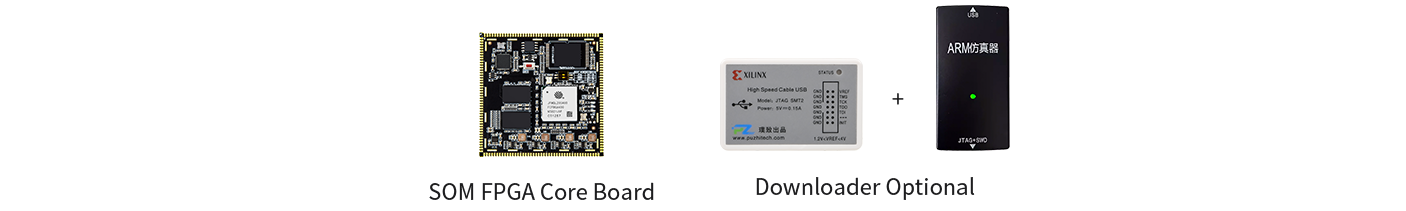

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
