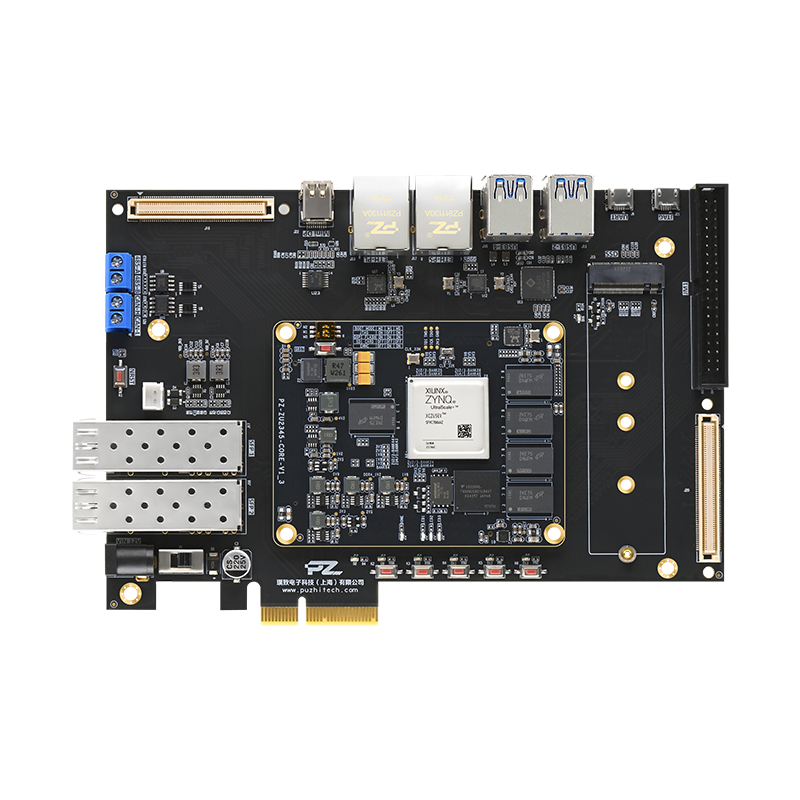

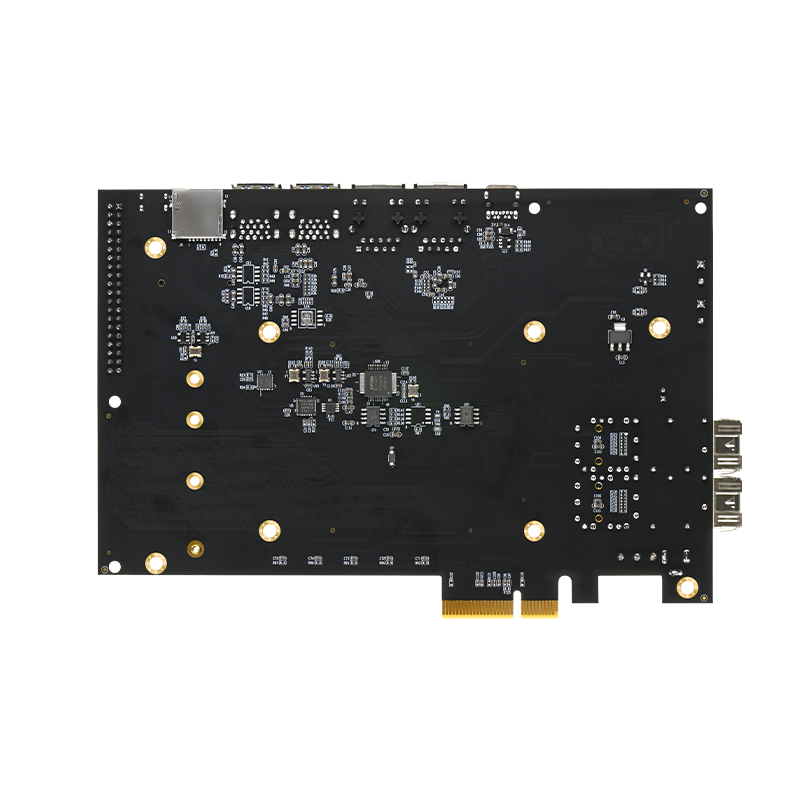

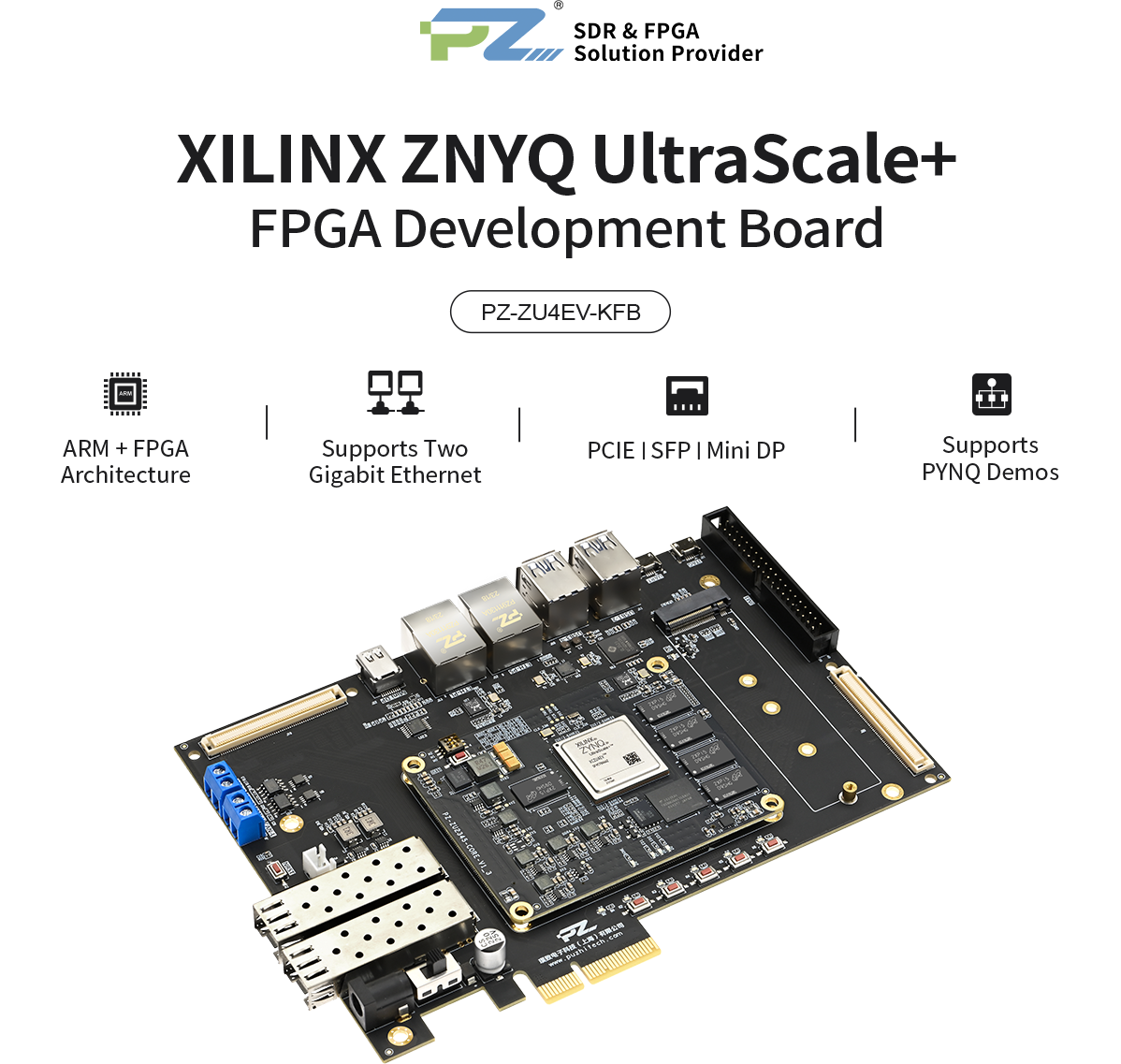

Puzhi FPGA ZYNQ UltraScale+ ZU5EV Development Board
PZ-ZU5EV-KFB
- ARM+FPGA architecture，4 x Cortex-A53，main frequency 1.3Ghz
- PS Side 4GB、PL Side 1GB DDR4，8GB EMMC，256Mb QSPIFLASH
- Core board 120P connector connection，size 83.8*64.8mm
- Reserved ports UART、RS485、CAN、Gigabit Ethernet、SSD、PCIE，etc
- Support SDK development，support PYNQ，rich routines，help product development

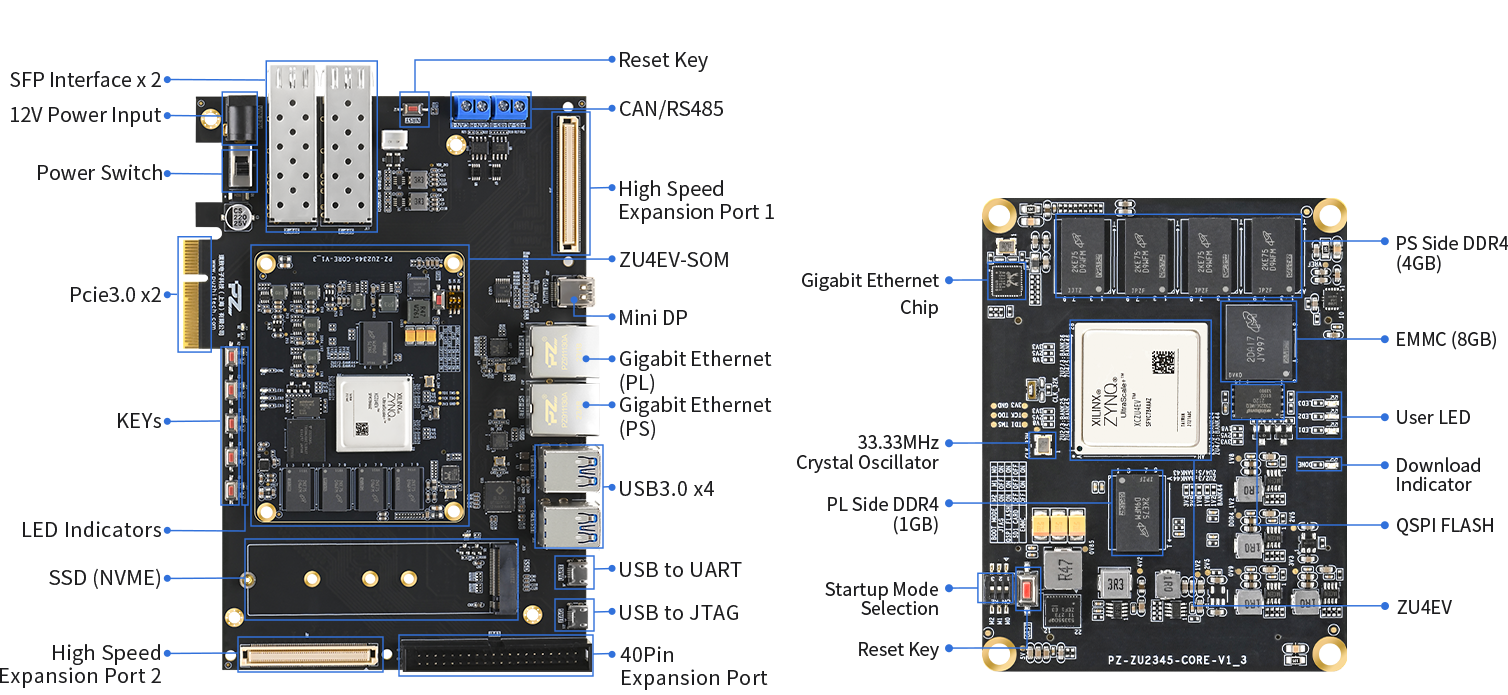

Interface Function Display
Product Parameters
Core Board Main Parameters
FPGA Dev. Board | PZ-ZU5EV-KFB |
FPGA Chip | XCZU5EV-2SFVC784I |
Processor Core | 4 x Cortex-A53-1.3Ghz 2 x Cortex-R5-533Mhz |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 256K |
Lookup Tables | 234000 |
Flip-Flops | 117000 |
DSP Slices | 1248 |
BLOCK RAM | 5.1Mb |
DDR4 | PS Side 4GB, PL Side 1GB |
QSPI FLASH | 256Mb, to Store Startup Files and User Files |
EMMC | 8GB |
Start-up Mode | JTAG/QSPI/SD/EMMC, Default SD startup |
User LED | 3 |
Reset Key | 1 |
PS Side GTR | 4 Pairs of TX/RX |
PL Side GTH | 4 Pairs of TX/RX |
PS Side MIO | 38 |
PL Side IO | Total 192 single-ended: 96 IOs, 1.2V/1.8V Adjustable, Default 1.8V 96 IOs, 1.8V/2.5V/3.3V Adjustable, Default 3.3V |
Crystal Oscillator | Single-ended Crystal 33.3333MHz for the PS Differential Crystal 200MHz for the PL Differential Crystal 125MHz for the GT Transceiver Reference Clock |
Core Board Form Factors | 3.30 inch x 2.55 inch (83.8mm x 64.8mm ) |
Interfaces and Function
JTAG Downloader | 1 |
UART/RS485/CAN | 1/1/1 |
SD Card Slot Interface | 1 |
SSD Memory Interface | 1 (PS Side) |
Gigabit Ethernet | PS Side 1 / PL Side 1 |
Mini DP Output | 1 |
SFP | 2 |
PCIE3.0 | x2 |
LED | 5 |
KEY | 5 |
RTC | 1 |
Voltage / Current | 12V/3A |
Board Form Factors | 7.09 inch x 4.80 inch (180mm x 122mm ) |
Technology | Black Matte. Immersion Gold Process |
2 x 120P high-speed | Total 80 Single-ended/40 Differential pairs |
40Pin Expansion Port | 32 Single-ended/16 Differential pairs Reserve one 40-pin 0.1 inch Expansion Port，to Connect Puzhi Modules (AD/DA, Camera, LCD)，Expansion Port including 5V power supply，3.3V power supply, 6 Ground, 32 IOs |

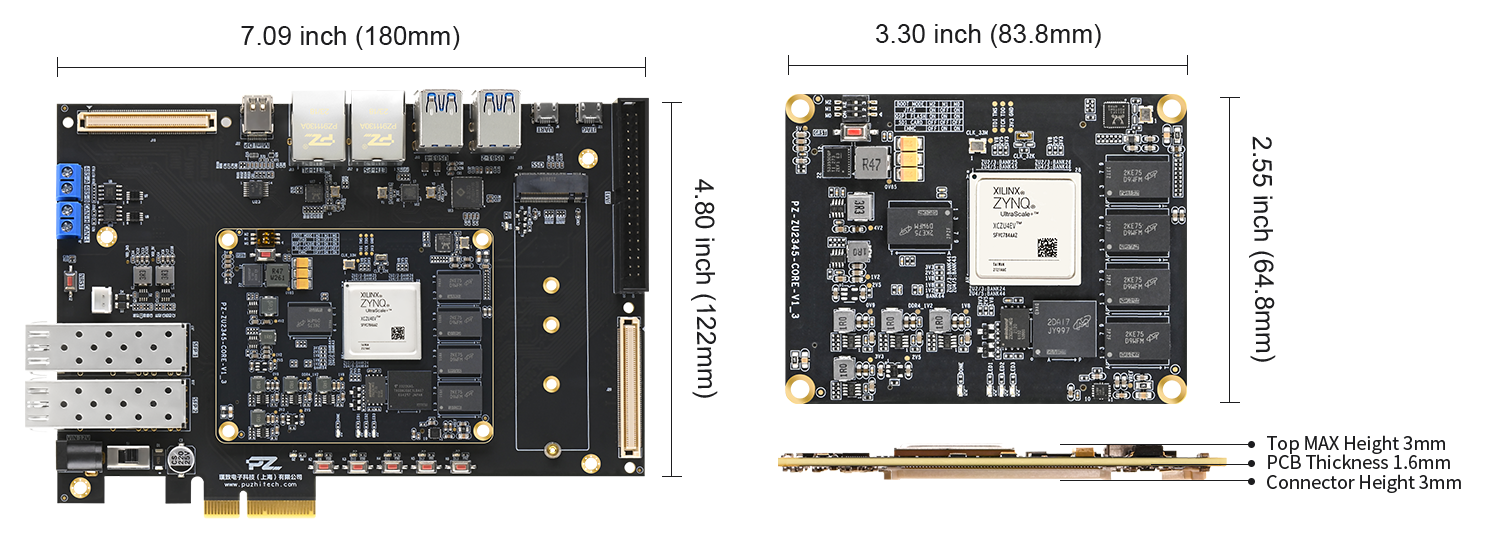

Product Dimensions
Product Packages

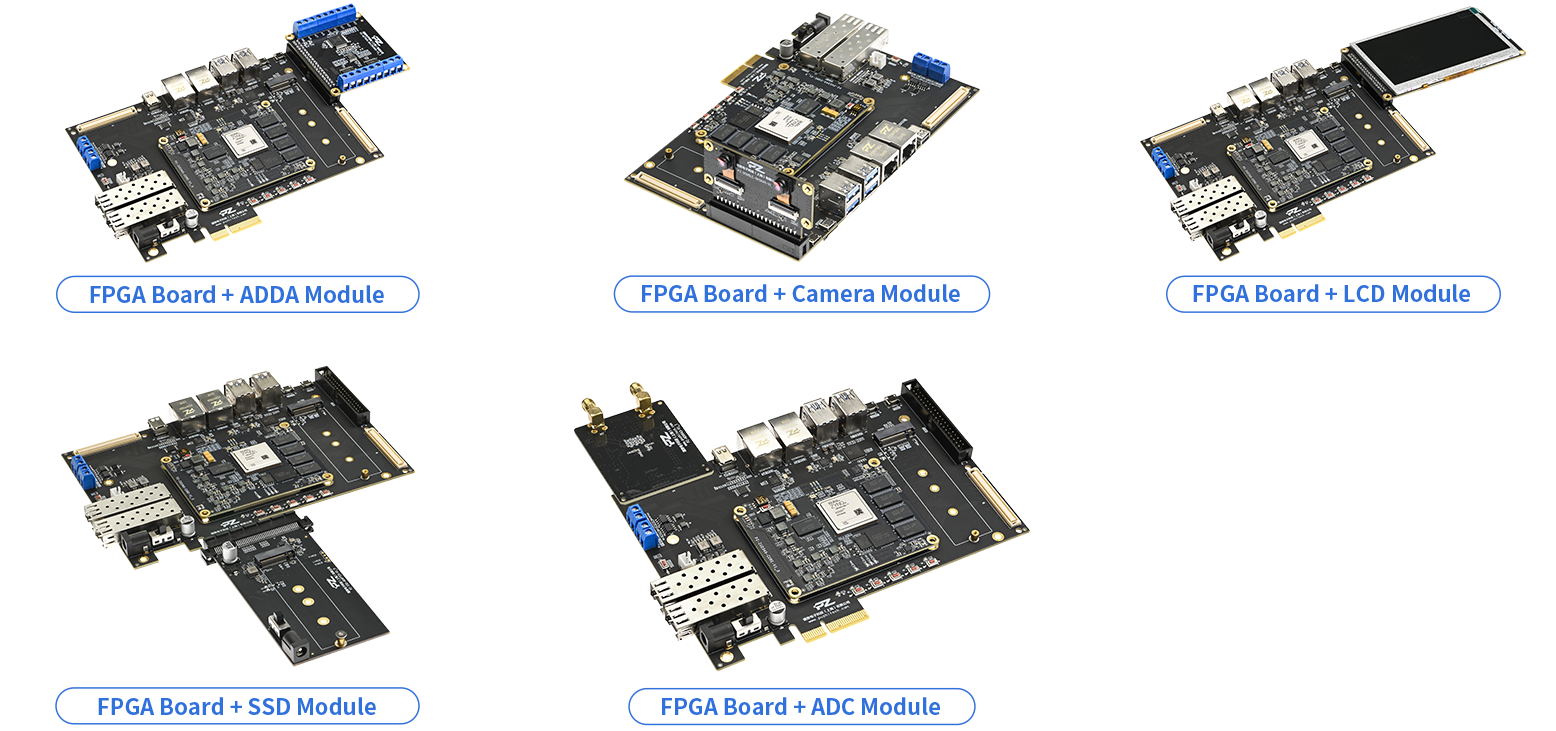

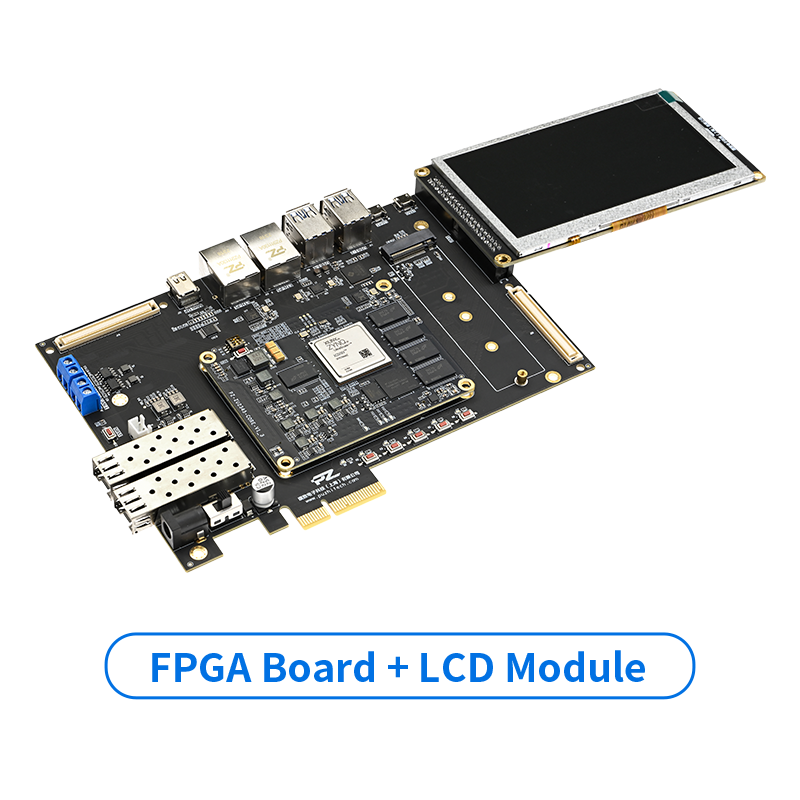

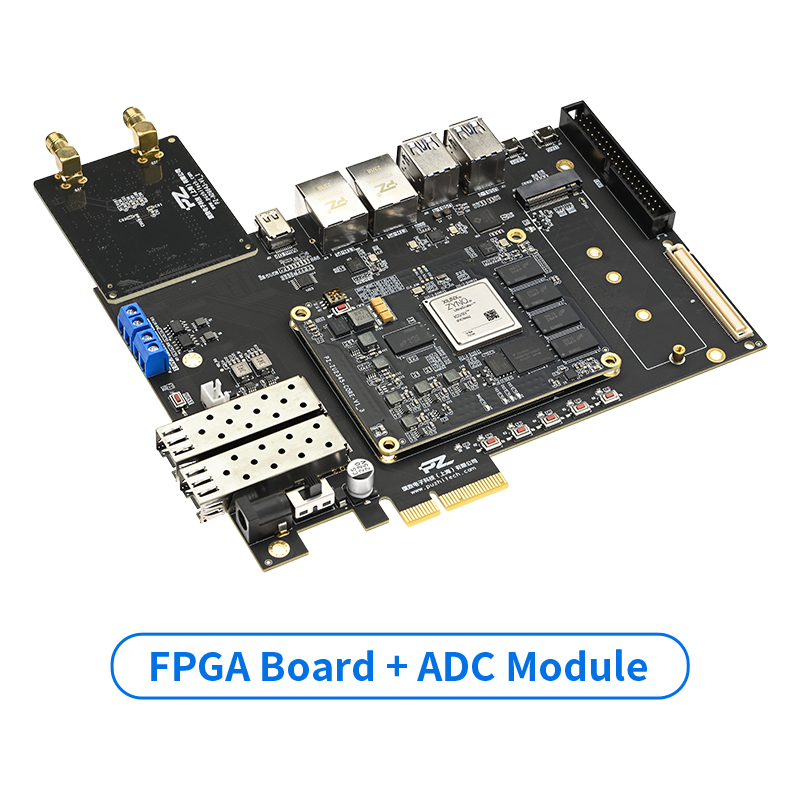

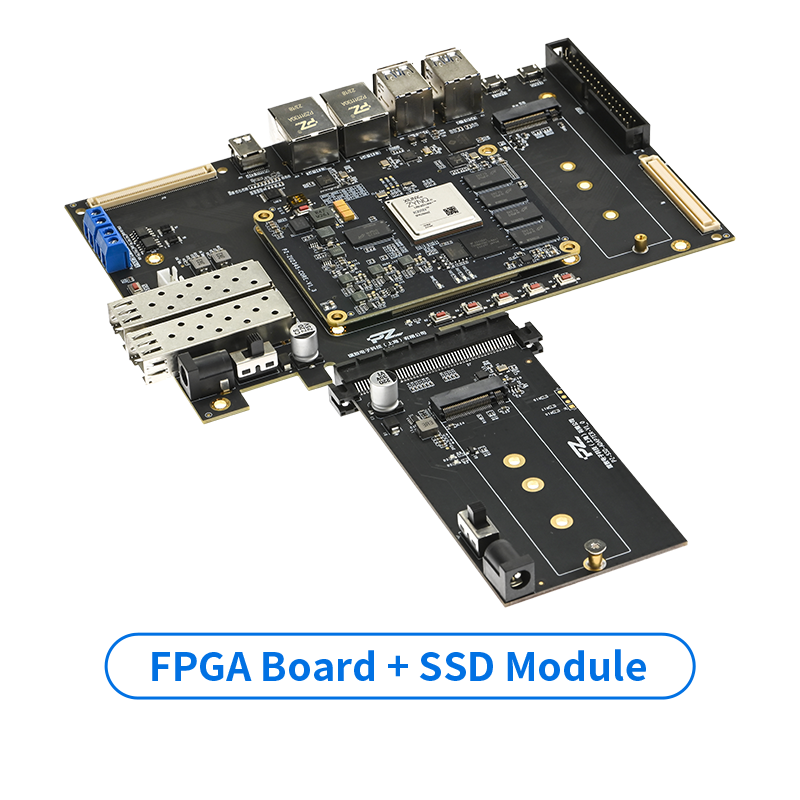

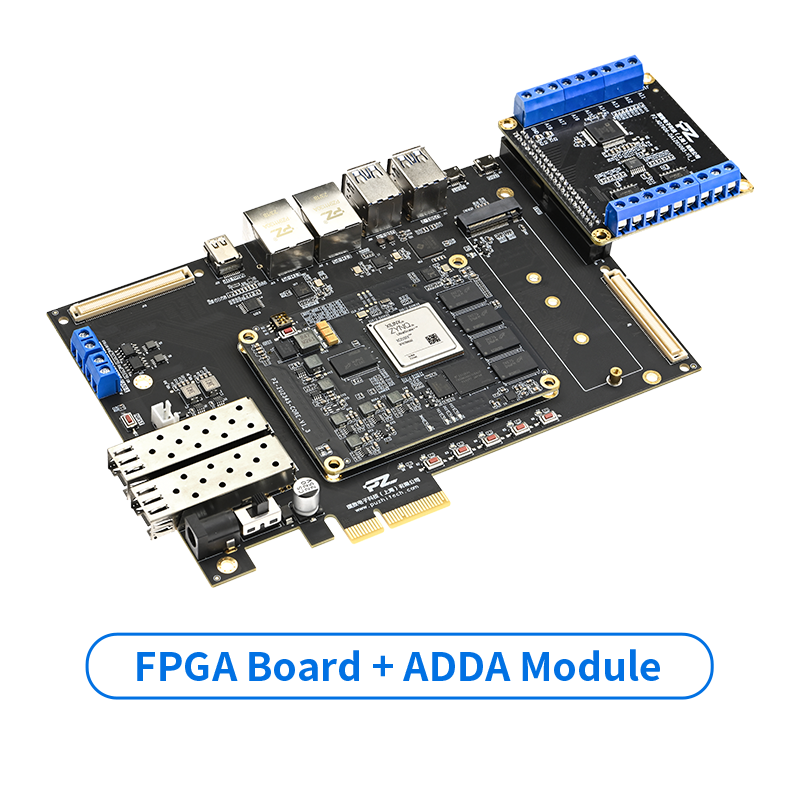

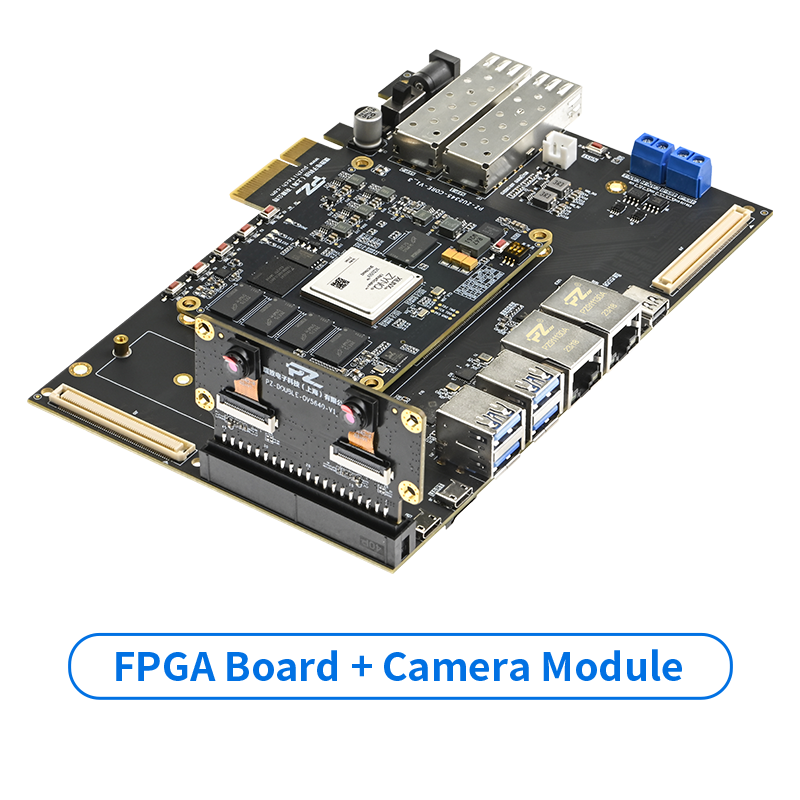

Other Subcard Display
Supporting Display
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
- 1
FPGA Logic Demos
01.
Vivado Installation
02.
FLASH Curing
03.
LED Flashing
04.
LED PWM Control
05.
Key Debouncing Demos
06.
FPGA on-chip RAM Read and Write
07.
FPGA on-chip ROM Read and Write
08.
FPGA on-chip PLL Configuration
09.
FPGA on-chip FIFO Read and Write
10.
FPGA side DDR4 Control Read and Write
11.
I2C Read and Write E2PROM
12.
LCD Picture Display
13.
AD-AD7606 8-channel Acquisition Voltage
14.
DA 8-channel Output Sine Wave, Triangle Wave Square Wave
15.
Gigabit UDP Based on RTL8211F
16.
SFP Bit Error Rate Test
17.
High Speed ADC-AD9643 Acquisition (250MSPS)
- 2
SDK Demos
01.
UART Serial Port Communication
02.
TTC Timer Interrupt Experiment
03.
PS Side EMIO Control LED Flashing
04.
EMIO Key Control LED
05.
DP Interface Display Demos
06.
Custom IP
07.
RS485 Communication
08.
CAN Bus Communication
09.
I2C Communication
10.
Gigabit Ethernet (NET0 MIO) Application
11.
Gigabit Ethernet UDP Remote Upgrade
12.
PS Side DDR4 Read and Write
13.
PS Side EMMC Read and Write
14.
AXI-DMA Read and Write
15.
SD Card Read and Write
16.
ADC Acquisition Gigabit Ethernet Transmission
17.
LCD Image Display
18.
AD7606 and DA128S085 Synthesised Demos
19.
DP Display of Binocular Camera Images
20.
SD Card Picture DP Output Display
21.
PCIE Testing Demos
22.
PL-side Gigabit Ethernet Communication Demos
- 3
PetaLinux Parts
01.
Introduction to Virtual Machine and Ubuntu System
02.
Petalinux Tool Installation
03.
SD Card to Start the Linux System
04.
GPIO Control LED
05.
QSPI Curing and Startup
06.
EMMC Curing and Booting
07.
NVME SSD Read/Write
08.
Linux Common Commands
- 4
PCIE Topics
01.
QT Environment Setup
02.
PCIE GPIO Control
03.
PCIE DDR Cache Interrupt
04.
PCIE HDMI Input Experiment
05.
PCIE HDMI Output Experiment
06.
PCIE Monocular OV5640 Image Experiment
07.
PCIE High-speed ADC Acquisition Experiment
- 5
Supports PYNQ

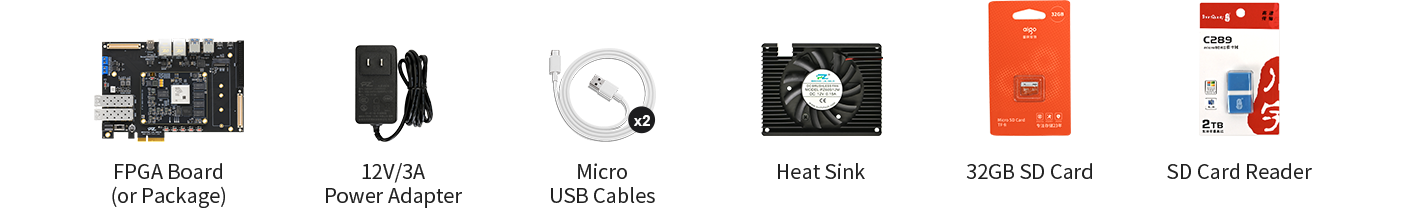

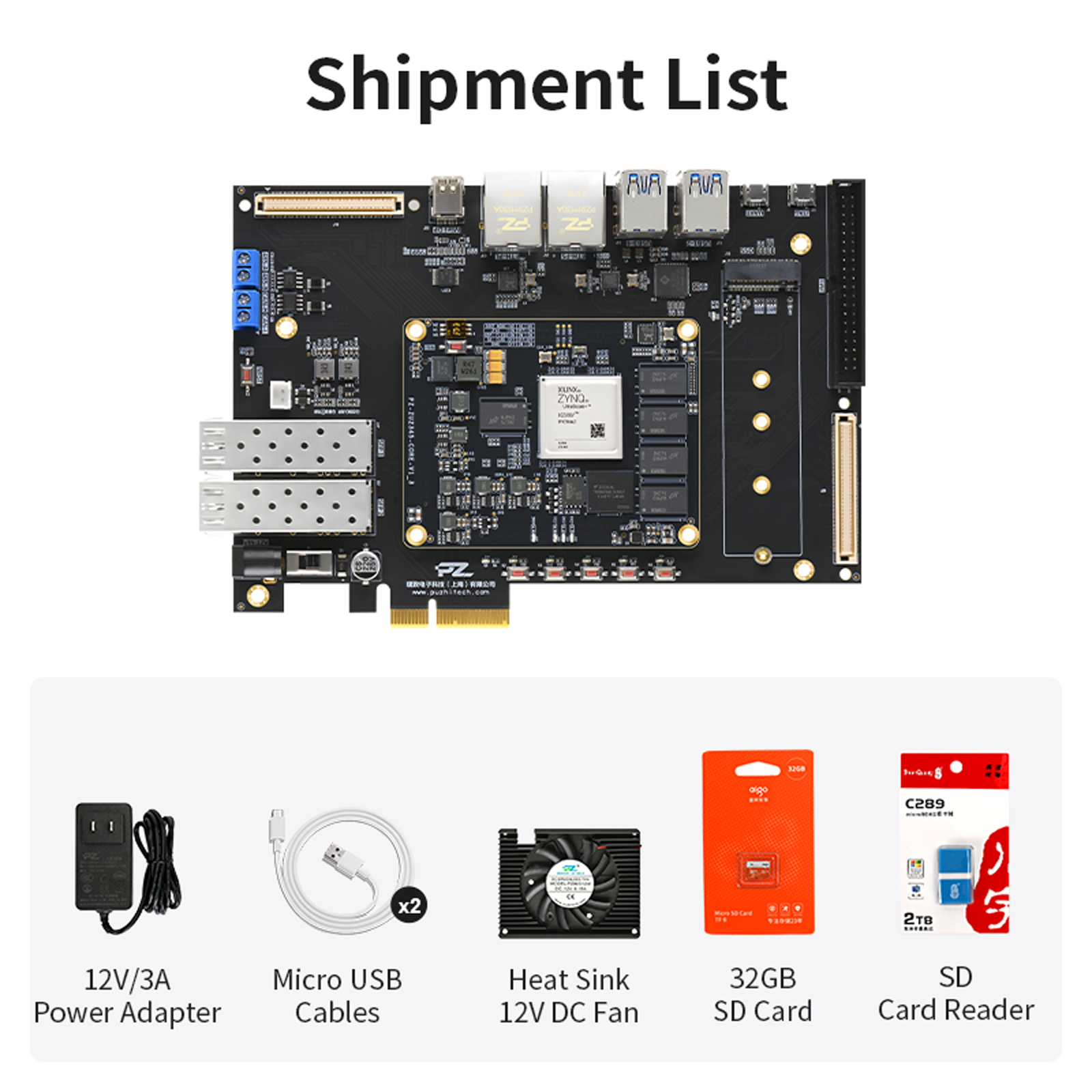

Standard Delivery List
