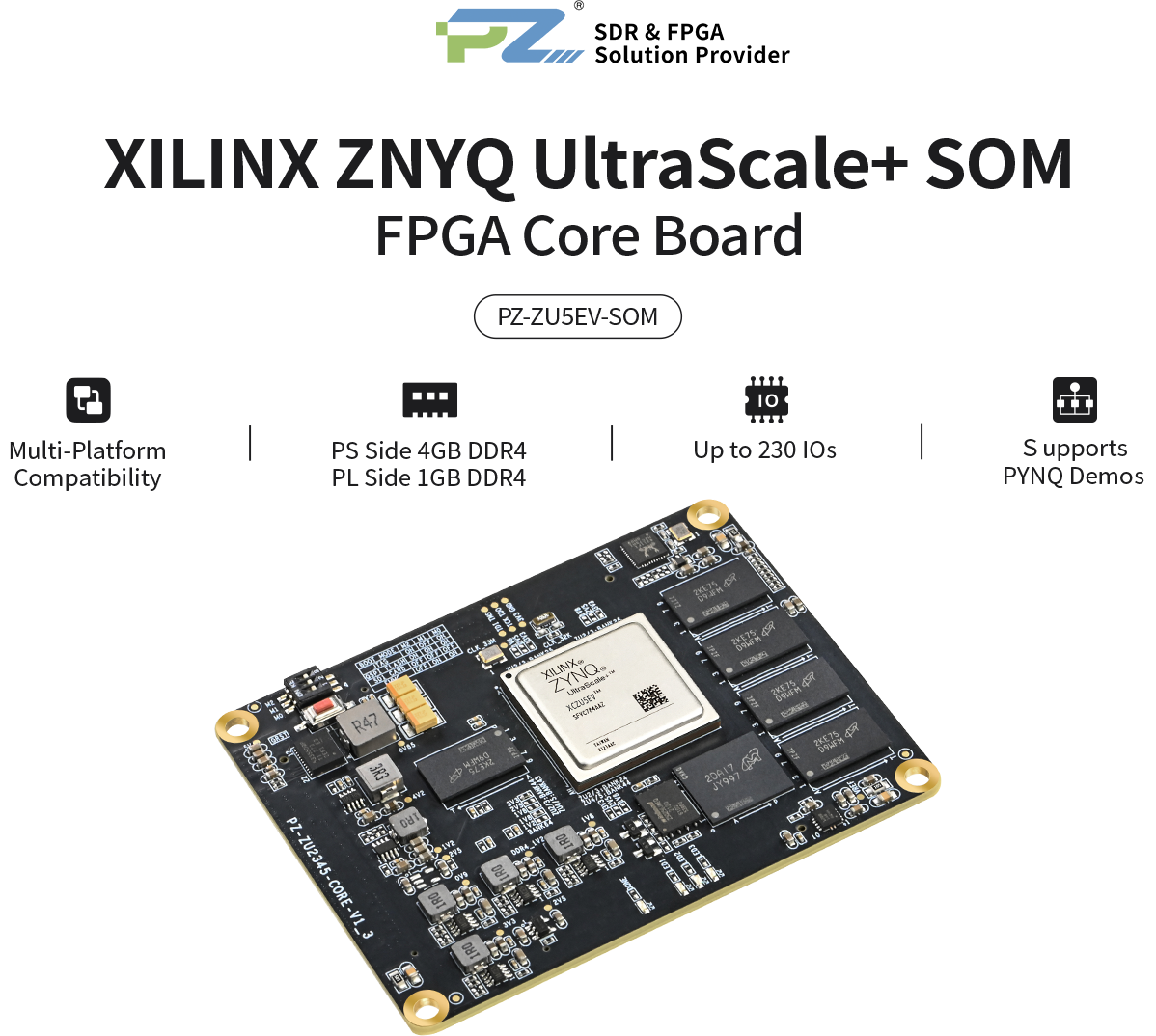

Puzhi FPGA ZYNQ UltraScale+ ZU5EV Core Board
- ZYNQ UltraScale+ core board，4 x Cortex-A53，main frequency 1.3Ghz
- PS Side 4GB、PL Side 1GB DDR4，8GB EMMC，256Mb QSPIFLASH
- Size 83.8*64.8mm，up to 230 IO available
- Extreme material selection and process standards，industrial grade -40℃~+85℃
- Support PYNQ，provide hardware reference & rich routines，help product development

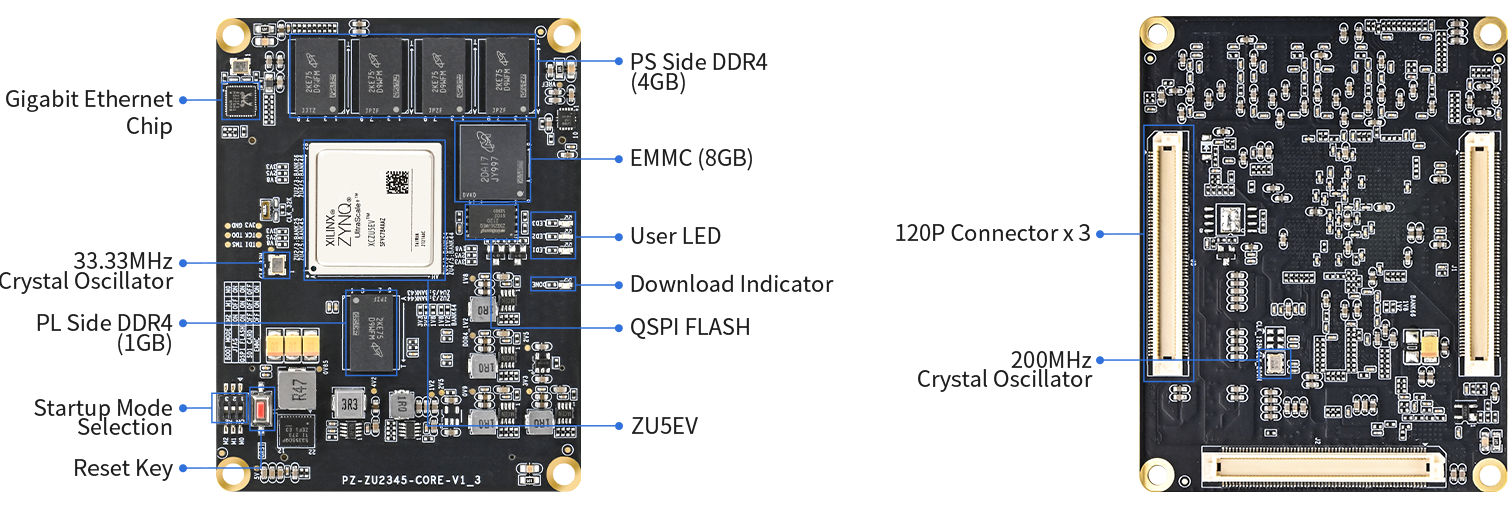

Interface Function Display
Product Parameters
Specification
FPGA Core Board | PZ-ZU5EV-SOM |
FPGA Chip | XCZU5EV-2SFVC784I |
Processor Core | 4 x Cortex-A53-1.3Ghz 2 x Cortex-R5-533Mhz |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 256K |
Flip-Flops | 234000 |
Lookup Tables (LUTs） | 117000 |
DSP Slices | 1248 |
BLOCK RAM | 5.1Mb |
DDR4 | PS Side 4GB, PL Side 1GB |
QSPI FLASH | 256Mb, to Store Startup Files and User Files |
EMMC | 8GB |
Start-up Mode | JTAG/QSPI/SD/EMMC, Default SD startup |
Gigabit Ethernet Chip | 1 |
User LED | 3 |
Reset Key | 1 |
PS Side GTR | 4 Pairs of TX/RX |
PL Side GTH | 4 Pairs of TX/RX |
PS Side MIO | 38 |
PL Side IO | Total 192 single-ended of which, 96 IOs Levels 1.2V/1.8V Adjustable, Default 1.8V |
Voltage / Current | 5V/3A |
Crystal Oscillator | Single-ended Crystal 33.3333MHz for the PS Differential Crystal 200MHz for the PL Differential Crystal 125MHz for the GT Transceiver Reference Clock |
Technology | Black Matte. Immersion Gold Process |
Core Board Form Factors | 3.30 inch x 2.55 inch (83.8mm x 64.8mm ) |

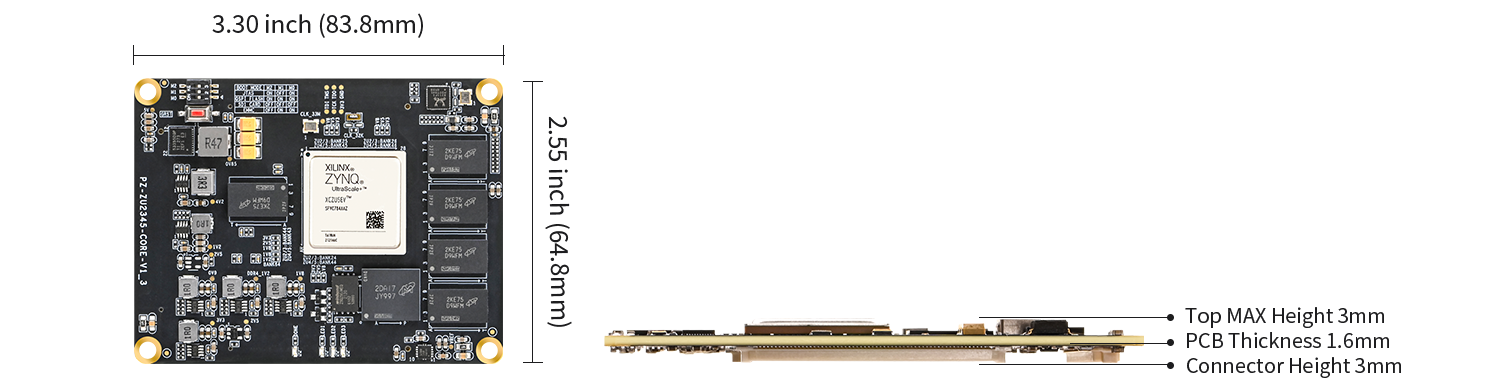

Product Dimensions
Technical Support
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

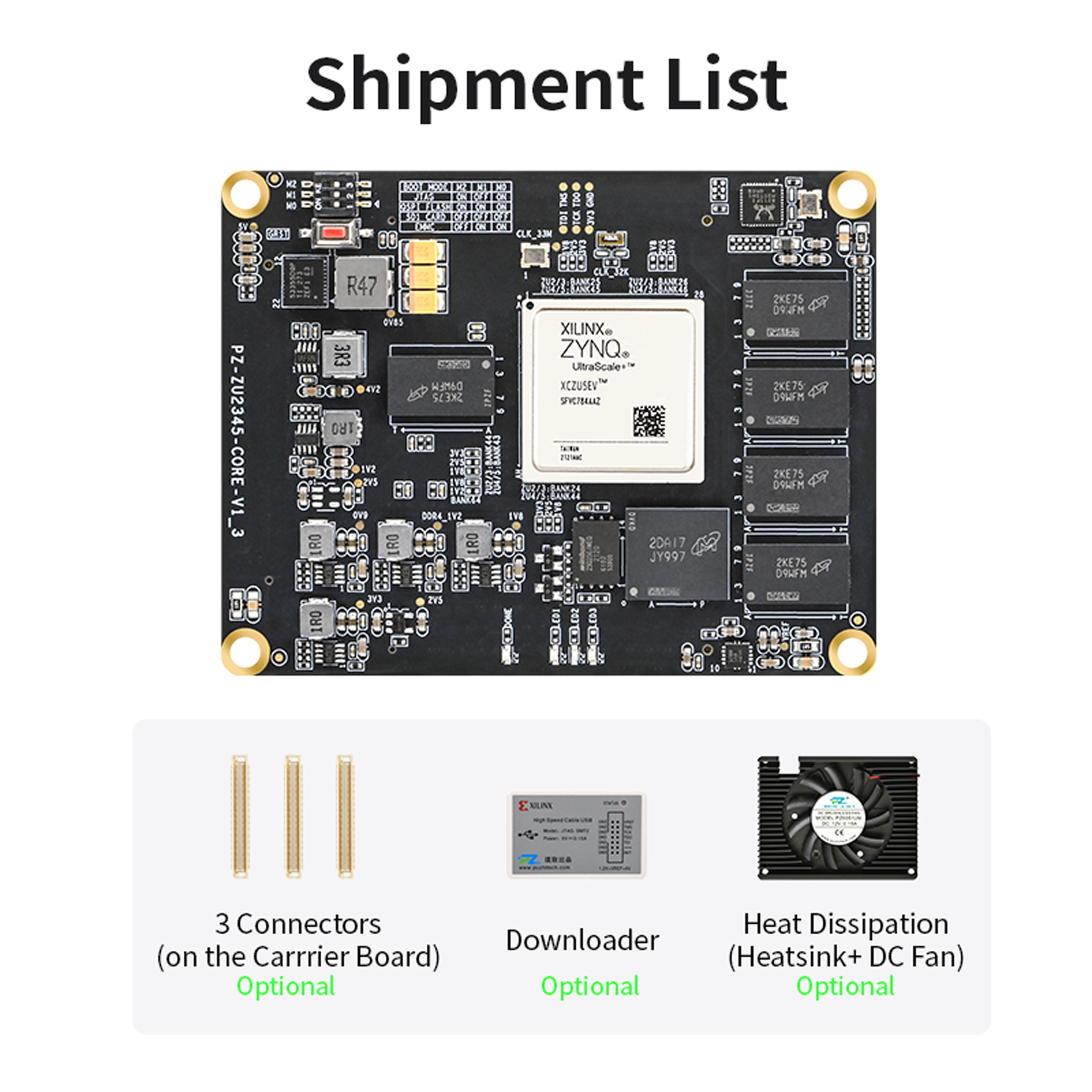

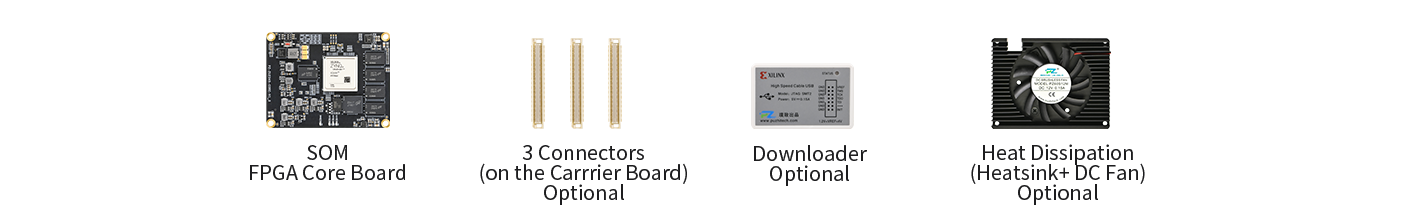

Standard Delivery List
