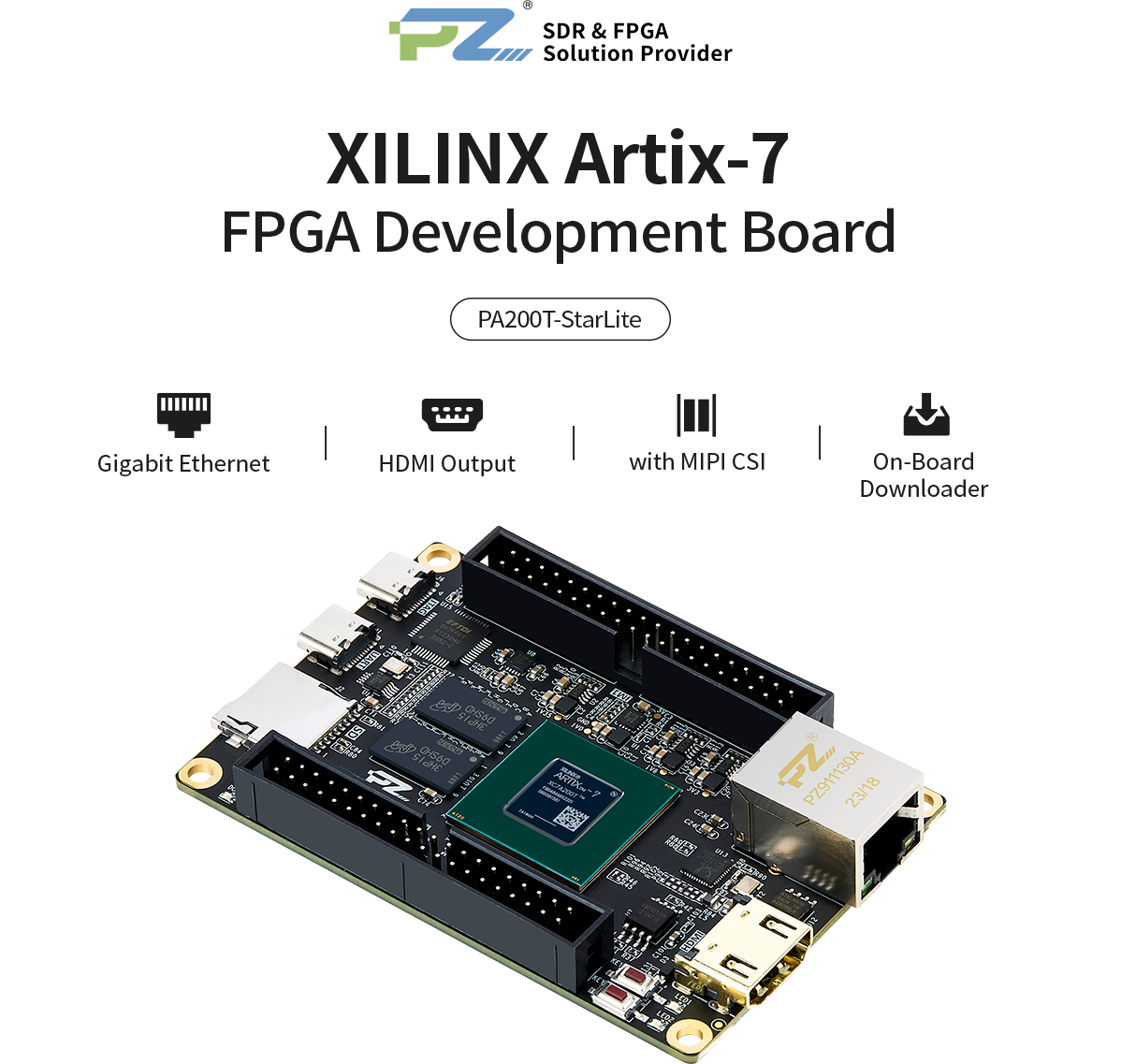

Puzhi FPGA Artix-7 PA200T-StarLite Development Board
- Artix-7 FPGA architecture/logical unit 215360/ Slices 33650
- 1GB DDR3，256Mb QSPIFLASH，Power supply/current 5V/1A
- Integrated development board，small and delicate，easy to hide in the palm
- Reserved ports UART、HDMI、JTAG、Gigabit Ethernet，etc
- Provide perfect hardware reference & software rich routines，help product development

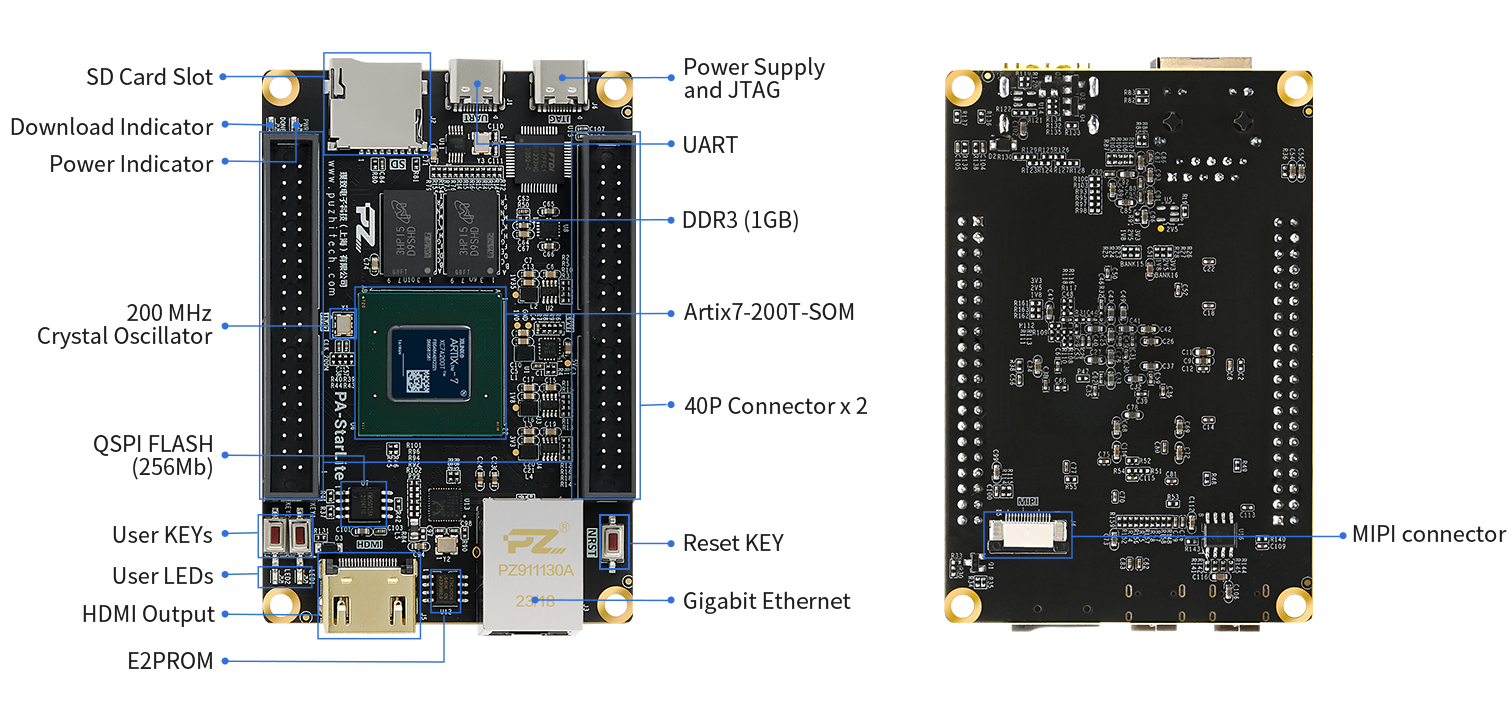

Interface Function Display
Product Parameters
FPGA Dev. Board Main Parameters
FPGA Dev. Board | PA200T-StarLite |
FPGA Chip | XC7A200T-2FBG484I |
Logic Cells | 215K |
Slices | 33650 |
BLOCK RAM | 13140 |
DSP Slices | 740 |
DDR3 | 1GB |
QSPI FLASH | 256Mb |
E2PROM | 64Kbit |
JTAG Downloader | 1 |
UART | 1 |
SD Card Slot | 1 |
Gigabit Ethernet | 1 |
HDMI | 1 HDMI Output |
MIPI CSI | 1（2lane) |
LED、KEY | 2 LEDs, 2KEYs |
Two 40Pin Expansion Port | 72 Single-ended/36 Differential Pairs Reserve one 40-pin 0.1 inch Expansion Port，to Connect Puzhi Modules (AD/DA, Camera, LCD)，Expansion Port including 5V power supply，3.3V power supply, 6 Ground, 32 IOs |
Crystal Oscillator | 200MHz Differential Crystal for FPGA |
Voltage / Current | 5V/1A |
Technology | Black Matte. Immersion Gold Process |
Core Board Form Factors | 3.54 inch x 2.36 inch (90 mm x 60mm) |

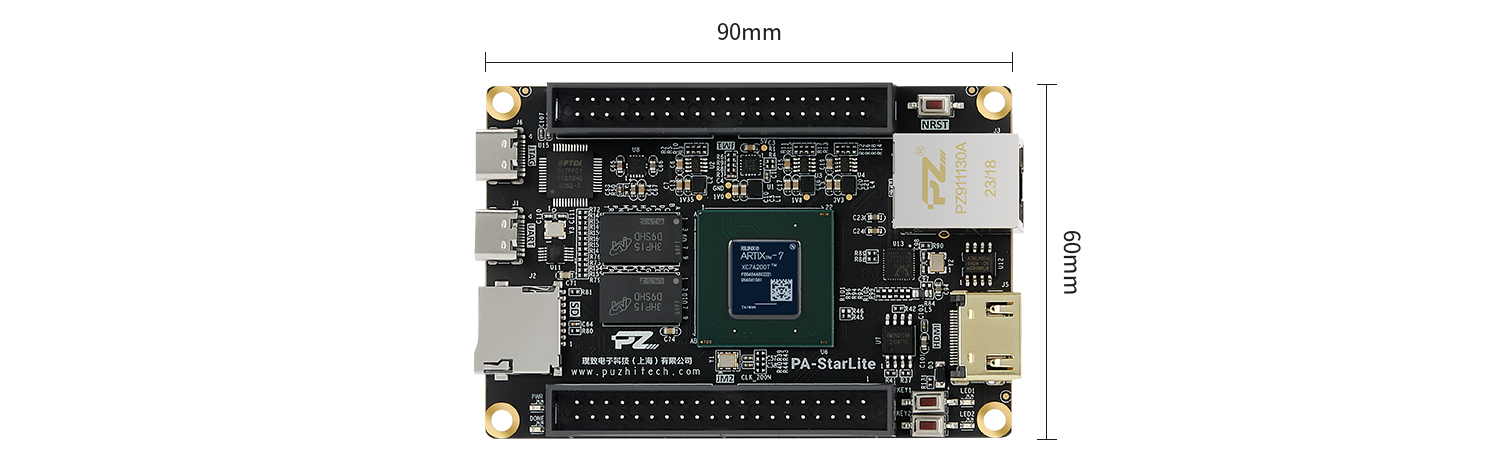

Product Dimensions
Product Packages

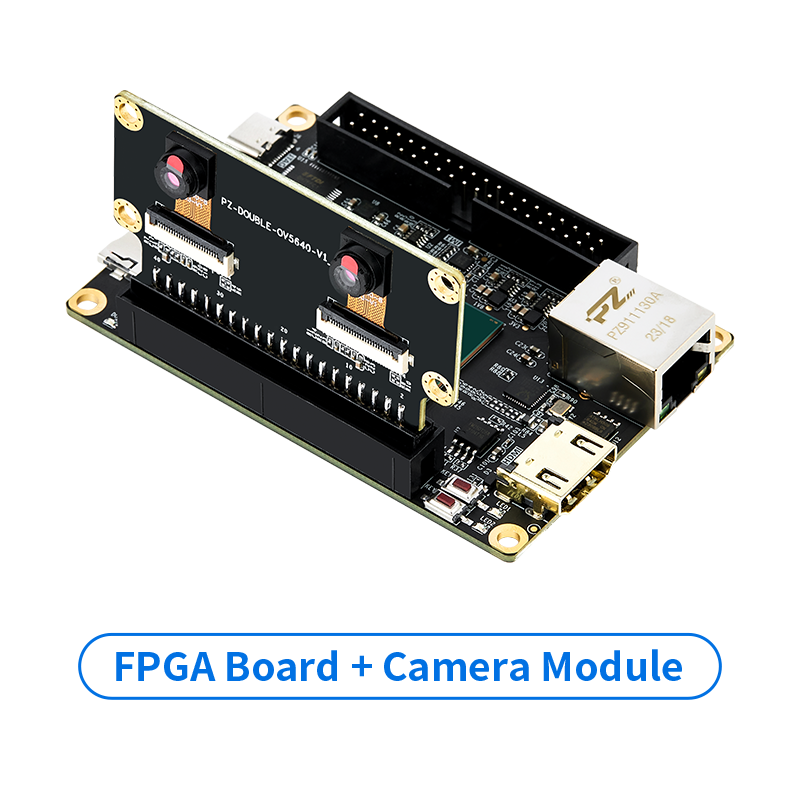

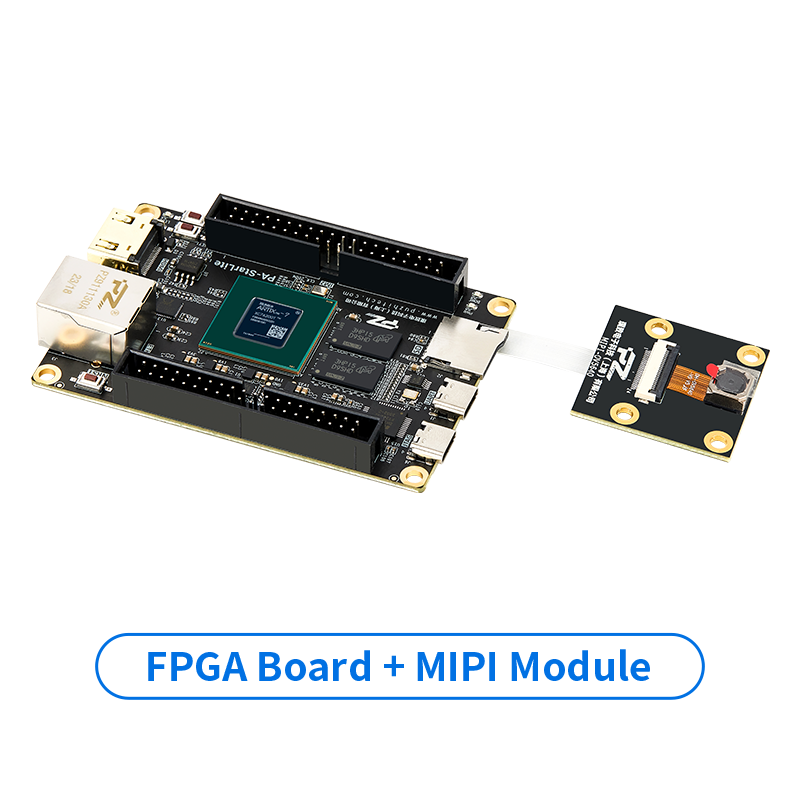

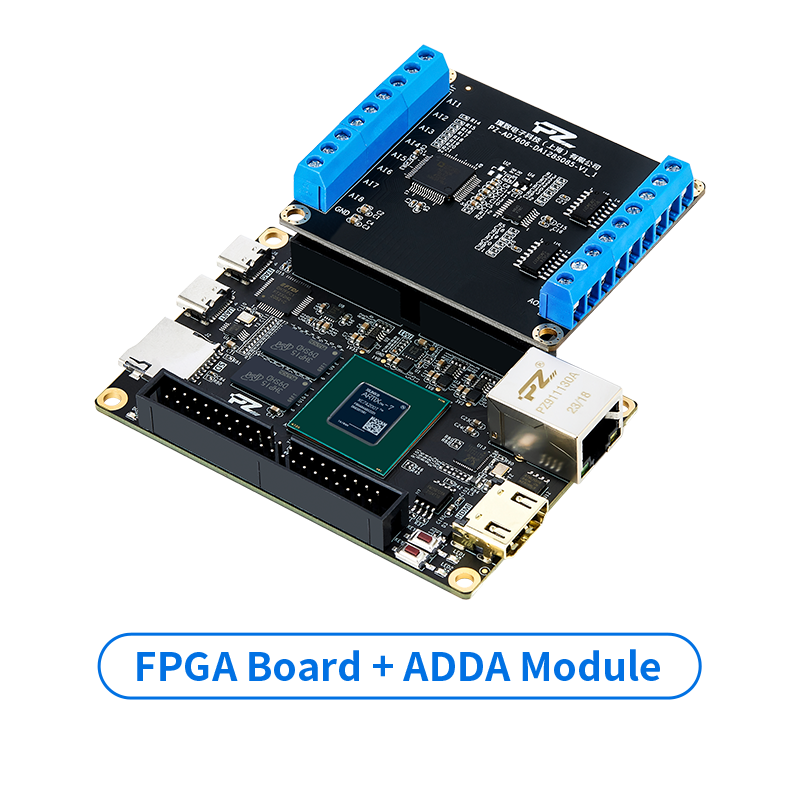

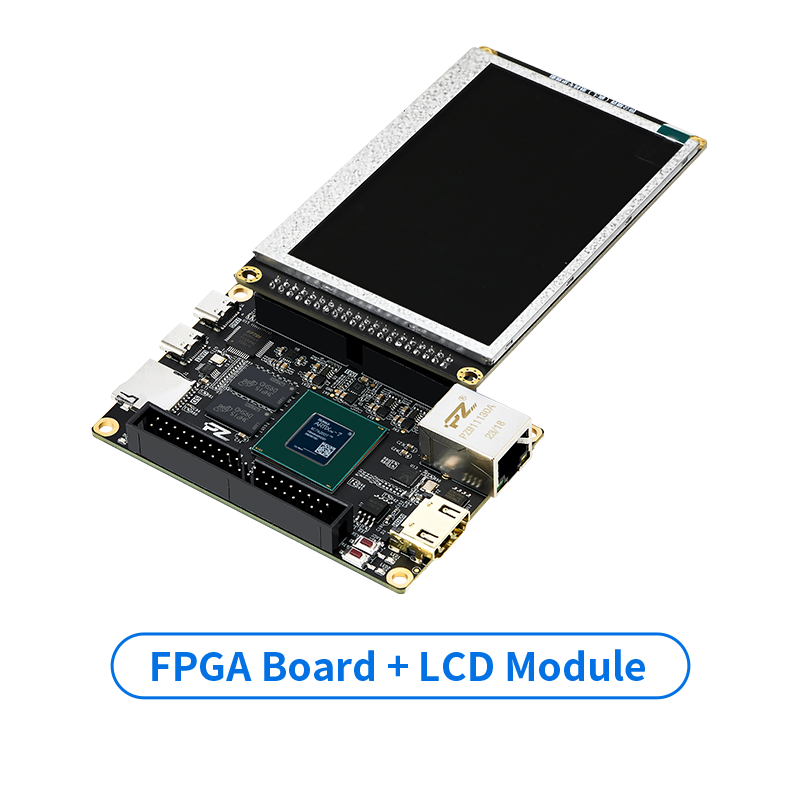

Other Subcard Display
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
- 1
FPGA Logic Demos
- 01.
Vivado Installation
- 02.
FLASH Curing
- 03.
LED Flashing
- 04.
LED PWM Control
- 05.
Key Control LED
- 06.
FPGA on-chip RAM Read and Write
- 07.
FPGA on-chip ROM Read and Write
- 08.
FPGA on-chip PLL Configuration
- 09.
FPGA on-chip FIFO Read and Write
- 10.
FPGA side DDR3 Control Read and Write
- 11.
I2C Read and Write E2PROM
- 12.
Uart Transceiver
- 13.
SD Card Read and Write
- 14.
HDMI Output Testing Picture
- 15.
HDMI Output Picture
- 16.
SD Card Reads BMP Picture LCD Display
- 17.
AD-DA Conversion (200KSPS)
- 18.
LCD Colour Bar Display
- 19.
LCD Output Picture
- 20.
SD Card Read BMP Picture and LCD Display
- 21.
Binocular Camera Output and HDMI Display
- 22.
Gigabit UDP Based on RTL8211
- 01.
- 2
Microblaze Parts
- 01.
Microblaze LED
- 02.
Microblaze Uart
- 03.
Microblaze GPIO Interrupt
- 04.
Microblaze Timer Interrupt
- 05.
Microblaze DMA LOOP
- 06.
Microblaze XADC
- 07.
Microblaze Lwip TCP loop
- 08.
MIPI Camera HDMI Display Routine
- 01.

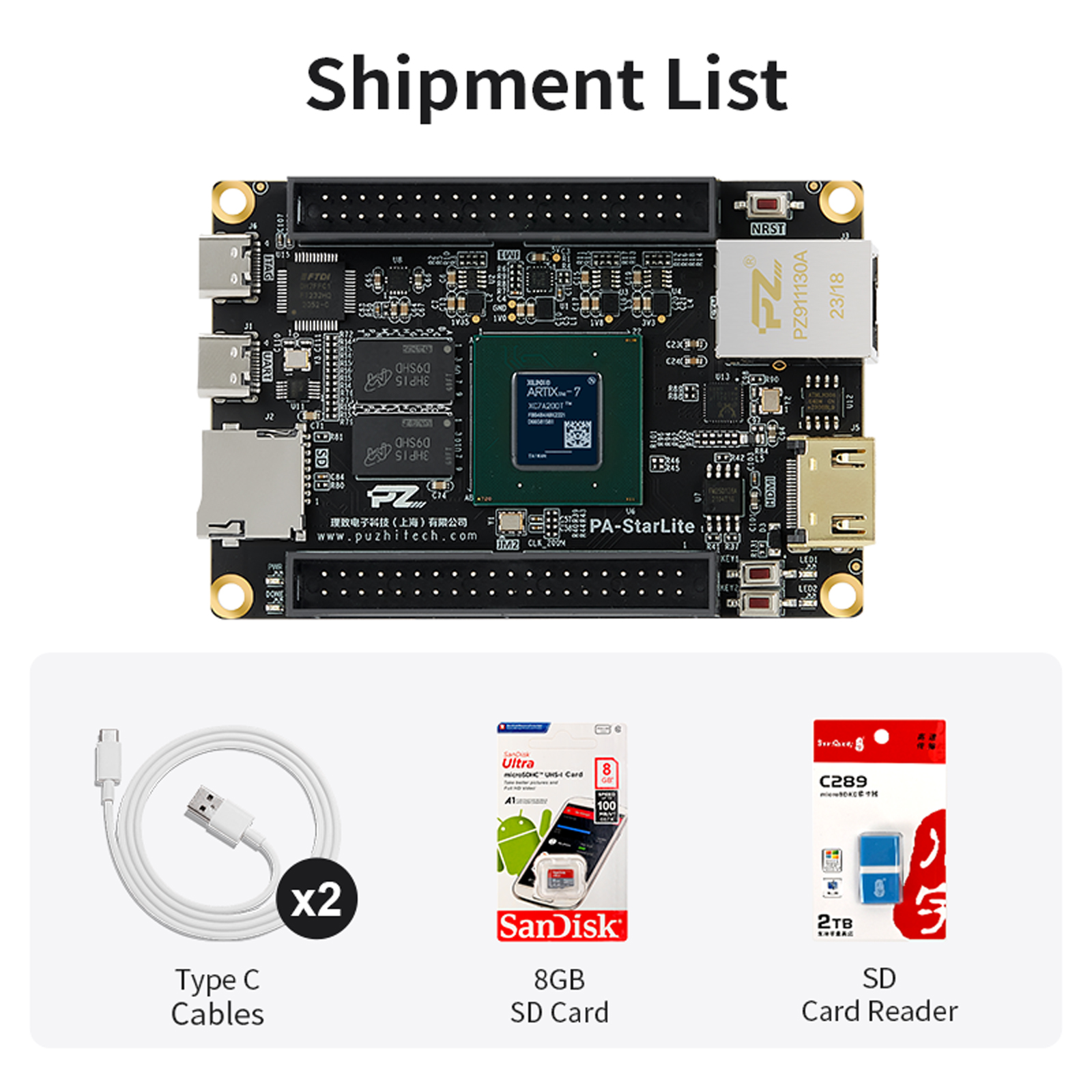

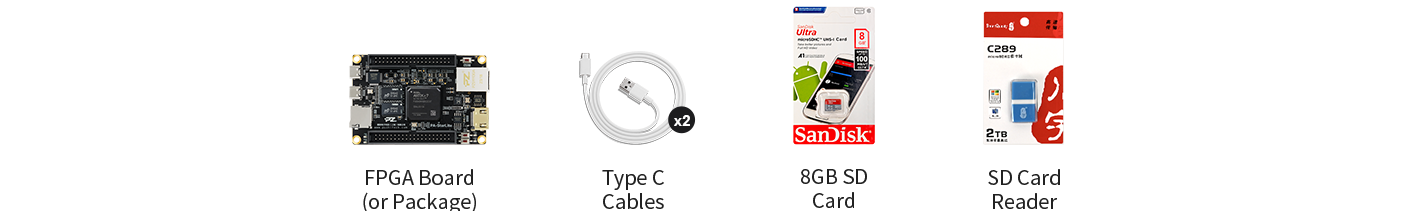

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.

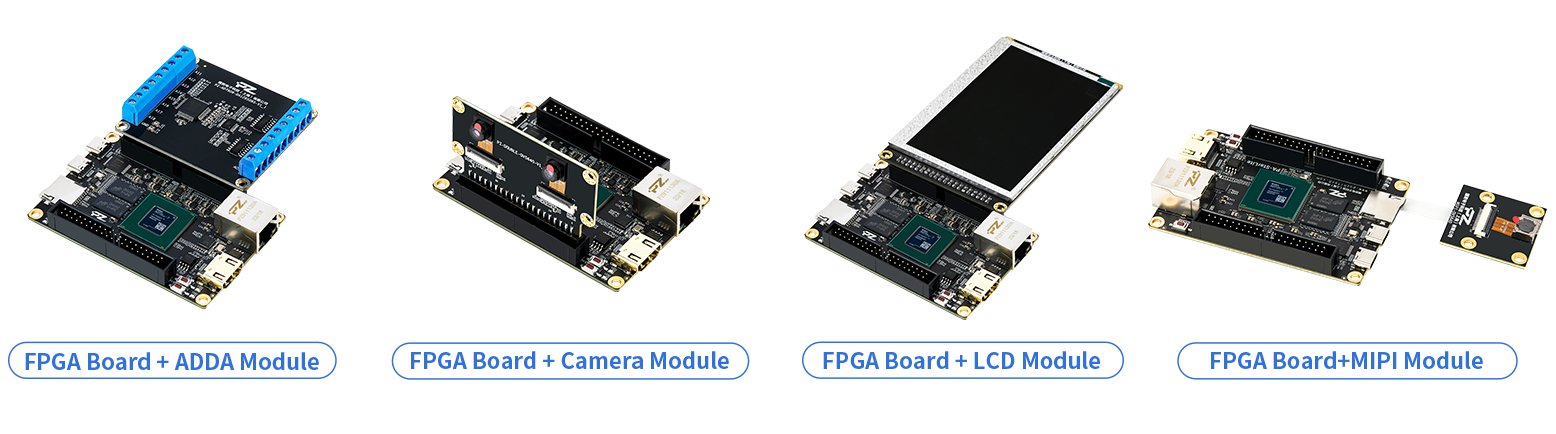

Solution Display
