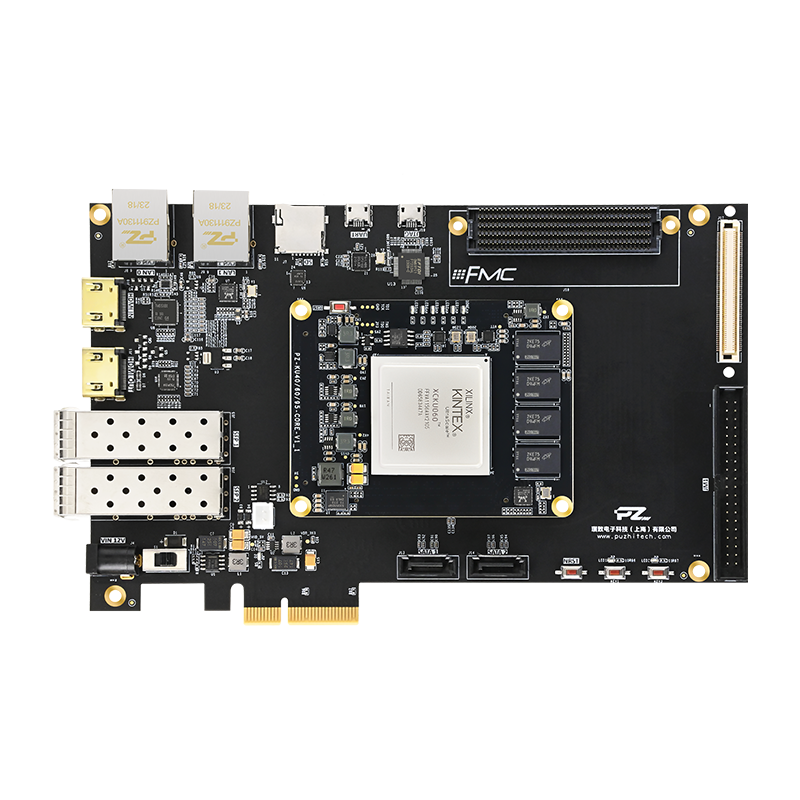

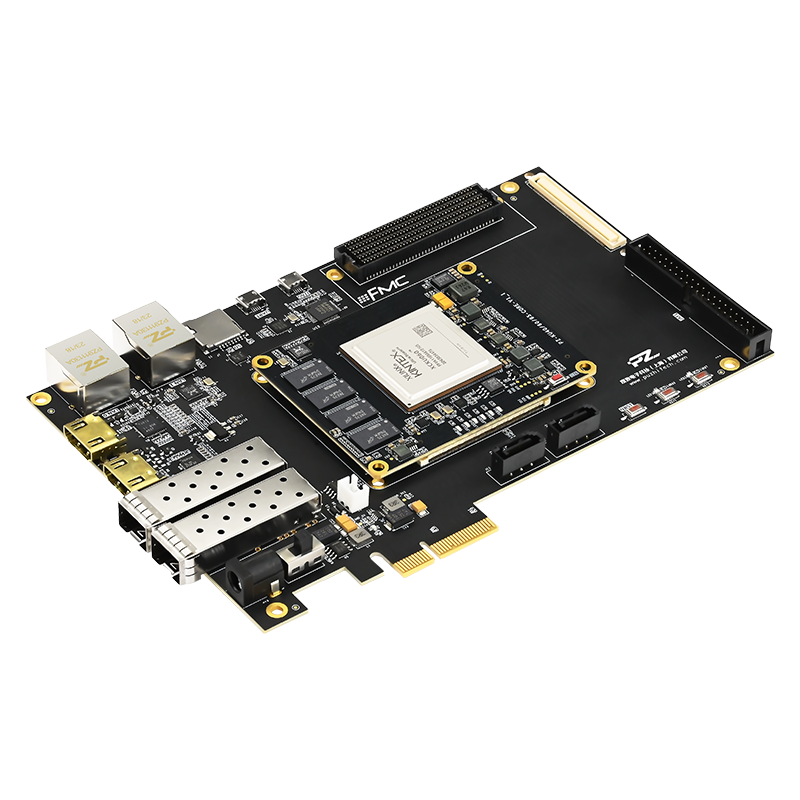

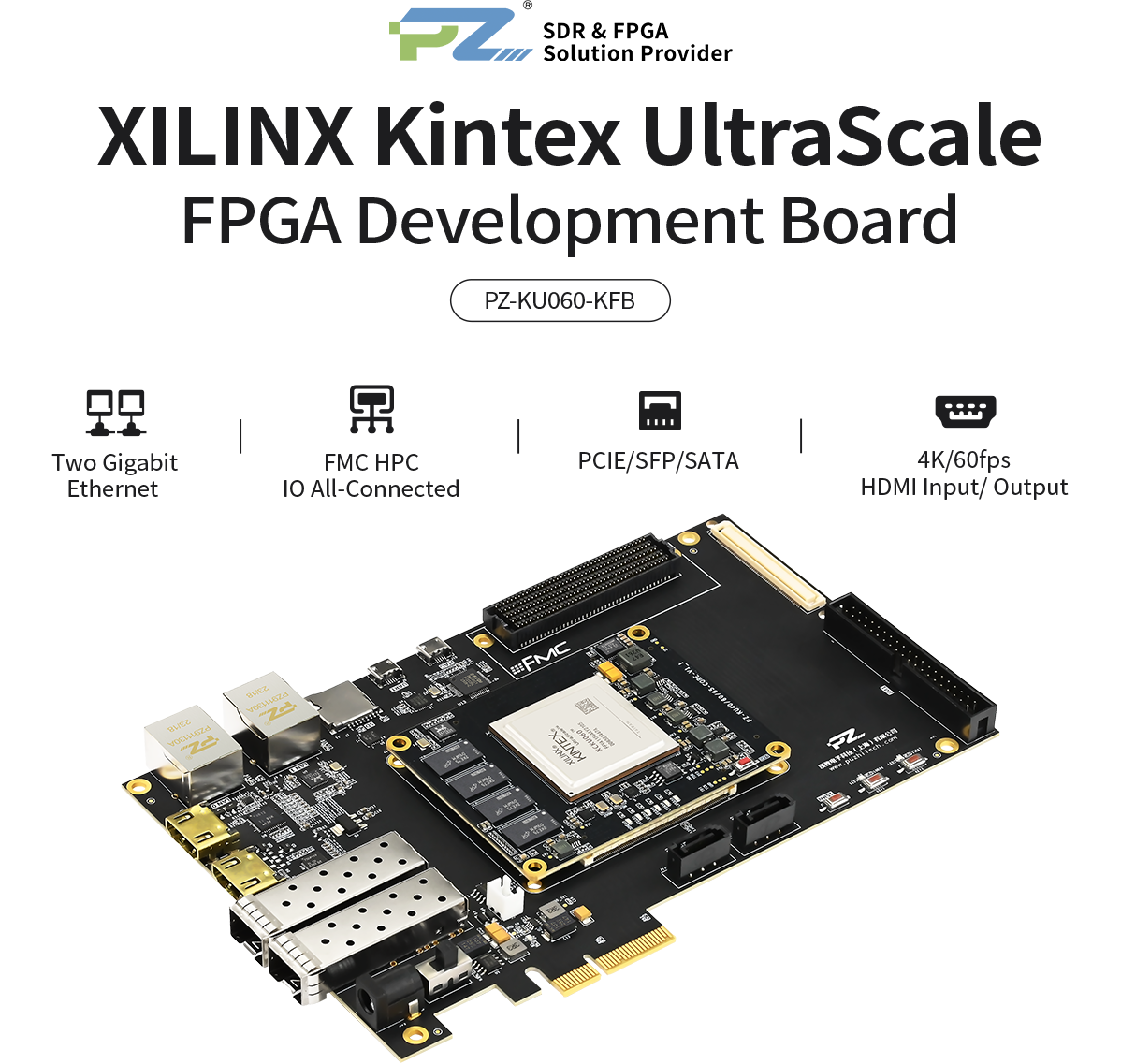

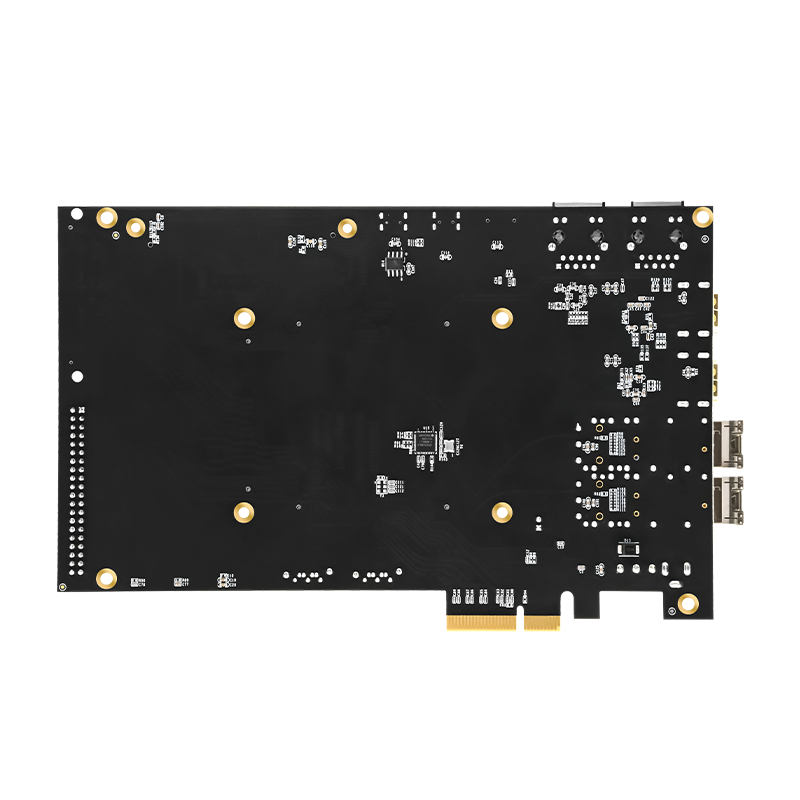

Puzhi FPGA Kintex UltraScale KU060 Development Board
- Kintex UltraScale FPGA architecture/logical unit 726k
- 4GB DDR4，256Mb+256Mb QSPIFLASH
- Core board 168P connector connection，size 83.8*64.8mm
- Reserved ports Gigabit Ethernet、FMC、HDMI、PCIE、SFP，etc
- Provide perfect hardware reference & software rich routines，help product development

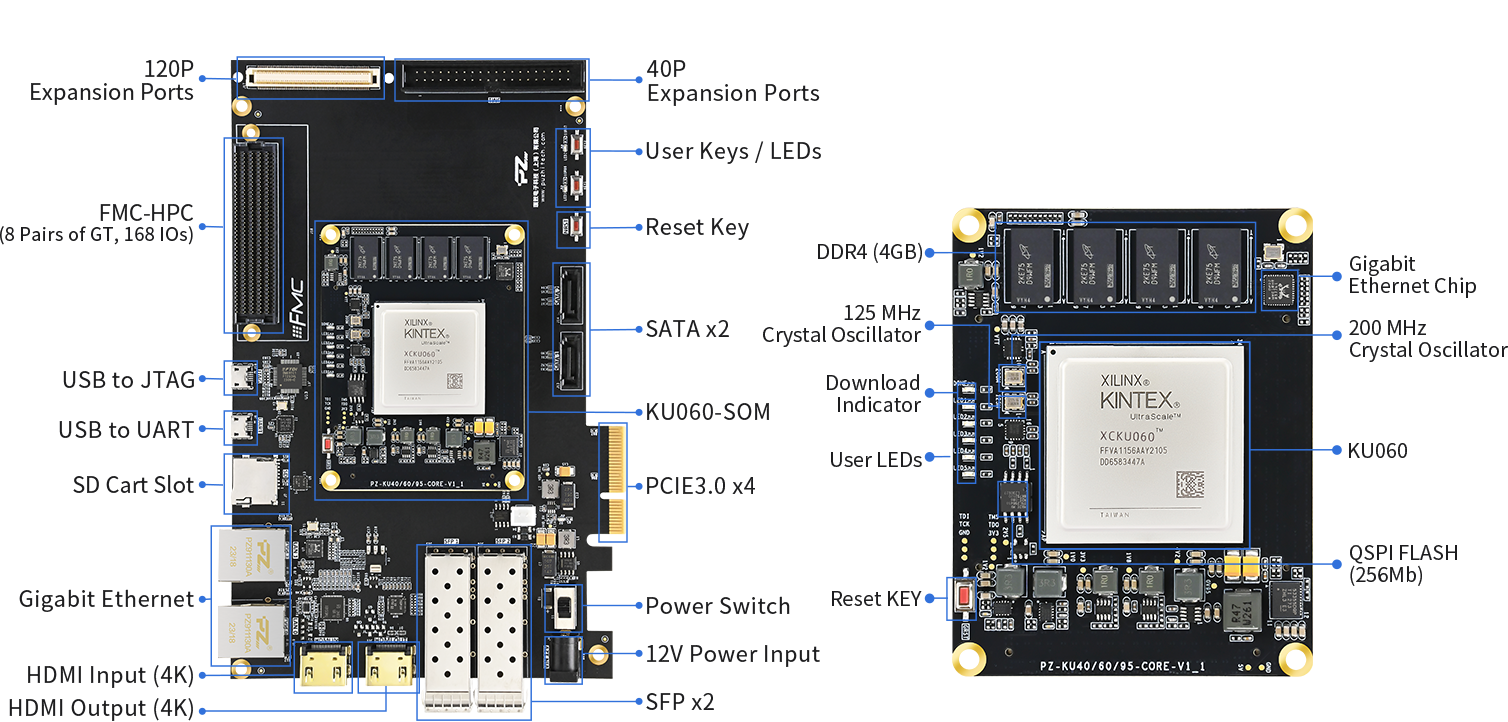

Interface Function Display
Product Parameters
Core Board Main Parameters
FPGA Dev. Board | PZ-KU060-KFB |
FPGA Chip | XCKU060-2FFVA1156I |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 726K |
Lookup Tables | 331680 |
Flip-Flops | 663360 |
DSP Slices | 2760 |
BLOCK RAM | 38Mb |
DDR4 | 4GB/64bit Width |
QSPI FLASH | 256Mb + 256Mb, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI, The Default Boot Mode is QSPI |
User LEDs | 5 |
Number of GTH | 20 Pais of TX/RX |
Number of IO | 296 single-ended HR: 8 single-ended (default 3.3V) HR: 24 Differential Pairs /48 Single-ended (1.8V/2.5V/3.3V adjustable) HP: 120 Differential Pairs/240 Single-ended (1.2V/1.8V adjustable) |
Crystal Oscillator | 200MHz Differential Crystal for FPGA 125MHz Differential Crystal for the GT Transceiver Reference Clock |
Core Board Form Factors | 3.30 inch x 2.55 inch (83.8mm x 64.8mm) |
Interfaces and Function
JTAG Downloader | 1 |
UART | 1 |
SD Card Slot Interface | 1 |
Gigabit Ethernet | 1 |
HDMI (4K/60fps) | 1 Input, 1 Output |
LED, Keys | 2 LEDs. 2 Keys |
SFP Interface | 2 |
PICE3.0 | x4 |
FMC Interface | HPC (8 Pairs of GT, 168 IOs) |
Voltage / Current | 12V/3A |
Board Form Factors | 7.68 inch x 4.53 inch (195mm x 115mm) |
Technology | Black Matte. Immersion Gold Process |
120Pin Expansion Port | 48 Single-ended /24 Differential Pairs (1.2V/1.8Vadjustable) |
40Pin Expansion Port | 32 Single-ended/16 Differential Pairs Reserve one 40-pin 0.1 inch Expansion Port，to Connect Puzhi Modules (AD/DA, Camera, LCD)，Expansion Port including 5V power supply，3.3V power supply, 6 Ground, 32 IOs |

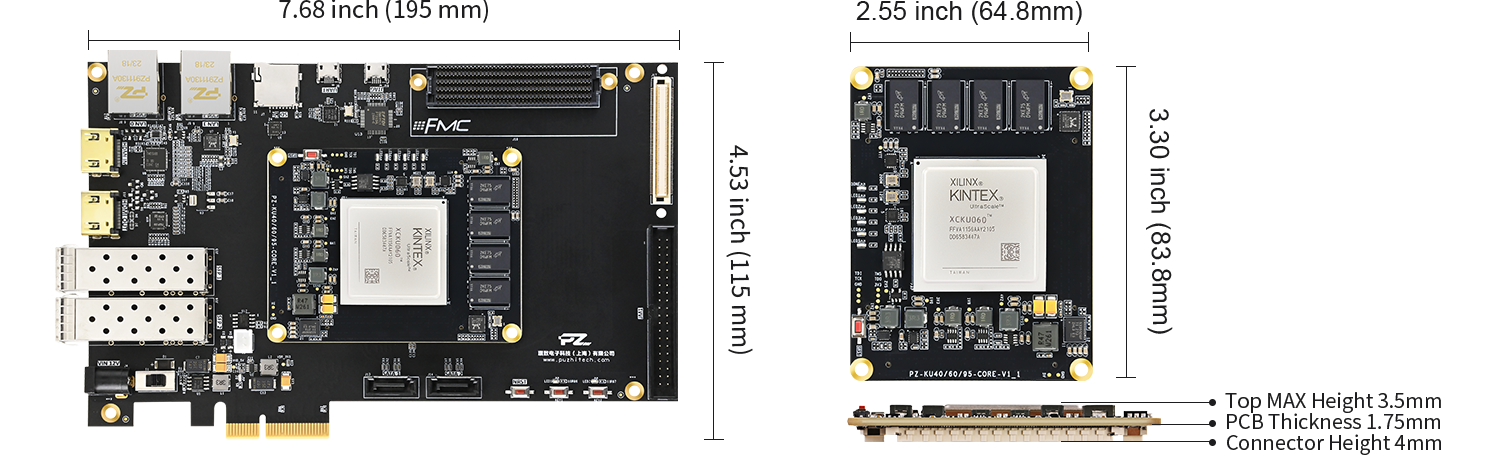

Product Dimensions
Product Packages

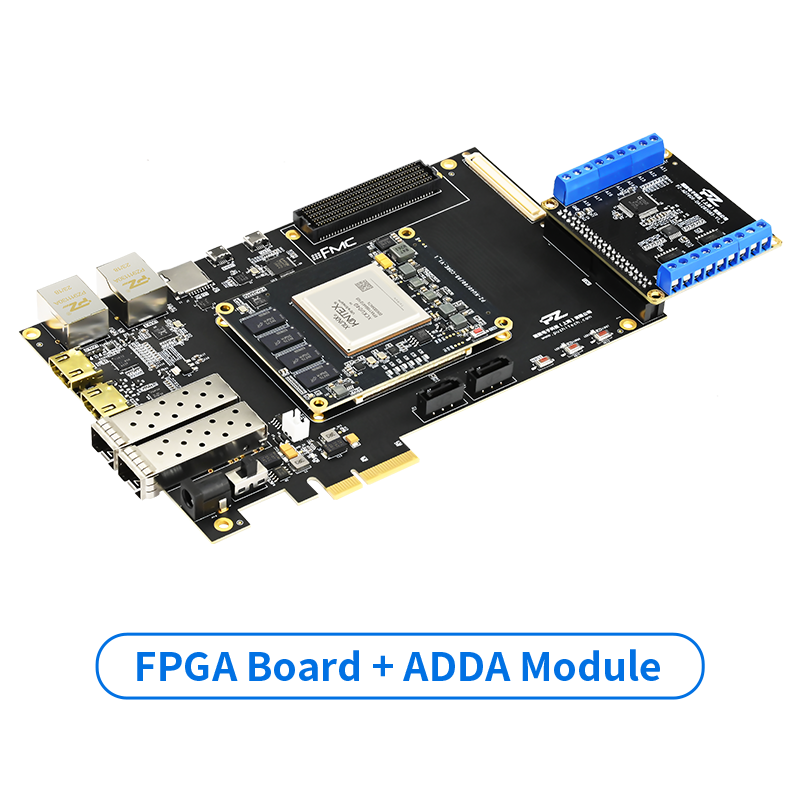

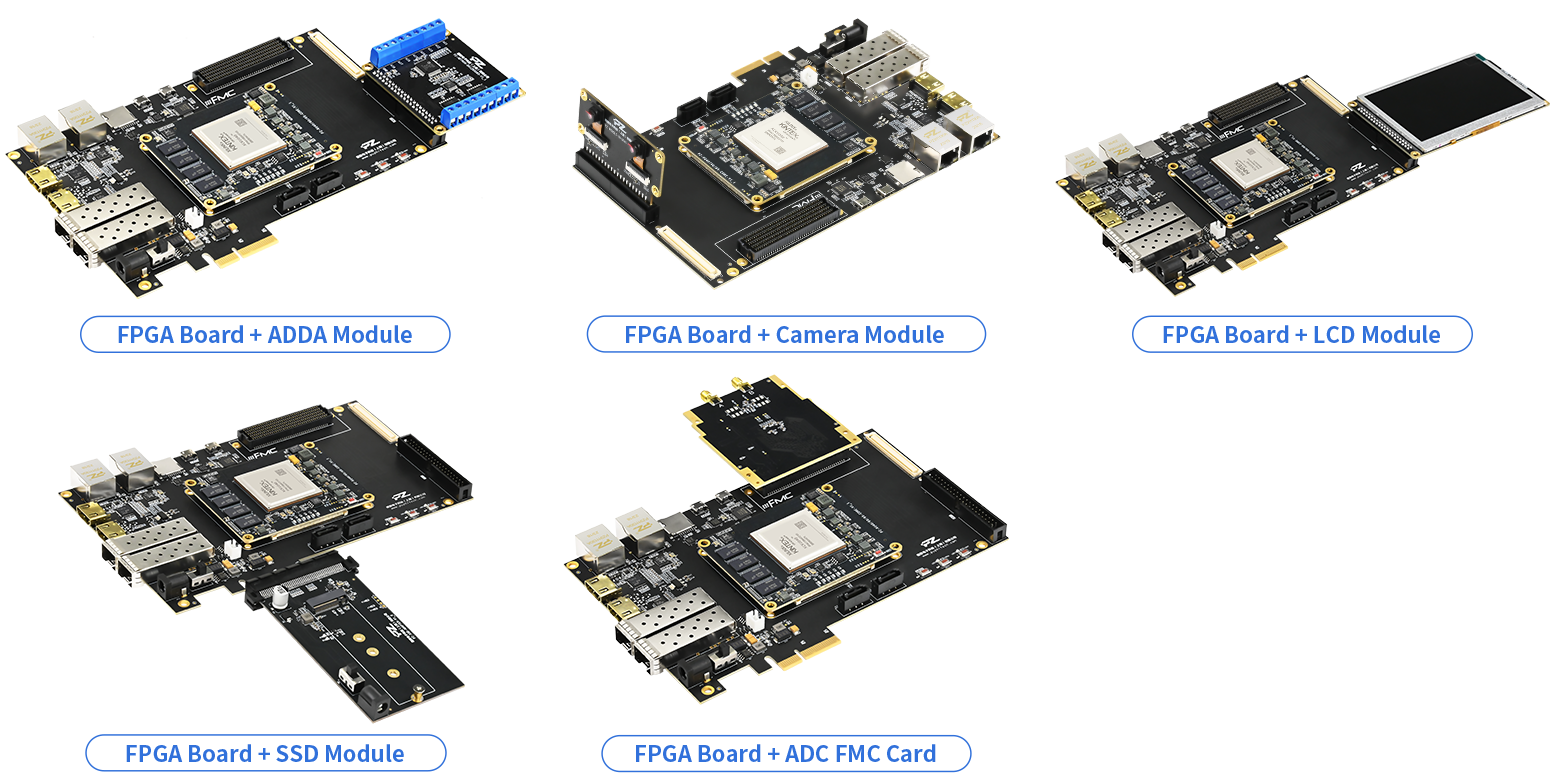

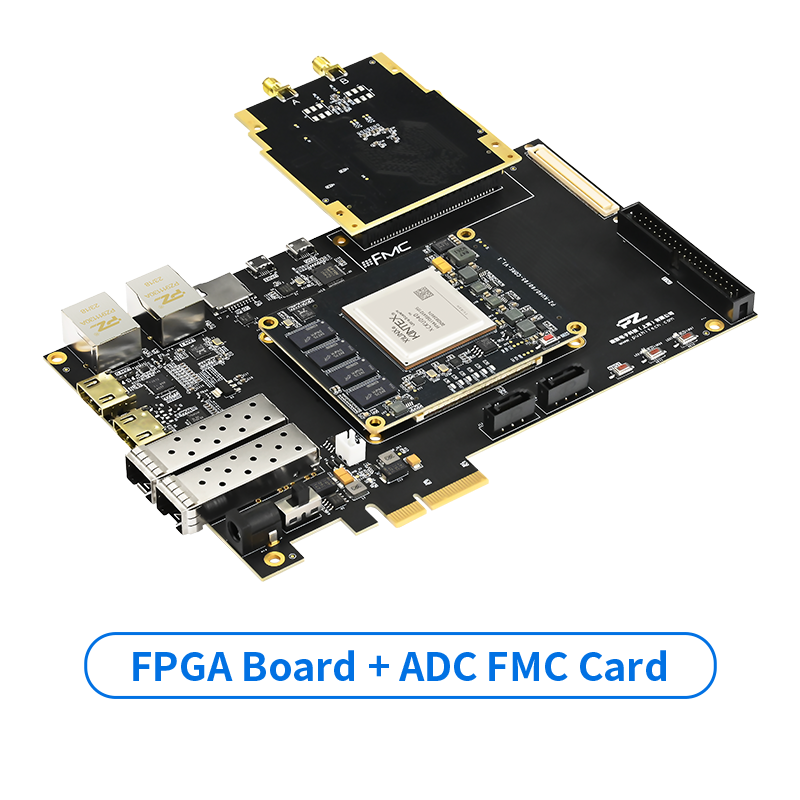

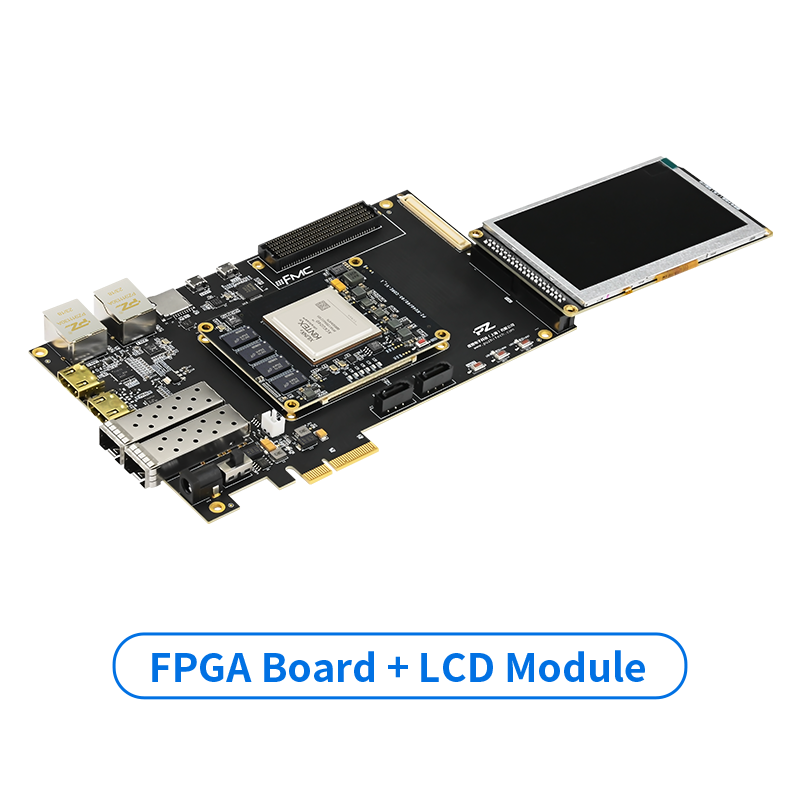

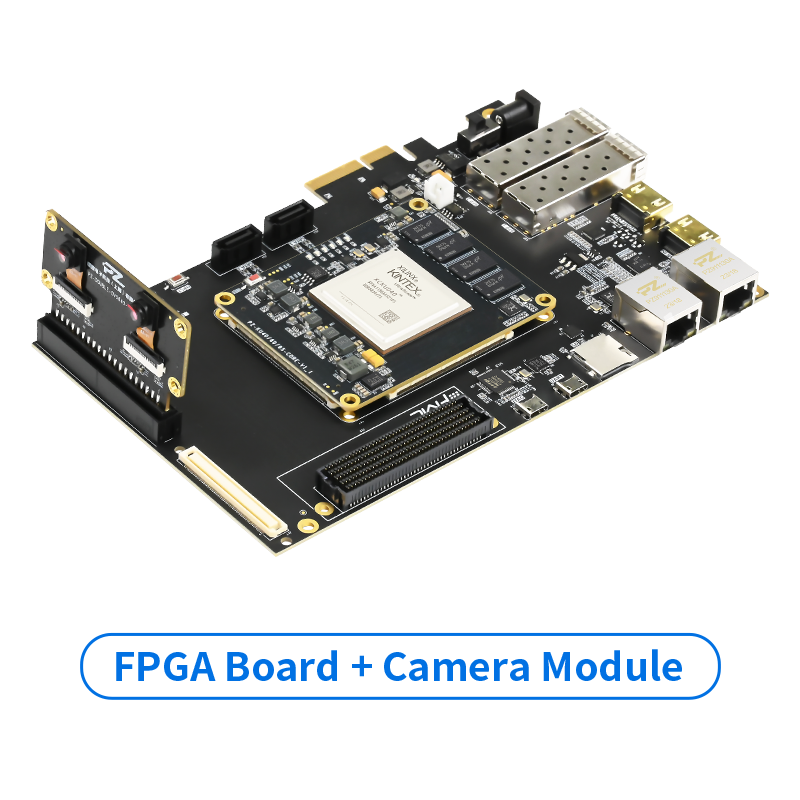

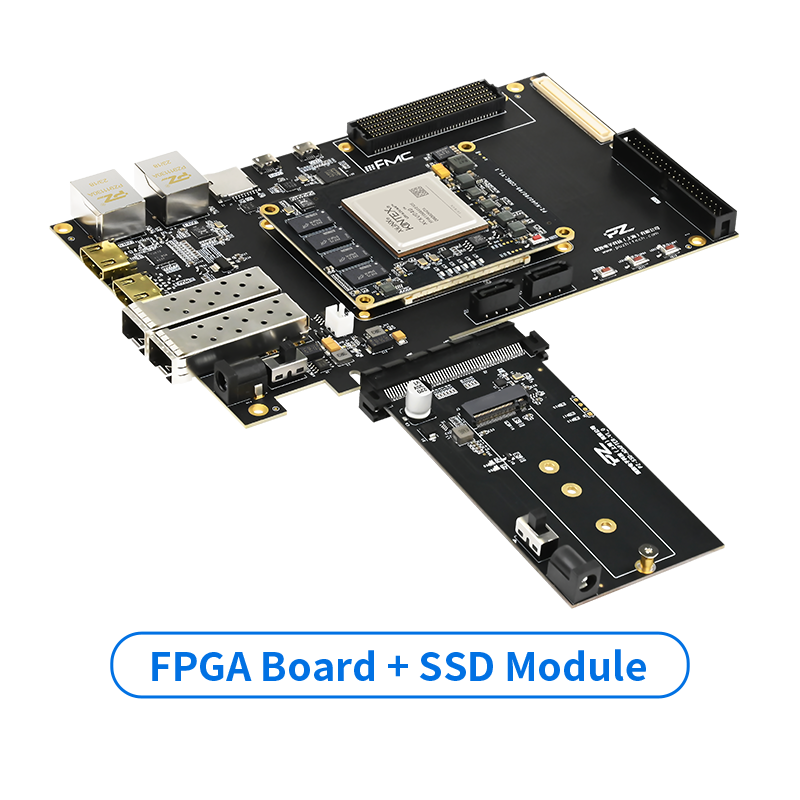

Other Subcard Display
Supporting Display
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
- 1
FPGA Logic Demos
01.
Vivado Installation
02.
FLASH Curing
03.
LED Flashing
04.
LED PWM Control
05.
Key Control LED
06.
FPGA on-chip RAM Read and Write
07.
FPGA on-chip ROM Read and Write
08.
FPGA on-chip PLL Configuration
09.
FPGA on-chip FIFO Read and Write
10.
FPGA side DDR4 Control Read and Write
11.
I2C Read and Write E2PROM
12.
Uart Transceiver
13.
SD Card Read and Write
14.
AD-DA Conversion (200KSPS)
15.
LCD Color Bar Display
16.
LCD Output Image Display
17.
SD Card Reads BMP Picture LCD Display
18.
Gigabit UDP Based on RTL8211
19.
QSFP Bit Error Rate
20.
PCIE Speed Test
21.
Aurora Communication
22.
High Speed ADC-AD9643 Acquisition (250MSPS)
23.
UDP Transmission High Speed ADC Data Collection
24.
LCD Waveform Display for High-Speed ADC-AD9643
25.
UDP transmission of OV5640 images for Computer display
- 2
Microblaze Parts
01.
Microblaze LED
02.
Microblaze Uart
03.
Microblaze GPIO Interrupt
04.
Microblaze Timer Interrupt
05.
Microblaze DMA LOOP
06.
Microblaze XADC
07.
Microblaze Lwip TCP loop
08.
HDMI (4K) Input/Output Loopback Demos
- 3
FMC Topics(FMC daughter board is required)
01.
USB3.0 (PZ-FL3014)
02.
High Speed ADC (PZ-FL9643S)
03.
High Speed ADC/DAC (PZ-FL4322)
04.
Multi-Channel High-Speed ADC (PZ-FL9643D）
05.
Multi-Channel Domestic High-Speed (PZ-FL2514D)
06.
Ultra High Speed ADC/DAC (PZ-FH8052)
07.
Medium-Speed ADC/DAC (PZ-FL3867)
08.
Multi-Channel Medium Speed DAC (PZ-FL9767D）
09.
Quad 100Gb Ethernet (PZ-FL8710F)
10.
Quad 1000Gb Ethernet (PZ-FL8211F)
11.
Software Defined Radio (PZ-FL9361/PZ-FH9371/PZ-FH9009/PZ-FH9026）
- 4
PCIE Topics
01.
QT Environment Setup
02.
PCIE GPIO Control
03.
PCIE DDR Cache Interrupt
04.
PCIE Monocular OV5640 Image Experiment
05.
PCIE High-speed ADC Acquisition Experiment

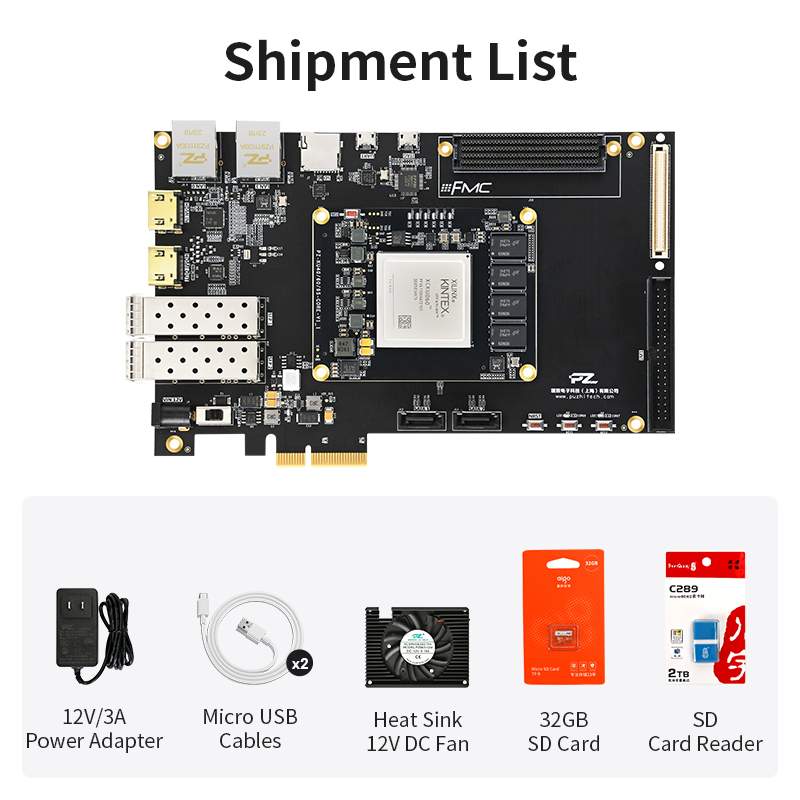

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
Solution Display
