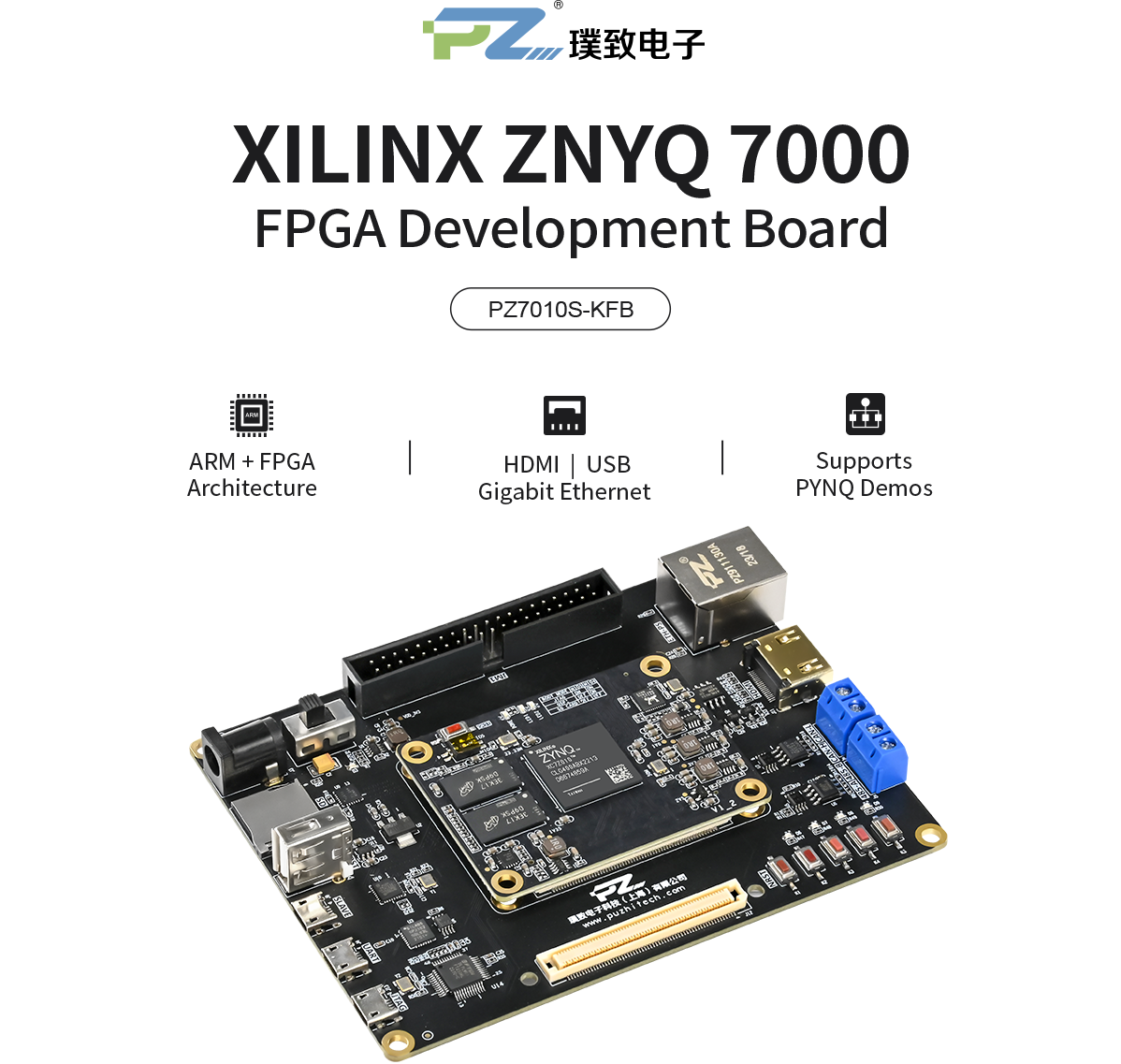

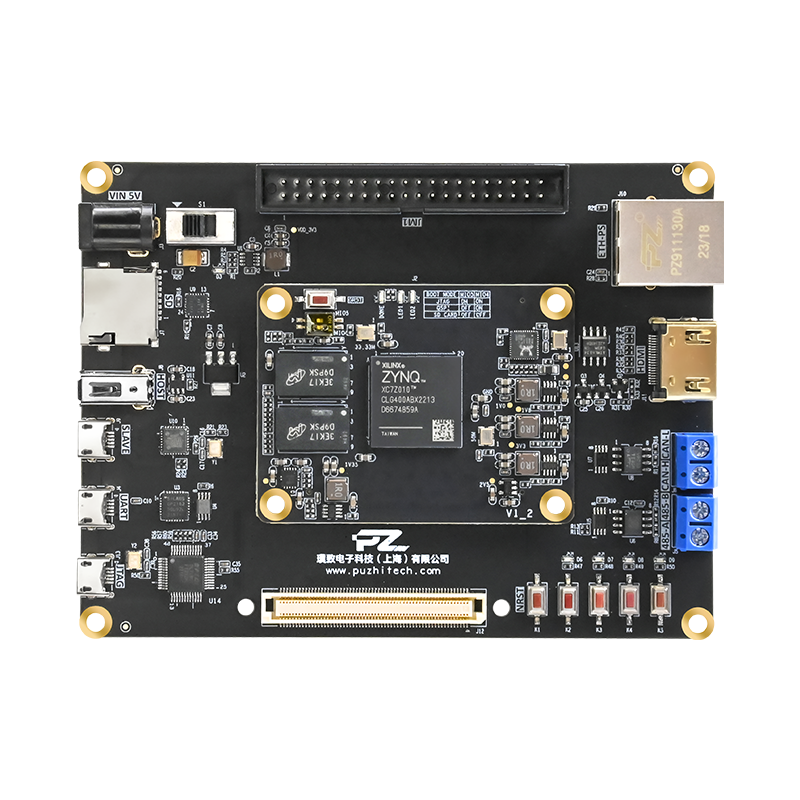

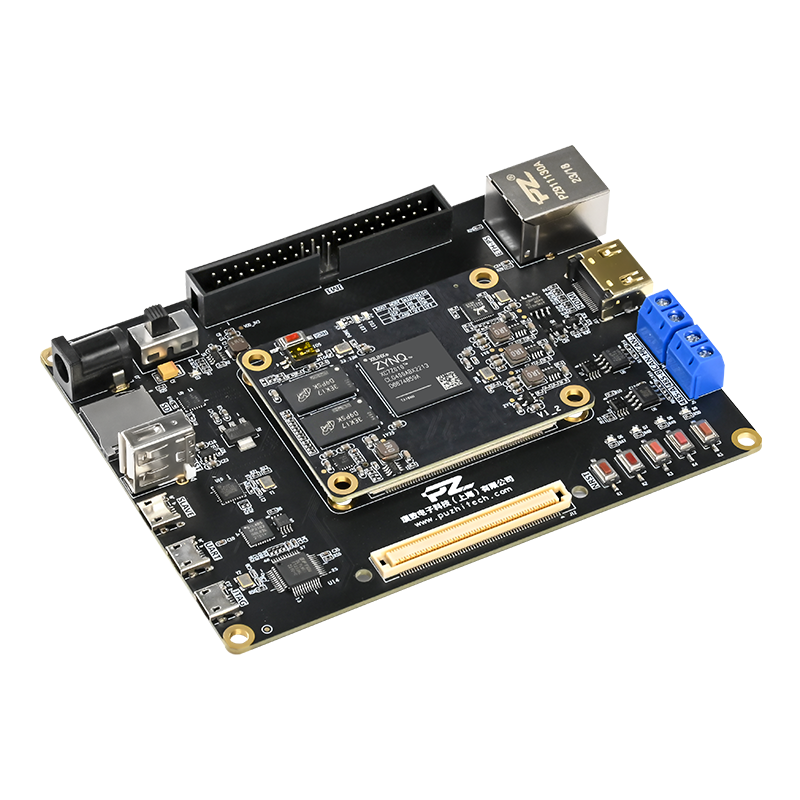

Puzhi FPGA ZYNQ7000 ZYNQ7010S Development Board
PZ7010S-KFB
- ARM+FPGA architecture，dual-core ARM Cortex-A9，main frequency 667Mhz
- Core parameters 512MB DDR3，256Mb QSPIFLASH
- Core board 120P connector connection，size 60mm*45mm
- Reserved ports UART、RS485、CAN、Gigabit Ethernet、HDMI，etc
- Support SDK development，support PYNQ，rich routines，help product development

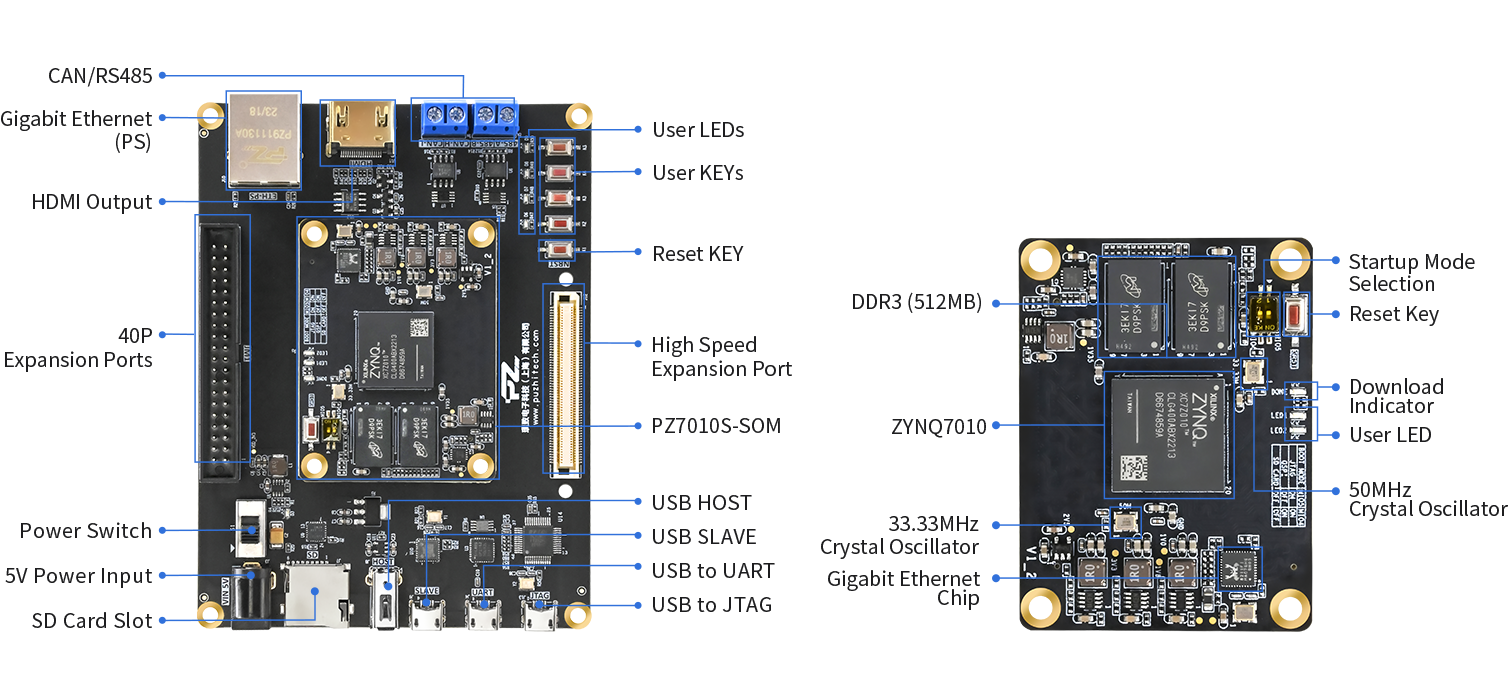

Interface Function Display
Product Parameters
Core Board Main Parameters
FPGA Dev. Board | PZ7010S-KFB |
FPGA Chip | XC7Z010-2CLG400I |
Processor Core | Dual Core ARM Cortex-A9 |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 28K |
Lookup Tables | 17600 |
Flip-Flops | 35200 |
DSP Slices | 80 |
BLOCK RAM | 2.1Mb |
DDR3/DD3L | 512MB |
QSPI FLASH | 256Mb |
User LED | 2 |
PS Side MIO | 30 PS ports (24 fixed 1.8V, 6 fixed 3.3V) |
PL Side IO | 92 Single-ended IOs(1.8/2.5/3.3V adjustable, default 3.3V) |
Crystal Oscillator | Single-ended Crystal 33.3333MHz for PS Single-ended Crystal 50MHz for PL |
Core Board Form Factors | 2.36 inch x 1.77 inch (60mm x 45mm) |
Interfaces and Function
JTAG Interface | 1 |
UART/RS485/CAN | 1/1/1 |
SD Card Slot Interface | 1 |
USB2.0 Host/ Slave | 1/1 |
Gigabit Ethernet | 1 on PS Side |
HDMI | 1 HDMI Output |
LED | 4 LEDs |
KEY | 4 KEYs |
120P high-speed expansion port | 68 Single-ended / 34 Differential pairs |
Voltage / Current | 5V/1A |
Board Form Factors | 4.72 inch x 3.54 inch (120mm x 90mm) |
Technology | Black Matte, lmmersion Gold Process |
40Pin Expansion Port | 32 Single-ended/16 Differential pairs (PL Side) Reserve one 40-pin 0.1 inch Expansion Port,to Connect Puzhi Modules (AD/DA, Camera, LCD),Expansion Port including 5V power supply,3.3V power supply, 6 Ground, 32 IOs |

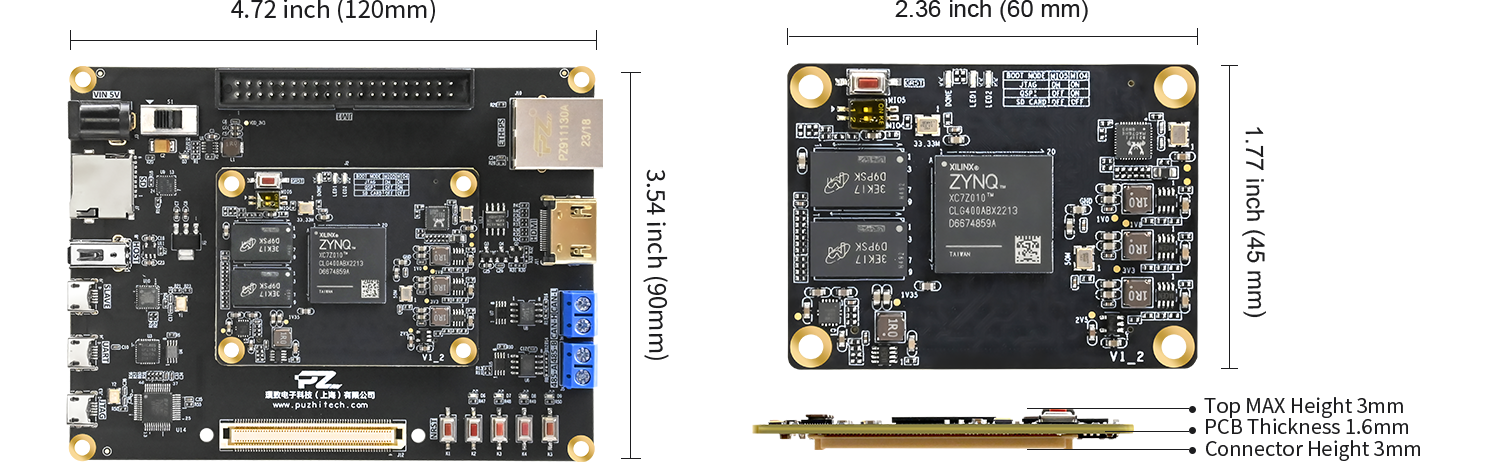

Product Dimensions
Product Packages

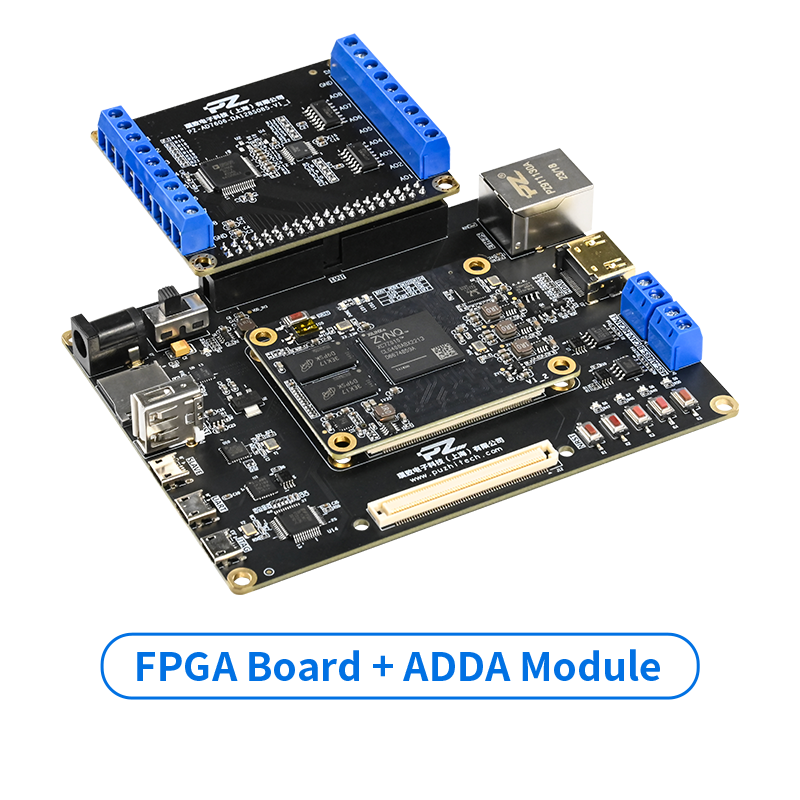

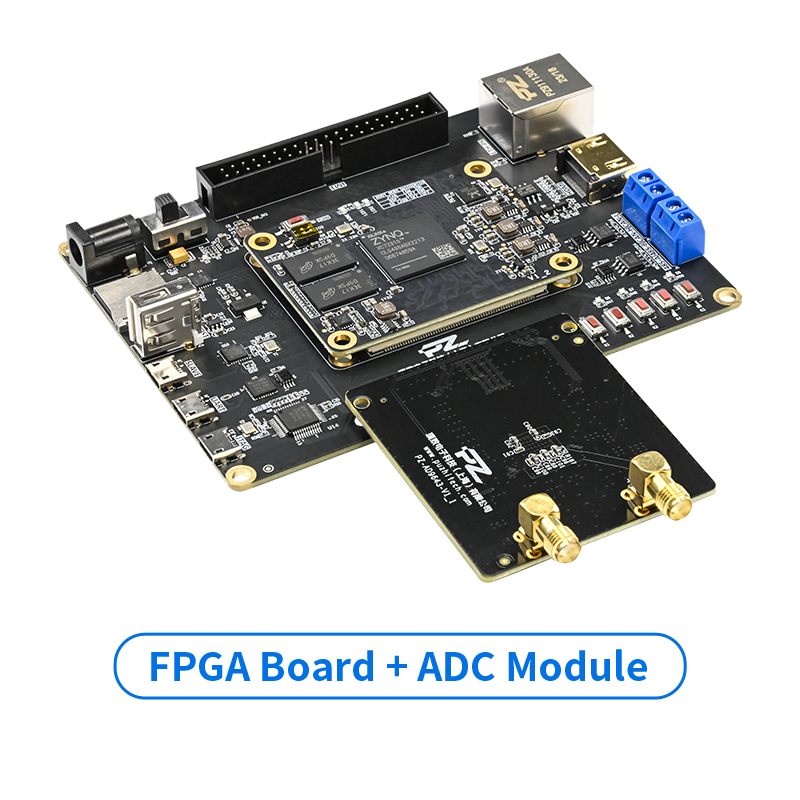

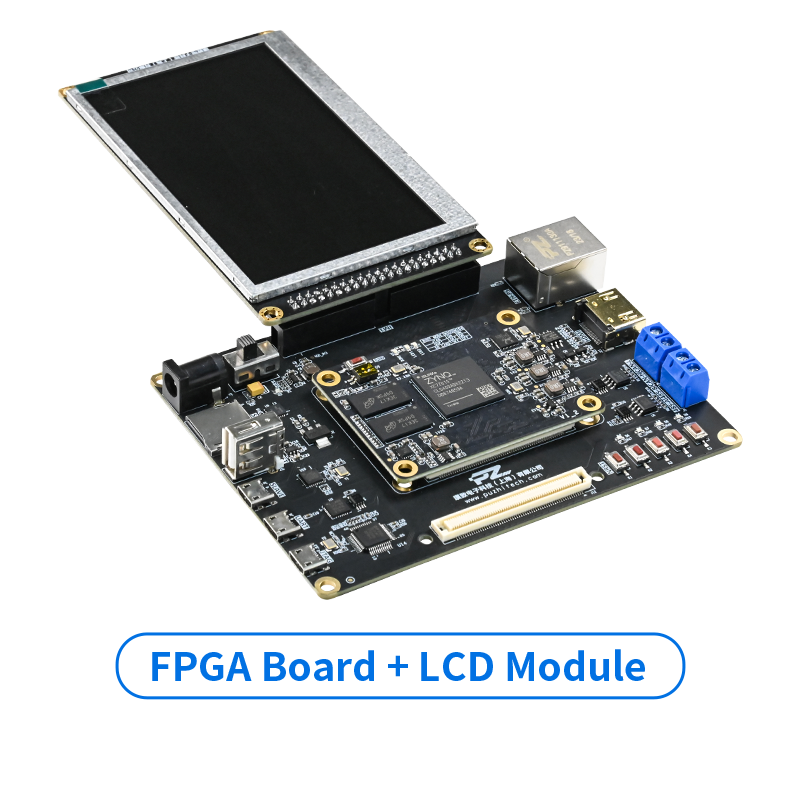

Other Subcard Display

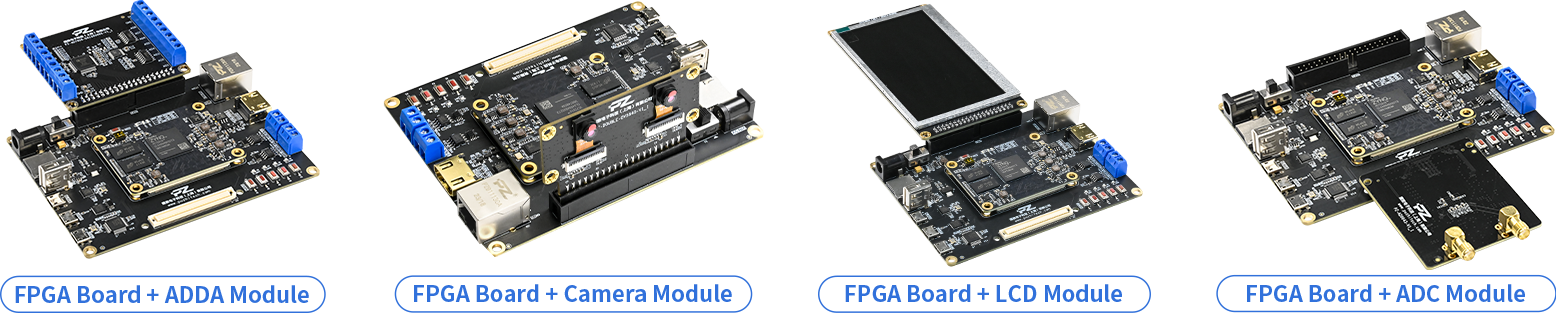

Supporting Display
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
- 1
FPGA Logic Demos
- 01.
LED Flashing
- 02.
PWM Control of LED
- 03.
Key Demos
- 04.
FPGA on-chip RAM Read and Write
- 05.
FPGA on-chip ROM Read and Write
- 06.
FPGA on-chip PLL Configuration
- 07.
FPGA on-chip FIFO Usage
- 08.
I2C Read and Write E2PROM
- 09.
HDMI Output Image
- 10.
LCD Picture Display
- 11.
AD-AD7606/7608 8-channel Acquisition Voltage
- 12.
DA 8-channel Output Sine Wave, Triangle Wave Square Wave
- 13.
High-speed ADC Acquisition (250MSPS)
- 14.
Uart
- 15.
Timer Interrupt
- 01.
- 2
ARM Demos
- 01.
MIO and EMIO Control LED
- 02.
MIO and EMIO KEY Control LED
- 03.
Dual-core AMP
- 04.
Custom IP
- 05.
RS485 Communication
- 06.
CAN Bus Communication
- 07.
I2C Communication
- 08.
Gigabit Ethernet L(NET0 MIO) Demo
- 09.
Gigabit Ethernet Remote Upgrade
- 10.
PS Side DDR3 Read and Write
- 11.
Comprehensive Test
- 12.
AXI-DMA Read and Write
- 13.
SD Card Read and Write
- 14.
ADC Acquisition Gigabit Ethernet Transmission
- 15.
LCD Image Display
- 16.
HDMI Display Image
- 17.

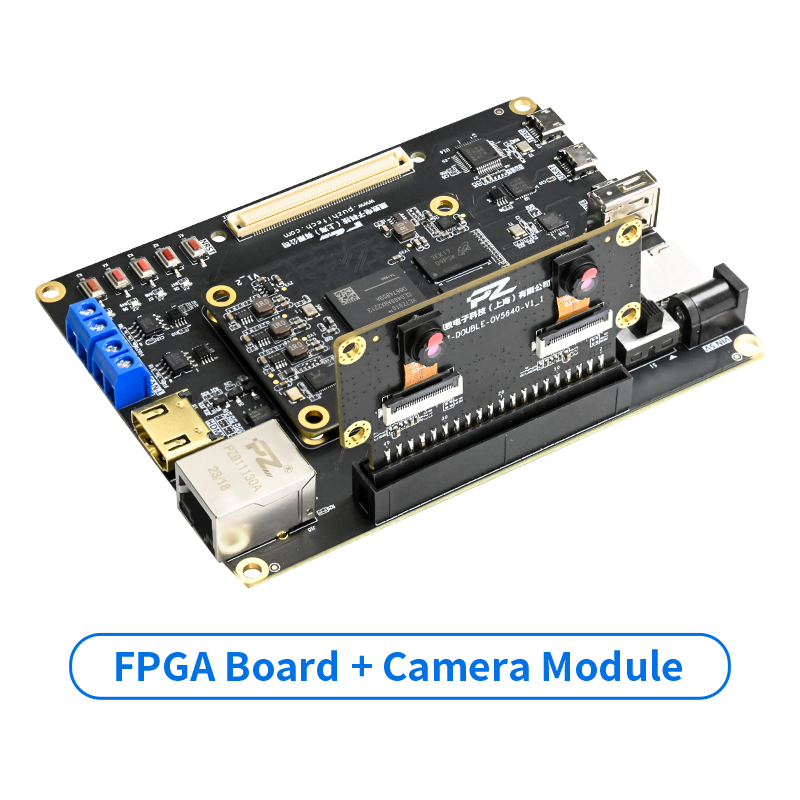

HDMI Display of Binocular Camera Images
- 18.
SD Card Picture HDMI Output Display
- 01.
- 3
PetaLinux Demos
- 01.
Introduction to Virtual Machine and Ubuntu System
- 02.
Petalinux Tool Installation
- 03.
SD Card to Start the Linux System
- 04.
PetaLinux LED
- 05.
HDMI Display under Linux
- 06.
Drive USB Mouse and Keyboard under Linux
- 07.
Application of QT on ZYNQ
- 08.
Linux Common Commands
- 01.
- 4
Supports PYNQ

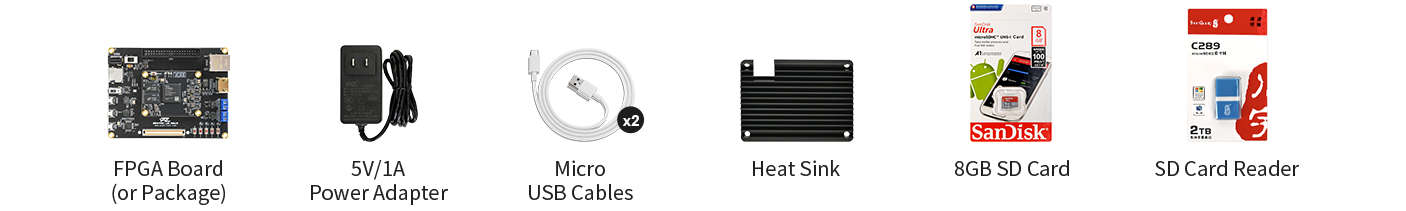

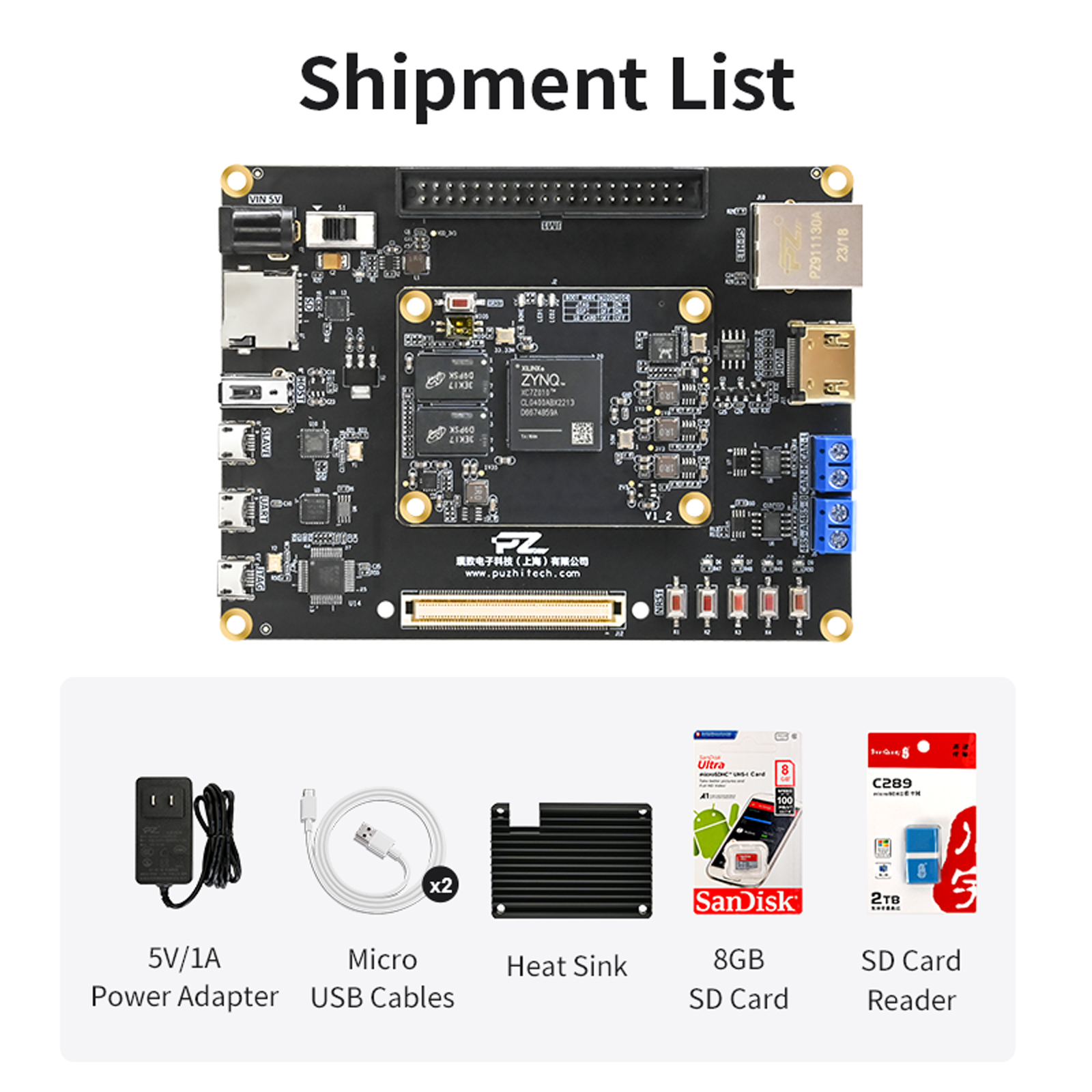

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
