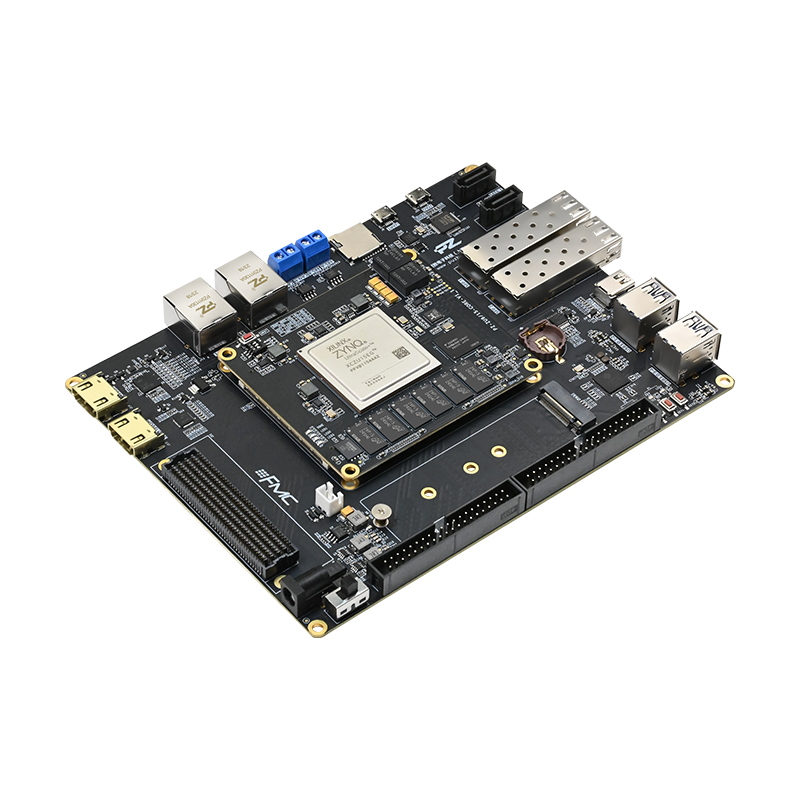

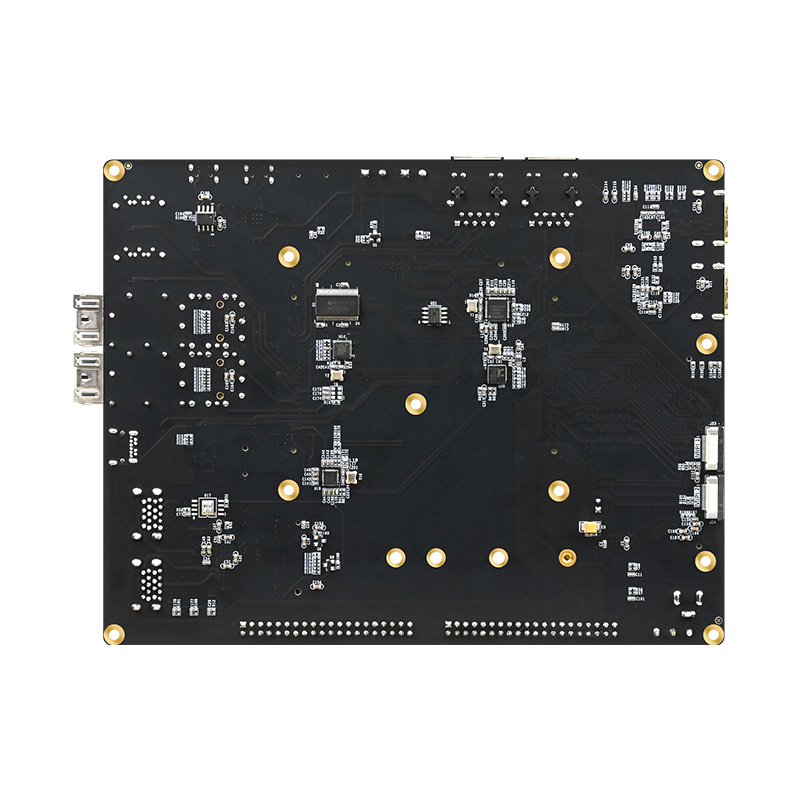

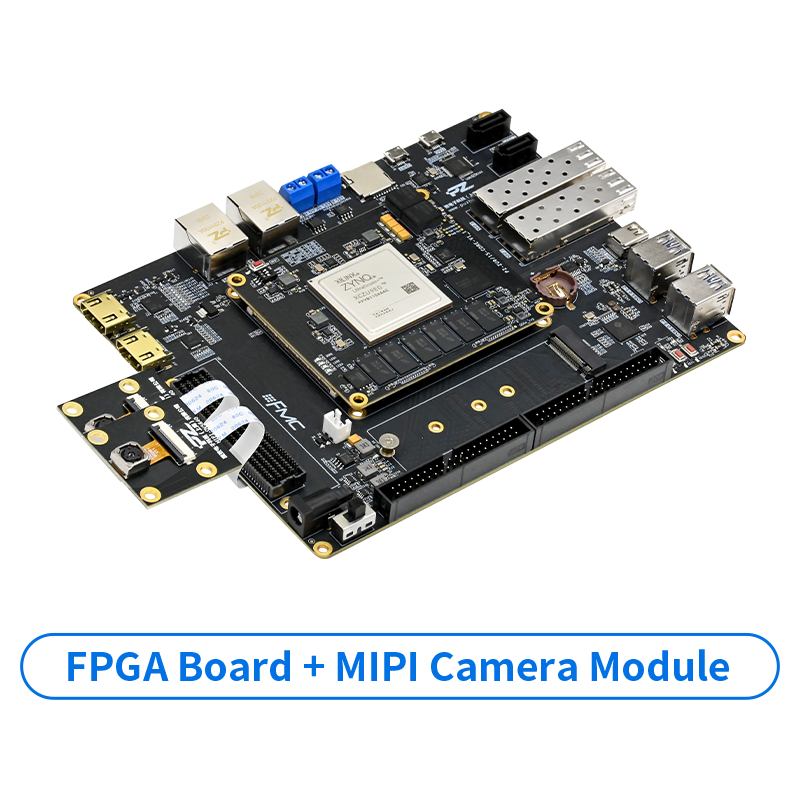

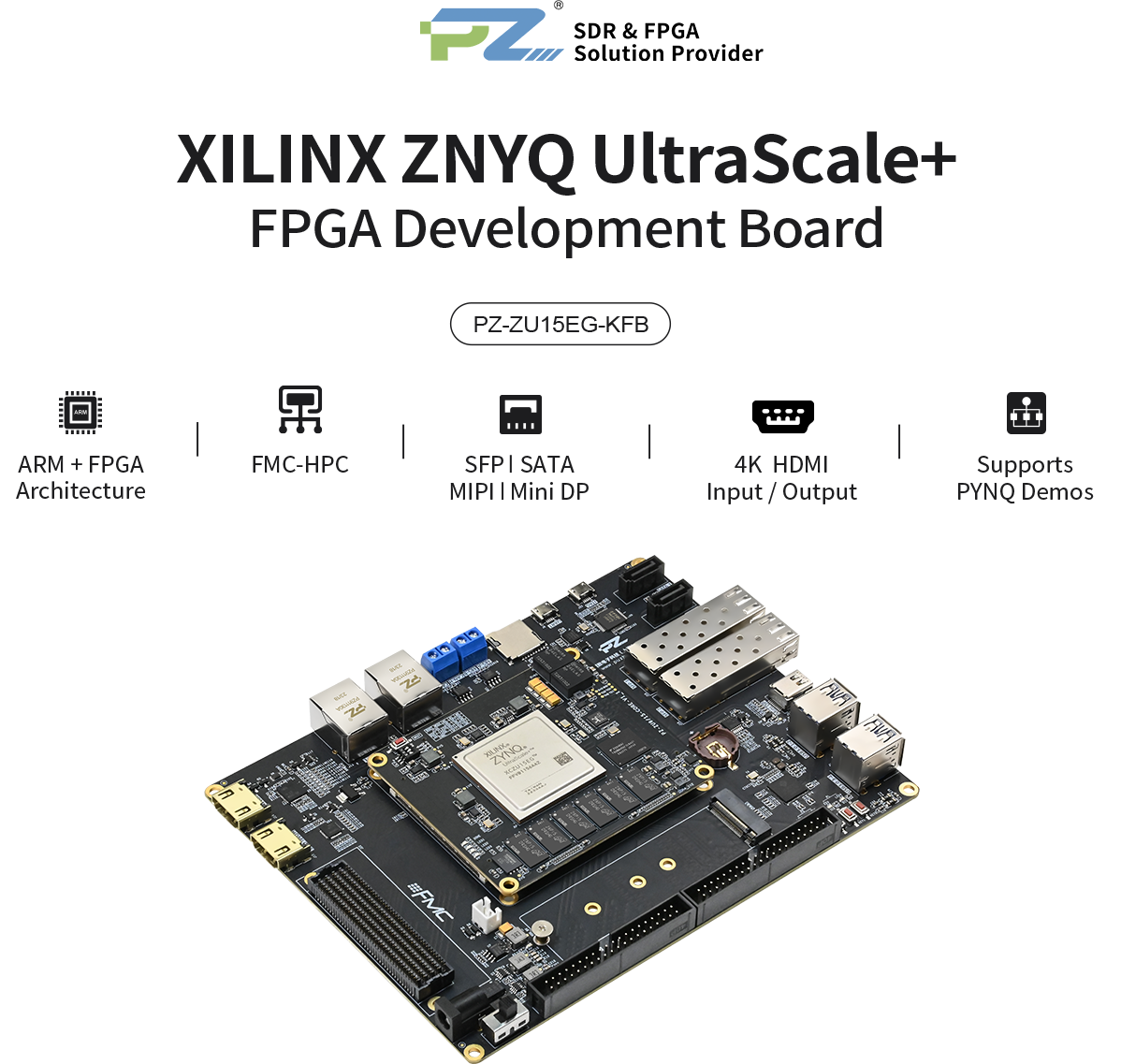

Puzhi FPGA ZYNQ UltraScale+ ZU15EG Development Board
PZ-ZU15EG-KFB
- ARM+FPGA architecture，4 x Cortex-A53，main frequency 1.333Ghz
- PS Side 4GB、PL Side 2GB DDR4，8GB EMMC，256+256Mb QSPIFLASH
- Core board 168P connector connection，size 85*75mm
- Reserved ports Gigabit Ethernet、SSD ports、FMC、HDMI、 SFP，etc
- Support SDK development，support PYNQ，rich routines，help product development

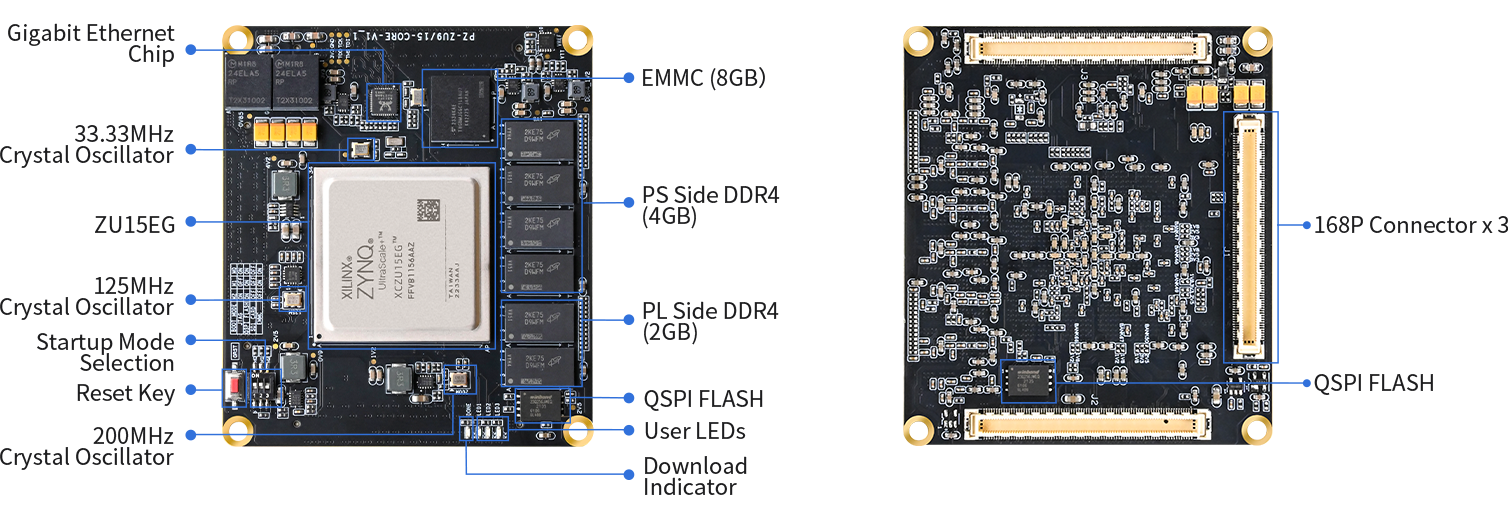

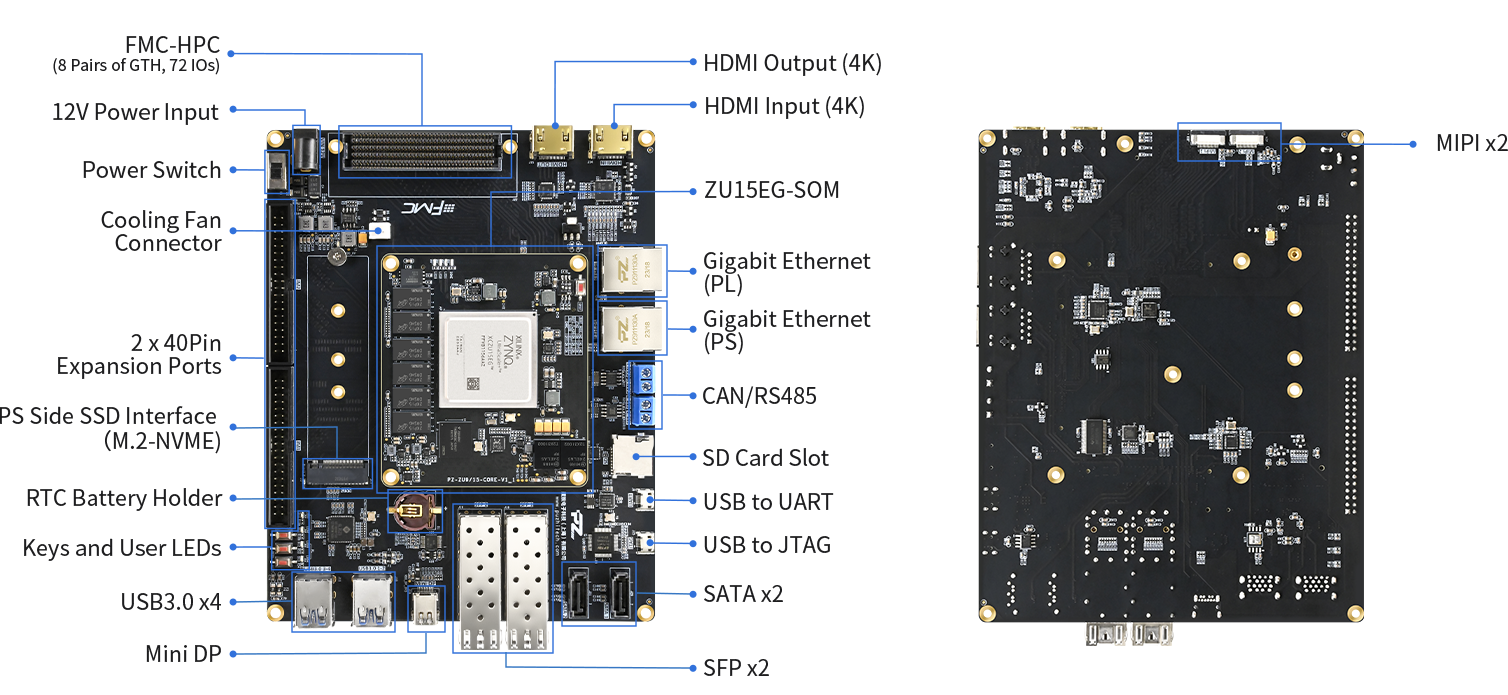

Interface Function Display
Product Parameters

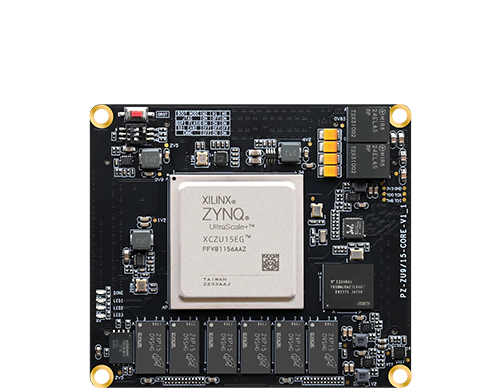

Core Board Main Parameters
FPGA Dev. Board | PZ-ZU15EG-KFB |
FPGA Chip | XCZU15EG-2FFVB1156I |
Processor Core | Quad-Core ARM Cortex-A53 (1.333Ghz) Dual-Core ARM Cortex-R5F (533Mhz) |
GPU | MaliTM-400MP2，667Mhz |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 747K |
Lookup Tables | 341000 |
Flip-Flops | 682000 |
DSP Slices | 3528 |
BLOCK RAM | 26.2Mb |
DDR4 | PS Side 4GB, PL Side 2GB |
QSPI FLASH | 256Mb + 256Mb |
EMMC | 8GB, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI/SD/EMMC, Default SD startup |
PS Side GTR | 4 Paris |
PL Side GTH | 24 Paris |
Number of IO | MIO: 38 IOs (Fixed 1.8V) HP: 96 IOs (1.2/1.8V Adjustable, Default 1.8V) HD: 96IOs (1.8/2.5/3.3V Adjustable, Default 3.3V) |
Crystal Oscillator | Single-ended Crystal 33.3333MHz for the PS Differential Crystal 200MHz for the PL Differential Crystal 125MHz for the GT Transceiver Reference Clock |
Core Board Form Factors | 3.35 inch x 2.95 inch (85 mm x 75mm) |
Interfaces and Function
JTAG Downloader | 1 |
UART/RS485/CAN | 1/1/1 |
SD Card Slot Interface | 1 |
USB3.0 | 4 USB 3.0 Host, for Connecting Mouse and Keyboard |
Gigabit Ethernet | PS Side 1 / PL Side 1 |
HDMI (4K） | 1 Input / 1 Output |
SATA | 2 |
SFP | 2 |
Mini DP | 1 |
PS Side SSD | 1 |
MIPI | 2 |
FMC Interface | FMC HPC (8 Pairs of GTH, 72 IOs) |
User LED | 4 |
KEY | 3 |
Cooling Fan Connector | 1 Channel, 12V Power Supply |
Voltage / Current | 12V/3A |
Board Form Factors | 7.09 inch x 5.51 inch (180 mm x 140mm) |
Technology | Black Matte. Immersion Gold Process |
2 x 40Pin Expansion Port | Total 64 IOs: Reserve two 40-pin 0.1 inch Expansion Ports，to Connect Puzhi Modules (AD/DA, Camera, LCD)，Expansion Port including 5V power supply，3.3V power supply, 6 Ground, 32 IOs |

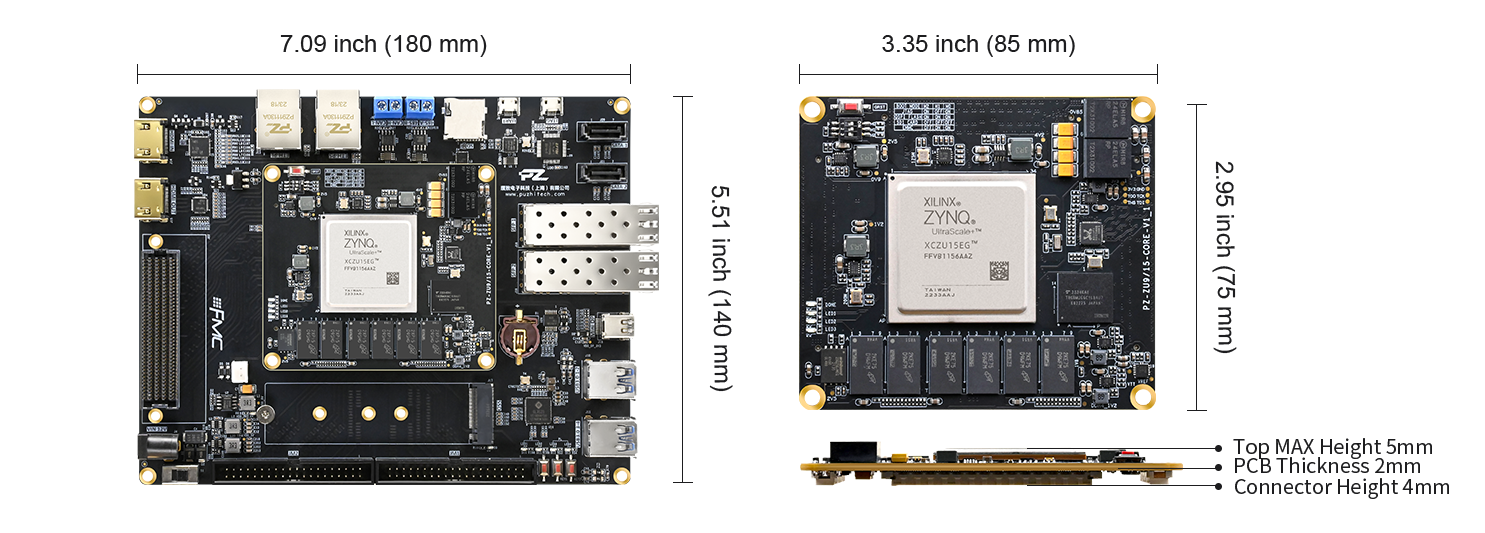

Product Dimensions
Product Packages

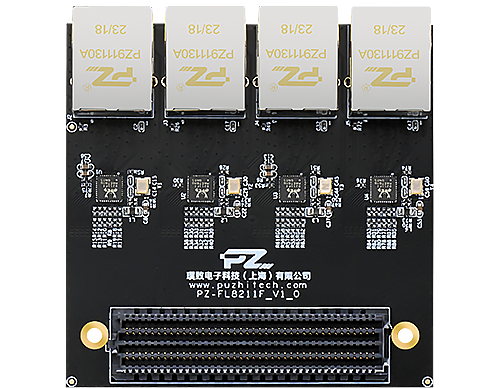

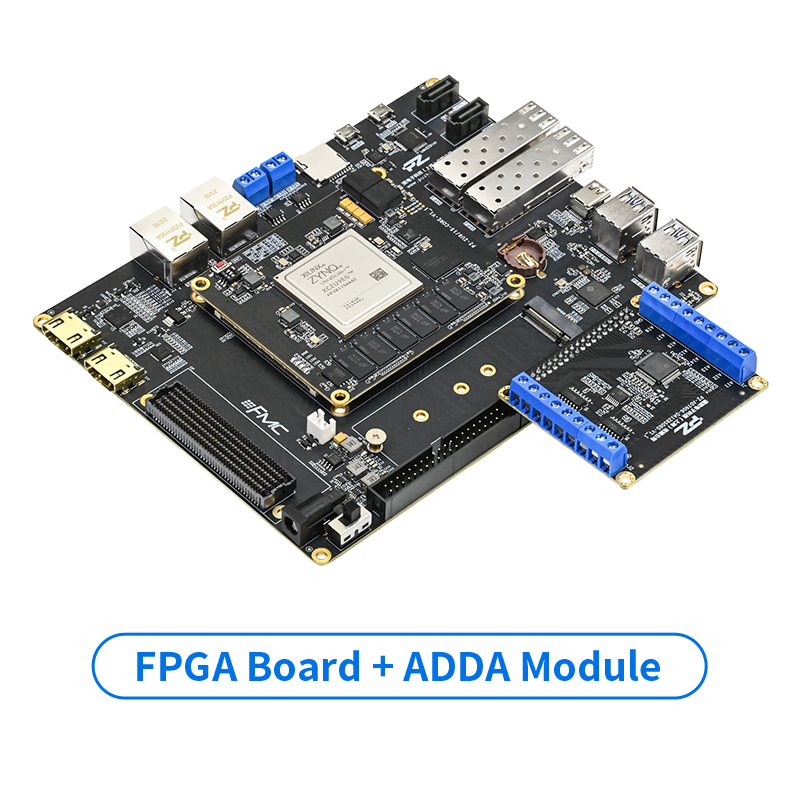

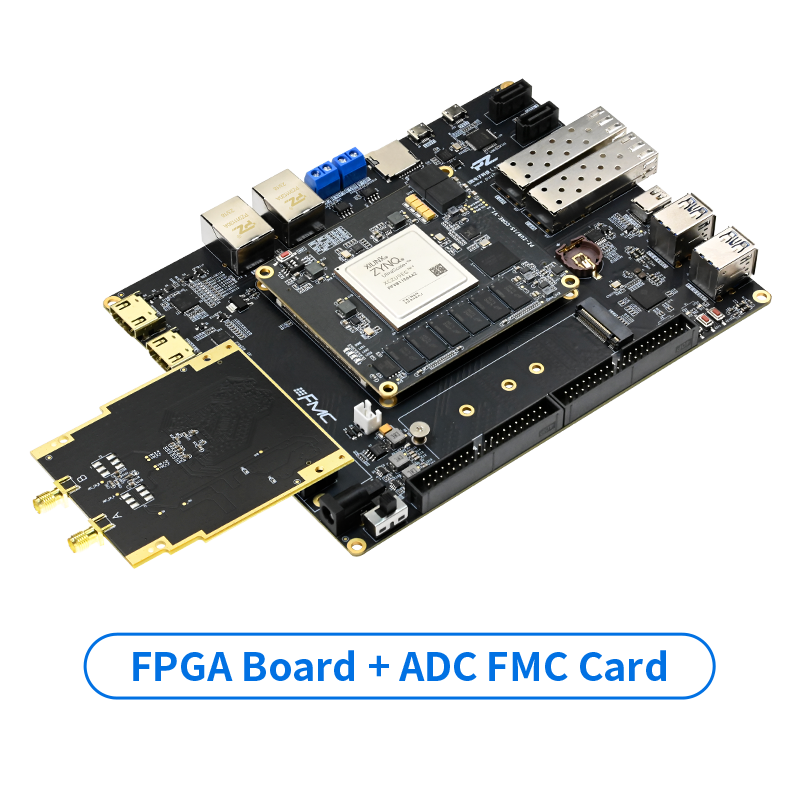

FMC Subcard Display

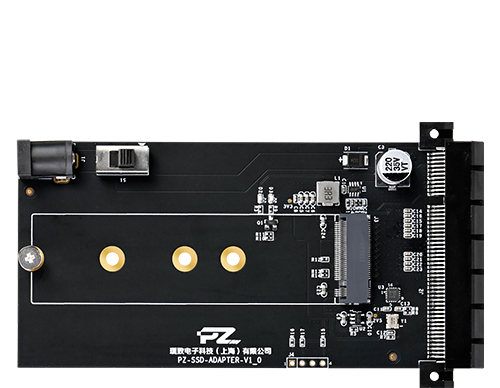

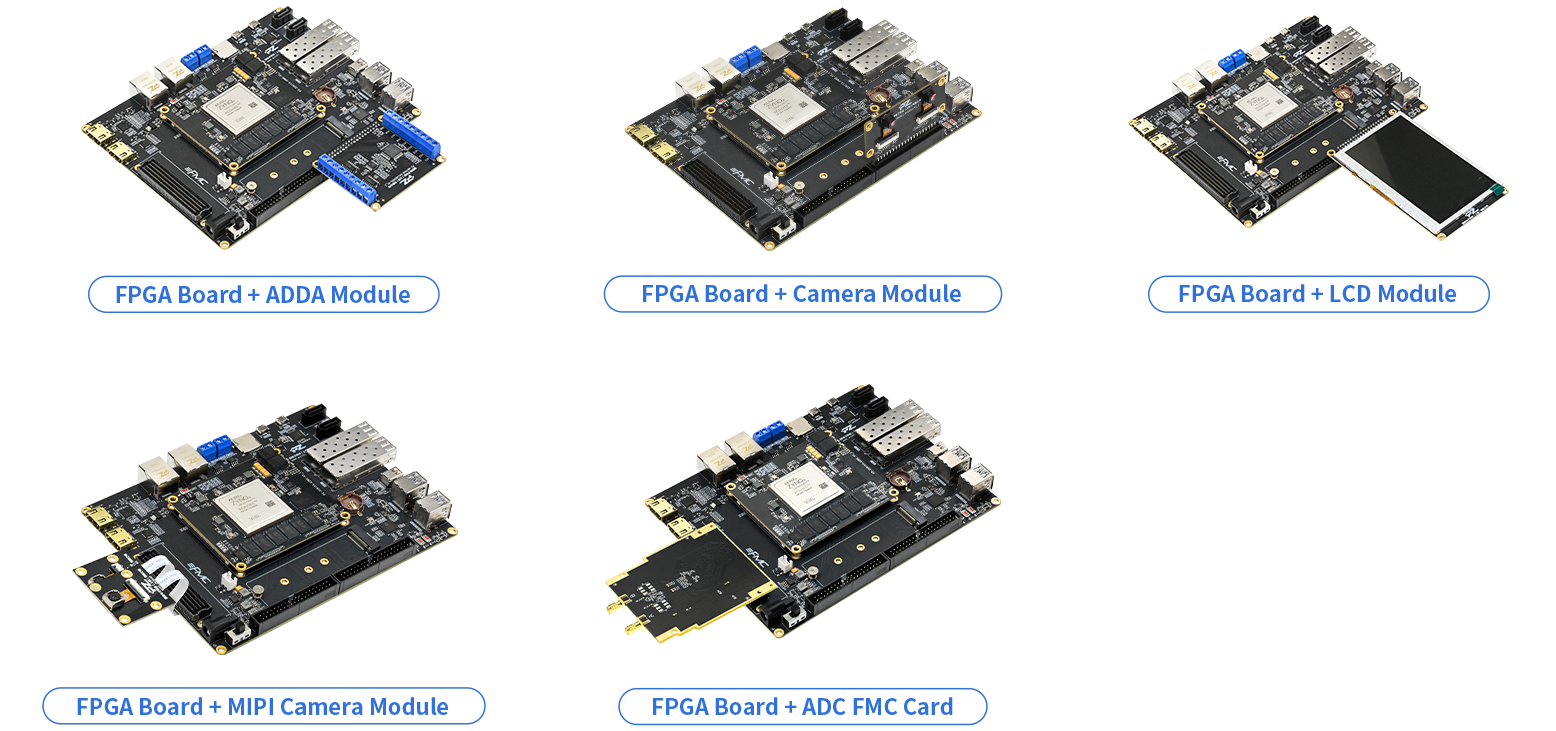

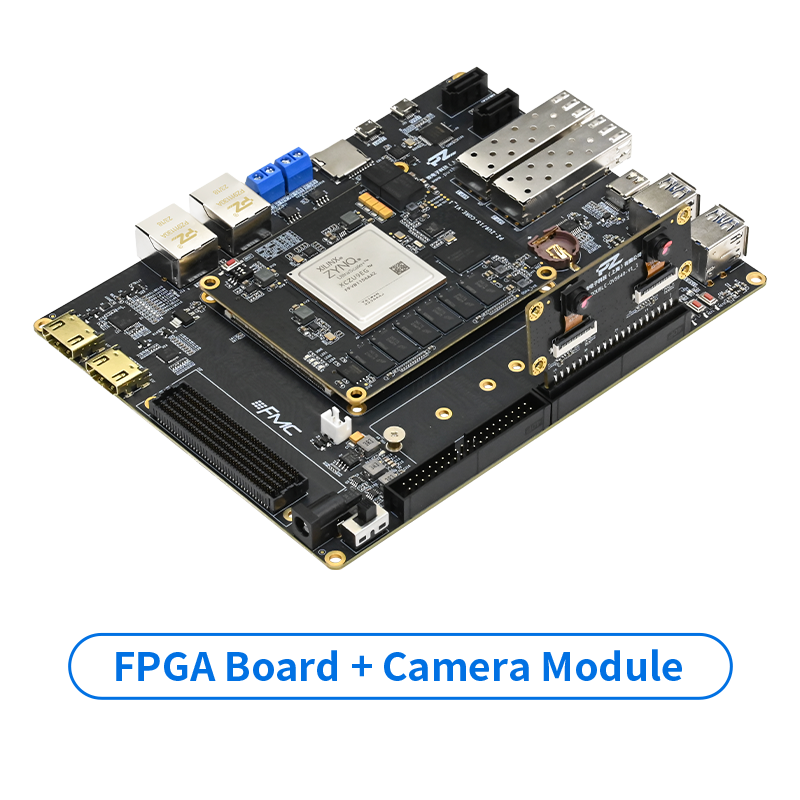

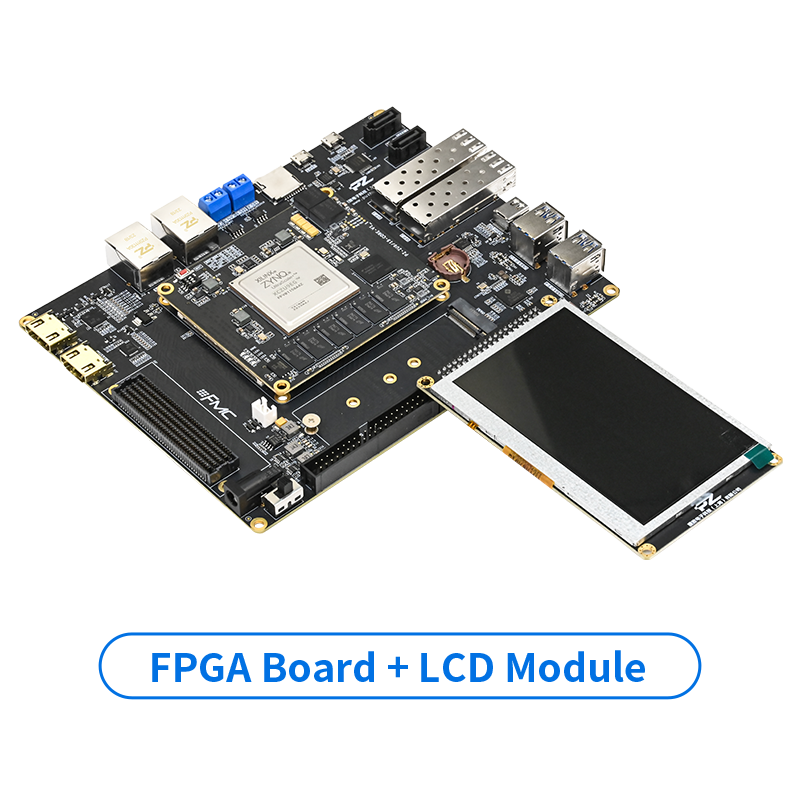

Other Subcard Display
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
- 1
FPGA Logic Demos
- 01.
Vivado Installation
- 02.
FLASH Curing
- 03.
LED Flashing
- 04.
LED PWM Control
- 05.
Key Debouncing Demos
- 06.
FPGA on-chip RAM Read and Write
- 07.
FPGA on-chip ROM Read and Write
- 08.
FPGA on-chip PLL Configuration
- 09.
FPGA on-chip FIFO Read and Write
- 10.
FPGA side DDR4 Control Read and Write
- 11.
I2C Read and Write E2PROM
- 12.
LCD Picture Display
- 13.
AD-AD7606 8-channel Acquisition Voltage
- 14.
DA 8-channel Output Sine Wave, Triangle Wave Square Wave
- 15.
Gigabit UDP Based on RTL8211F
- 16.
SFP Bit Error Rate Test
- 2
SDK Demos
- 01.
UART Serial Port Communication
- 02.
TTC Timer Interrupt Experiment
- 03.
PS Side EMIO Control LED Flashing
- 04.
EMIO Key Control LED
- 05.
DP Interface Display Demos
- 06.
Custom IP
- 07.
RS485 Communication
- 08.
CAN Bus Communication
- 09.
I2C Communication
- 10.
Gigabit Ethernet (NET0 MIO) Application
- 11.
Gigabit Ethernet Remote Upgrade
- 12.
PS Side DDR4 Read and Write
- 13.
PS Side EMMC Read and Write
- 14.
AXI-DMA Read and Write
- 15.
SD Card Read and Write
- 16.
ADC Acquisition Gigabit Ethernet Transmission
- 17.
LCD Image Display
- 18.
AD7606 and DA128S085 Synthesised Demos
- 19.
DP Display of Binocular Camera Images
- 20.
SD Card Picture DP Output Display
- 21.
HDMI (4K) output experiment
- 22.
HDMI (4K) Input/Output Loopback Experiment
- 23.
PL-side Gigabit Ethernet Communication Demos
- 01.
- 3
PetaLinux Parts
- 01.
Introduction to Virtual Machine and Ubuntu System
- 02.
Petalinux Tool Installation
- 03.
SD Card to Start the Linux System
- 04.
GPIO Control LED
- 05.
QSPI Curing and Startup
- 06.
EMMC Curing and Booting
- 07.
NVME SSD Read/Write
- 08.
Linux Common Commands
- 01.
- 4
FMC Topics(FMC daughter board is required)
- 01.
USB3.0 (PZ-FL3014)
- 02.
High Speed ADC (PZ-FL9643S)
- 03.
High Speed ADC/DAC (PZ-FL4322)
- 04.
Multi-Channel High-Speed ADC (PZ-FL9643D)
- 05.
Multi-Channel Domestic High-Speed ADC (PZ-FL2514D)
- 06.
Ultra High Speed ADC/DAC (PZ-FH8052)
- 07.
Medium-Speed ADC/DAC (PZ-FL3867)
- 08.
Multi-Channel Medium Speed DAC (PZ-FL9767D)
- 09.
Quad 100Gb Ethernet (PZ-FL8710F)
- 10.
Quad 1000Gb Ethernet (PZ-FL8211F)
- 11.
Software Defined Radio (PZ-FL9631/ PZ-FL9371/ FH9009/ FH9026 )
- 01.
- 5
Supports PYNQ

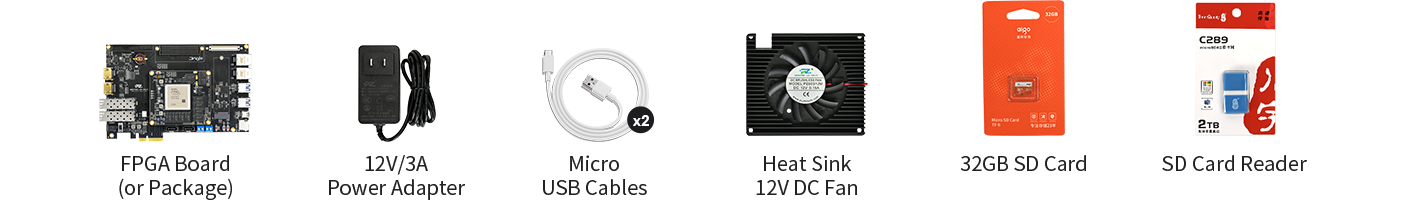

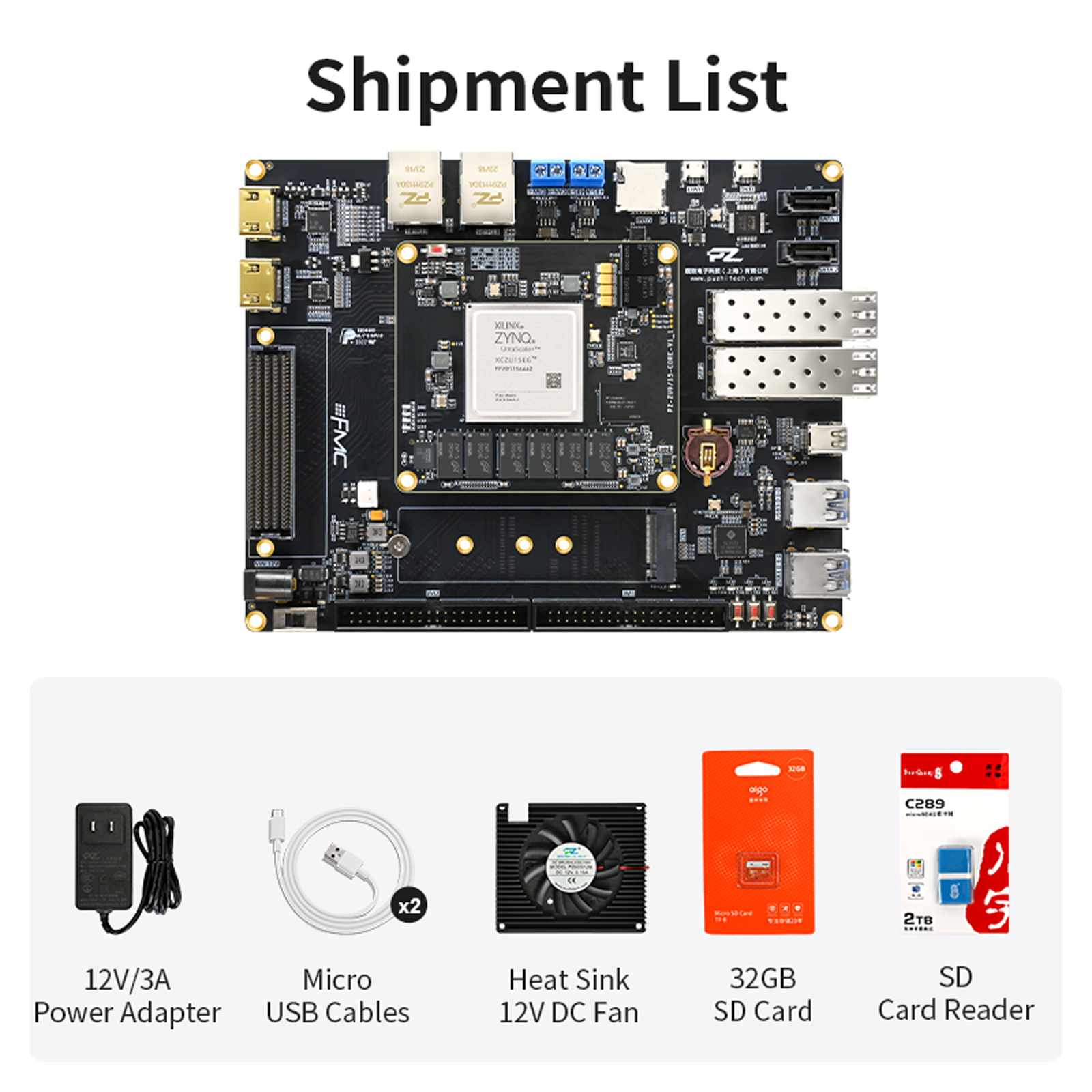

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
