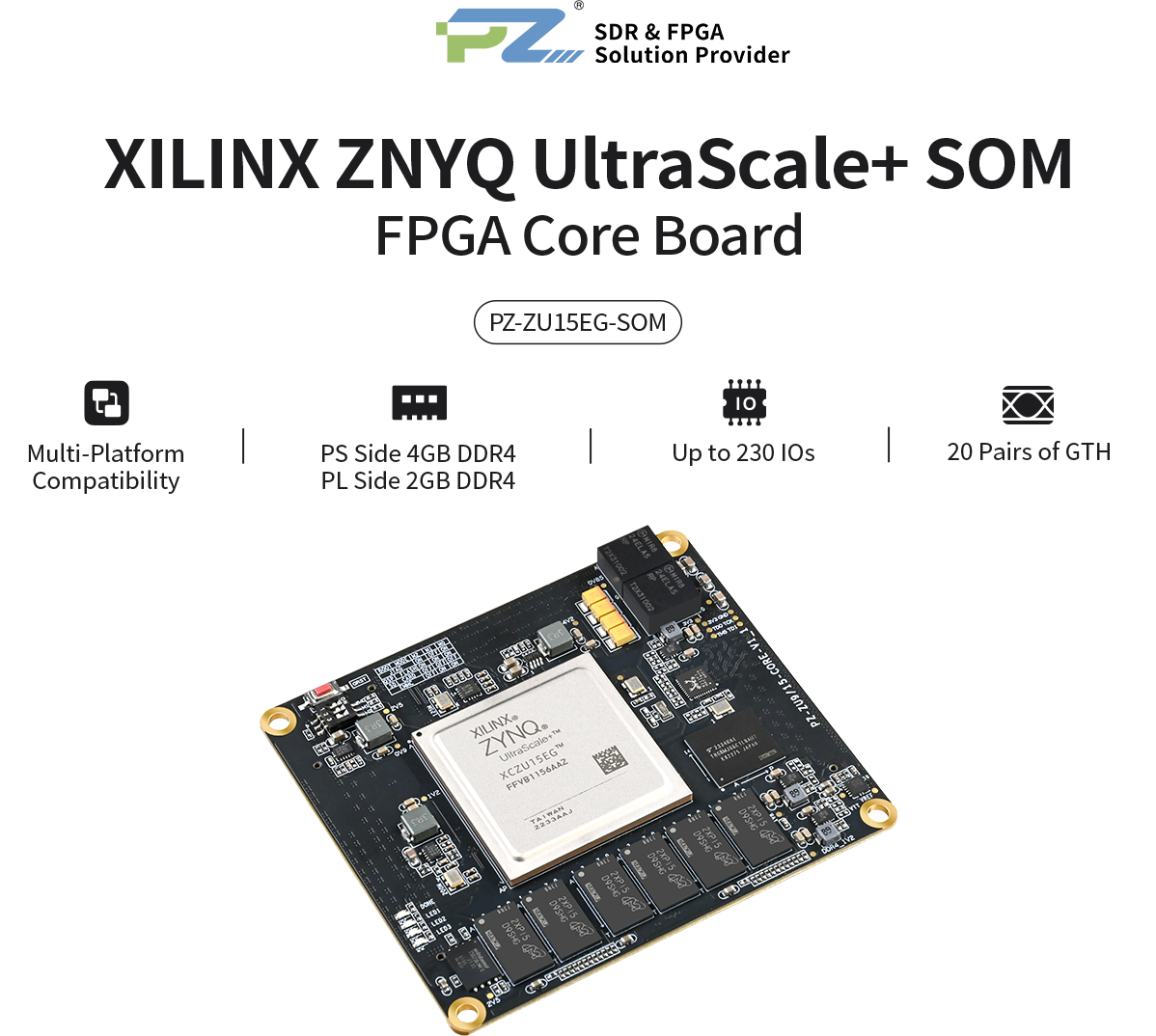

Puzhi FPGA ZYNQ UltraScale+ ZU15EG Core Board
- ZYNQ UltraScale+ core board，4 x Cortex-A53，main frequency 1.333Ghz
- PS Side 4GB、PL Side 2GB DDR4，8GB EMMC，256Mb+256Mb QSPIFLASH
- Size 85*75mm，up to 230 IO available
- Extreme material selection and process standards，industrial grade -40℃~+85℃
- Support PYNQ，provide hardware reference & rich routines，help product development

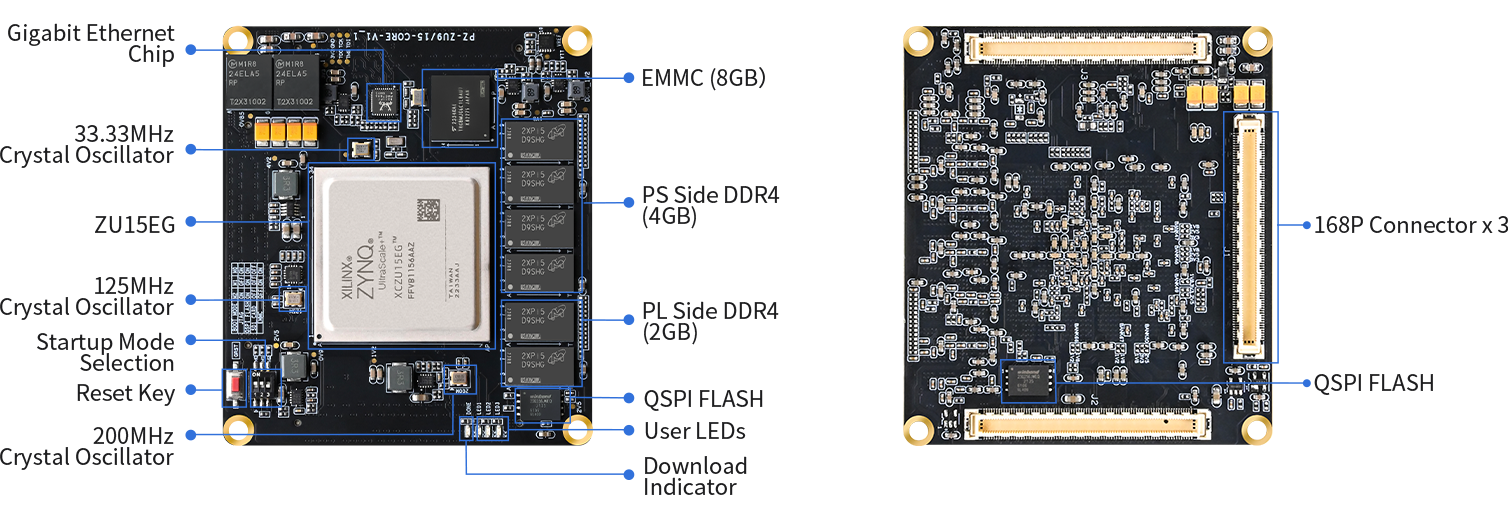

Interface Function Display
Product Parameters
Specification
FPGA Core Board | PZ-ZU15EG-SOM |
FPGA Chip | XCZU15EG-2FFVB1156I |
Processor Core | Quad Core ARM Cortex-A53 (1.333Ghz) |
GPU | MaliTM-400MP2，667Mhz |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 747K |
Lookup Tables (LUTs） | 341000 |
Flip-Flops | 682000 |
DSP Slices | 3528 |
BLOCK RAM | 26.2Mb |
DDR4 | PS Side 4GB, PL Side 2GB |
QSPI FLASH | 256Mb + 256Mb, Dual FLASH Boot for Faster Boot Up |
EMMC | 8GB, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI/SD/EMMC, Default SD startup |
Gigabit Ethernet Chip | 1 |
User LED | 3 |
PS Side GTR | 4 Paris of TX/ RX |
PL Side GTH | 24 Paris of TX/RX |
PS Side MIO | 38 IOs (Fixed 1.8V) |
Number of IO | Total 192 Single-ended IOs HP: 96 IOs Levels 1.2/1.8V Adjustable, Default 1.8V HD: 96 IOs Levels 1.8/2.5/3.3V Adjustable, Default 3.3V |
Voltage/ Current | 8-12V/4A |
Crystal Oscillator | Single-ended Crystal 33.3333MHz for the PS Differential Crystal 200MHz for the PL Differential Crystal 125MHz for the GT Transceiver Reference Clock |
Technology | Black Matte. Immersion Gold Process |
Core Board Form Factors | 3.35 inch x 2.95 inch (85 mm x 75mm) |

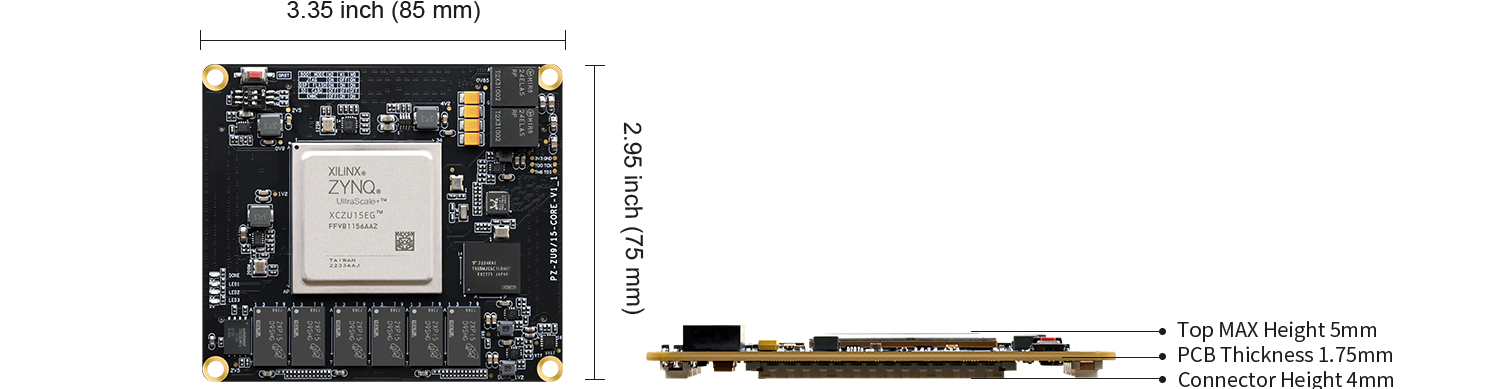

Product Dimensions
Product Packages
Technical Support
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

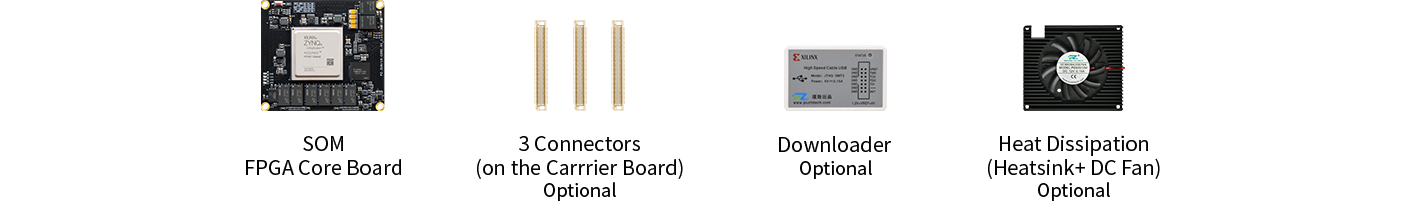

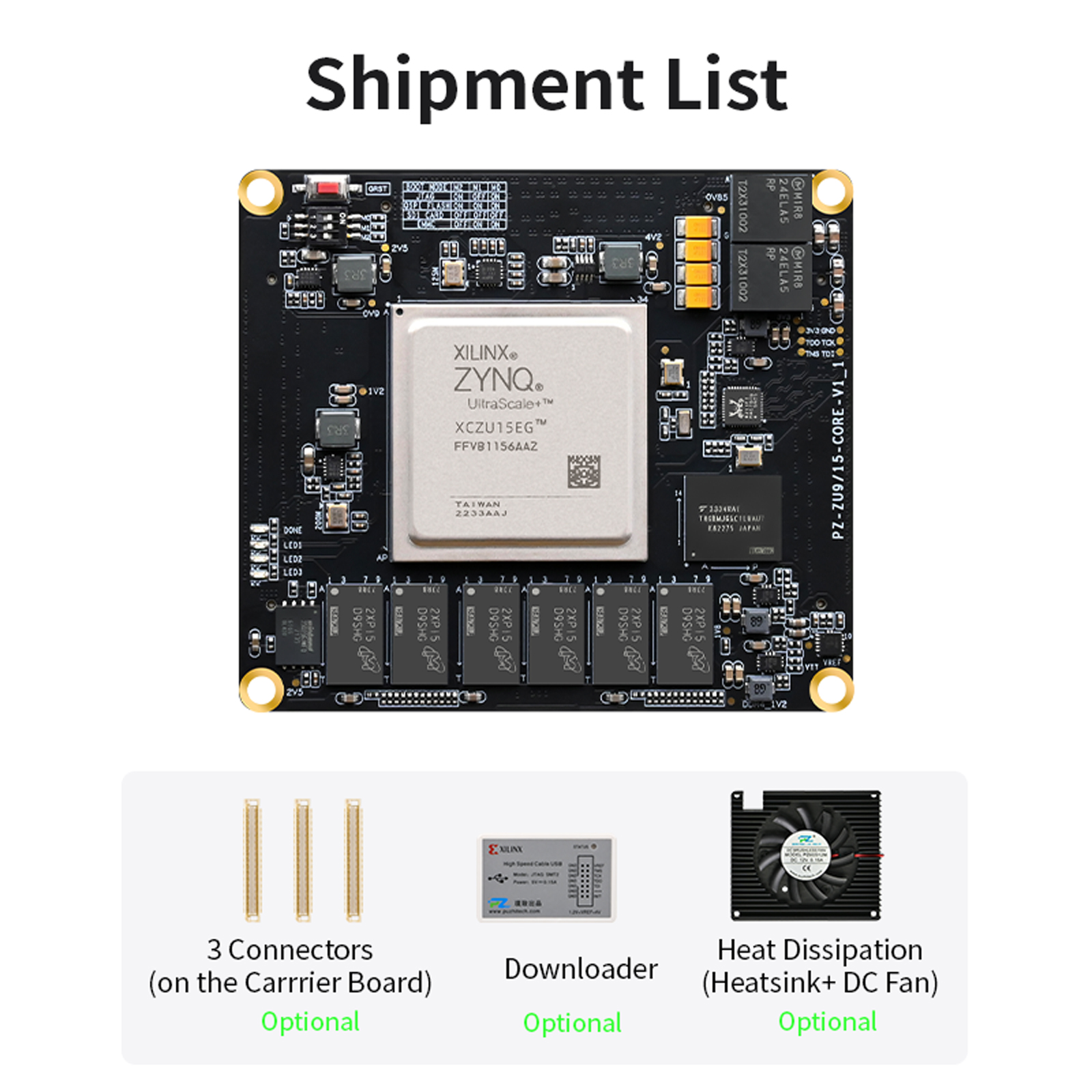

Standard Delivery List
