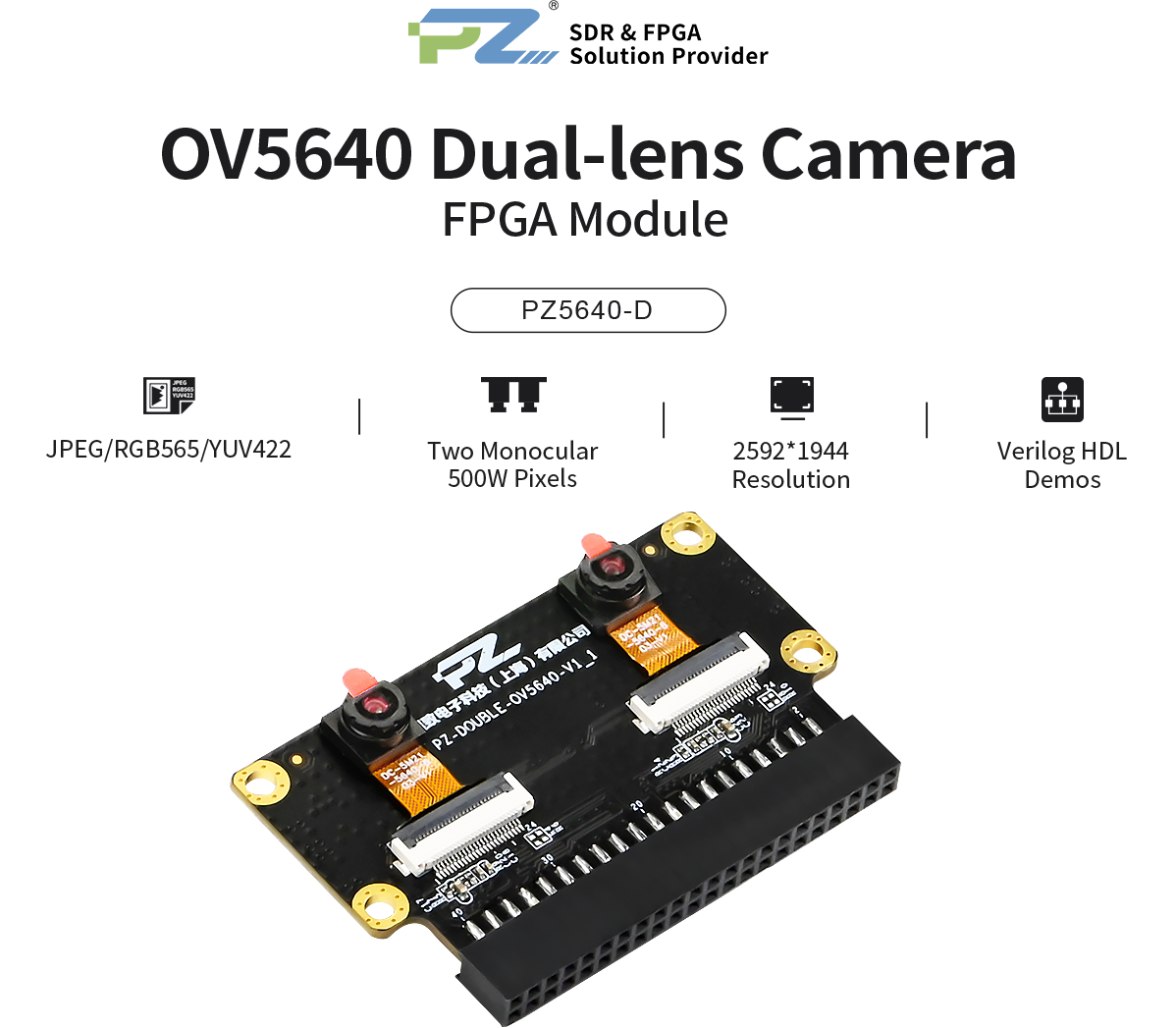

Puzhi Expansion Module OV5640 Binocular Camera
- Two Monocular 500W Pixels，size 67*35mm
- 2592*1944 Resolution
- Support JPEG、RGB565、YUV422
- working temperature -30~70℃，stable working temperature 0~50℃
- Support full platform expansion, provide multi-platform routines, help product development
Interface Function Display
Product Parameters
Parameters
Interface | 40-pin Female Connector, DVP Connector |
Pixel | 500 Million |
Sensitive Chip | 2 Units of OV5640 |
Sensitive Size | 1/4 |
Lens Parameters | 5MP/M12, Focus 3.6mm, Monitoring Angle 80-90 |
Module Content | Includes OV5640 Power Circuit and Clock |
Function Support | Manual focus, Automatic Exposure Control (AEC) Auto White Balance (AWB) |
lmage Formats | RAW RGB,RGB565/555/444,CCIR656 YUV422/420,YCbCr422 and Compression |
Captured lmages | QSXGA(2592 x 1944), 1080p,1280 x 960,VGA(640 x 480),QVGA(320 x 240) |
Working Temperature | 0~50℃ |
Spacing | The Spacing of 2-way cameras is 40mm |
Product Dimensions

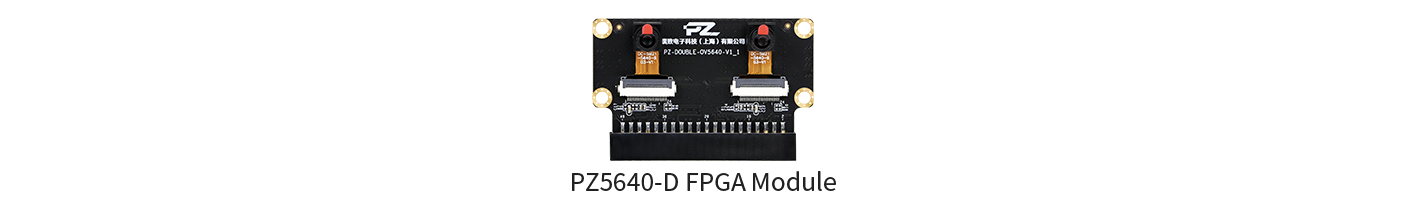

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
