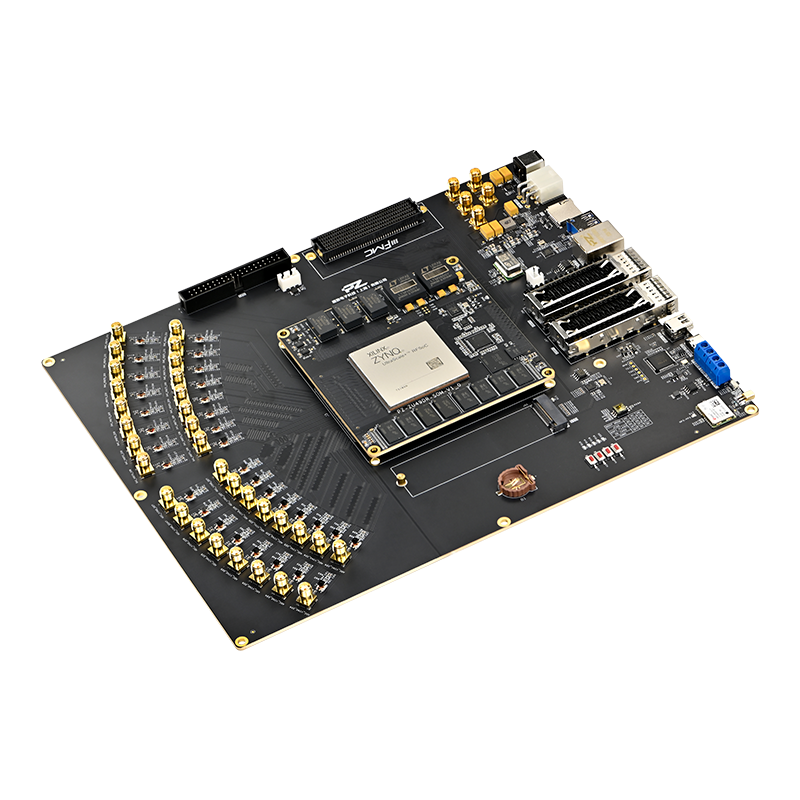

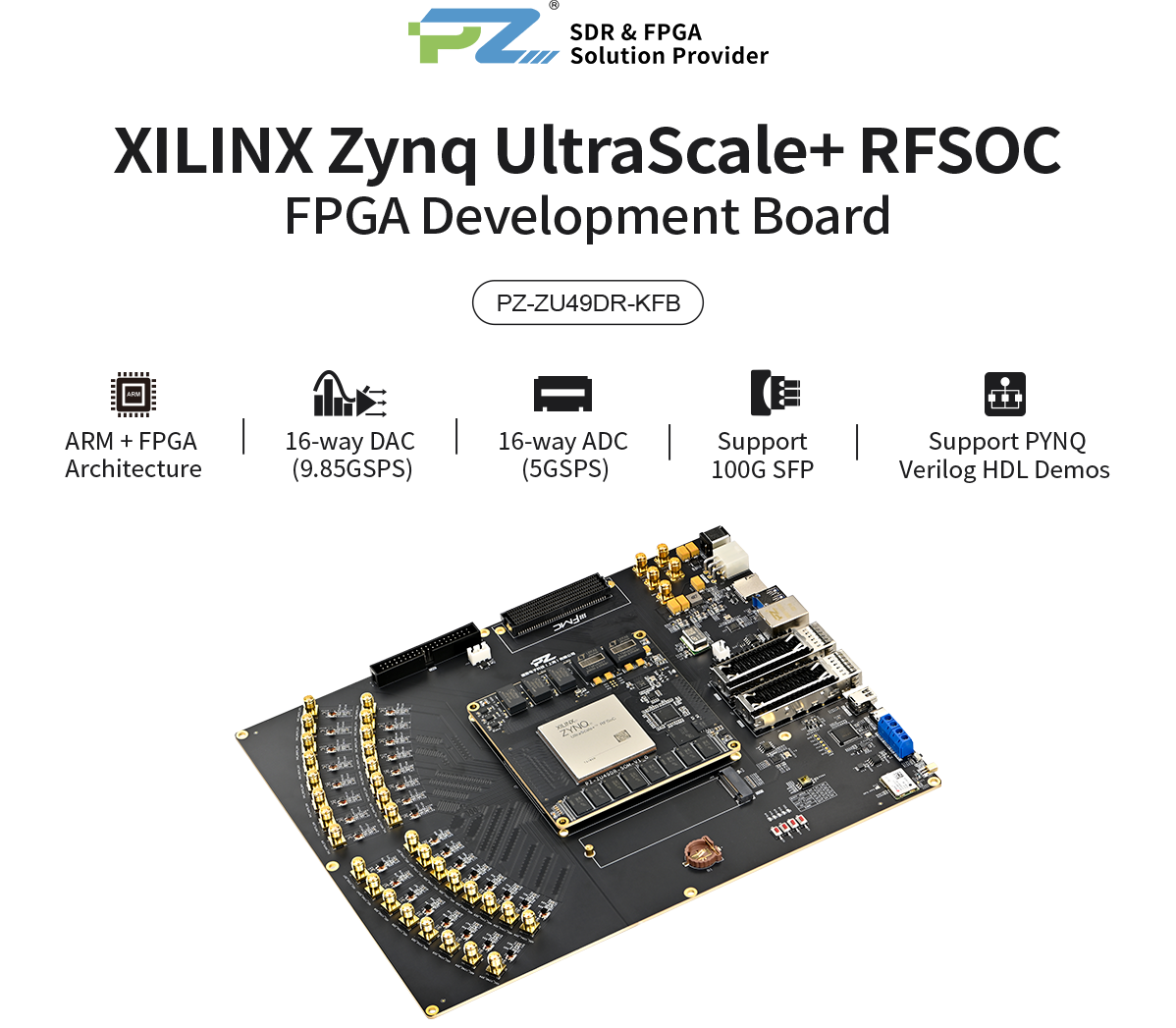

Puzhi FPGA ZYNQ UltraScale+RFSOC ZU49DR Development Board
PZ-ZU49DR-KFB
- ARM+FPGA architecture，4 x Cortex-A53，main frequency 1.333Ghz
- PS Side 8GB、PL Side 4GB DDR4，32GB EMMC，512Mb+512Mb QSPIFLASH
- Core board 240P connector connection，size 90*85mm
- Reserved ports UART、RS485、CAN、Gigabit Ethernet、GPS、FMC、SSD、QSFP，etc
- Support SDK development，support PYNQ，rich routines，help product development

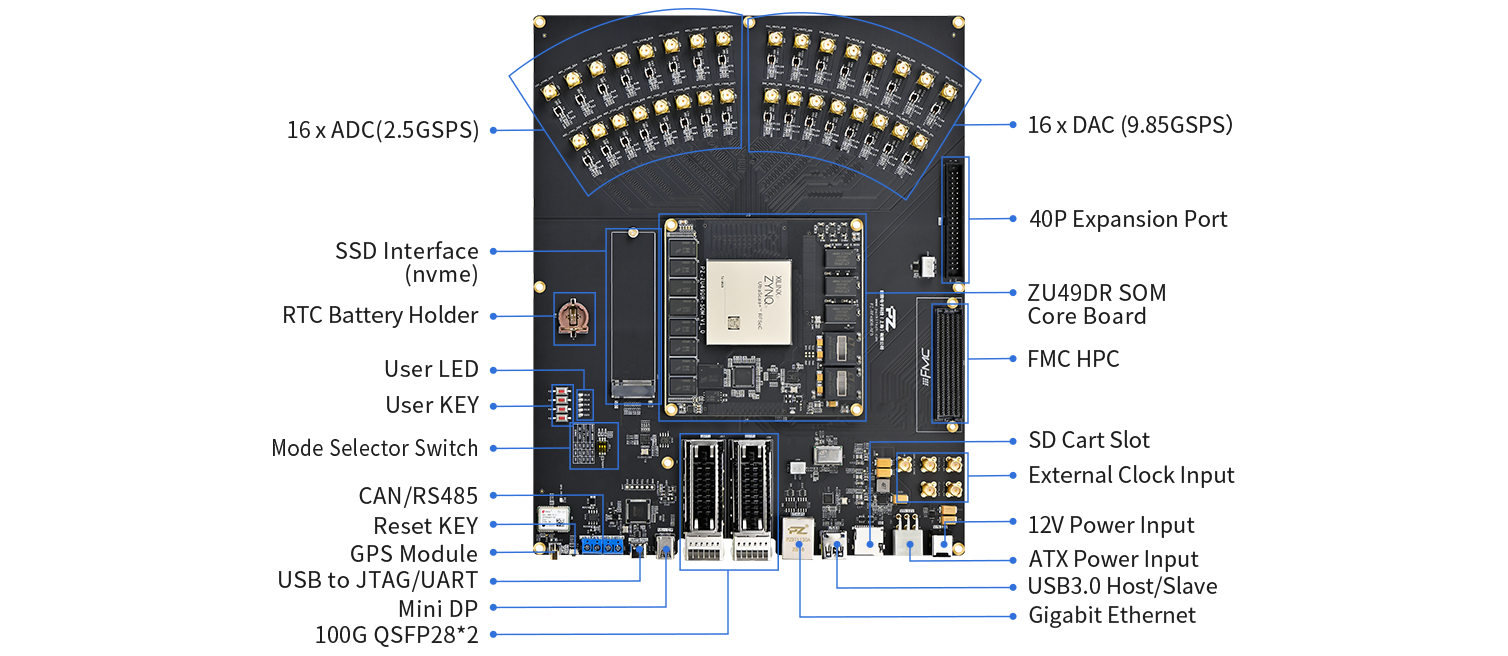

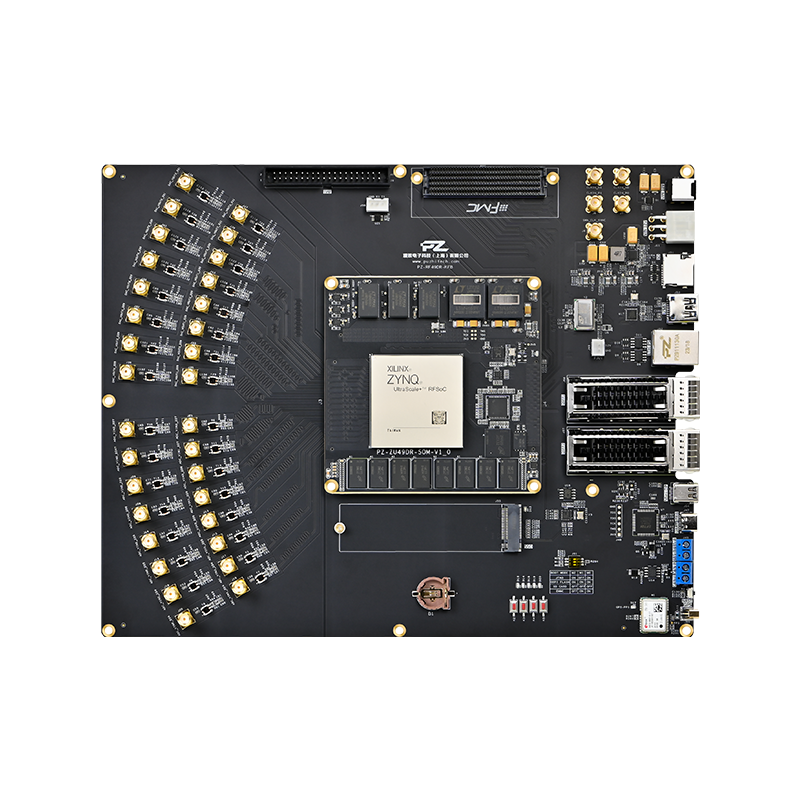

Interface Function Display
Product Parameters

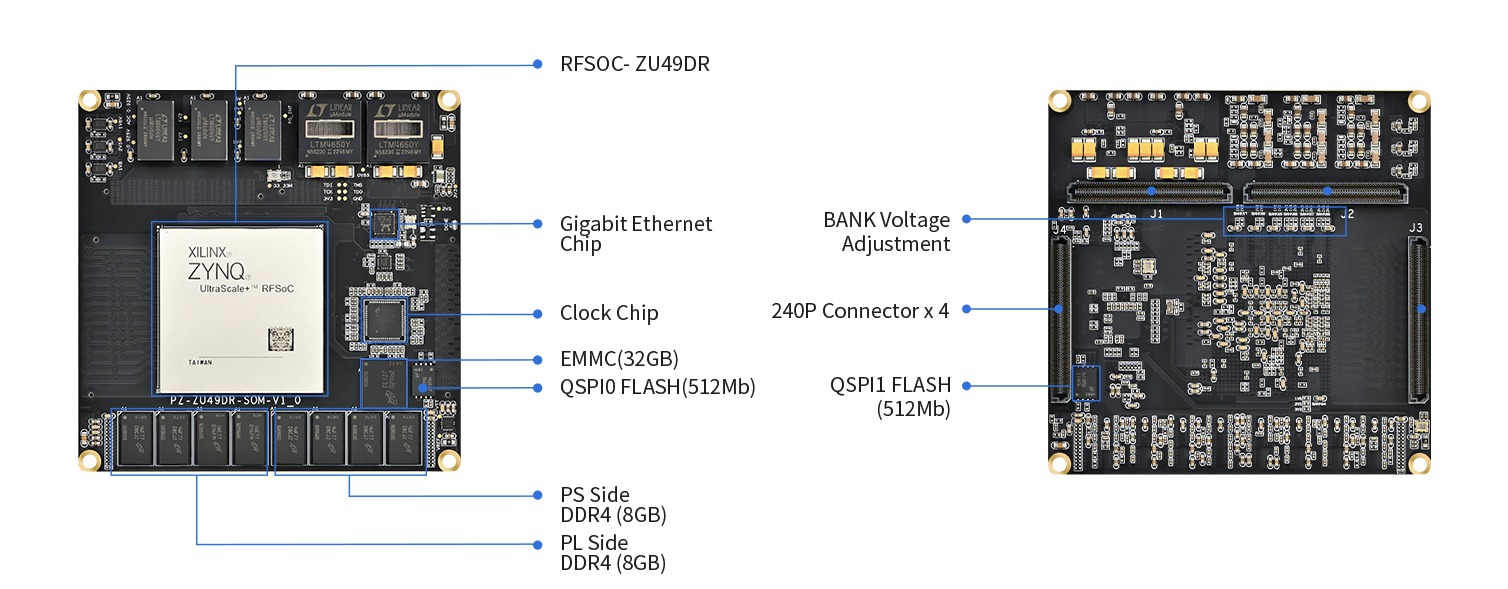

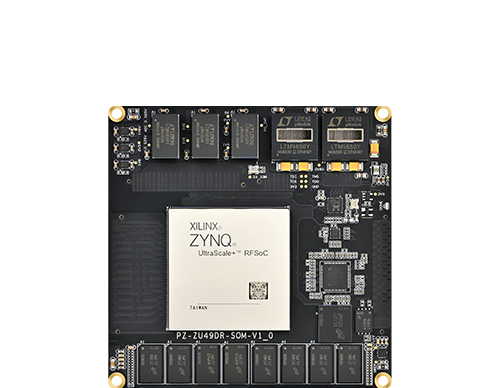

Core Board Main Parameters
FPGA Dev. Board | PZ-ZU49DR-KFB |
FPGA Chip | XCZU49DR-2FFVF1760I |
Processor Core | ARM : 4 x Cortex-A53 1.333Ghz RPU : 2 x Cortex-R5 533Mhz |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 930K |
Lookup Tables | 425k |
DSP Slices | 4272 |
BLOCK RAM | 38Mb |
DDR4 | PS Side 8GB 2400Mhz*64bit / PL Side 4GB 2400Mhz*32bit |
QSPI FLASH | 2 Channel (QSP0+QSPI1)/512Mb per Chip, 1Gb Total |
EMMC | 32GB, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI/SD/EMMC, Onboard DIP Switch Selection |
ADC Channel | 16 Channels / Sample Rate 2.5Gsps |
DAC Channel | 16 Channels / Sample Rate 9.85Gsps |
PS Side GTR Interface | 4 Paris of TX/RX |
PL Side GTY Interface | 8 Paris of TX/RX |
Number of Expansion IOs | MIO: 38 ( Fixed 1.8V ) HP: 144 (1.2/1.8V adjustable, default 1.8V) HD: 96 (1.8/2.5/3.3V adjustable, default 3.3V) |
Crystal Oscillator | One Single-ended 33.3333MHz crystal for PS One Differential 200MHz crystal for PL One Differential 125M crystal for GT interface One Dedicated Clock Chip for ADC/DAC |
Core Board Form Factors | 3.94 inch x 3.94 inch (100mm x 100mm) |
Interfaces and Function
JTAG Downloader | 1 |
UART/RS485/CAN | 1/1/1 |
SD Card Slot Interface | 1 |
PS Side SSD | 1 |
Gigabit Ethernet | PS Side 1 |
Mini DP Output | 1 |
USB3.0 Master-Slave Port | 1 |
SSD Memory | 1 |
QSFP28 Interface | 2/100G |
GPS Module | 1 |
FMC Interface | FMC HPC, Full Signal Connection |
Voltage / Current | 12V/3A |
Board Form Factors | 10.83 inch x 8.66 inch (275mm x 220mm) |
Technology | Black Matte, Immersion Gold Process |
40Pin Expansion Port | Total of 32 signals( Including 5V power supply , 3V power supply 6 Ground, 32 IOs ) |

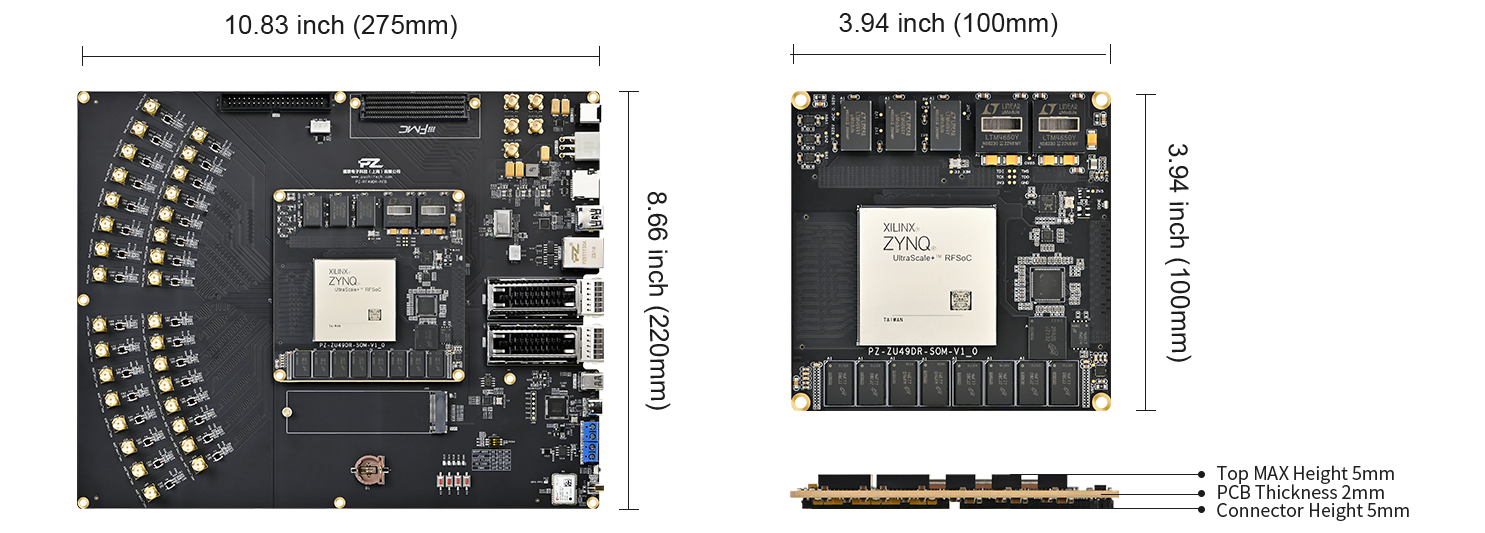

Product Dimensions

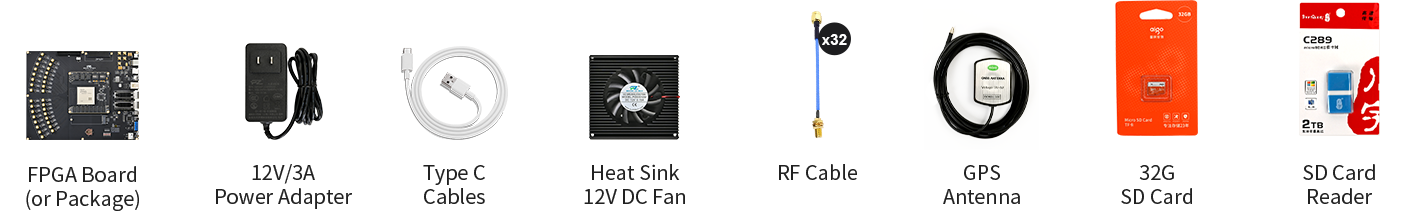

Product Packages
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
