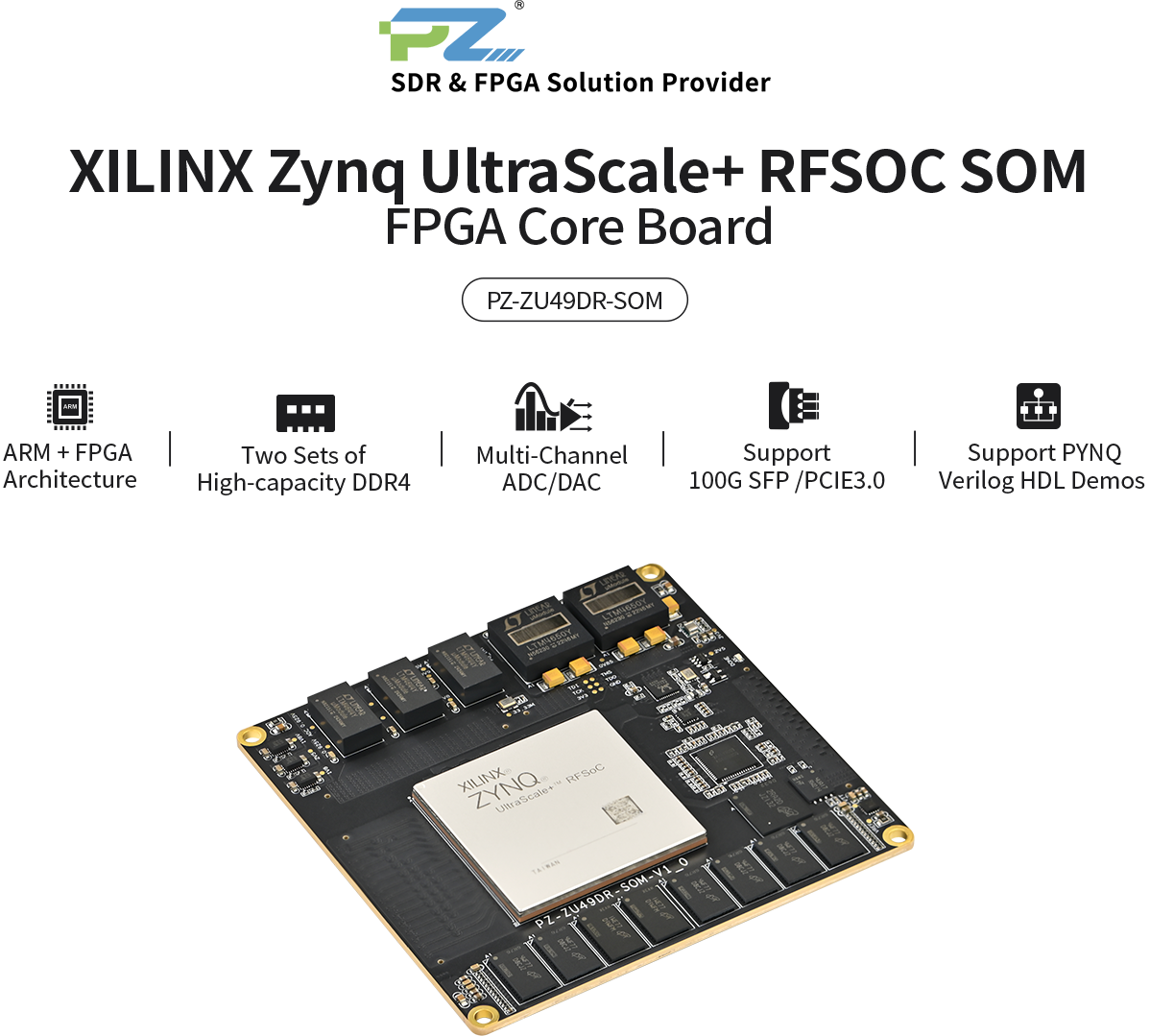

Puzhi FPGA ZYNQ UltraScale+RFSOC ZU49DR Core Board
- ZYNQ UltraScale+RFSOC core board，4 x Cortex-A53，main frequency 1.333Ghz
- PS Side 8GB、PL Side 4GB DDR4，32GB EMMC，512Mb+512Mb QSPIFLASH
- Size 100*100mm，multi-channel ADC DAC，support 100G QSFP
- Extreme material selection and process standards，industrial grade -40℃~+85℃
- Support PYNQ，provide hardware reference & rich routines，help product development

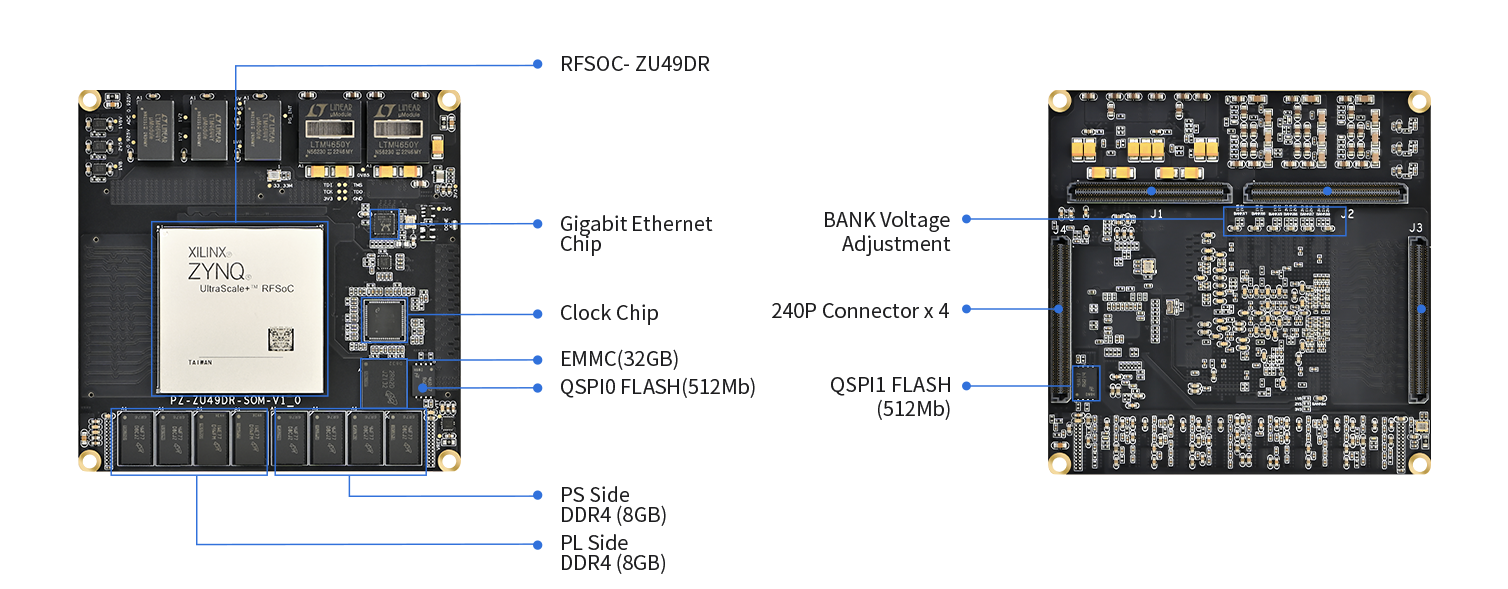

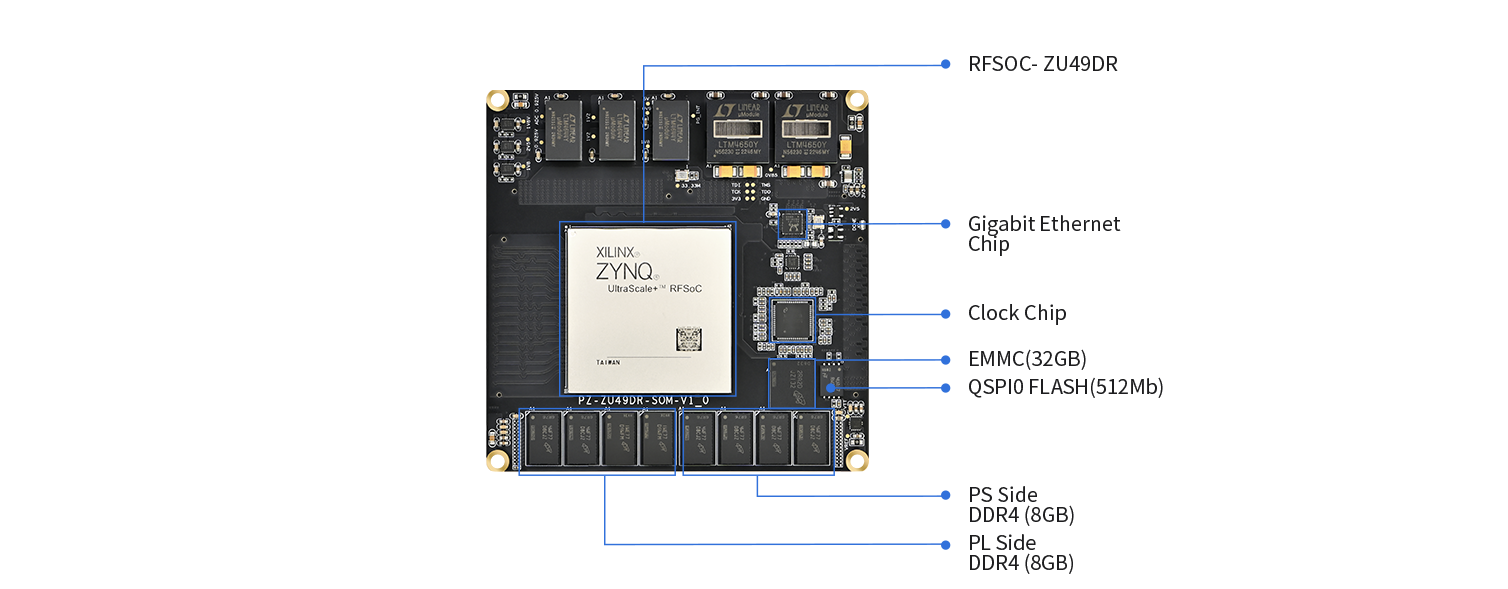

Interface Function Display
Product Parameters
Specification
FPGA Core Board | PZ-ZU49DR-SOM |
FPGA Chip | XCZU49DR-2FFVF1760I |
Processor Core | ARM : 4 x Cortex-A53 1.333Ghz RPU : 2 x Cortex-R5 533Mhz |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 930K |
Lookup Tables | 425k |
DSP Slices | 4272 |
BLOCK RAM | 38Mb |
DDR4 | PS Side 8GB 2400Mhz*64bit / PL Side 4GB 2400Mhz*32bit |
QSPI FLASH | 2 Channel (QSP0+QSPI1)/512Mb per Chip, 1Gb Total |
EMMC | 32GB, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI/SD/EMMC, Onboard DIP Switch Selection |
ADC Channel | 16 Channels / Sample Rate 2.5Gsps |
DAC Channel | 16 Channels / Sample Rate 9.85Gsps |
Gigabit Ethernet | PS Side 1 |
PS Side GTR Interface | 4 Paris of TX/RX |
PL Side GTY Interface | 8 Paris of TX/RX |
Voltage / Current | 8-12V/5A (Recommended 8V) |
Number of Expansion IOs | MIO: 38 ( Fixed 1.8V ) HP: 144 (1.2/1.8V adjustable, default 1.8V) HD: 96 (1.8/2.5/3.3V adjustable, default 3.3V) |
Clock | One Single-ended 33.3333MHz crystal for PS One Differential 200MHz crystal for PL One Differential 125M crystal for GT interface One Dedicated Clock Chip for ADC/DAC |
Technology | Immersion Gold Process, 0.635mm spacing, 240P Connectors x 4 |
Core Board Form Factors | 3.94 inch x 3.94 inch (100mm x 100mm) |

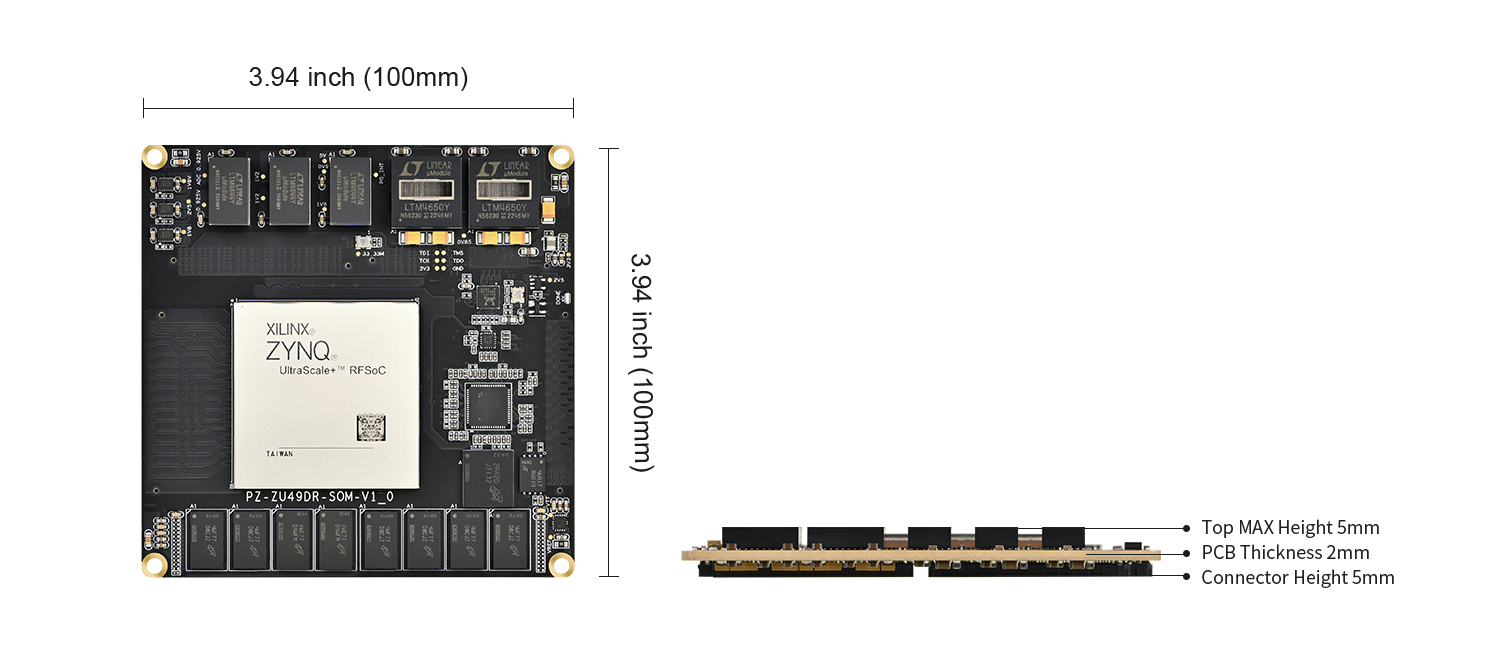

Product Dimensions
Product Packages
Technical Support
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

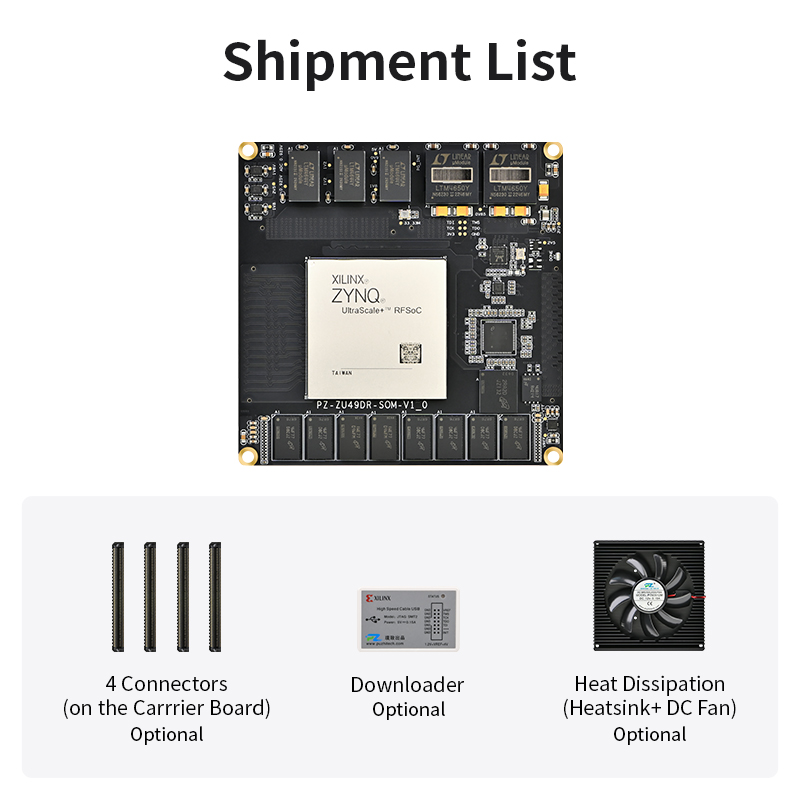

Standard Delivery List
