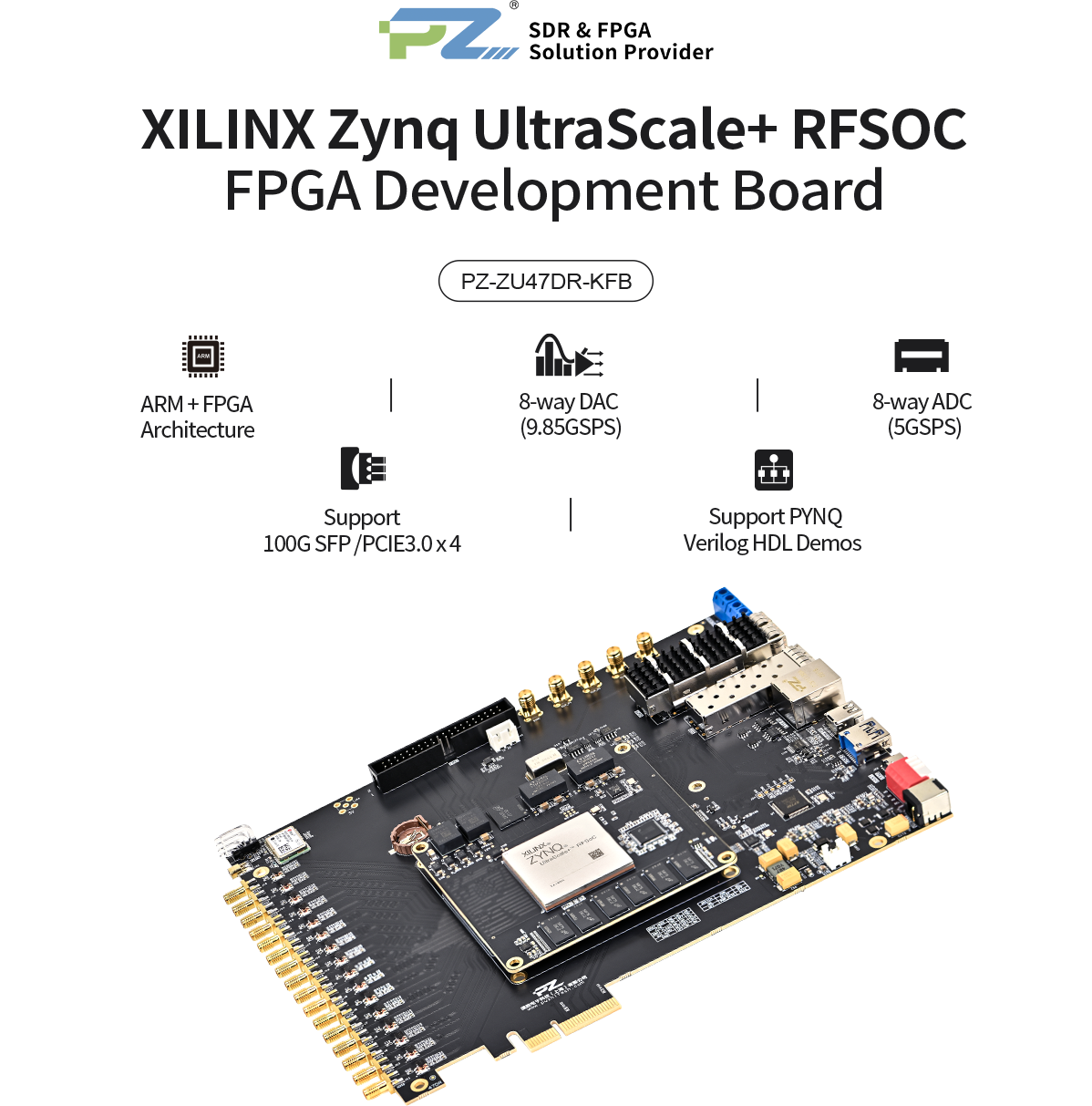

Puzhi FPGA ZYNQ UltraScale+RFSOC ZU47DR Development Board
PZ-ZU47DR-KFB
- ARM+FPGA architecture，4 x Cortex-A53，main frequency 1.333Ghz
- PS Side 8GB、PL Side 4GB DDR4，32GB EMMC，512Mb+512Mb QSPIFLASH
- Core board 240P connector connection，size 90*85mm
- Reserved ports UART、RS485、CAN、Gigabit Ethernet、SSD、QSFP、SFP、PCIE，etc
- Support SDK development，support PYNQ，rich routines，help product development

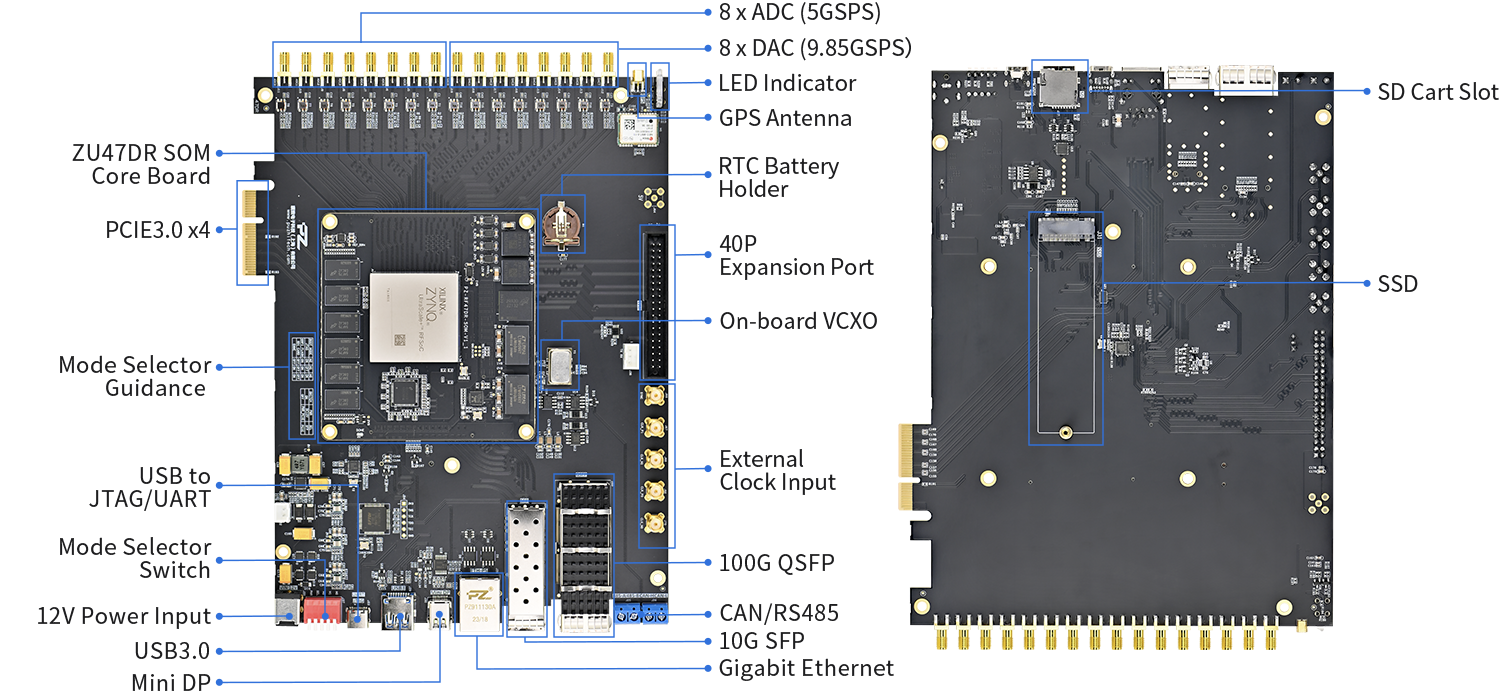

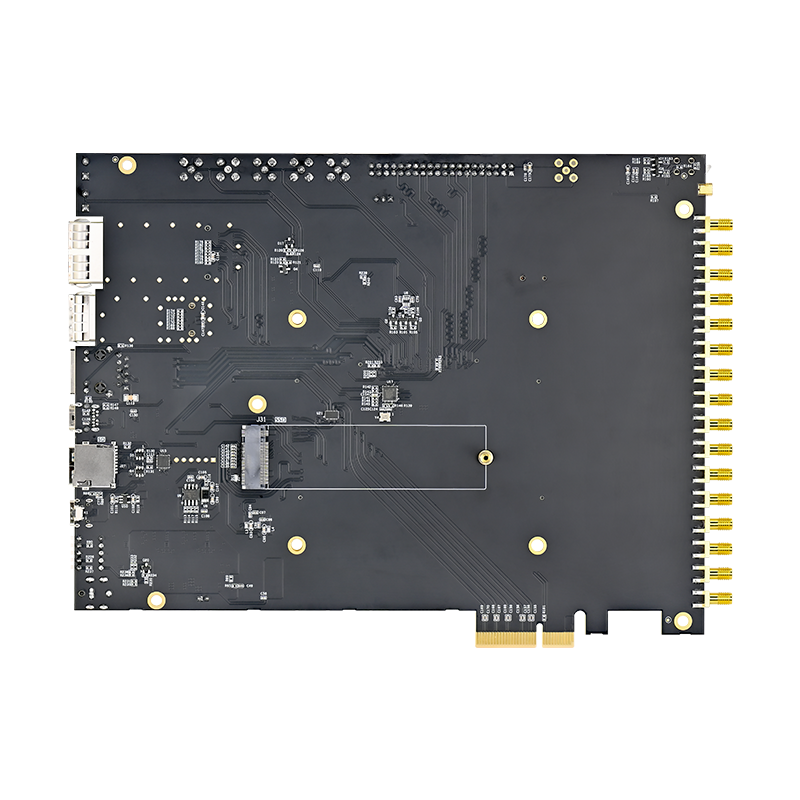

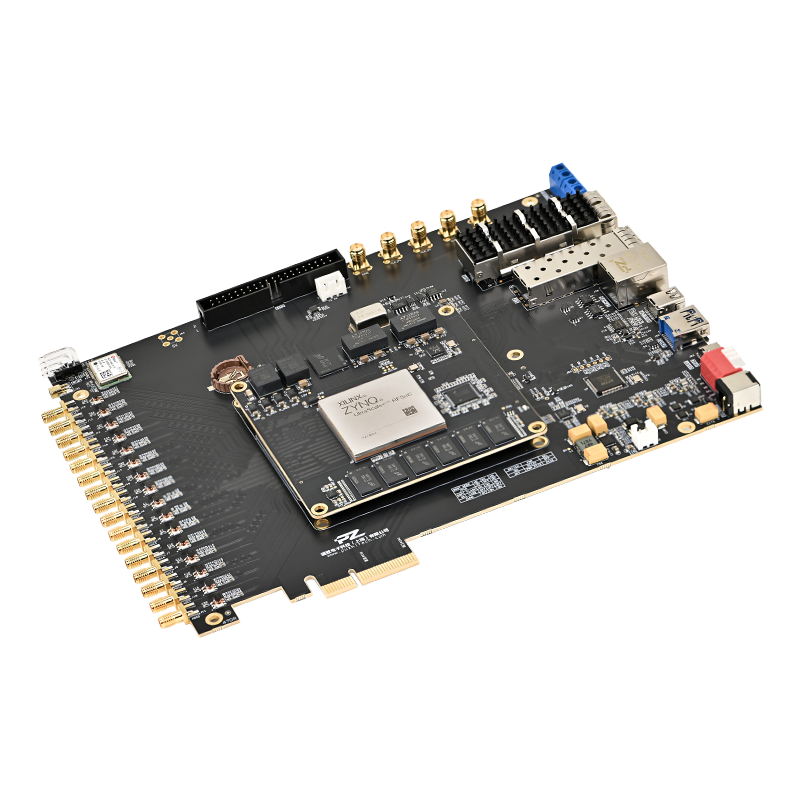

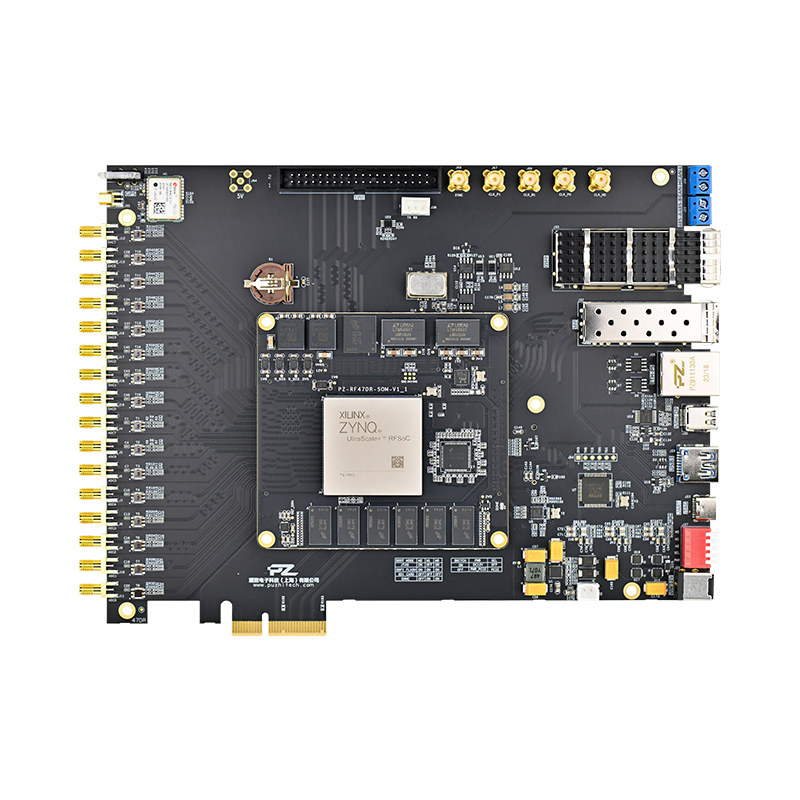

Interface Function Display
Product Parameters

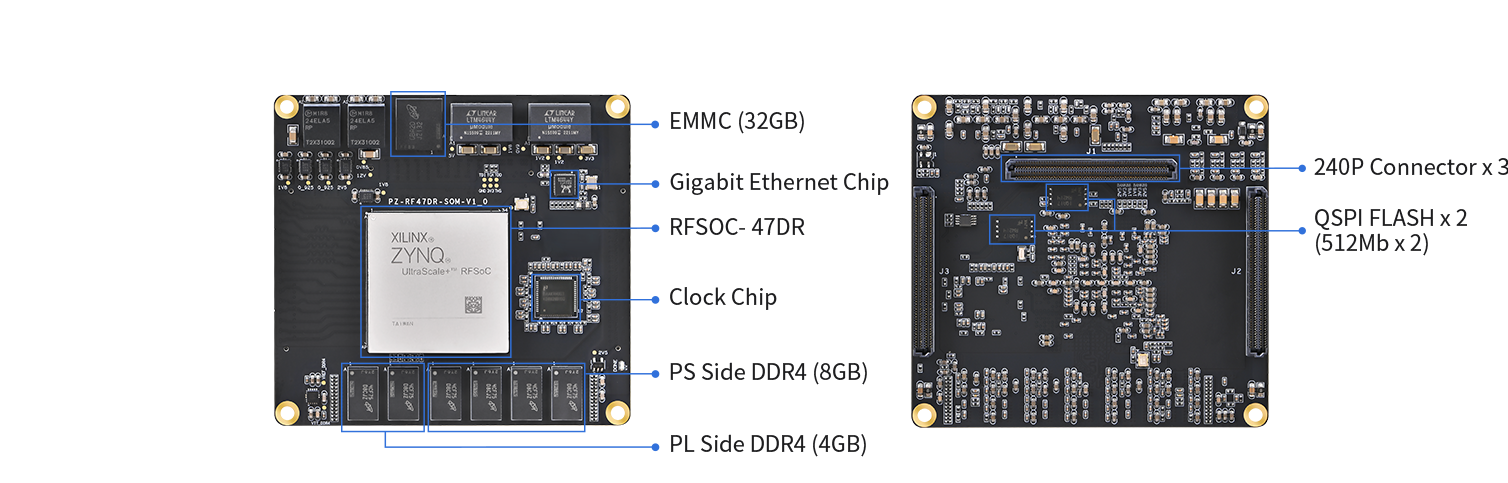

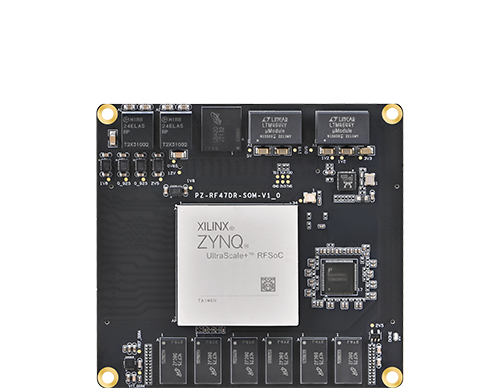

Core Board Main Parameters
FPGA Dev. Board | PZ-ZU47DR-KFB |
FPGA Chip | XCZU47DR-2FFVE1156I |
Processor Core | ARM : 4 x Cortex-A53 1.333Ghz RPU : 2 x Cortex-R5 533Mhz |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 930K |
Lookup Tables | 425k |
DSP Slices | 4272 |
BLOCK RAM | 38Mb |
DDR4 | PS Side 8GB 2400Mhz*64bit / PL Side 4GB 2400Mhz*32bit |
QSPI FLASH | 2 Channel (QSP0+QSPI1)/512Mb per Chip, 1Gb Total |
EMMC | 32GB, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI/SD/EMMC, Onboard DIP Switch Selection |
ADC Channel | 8 Channels / Sample Rate 5Gsps |
DAC Channel | 8 Channels / Sample Rate 9.85Gsps |
PS Side GTR Interface | 4 Paris of TX/RX |
PL Side GTY Interface | 8 Paris of TX/RX |
Number of Expansion IOs | MIO：38 ( Fixed 1.8V ) HD ：44 (1.8/2.5/3.3V adjustable, default 3.3V) |
Crystal Oscillator | Single-ended Crystal 33.3333MHz for the PS Differential Crystal 200MHz for the PL 1个专用时钟芯片给ADC/DAC/GT提供时钟 |
Core Board Form Factors | 3.54 inch x 3.35 inch (90mm x 85mm) |
Interfaces and Function
JTAG Downloader | 1 |
UART/RS485/CAN | 1/1/1 |
SD Card Slot Interface | 1 |
PS Side SSD | 1 |
Gigabit Ethernet | PS Side 1 |
Mini DP Output | 1 |
USB3.0 Master-Slave Port | 1 |
SD Card Interface | 1 |
QSFP28 Interface | 1/100G |
SFP Interface | 1/10G |
PCIE3.0 | x 4 Interface |
Voltage / Current | 12V/3A |
Board Form Factors | 8.58 inch x 6.52 inch (218mm x 158mm) |
Technology | Black Matte, Immersion Gold Process |
40Pin Expansion Port | Total of 28 signals Including 5V power supply , 3V power supply 6 Ground, 28 IOs |

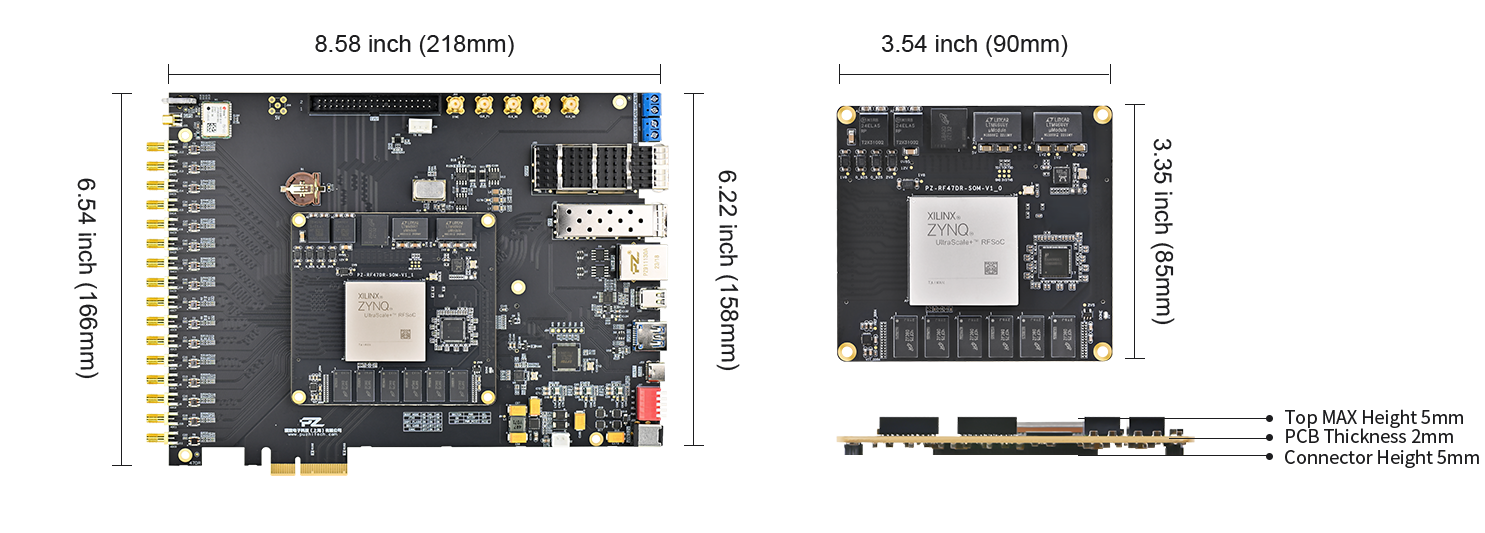

Product Dimensions
Product Packages
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
- 1
FPGA Logic Demos
- 01.
Vivado Installation
- 02.
FLASH Curing
- 03.
LED Flashing
- 04.
PWM Control of LED
- 05.
FPGA on-chip RAM Read and Write
- 06.
FPGA on-chip ROM Read and Write
- 07.
FPGA on-chip PLL Configuration
- 08.
FPGA on-chip FIFO Usage
- 09.
DDR4 Control Read and Write on the FPGA Side
- 10.
I2C Read and Write E2PROM
- 11.
Gigabit UDP based on RTL8211
- 12.
SFP Bit Error Rate Test
- 13.
SFP Auraro 8B/10
- 01.
- 2
SDK Demos
- 01.
Uart
- 02.
TTC Timer Interrupt
- 03.
EMIO Control LED Flashing
- 04.
DP Interface Display
- 05.
Custom IP
- 06.
RS485
- 07.
CAN
- 08.
I2C Communication
- 09.
Gigabit Ethernet (NET0 MIO)
- 10.
Gigabit Ethernet UDP Remote Upgrade
- 11.
DDR4 Read and Write
- 12.
EMMC Read and Write
- 13.
AXI-DMA Read and Write
- 14.
SD Card Read and Write
- 15.
PL side Gigabit Ethernet Communication
- 16.
PCIE Demos
- 01.
- 3
PetaLinux Demos
- 01.
Introduction to Virtual Machine and Ubuntu System
- 02.
Petalinux Tool Installation
- 03.
SD Card to Start the Linux System
- 04.
GPIO control LED
- 05.
QSPI Curing and Startup
- 06.
EMMC Curing and Startup
- 07.
NVME SSD Read and Write
- 08.
Linux Common Commands
- 01.
- 4
RF Demos
- 01.
Clock LMK04828 Demos
- 02.
RF Transceiver Demos
- 01.
- 5
PCIE Topics
- 01.
PCIE Read/Write Speed Test
- 02.
PCIE's Access to DDR
- 03.
PCIE Control GPIO
- 01.
- 6
Supports PYNQ

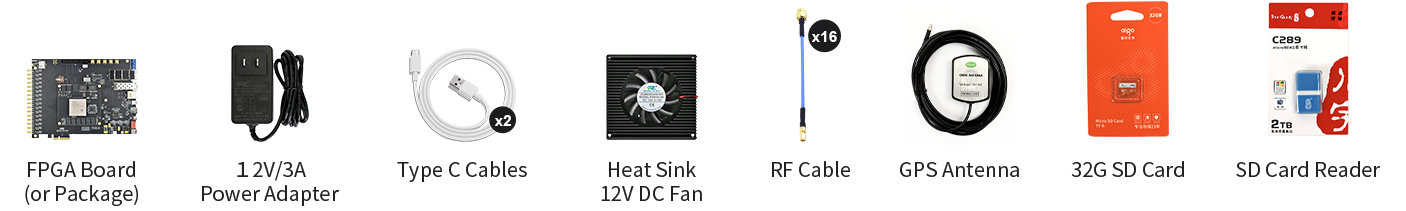

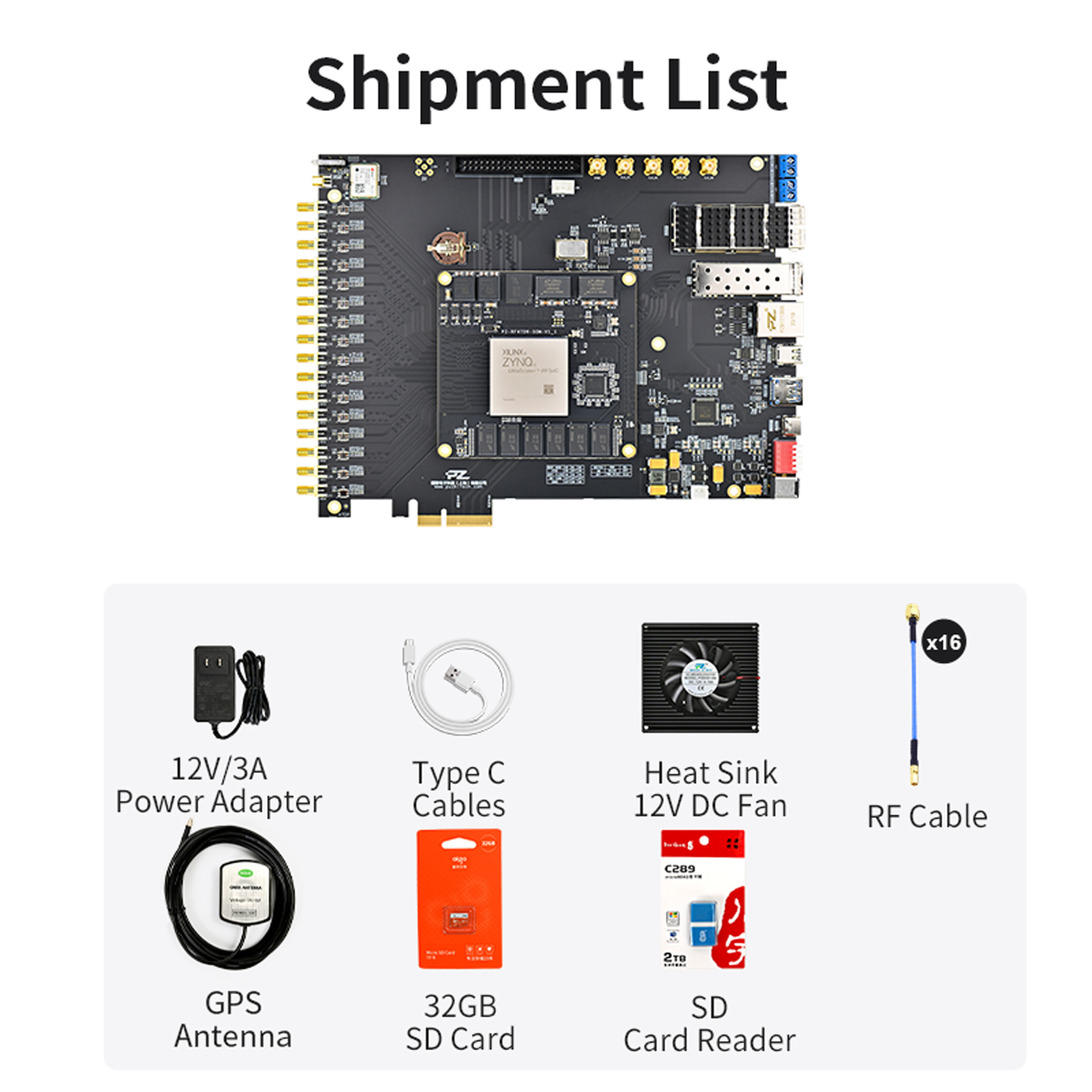

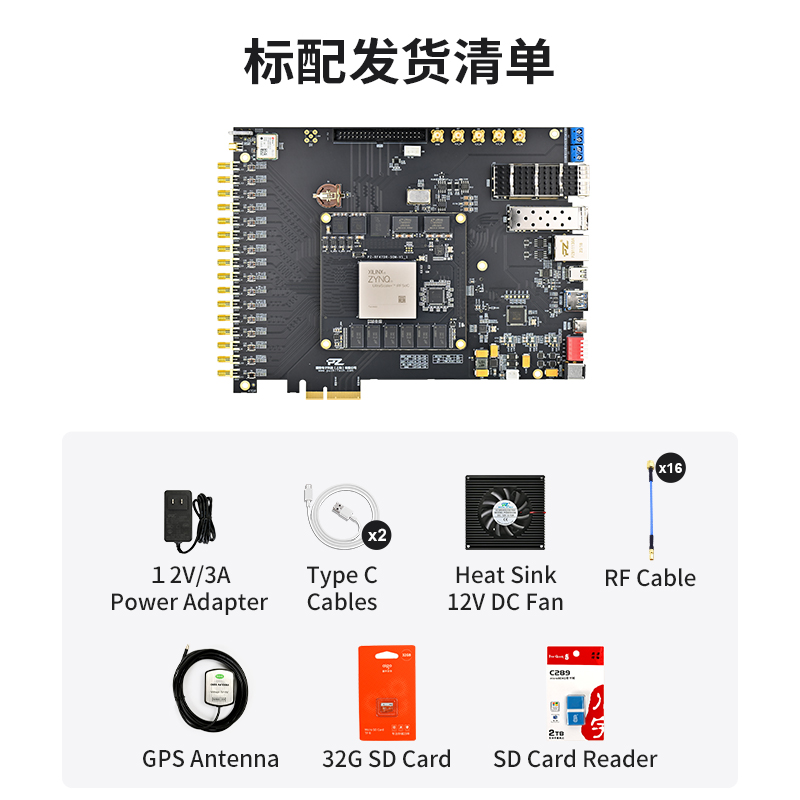

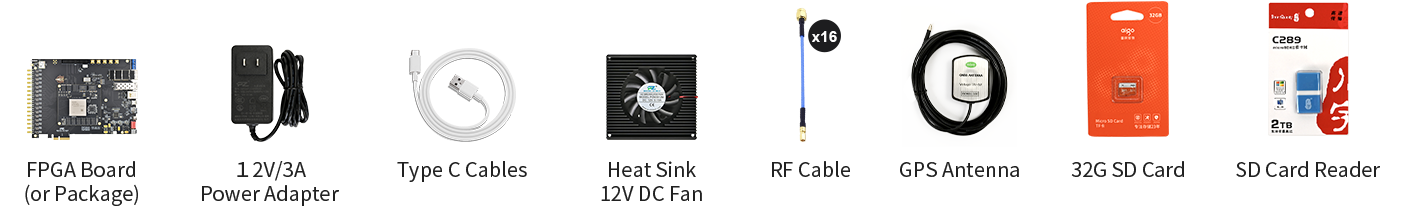

Standard Delivery List
