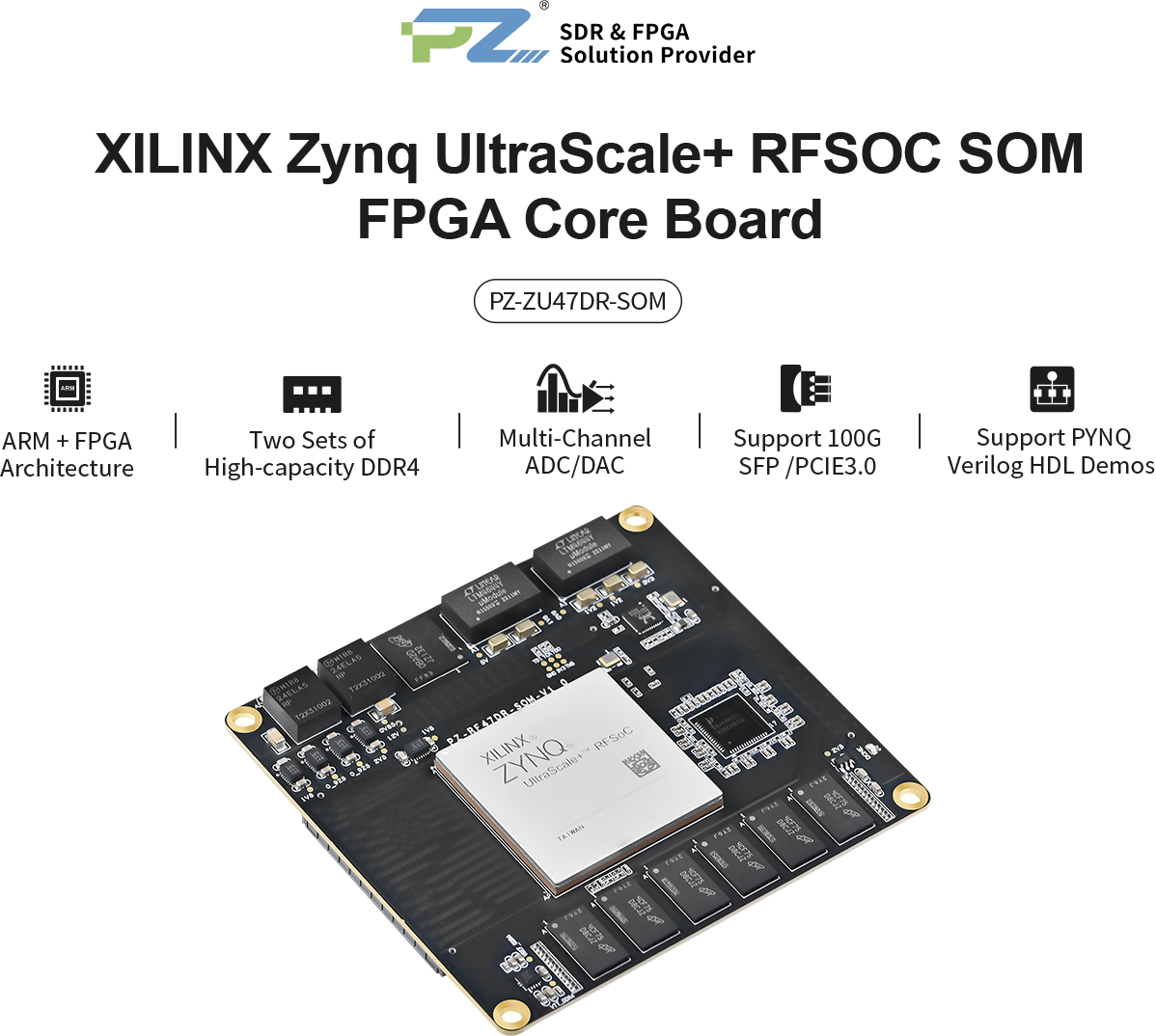

Puzhi FPGA ZYNQ UltraScale+RFSOC ZU47DR Core Board
- ZYNQ UltraScale+RFSOC core board，4 x Cortex-A53，main frequency 1.333Ghz
- PS Side 8GB、PL Side 4GB DDR4，32GB EMMC，512Mb+512Mb QSPIFLASH
- Size 90*85mm，multi-channel ADC DAC，support 100G QSFP
- Extreme material selection and process standards，industrial grade -40℃~+85℃
- Support PYNQ，provide hardware reference & rich routines，help product development

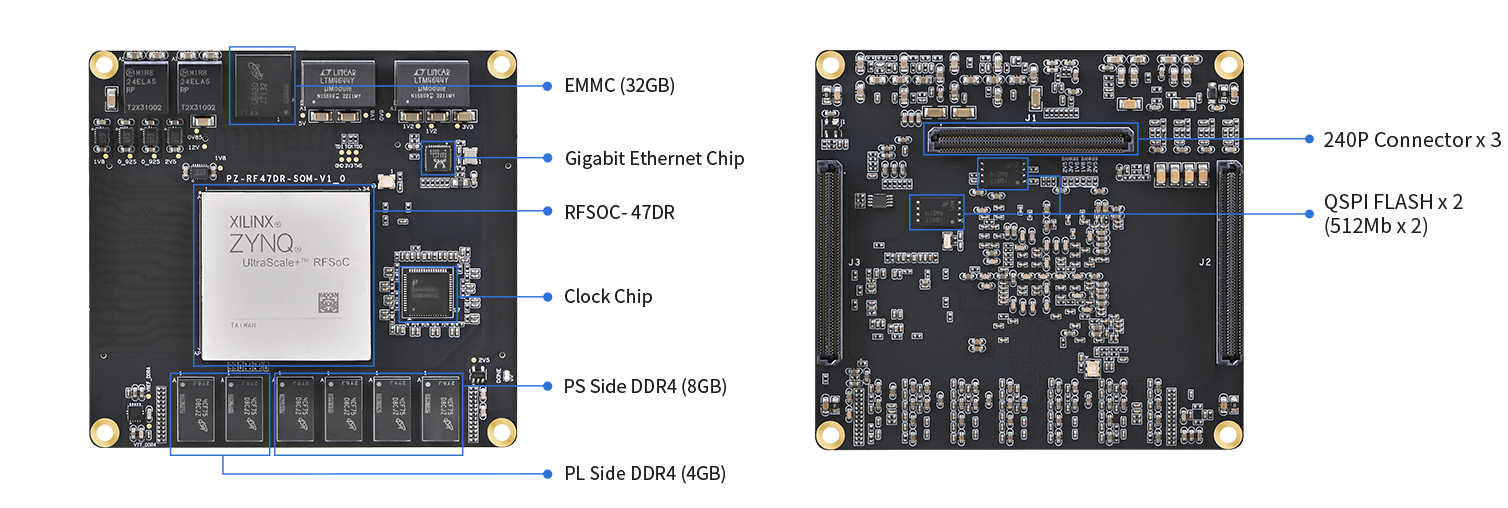

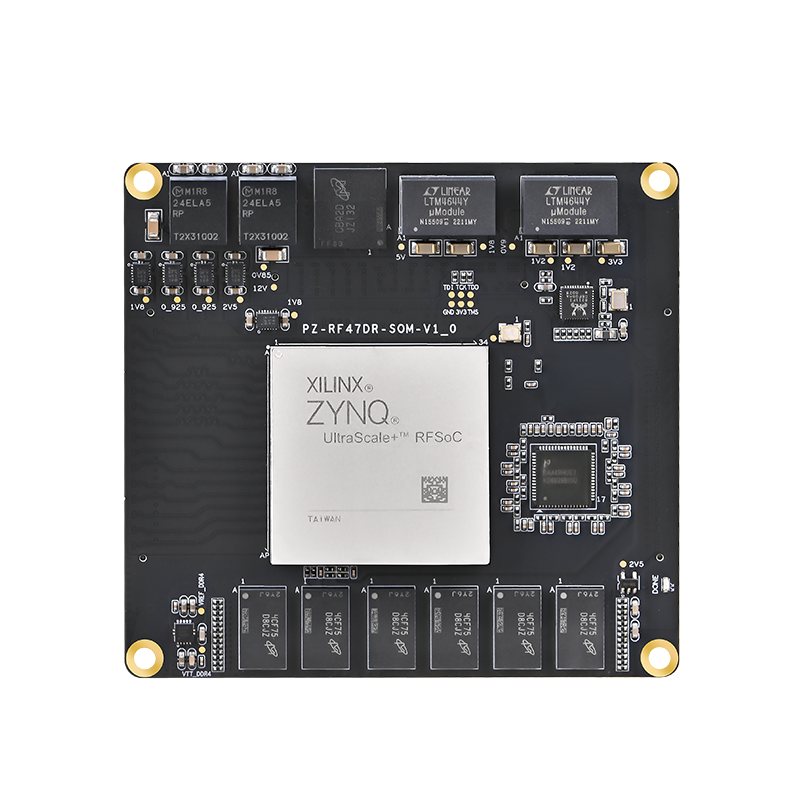

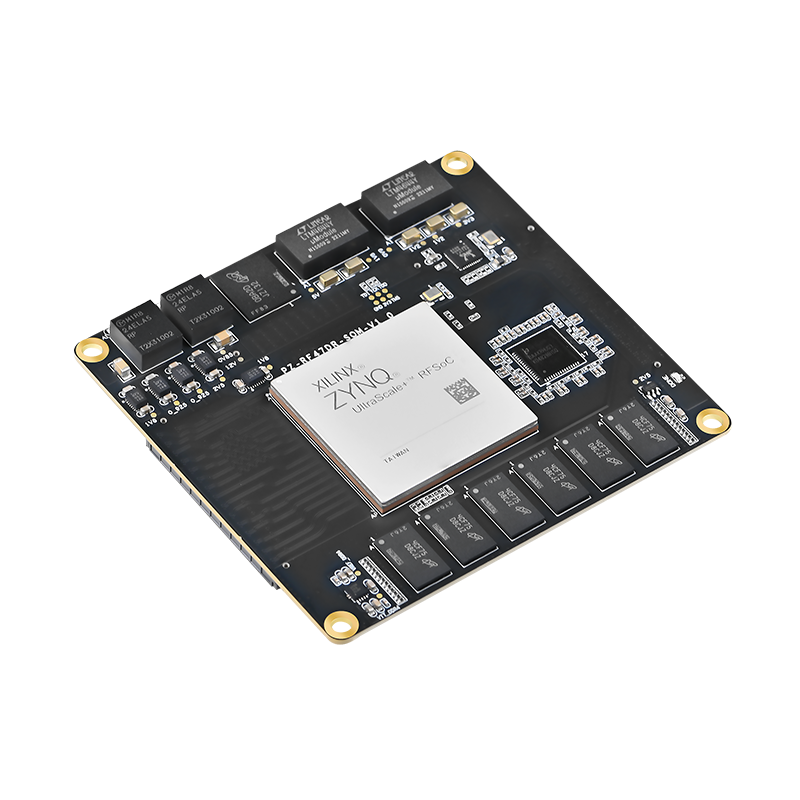

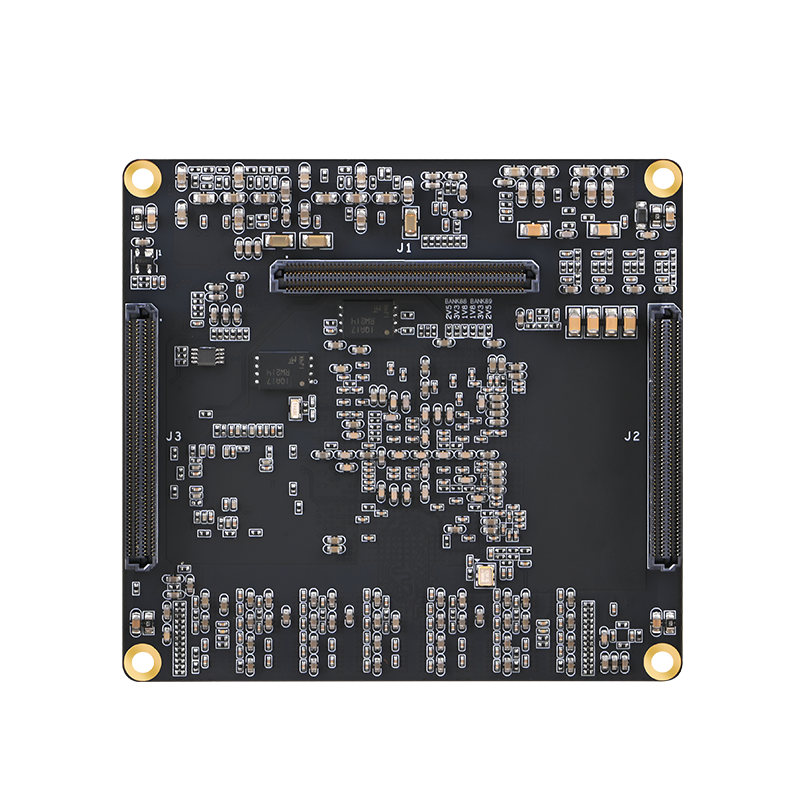

Interface Function Display
Product Parameters
Specification
FPGA Core Board | PZ-ZU47DR-SOM |
FPGA Chip | XCZU47DR-2FFVE1156I |
Processor Core | ARM : 4 x Cortex-A53 1.333Ghz RPU : 2 x Cortex-R5 533Mhz |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 930K |
Lookup Tables | 425k |
DSP Slices | 4272 |
BLOCK RAM | 38Mb |
DDR4 | PS Side 8GB 2400Mhz*64bit / PL Side 4GB 2400Mhz*32bit |
QSPI FLASH | 2 Channel (QSP0+QSPI1)/512Mb per Chip, 1Gb Total |
EMMC | 32GB, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI/SD/EMMC, Onboard DIP Switch Selection |
ADC Channel | 8 Channels / Sample Rate 5Gsps |
DAC Channel | 8 Channels / Sample Rate 9.85Gsps |
Gigabit Ethernet | PS Side 1 |
PS Side GTR Interface | 4 Paris of TX/RX |
PL Side GTY Interface | 8 Paris of TX/RX |
Voltage / Current | 8-12V/5A (Recommended 8V) |
Number of Expansion IOs | MIO: 38 IOs ( Fixed 1.8V ) HD: 44 IOs (1.8/2.5/3.3V adjustable, default 3.3V) |
Clock | One Single-ended 33.3333MHz Crystal for PS One Differential 200MHz Crystal for PL One Dedicated Clock Chip to Provide Clock for ADC/DAC/GT |
Technology | Immersion Gold Process, 0.635mm spacing, 240P Connectors x 3 |
Core Board Form Factors | 3.54 inch x 2.95 inch (90 mm x 85mm) |

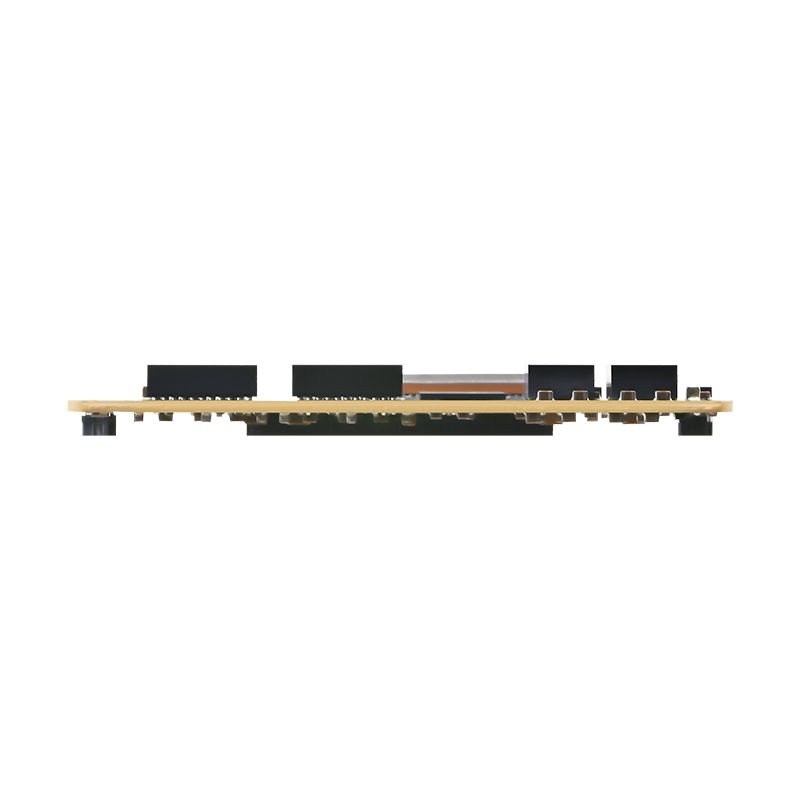

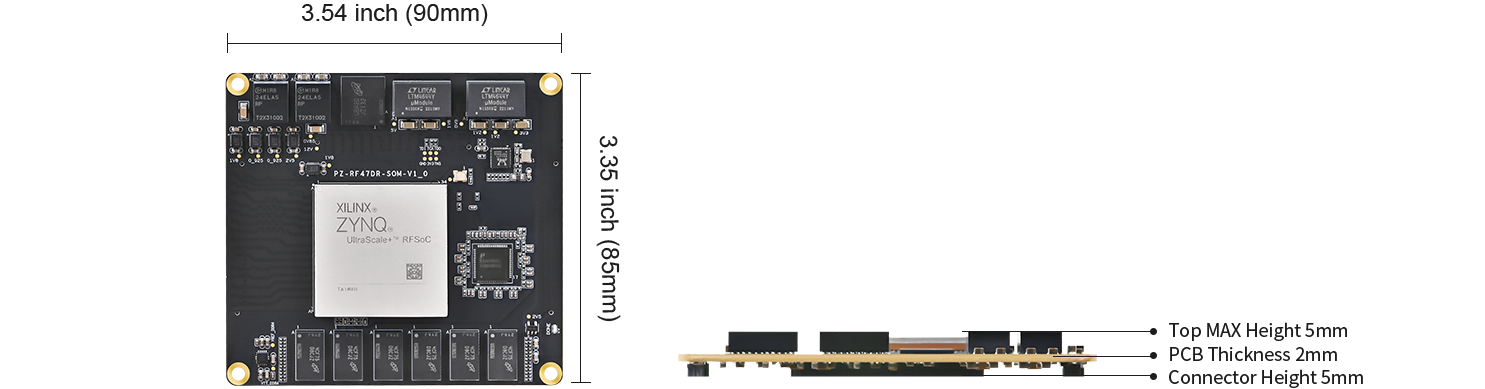

Product Dimensions
Product Packages
Technical Support
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

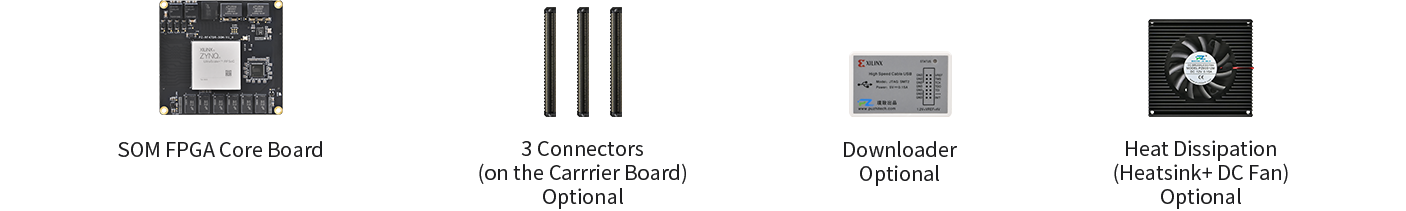

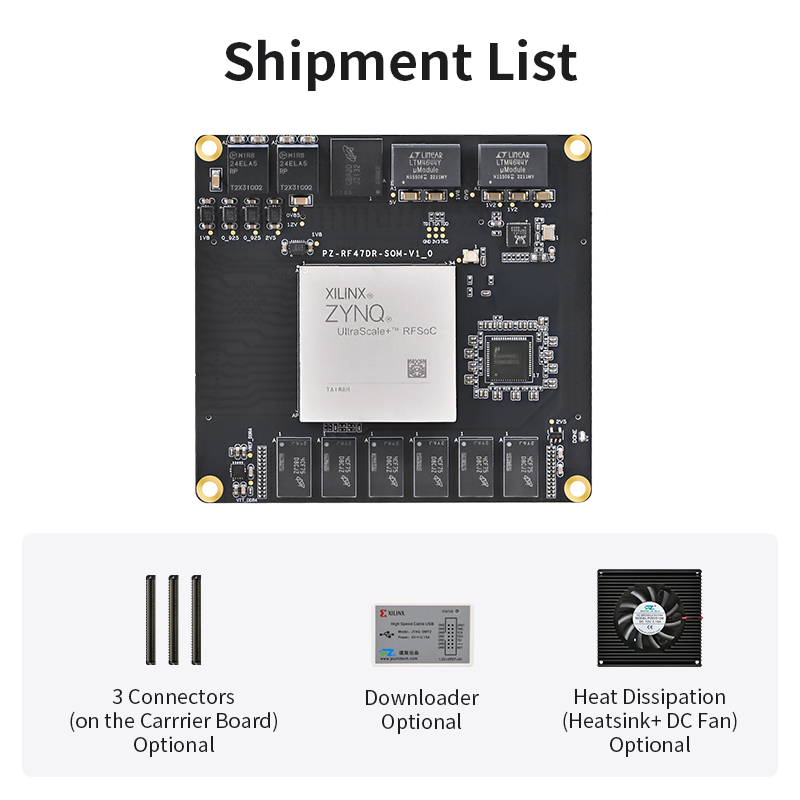

Standard Delivery List
