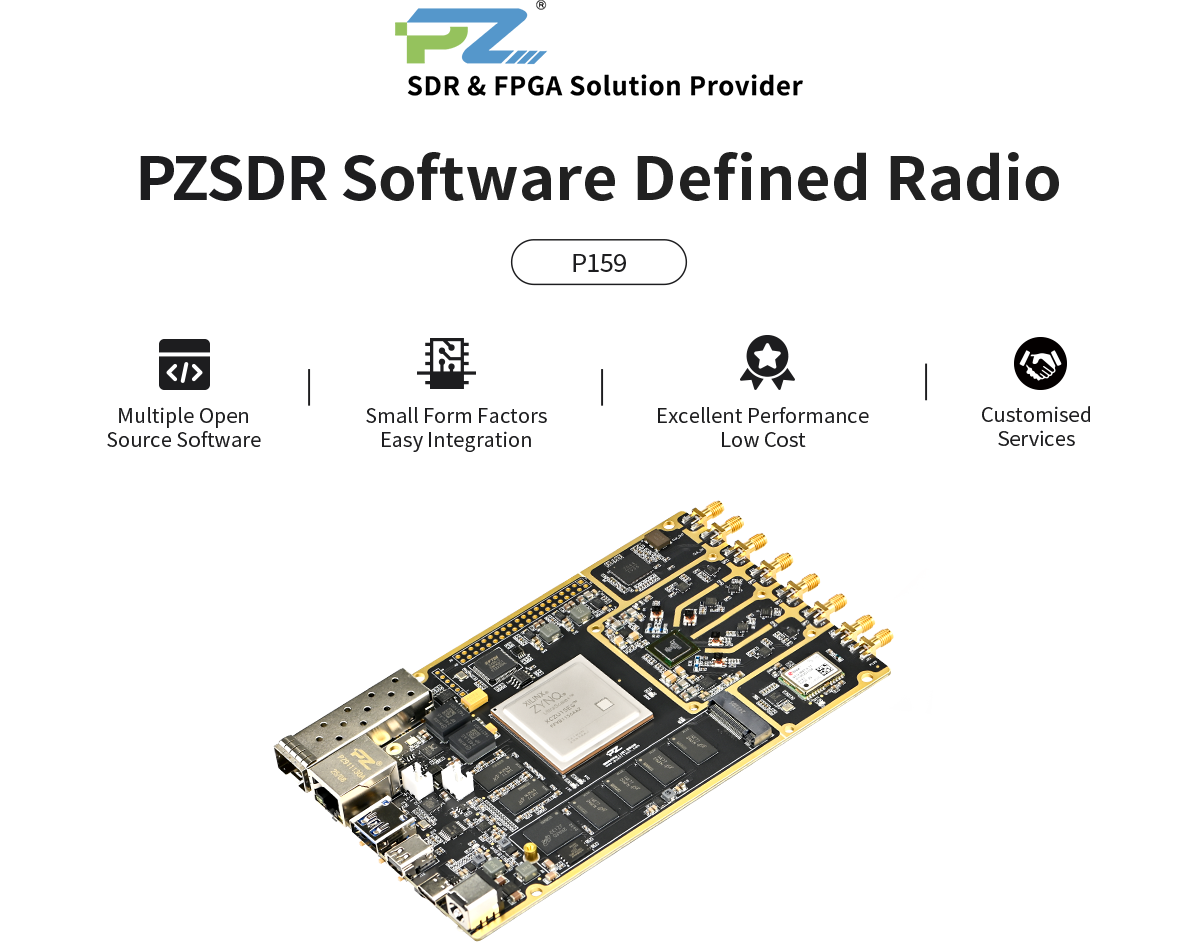

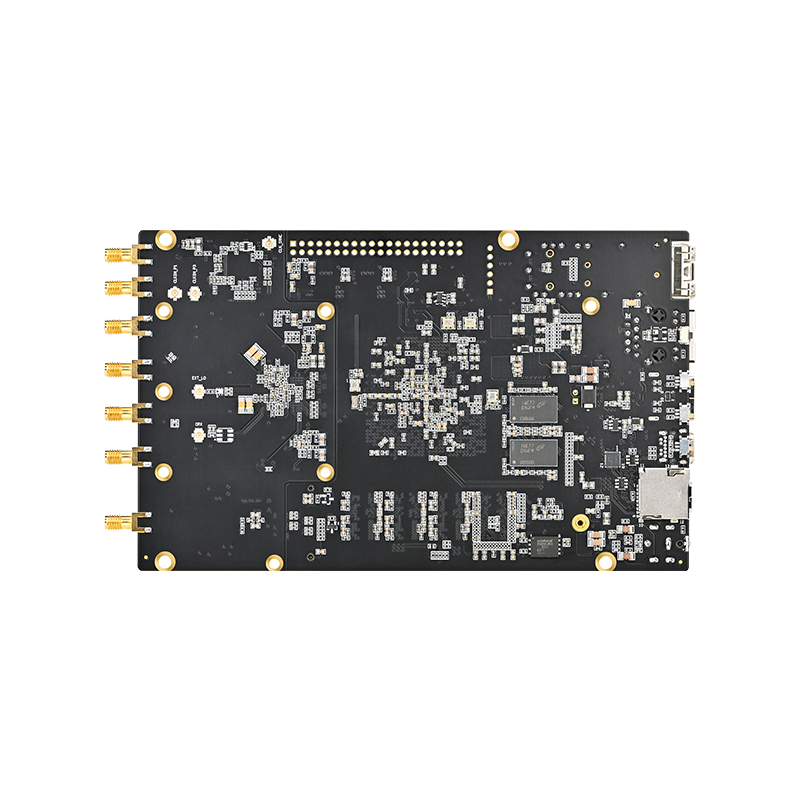

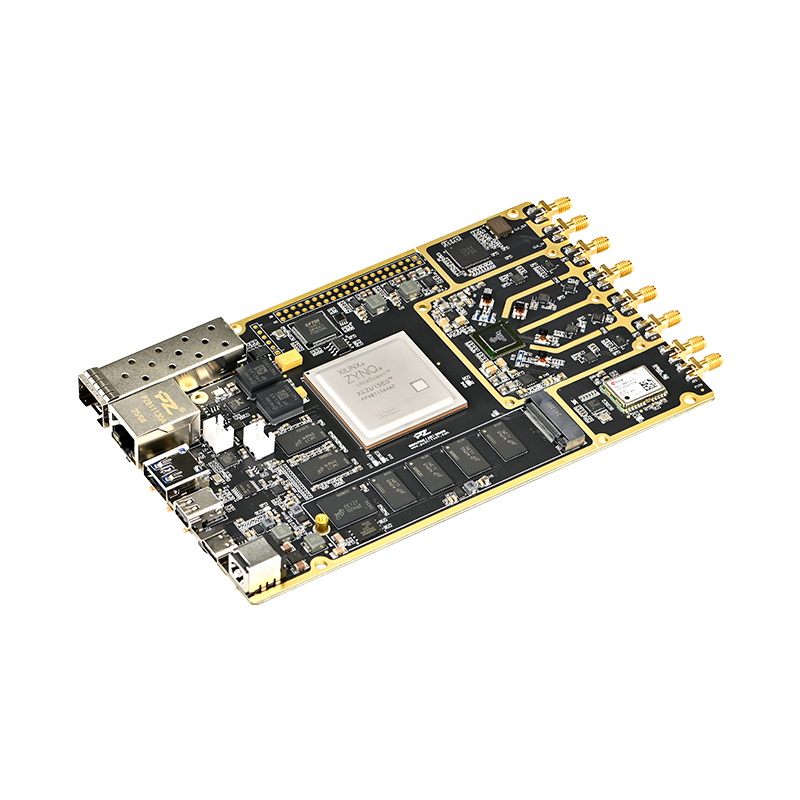

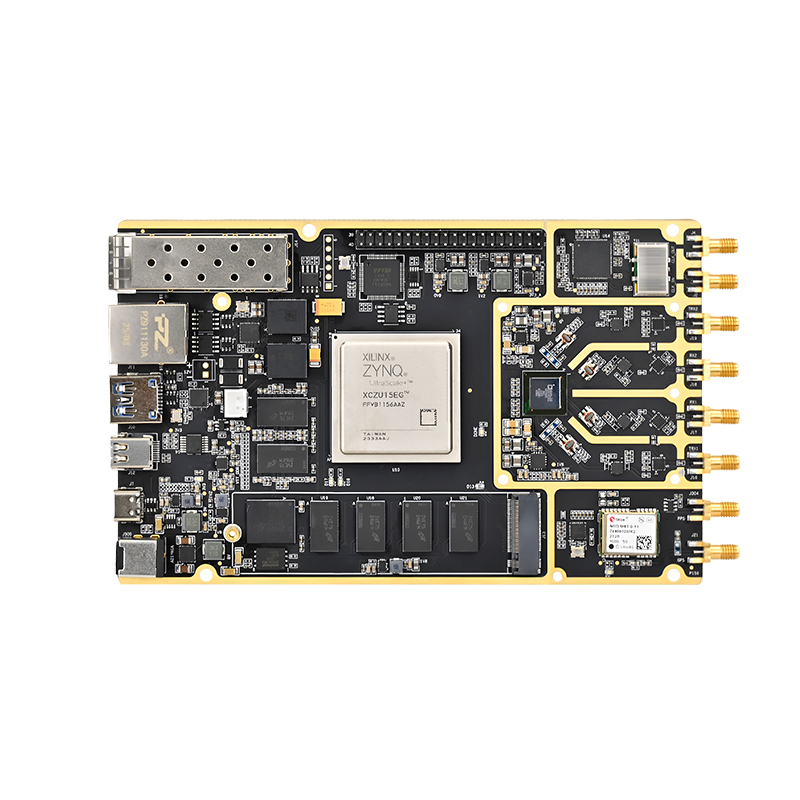

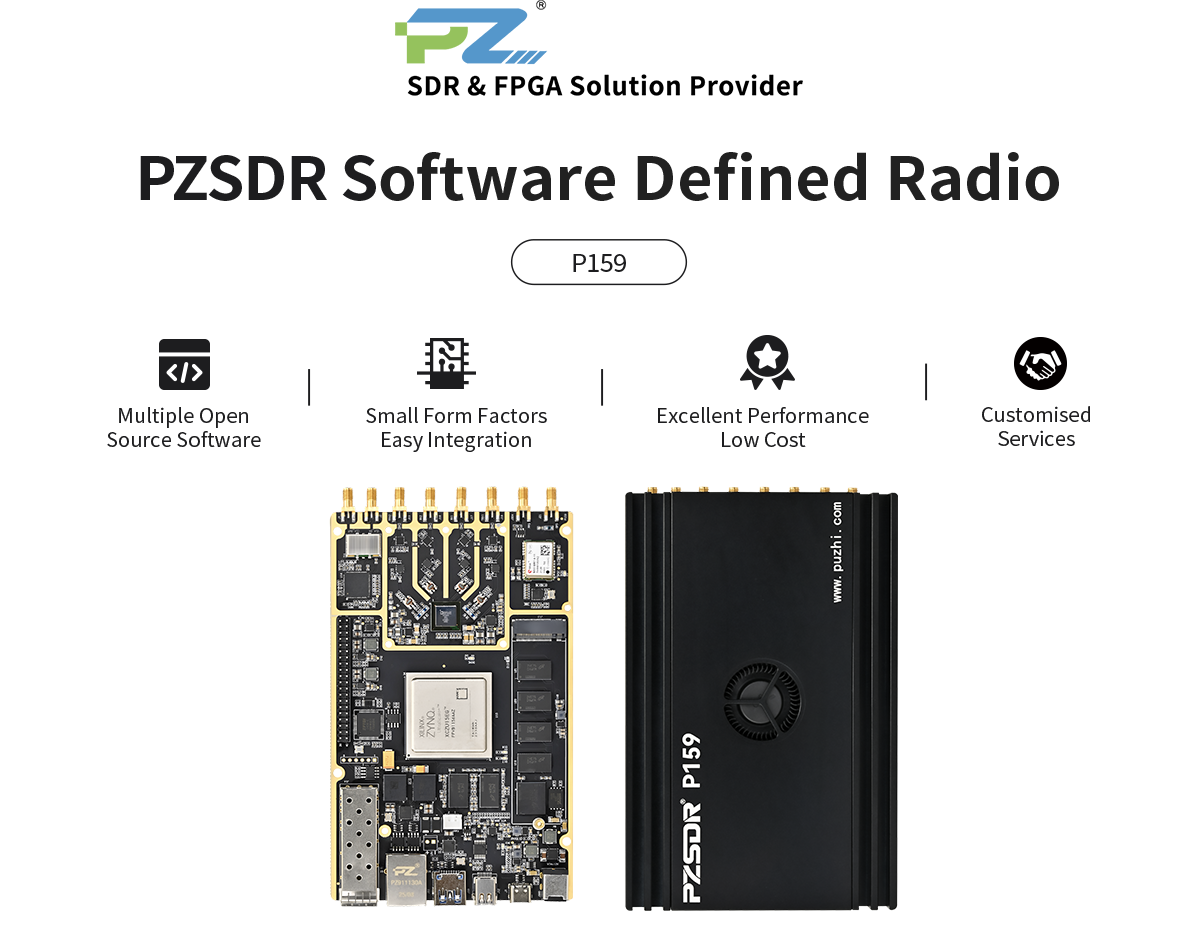

Puzhi PZSDR Software Defined Radio ZU15EG+ADRV9009
- RF chip ADRV9009BBCZ，Coverage Frequency 75MHz-6Ghz
- High bandwidth and high power, both TX and RX support full bandwidth high linearity of 22dbm
- Bits 16bit ADC & 14bit DAC，Support TDD/FDD/MIMO
- Support signal detection and storage，provide upper computer software
- Supports multiple open-source software, small size and easy to integrate, Customised Services

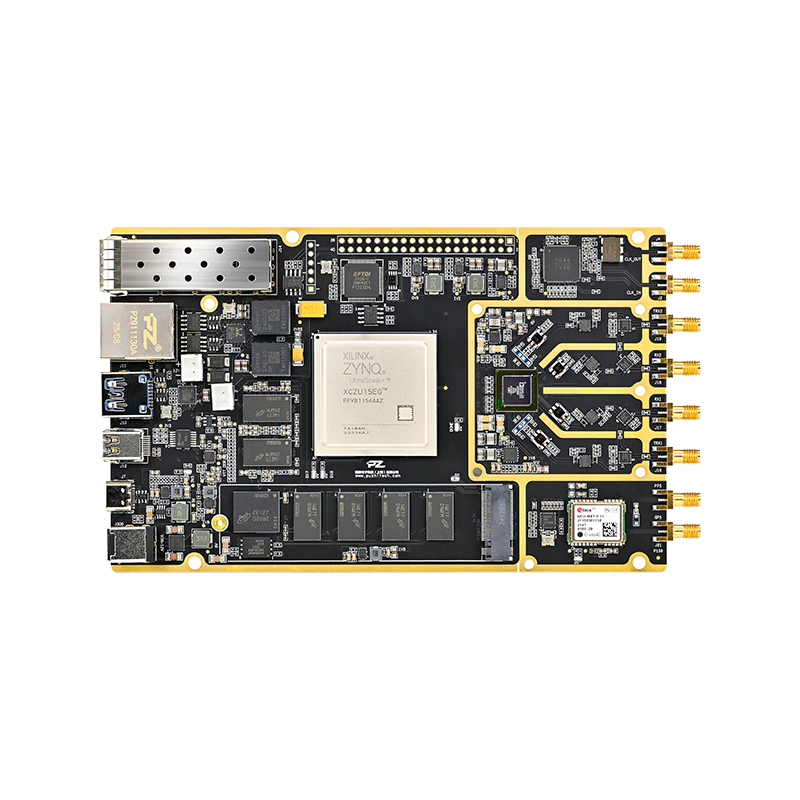

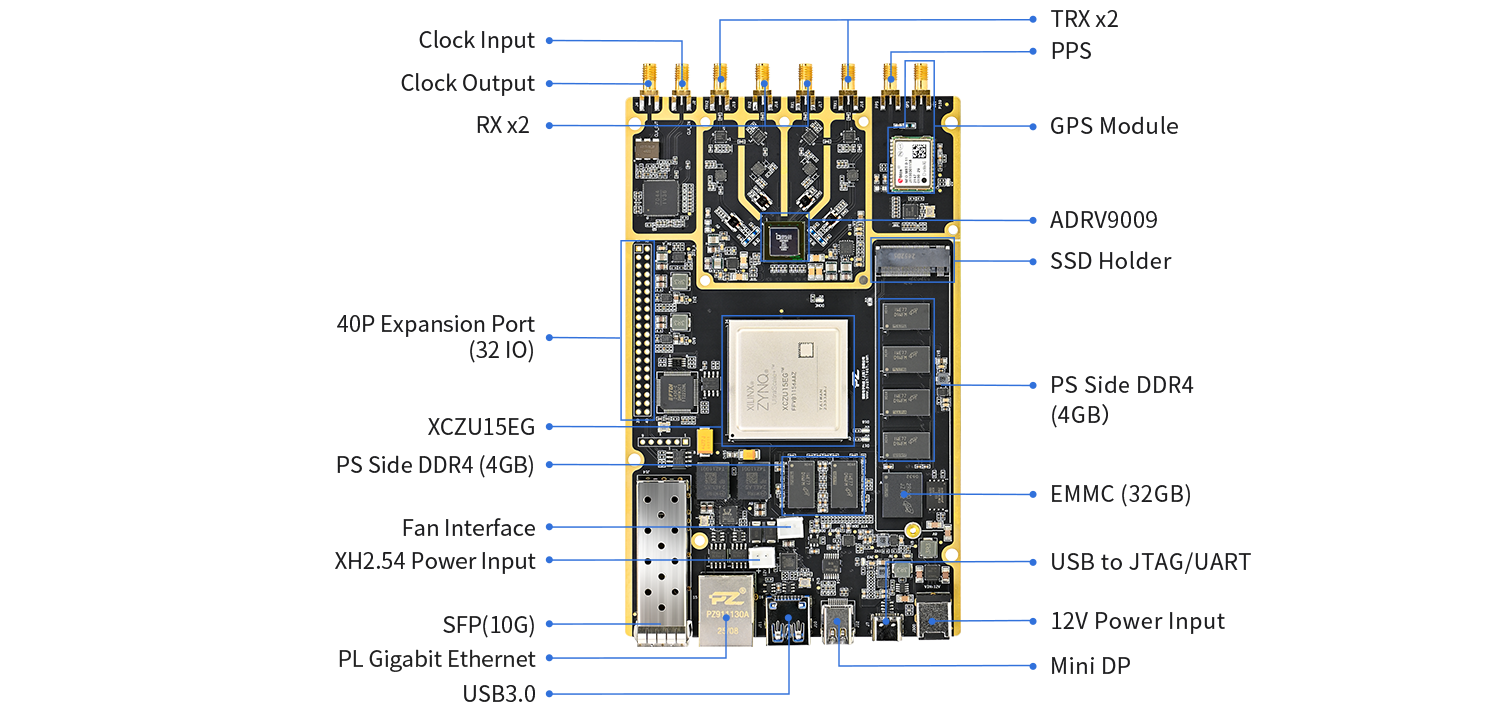

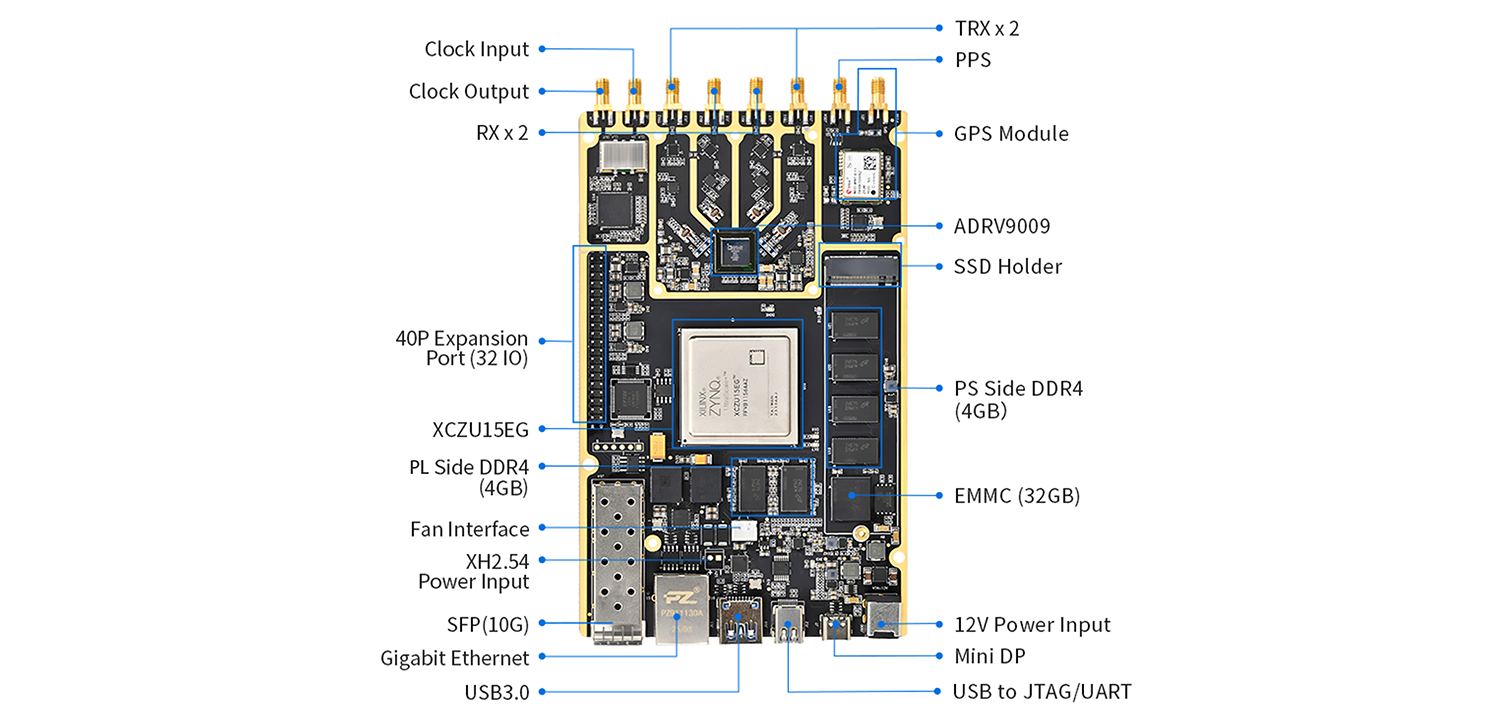

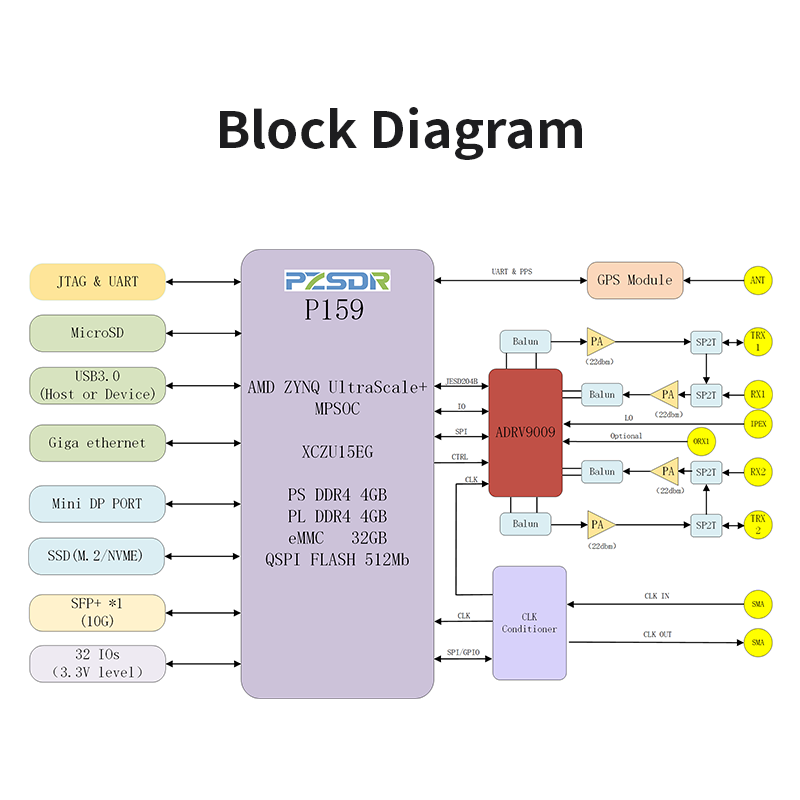

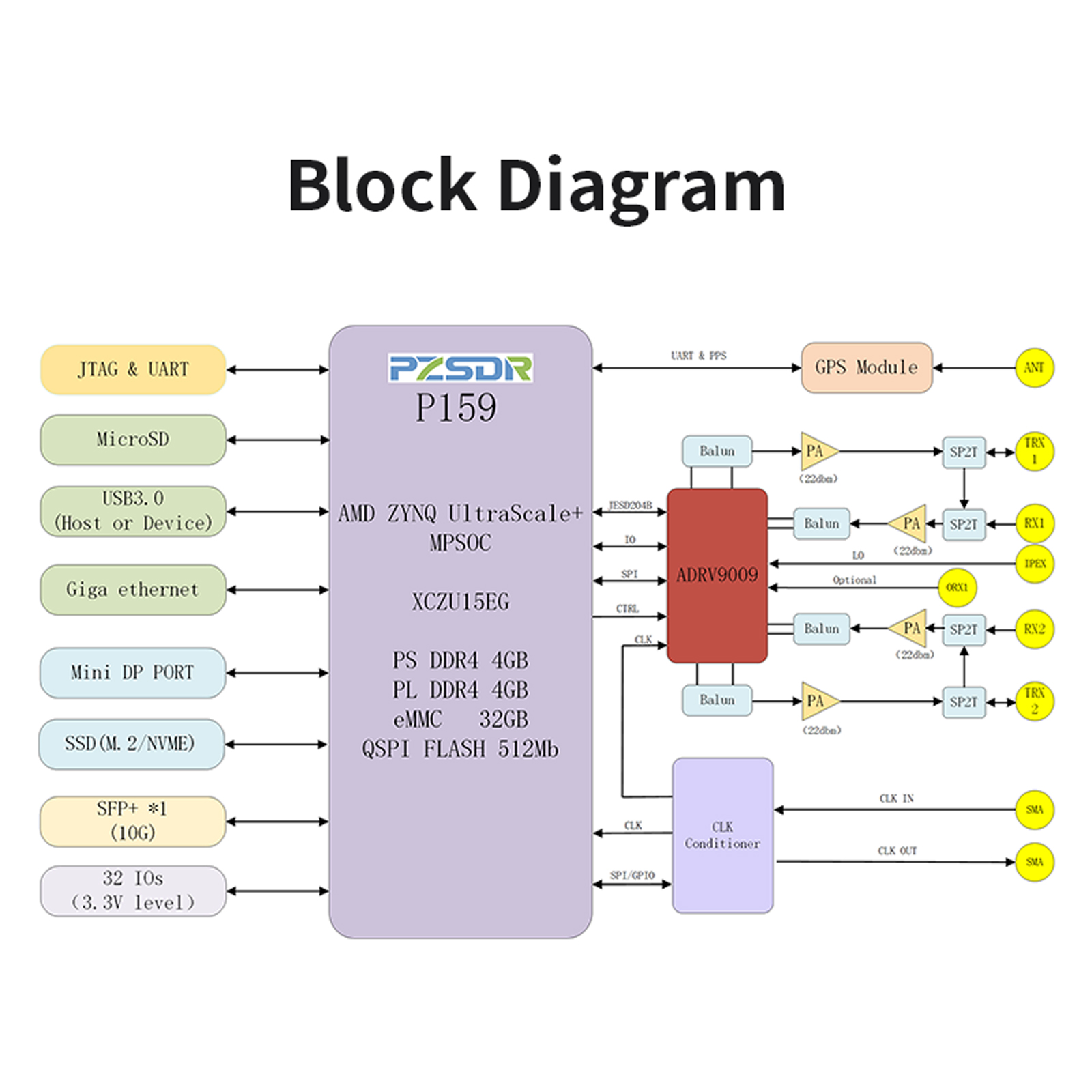

Interface Function Display
Product Parameters
PZSDR Main Parameters
SDR Module | P159 |
RF Chip | ADRV9009BBCZ |
Frequency Range | 75MHz-6Ghz |
Bit Width | ADC 16bit，DAC 14bit |
Signal Bandwidths | TX 450Mhz，RX 200Mhz |
Power Amplifier | TX and RX Support Full Bandwidth High Linearity 22dbm(Maximum Transmit Success Rate 25dbm) |
FPGA Chip | XCZU15EG-2FFVB1156I |
Processor Core | Quad-Core ARM Cortex-A53 (1.333Ghz) Dual-Core ARM Cortex-R5F(533Mhz) |
DDR4 | PS Side 4GB, PL Side4GB |
QSPI FLASH | 256Mb+256Mb |
EMMC | 32GB |
RF Clock | 1 Output, 1 Input |
USB3.0 | 1 |
Gigabit Ethernet | 1 |
Mini DP | 1 |
SSD(Nvme) | 1 |
UART | 1 |
JTAG | 1 |
SD Card Slot | 1 |
GPS | 1 |
Expansion Port IOs | 32 IOs |
Power Supply | 12V/3A |
Working Temperature | -40°C~+85°C |
Form Factors | 6.30 inch x3.94 inch (160 mm x 100mm) |

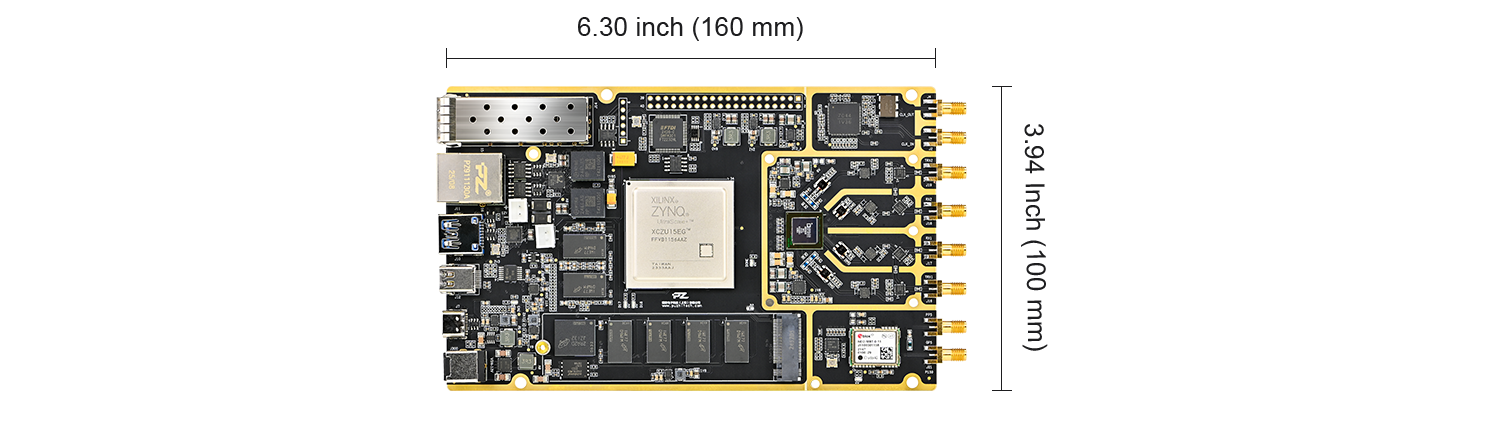

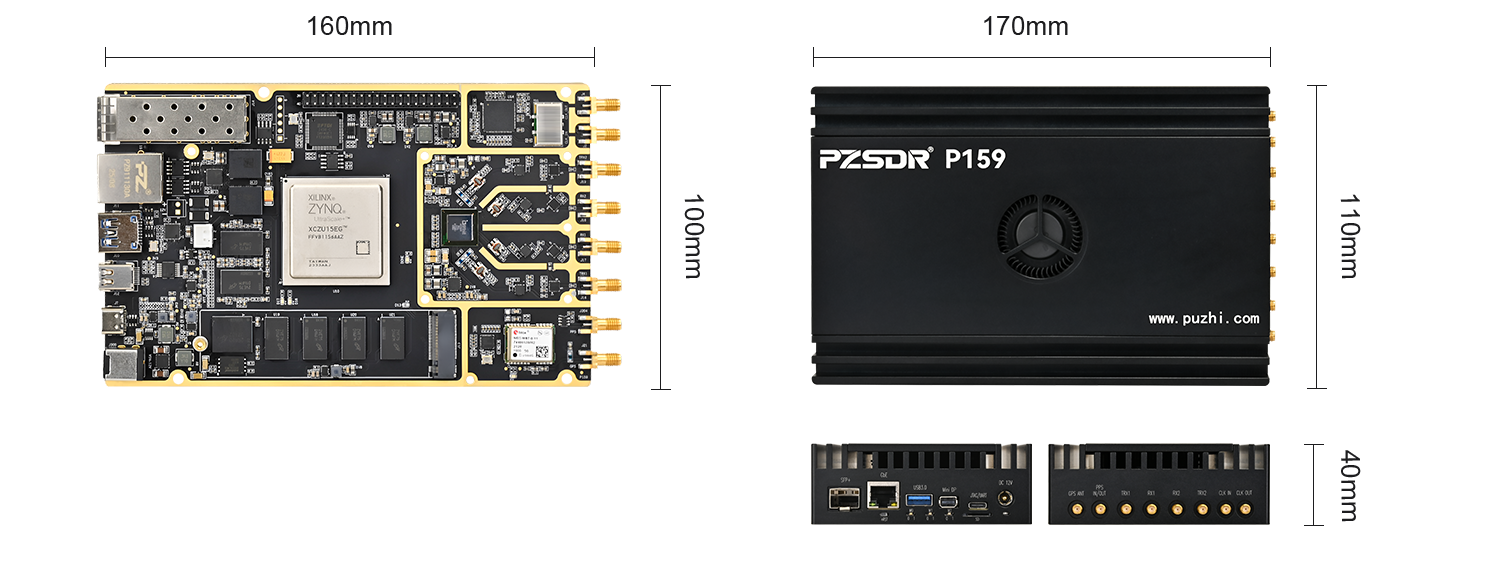

Product Dimensions
Rich Support Resources
Initial Code & Firmware | 1. Bare Metal Test Code 2. FMCOMMS Compatible Firmware |
Open-source Project Support | 1. ADI IIO-oscilloscope 2.Spectrometer Upper Computer Software |
Software Support | 1. libiio 2. ADI IIO-oscilloscope 3.Upper Computer Acquisition and Processing Software |

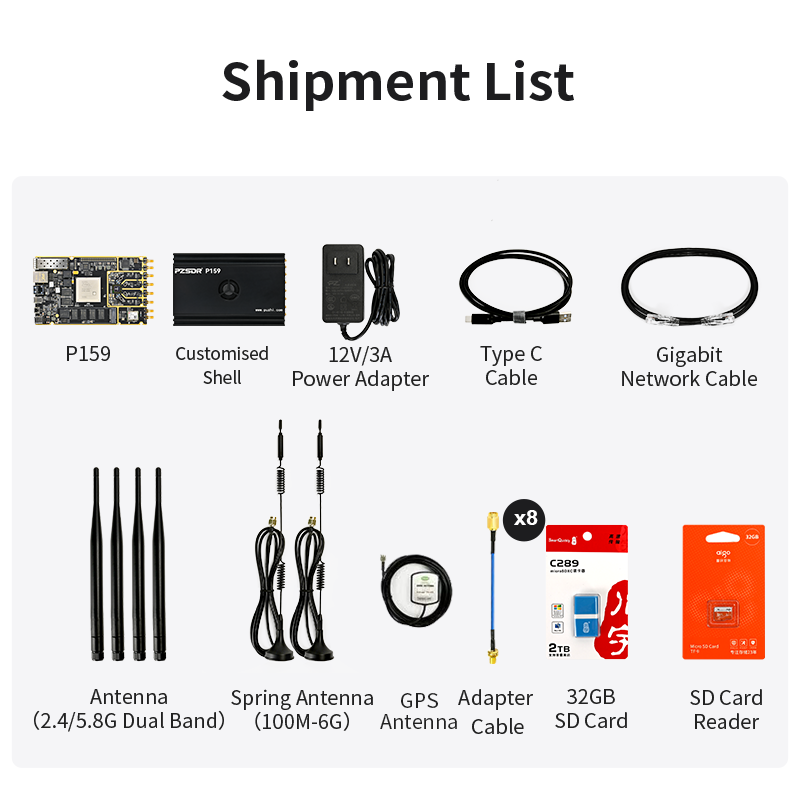

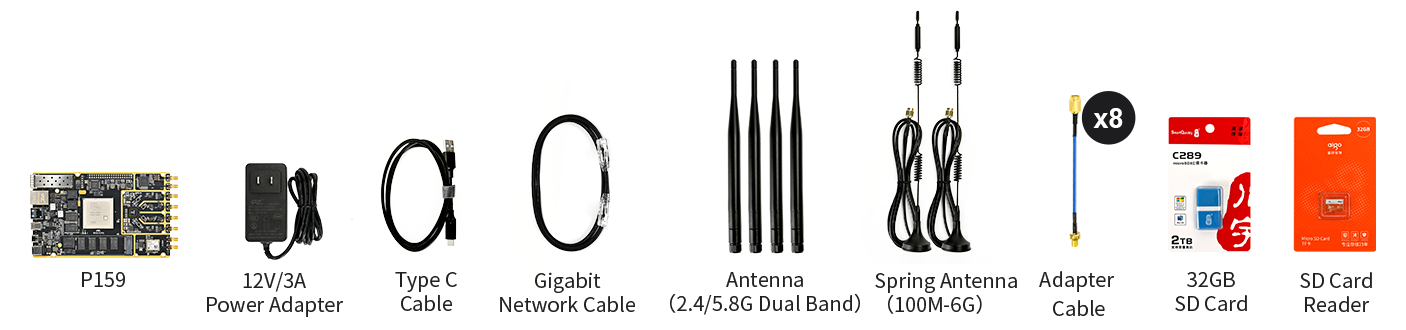

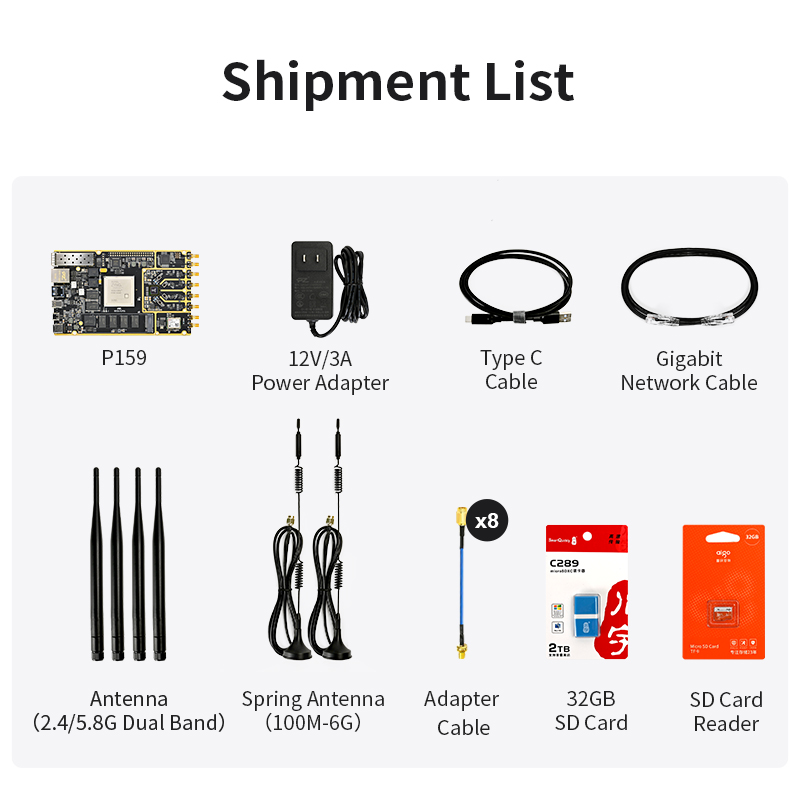

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
