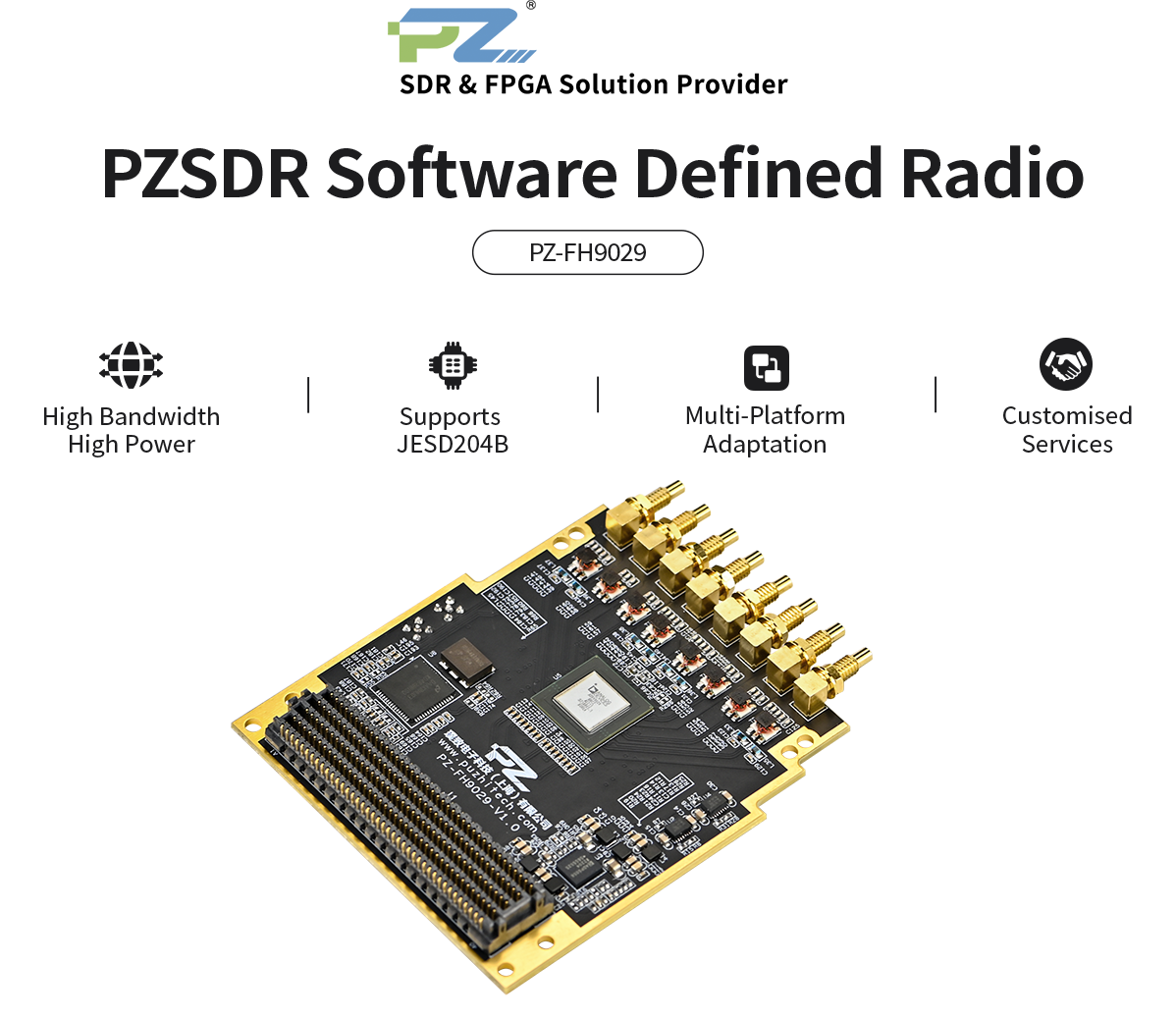

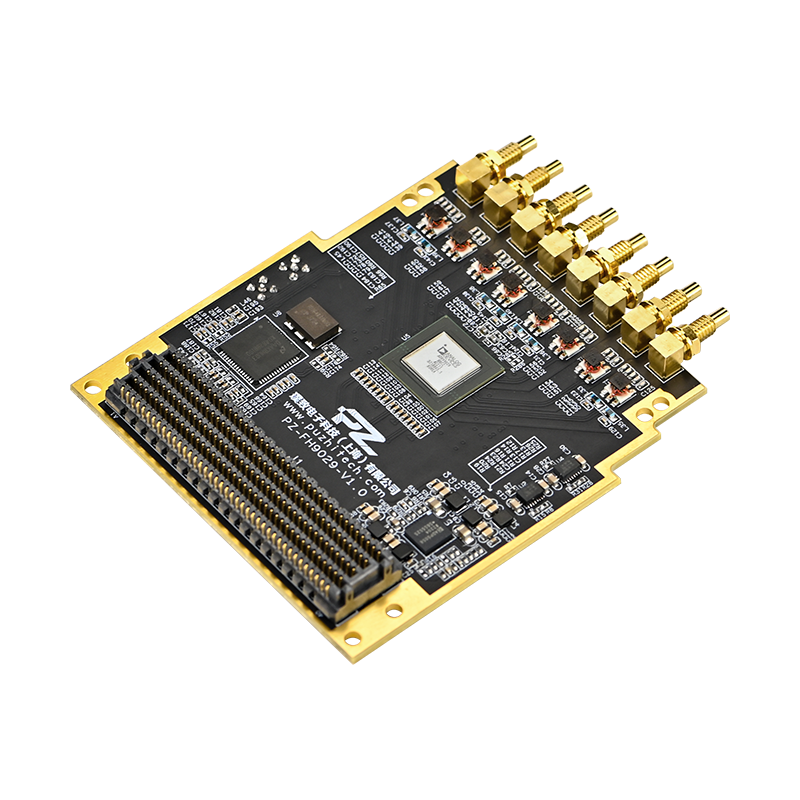

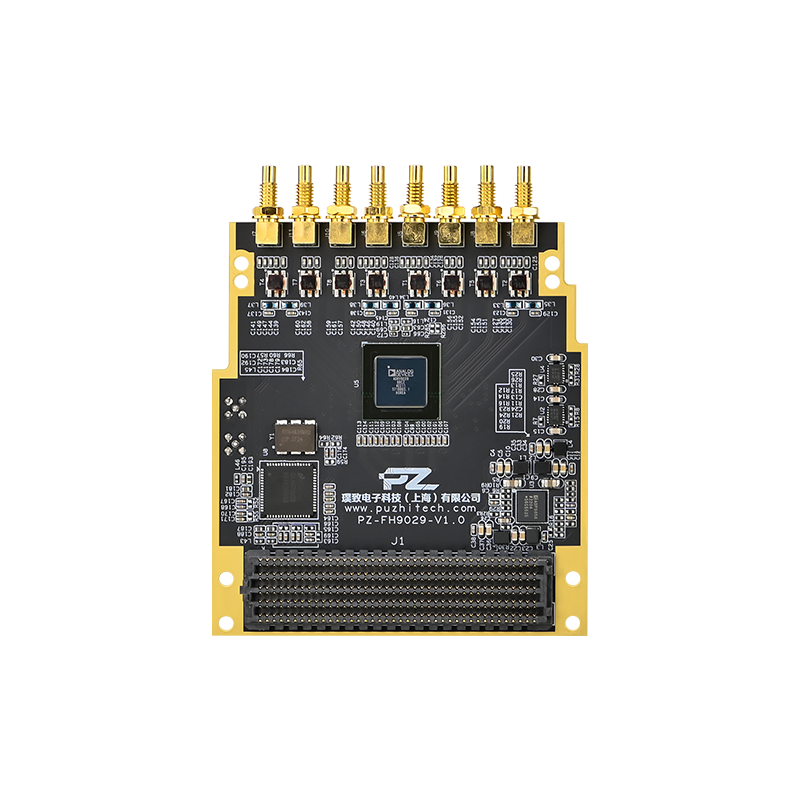

Puzhi PZSDR Software Defined Radio ADRV9029 16bit ADC & 14bit DAC
- RF chip ADRV9029，Coverage Frequency 75MHz-6GHz
- High Bandwidth High Power，with transmission up to 450MHz and reception up to 200MHz
- Bits 16bit ADC & 14bit DAC，RF channels 4TX/4RX
- Support JESD204B，Support Customised Services
- Standard FMC-HPC interface，multi-platform adaptation

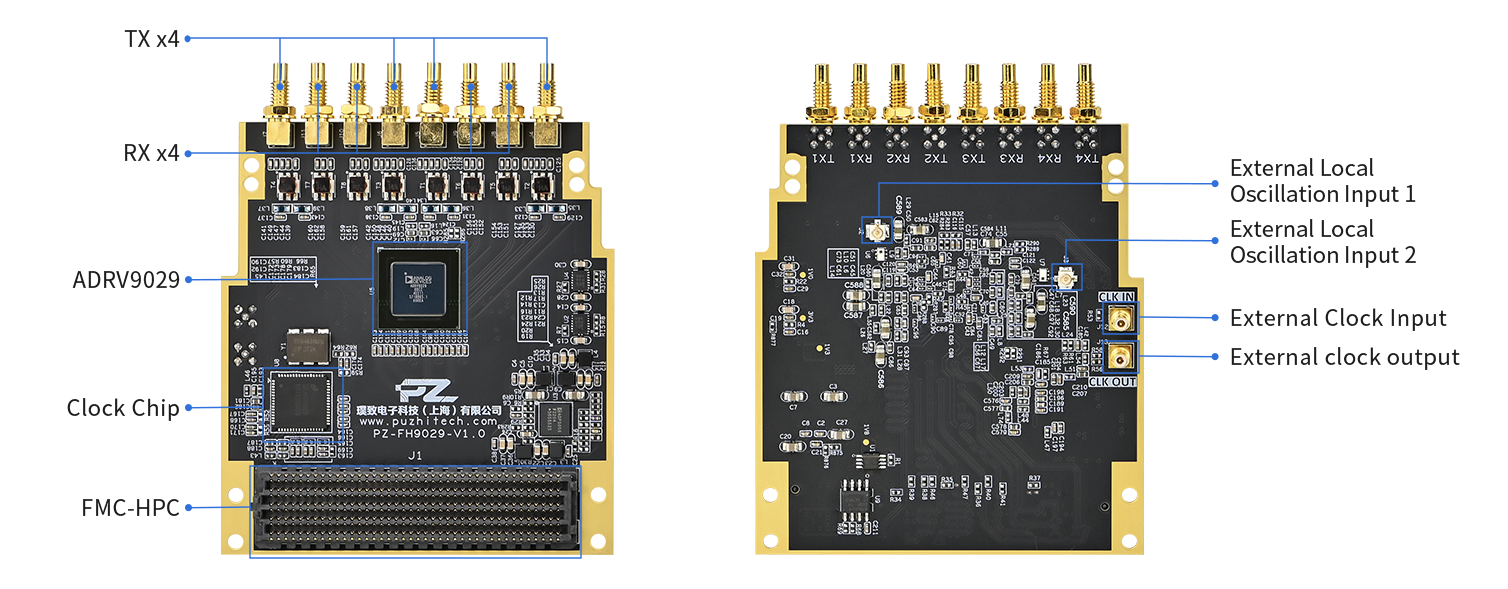

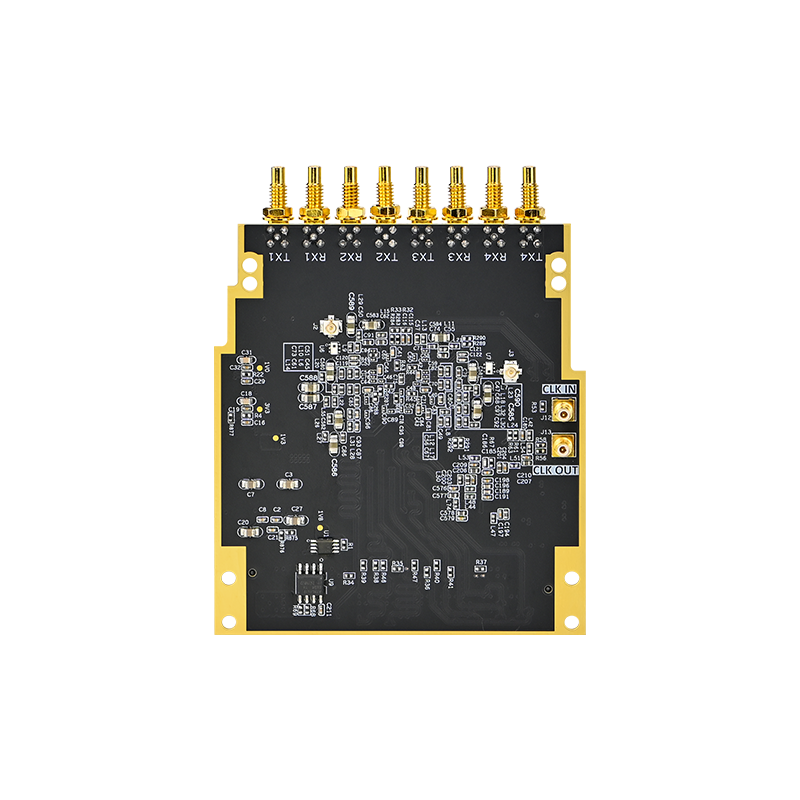

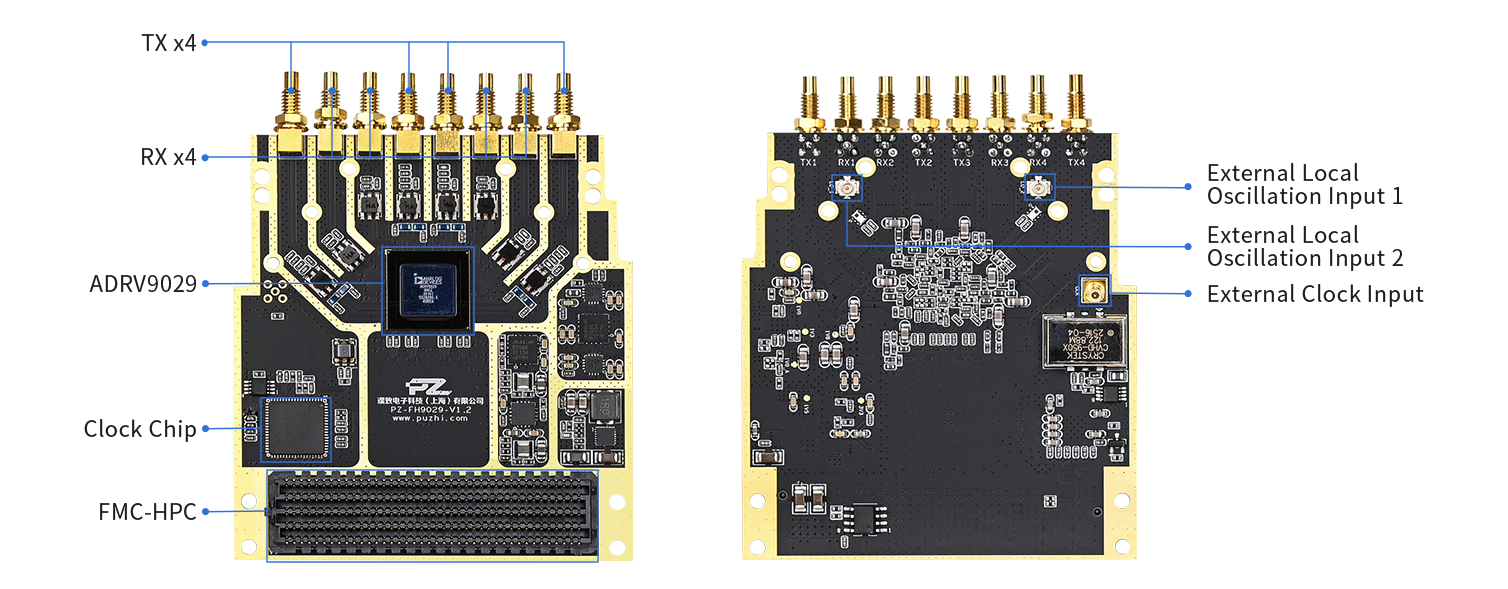

Interface Function Display
Product Parameters
PZSDR Main Parameters
FMC Module | ADRV9029 |
Bits | 16bit ADC & 14bit DAC |
Number of RF channels | 4TX/4RX |
Coverage Frequency | 75MHz-6GHz |
Bandwidths | Transmit up to 450MHz, Receive up to 200MHz |
Digital Interface | JESD204B |
Clock | On-board Clock or External Input Clock |
FMC Interface | HPC |
Form Factors | 2.72 inch x 3.01 inch (69mm x 76.5mm) |

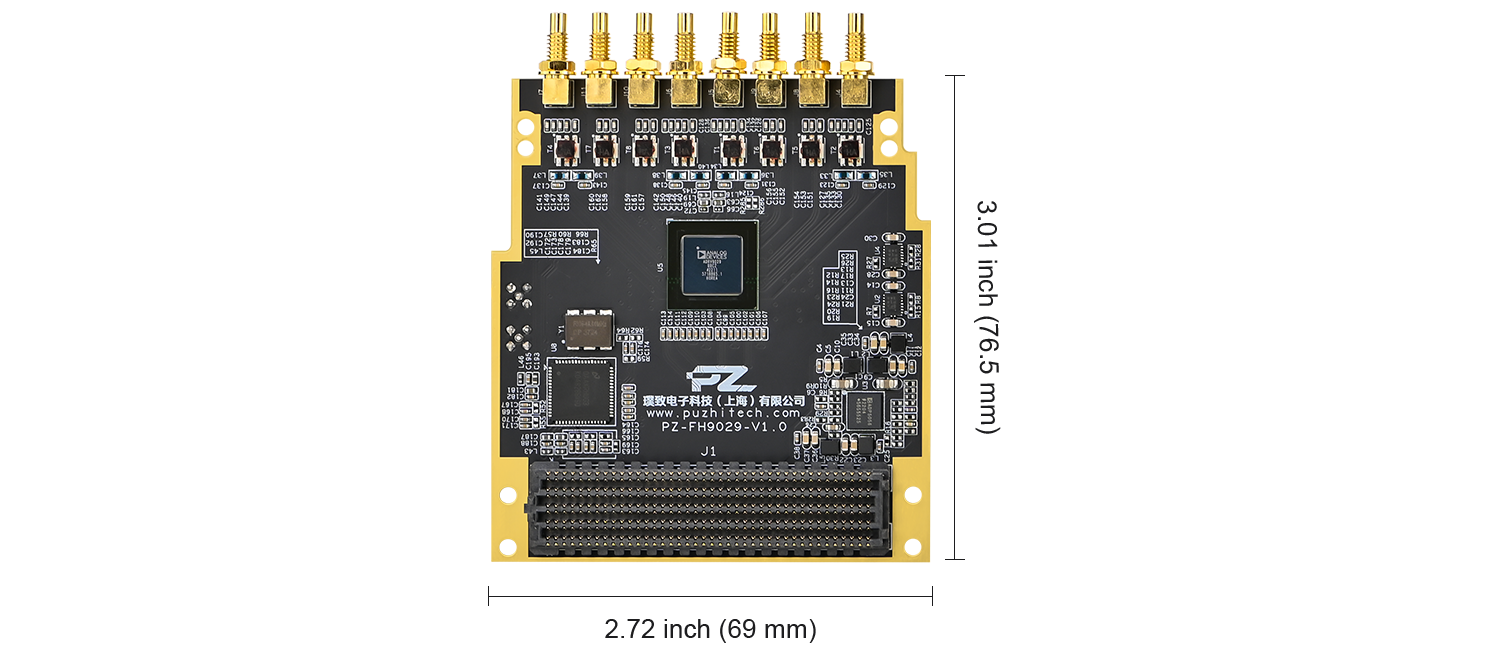

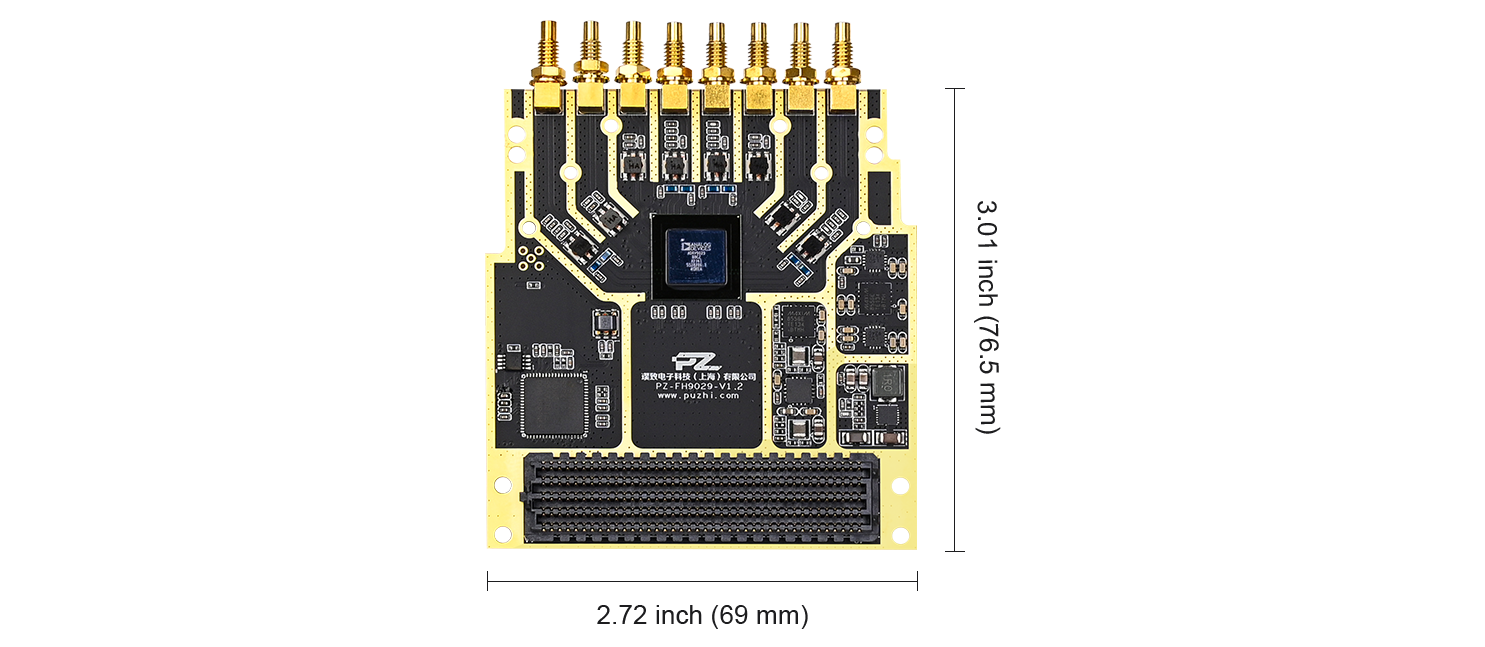

Product Dimensions

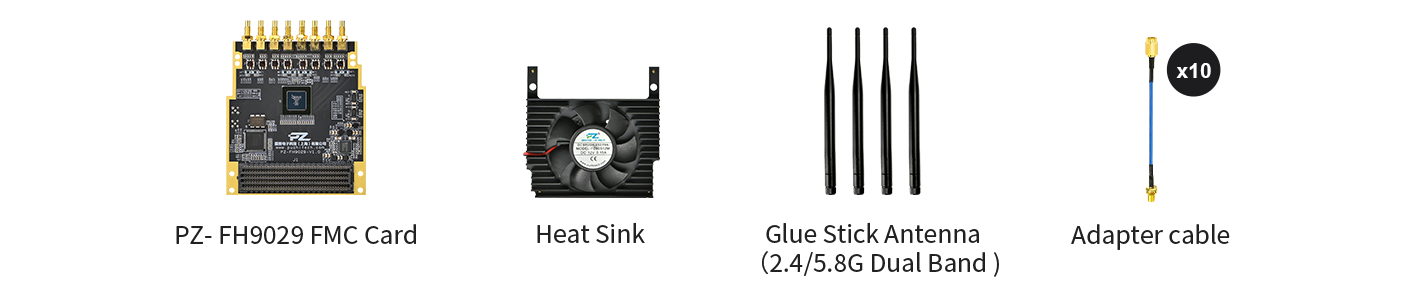

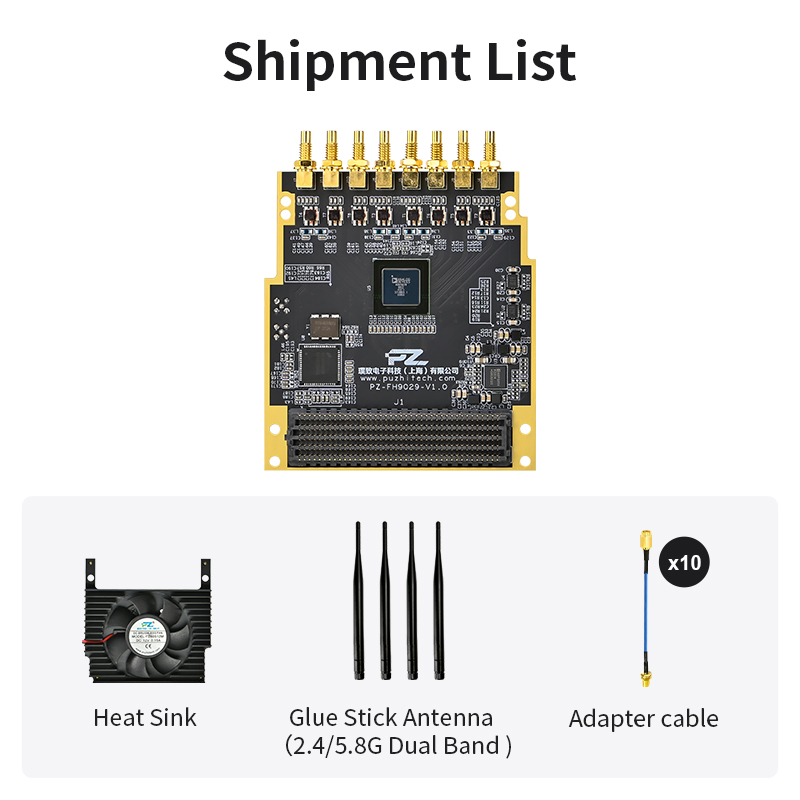

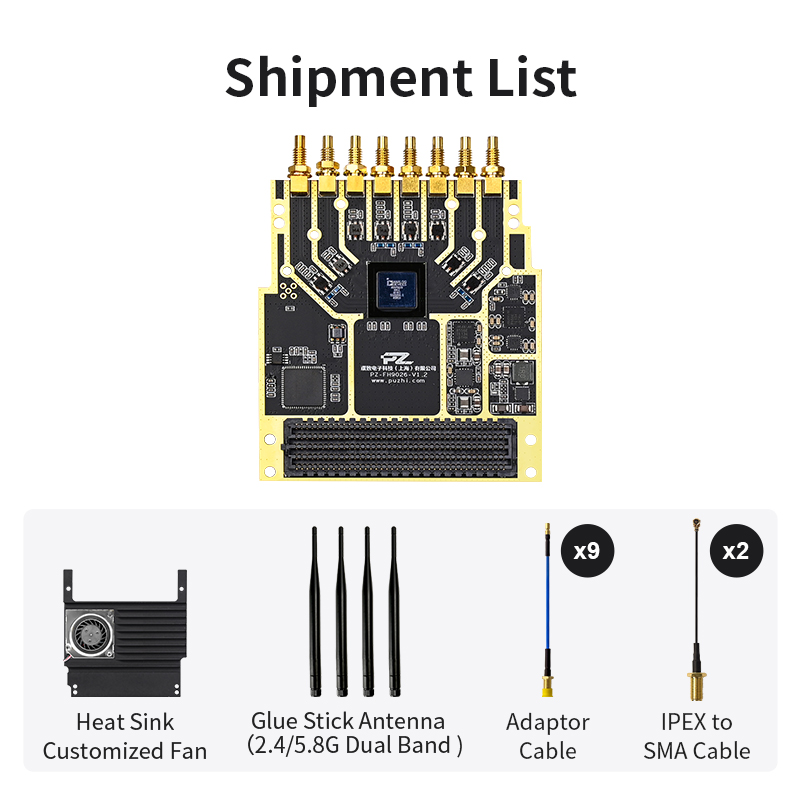

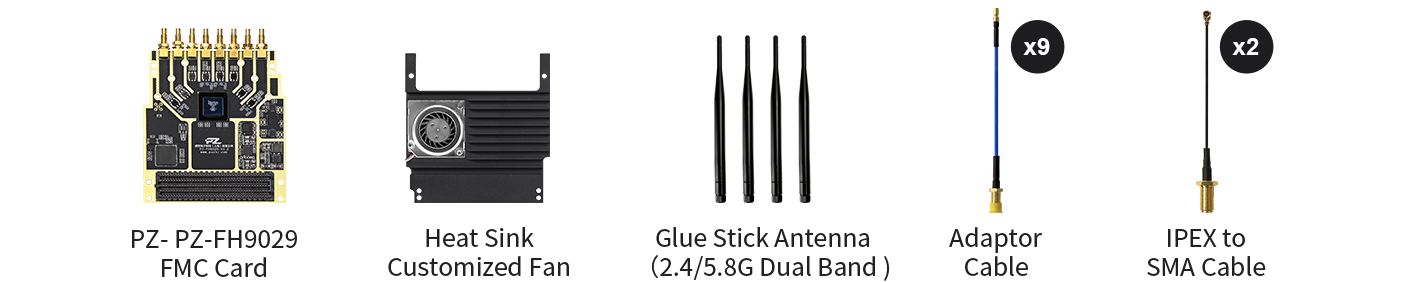

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.

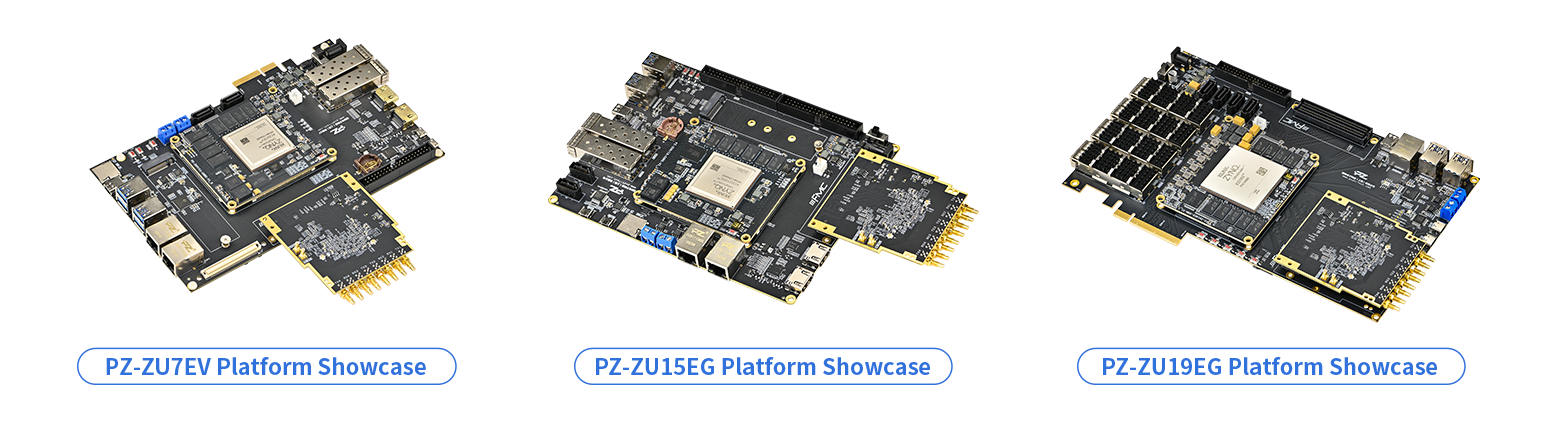

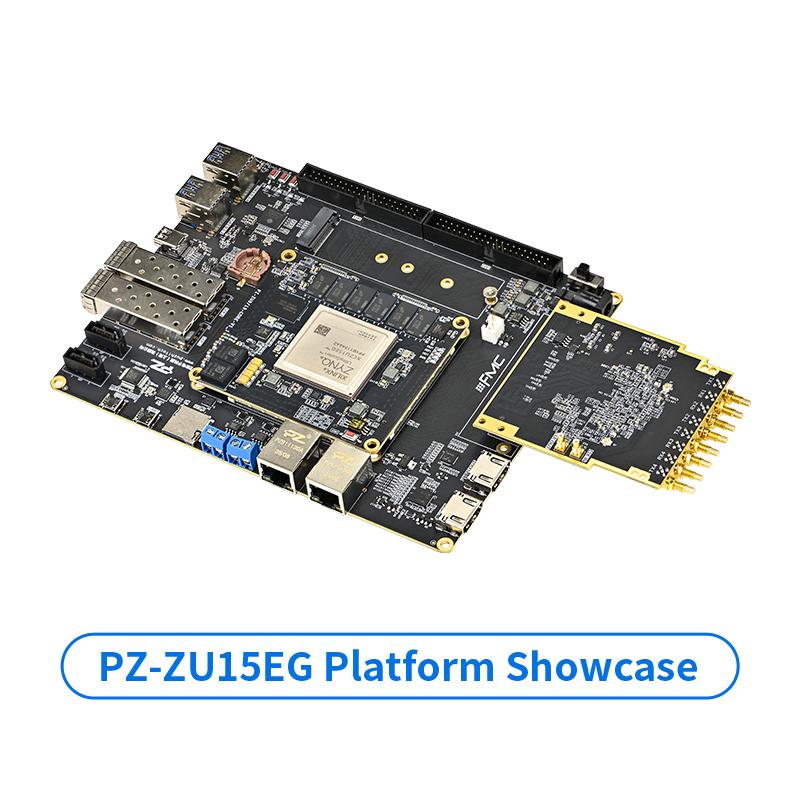

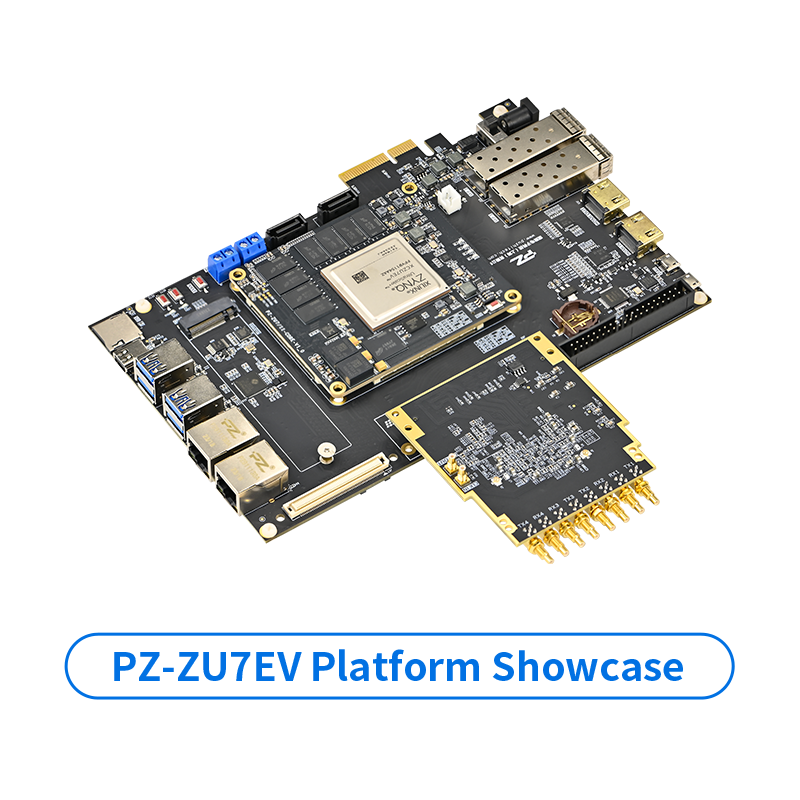

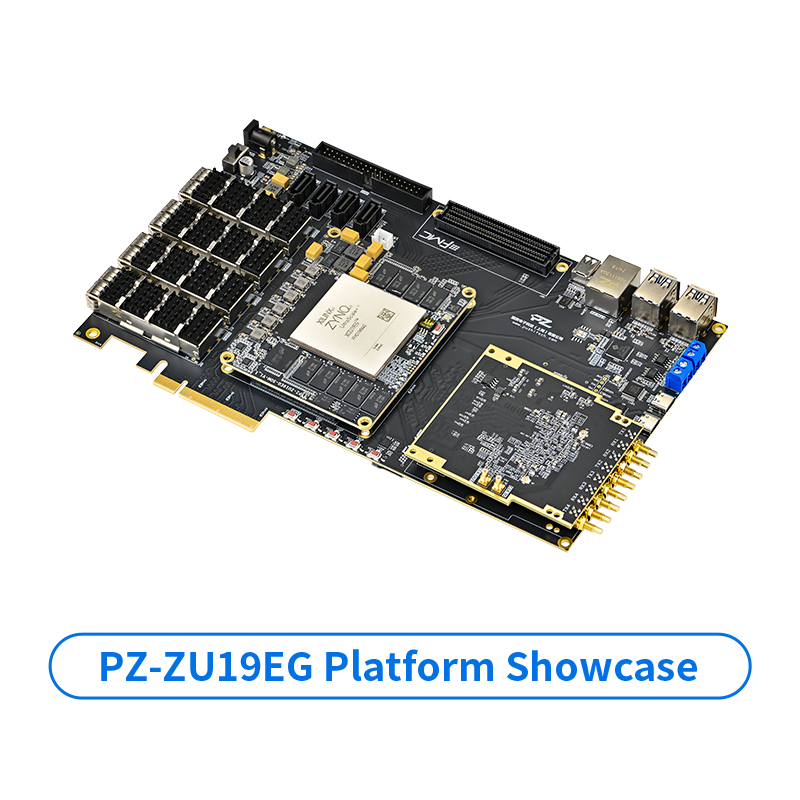

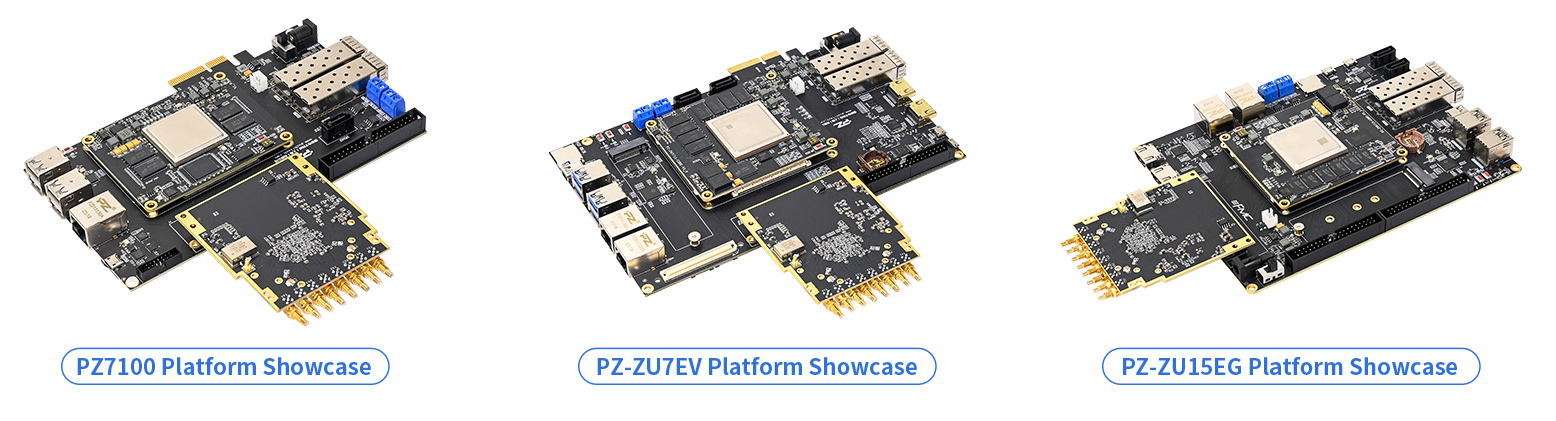

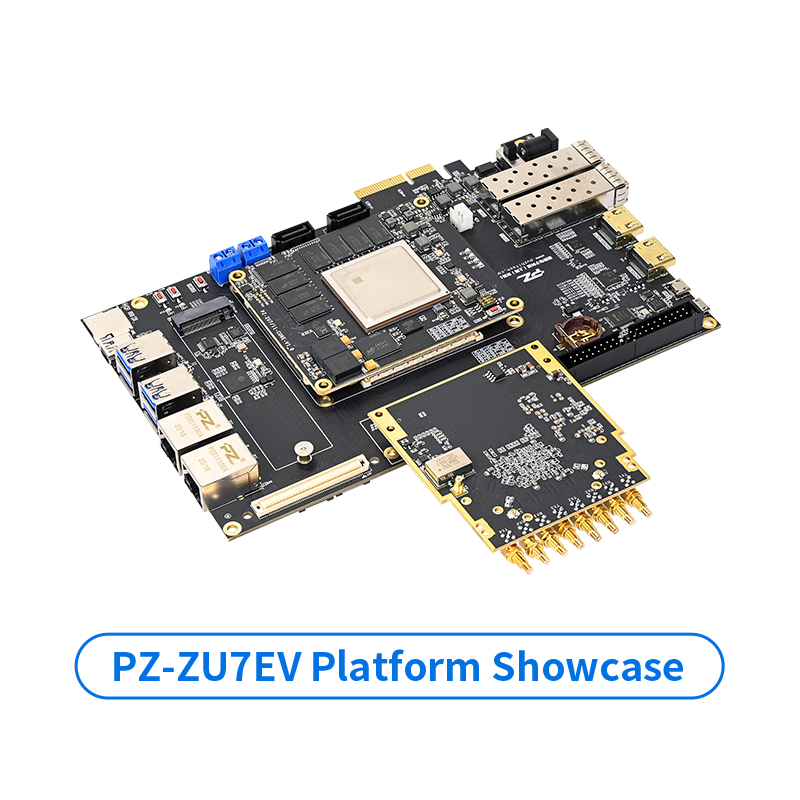

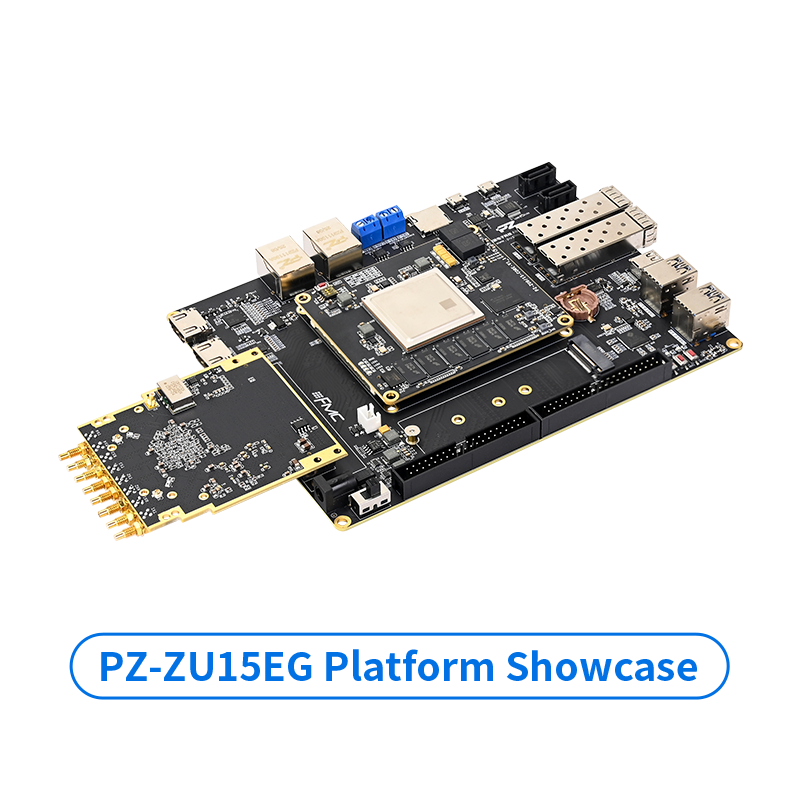

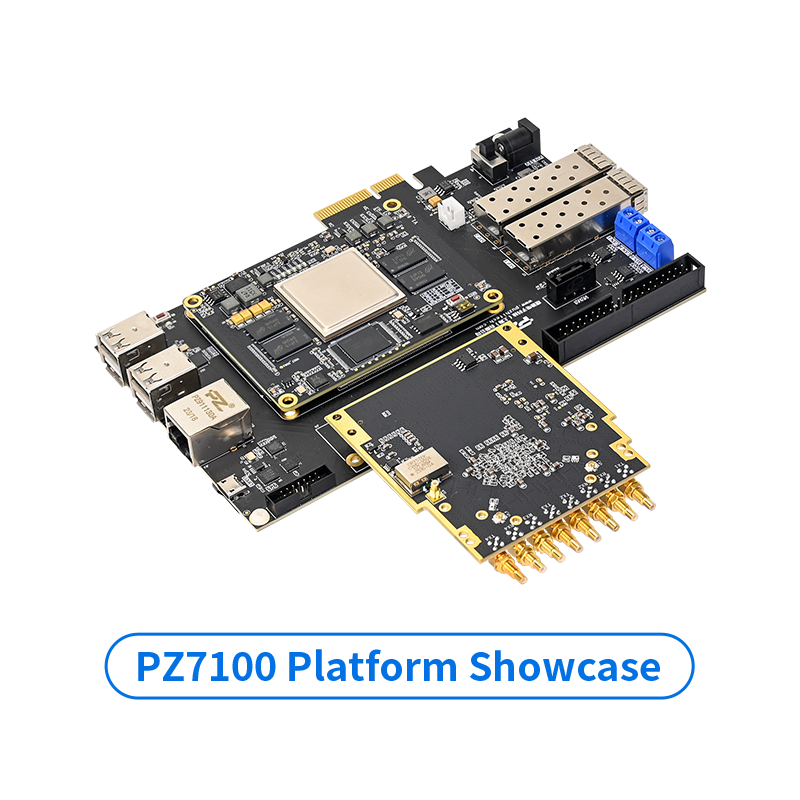

Solution Display
