Puzhi Accessories High Speed Downloader For Xilinx FPGA Chips
- USB 2.0 Type B Interface，14P 2.54mm JTAG
- JTAG SMT2，Download Clock Adaptive Xilinx Software
- Two-color LEDS Indicators
- Power Consumption 5V/0.15A
- Size 70*45*18mm

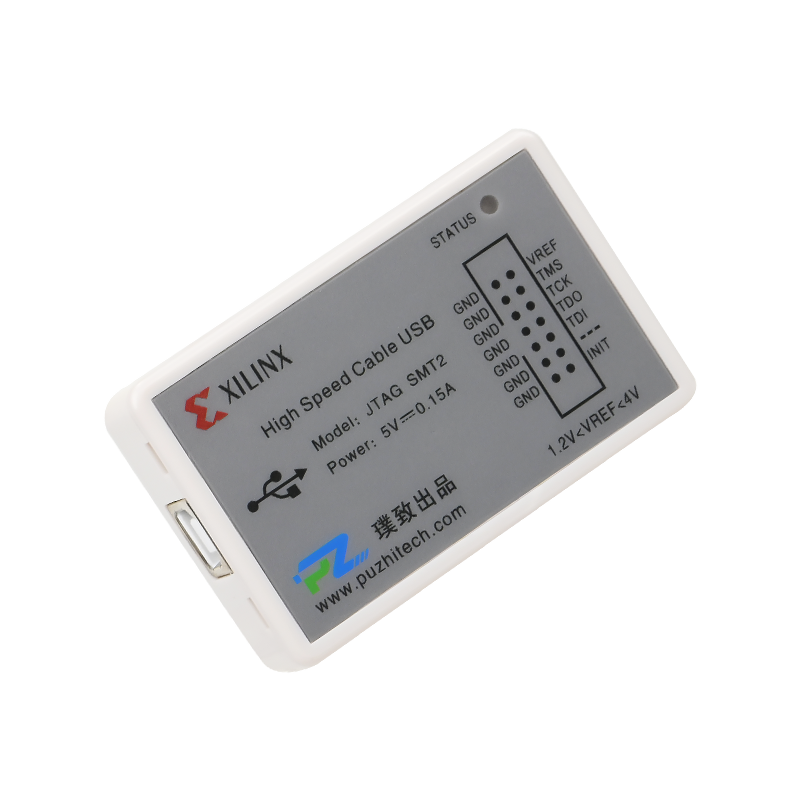

Interface Function Display
Product Parameters
主要参数
Product | USB Downloader for Xilinx FPGA |
Interface | USB 2.0 Type B, 14P 0.1 inch(2.54mm) JTAG |
Firmware Version | JTAG SMT2, Download Clock Adaptive XlIXN Software |
Indicators | Two-color LEDS |
Power Consumption | 5A, 0.15A |
Form Factors | 0.28 inch x 0.18 inch x 0.07 inch (7.0mm x 4.5mm x 1.8mm) |

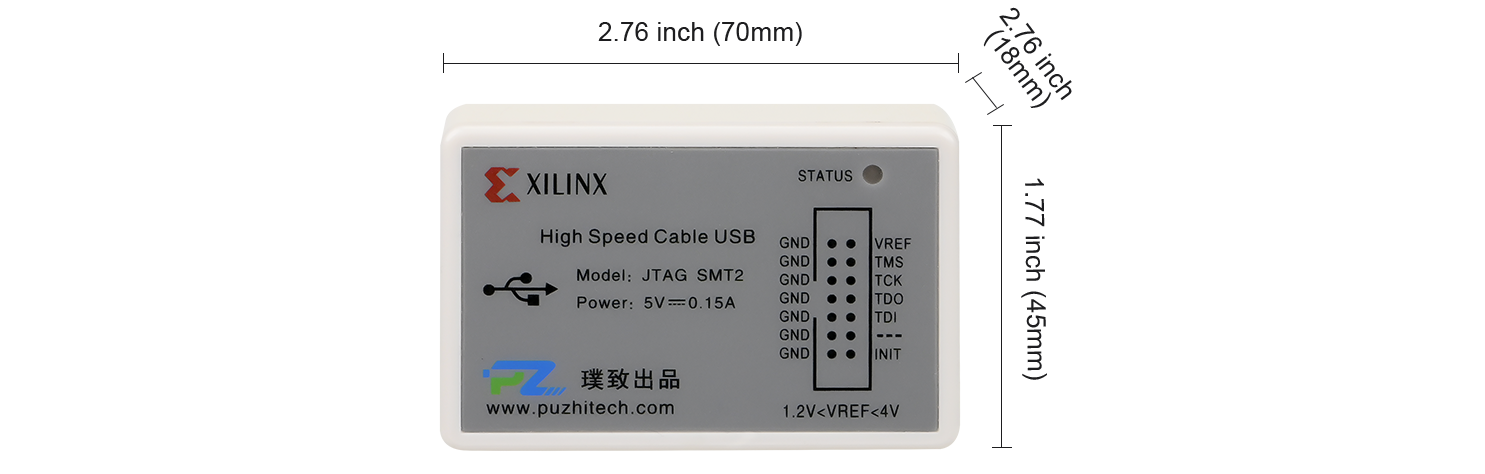

Product Dimensions

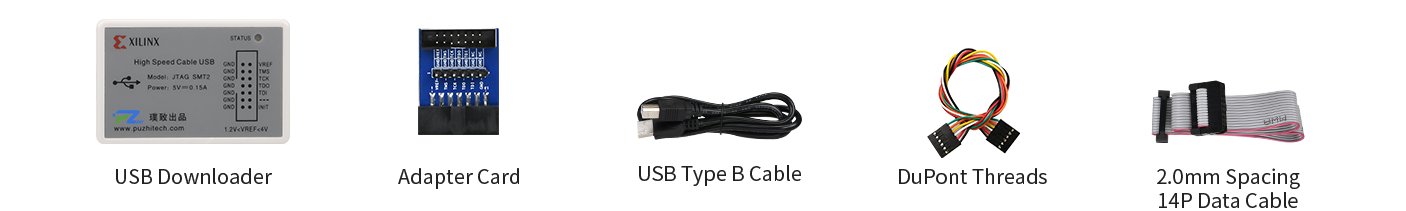

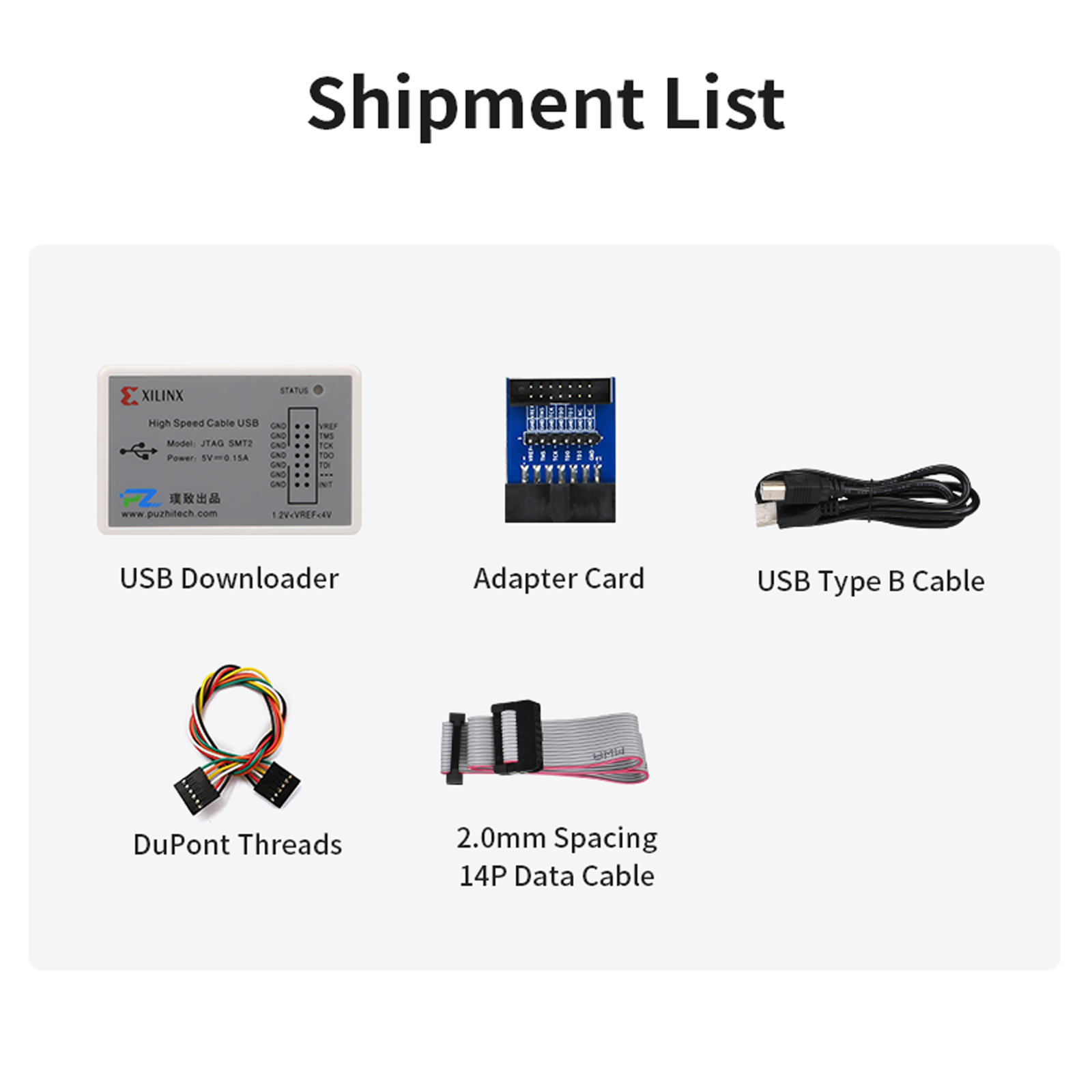

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
