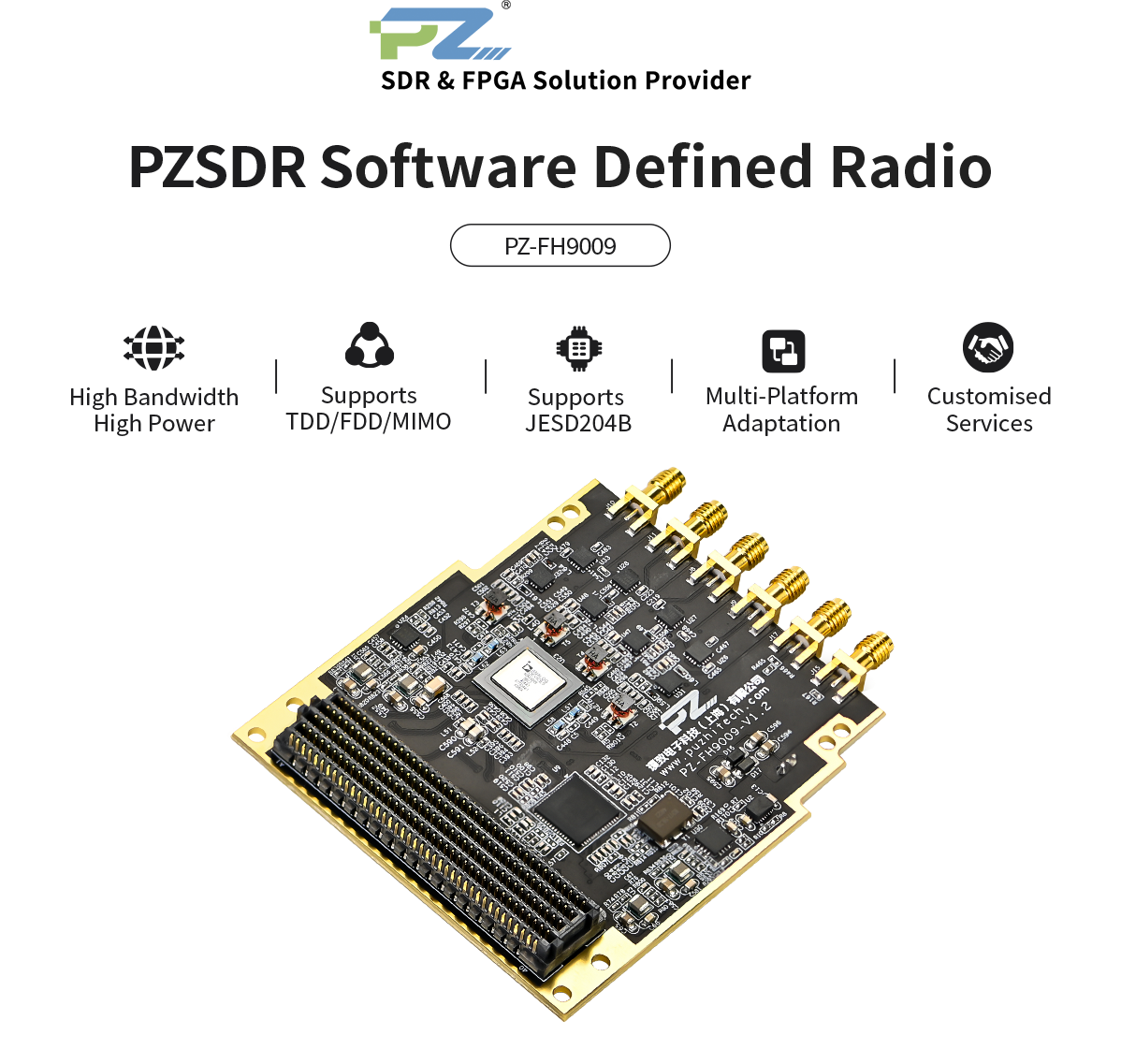

Puzhi PZSDR Software Defined Radio ADRV9009 ADC DAC
- RF chip ADRV9009，Coverage Frequency 75MHz-6GHz
- High Bandwidth High Power，The passband high linear amplification is 22dbm
- Bits 16bit ADC & 14bit DAC，Support Half-duplex and Full-duplex
- Support JESD204B，RF Impedance Matching 50Ω
- Standard FMC-HPC interface，multi-platform adaptation，Customised Services

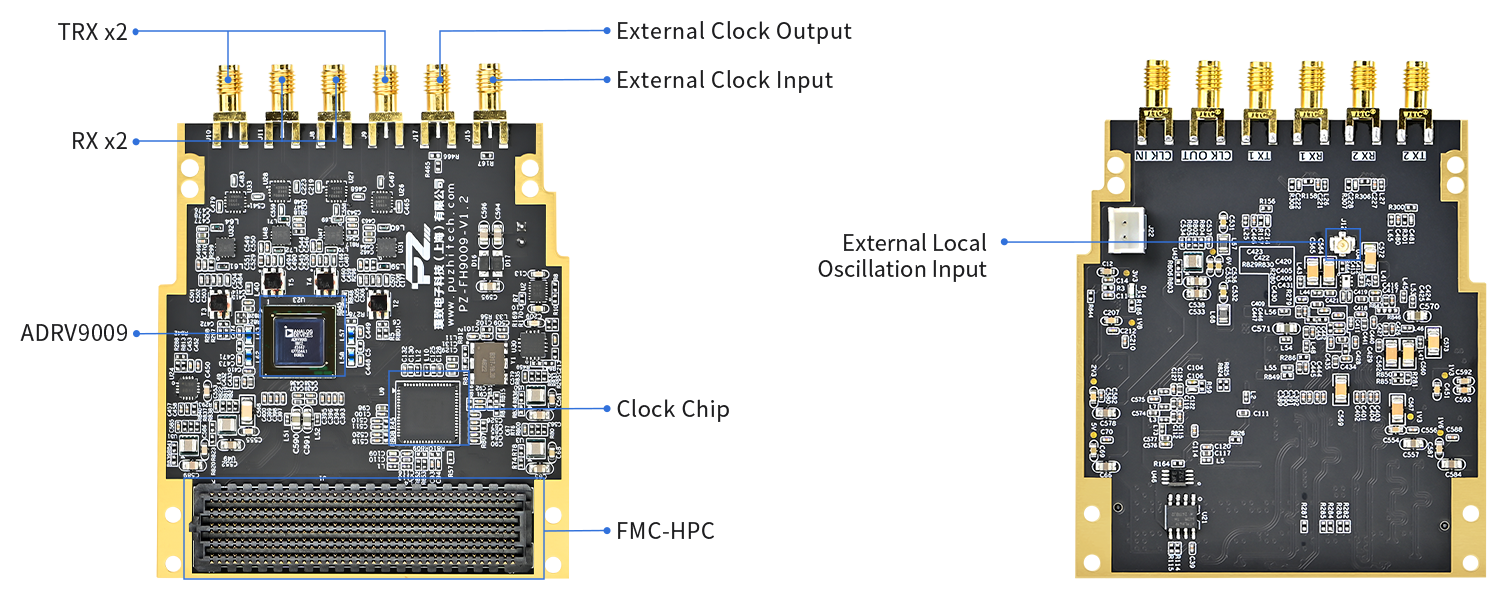

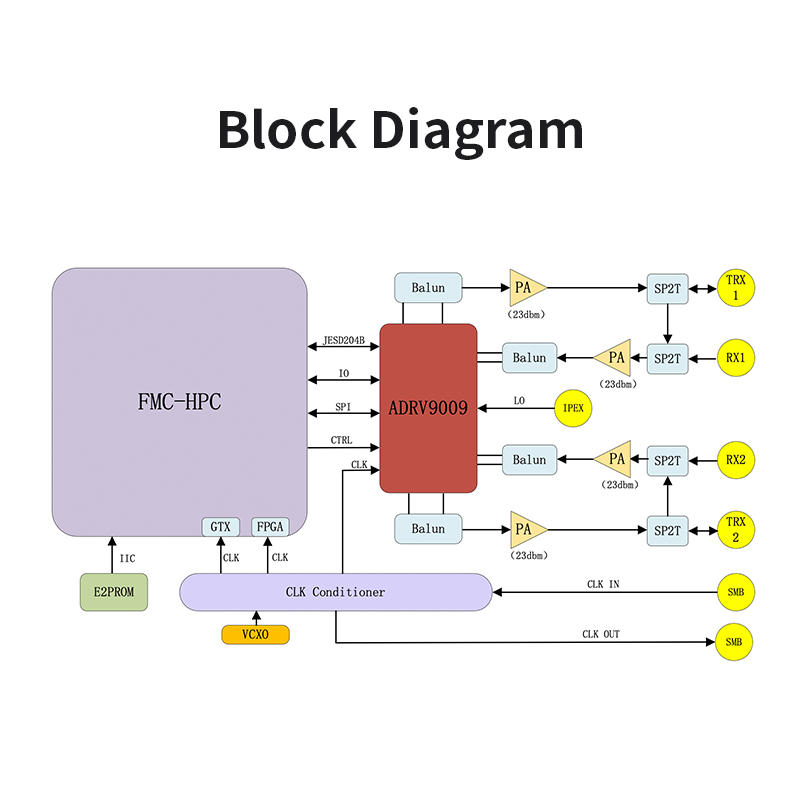

Interface Function Display
Product Parameters
PZSDR Main Parameters
FMC Module | ADRV9009 |
Bits | 16bit ADC & 14bit DAC |
Antenna Switch | Support Half-duplex and Full-duplex, TDD/FDD Mode |
Coverage Frequency | 75MHz-6GHz |
Bandwidths | Transmit up to 450MHz, Receive up to 200MHz |
Power Amplifier | Broardband,High Power, Linear Amplification 22dbm |
RF Impedance | Matching 50Ω |
Digital Interface | JESD204B |
Clock | On-board Clock or External Input Clock |
FMC Interface | HPC |
Form Factors | 2.72 inch x 3.01 inch (69mm x 76.5mm) |

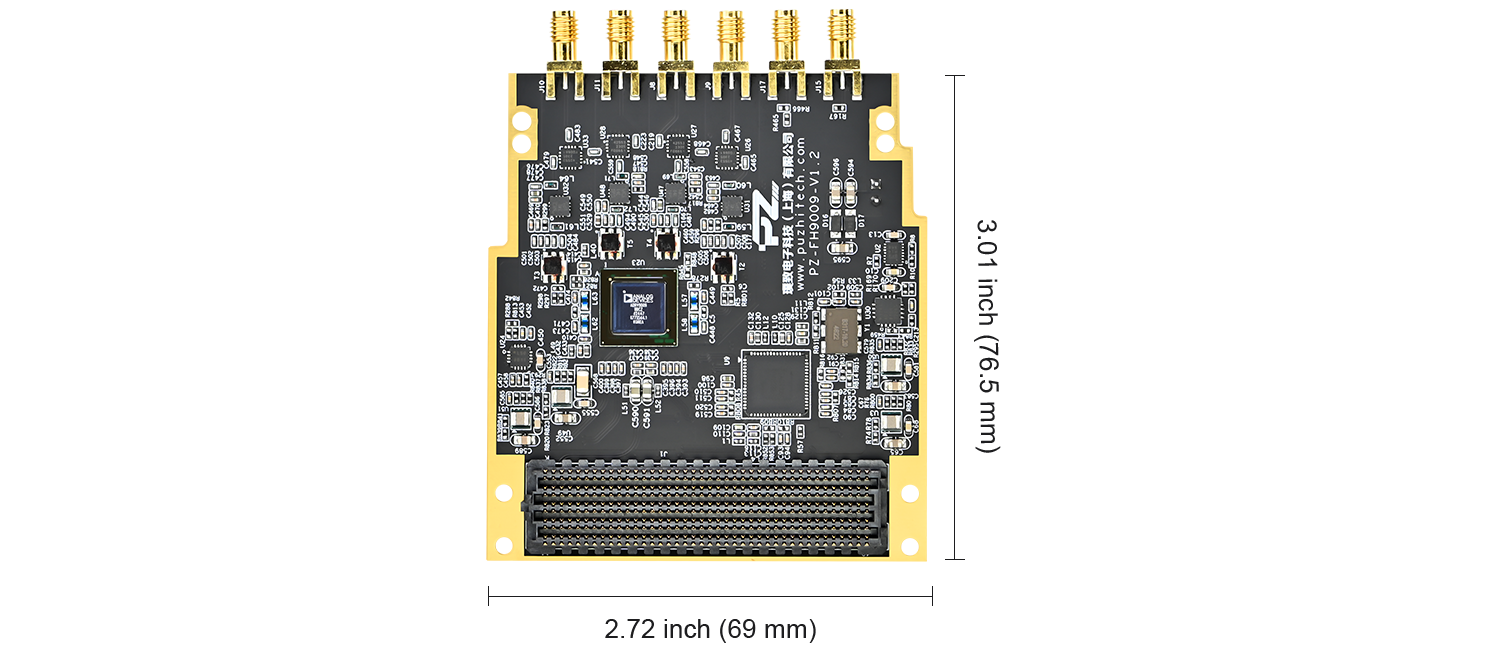

Product Dimensions

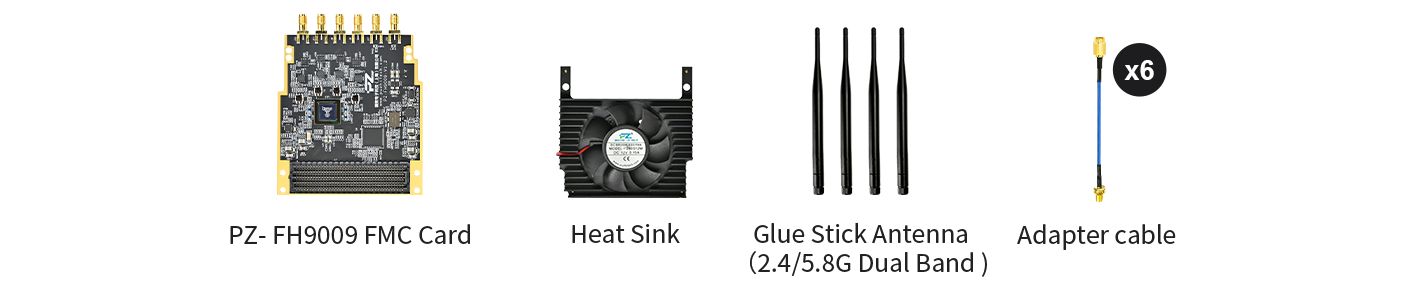

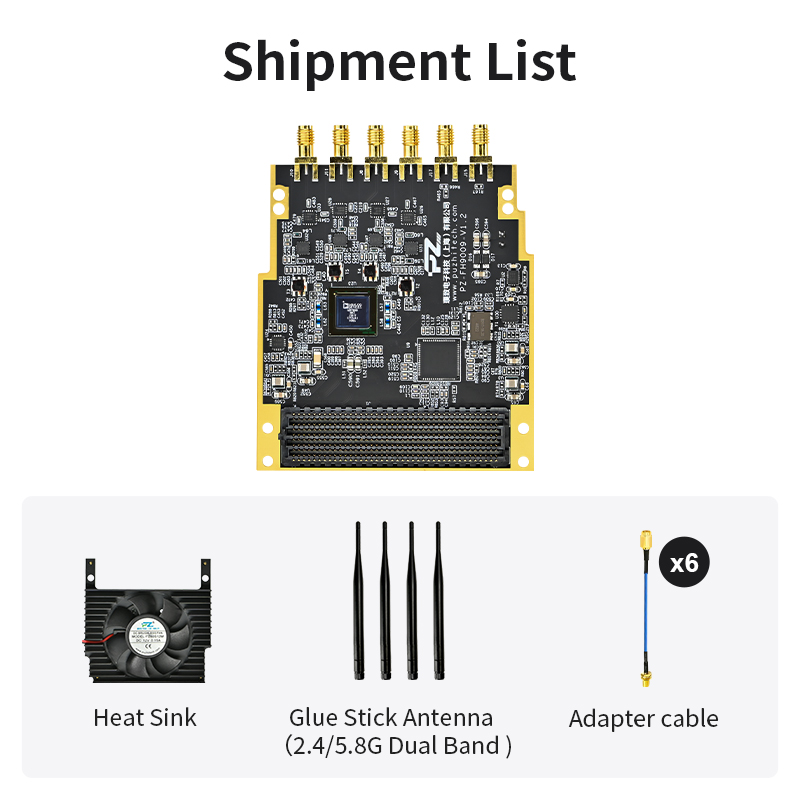

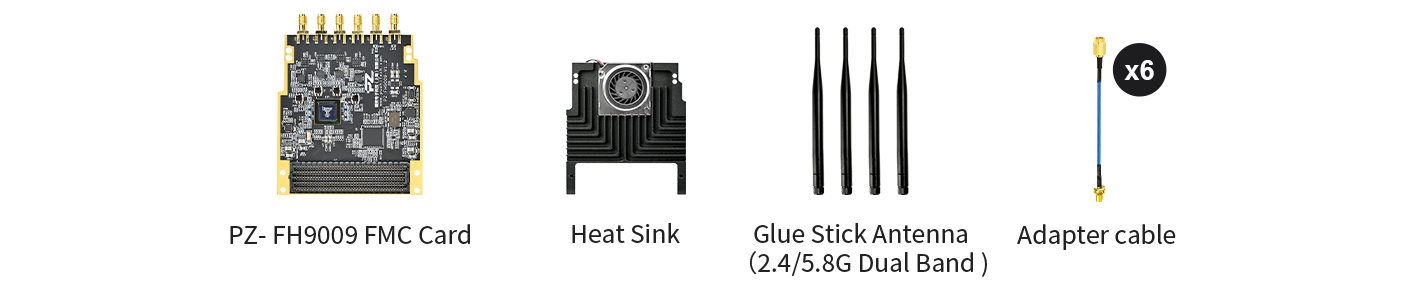

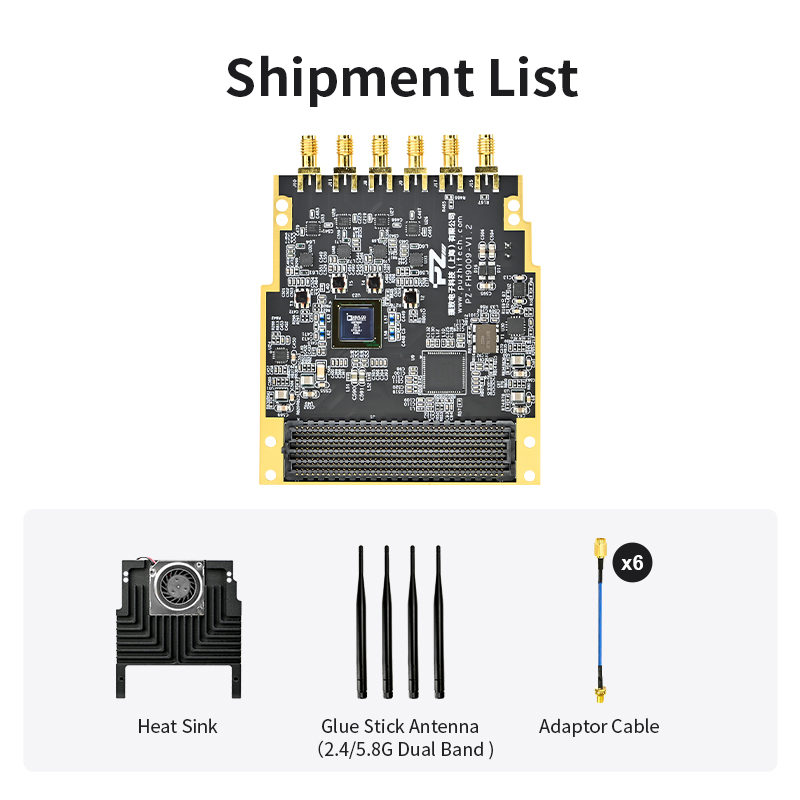

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.

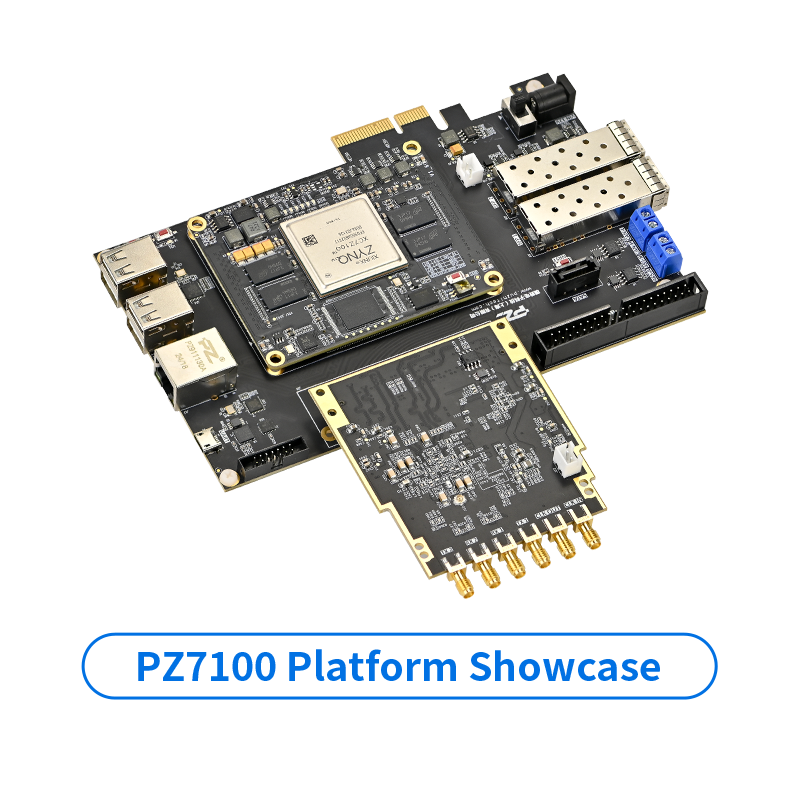

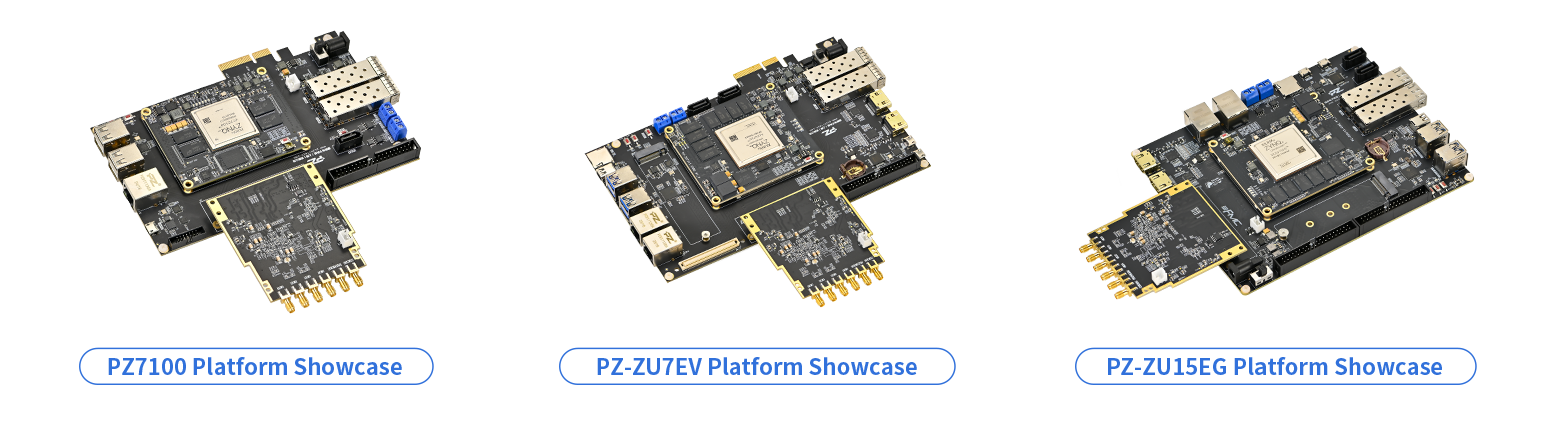

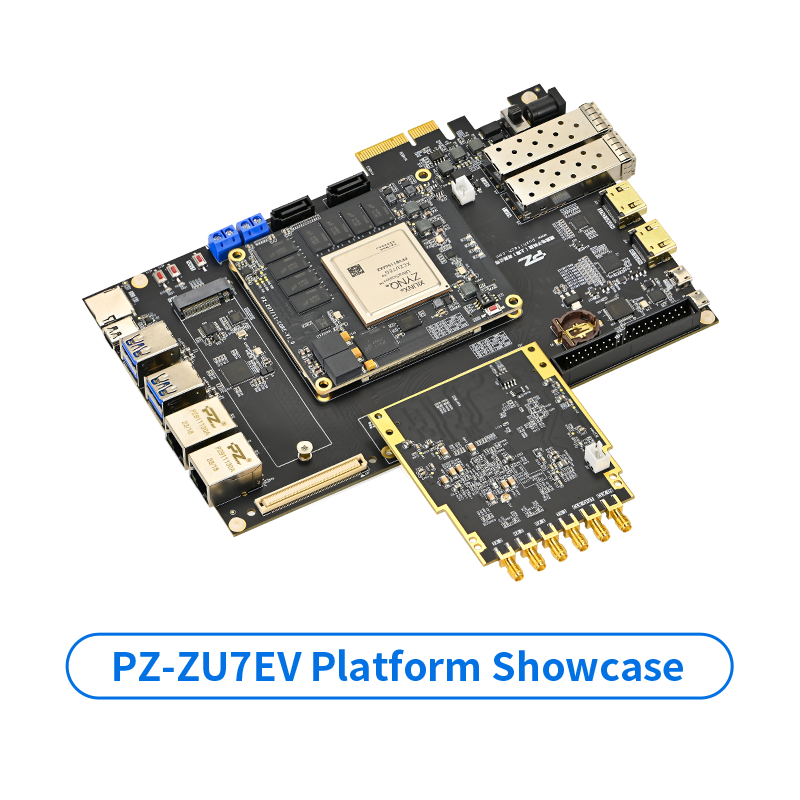

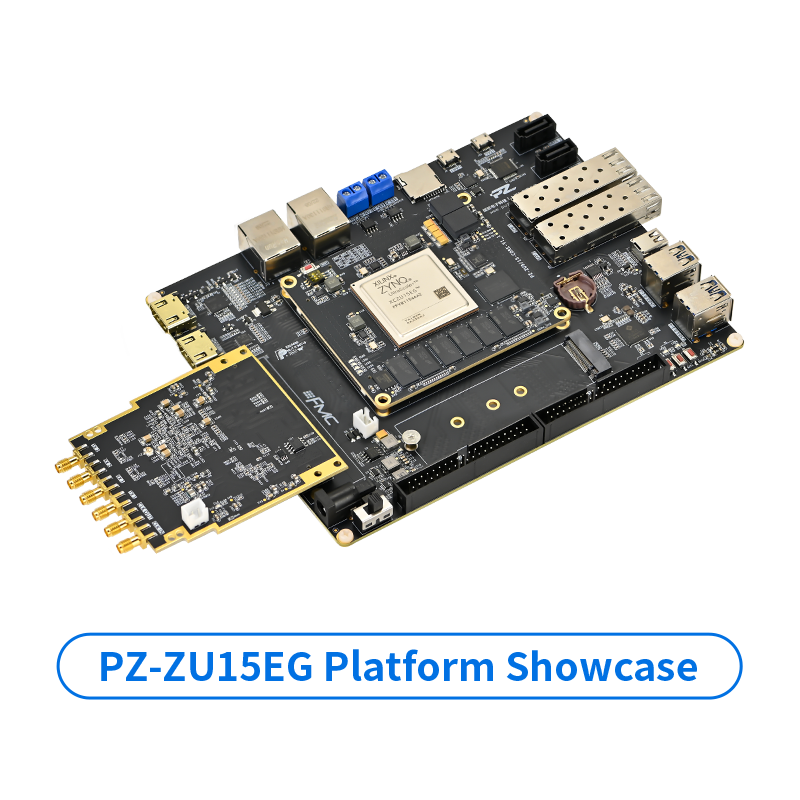

Solution Display
