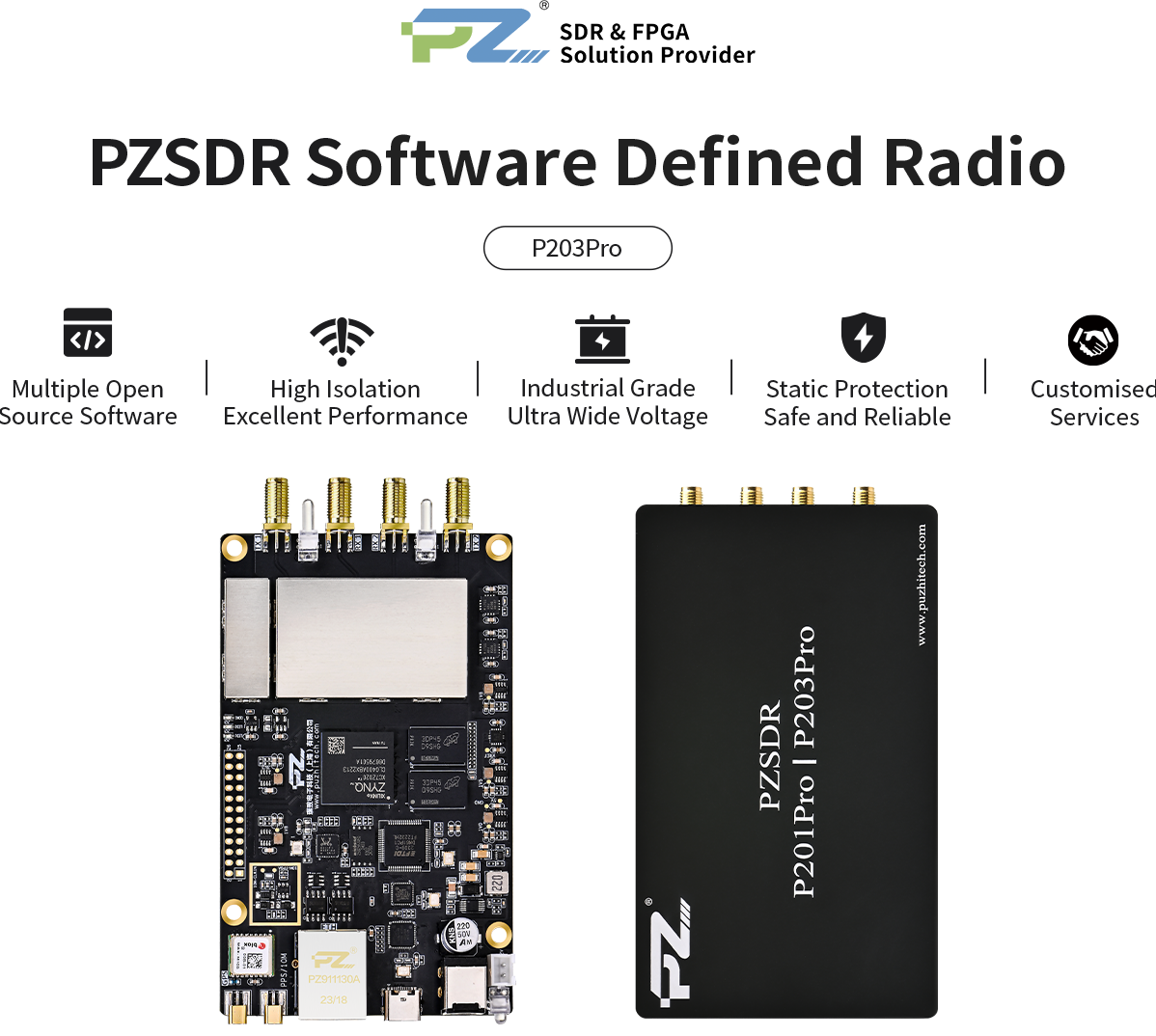

P203Pro

RF chip AD9363，Frequency range 325M-3.8Ghz，Signal bandwidth 200K-20Mhz
1GB DDR3，256Mb QSPI FLASH，256Kb E2PROM

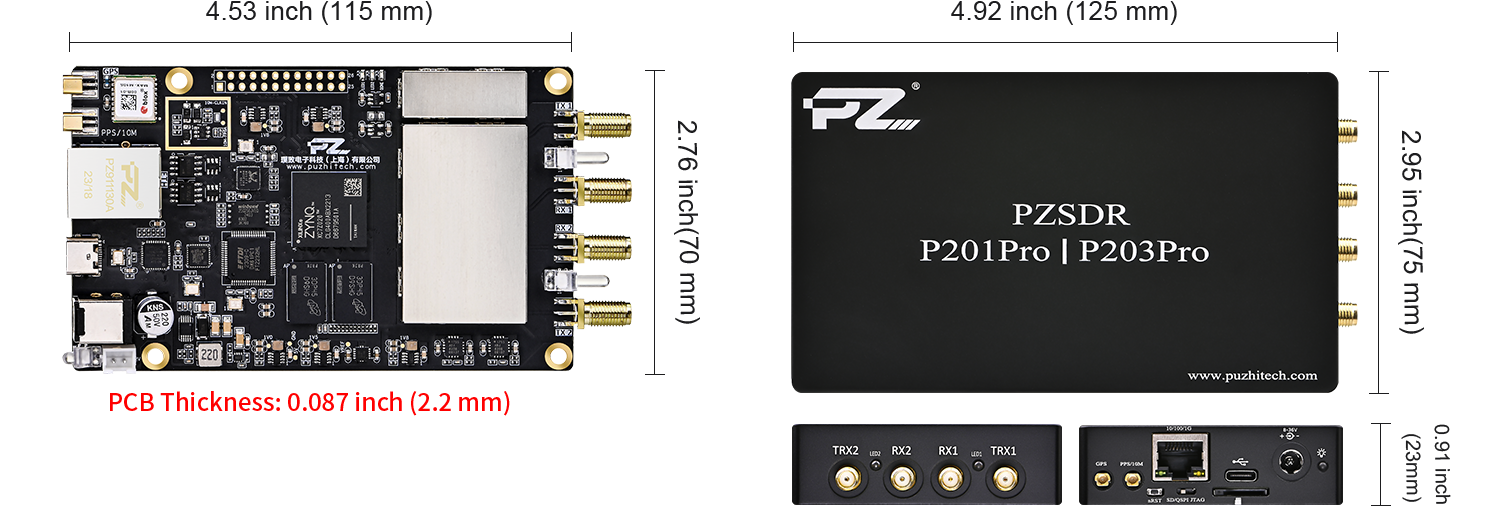

Dimensions：Board 115x70x2.2mm、shell 125x75x23mm
Industrial grade，8-36V ultra-wide voltage power supply (limit 50V)，excellent performance and high isolation
Support open source software，Provide hardware reference & software rich routines，Customised Services

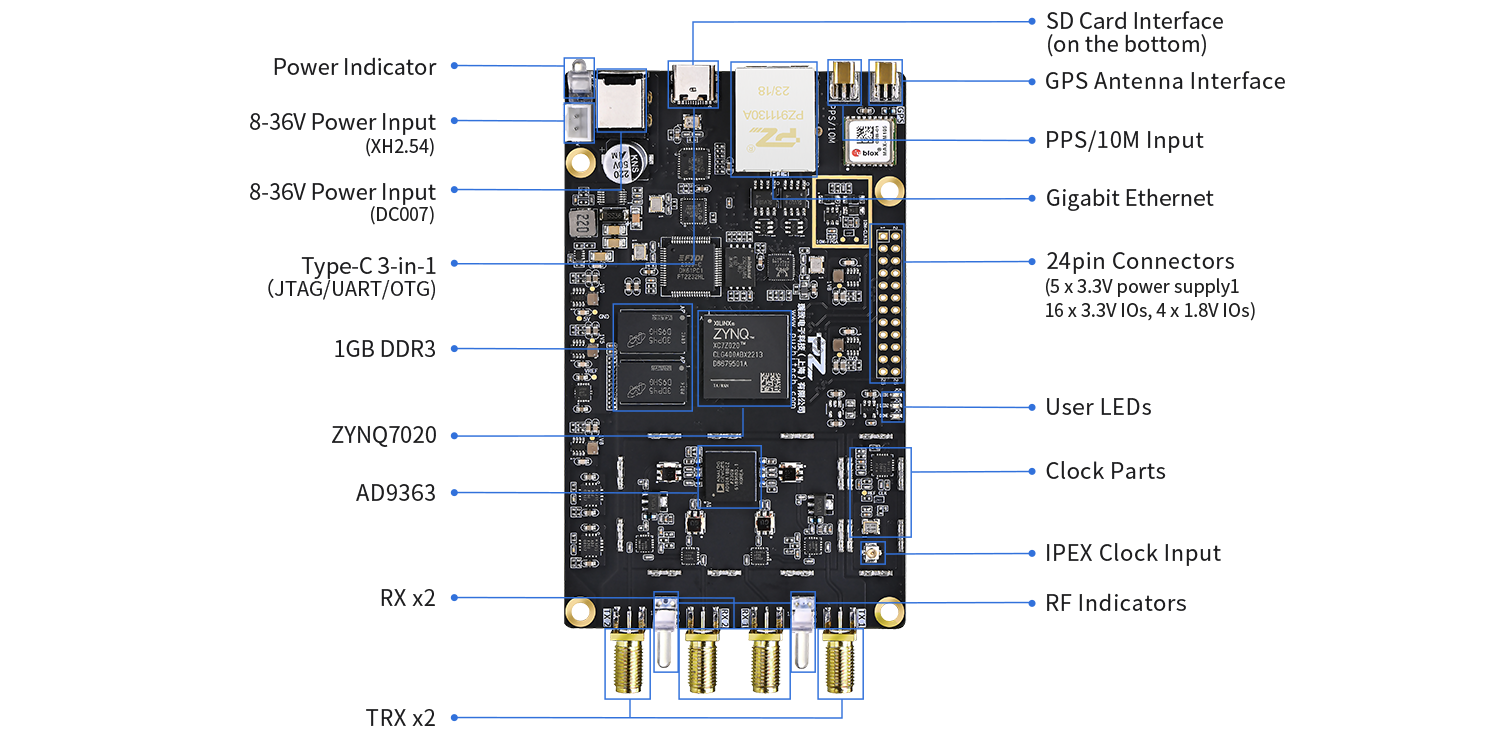

SDR Module	P203Pro
RF Chip	AD9363
Frequency Range	325M-3.8Ghz
Signal Bandwidths	200K-20Mhz
Power Amplifier	2 Channel of TX
FPGA Chip	XC7Z020-2CLG400I
Processor Core	Dual Cortex-A9、766Mhz
Logic Cells	85K
DDR3	1GB
QSPI FLASH	256Mb
E2PROM	256Kb
RF Clock	40M VCTCXO(0.5PPM)/ipex input/External input (Default 40M VCTCXO）
Gigabit Ethernet	1
USB OTG	1
UART	1
JTAG	1
SD卡	1
GPS	1
PPS/10M Input	1
External input	1
Expansion Port IOs	16个3.3V IO、4个1.8V IO
Form Factors	Board：115x70x2.2mm with Shell：125x75x23mm
Protection Class	All External Interfaces are Protected againstStatic Electricity,Clock/RF are Shielded
Power Supply	8-36V Ultra-wide Voltage Supply (Limit 50V)
Working Temperature	-40°C~+85°C

Porting & OpenSource Support

1. PlutoSDR 2. UHD 3. FMCCOMS3 4. AD9361 Non-Operating System Engineering

Open Source Software Packages

1. vivado2019.1 2. ubuntu-18.04.4 3. GNU Radio

4. SDRangel 5. SDR# 6. Matlab Simulink 7. Gqrx SDR 8. PYNQ

Customisation & Support

Provide Customised Services, Professional Technical Support, Constantly Updated Demos

Commerical Invoice
- 1.
  Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
- 2.
  Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
- 1.
  The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
- 2.
  Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
- 3.
  Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
- 4.
  The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
- 1.
  DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
- 2.
  Working Time: Monday to Friday, 9am to 6pm CsT.
