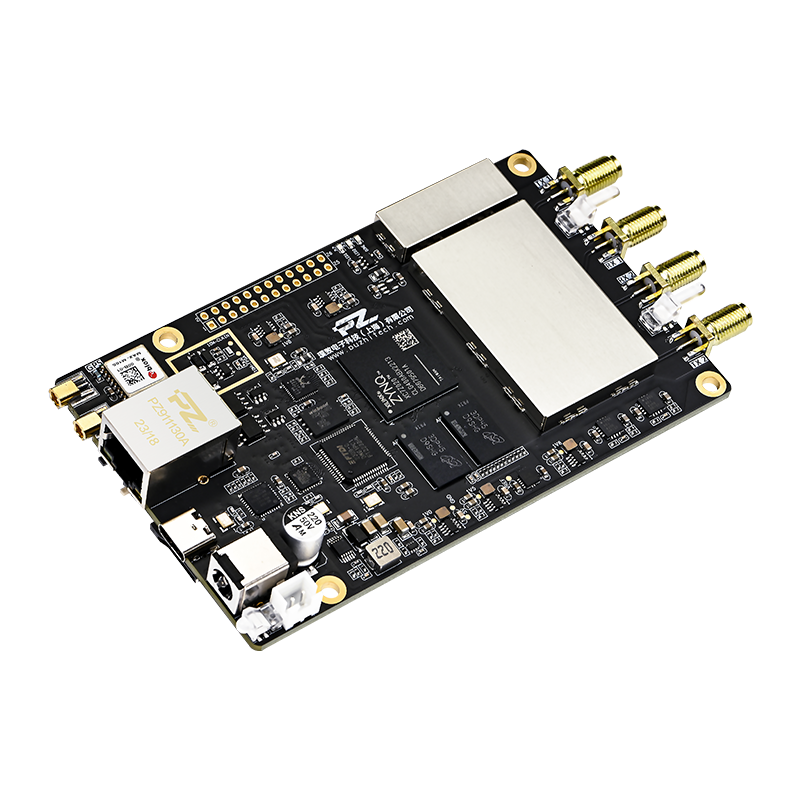

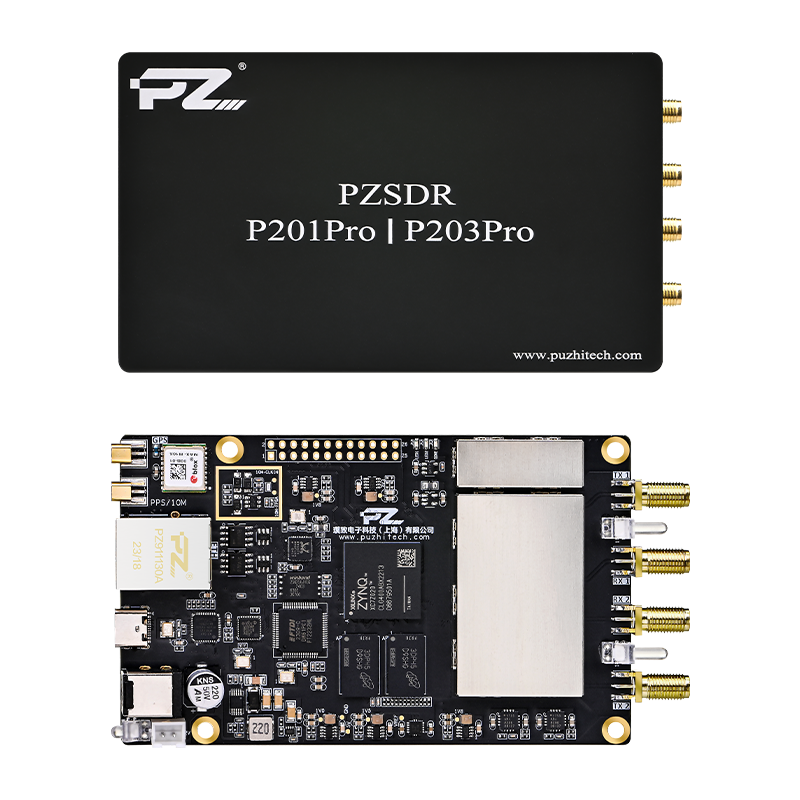

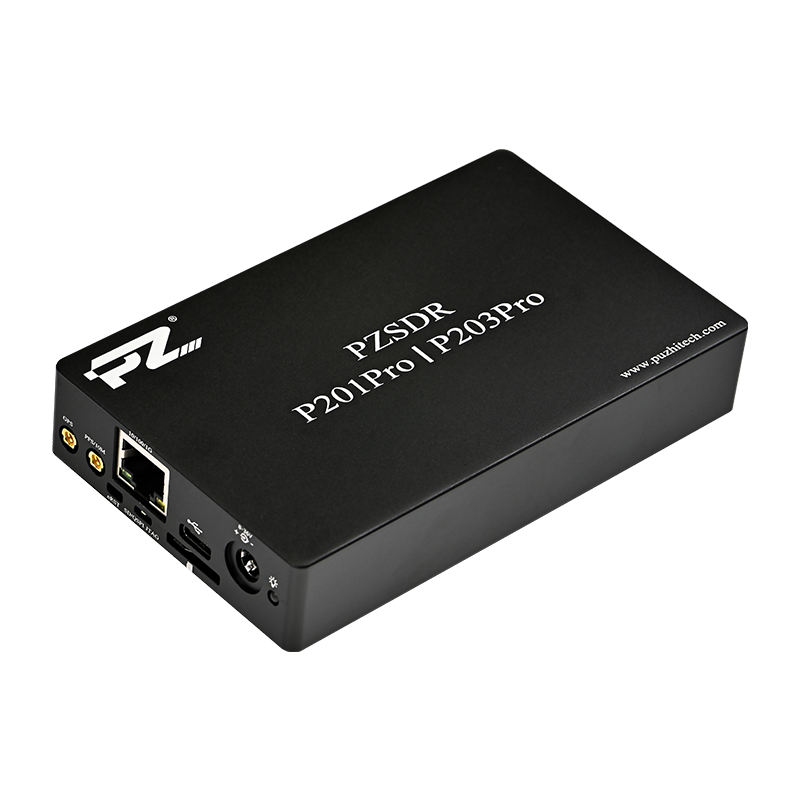

Puzhi PZSDR Software Defined Radio ZYNQ7020+AD9361
- RF chip AD9361，Frequency range 70M-6Ghz，Signal bandwidth 200K-56Mhz
- 1GB DDR3，256Mb QSPI FLASH，256Kb E2PROM
- Dimensions：Board 115x70x2.2mm、shell 125x75x23mm
- Industrial grade，8-36V ultra-wide voltage power supply (limit 50V)，excellent performance and high isolation
- Support open source software，Provide hardware reference & software rich routines，Customised Services

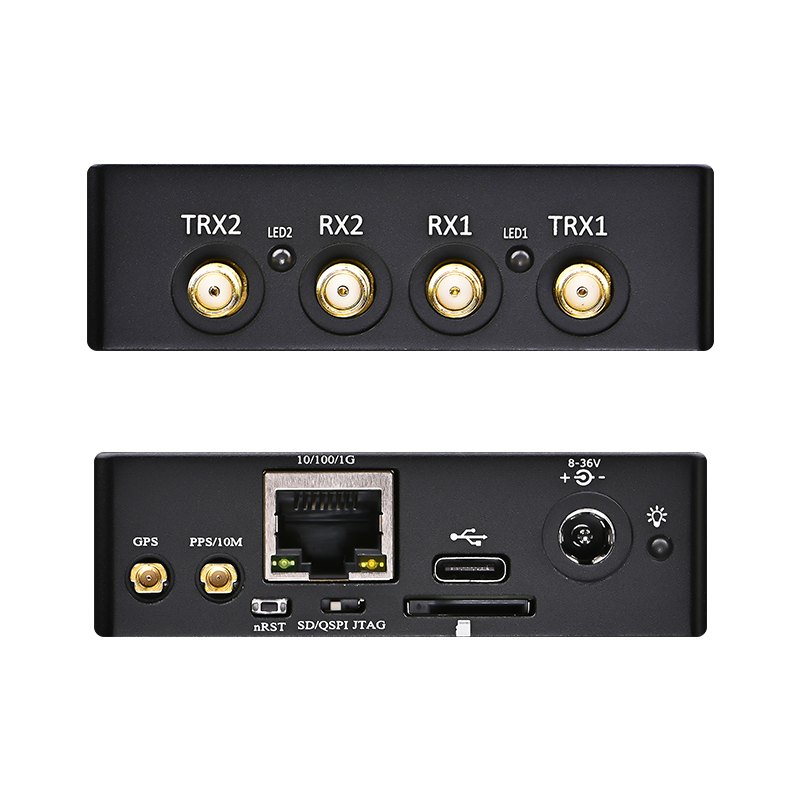

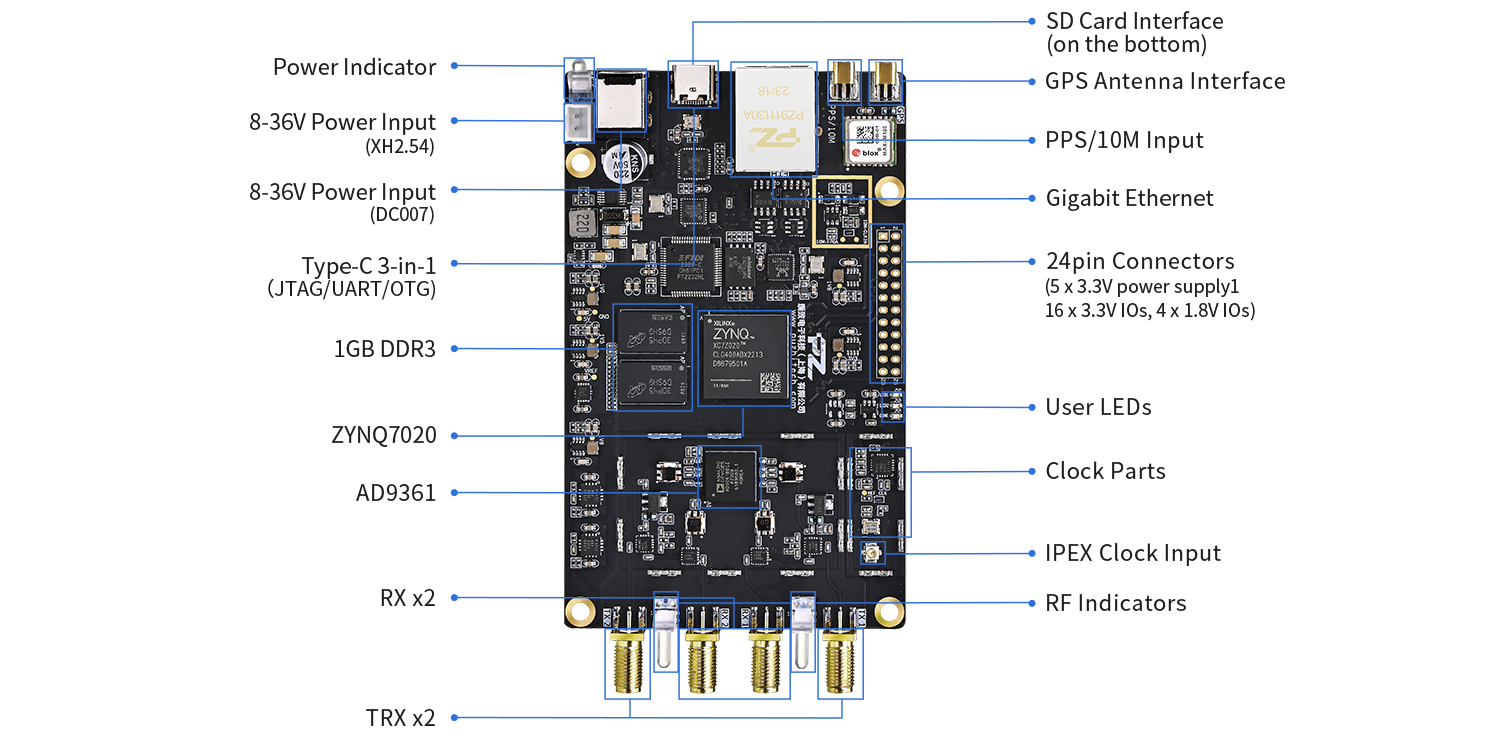

Interface Function Display
Product Parameters
主要参数
型号 | P201Pro |
射频芯片 | AD9361 |
频率范围 | 70M-6Ghz |
信号带宽 | 200K-56Mhz |
功率放大 | 2路TX |
处理器 | XC7Z020-2CLG400I |
内核主频 | 双核Cortex-A9、766Mhz |
逻辑单元 | 85K |
DDR3 | 1GB |
QSPI FLASH | 256Mb |
E2PROM | 256Kb |
射频时钟 | 40M VCTCXO(0.5PPM)/ipex输入/外部输入三种可选
(默认40M VCTCXO） |
千兆以太网 | 1路 |
USB OTG | 1路 |
UART | 1路 |
JTAG | 1路 |
SD卡 | 1路 |
GPS | 1路 |
PPS/10M输入 | 1路 |
外部时钟输入 | 1路 |
扩展IO | 16个3.3V IO、4个1.8V IO |
尺寸 | 单板：115x70x2.2mm 壳体：125x75x23mm |
防护等级 | 所有对外接口均做静电防护时钟/射频均做屏蔽防护 |
供电 | 8-36V超宽压供电（极限50V） |
工作温度 | -40°C~+85°C |

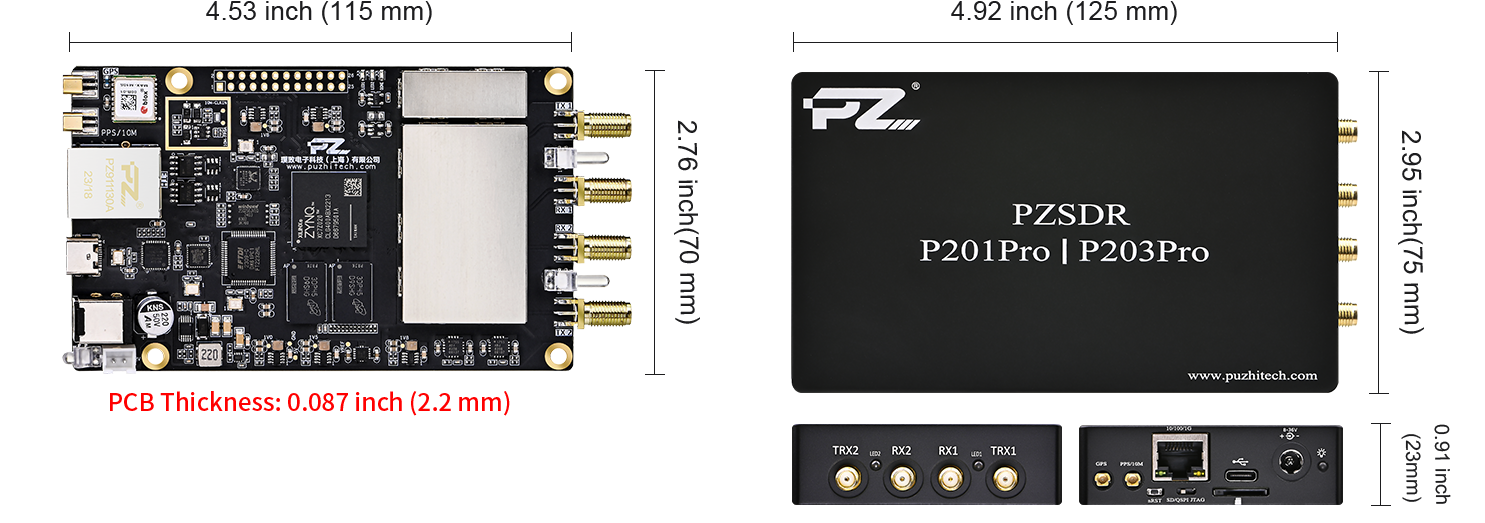

Product Dimensions
丰富的支持资源
移植与开源支持 | 1. PlutoSDR 2. UHD 3. FMCCOMS3 4. AD9361非操作系统工程 |
支持与提供软件包 | 1. vivado2019.1 2. ubuntu-18.04.4 3. GNU Radio 4. SDRangel 5. SDR# 6. Matlab Simulink 7. Gqrx SDR 8. PYNQ |
关于定制和支持 | 提供个性化定制服务、专业的技术支持、不断更新的例程资源 |

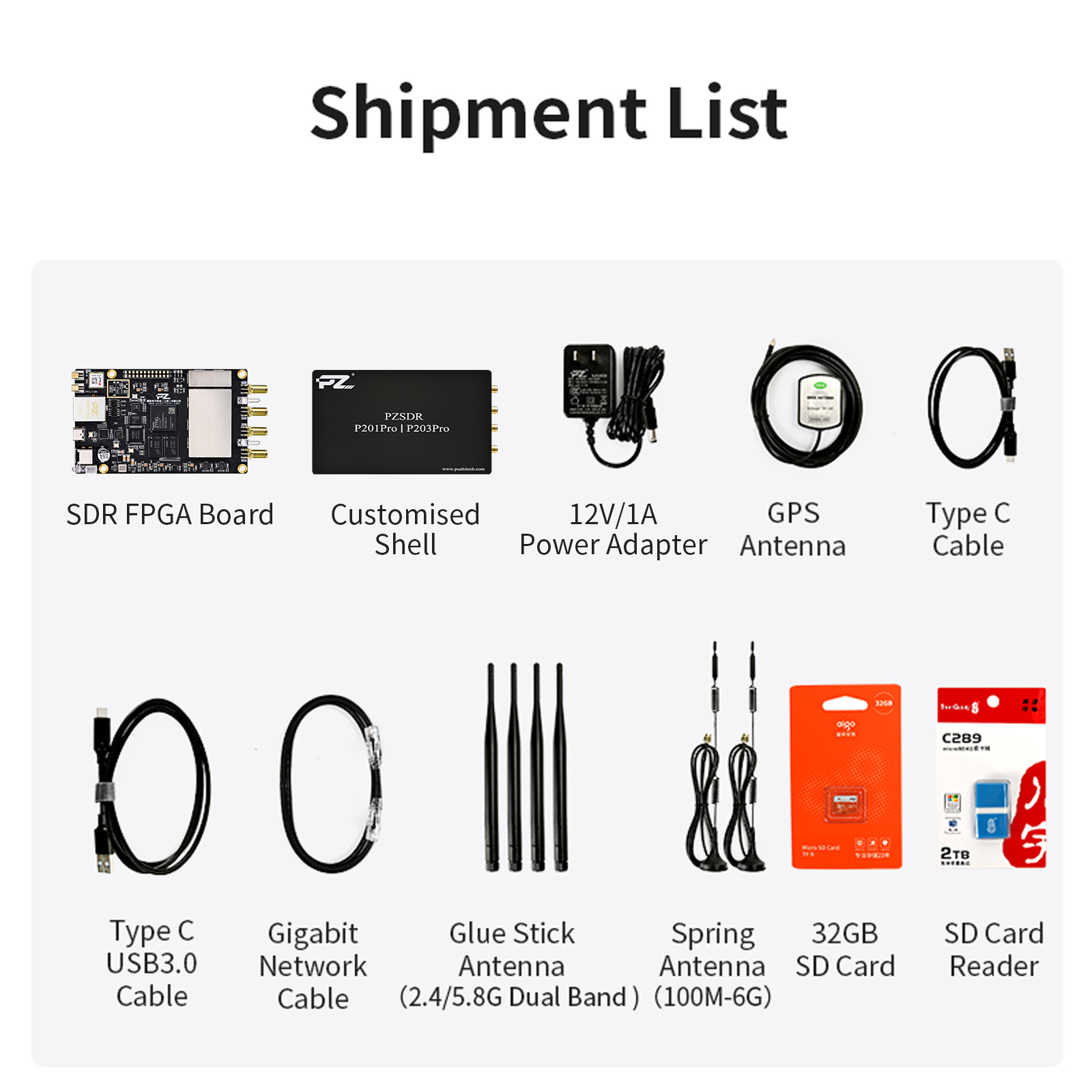

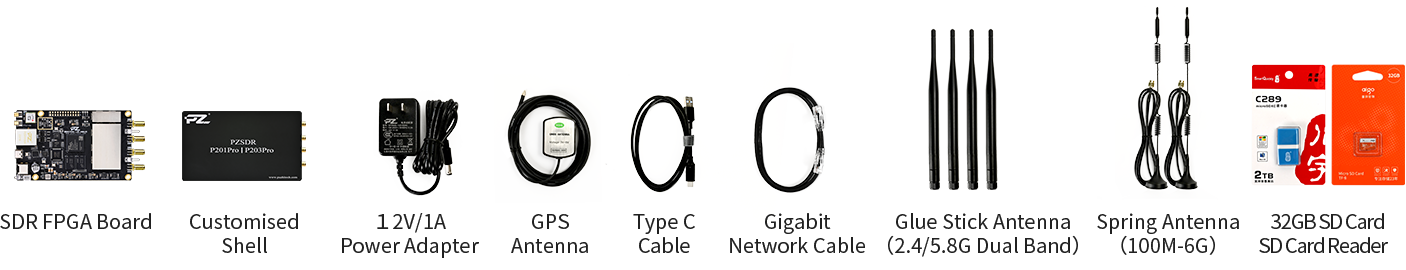

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
