Puzhi PZSDR Software Defined Radio ZYNQ7035+AD9361
- RF chip AD9361，Frequency range 70M-6Ghz，Signal bandwidth 200K-56Mhz
- PS Side 1GB、PL Side 1GB DDR3，256Mb QSPI FLASH，256Kb E2PROM
- Industrial grade，ultra-wide voltage power supply (limit 50V)，excellent performance and high isolation
- Dimensions：Board 155x100x2.2mm、shell 162x105x23mm
- Support open source software，Provide hardware reference & software rich routines，Customised Services

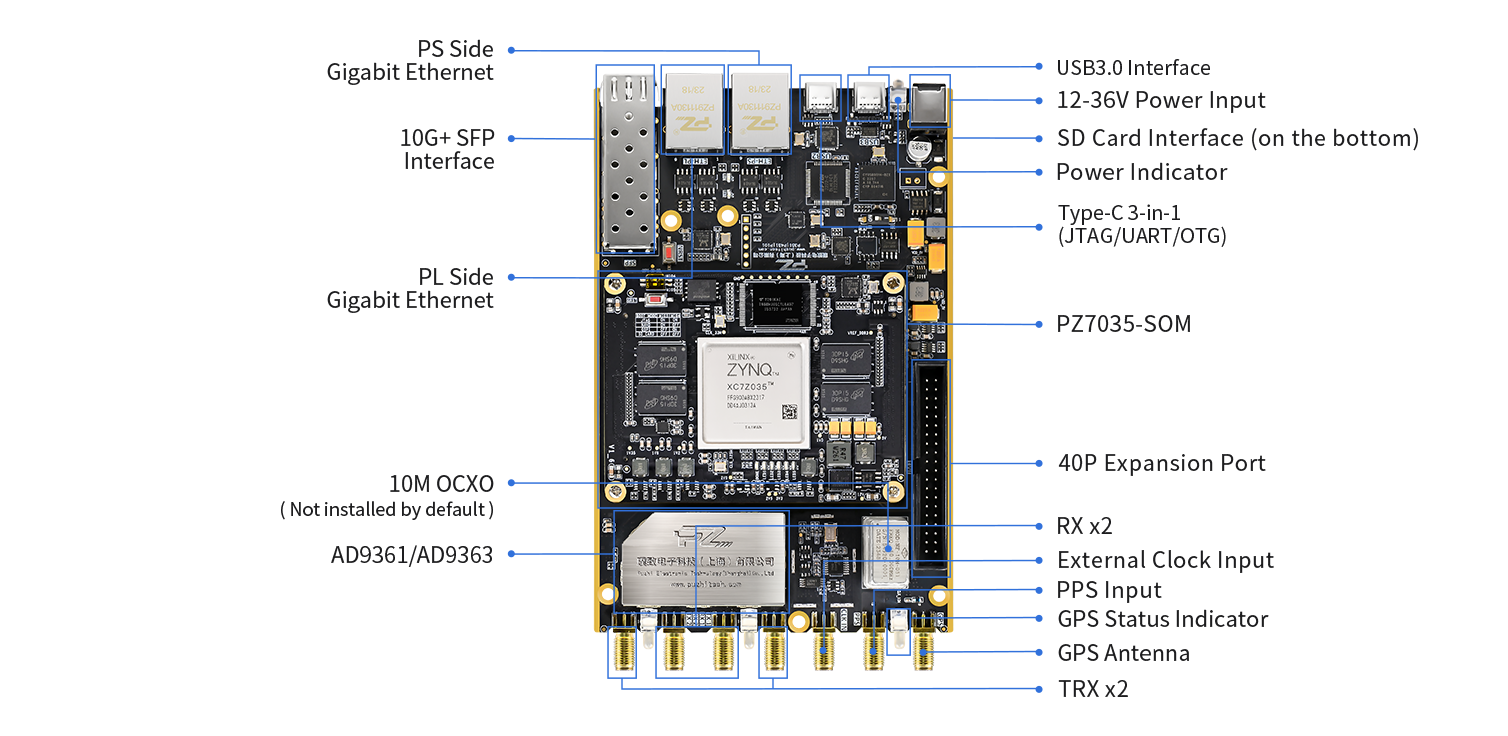

Interface Function Display
Product Parameters
PZSDR Main Parameters
SDR Module | P351 |
FPGA Chip | XC7Z035-2FFG900I |
Processor Core | Dual Core ARM Cortex-A9, Main Frequency 800Mhz |
Ｌogic Cells | 275K |
Lookup Tables | 171900 |
Flip-Flops | 343800 |
DSP Slices | 900 |
BLOCK RAM | 17.6Mb |
RF Chip | AD9361 |
Frequency range | 70M-6Ghz |
Signal Bandwidths | 200K-56Mhz |
Power Amplifier | 10-15dbm |
DDR3 | PS Side 1GB, PL Side1GB |
QSPI FLASH | 256Mb |
E2PROM | 256Kb |
RF Clock | 40M VCTCXO(0.5PPM) / ipex Input/ External Input(Default is 40M VCTCXO, OCXO available as an option） |
Gigabit Ethernet | PS Side 1 Gigabie Ethernet, PL Side 1 1 Gigabit Ethernet |
USB3.0 | 1 |
USB OTG | 1 |
UART | 1 |
JTAG | 1 |
SD Card Slot | 1 |
GPS | 1 |
PPS/10M Input | 1 |
External Clock Input | 1 |
Expansion Port IOs | 32 x 3.3V IO |
Form Factors | Board: 155mm x 100mm x 2.2 mm；with Shell: 162mm x 105mm x 23mm |
Protection Class | All External Interfaces are Protected against Static Electricity, Clock/RF are Shielde |
Power Supply | 12-36V Ultra-wide Voltage Supply (50V limit) |
Working Temperature | -40°C~+85°C |

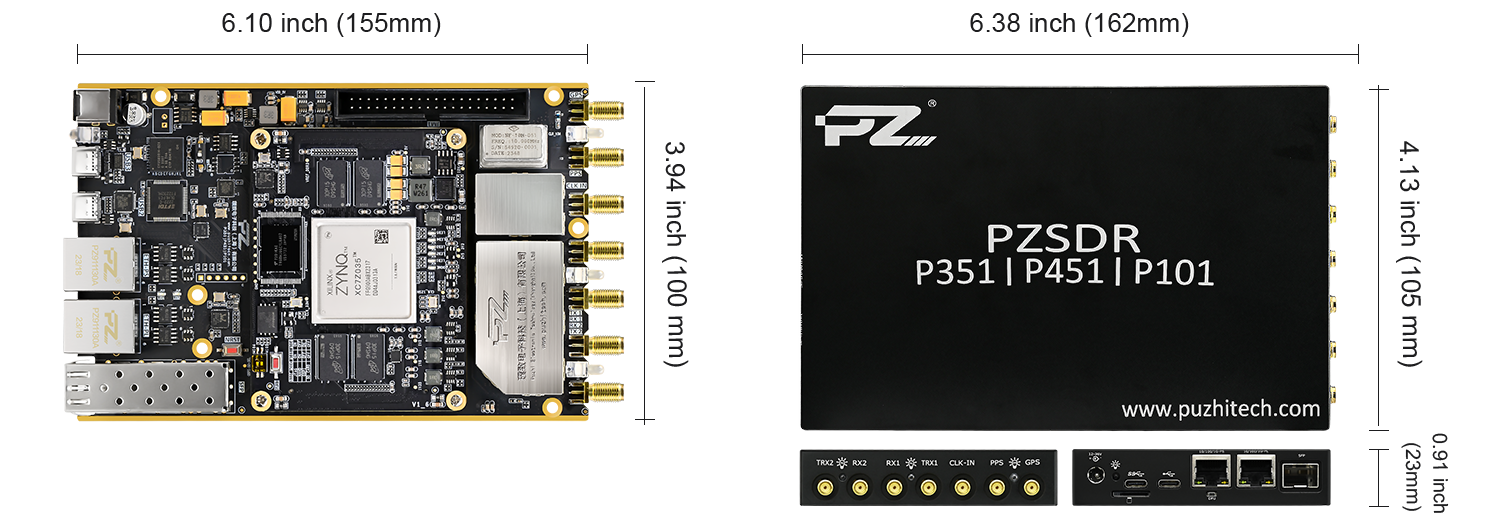

Product Dimensions
Rich Support Resources
Porting & Open Source Support | 1. PlutoSDR 2. UHD 3. FMCCOMS3 4. AD9361 Non-Operating System Engineering |
Open Source Software Packages | 1. vivado2019.1 2. ubuntu-18.04.4 3. GNU Radio 4. SDRangel 5. SDR# 6. Matlab Simulink 7. Gqrx SDR 8. PYNQ |
Customisation & Support | Provide Customised Services, Professional Technical Support, Constantly Updated Demos |

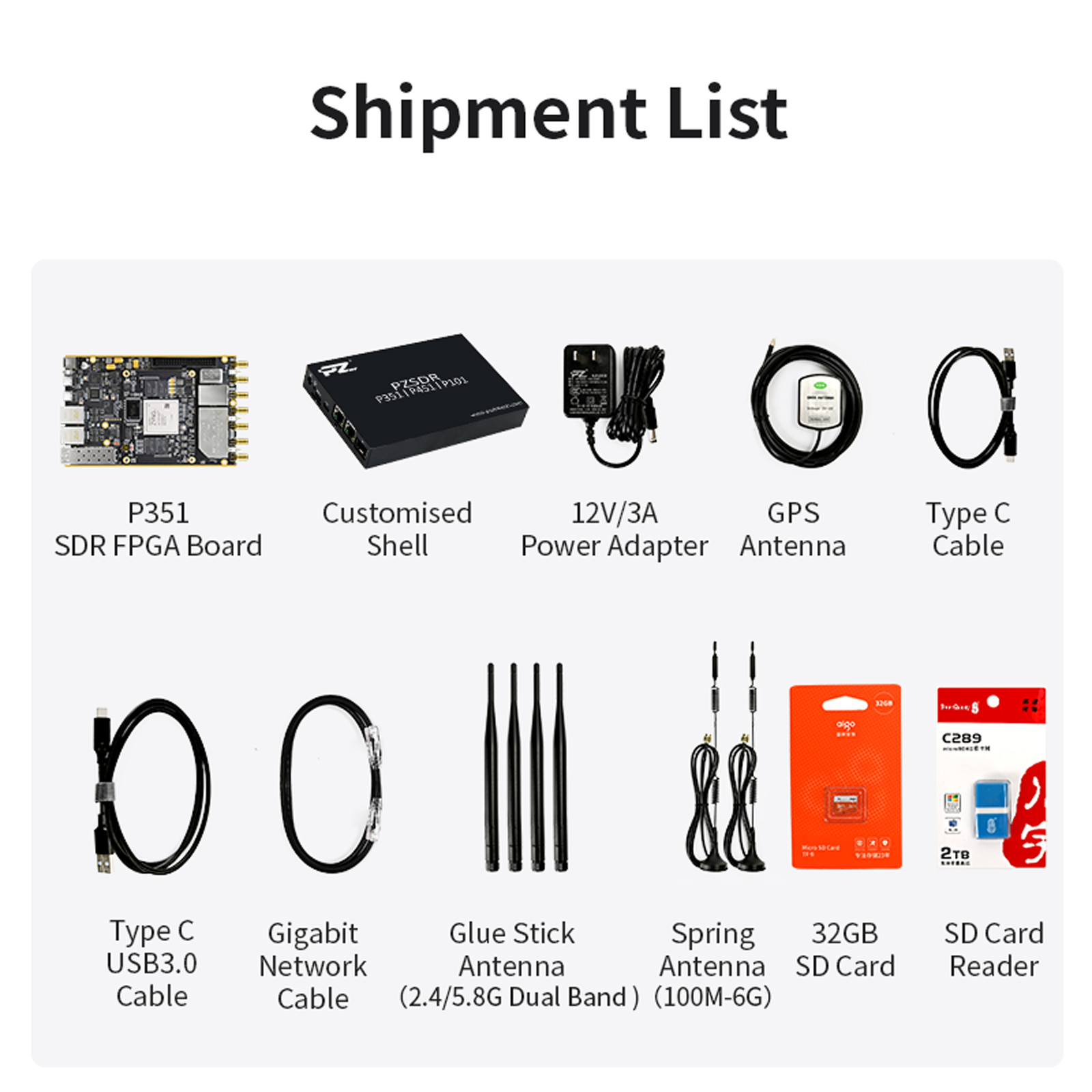

Standard Delivery List
