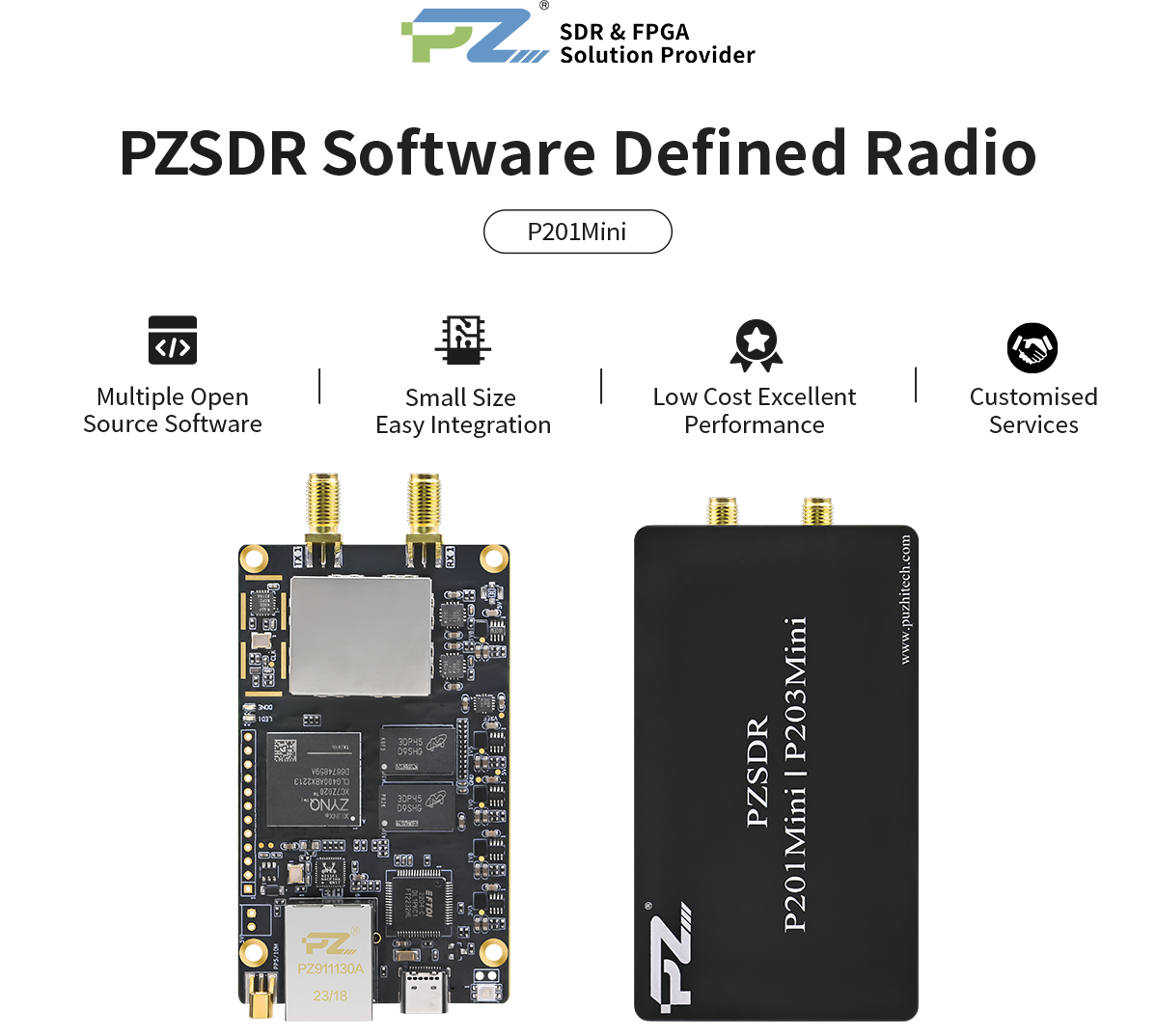

Puzhi PZSDR Software Defined Radio ZYNQ7020+AD9361
- RF chip AD9361，Frequency range 70M-6Ghz，Signal bandwidth 200K-56Mhz
- 1GB DDR3，256Mb QSPI FLASH，256Kb E2PROM
- Dimensions：Board 85x50x2.2mm、shell 95x55x23mm
- Small size，easy integration，excellent performance and low cost
- Support open source software，Provide hardware reference & software rich routines，Customised Services

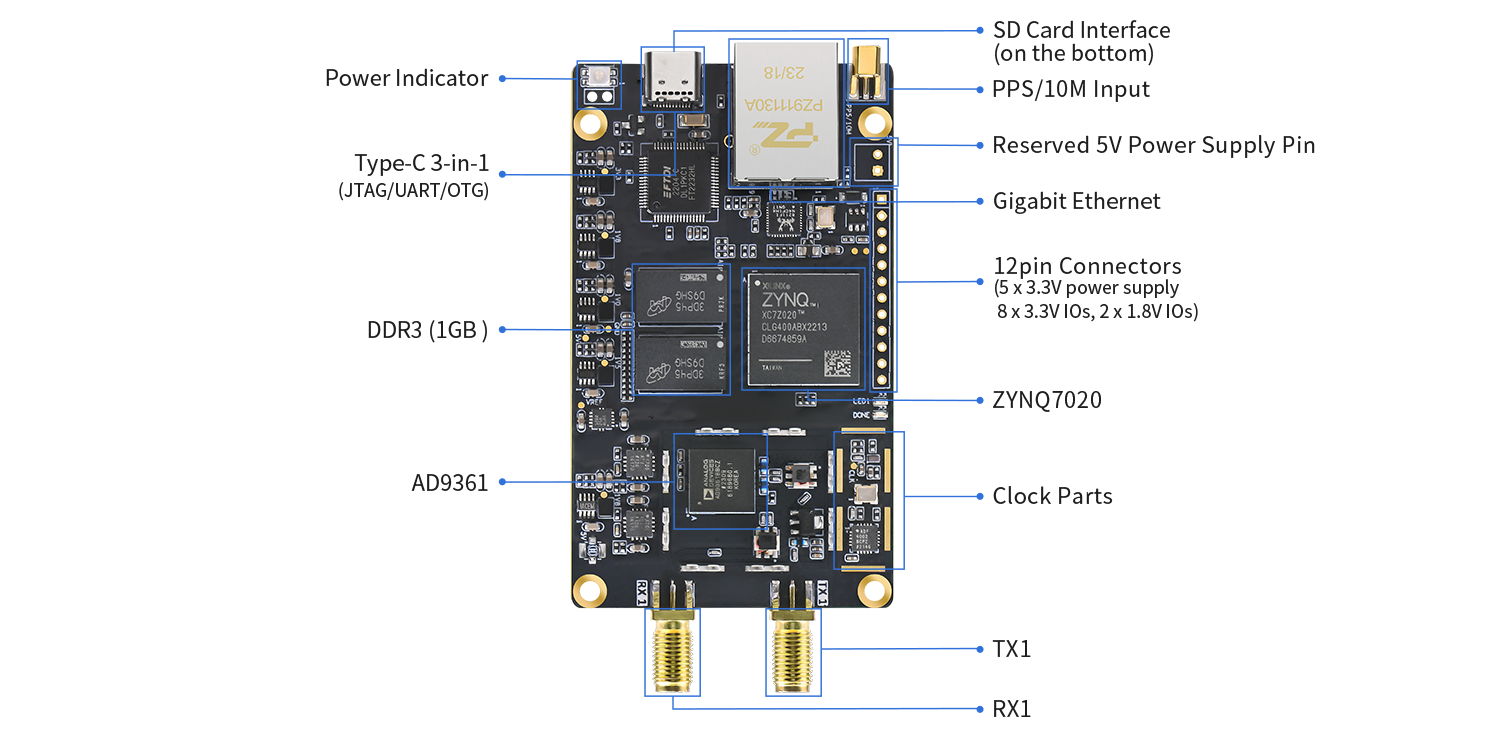

Interface Function Display
Product Parameters
PZSDR Main Parameters
SDR Module | P201Mini |
RF Chip | AD9361 |
Frequency range | 70M-6Ghz |
Signal Bandwidths | 200K-56Mhz |
Power Amplifier | 10-15dbm |
FPGA Chip | XC7Z020-2CLG400I |
Processor Core | Dual Cortex-A9, 766Mhz |
Ｌogic Cells | 85K |
DDR3 | 1GB |
QSPI FLASH | 256Mb |
E2PROM | 256Kb |
Gigabit Ethernet | 1 |
UART | 1 |
JTAG | 1 |
SD Card | 1 |
PPS/ 10M Input | 1 |
Expansion Port IOs | 8 x 3.3V IOs, 2 x 1.8V IOs |
Form Factors | Board: 3.35 inch x 1.97 inch x 0.09 inch；with Shell: 3.74 inch x 2.17 inch x 0.91 inch |
Power Supply | TypeC/XH2.54 Power Supply Options |
Working Temperature | -40°C~+85°C |

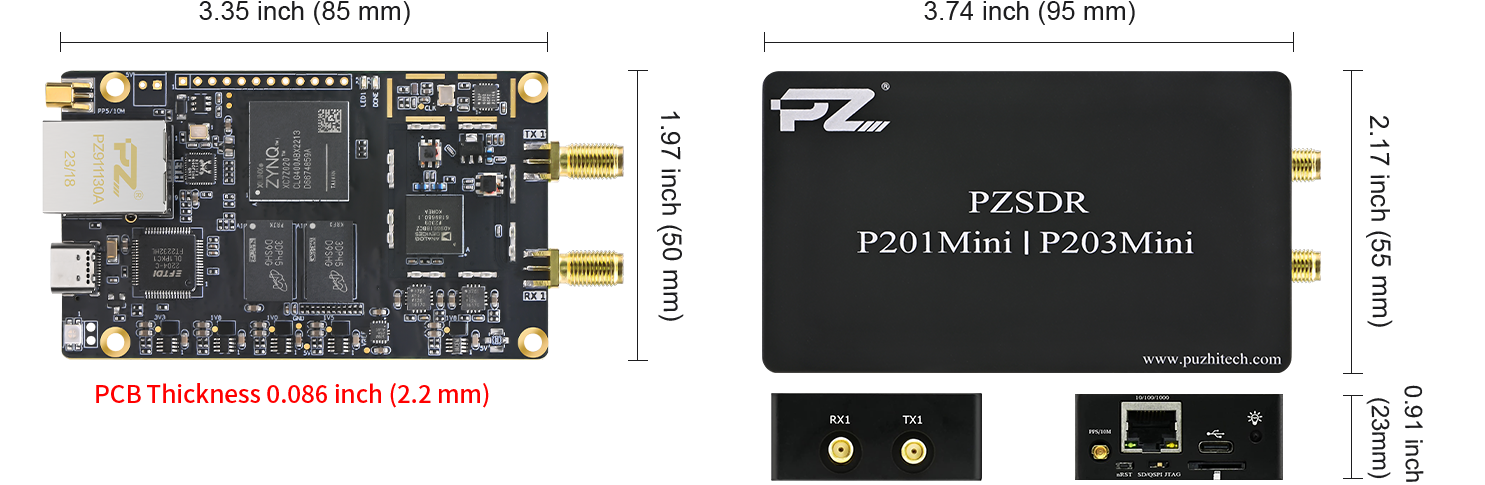

Product Dimensions
丰富的支持资源
移植与开源支持 | 1. PlutoSDR 2. UHD 3. AD9361非操作系统工程 |
支持与提供软件包 | 1. vivado2019.1 2. ubuntu-18.04.4 3. GNU Radio 4. SDRangel 5. SDR# 6. Matlab Simulink 7. Gqrx SDR 8. PYNQ |
关于定制和支持 | 提供个性化定制服务、专业的技术支持、不断更新的例程资源 |

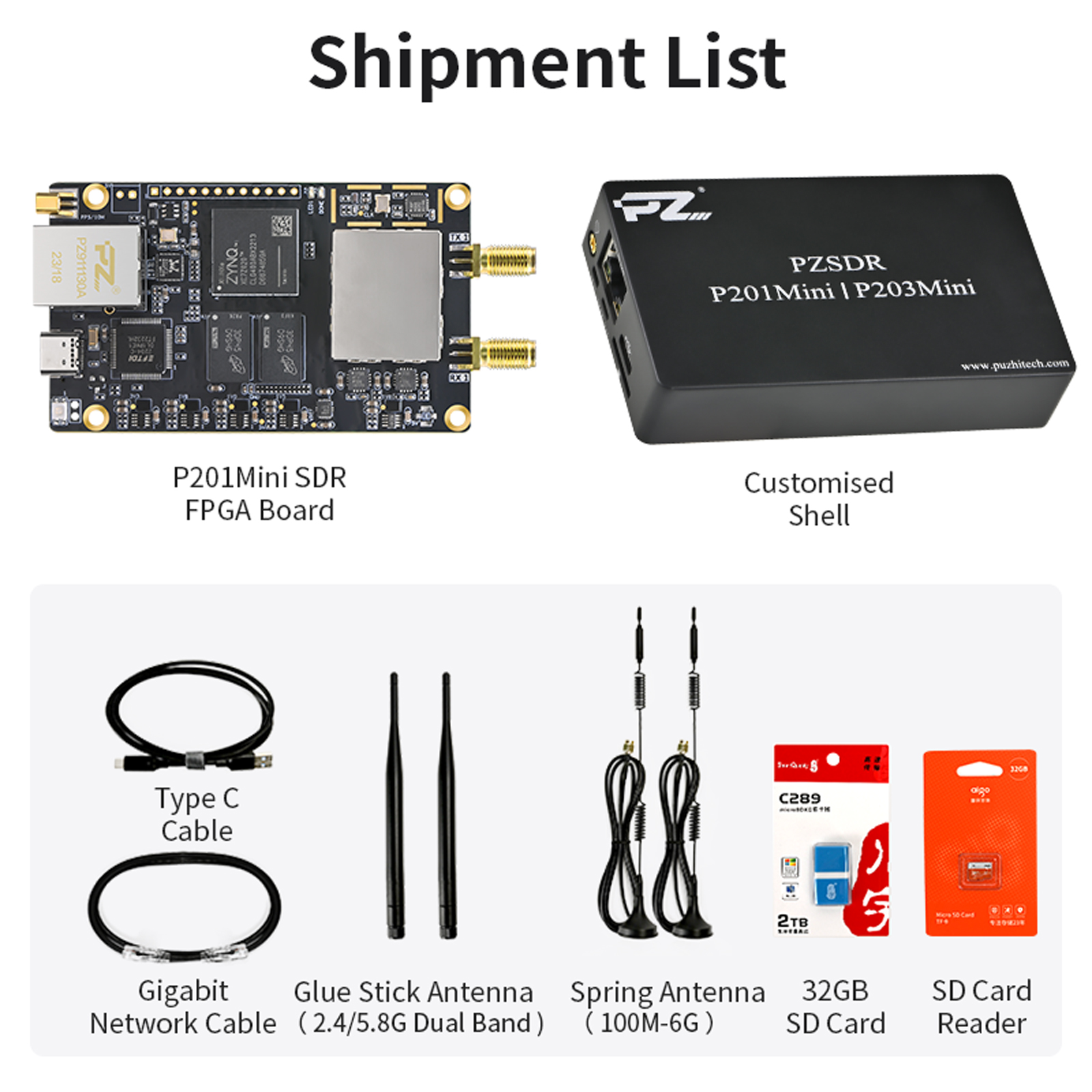

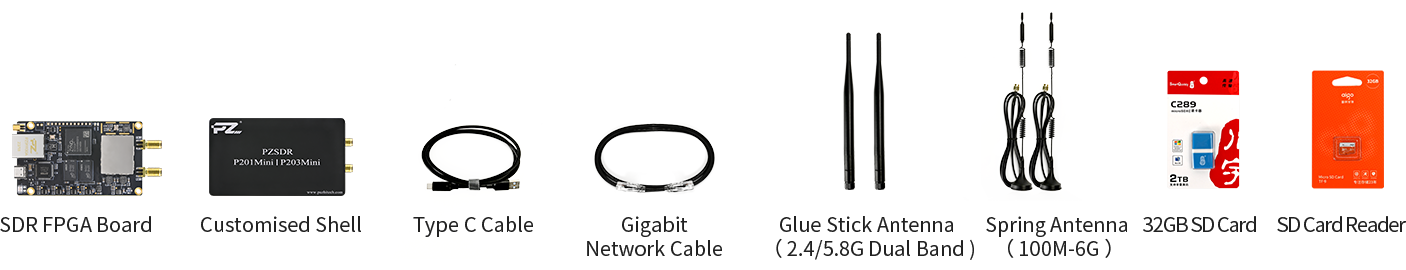

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
