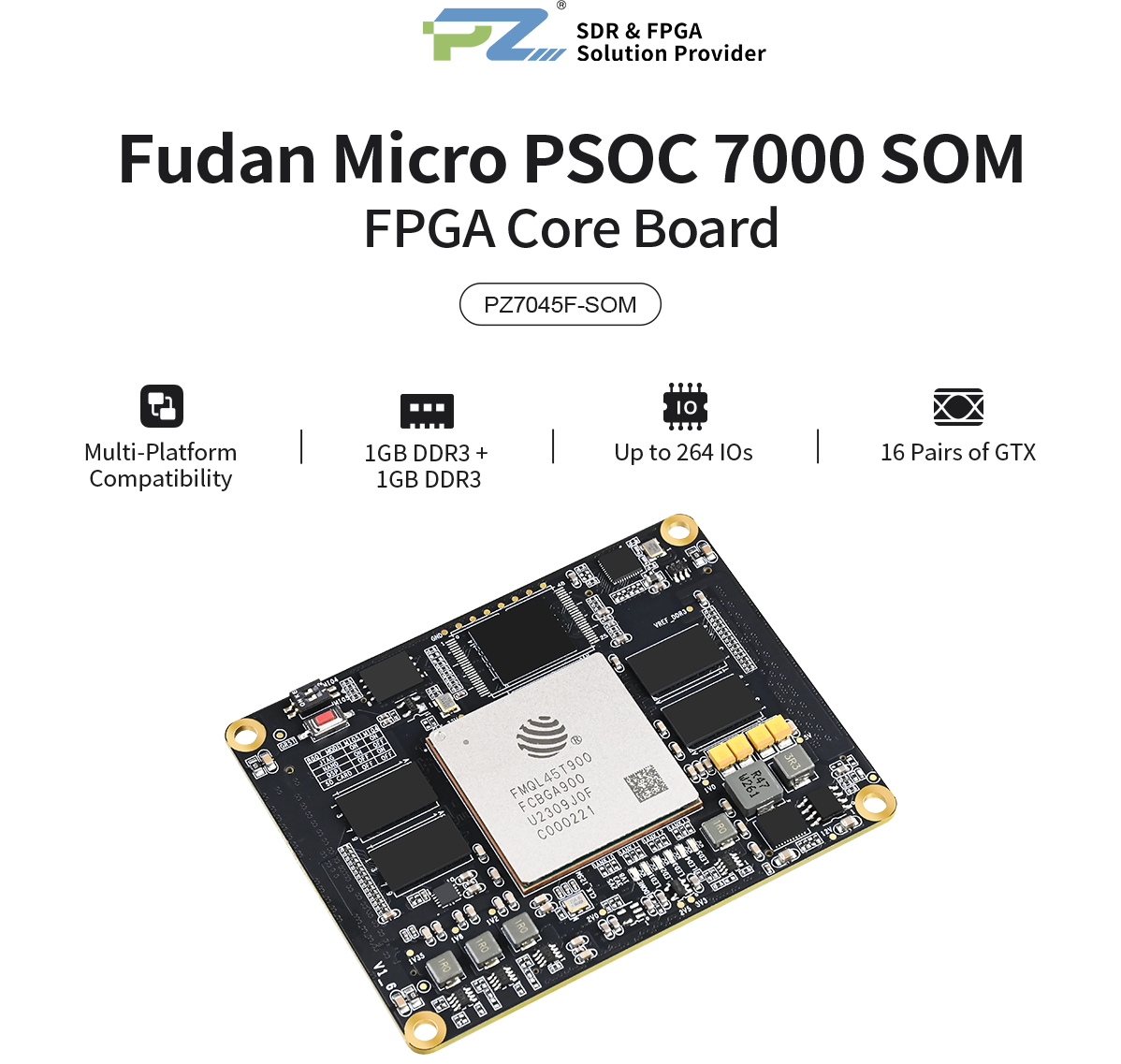

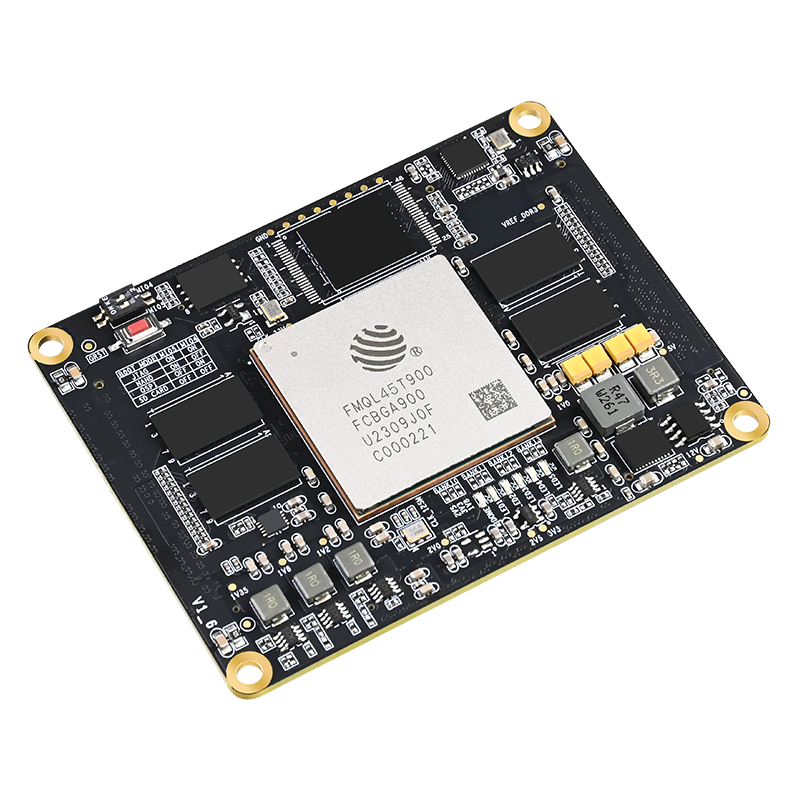

Puzhi FPGA Fudan Micro PSOC7000 7045 Core Board
- Fudan micro core board，quad core ARM Cortex-A7，main frequency 800Mhz
- PS Side 1GB、PL Side 1GB DDR3，8GB EMMC，256Mb QSPIFLASH
- Size 83.8*64.8mm，up to 264 IO available
- Extreme material selection and process standards，industrial grade -40℃~+85℃
- Provide hardware reference & rich routines，help product development

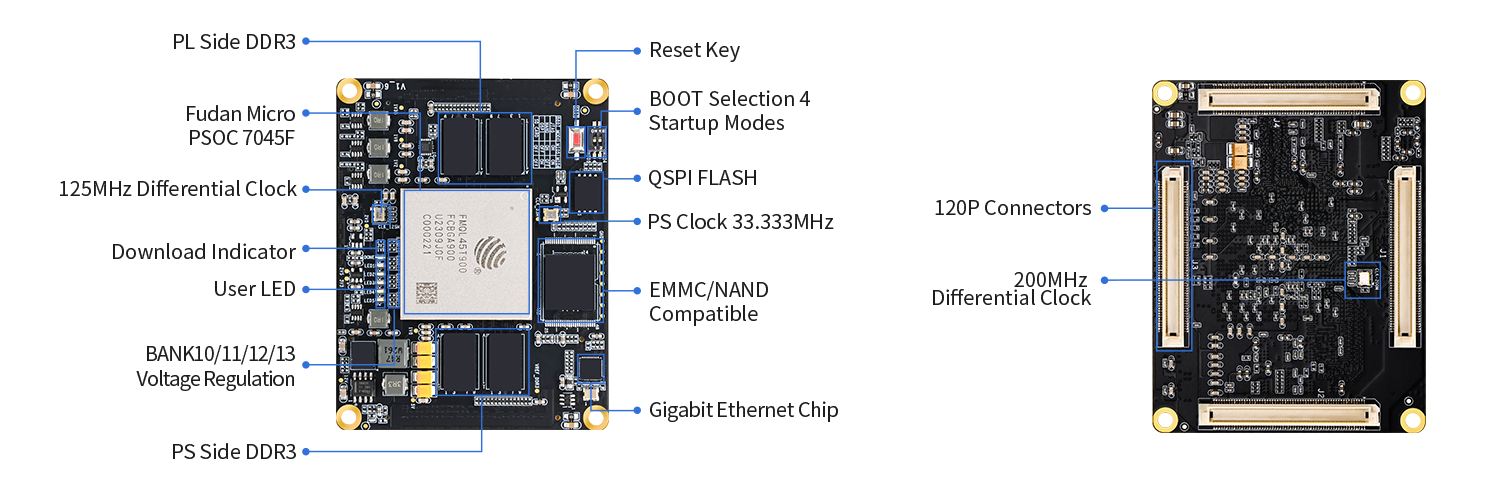

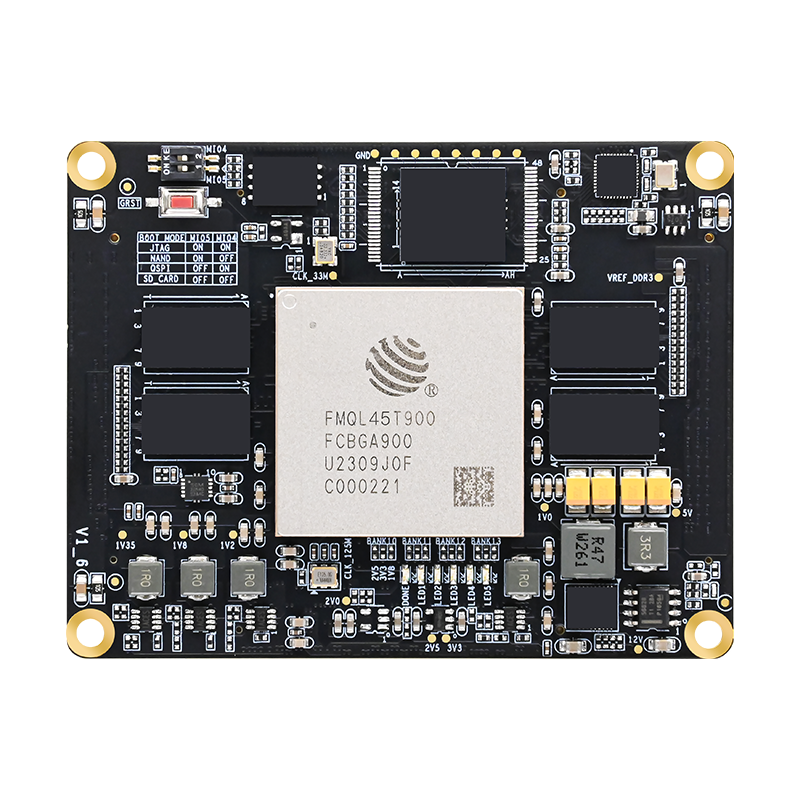

Interface Function Display
Product Parameters
Specification
FPGA Core Board | PZ7045F-SOM-900 |
FPGA Chip | FMQL45T900 |
Processor Core | Quad Core ARM Cortex-A7, Main Frequency 800Mhz |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 350K |
Lookup Tables | 218600 |
Flip-Flops | 437200 |
DSP Slices | 900 |
BLOCK RAM | 19.2Mb |
DDR3/DD3L | Total 2GB, PS Side 1GB/ PL Side 1GB |
QSPI FLASH | 256Mb, to Store Startup Files and User Files |
EMMC | 8GB, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI/SD, Onboard Dial Switch Selection |
Number of GTX | 4 Bank, 16 Pairs of TX/RX each |
PS Side MIO | 24 |
PL Side IO | Total 240 Single-end / 120 Pairs of Differential 192 IOs Levels 1.8/2.5/3.3V Adjustable (Default 3.3V) |
Gigabit Ethernet | 1 |
User LED | 5 |
Voltage / Current | 12V/3A |
Crystal Oscillator | Single-ended Crystal 33.3333MHz for PS Differential Crystal 200MHz for PL Differential Crystal 125MHz for the GT Transceiver Reference Clock |

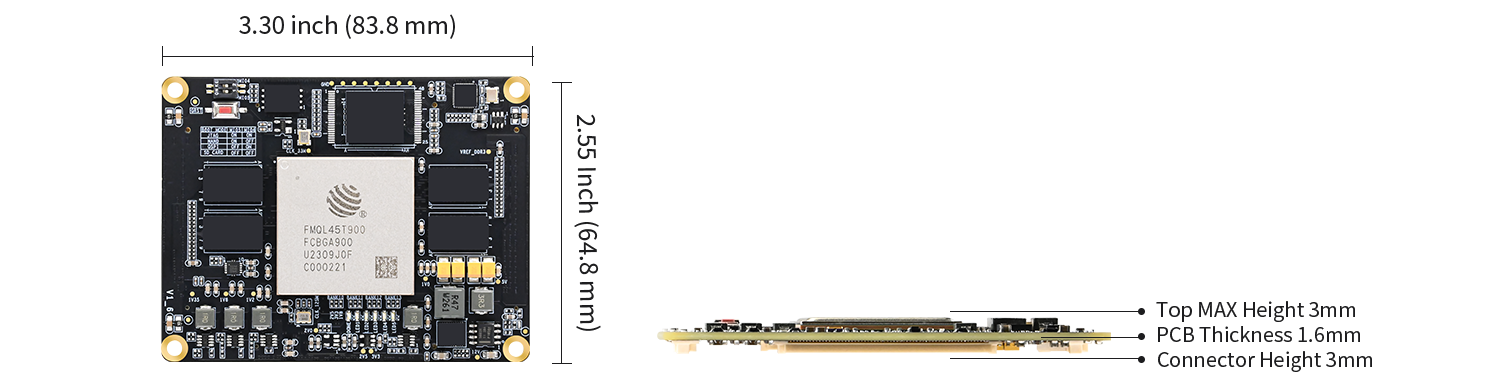

Form Factors | 3.30 inch x 2.55 inch (83.8mm x 64.8mm) |
Technology | 0.6mm, 120P Connectors x 4, Immersion Gold Process |
Product Dimensions
Product Packages
Technical Support
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

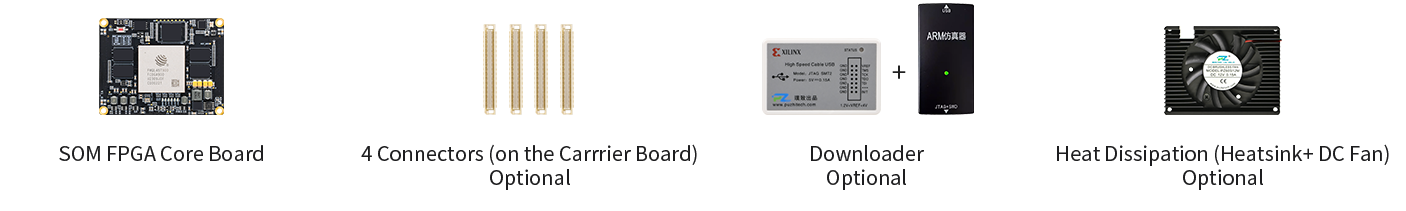

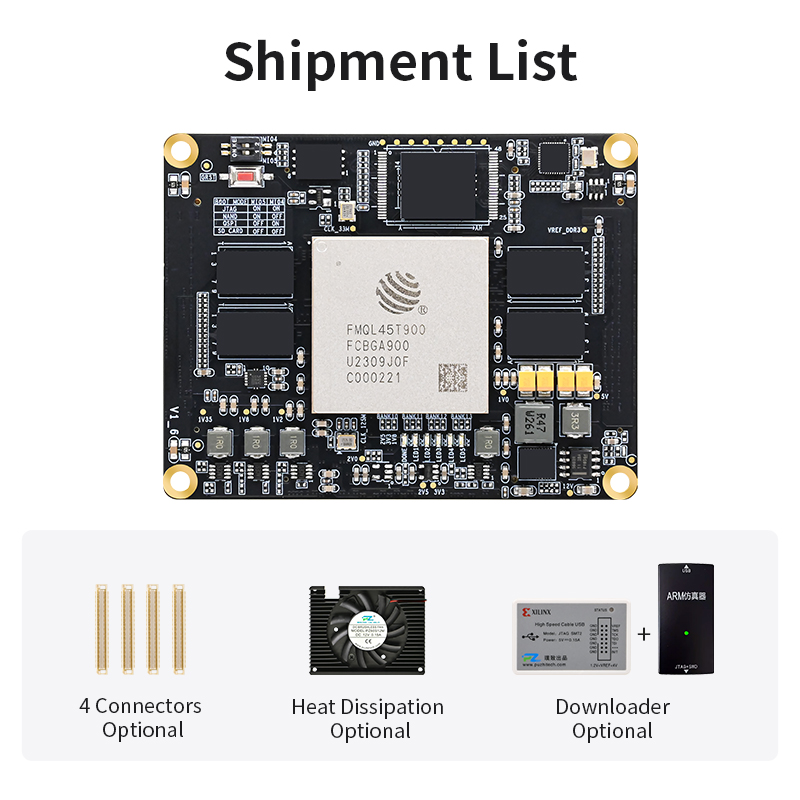

Standard Delivery List
