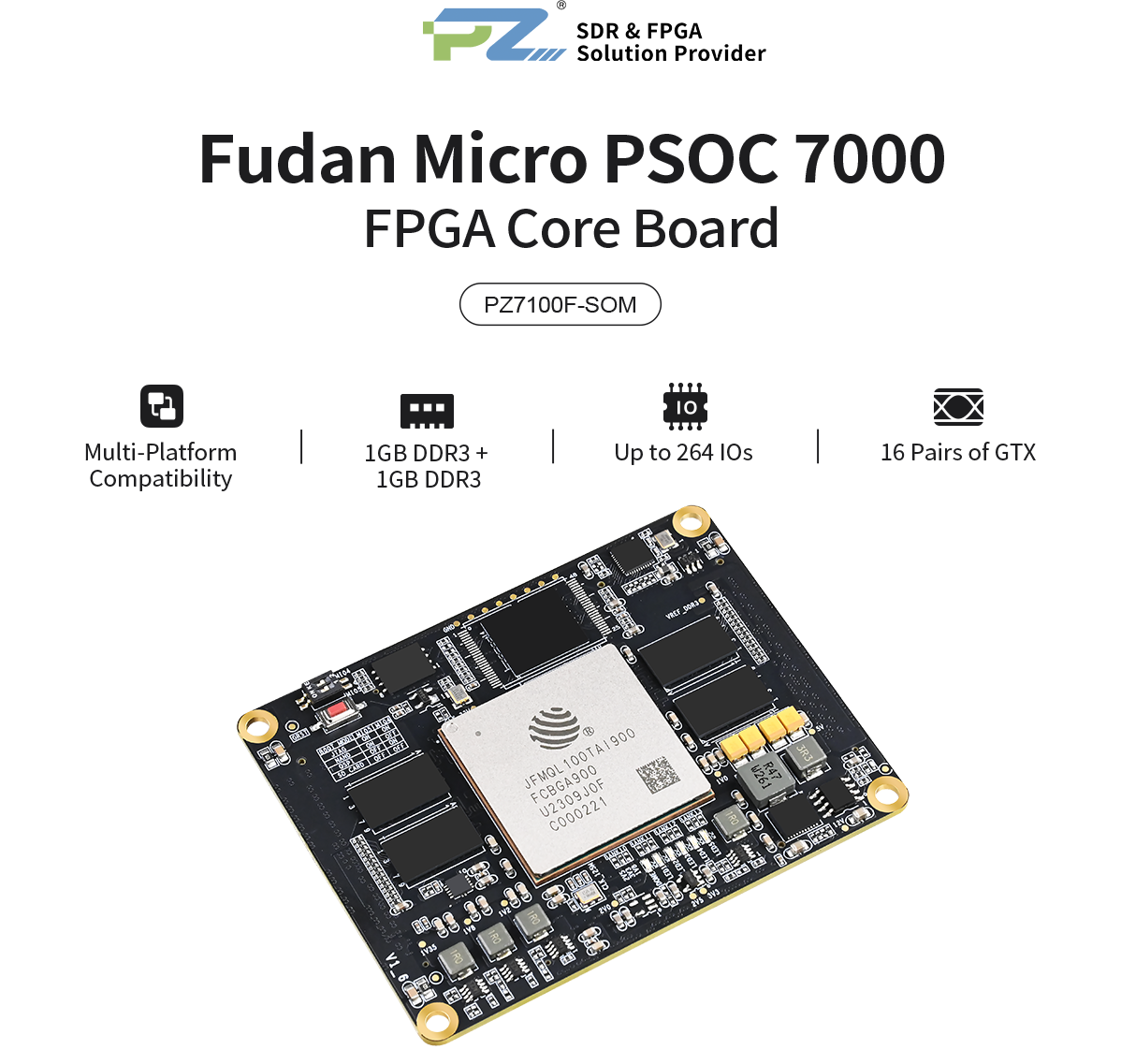

Puzhi FPGA Fudan Micro PSOC7000 7100 Core Board
- Fudan micro core board，quad core ARM Cortex-A53，main frequency 1Ghz，with AI
- PS Side 1GB、PL Side 1GB DDR3，8GB EMMC，256Mb QSPIFLASH
- Size 83.8*64.8mm，up to 264 IO available
- Extreme material selection and process standards，industrial grade -40℃~+85℃
- Provide hardware reference & rich routines，help product development
Interface Function Display

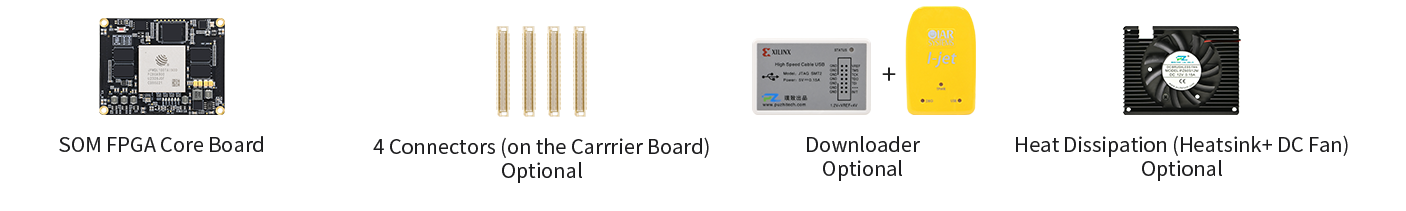

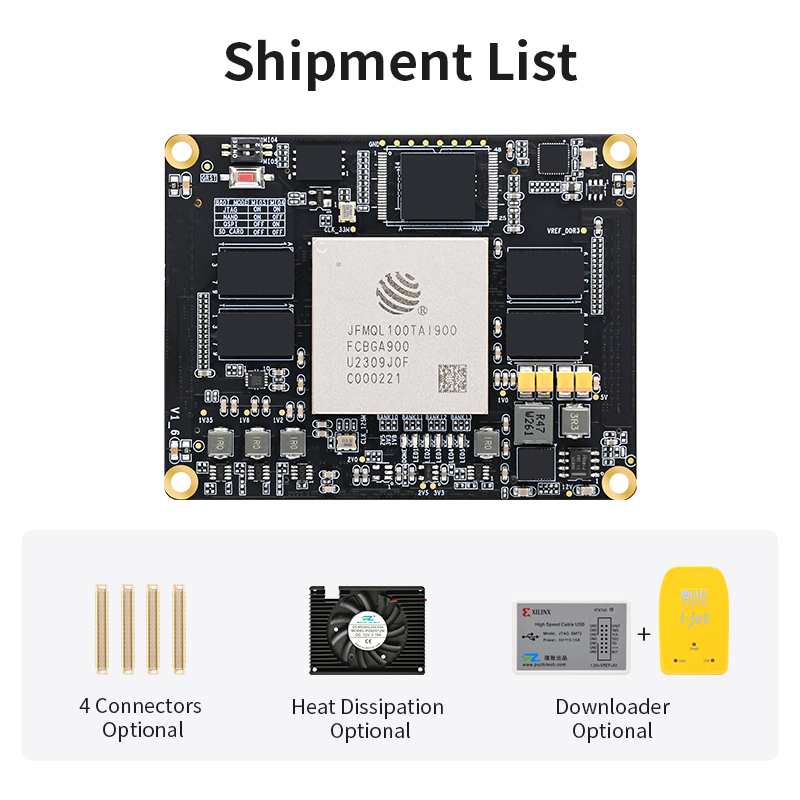

Product Parameters
Specification
FPGA Core Board | PZ7100F-SOM-900 |
FPGA Chip | JFMQL100TAI900 |
Processor Core | Quad Core ARM Cortex-A53, Main Frequency 1Ghz, With AI |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 444K |
Lookup Tables | 277400 |
Flip-Flops | 554800 |
DSP Slices | 2020 |
BLOCK RAM | 26.5Mb |
DDR3/DD3L | Total 2GB, PS Side 1GB/ PL Side 1GB |
QSPI FLASH | 256Mb, to Store Startup Files and User Files |
EMMC | 8GB, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI/SD, Onboard Dial Switch Selection |
Number of GTX | 4 Bank, 16 Pairs of TX/RX each |
PS Side MIO | 24 |
PL Side IO | Total 240 Single-end / 120 Pairs of Differential 192 IOs Levels 1.8/2.5/3.3V Adjustable (Default 3.3V) |
Gigabit Ethernet | 1 |
User LED | 5 |
Voltage / Current | 12V/3A |
Crystal Oscillator | Single-ended Crystal 33.3333MHz for PS Differential Crystal 200MHz for PL Differential Crystal 125MHz for the GT Transceiver Reference Clock |
Form Factors | 3.30 inch x 2.55 inch (83.8mm x 64.8mm) |
Technology | 0.6mm, 120P Connectors x 4, Immersion Gold Process |

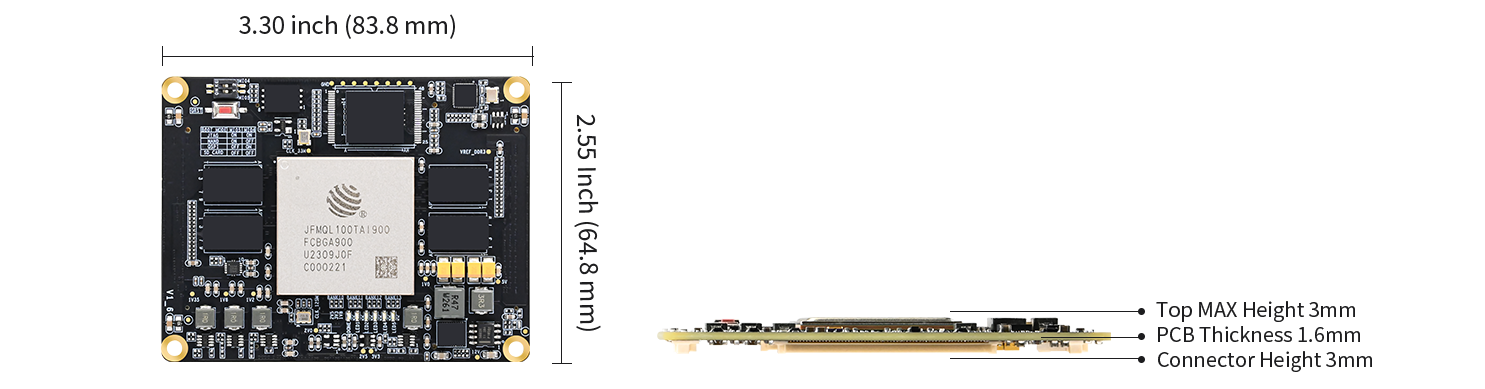

Product Dimensions
