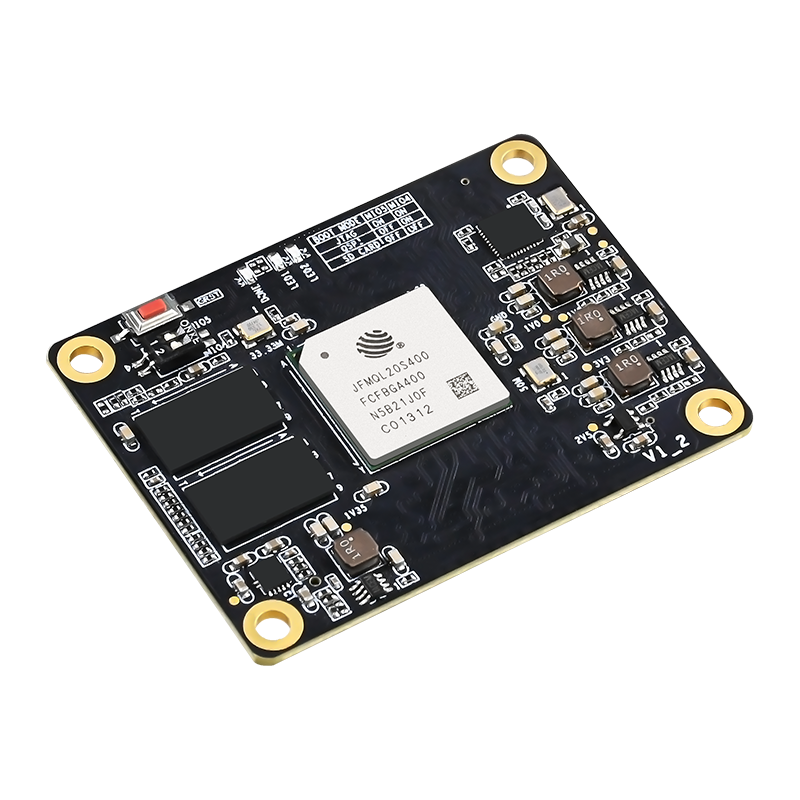

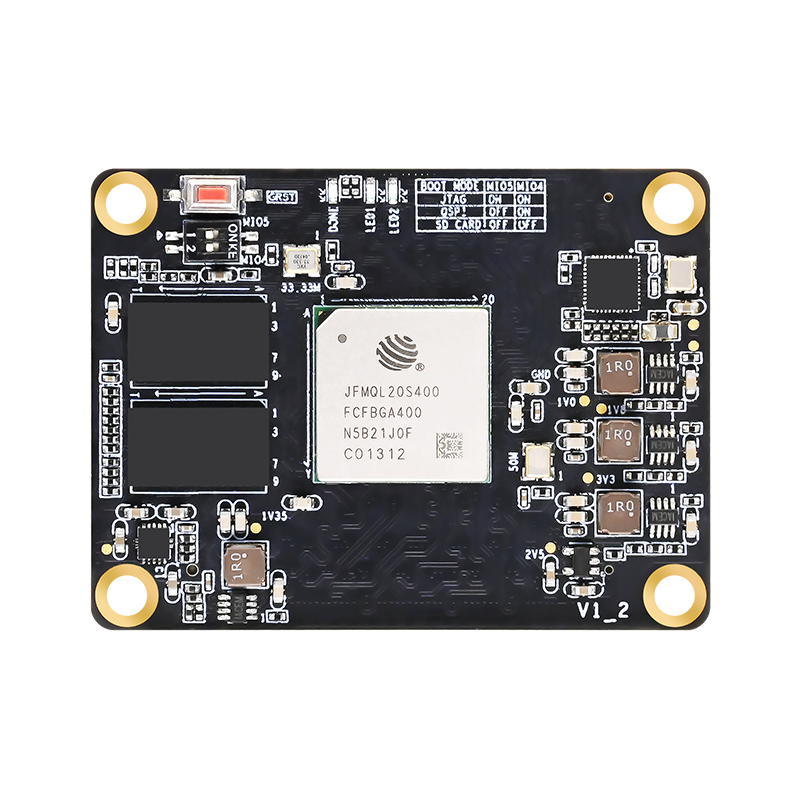

Puzhi FPGA Fudan Micro PSOC7000 7020S Core Board

Home- Product Center

PZ7020SF-SOM

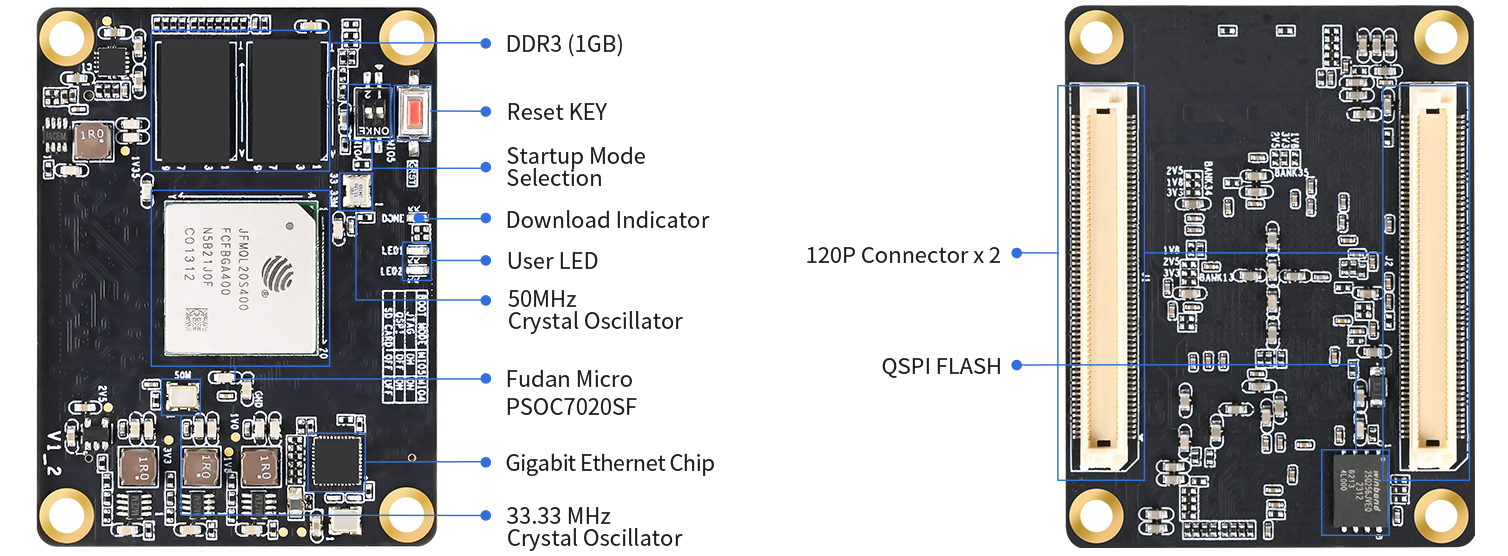

FPGA Core Board	PZ7020SF-SOM
FPGA Chip	JFMQL20S400
Processor Core	Quad Core ARM Cortex-A7
Speed Grade	2
Chip Level	Industrial Grade（-40°C~+85°C）
Logic Cells	85K
Lookup Tables	53200
Flip-Flops	106400
DSP Slices	220
BLOCK RAM	4.9Mb
DDR3/DD3L	1GB
QSPI FLASH	256Mb
PS Side MIO	30 PS ports (24 fixed 1.8V, 6 fixed 3.3V)
PL Side IO	116 Single-ended IOs(1.8/2.5/3.3V adjustable, default 3.3V)
Gigabit Ethernet	1
User LED	2
Voltage / Current	5V/1A
Crystal Oscillator	Single-ended Crystal 33.3333MHz for PS Single-ended Crystal 50MHz for PL

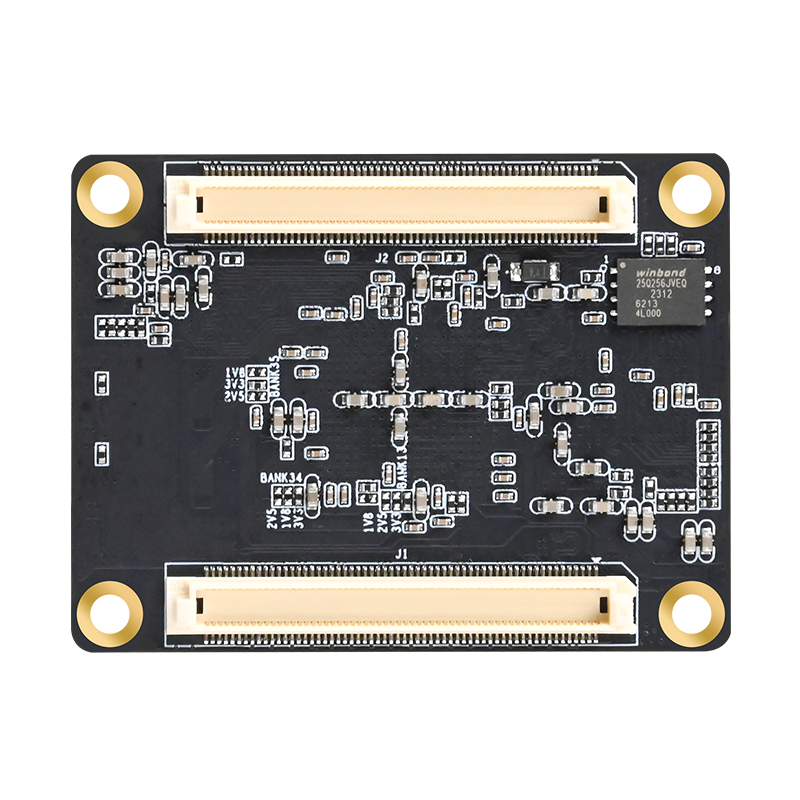

Form Factors	2.36 inch x 1.77 inch (60mm x 45mm) 0.6mm, 120P Connectors x 2 Immersion Gold Process

Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

Commerical Invoice
- 1.
  Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
- 2.
  Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
- 1.
  The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
- 2.
  Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
- 3.
  Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
- 4.
  The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
- 1.
  DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
- 2.
  Working Time: Monday to Friday, 9am to 6pm CsT.
