Puzhi FPGA Fudan Micro Virtex-7 V7690T Core Board
- Fudan micro core board / logical unit 693k / Slices 108300
- 2GB+2GB DDR3，up to 528 IO available，36 pairs of GTH
- Size 100*80mm，Power supply/current 8-12V/5A
- Extreme material selection and process standards，industrial grade -40℃~+85℃
- Provide hardware reference & rich routines，help product development

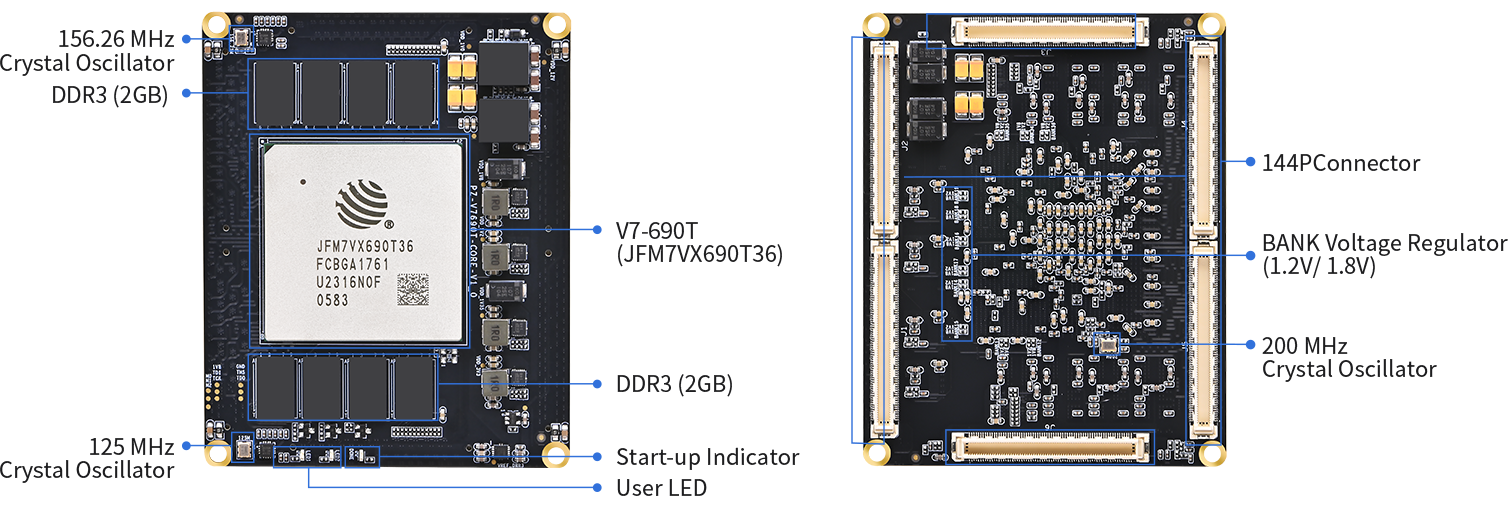

Interface Function Display
Product Parameters
Specification
FPGA SOM | PZ-V7690TF-SOM |
FPGA Chip | JFM7VX690T36 |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 693K |
Slices | 108300 |
Flip-Flops | 866400 |
DSP Slices | 3600 |
TOTAL BLOCK RAM | 52920 |
DDR3 | 2GB/64bit+2GB/64bit |
Start-up Mode | JTAG/QSPI/BPI |
User LEDs | 2 |
Number of GTH | 36 Pairs of TX/RX |
Number of IOs | Total 528 single-ended/264 differential pairs (1.2/1.8V adjustable, default 1.8V) |
Voltage/ Current | 8-12V/5A |
Crystal Oscillator | 200MHz Differential Crystalfor FPGA 125MHz and 156.25MHz Differential Crystal for the GT Transceiver Reference Clock |
Technology | 0.5mm Spacing, 144P Connector x 6, Immersion Gold Process, PCB thickness 2mm |
Form Factors | 3.94 inch x 3.15 inch (100mm x 80mm) |

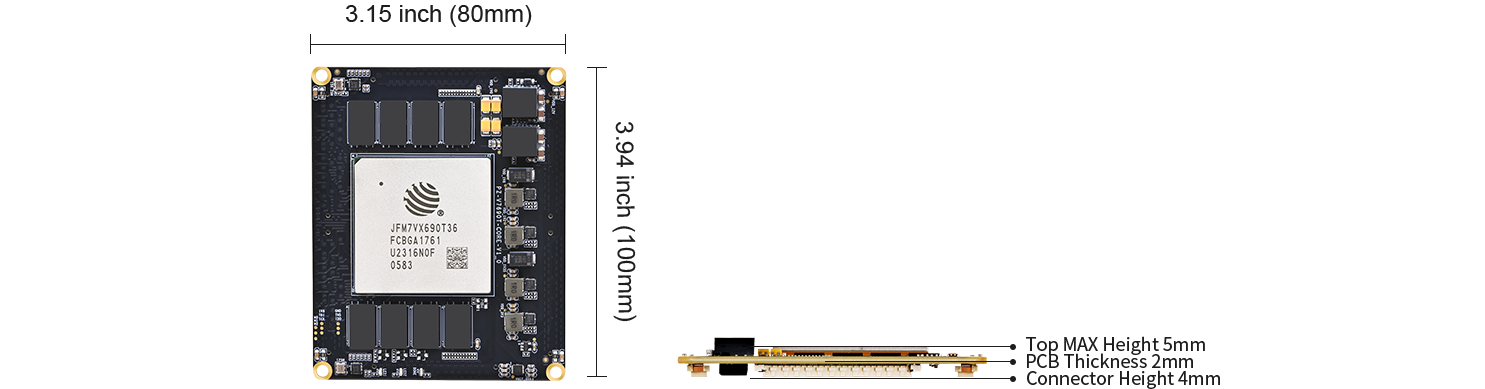

Product Dimensions
Product Packages
Technical Support
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

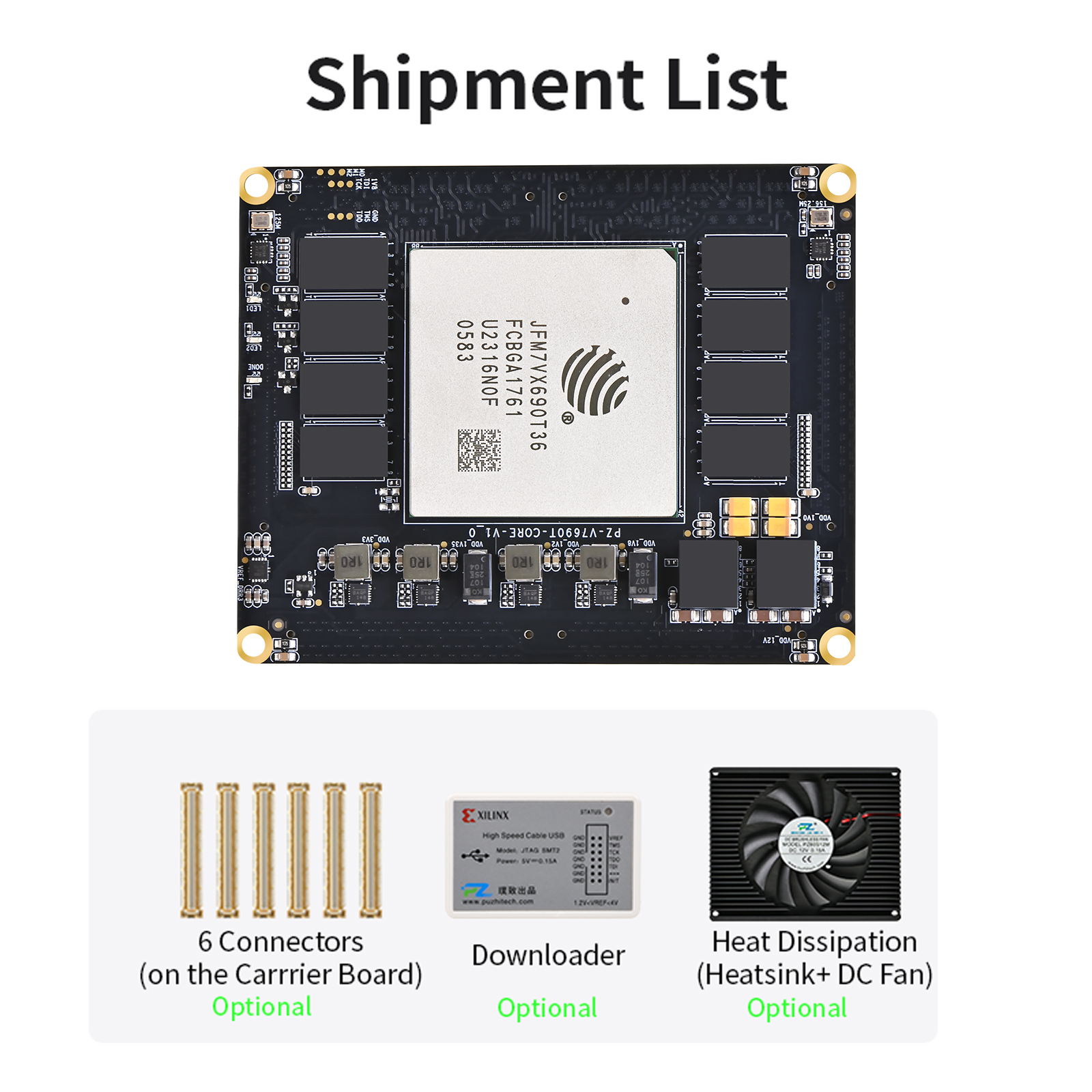

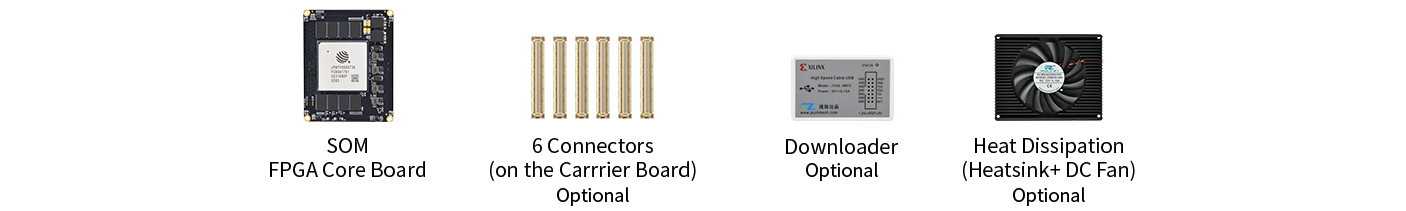

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
