Puzhi FPGA Artix-7 PA100T-EDU Development Board
- Artix-7 FPGA architecture/logical unit 101440/ Slices 15850
- 1GB DDR3，256Mb QSPIFLASH，Power supply/current 5V/1A
- With 8-bit digital tube, EDU professional teaching
- Extreme material selection and process standards，Reliable quality
- Provide perfect hardware reference & software rich routines，help product development
Interface Function Display
Product Parameters
FPGA Dev. Board Main Parameters
FPGA Dev. Board | PA100T-EDU |
FPGA Chip | XC7A100T-2FGG484I |
Logic Cells | 101K |
Slices | 15850 |
BLOCK RAM | 4860 |
DSP Slices | 240 |
DDR3 | 1GB |
QSPI FLASH | 256Mb |
E2PROM | 64Kbit |
JTAG Downloader | 1 |
UART | 1 |
SD Card Slot | 1 |
Gigabit Ethernet | 1 |
HDMI | 1 HDMI Output |
LED, KEY | 6 LEDs, 4 KEYs |
40P FPC Interface | 40P 0.5mm FPC Interface (5V 3.3A power supply and 33 IO ports included) |
Crystal Oscillator | 200MHz Differential Crystal for FPGA |
Voltage / Current | 5V/1A |
Technology | Black Matte. Immersion Gold Process |

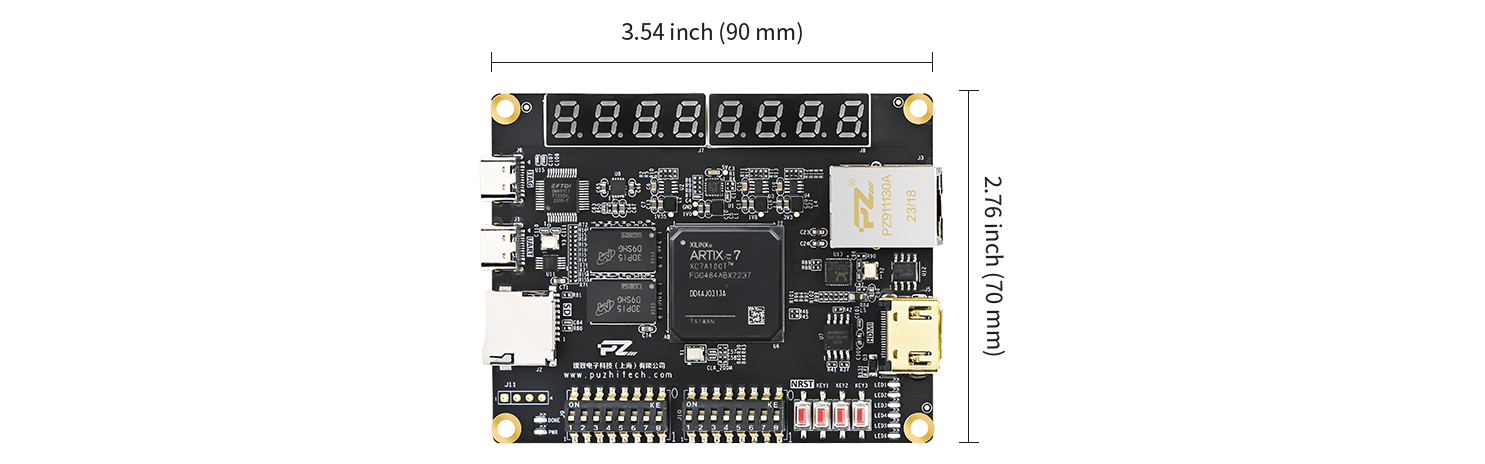

Form Factors | 3.54 inch x 2.76 inch (90 mm x 70mm) |
Product Dimensions
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
- 1
FPGA Logic Demos
- 01.
Vivado Installation
- 02.
FLASH Curing
- 03.
LED Flashing
- 04.
LED PWM Control
- 05.
Key Demos
- 06.
FPGA on-chip RAM Read and Write
- 07.
FPGA on-chip ROM Read and Write
- 08.
FPGA on-chip PLL Configuration
- 09.
FPGA on-chip FIFO Read and Write
- 10.
FPGA side DDR3 Control Read and Write
- 11.
I2C Read and Write E2PROM
- 12.
Uart Transceiver
- 13.
SD Card Read and Writ
- 14.
HDMI Output Testing Picture
- 15.
HDMI Output Picture
- 16.
SD Card Reads BMP Picture LCD Display
- 17.
LCD Colour Bar Display
- 18.
LCD Output Picture
- 19.
SD Card Reads BMP Picture LCD Display
- 20.
Gigabit UDP Based on RTL8211
- 21.
Digital Tube Static Display
- 22.
Digital Tube and DIP Switch Dynamic Display
- 01.
- 2
Microblaze Parts
- 01.
Microblaze LED
- 02.
Microblaze Uart
- 03.
Microblaze GPIO Interrupt
- 04.
Microblaze Timer Interrupt
- 05.
Microblaze DMA LOOP
- 06.
Microblaze XADC
- 07.
Microblaze Lwip TCP loop
- 08.
Microblazeb OLED Demos
- 01.

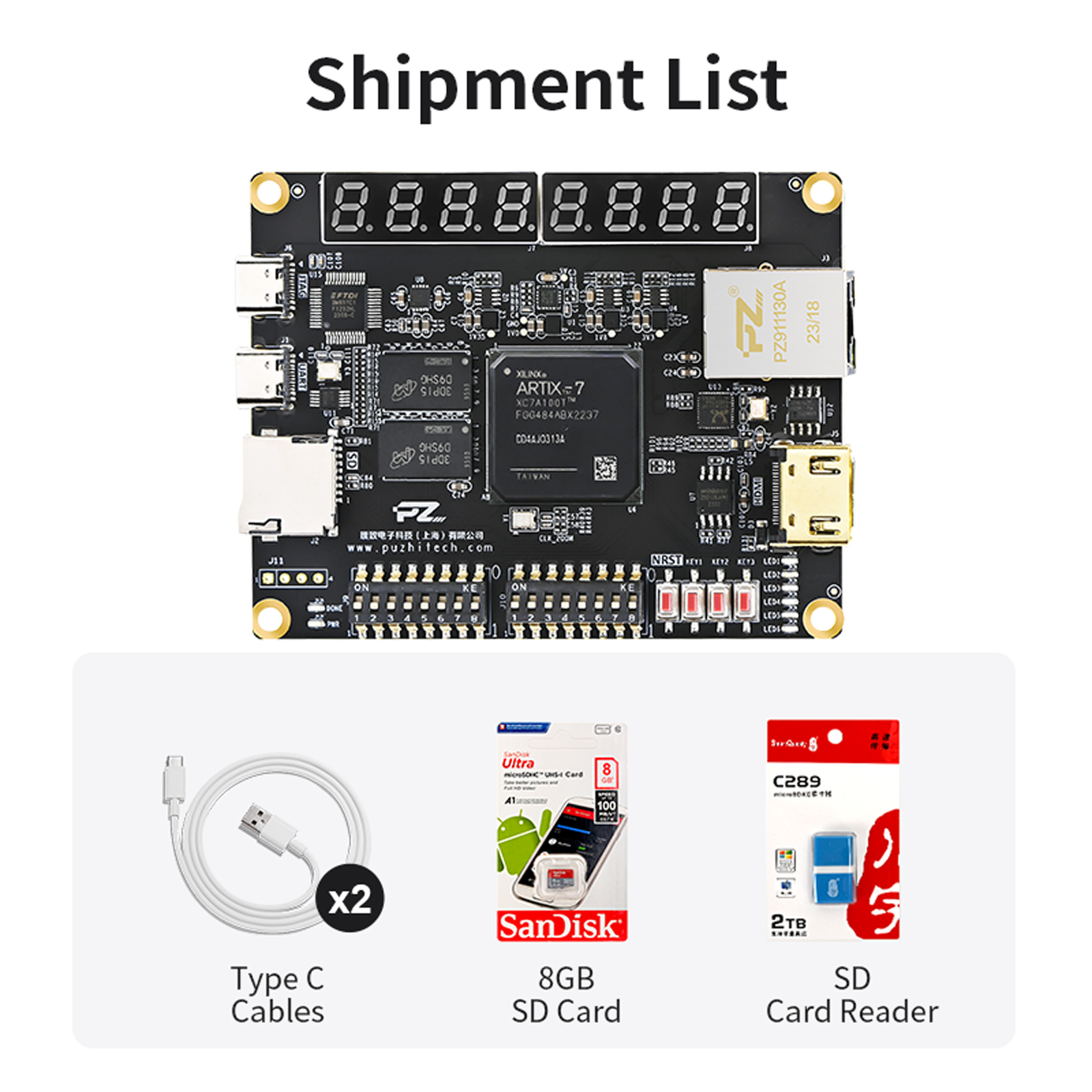

Standard Delivery List
