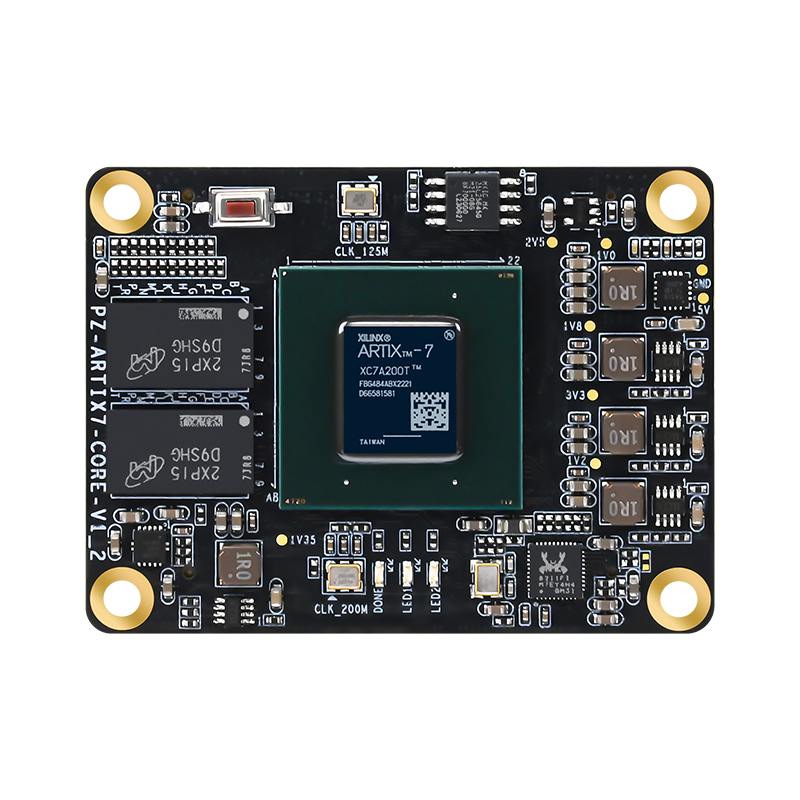

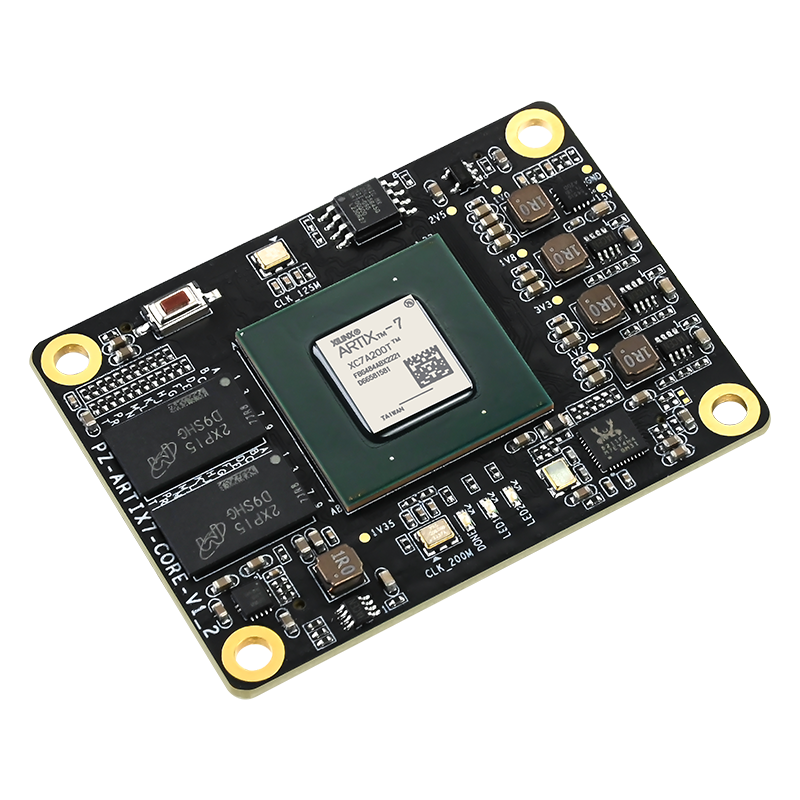

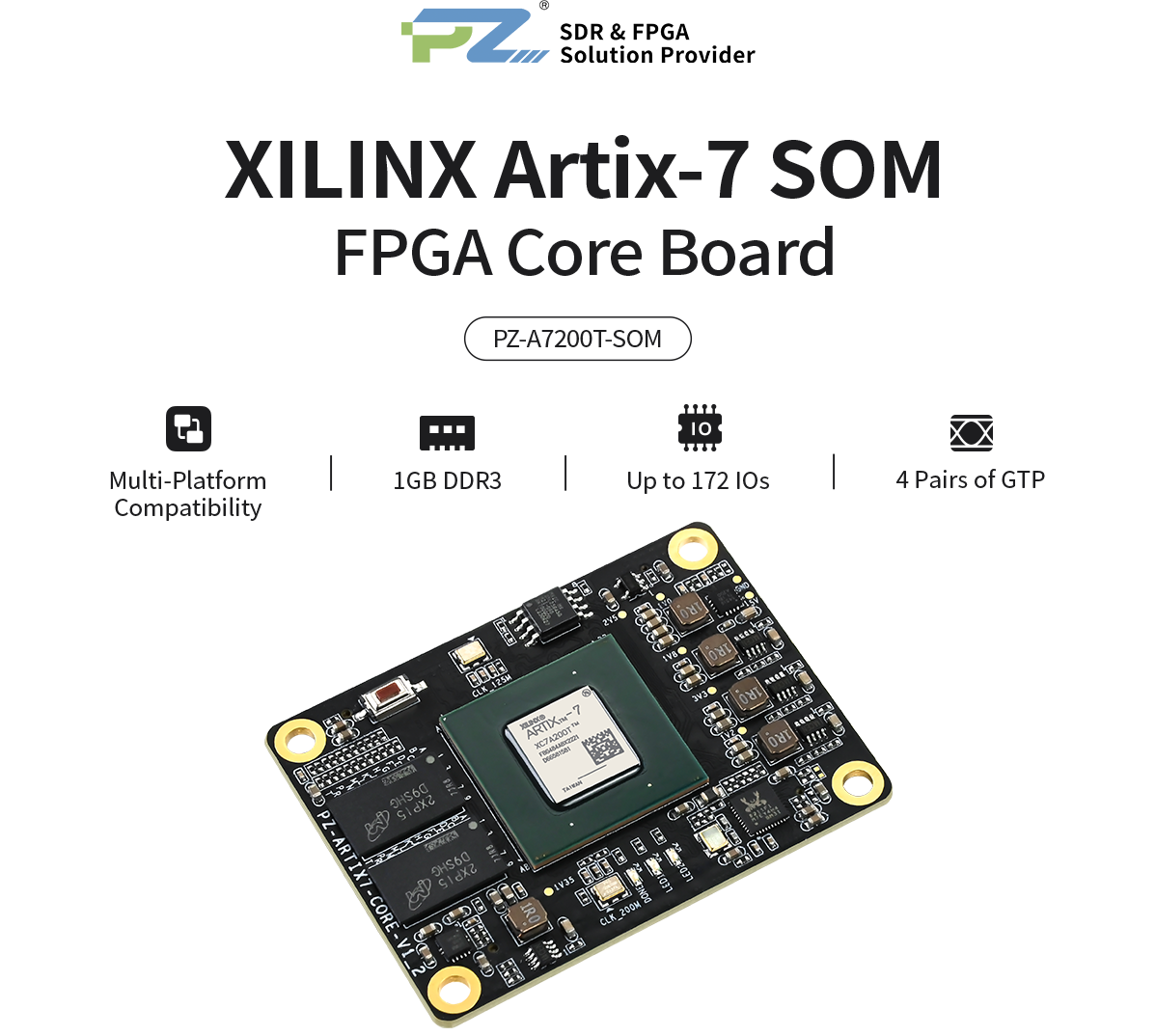

Puzhi FPGA Artix-7 A7200T Core Board
- Artix-7 Core board / logical uni 215360 / Slices 33650
- 1GB DDR3，256Mb QSPIFLASH，Power supply/current 5V/2A
- Size 60*45mm，up to 172 IO available，4 pairs of GTP
- Extreme material selection and process standards，industrial grade -40℃~+85℃
- Support PYNQ，provide hardware reference & rich routines，help product development
Interface Function Display
Product Parameters
Specification
FPGA Core Board | PZ-A7200T-SOM |
FPGA Chip | XC7A200T-2FBG484I |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 215K |
Slices | 33650 |
BLOCK RAM | 13140 |
DSP Slices | 740 |
DDR3 | 1GB |
QSPI FLASH | 256Mb |
Start-up Mode | JTAG/QSPI, The Default Boot Mode is QSPI |
Gigabit Ethernet Chip | 1 |
User LEDs | 2 |
Reset KEY | 1 |
Number of GTP | 4 Pairs of TX/RX |
Number of IO | 172 IO |
Crystal Oscillator | 200MHz Differential Crystalfor FPGA 125MHz Differential Crystal for the GT Transceiver Reference Clock |
Technology | Black Matte. Immersion Gold Process |
Core Board Form Factors | 2.36 inch x 1.77 inch (60 mm x 45mm) |

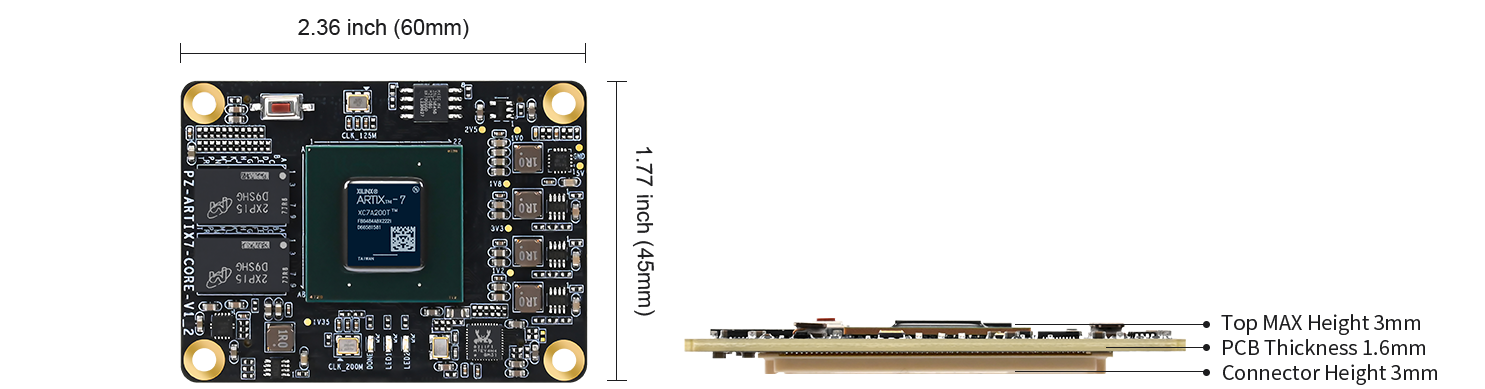

Product Dimensions
Technical Support
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

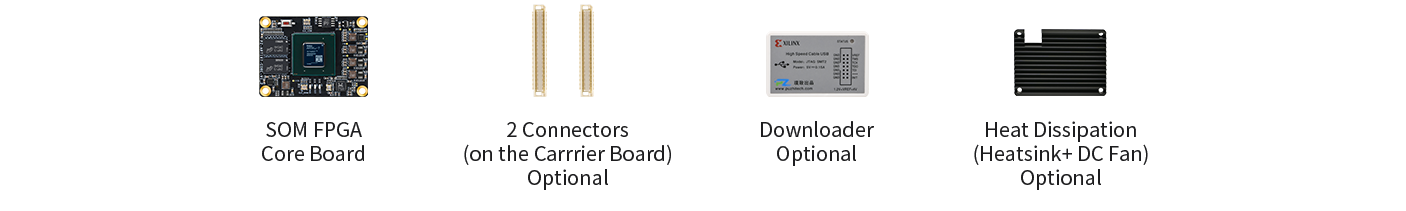

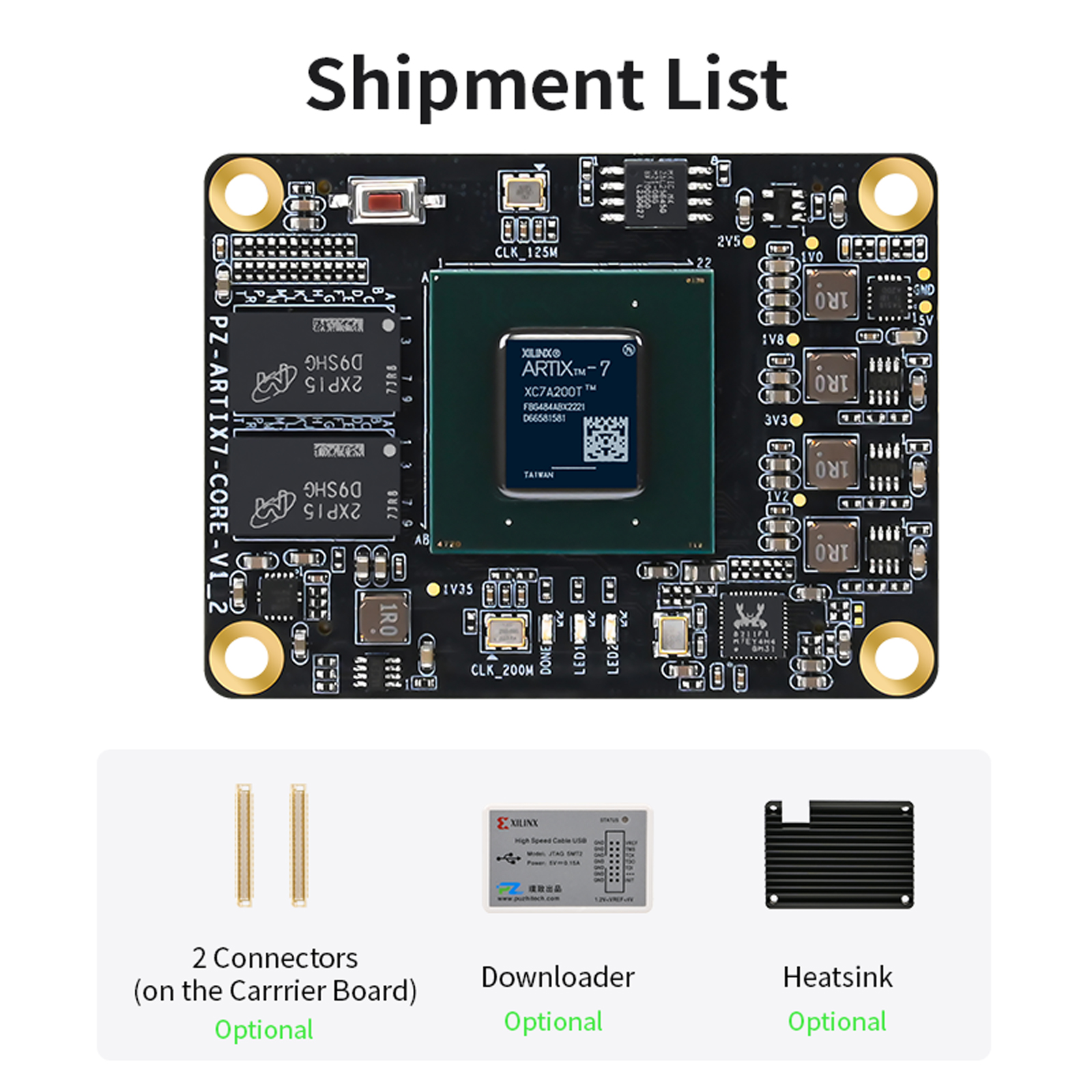

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
