Puzhi FPGA Kintex-7 K7325T Core Board
- Kintex-7 Core board / logical unit 326k / Slices 50950
- 2GB DDR3，256Mb QSPIFLASH，Power supply/current 5V/3A
- Size 83.8 x 64.8mm，up to 288 IO available，16 pairs of GTX
- Extreme material selection and process standards，industrial grade -40℃~+85℃
- Support PYNQ，provide hardware reference & rich routines，help product development

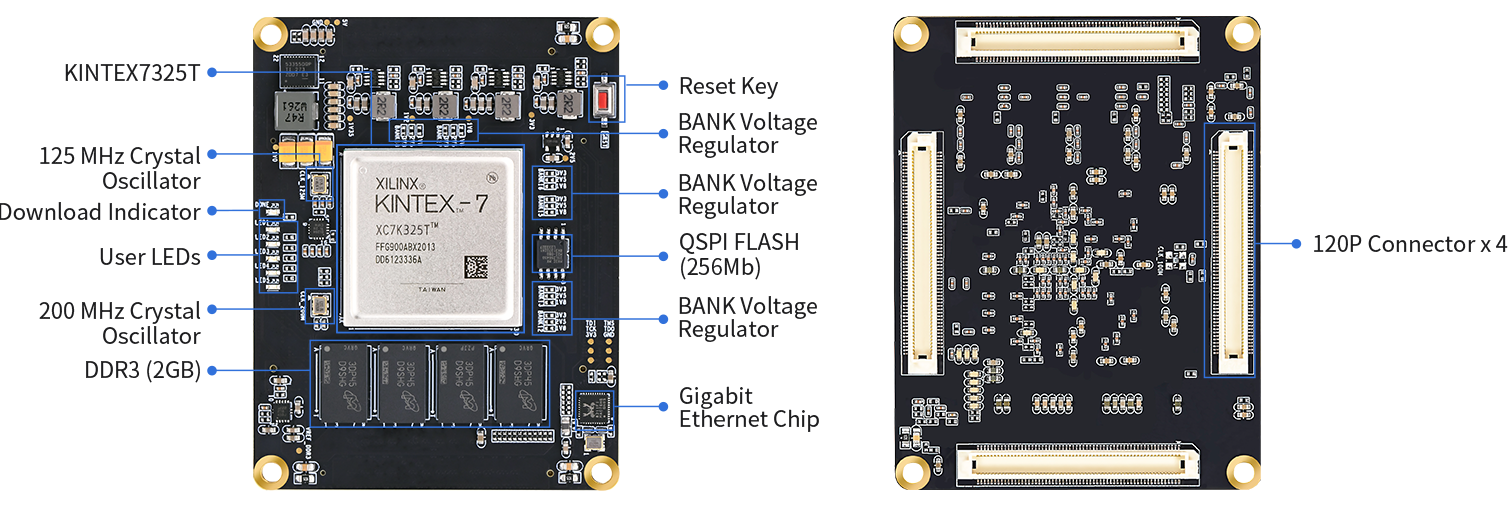

Interface Function Display
Product Parameters
Specification
FPGA Core Board | PZ-K7325T-SOM |
FPGA Chip | XC7K325T-2FFG900I |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 326K |
Slices | 50950 |
Flip-Flops | 407600 |
DSP Slices | 840 |
BLOCK RAM | 16020 |
DDR3 | 2GB/64bit Width |
QSPI FLASH | 256Mb, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI, The Default Boot Mode is QSPI |
Gigabit Ethernet Chip | 1 |
User LEDs | 5 |
Number of GTX | 16 Pais of TX/RX |
Number of IO | Total 288 Single-ended/ 144 Differential Pairs |
Voltage / Current | 5V/3A |
Crystal Oscillator | 200MHz Differential Crystalfor FPGA 125MHz Differential Crystal for the GT Transceiver Reference Clock |
Technology | Black Matte. Immersion Gold Process |
Core Board Form Factors | 3.30 inch x 2.55 inch (83.8mm x 64.8mm) |

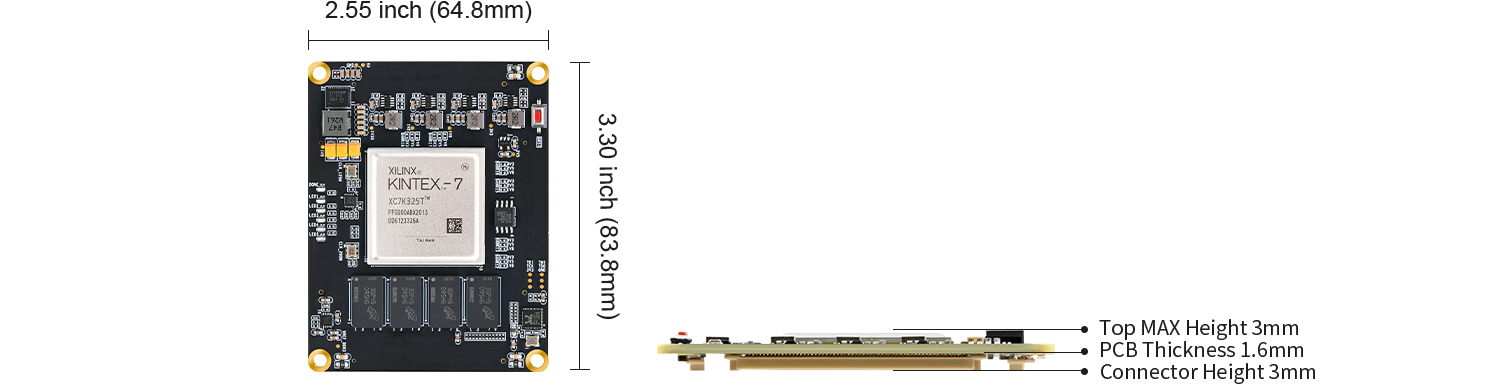

Product Dimensions
Technical Support
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

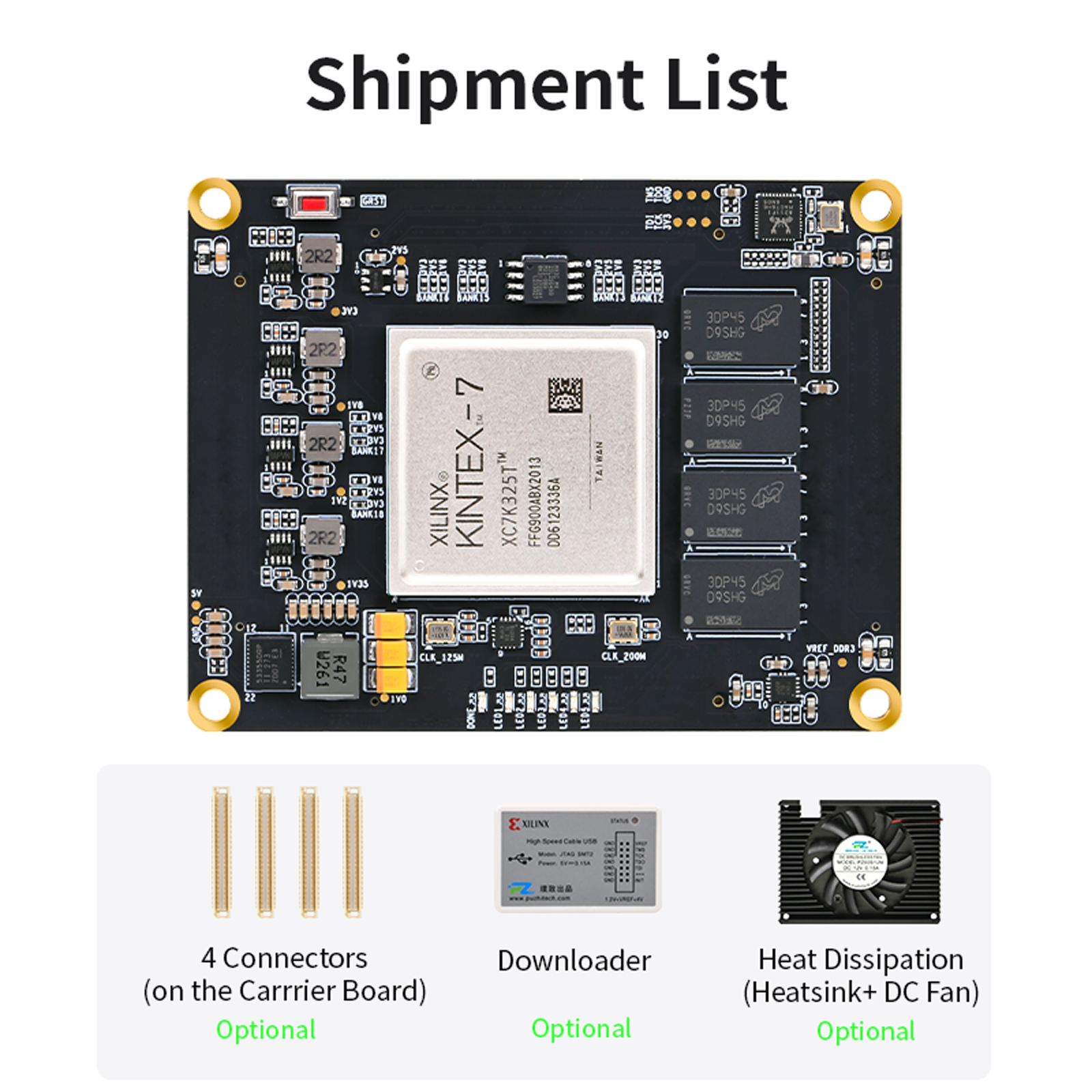

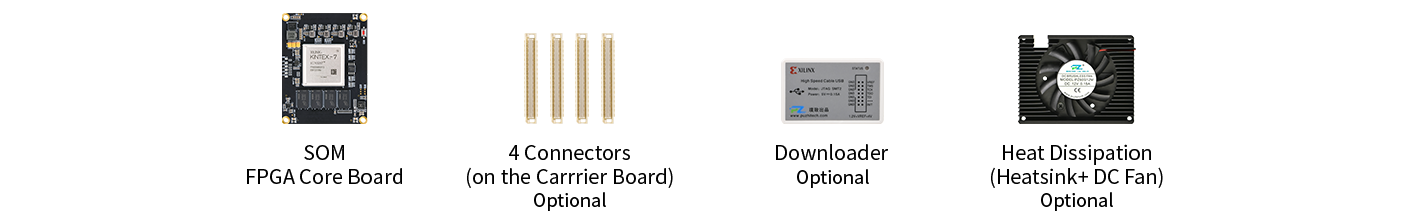

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
