Puzhi FPGA Virtex UltraScale+ VU13P Core Board
- Virtex UltraScale+ Core board / logical unit 3780k / Slices 1728k
- 8GB+8GB DDR4，up to 360 IO available，76 pairs of GTY
- Size 100*100mm，Power supply/current 12V/20A
- Extreme material selection and process standards，industrial grade -40℃~+85℃
- Support PYNQ，provide hardware reference & rich routines，help product development

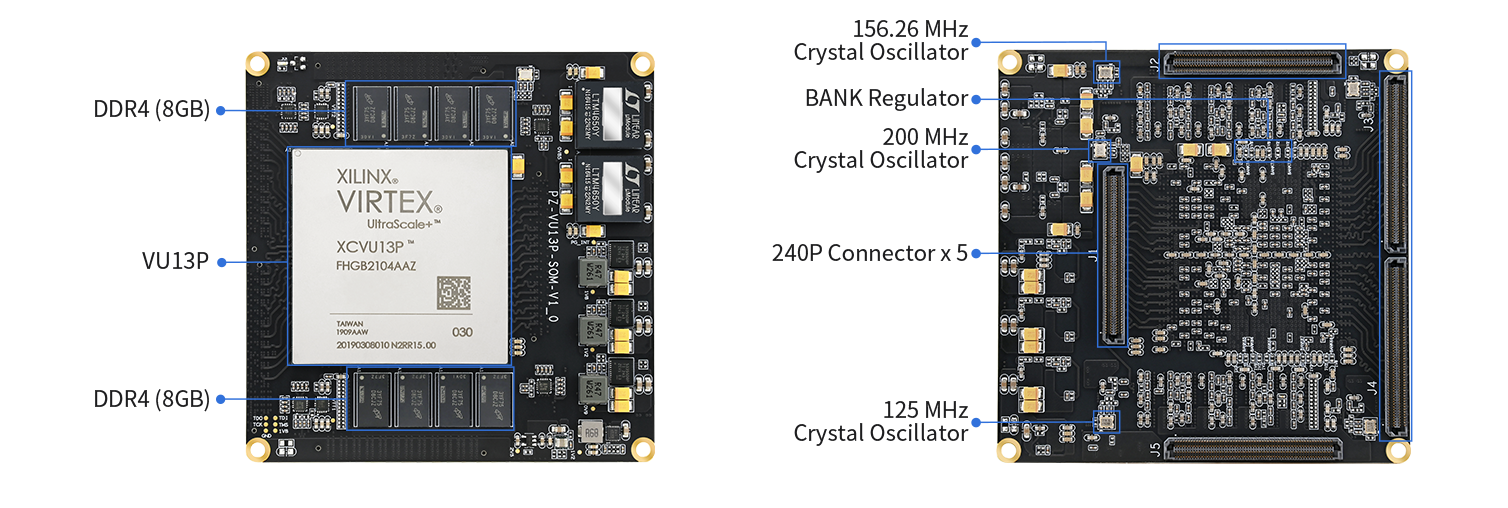

Interface Function Display
Product Parameters
Specification
FPGA SOM | PZ-VU13P-SOM |
FPGA Chip | XCVU13P-2FHGB2104I |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 3780K |
Lookup Tables (LUTs） | 1728000 |
Flip-Flops | 3456000 |
DSP Slices | 12288 |
BLOCK RAM | 94.5Mb |
DDR4 | Dual Group of DDR4 (8GB + 8GB) |
Start-up Mode | JTAG/ BPI/ SPI, JTAG Startup by default |
Number of GTY | 76 Pairs of TX/RX |
Number ofIO | 360 single-ended/180 differential pairs (1.2/1.8V adjustable, default 1.8V) |
Voltage/ Current | 12V/20A |
Crystal Oscillator | 200MHz Differential Crystalfor FPGA 125MHz and 156.25MHz Differential Crystal for the GT Transceiver Reference Clock |
Form Factors | 3.94 inch x 3.94 inch (100mm x 100mm) |
Technology | 0.635mm Spacing, 240P Connectors x 5, Immersion Gold Process, PCB thickness 2.2mm |

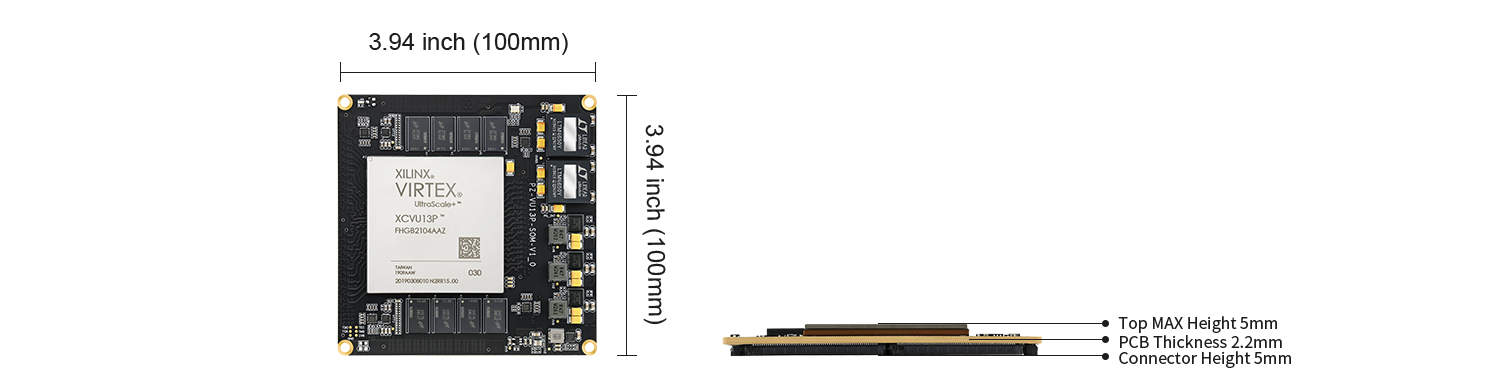

Product Dimensions
Product Packages
Technical Support
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

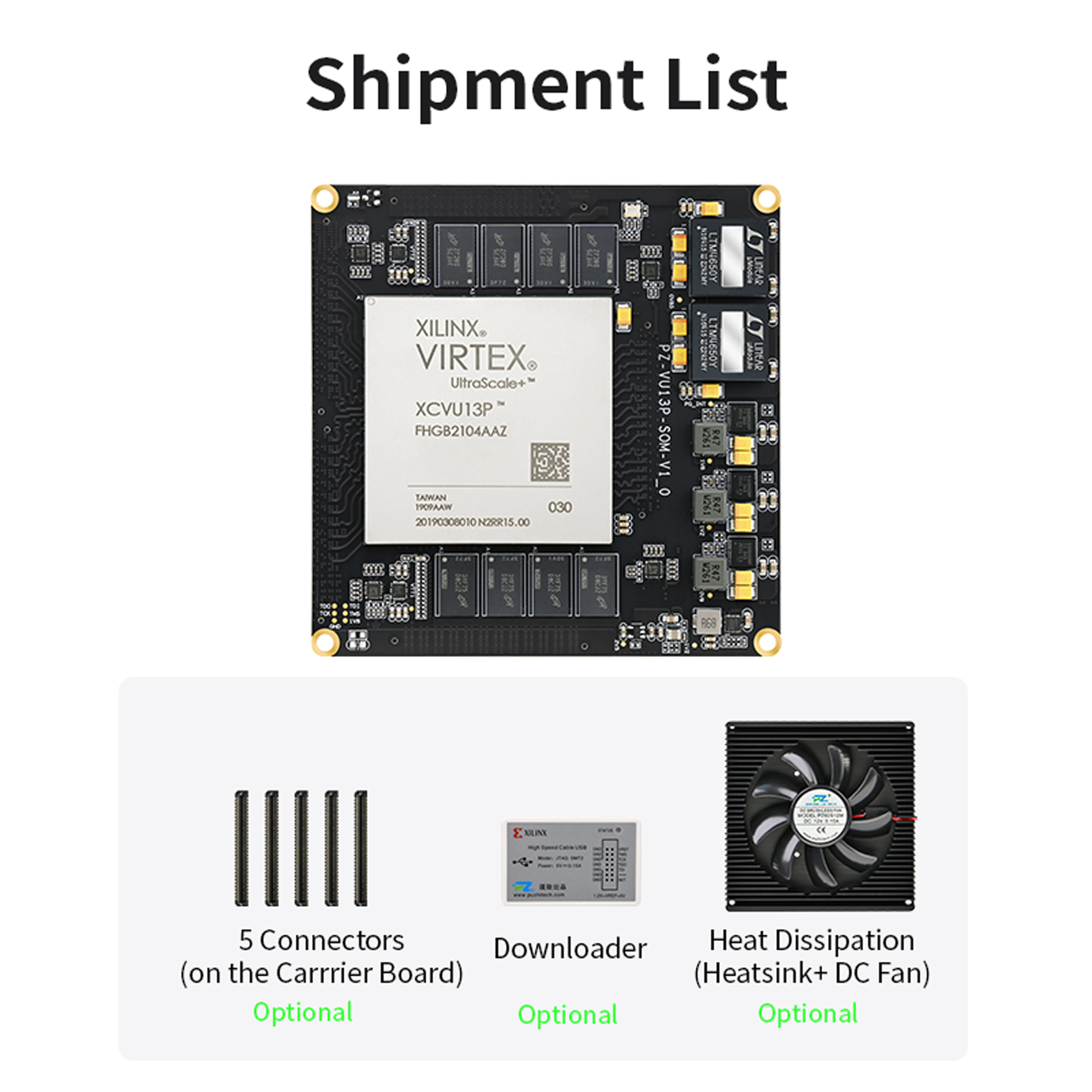

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
