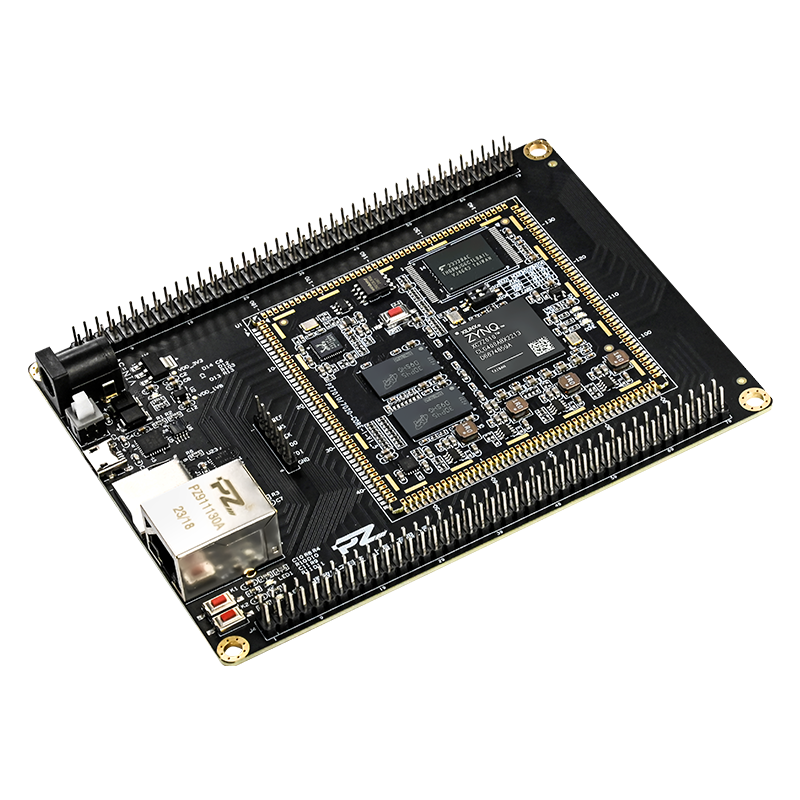

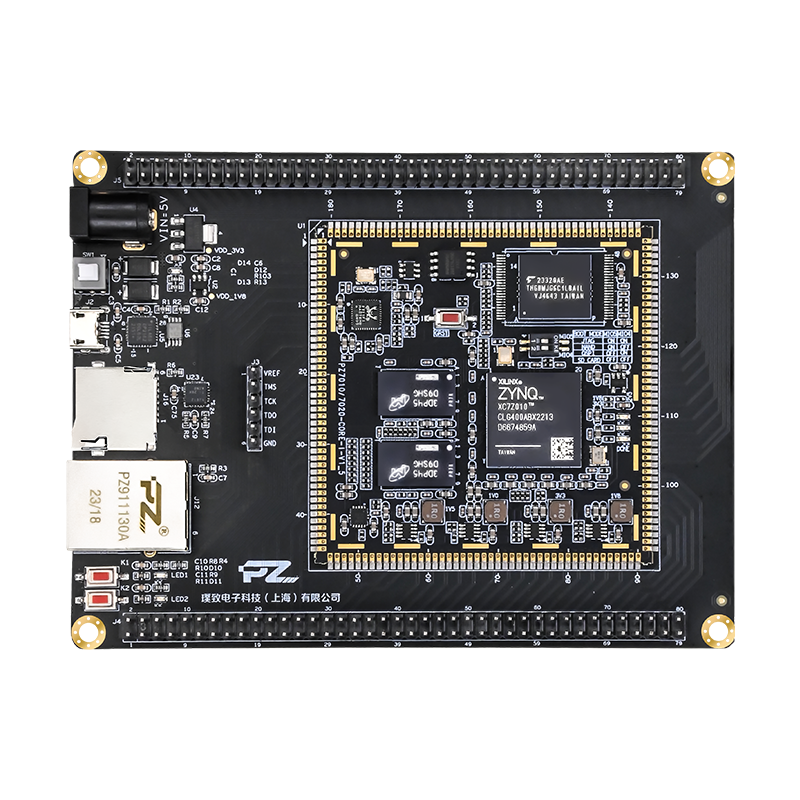

Puzhi FPGA ZYNQ7000 ZYNQ7010 Expansion Board
- ZYNQ core board，dual-core ARM Cortex-A9，main frequency 667Mhz
- Core parameters 512MB DDR3，4GB EMMC，128Mb QSPI FLASH
- Powerful processing power and rich interface，support a variety of peripherals
- Extreme material selection and process standards， reliable quality
- Support PYNQ，provide hardware reference & rich routines，help product development

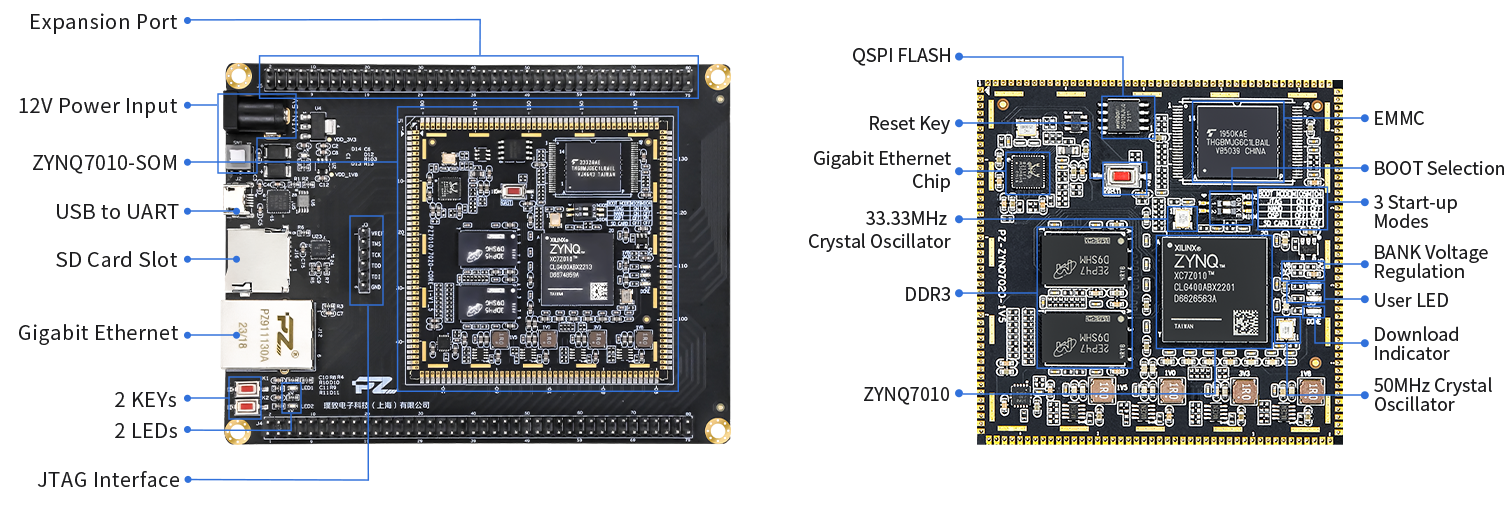

Interface Function Display
Product Parameters
Core Board Main Parameters
FPGA Dev. Board | PZ7010-KZB |
FPGA Chip | XC7Z010-2CLG400I |
Processor Core | Dual Core ARM Cortex-A9 |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 28K |
| Lookup Tables | 17600 |
Flip-Flops | 35200 |
DSP Slices | 80 |
BLOCK RAM | 2.1Mb |
DDR3/DD3L | 512MB |
QSPI FLASH | 128Mb |
EMMC | 4GB |
User LED | 2 |
Start-up Mode | JTAG/QSPI/SD, On-board DIP Switch Selection |
PS Side MIO | 24 |
PL Side IO | 94 Single-ended IOs 46 IOs fixed at 3.3V，48 IOs 1.8/2.5/3.3V adjustable，default 3.3V |
Crystal Oscillator | Single-ended Crystal 33.3333MHz for PS Single-ended Crystal 50MHz for PL |
Core Board Form Factors | 2.40 inch x 2.40 inch (61mm x 61mm) |
Interfaces and Function
JTAG Interface | 1 |
USB to UART | 1 |
SD Card Slot Interface | 1 |
Gigabit Ethernet | 1 |
User LED | 2 |
User KEY | 2 |
Expansion Port | 16 on PS Side, 114 on PL Side |
Voltage / Current | 5V/1A |
Board Form Factors | 4.72 inch x 3.54 inch (120 mm x 90mm) |
Technology | Black Matte, lmmersion Gold Process |

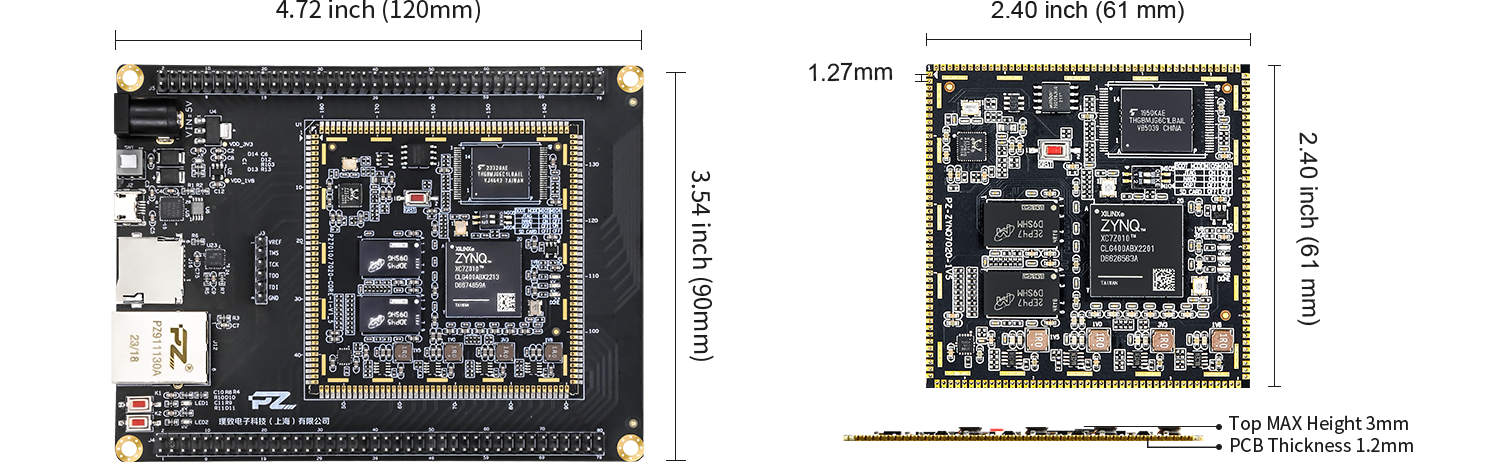

Product Dimensions
Product Packages
Supporting Display

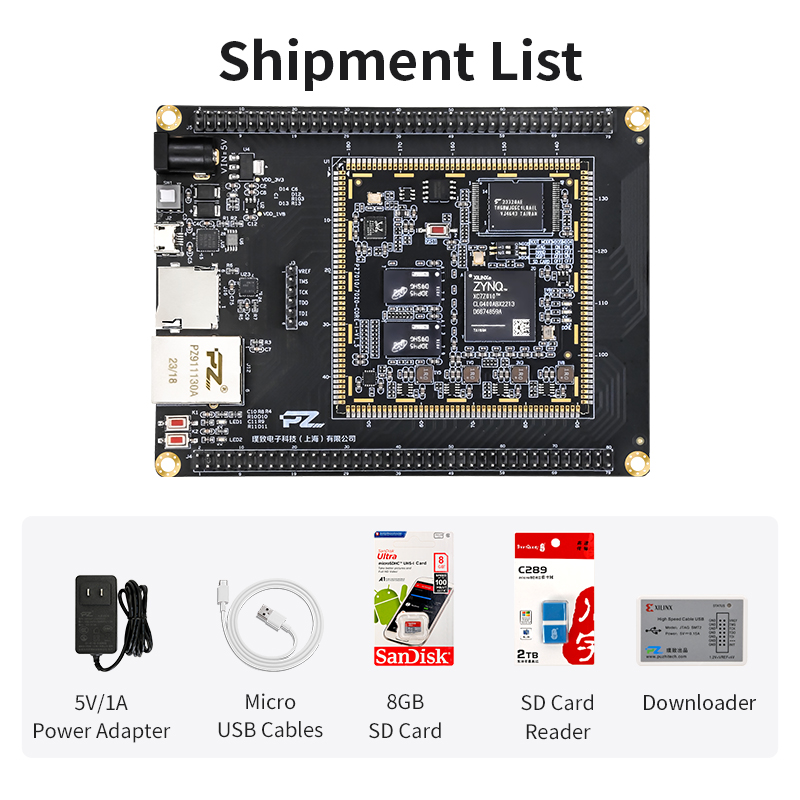

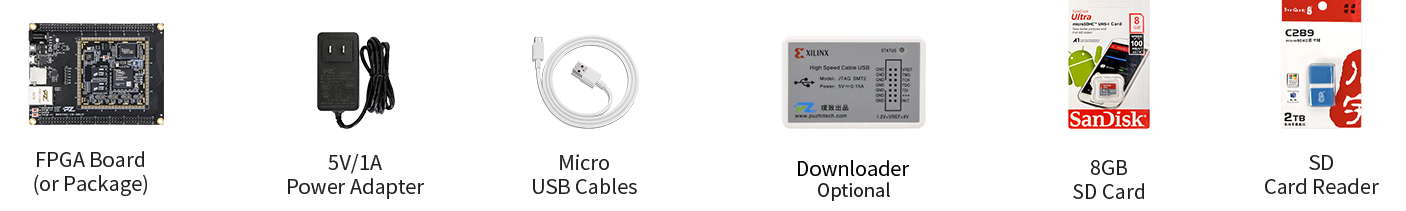

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
